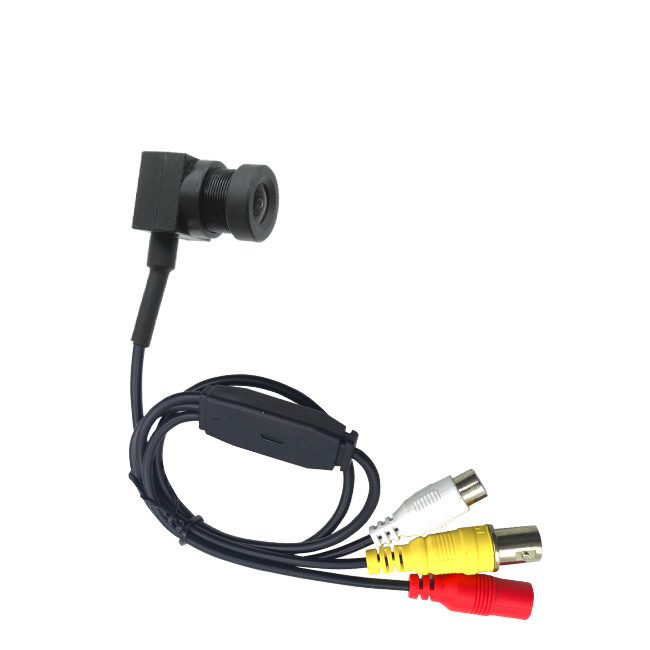

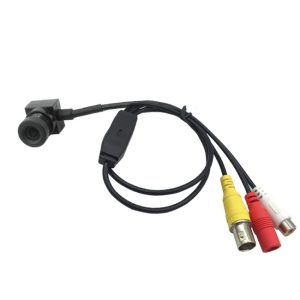

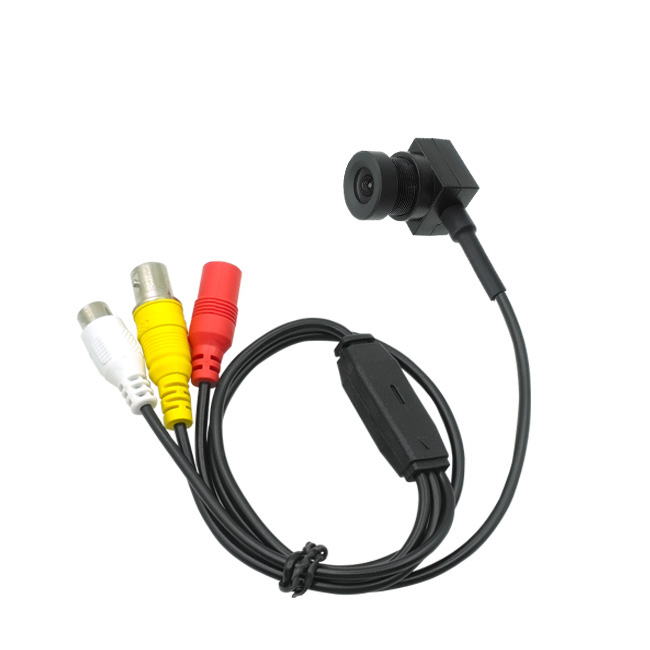

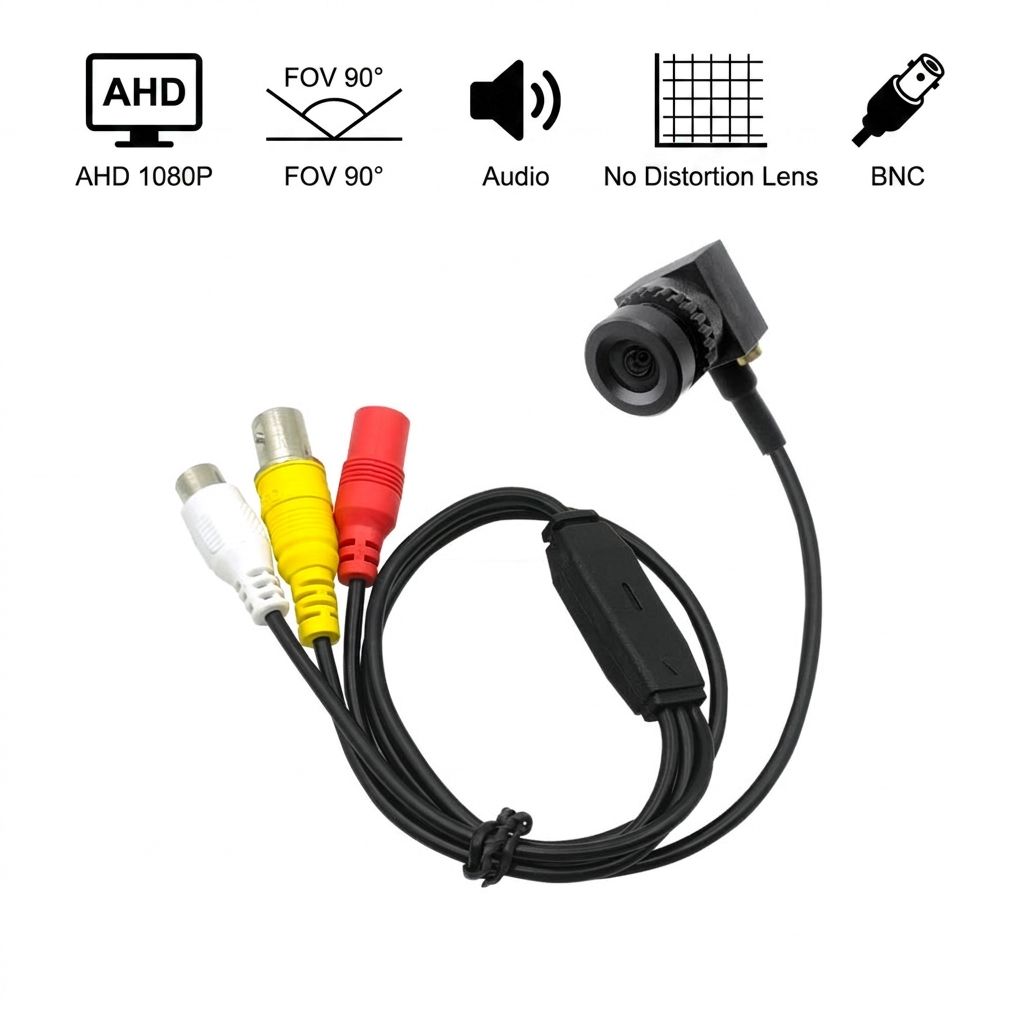

Key Features

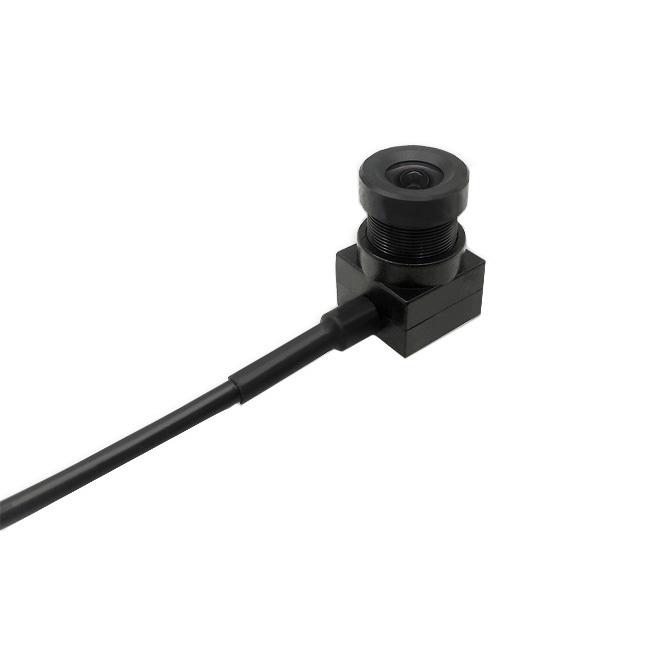

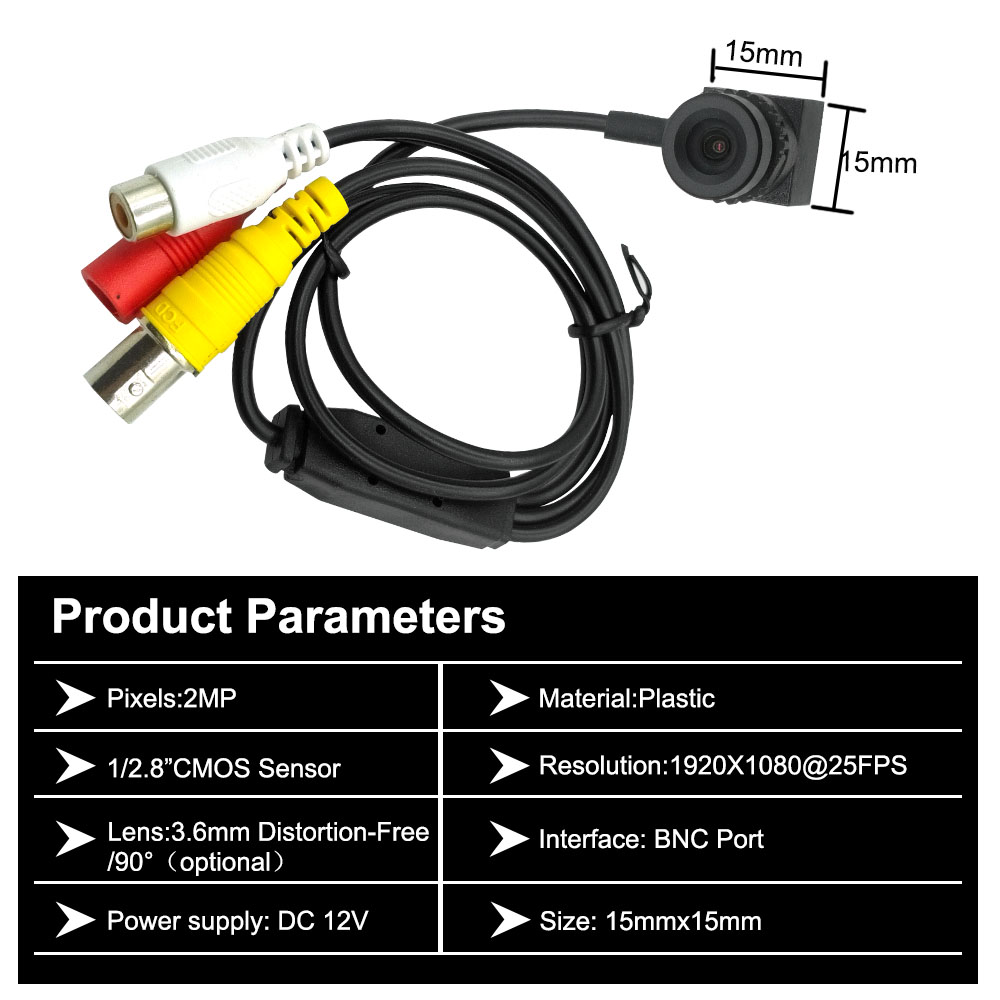

- Ultra compact exterior design: With a size of only 15x15mm, its extremely small size takes up almost no space during installation. It can be easily hidden in various corners, behind decorations, or inside industrial equipment, achieving true “seamless” monitoring and greatly improving the concealment and security of monitoring.
- 1080P Full HD Image Quality: 2 million effective pixels, outputting full HD videos with a resolution of up to 1920 × 1080, providing details far superior to traditional analog cameras.

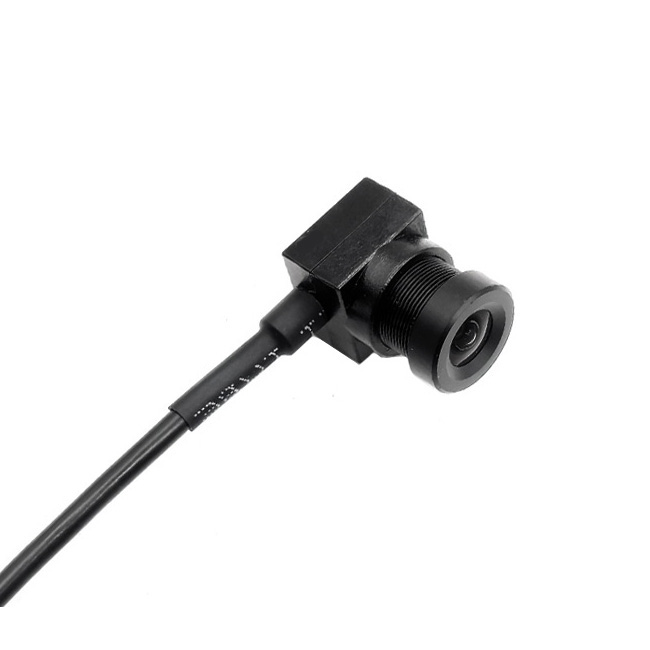

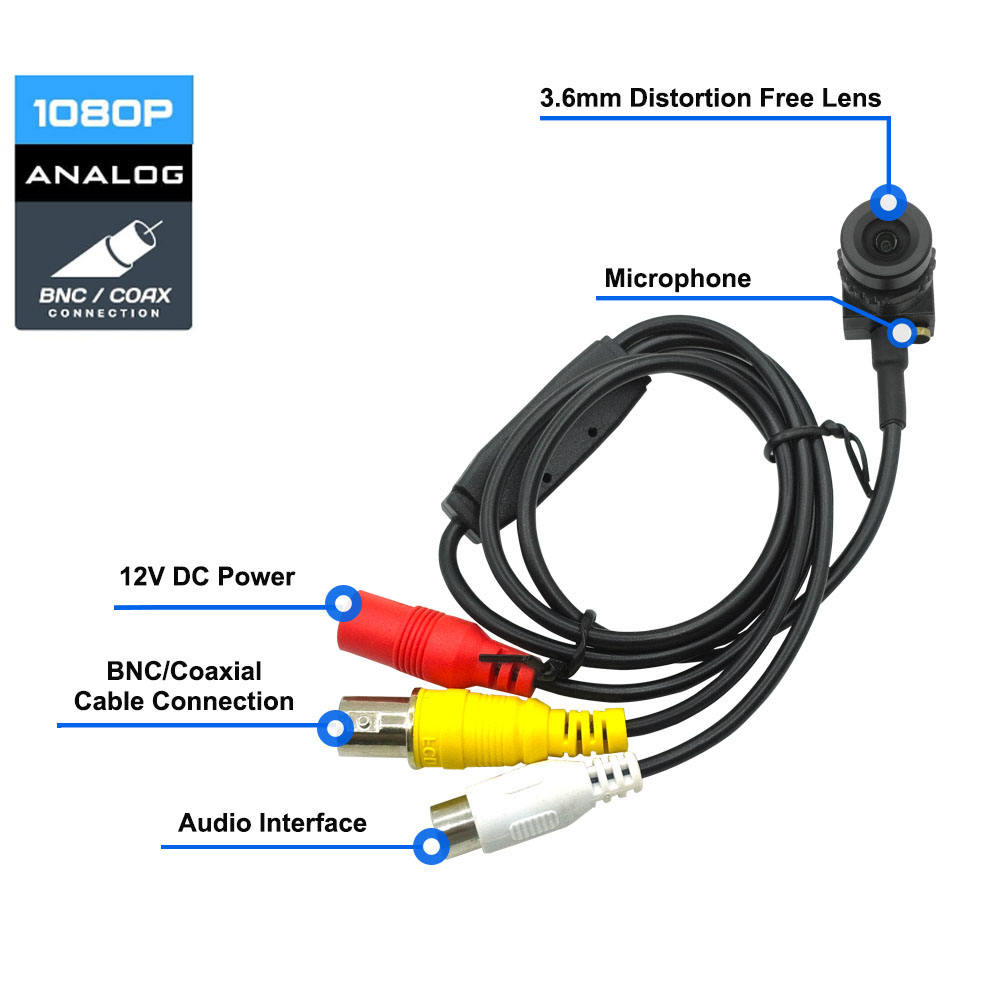

- 3.6mm distortion-free lens: Provides the best viewing angle of approximately 90 °. Unlike ordinary wide-angle lenses, it effectively corrects edge distortion, ensuring that straight lines in the image remain horizontal and vertical, objects are not distorted, and accurate visual information is presented.

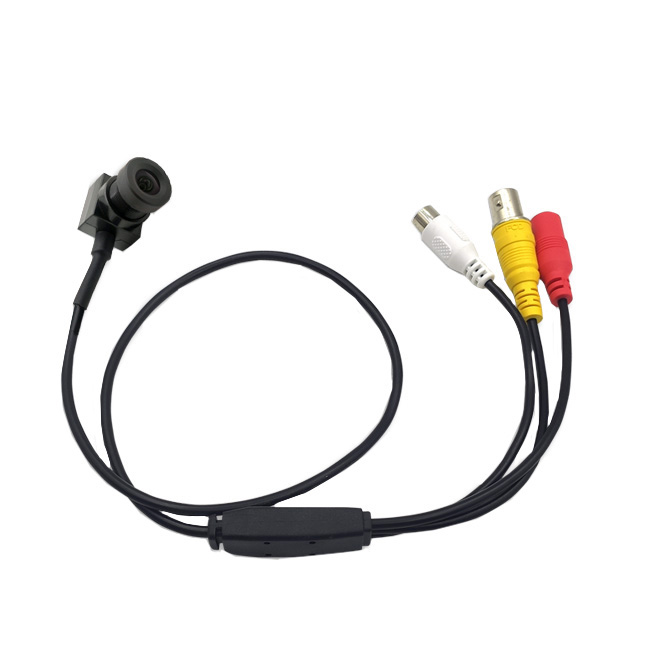

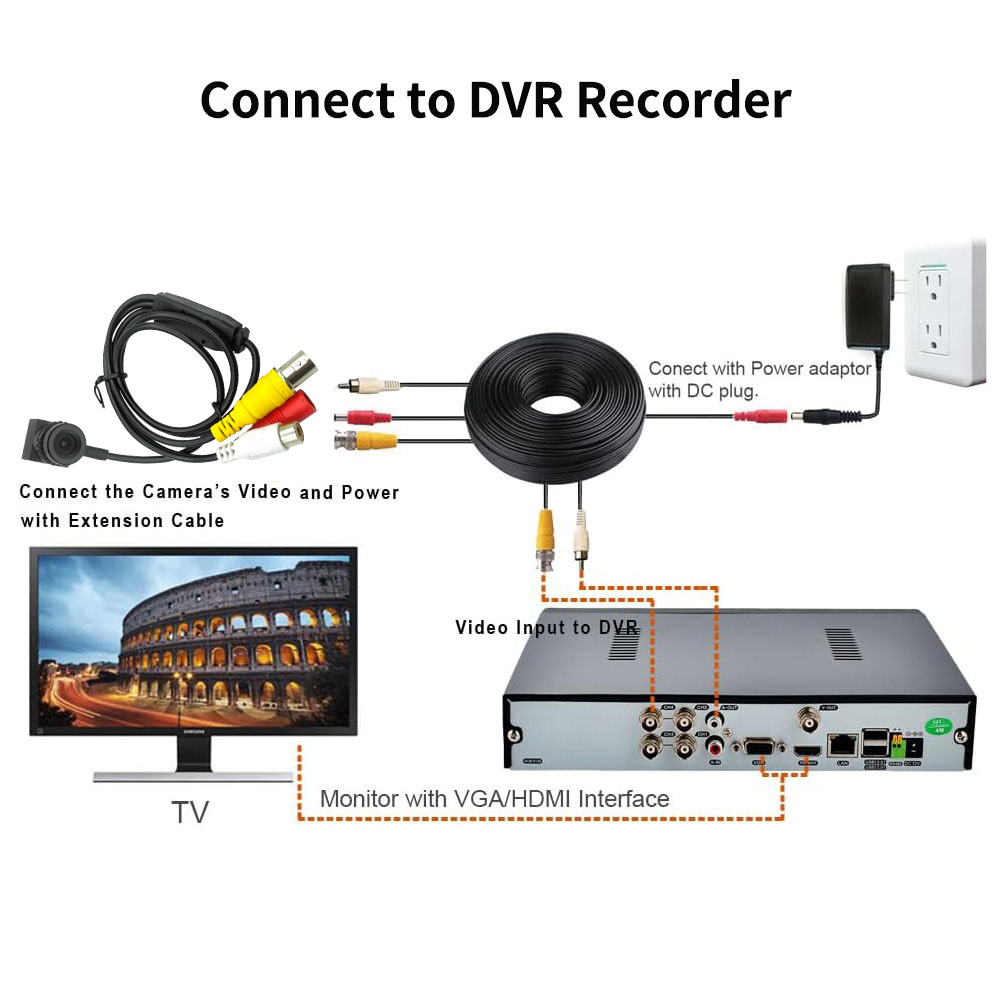

- BNC video output interface: Plug-and-play compatibility with the BNC interfaces of most DVRs (Digital Video Recorders) on the market, ensuring a stable and reliable connection.
Technical Specifications
| Style | Mini Camera |
| Sensor | 1/2.8″ CMOS |
| Pixel | 2.0 Mega Pixels |
| Resolution | 1920*1080P@25fps |
| Size | 15*15MM |
| Audio | Mic |
| Camera Used for | Security Surveillance |
| Lens | 3.6mm distortion-free lens |
| View angle | 90 Degree |
| Aperture | F2.0 |
| Function | Built-In Mic |
| Model Number | HCA-152J36W |
| Video Output | BNC Port |
| Operating Voltage | 12v |
Applications
Industrial automation and machine vision
Security monitoring and embedded access control systems
Concealed surveillance and vehicle monitoring
Smart home security and endoscope imaging
Laboratory monitoring and DVR systems
Traffic monitoring and retail terminals
Drone/robot vision and education/conference systems
Various embedded visual solutions
Customization Options
We are well aware of the unique visual requirements of different applications and provide comprehensive OEM/ODM customization services to help you create differentiated products.
- Lens customization: specific focal length, field of view angle, distortion control.

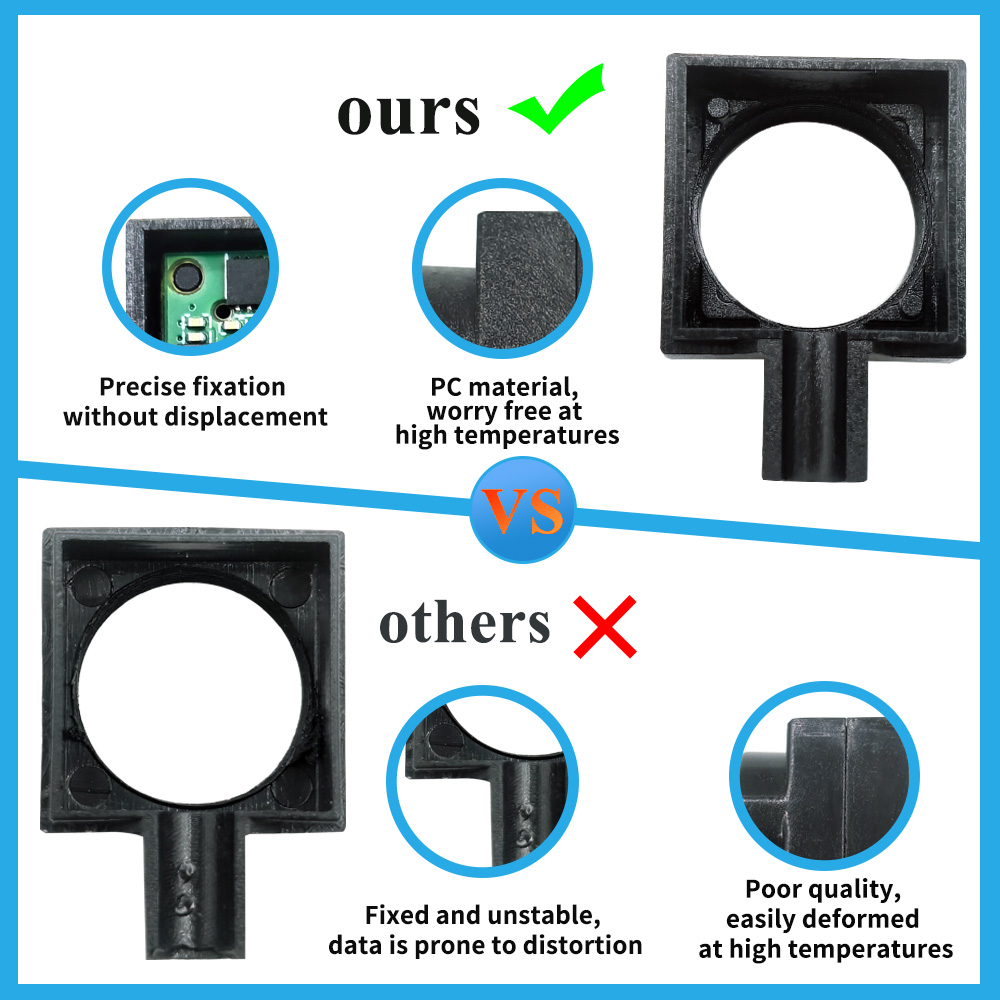

- Customized casing: Design a dedicated casing, bracket, or fixing method based on the structure of your device.
- Cable and Interface: Customize cable length and interface type.
- Pixel customization: Different resolution and frame rate models are available.
- Customized services: USB camera module, AHD camera module, CVBS camera module, Network camera module, Wifi camera module, etc.
