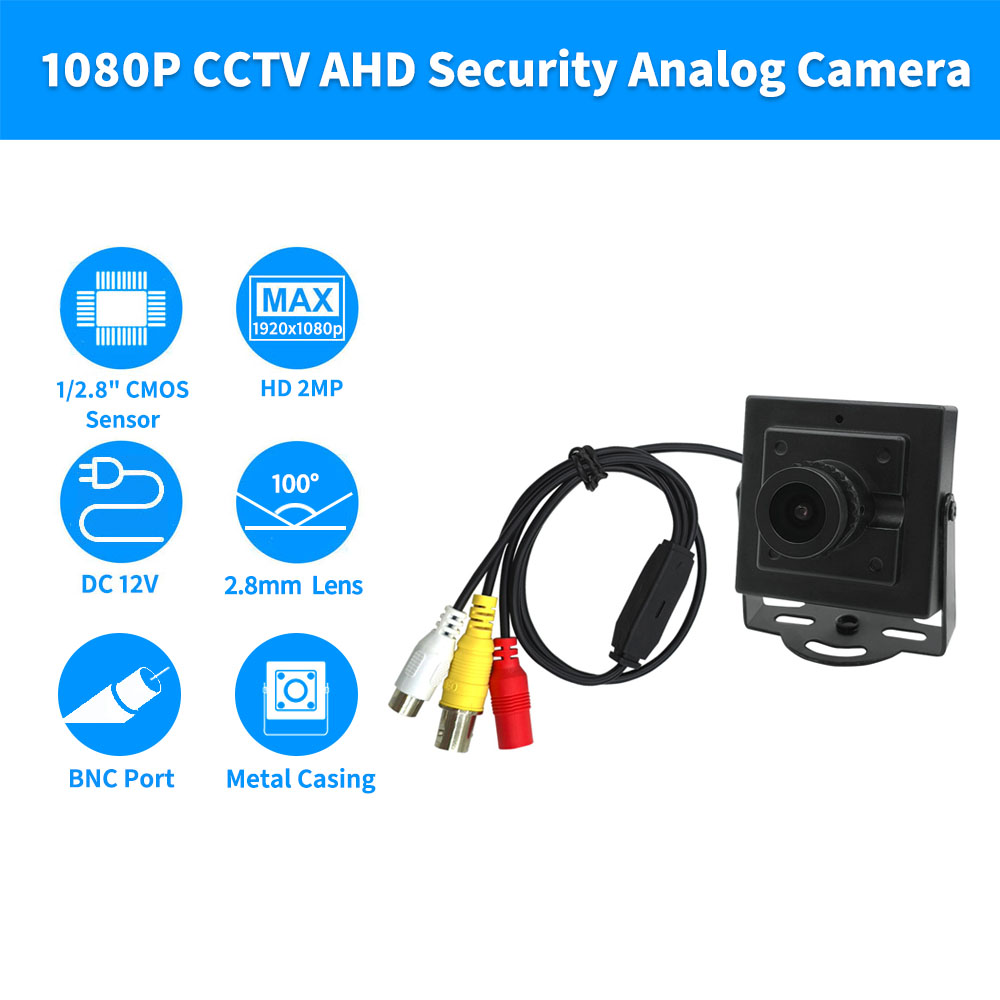

Product Features

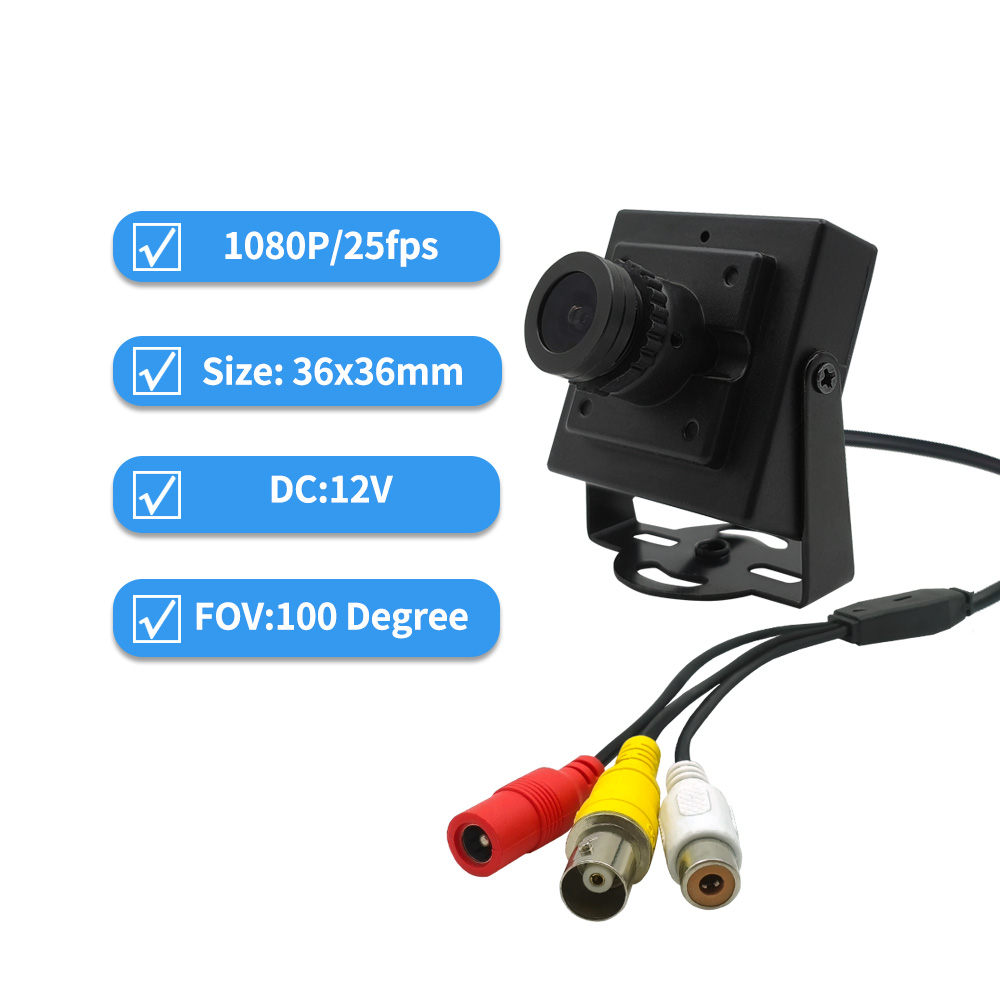

- 1080P full HD image quality, with every detail fully displayed: Using a 1/2.8-inch CMOS sensor, effectively outputting 1920x1080P full HD resolution.

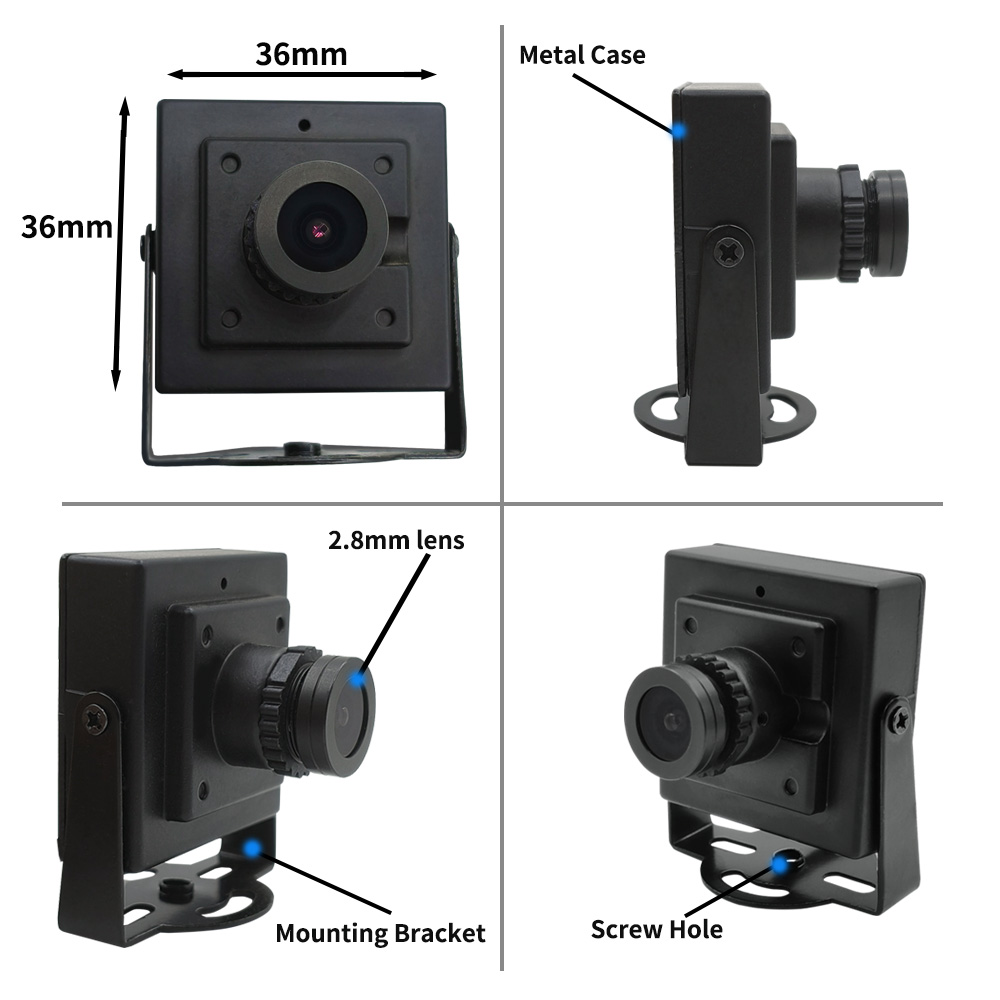

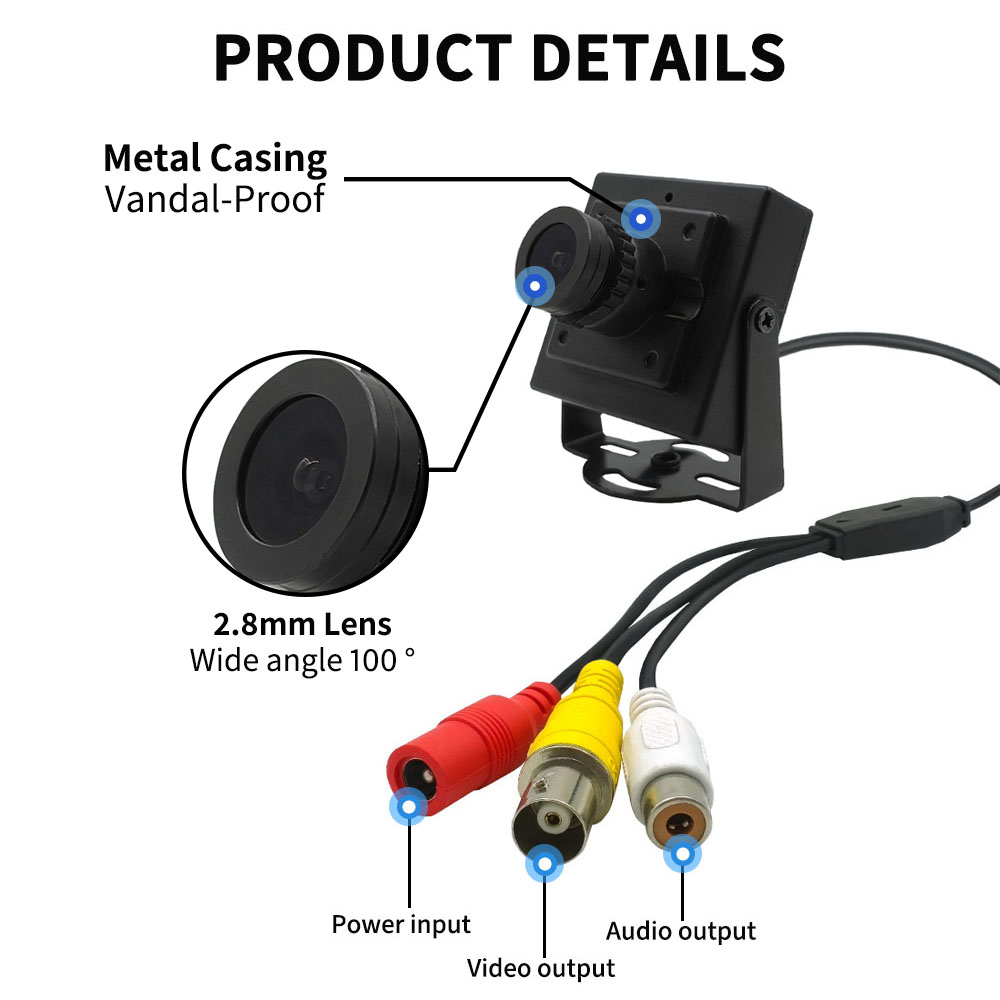

- Mini casing, powerful concealment: The camera size is only 36x36mm, and the all metal casing not only ensures heat dissipation and durability, but also makes the device less noticeable after installation. Adapt to various indoor and outdoor environments. For outdoor semi outdoor application scenarios, its structure can effectively prevent dust and damage.
- 2.8mm wide-angle lens, 100° wide field of view without blind spots: Small stature does not mean narrow field of view. Equipped with a 2.8mm high-definition wide-angle lens, with a horizontal viewing angle of up to 100 degrees, it can easily cover panoramic views of elevator cars, corridors, taxi interiors, or small stores.

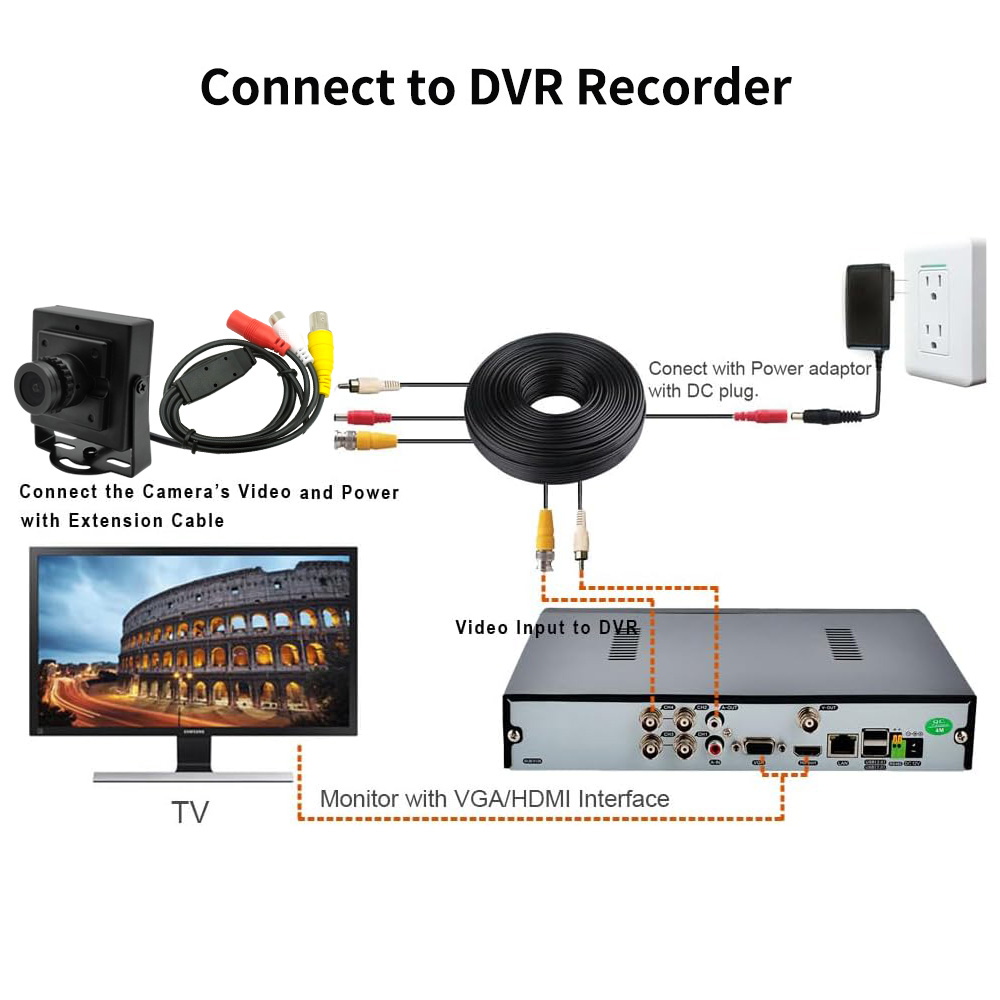

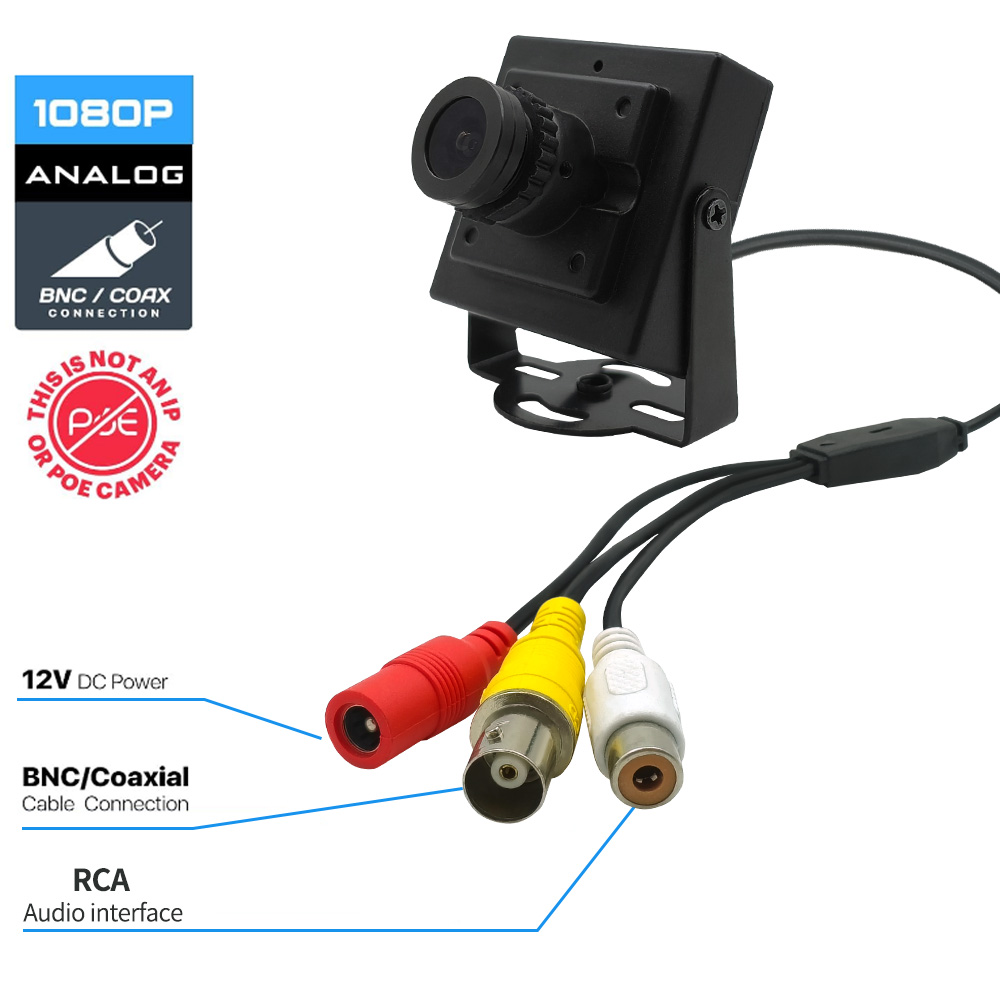

- Compatible with: AHD coaxial analog transmission, BNC standard interface, can directly adapt to traditional DVR storage systems.

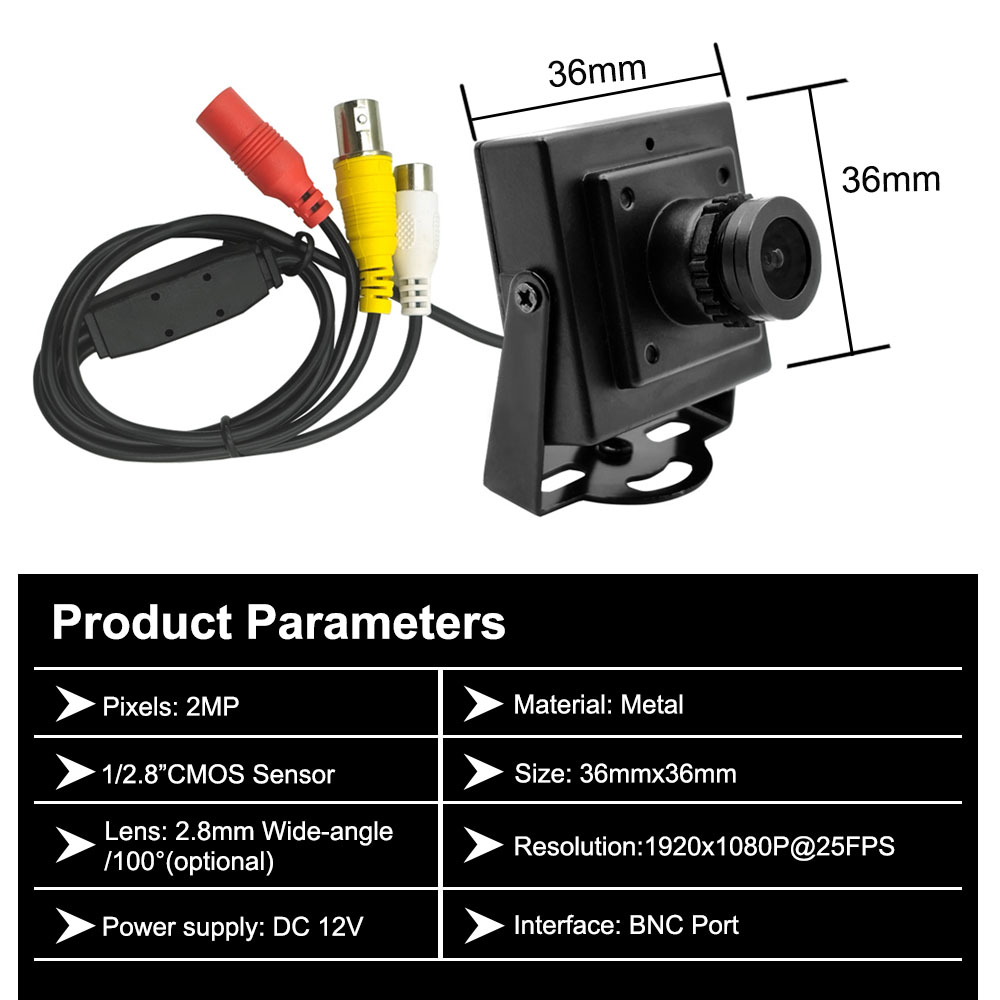

Technical Specifications
| Style | Mini Camera |
| Sensor | 1/2.8″ CMOS |
| Pixel | 2.0 Mega Pixels |
| Resolution | 1920*1080P@25fps |
| Size | 36*36MM |
| Special Features | Vandal-Proof |
| Camera Used for | Security Surveillance |
| Lens | 2.8mm |
| View angle | 100 Degree |
| Aperture | F2.0 |
| Material | Metal |
| Video Compression Format | Analog signal |
| Data Storage Options | DVR |
| Model Number | HCA-36J28 |
| Video Output | BNC Port |
| Operating Voltage | 12v |
Application Scenarios
- Retail and Catering: Loss prevention at checkout counter, analysis of in store customer flow, and monitoring of kitchen lighting and stoves.
- Transportation: In car monitoring for taxis/ride hailing services, door monitoring for buses, and monitoring of truck compartments.
- Buildings and elevators: Internal monitoring of elevator cars, narrow corridors, and vending machines.
- Finance and Office: ATM machine interiors, small safes, open plan offices, conference rooms.
Customized Services and Procurement Information
As a professional camera module supplier, we provide comprehensive OEM/ODM customization services:
- Lightweight customization service: Supports custom logo and product label design
- Customization based on drawings: The installation structure can be adjusted according to your drawings
- Sample customization: Providing sample development services to meet special application needs
- Customized on demand: For large quantities of customers, adjustable parameter specifications
