1/2.8″CMOS 2MP HD Network Camera Module

$28.99

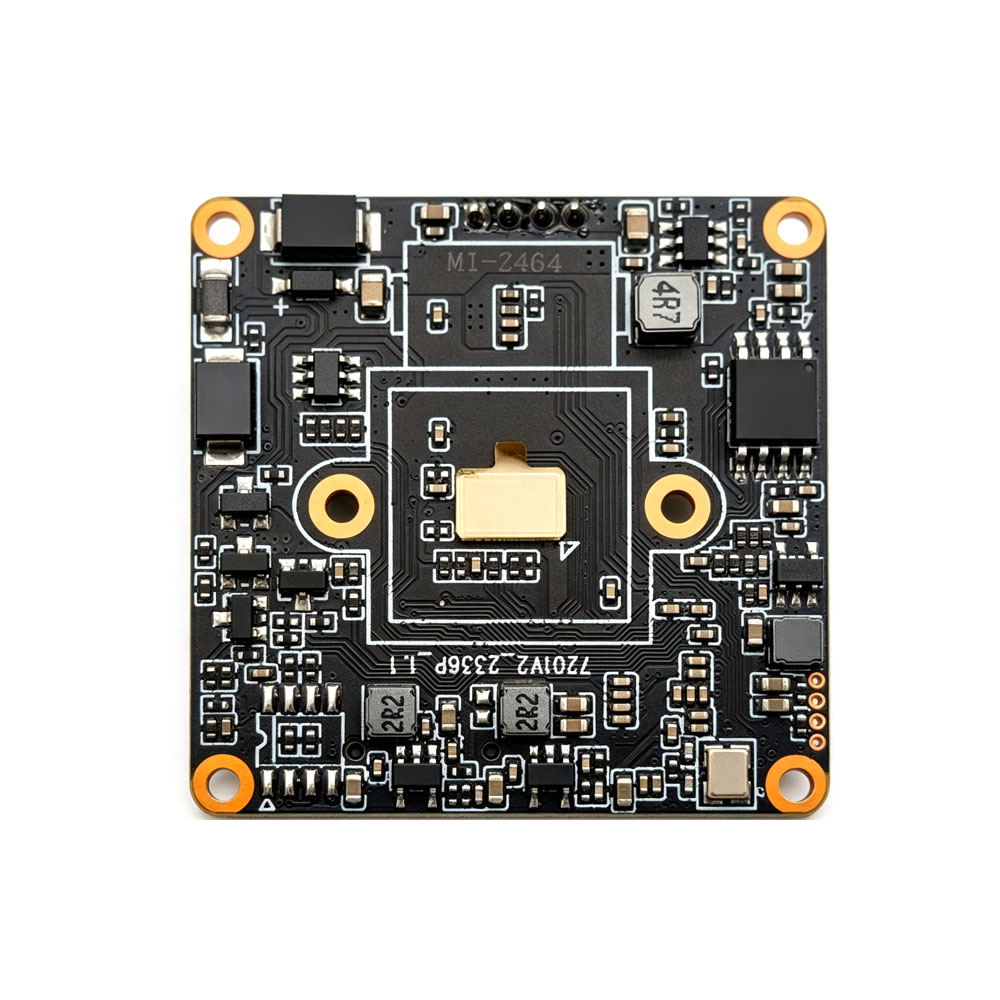

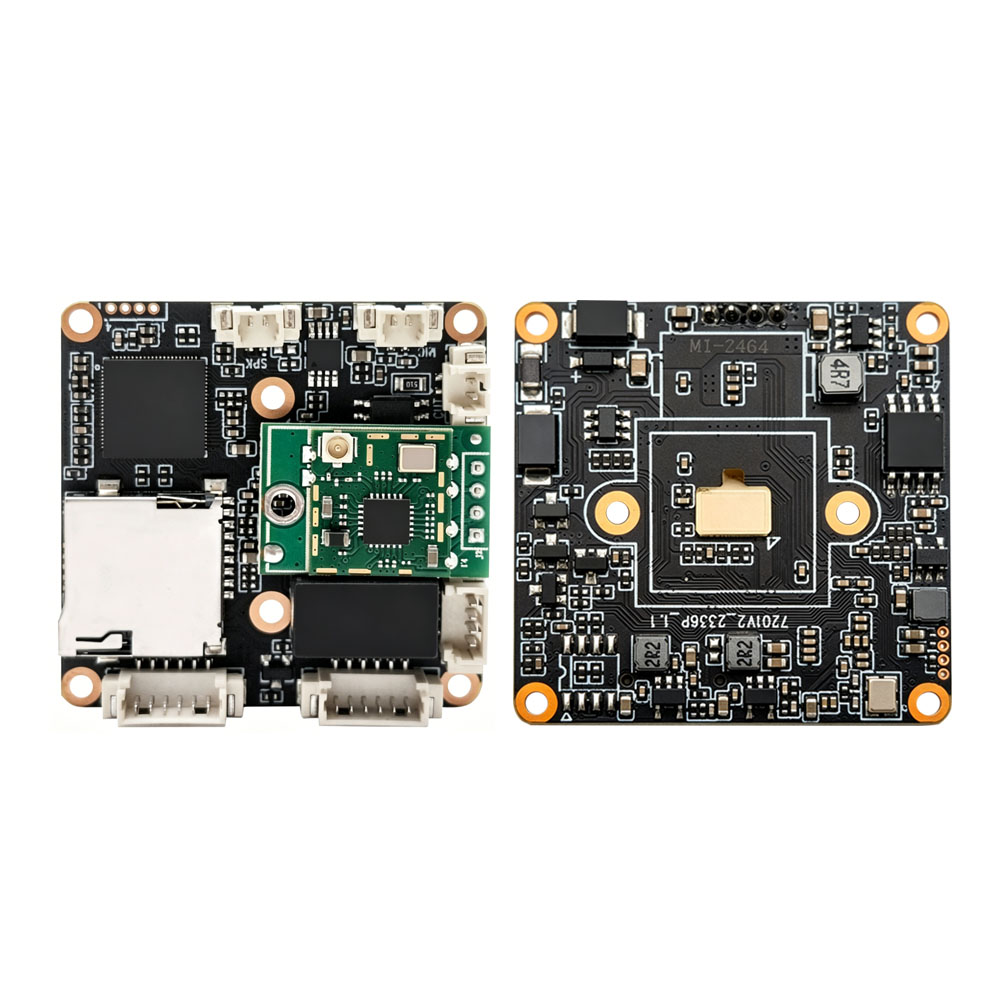

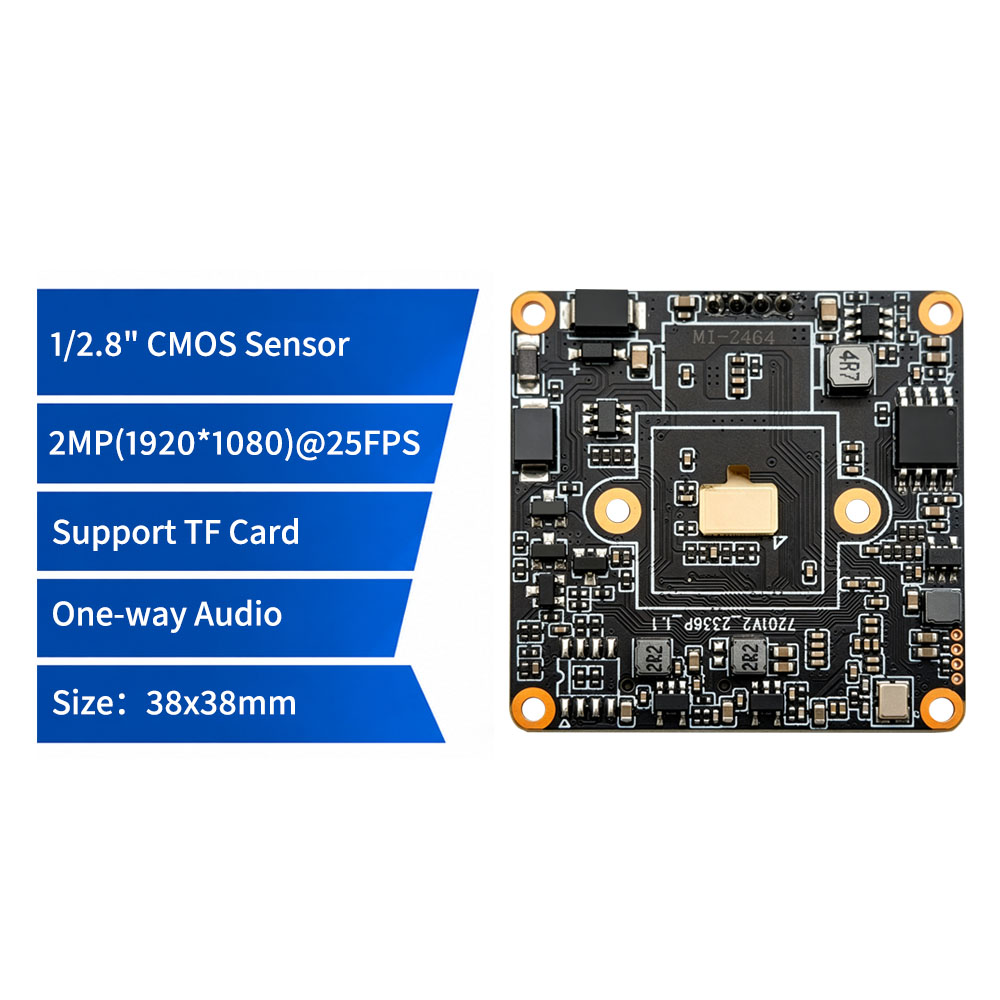

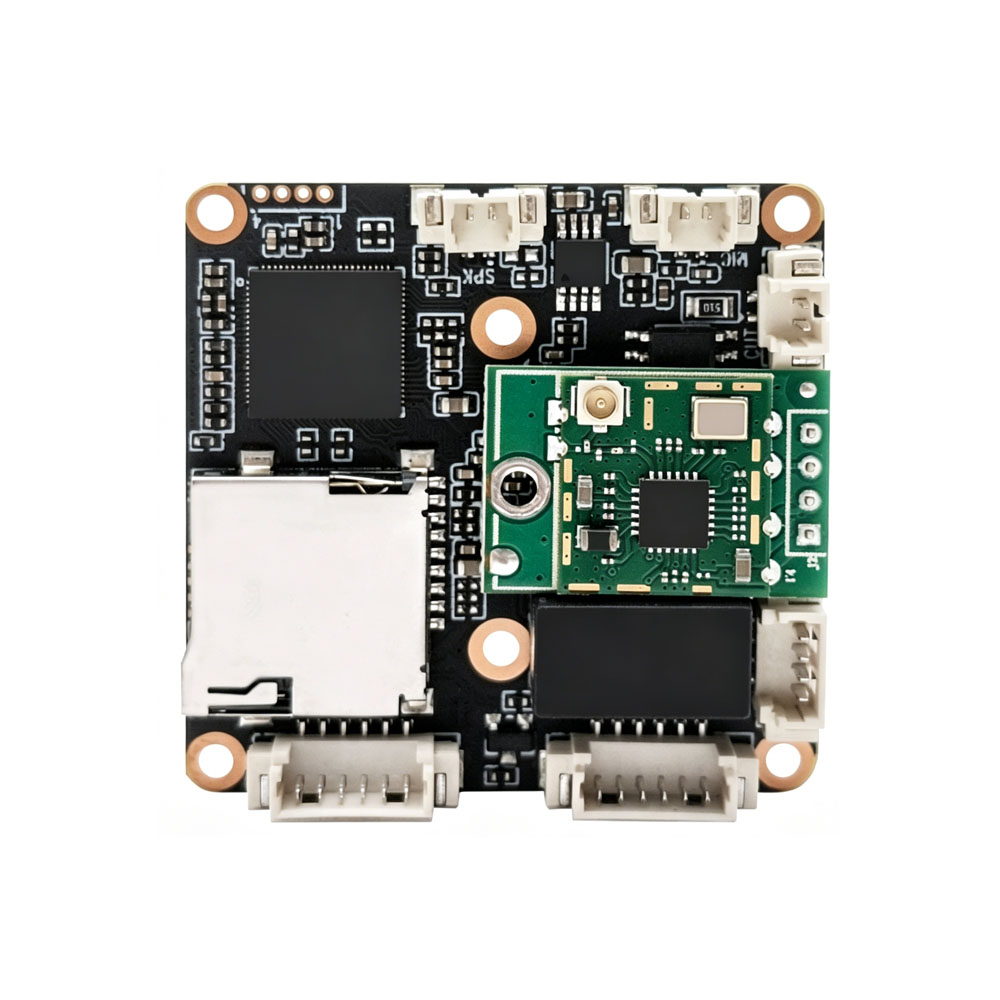

This is a 2-megapixel IP network camera PCB module, equipped with a 1/2.8-inch CMOS sensor, 1920 × 1080@25fps Full HD output, 38 × 38mm standard version, built-in single channel audio, DC12V power supply, compatible with mainstream security and embedded visual integration.

SKU: HCI-P382 Category: PCB board Brand: HCVSIGHT

Product functions and features

2MP 1080P full HD, 1/2.8 “CMOS sensor, balanced image quality, strong versatility.
Standard IP network output, compatible with ONVIF protocol, convenient for networking and remote management.
Onboard single channel audio acquisition, synchronous recording of audio and video, more complete evidence of events.
38 × 38mm industry standard square PCB, strong installation adaptability, easy integration and replacement.
DC 12V universal power supply, industrial grade stable design, supports all-weather long-term operation.

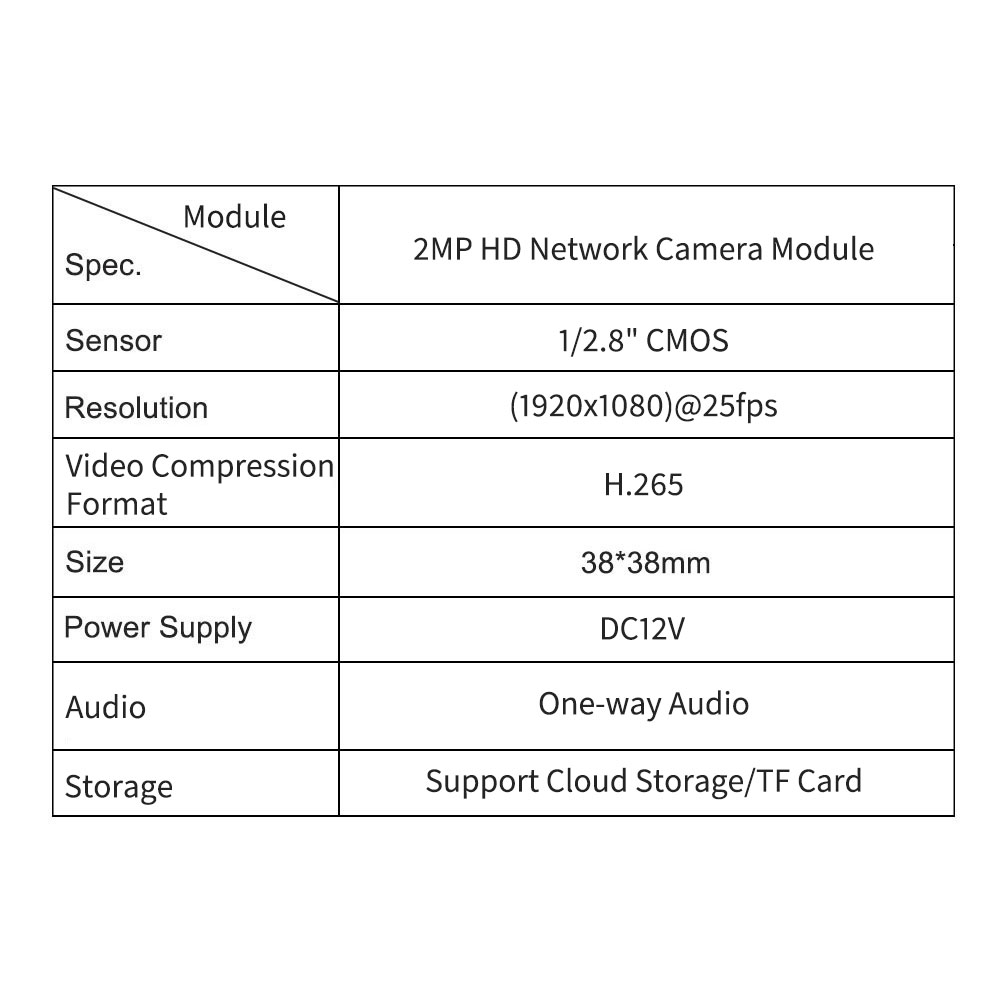

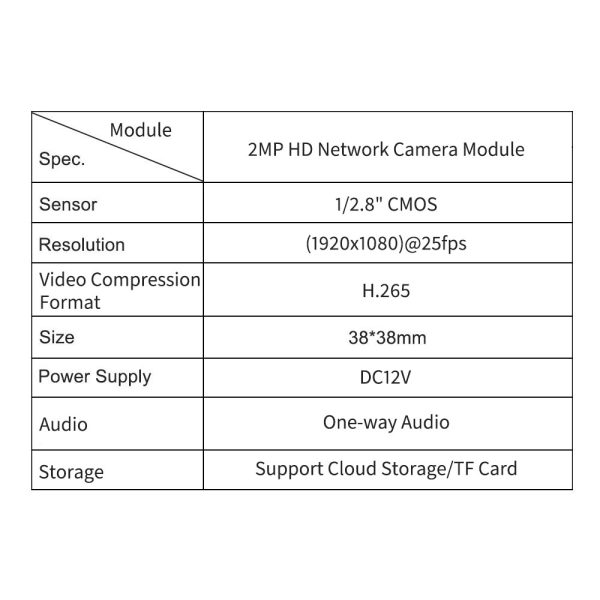

Technical Specifications

Specification	Detail
Sensor	1/2.8″CMOS
Pixel	2MP
Audio	1-WayAudio
Video compression format	H.265
Resolution	1920×1080@25fps
Size	38mm×38mm
Power Supply	DC 12v
Model No	HCI-P382
Storage	Supports cloud storage/TF card
Type	IP Camera PCB

Application Scenarios

Widely used in high-definition network security monitoring, intelligent building visual access control, self-service terminal visual collection, industrial equipment status monitoring, smart home cameras, vehicle high-definition monitoring, upgrading of old network systems, embedded intelligent device visual matching and other scenarios.

Explore more models in our Camera PCB Board series to meet different application needs.
