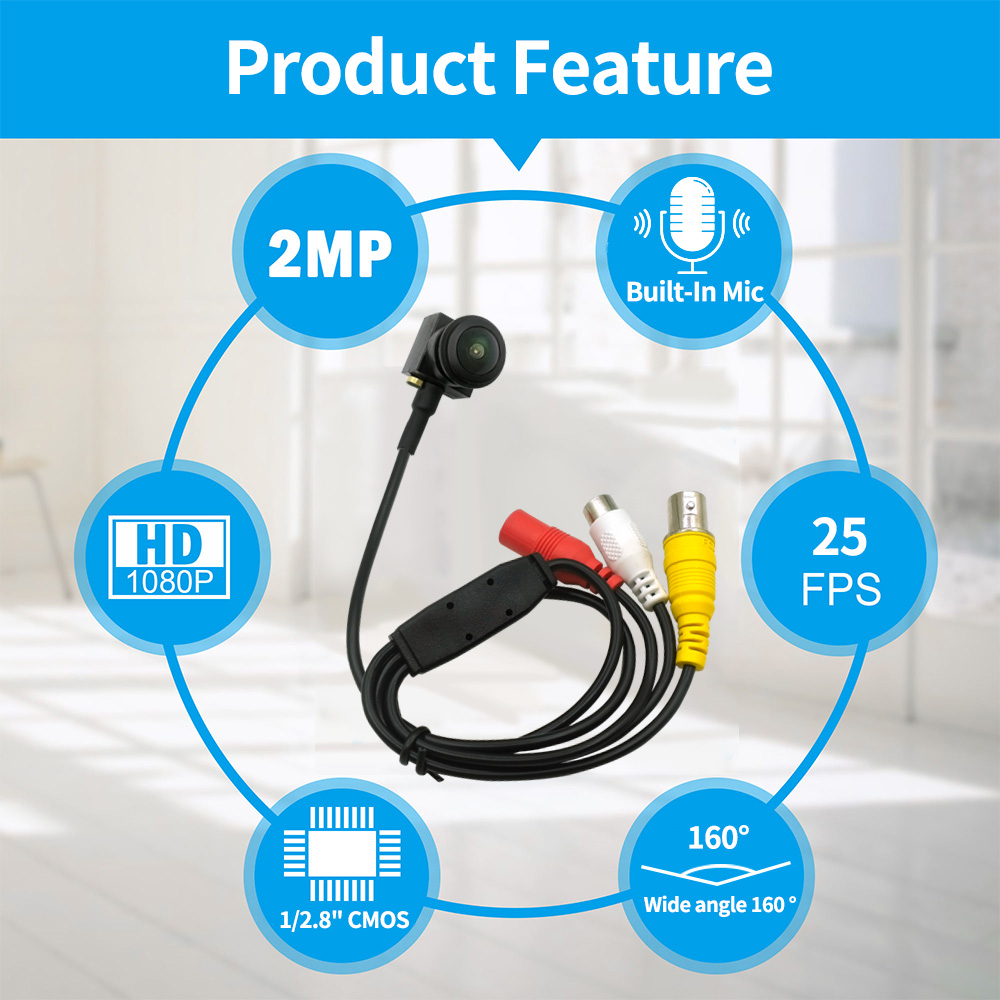

Key Features

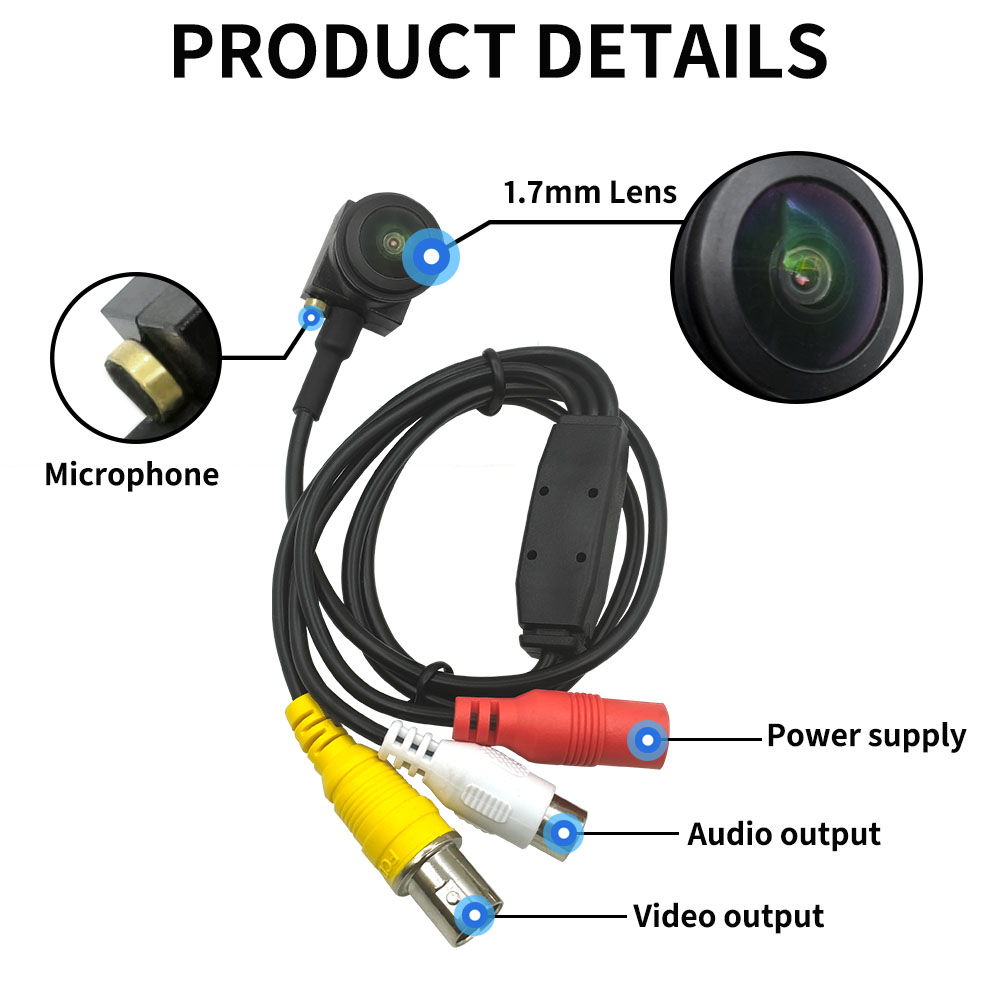

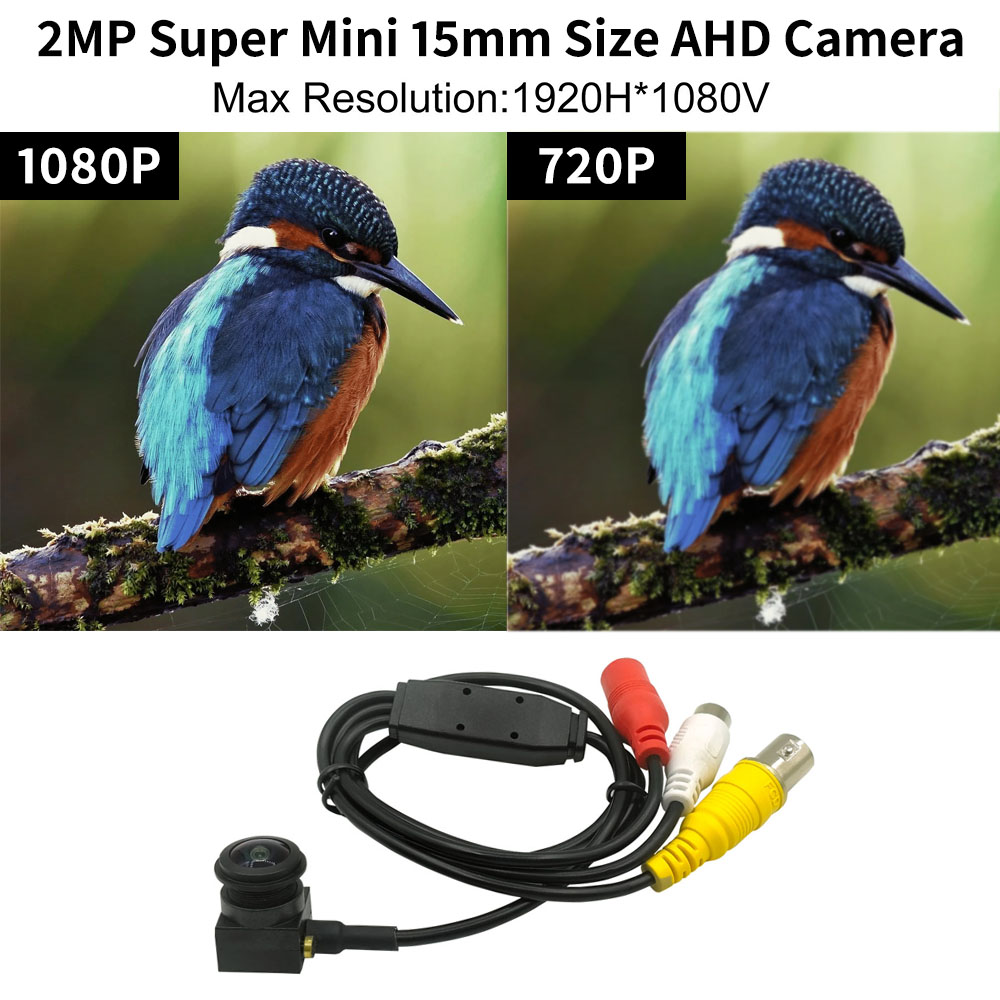

- 1080P High-Definition Picture Quality: Using AHD high-definition technology, providing clear and sharp video images.

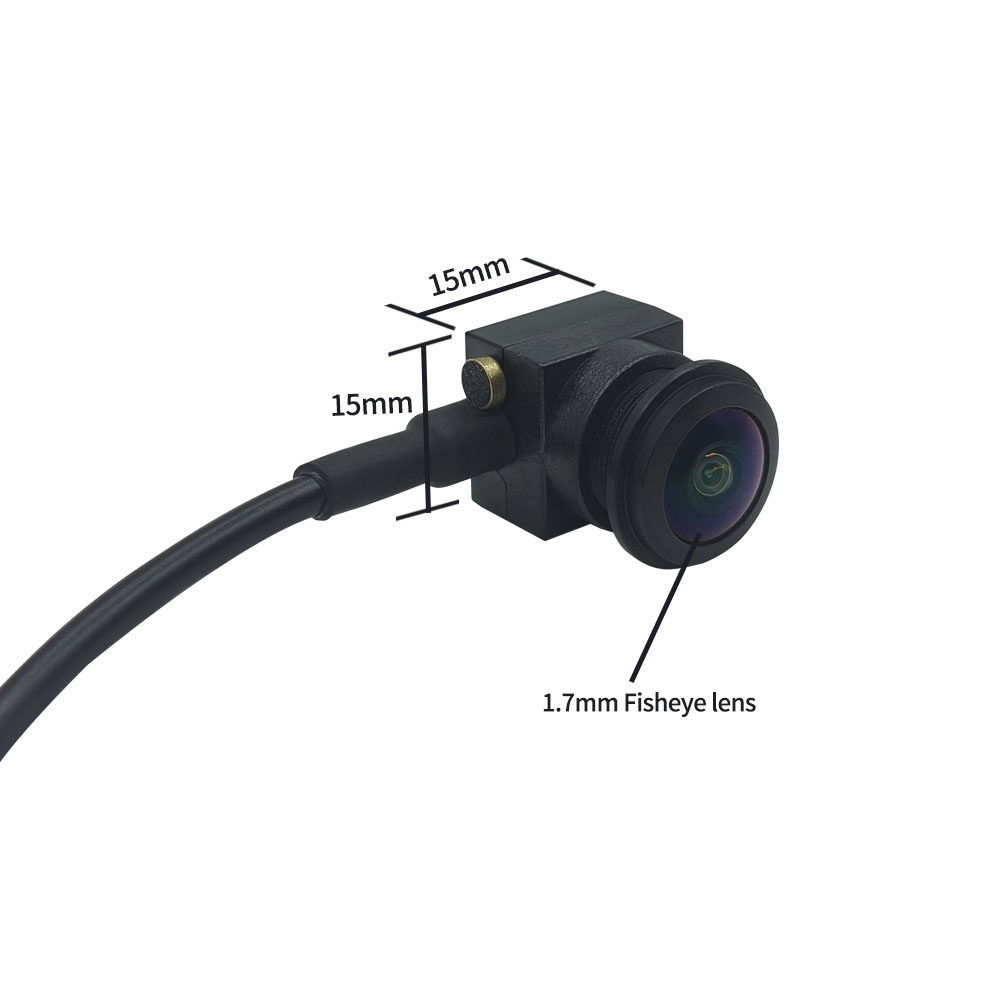

- Mini Body: 15x15mm ultra small size, flexible and concealed installation, almost occupying no space.
- 160° Ultra Wide Angle Field of View: The 1.7mm fisheye lens provides a wide viewing angle, wider coverage range, and reduces blind spots.

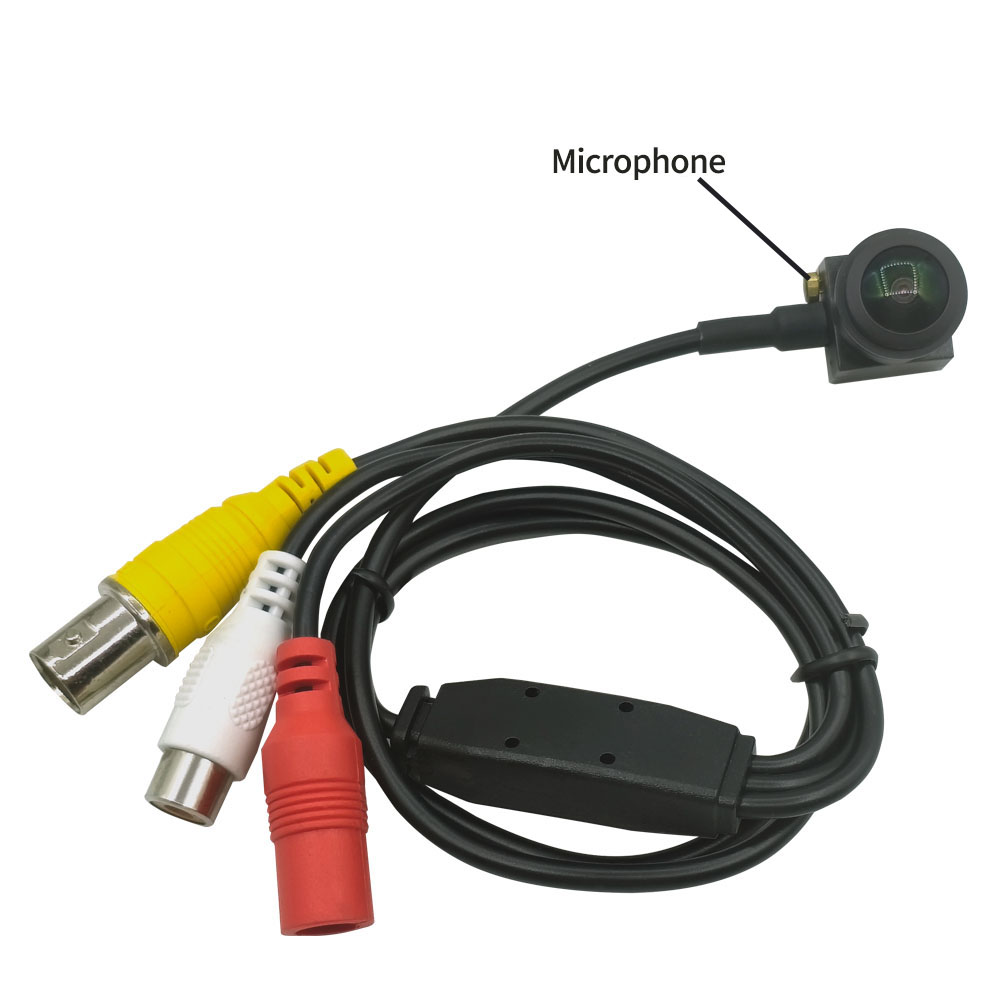

- Equipped with Microphone: Supports synchronous recording of ambient sound, enabling synchronous monitoring of audio and video.

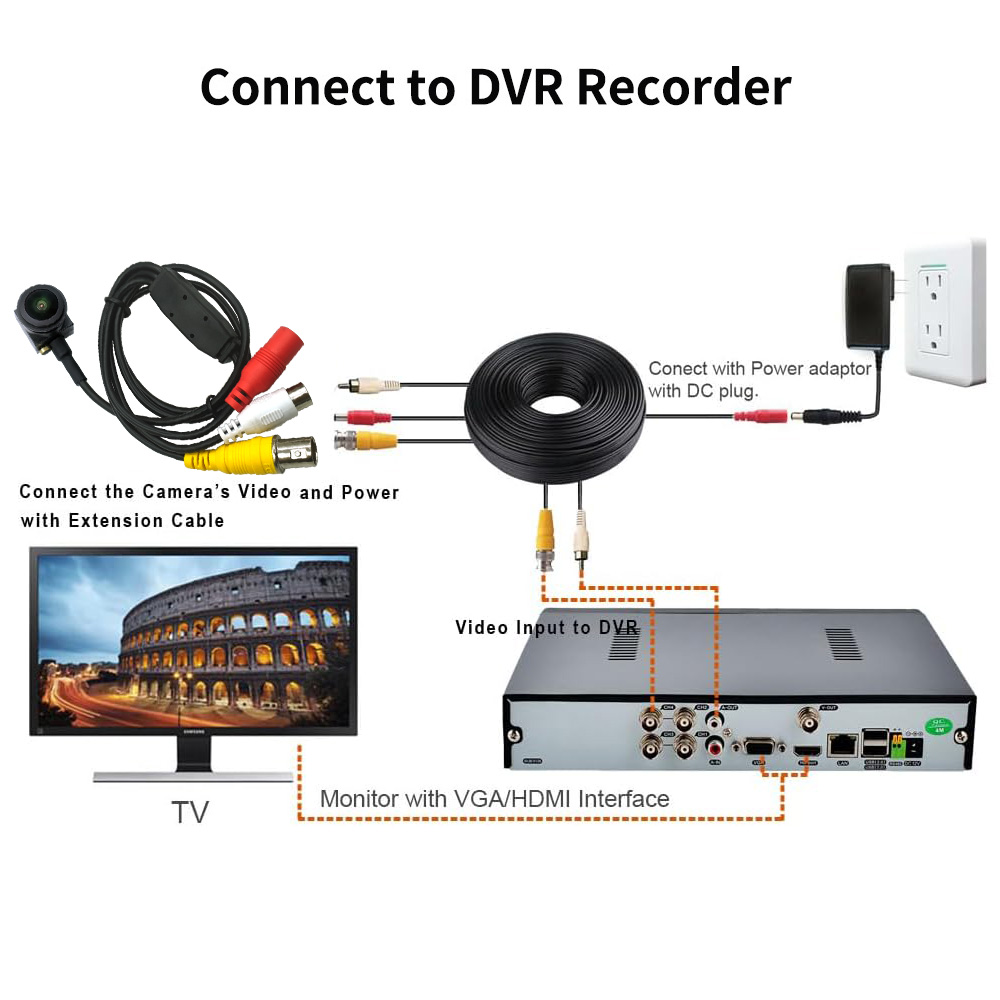

- Standard BNC Interface: Compatible with traditional coaxial cable systems, making it easy to connect to existing analog monitoring equipment.
- Strong Compatibility: Supports AHD high-definition protocol and is compatible with mainstream AHD DVR recorders in the market.

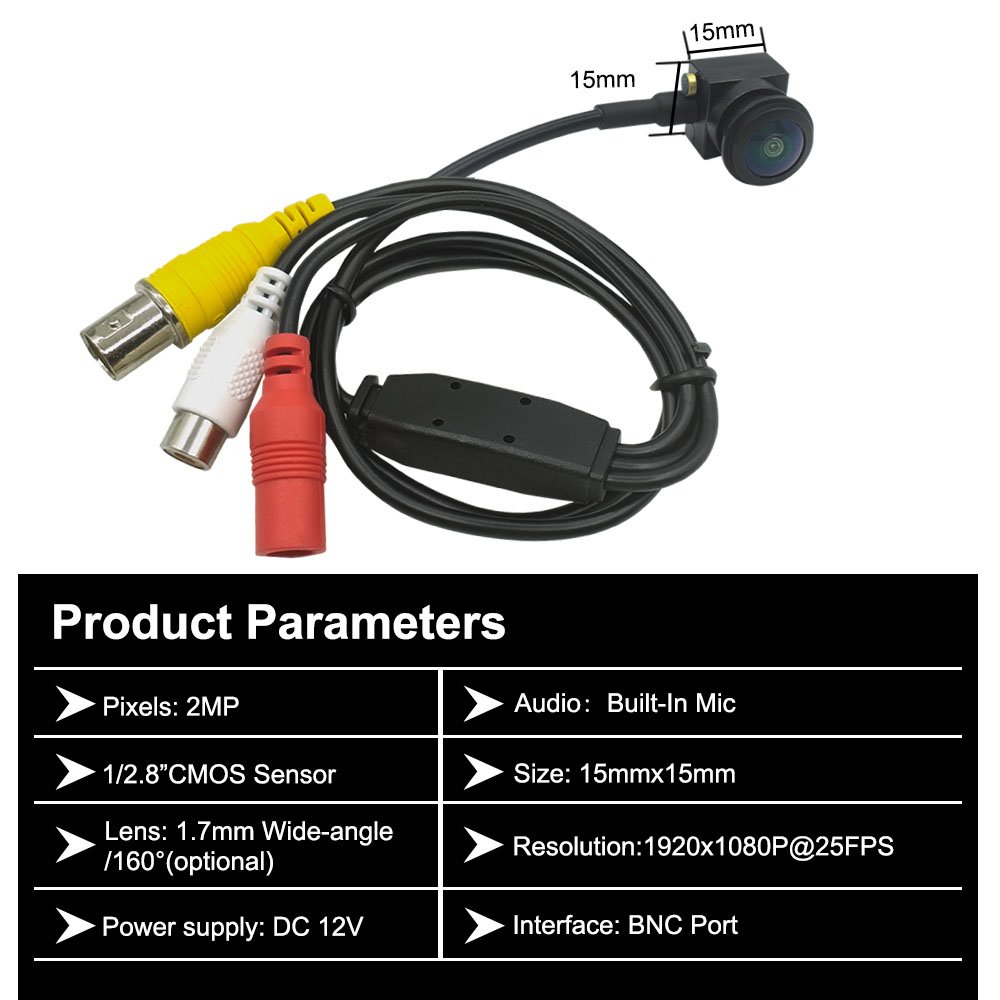

Technical Specifications
| Style | Mini Camera |
| Sensor | 1/2.8″ CMOS |
| Pixel | 2.0 Mega Pixels |
| Resolution | 1920*1080P@25fps |
| Size | 15*15MM |
|
Material
|
Plastic
|
| Signal Syste | PAL |
| Lens | 1.7MM(Optional) |
| View angle | 160 Degree |
| Aperture | F2.0 |
| Function | Wide Angle，Built-In Mic |
| Video Compression Format | Analog signal |
| Data Storage Options | DVR |
| Model Number | HCA-152J17 |
| Video Output | BNC Port |
| Operating Voltage | 12v |
Application Fields
- Industrial automation and machine vision
- Security monitoring and embedded access control systems
- Concealed surveillance and vehicle monitoring
- Smart home security and endoscope imaging
- Laboratory monitoring and DVR systems
- Traffic monitoring and retail terminals
- Drone/robot vision and education
- Various embedded visual solutions
Customization Options
We are well aware of the unique visual requirements of different applications and provide comprehensive OEM/ODM customization services to help you create differentiated products.
- Lens customization: specific focal length, field of view angle, distortion control.
- Customized casing: Design a dedicated casing, bracket, or fixing method based on the structure of your device.
- Cable and Interface: Customize cable length and interface type.
- Pixel customization: Different resolution and frame rate models are available.
- Customized services: USB camera module, AHD camera module, CVBS camera module, Network camera module, Wifi camera module, etc.
