Product Introduction

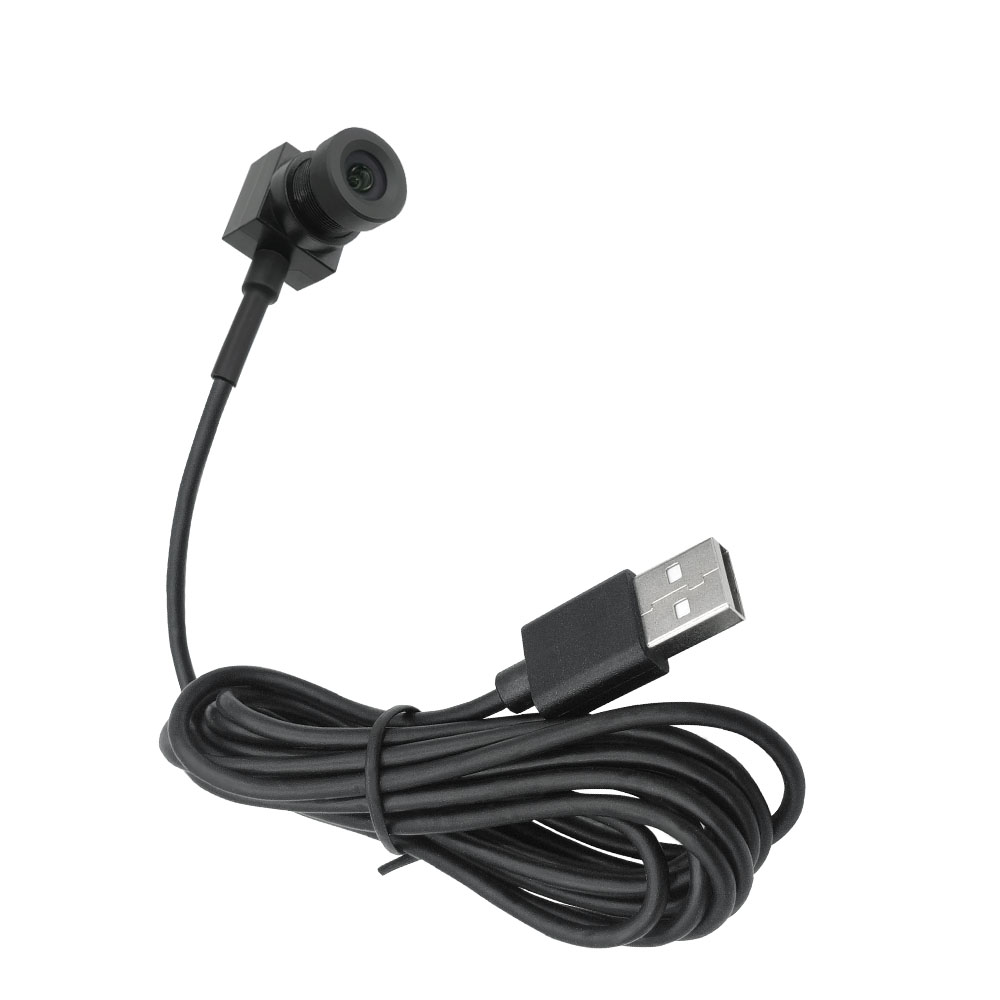

This 15 × 15mm 1080P USB camera module pairs a 2MP CMOS sensor with a 3.6mm undistorted lens, with a maximum resolution of 1920 × 1080@30fps.USB The 2.0 interface is plug and play, with a built-in microphone and a 90 ° field of view, designed specifically for machine vision, facial recognition, information kiosks, ATMs, and industrial automation. Support OEM/ODM customization of lenses, cables, casings, and resolutions.
Instructions for use: UVC driver free implementation (plug and play) integration, compatible with Windows, Linux, and Android systems, without the need for proprietary SDKs. The built-in microphone has noise reduction function, which provides clear audio for video calls, recording, and interactive information kiosks without the need for external audio hardware.
Core advantages

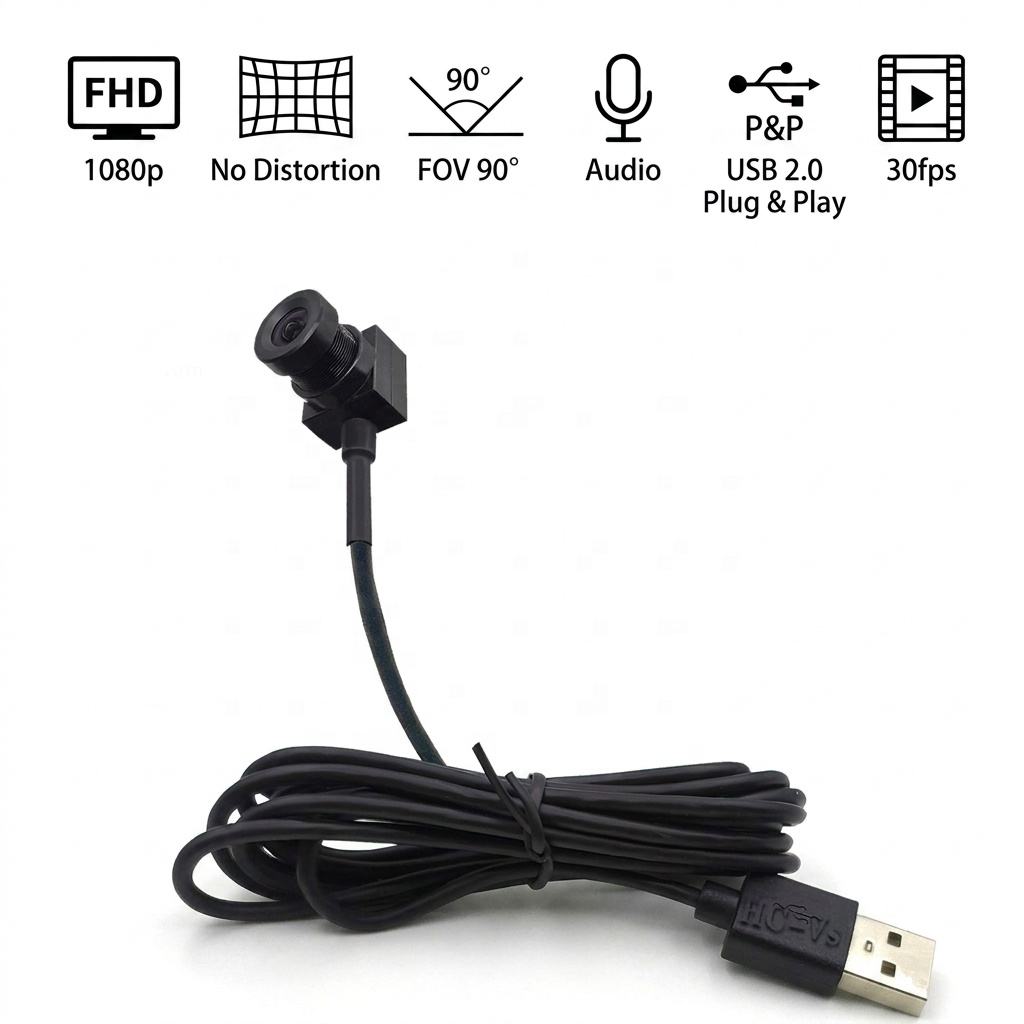

Distortion-free 1080P imaging — 2MP CMOS sensor, 1920×1080@30fps; precision 3.6mm low-distortion lens keeps edge lines straight for accurate measurement, OCR and QR reading. True 15×15mm miniature module — ultra-compact footprint for embedding into kiosks, robots, ATMs, medical devices and custom OEM housings.

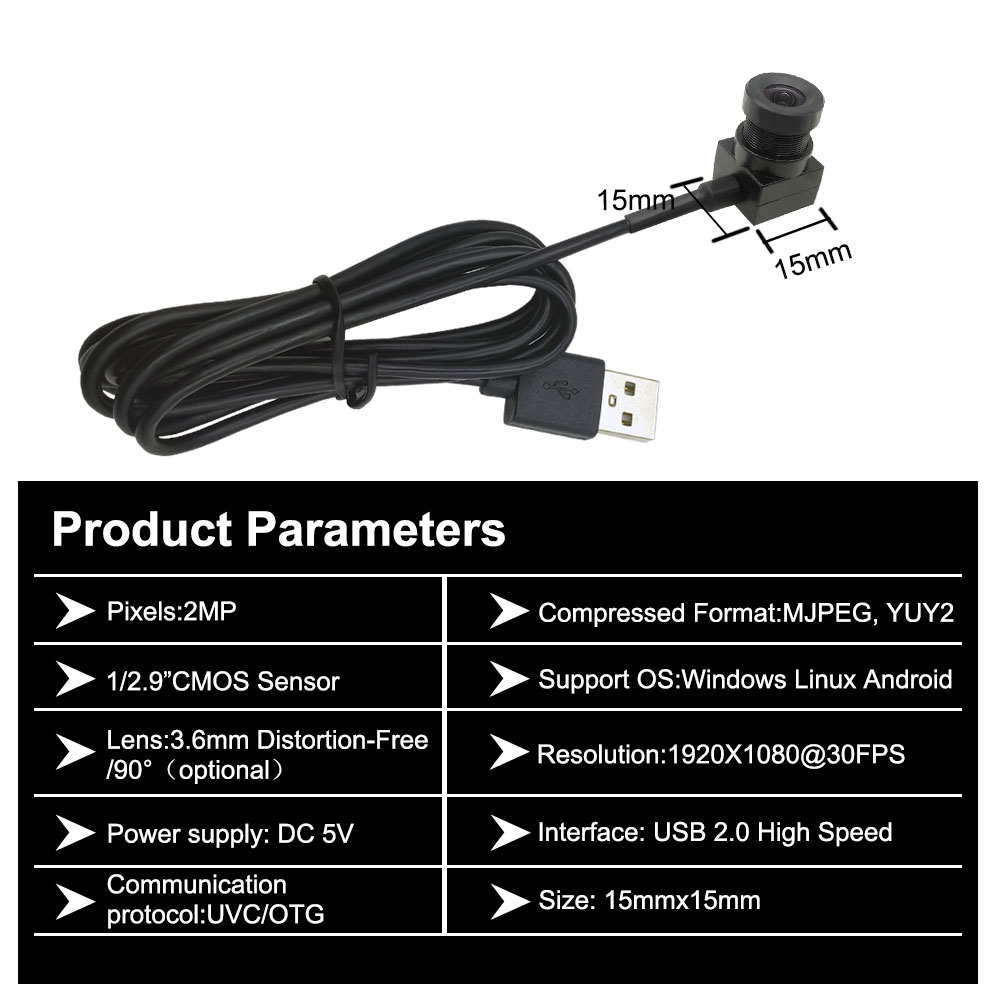

Technical Specifications
| Parameter Category | Specification Details | |||||
| Image Sensor | 1/2.9″ CMOS | |||||
| Pixel | 2MP | |||||
| Resolution | 1920×1080P@30FPS | |||||
| Compression format | MJPG / YUY2 | |||||
| Focusing method | Fixed Focus | |||||
| Lens | 3.6mm Distortion Free（Optional focal length） | |||||
| FOV | 90 ° | |||||
| Interface Type | USB 2.0 High Speed | |||||
| Audio | Built In Mic | |||||
| Model | HCU-152J36W | |||||
| Product size | 15mm×15mm | |||||
| Certification | CE/FCC | |||||
| Power Supply | DC 5V | |||||
| Warranty | 1 Year | |||||
| Support operating systems | Windows/Linux/Android | |||||
Customization Options
We are well aware that different industries have differentiated requirements for visual capture applications. HCVSIGHT has 10 years of experience in the camera module industry, providing full chain OEM/ODM customization services from lenses, sensors, structures to packaging, helping you create differentiated visual solutions that perfectly match your end products.
Lens customization: Specialized undistorted/low distortion lenses can be customized according to working distance, field of view, and distortion requirements, supporting IR-CUT dual filter switching.
Shell customization: Based on the structure of your device, design a dedicated shell, bracket or fixing method, supporting multiple materials such as metal/plastic.

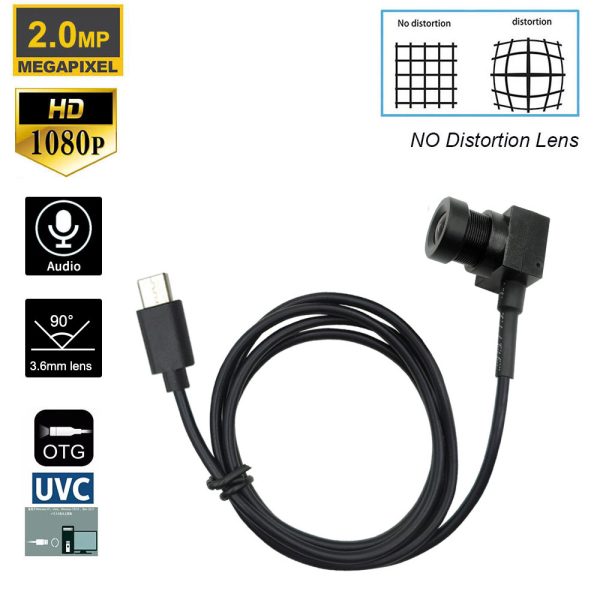

Cable and interface customization: cable length and interface type (USB/Type-C/terminal/3pin) can be customized to meet the internal layout of different devices.
Pixel and Performance Customization: Provides 1MP~12MP different resolution and frame rate combinations to match different computing power and bandwidth conditions.

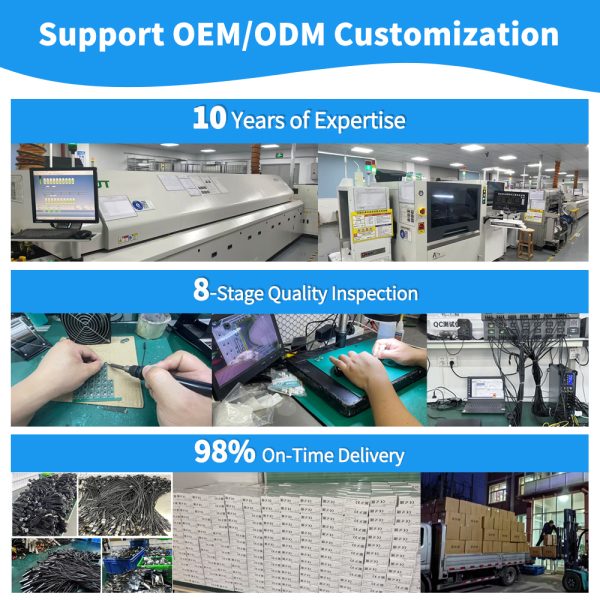

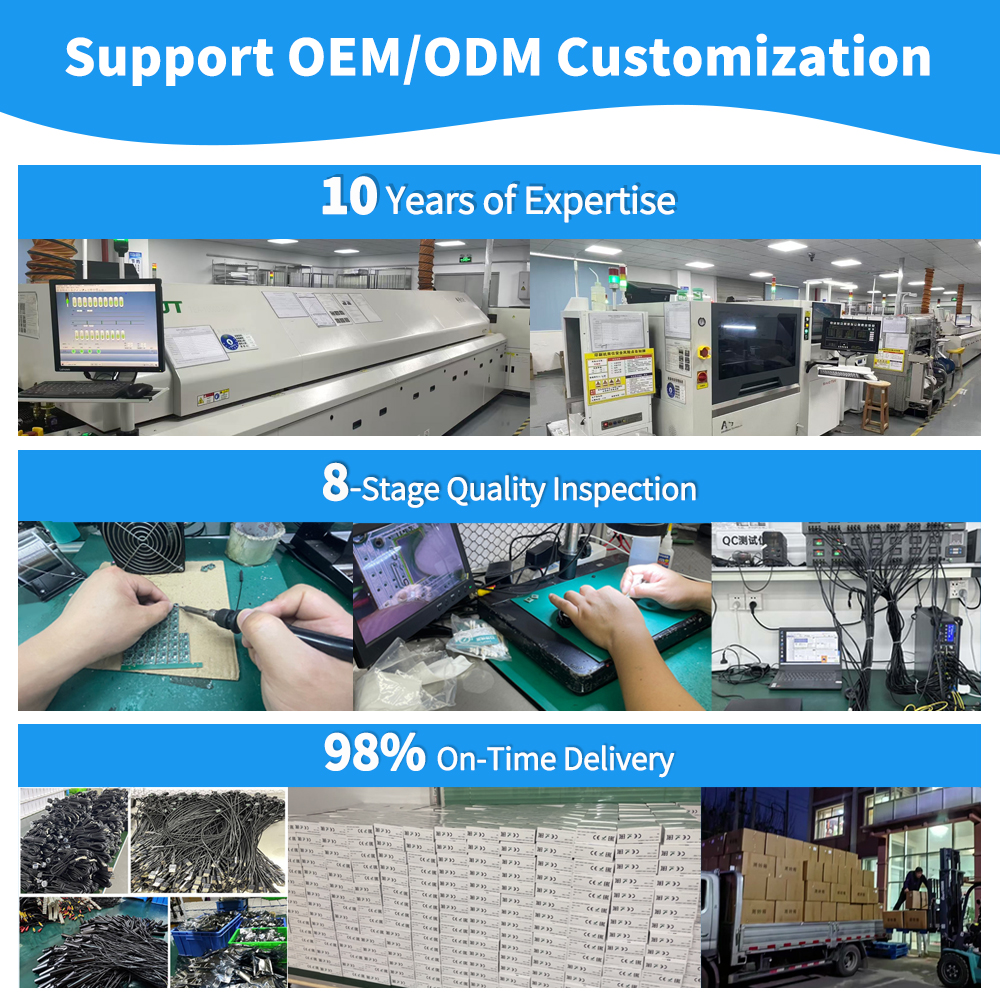

Quality assurance: 8 quality inspection processes, 100% functional testing before leaving the factory, 98% on-time delivery rate, ensuring stable and reliable batch orders.
The customized sample price will be evaluated separately based on your specific needs (lens/interface/structure/function), and we will provide a detailed quotation and sample delivery cycle within 24 hours.
[Request Custom Sample Quote →]
Industry application scenarios
Facial recognition terminal (access control, attendance, payment)
Information kiosks and vending machines
Robot and AGV navigation
ATM and Bank Security
Medical equipment integration
Video intercom, live streaming, and content creation
Customized Process
① Requirement communication → ② Scheme evaluation → ③ Sample production → ④ Sample testing confirmation → ⑤ Batch production → ⑥ Quality inspection → ⑦ Delivery and shipment.
① Requirement communication | Clarify application scenarios, technical requirements, customization dimensions, and target prices | 1-2 working days.
② Scheme evaluation | Output technical scheme, feasibility assessment, preliminary quotation | 2-3 working days.
③ Sample production | Customized sample production based on confirmed plan | 7-15 working days.
④ Sample testing | Customer testing verification, confirming parameters and effects | Depending on customer testing cycle.
⑤ Batch production | Arrange batch production after confirming samples | 15-30 working days.
⑥ Quality inspection | Full inspection/sampling inspection to ensure factory quality | included in the production cycle.
⑦ Delivery and shipment | Shipping according to the agreed logistics method | 3-7 days.
Standard Packaging Accessories List
| Accessories | Quantity | Description |
| HCU-152J36W Camera | 1 piece | Standard USB camera (including cable) |
| Anti static packaging bag | 1 piece | ESD anti-static packaging, protecting module transportation safety |
| Outer packaging box | 1 piece | Standard neutral paper box (customizable brand packaging) |
Compliance & Certifications
FCC Certificate EMC CE Certificate
FAQ
Q2: Can it be used with Raspberry Pi/embedded board? –Yes, this device supports UVC devices.
Q3: What are the minimum order quantity and sample policy? ——Minimum order quantity of 1 unit; Samples can be customized.
Q4: Do you support OEM/ODM? –Yes: customized lens, cable length, connector, housing, logo, and resolution.
Q5: When is the delivery time? —-The standard model has a fast delivery speed, taking 3-7 working days
Q6: Do you provide certification? –Yes, we have CE/FCC certification.

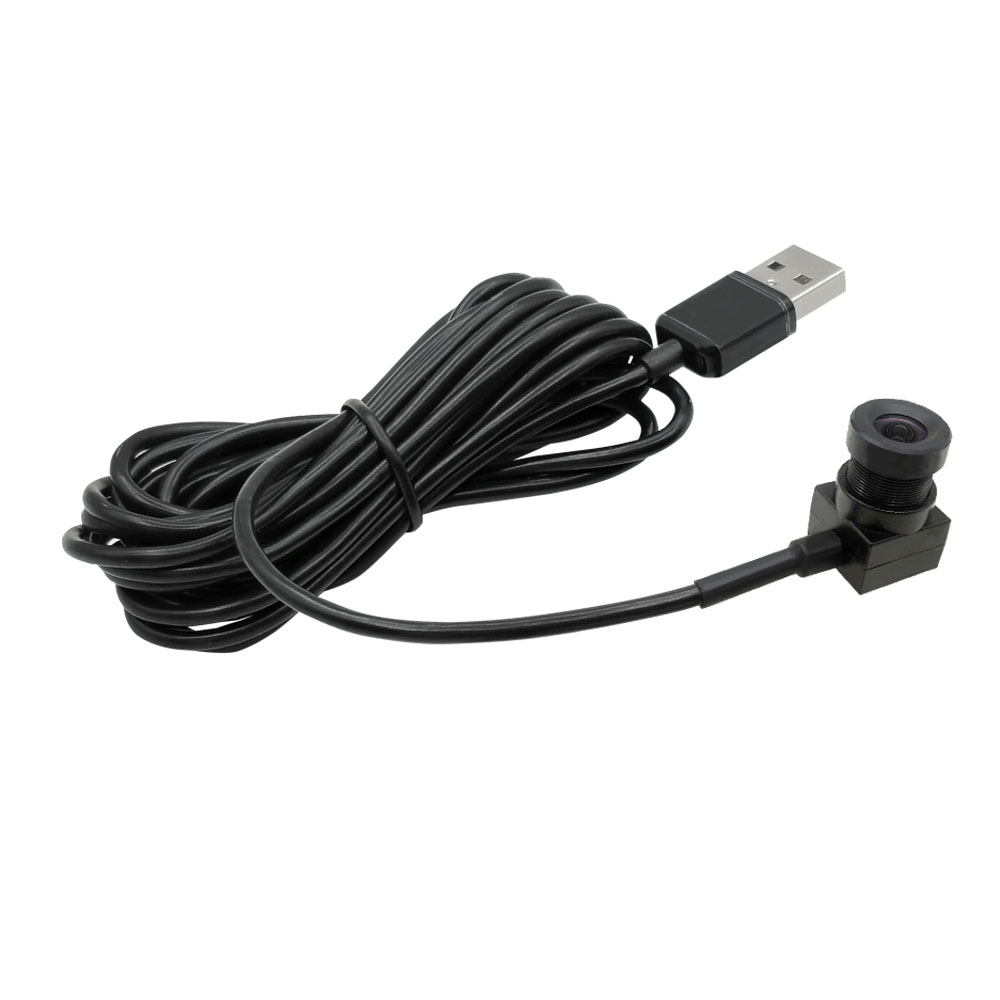

Q7: What is the available cable length? ——USB 2.0 cable defaults to 2 meters (cable length can be customized)
