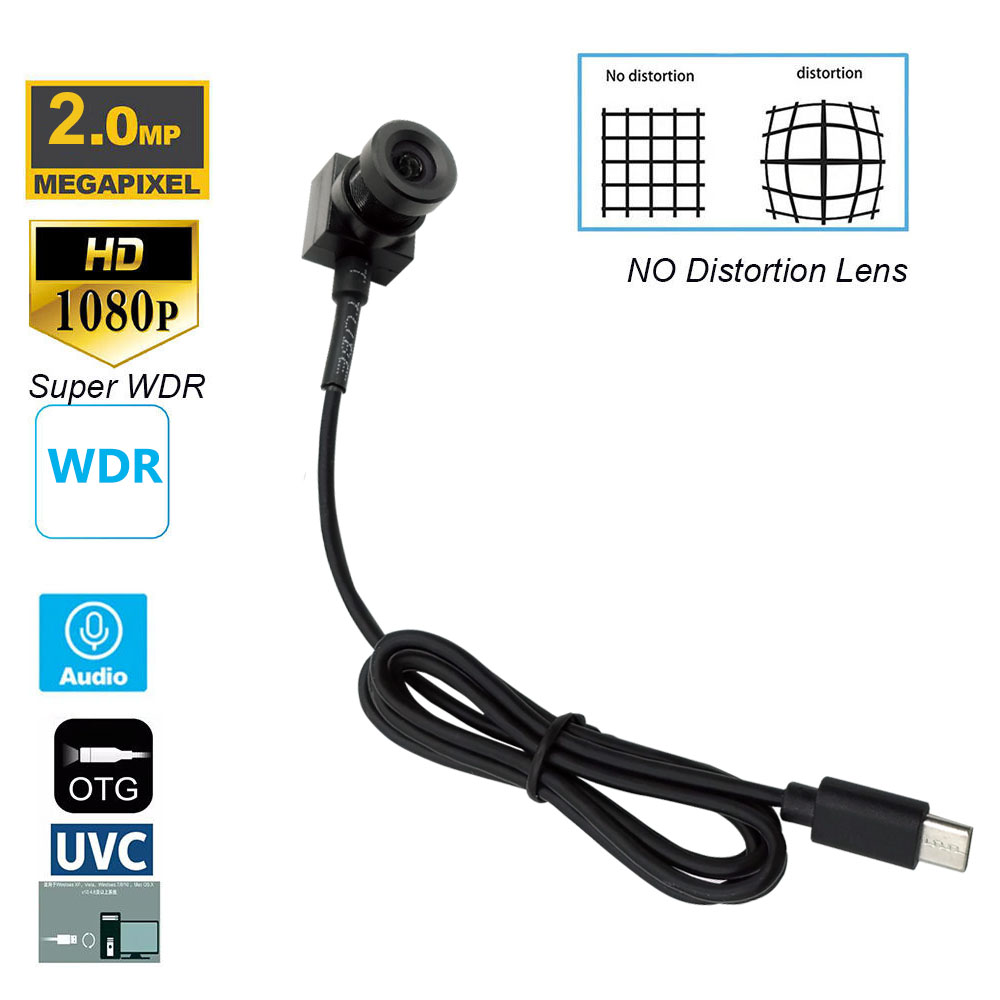

2MP 15×15mm WDR Free‑Driver Mini USB Camera

Key Features & Applications

1080P High-Definition Distortion-Free Image Quality，Employs a 2-megapixel high-performance CMOS chip, supporting 1920×1080 Full HD resolution output for clear and detailed images.

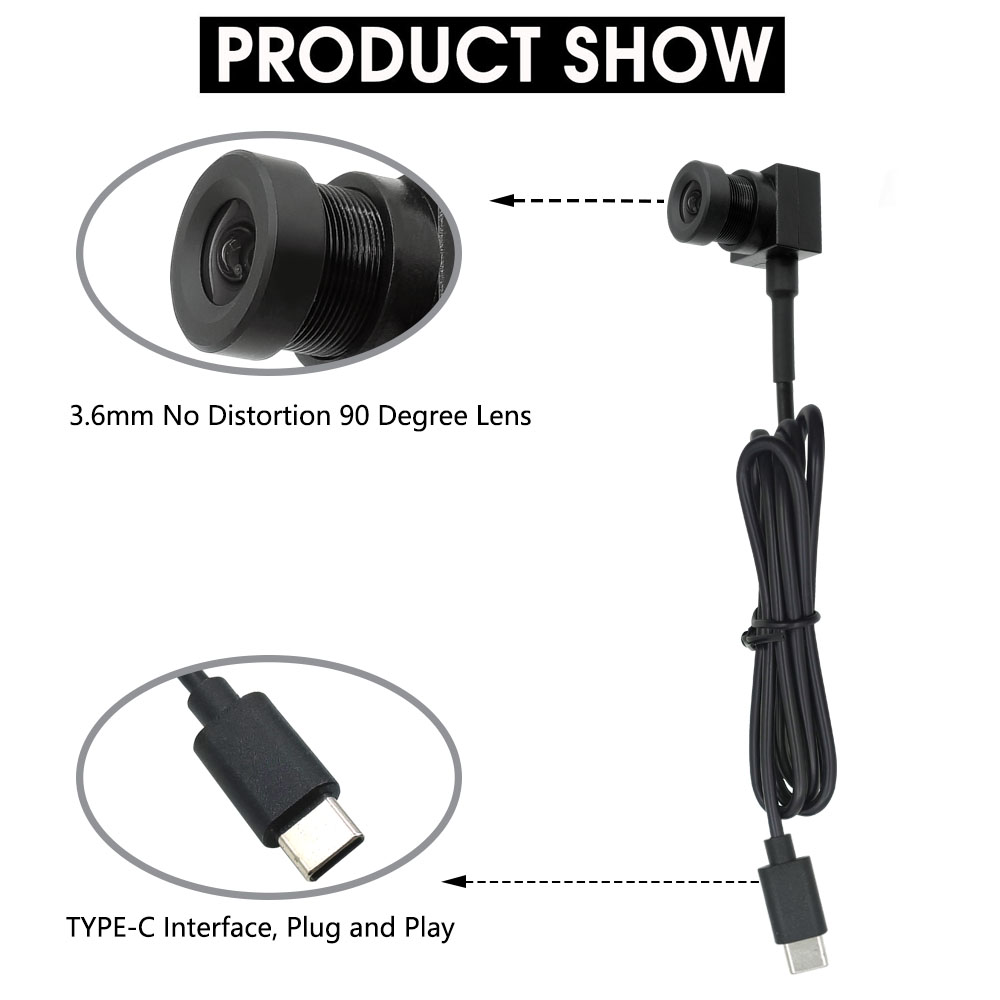

Equipped with a professional-grade 3.6mm distortion-free lens， Effectively corrects edge distortion, ensuring straight lines remain straight in the image and restoring a true-to-life view.

Type-C Interface, Plug and Play， Utilizes the mainstream Type-C (USB-C) interface, supporting reversible insertion for convenience and speed. Widely compatible with devices. supporting the USB Video Class (UVC) protocol, such as Windows and macOS computers, Android smartphones/tablets, etc.

15×15mm ultra small volume, suitable for small space embedding and concealed equipment integration.
Support WDR wide dynamic function, strong backlight, high contrast scenes, while retaining highlights and shadow image details.
Support customization of lenses, cables, and interfaces, adapt to embedded development and OEM projects, and deploy flexibly.

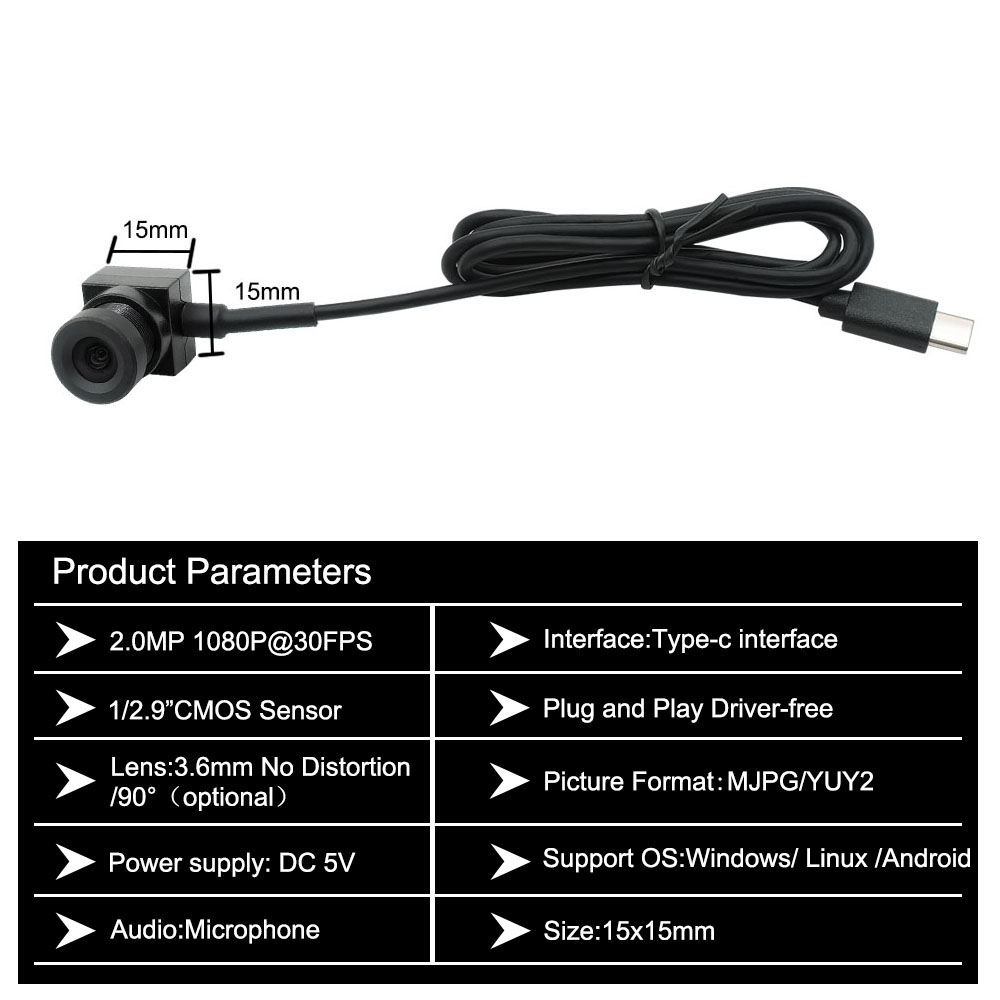

Technical Specifications

Parameter	Value
Sensor	1/2.9″CMOS
Pixel	2MP
Compression Format	MJPG/YUV2
Frame Rate	1920×1080@30fps
Audio	Built-In Mic
Power Supply	DC 5V
Size	15mm×15mm
Model Number	HCT-152J36W-WDR
Interface	Type-C
Lens	Distortionless 3.6mm/90°
Special Features	WDR

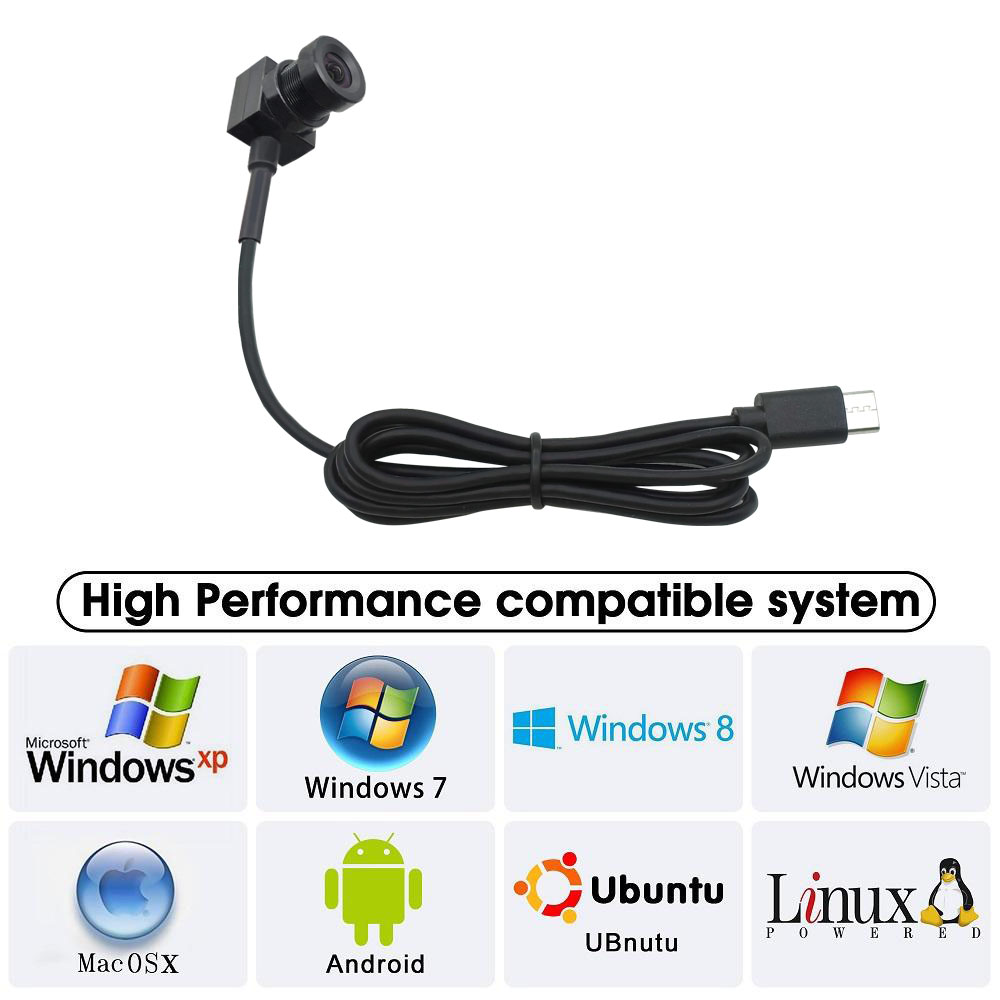

Supported OS	Windows/Linux/Android

Customization Options

We are well aware of the unique visual requirements of different applications and provide comprehensive OEM/ODM customization services to help you create differentiated products.

1. Lens customization: specific focal length, field of view angle, distortion control.
2. Customized casing: Design a dedicated casing, bracket, or fixing method based on the structure of your device.
3. Cable and Interface: Customize cable length and interface type.
4. Pixel customization: Different resolution and frame rate models are available.

Application Scenarios

Widely used in small space scenarios such as ATM monitoring, self-service vending terminals, micro robot vision, portable industrial detectors, facial recognition small devices, vehicle mounted hidden cameras, medical micro observation devices, smart home micro monitoring, Raspberry Pi secondary development, and device built-in image capture.

Browse more models in our USB camera series to meet different installation and integration requirements.
