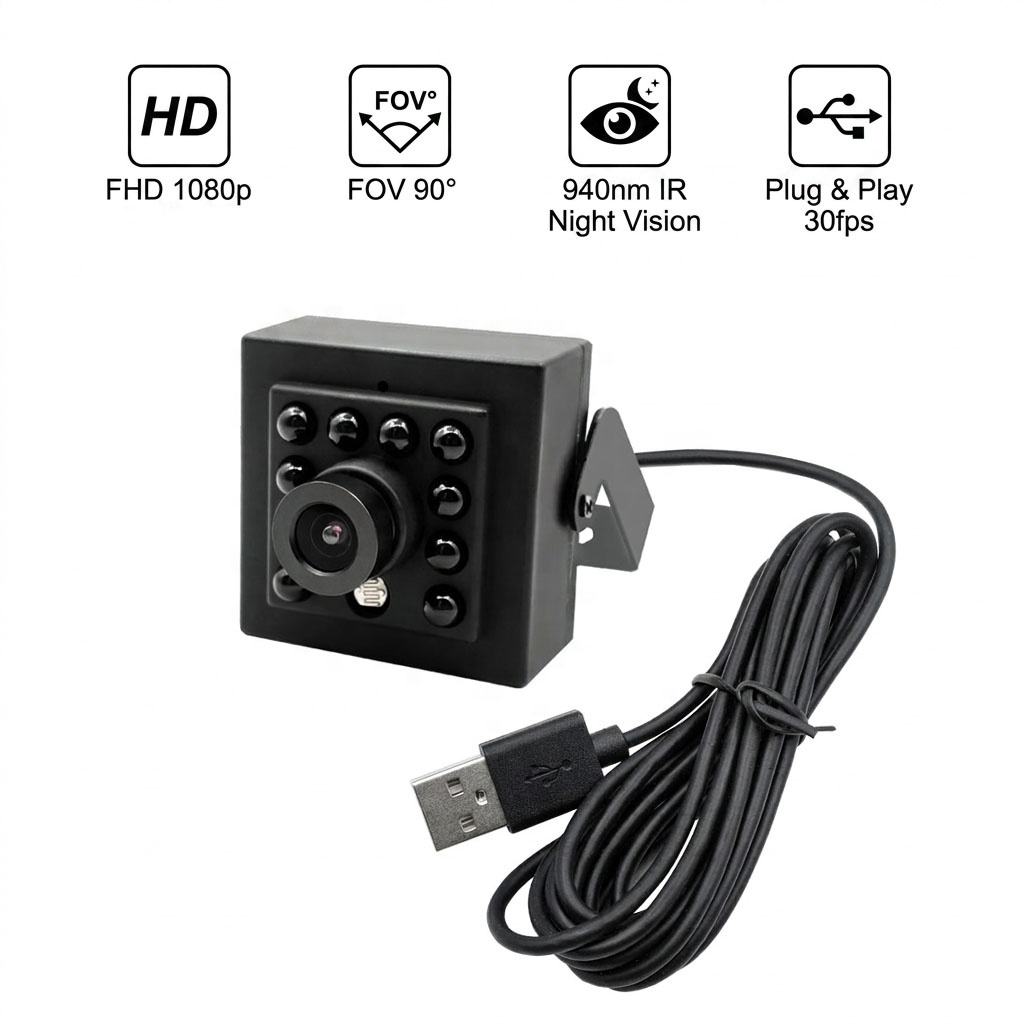

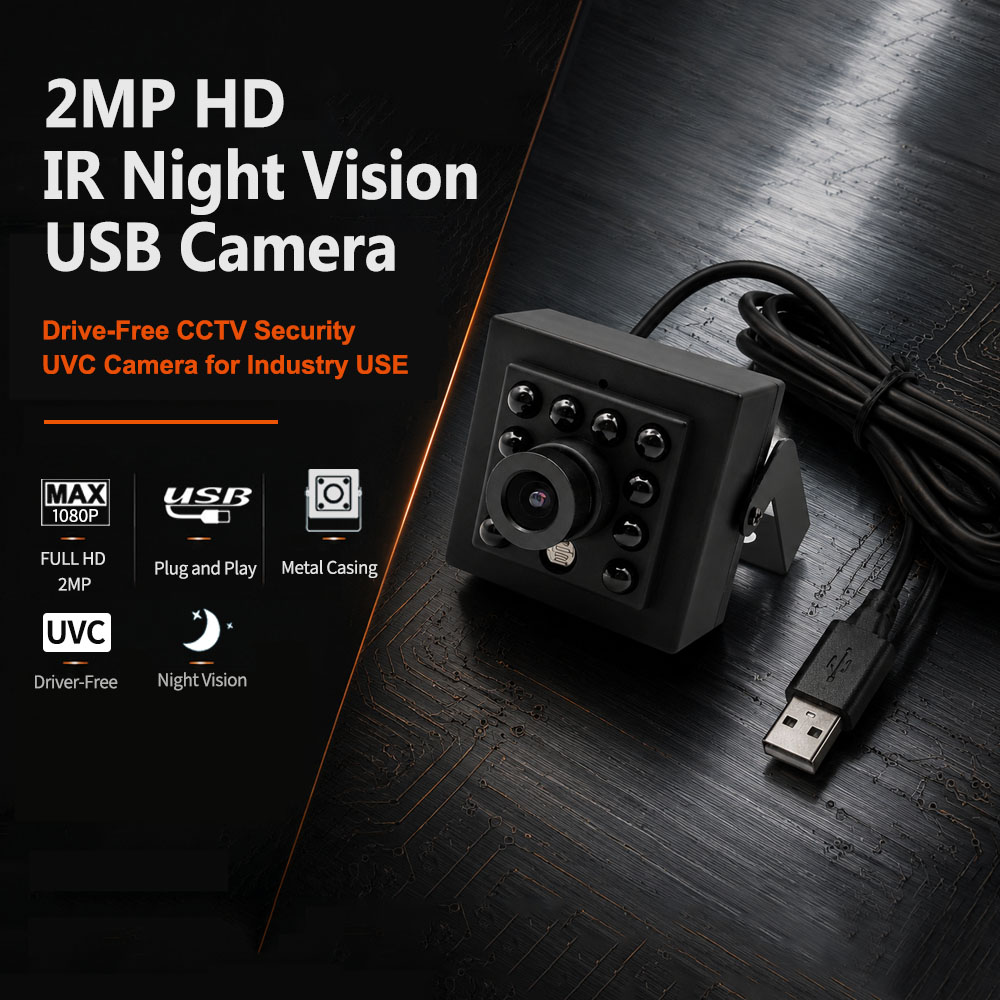

Key Features
- 2MP HD Resolution: 1920×1080 full HD captures fine image details.
- 940nm Infrared: 10 professional LEDs with no visible red light for concealed monitoring.

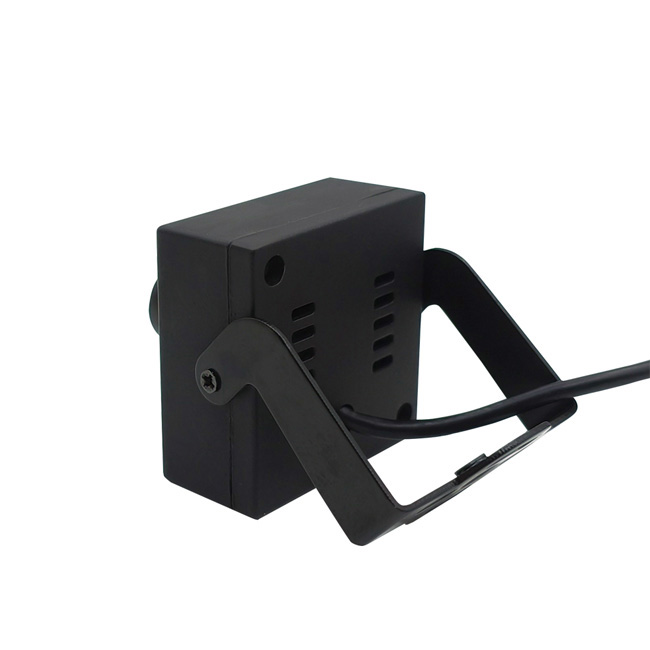

- All-Metal Housing: 42×42mm square body with excellent heat dissipation and EMI protection.

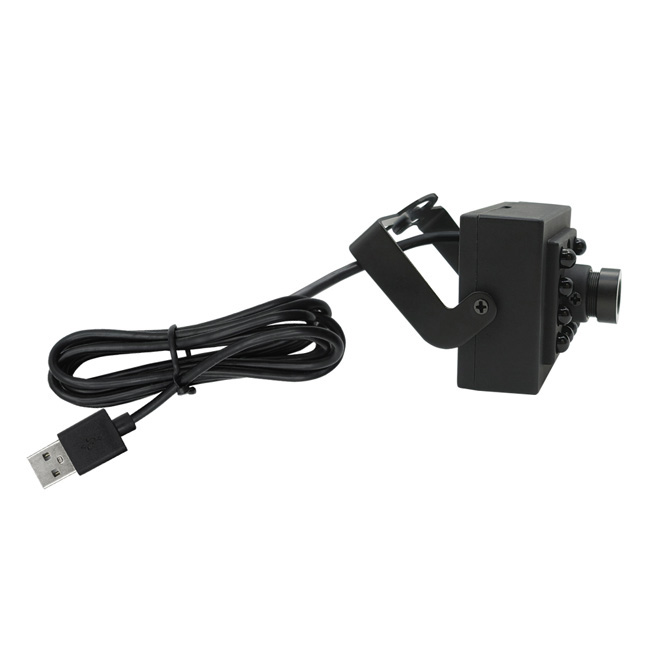

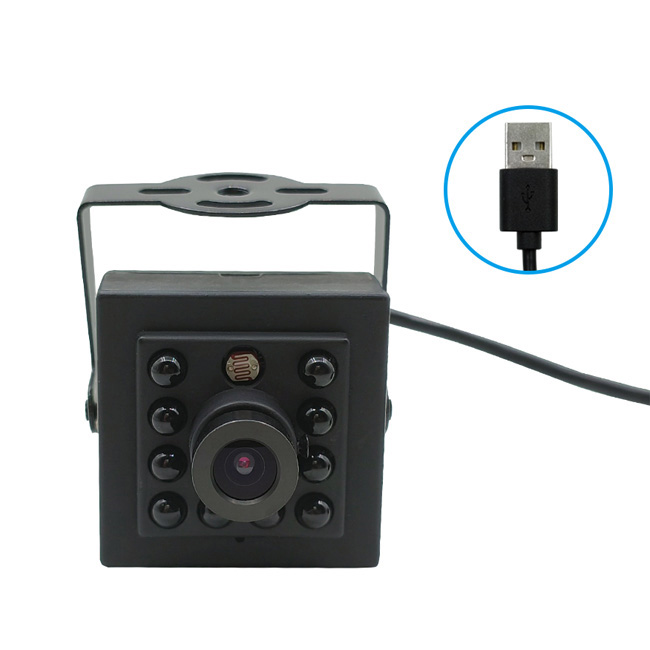

- Plug-and-Play USB: UVC compliant with no drivers required for simple connection.

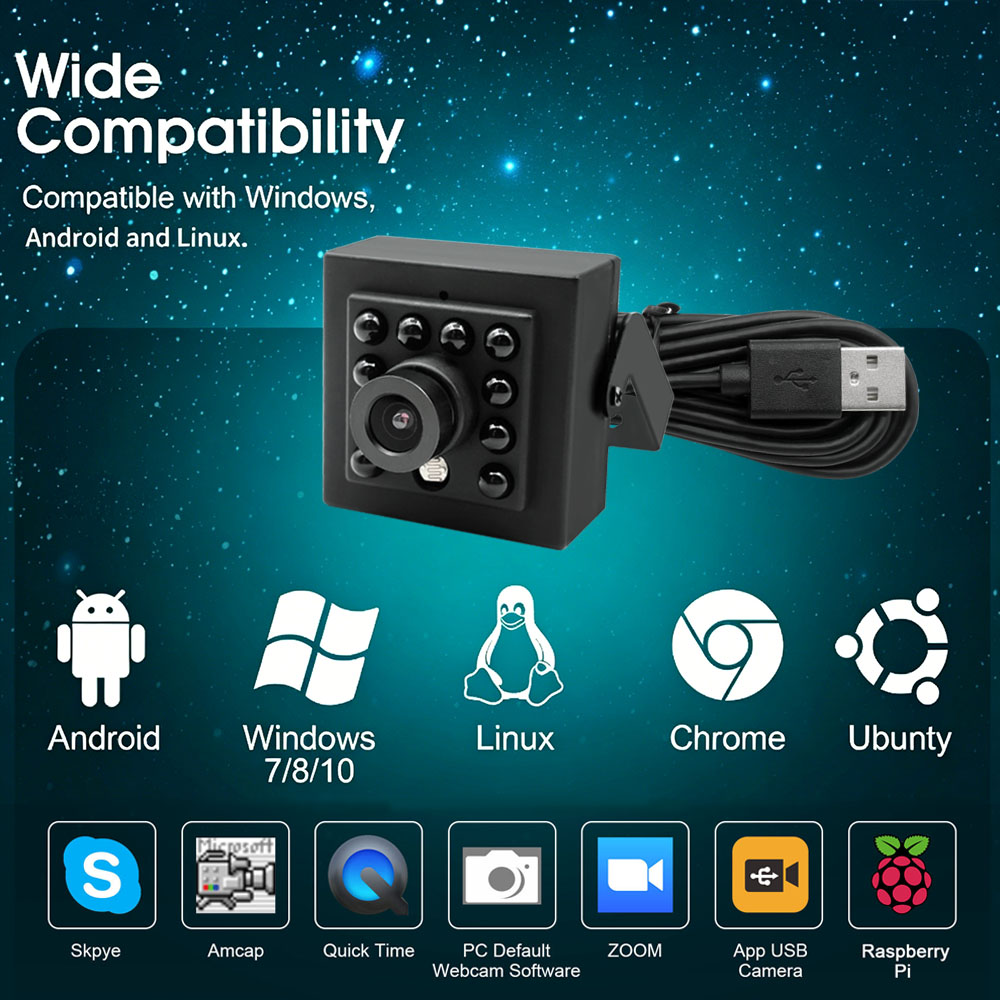

- Multi-OS Compatibility: Supports Windows, Linux, macOS, and Android systems.

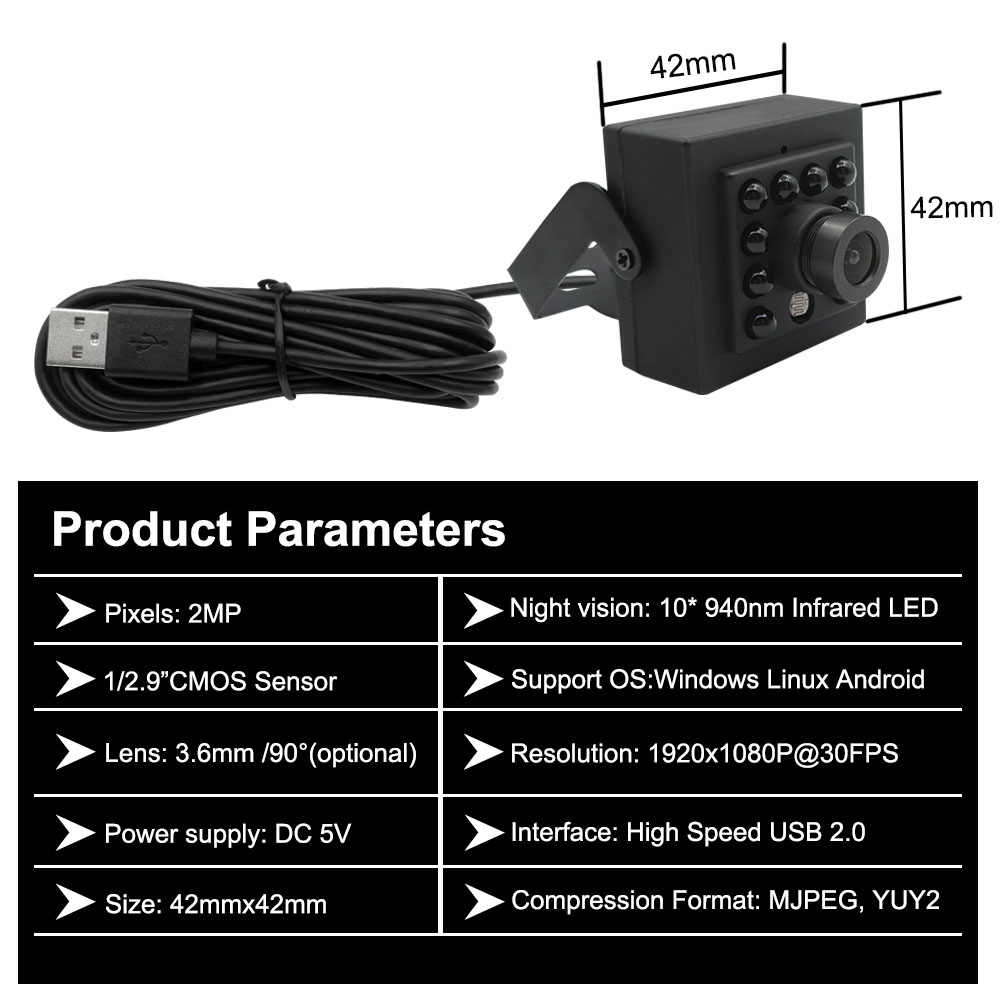

Technical Specifications
| Parameter | Value |
|---|---|
| Sensor | 1/2.9″CMOS |
| Resolution | 2MP (1920×1080) |
| Compression Format | MJPG/YUV2 |
| Frame Rate | 30fps |
| Operating Voltage | DC 5V |

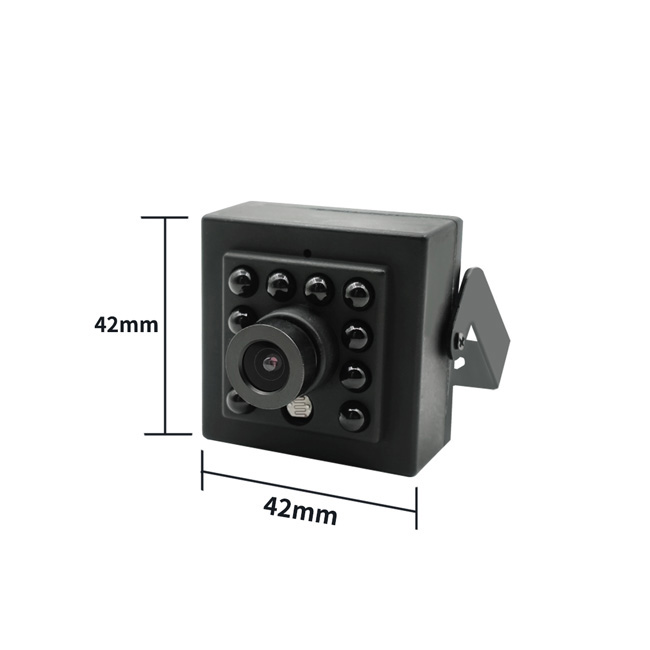

| Dimensions | 42mmx42mm |
| Operating Temperature | <70°C |
| Power Consumption | 0.25W |
| Model Number | HCU-422YS9 |
| Interface | USB 2.0 |
| Night Vision | 940nm infrared (10 LEDs) |
| Lens | 3.6mm |
| FOV | 90° |
| Supported OS | Windows/Mac OS/Linux/Android |
Customization Services
We offer comprehensive OEM/ODM solutions to meet specific application requirements:
- Lens customization: specific focal length, field of view angle, distortion control.
- Customized casing: Design a dedicated casing, bracket, or fixing method based on the structure of your device.
- Cable and Interface: Customize cable length and interface type.
- Pixel customization: Different resolution and frame rate models are available (such as higher pixel 4MP, 8MP, 12MP,16MP).

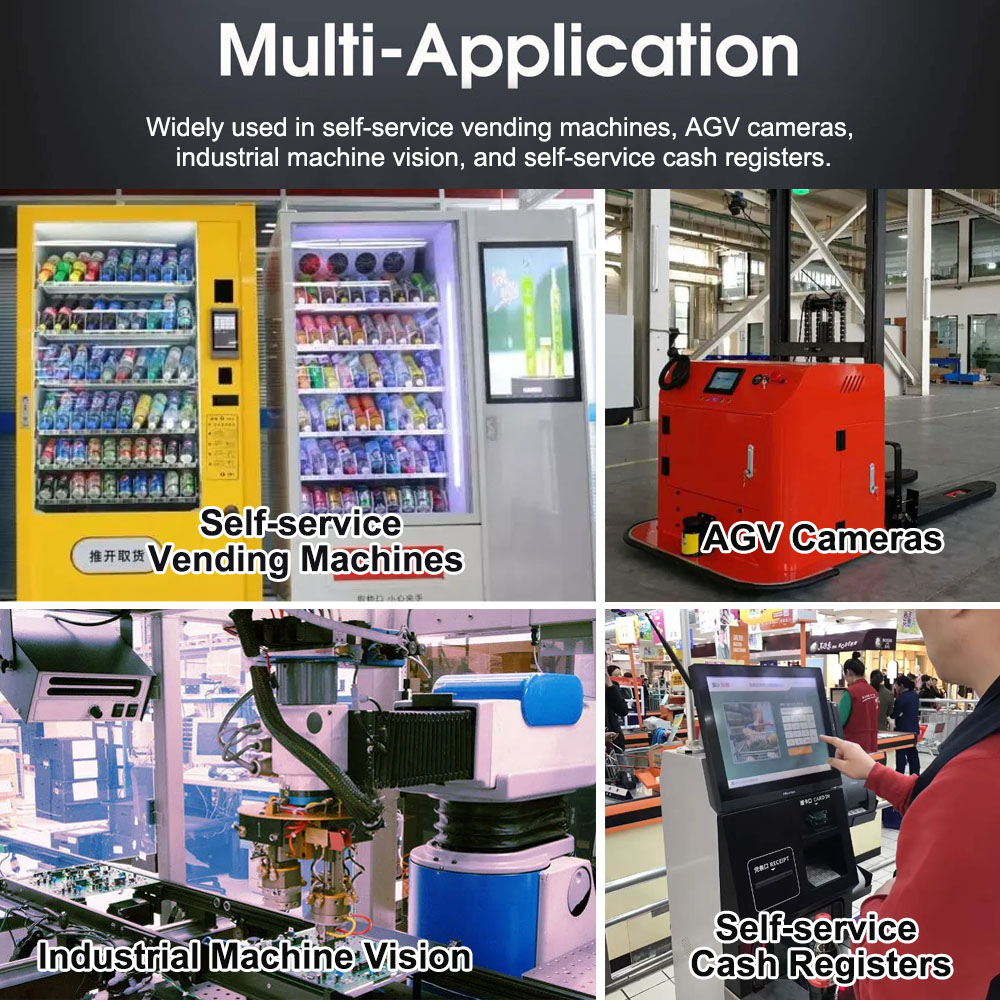

Applications
Ideal for industrial automation, security monitoring, and embedded vision solutions including:
- Machine vision and precision equipment monitoring
- Security systems and concealed surveillance
- Smart access control/attendance systems
- Vehicle monitoring and dash cams
- Drone/robot vision and smart retail terminals
- Education/conference systems and lab equipment
- Medical imaging and industrial inspection
Browse more models in our USB camera series to meet different installation and integration requirements.
