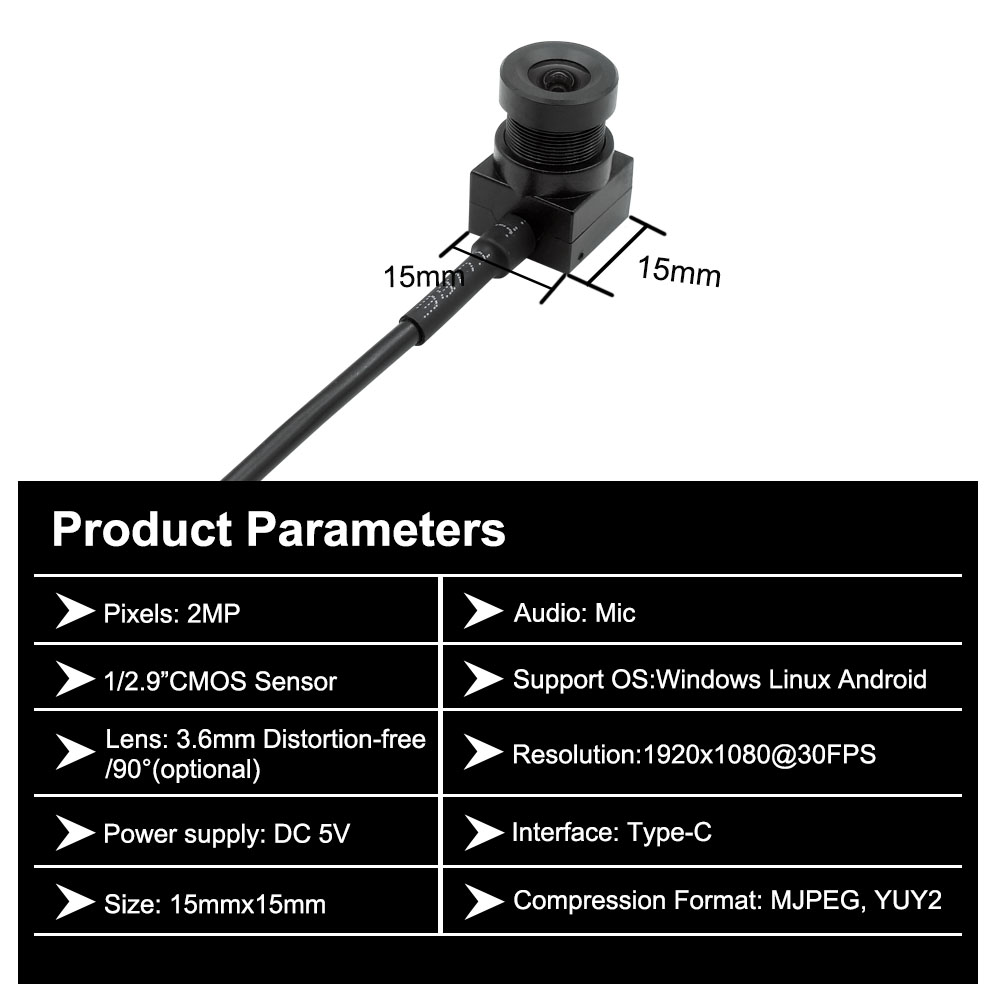

| Parameter | Value |
|---|---|
| Sensor | 1/2.9″CMOS |
| Pixel | 2MP |
| Compression Format | MJPG/YUV2 |
| Frame Rate | 1920×1080@30fps |
| Audio | Support |
| Working Voltage | DC 5V |
| Product Size | 15mm×15mm |
| White Balance | Automatic |
| Working Temperature | <70°C |
| Power Consumption | 0.25W |
| Model | HCU-WJB152TPC |
| Interface Type | TYPE-C |
Warranty | 2 Years |
| Lens | Distortionless 3.6mm |
| FOV | 90° |
| Supported OS | Windows/Mac OS/Linux/Android |

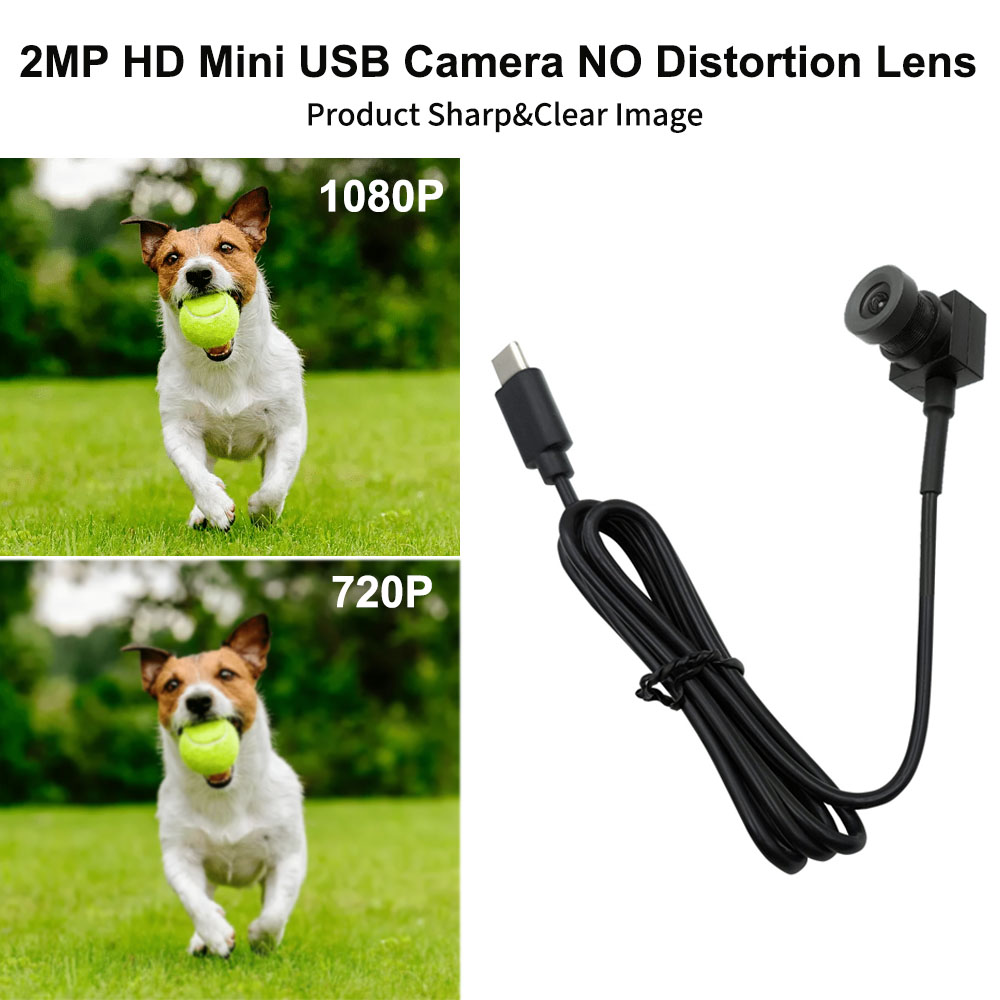

1080P High-Definition Distortion-Free Image Quality: Employs a 2-megapixel high-performance CMOS chip, supporting 1920×1080 Full HD resolution output for clear and detailed images.

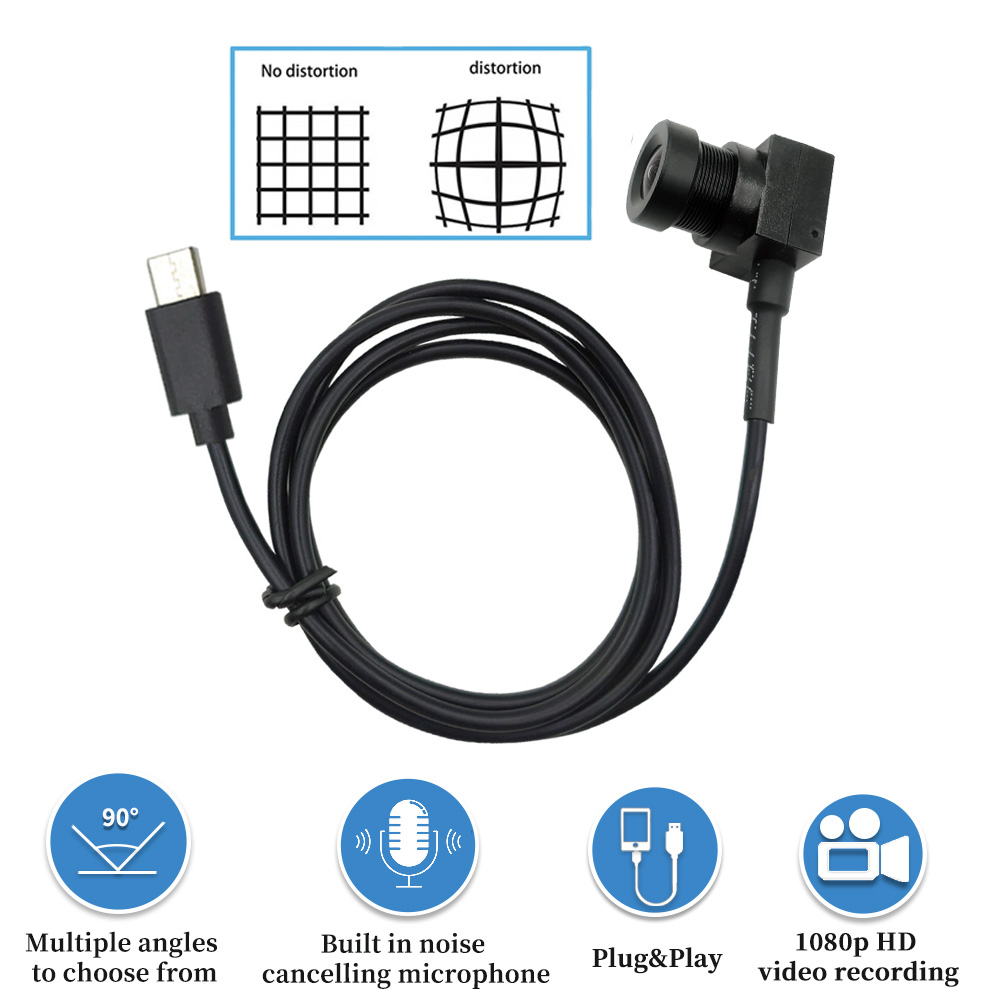

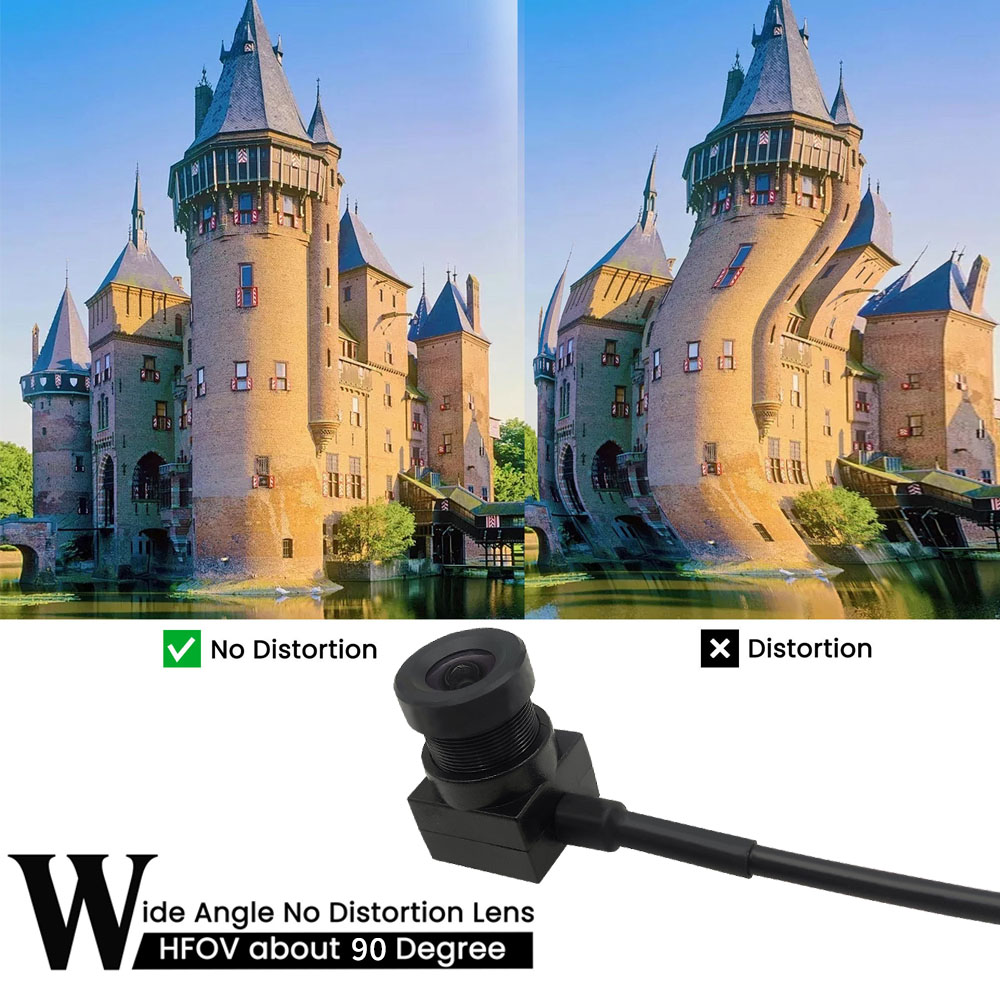

Equipped with a professional-grade 3.6mm distortion-free lens: Effectively corrects edge distortion, ensuring straight lines remain straight in the image and restoring a true-to-life view.

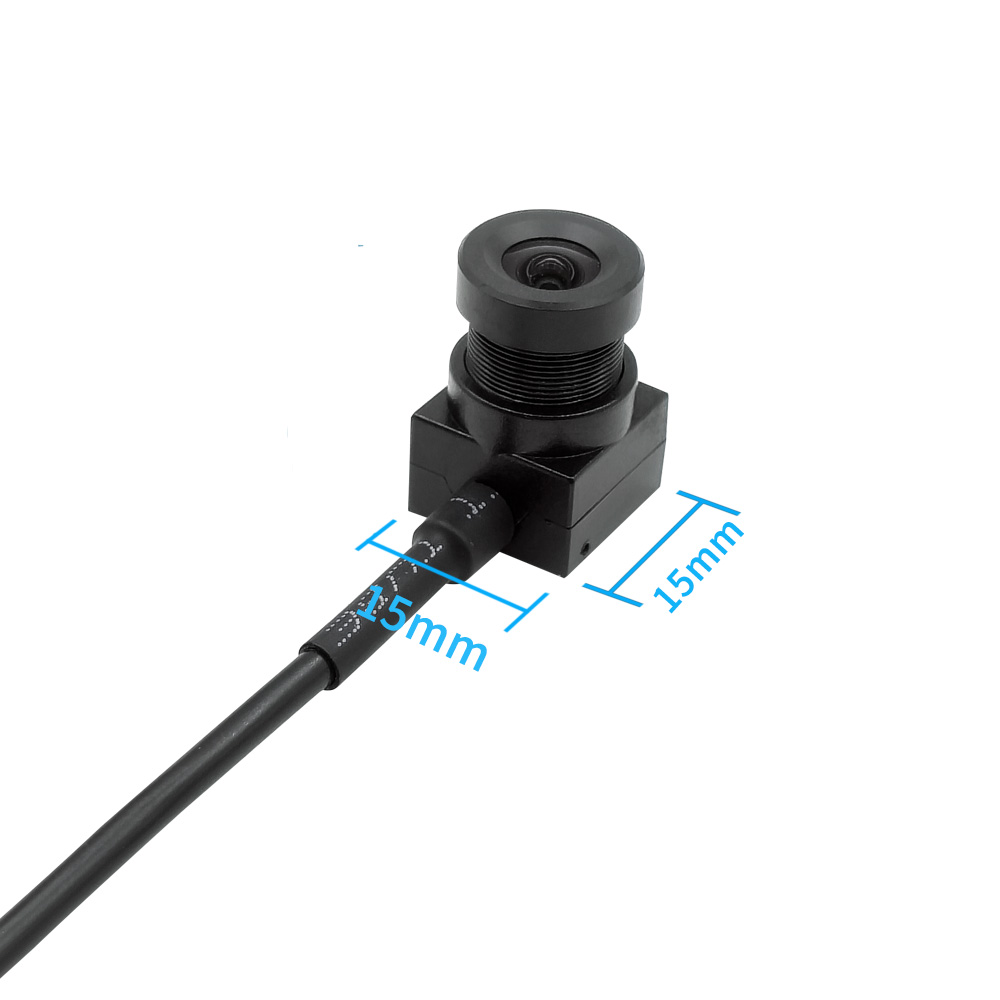

Ultra-compact, Space-Saving: A compact 15mmx15mm cube design, lightweight and portable. Extremely space-saving, easily integrated into various device cases or carried as a portable peripheral.

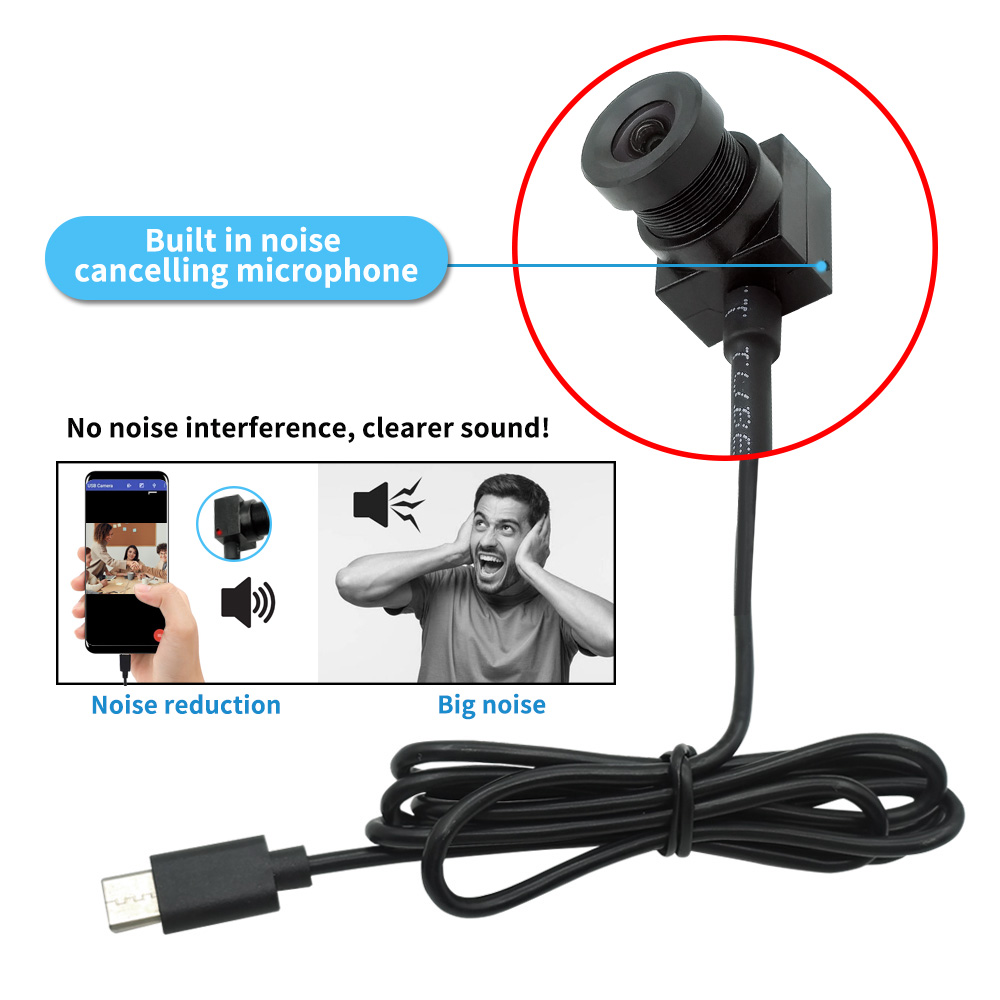

Built-in Microphone, Integrated Audio and Video: Innovatively integrates an omnidirectional microphone, capturing high-definition images and clearly recording ambient sound. Achieves high-quality simultaneous audio and video recording and transmission without the need for additional microphone equipment, making communication more immersive.

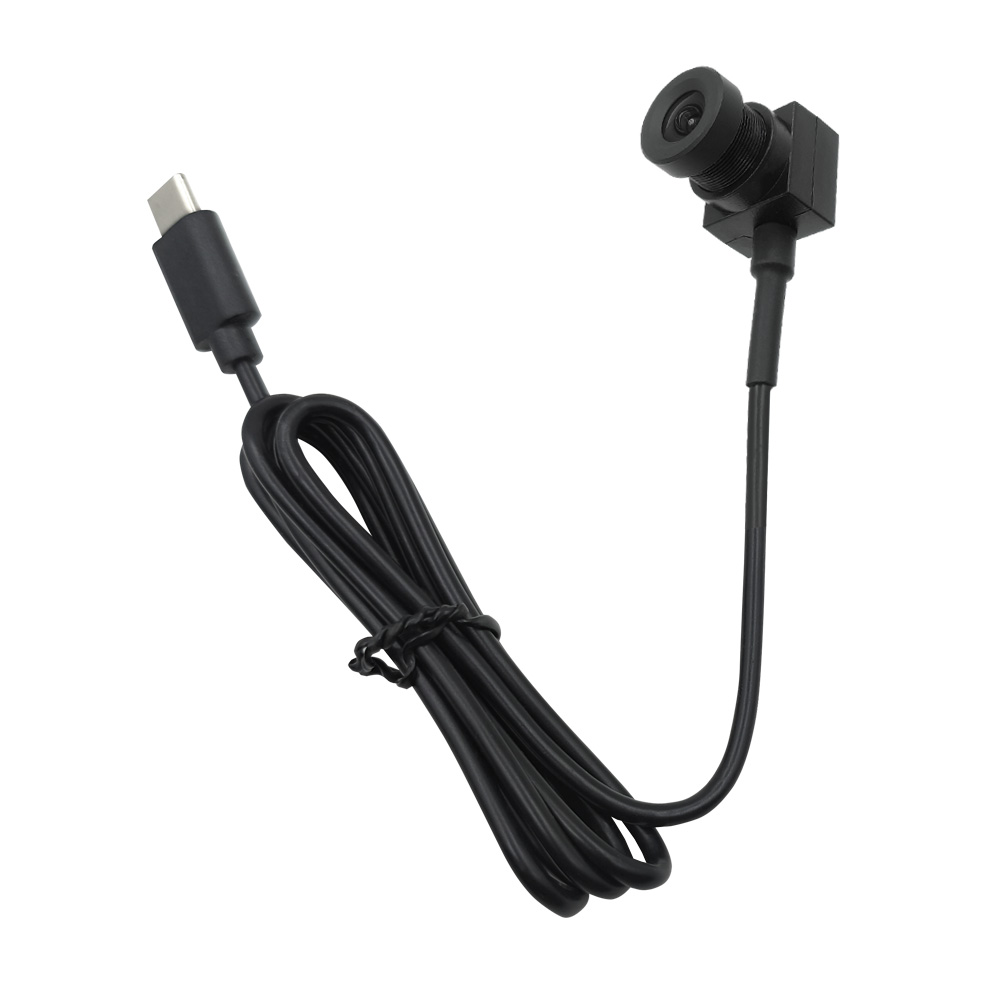

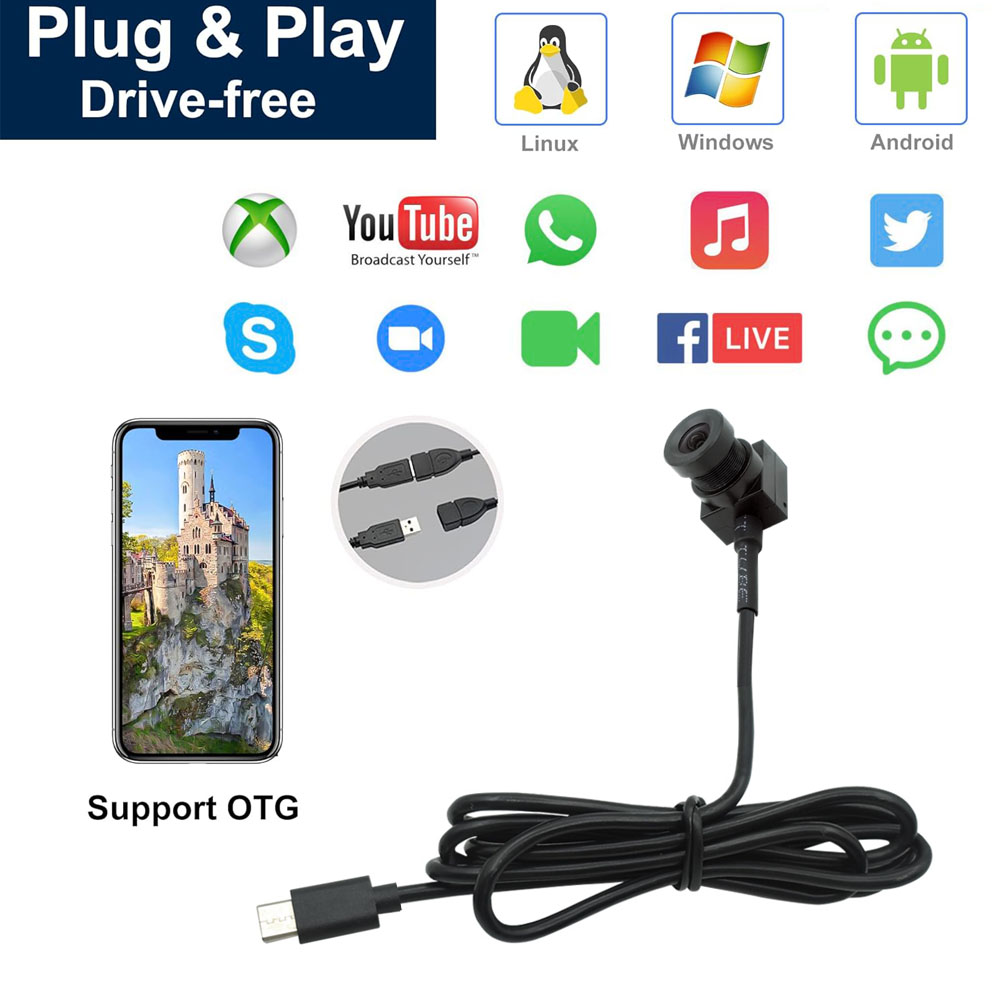

Type-C Interface, Plug and Play: Utilizes the mainstream Type-C (USB-C) interface, supporting reversible insertion for convenience and speed. Widely compatible with devices supporting the USB Video Class (UVC) protocol, such as Windows and macOS computers, Android smartphones/tablets, etc. No complex driver installation is required; connection results in immediate recognition.
Application Scenarios
1: ATM,Kiosk,POS,TV box
2: Advertising cameras
3: Smart TV built-in camera
4: Construction Equipment
5: Banking equipment
6: body switch
7: Scanner
8: a mobile terminal device
9: Medical diagnostic image acquisition
10: fingerprints, palm prints image acquisition
11: video door camera
We are well aware of the unique visual requirements of different applications and provide comprehensive OEM/ODM customization services to help you create differentiated products.
1. Lens customization: specific focal length, field of view angle, distortion control.

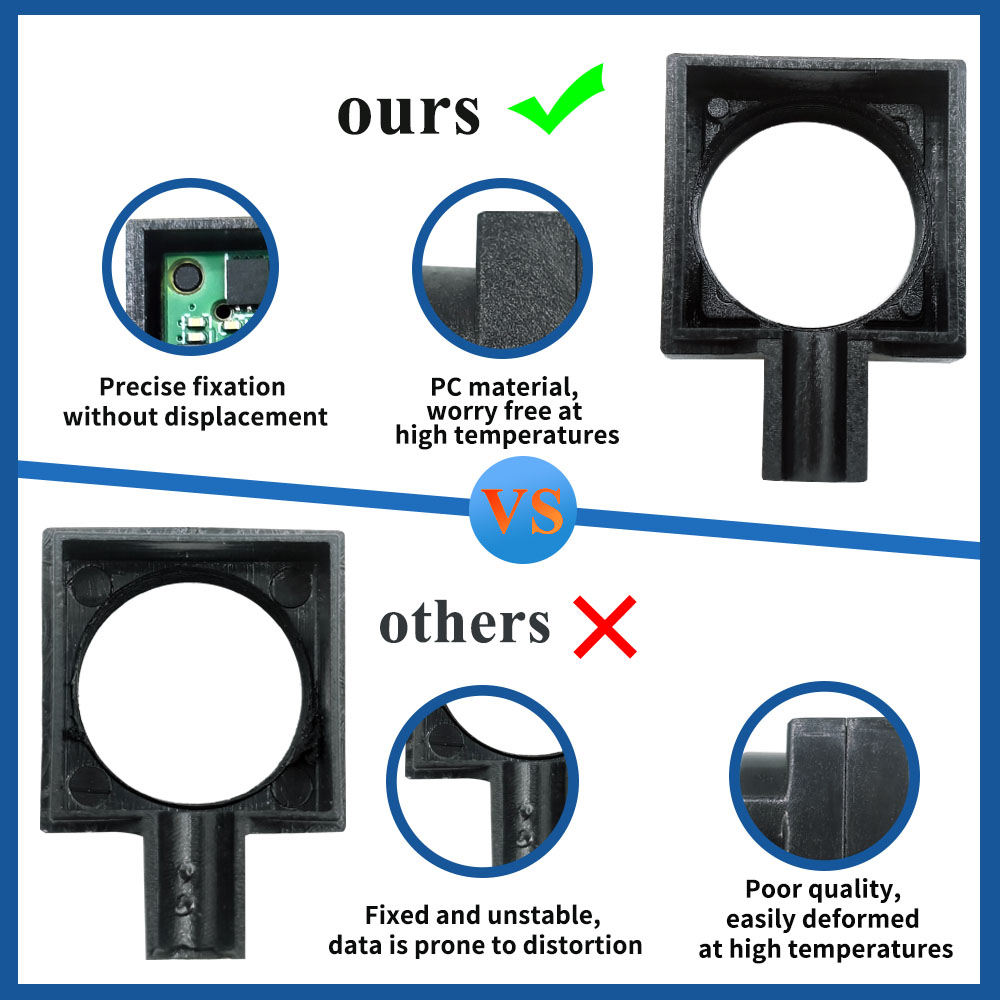

2. Customized casing: Design a dedicated casing, bracket, or fixing method based on the structure of your device.
3. Cable and Interface: Customize cable length and interface type.
4. Pixel customization: Different resolution and frame rate models are available (such as higher pixel 4MP, 5MP, 8MP, 12MP,16MP).
