Product Features
1080P Full HD Image Quality: With 2 million effective pixels and support for up to 1920 * 1080 resolution, it can output clear, sharp, and detailed full HD video images, bringing an immersive visual experience.
Ultimate miniaturization design: The product size is only 15mm x 19mm, making it a masterpiece in the industry. The ultra mini size makes it almost space saving, easy to hide and install, perfectly integrated into various application environments, balancing aesthetics and functionality.
Equipped with high-quality 3.6mm distortion free lens, providing a 90 ° viewing angle: Compared with traditional wide-angle lenses, it can effectively reduce the stretching and deformation of edge images, ensuring that the objects in the center and edges of the image remain true to their original appearance, especially suitable for application scenarios that require accurate images.
30FPS Smooth Frame Rate: In 1080P Full HD mode, it can still maintain a high frame rate recording of 30 frames per second. The screen is smooth and not stuttering, capable of capturing fast-moving objects clearly, meeting the needs of high-quality video calls and recording.
Adopting mainstream Type-C interface: forward and reverse blind insertion, convenient and fast. No additional driver required, plug and play. Easily connect to the latest laptops, tablets (such as MacBook, iPad Pro), Android phones (with OTG support), and other devices, representing the future technological standards.

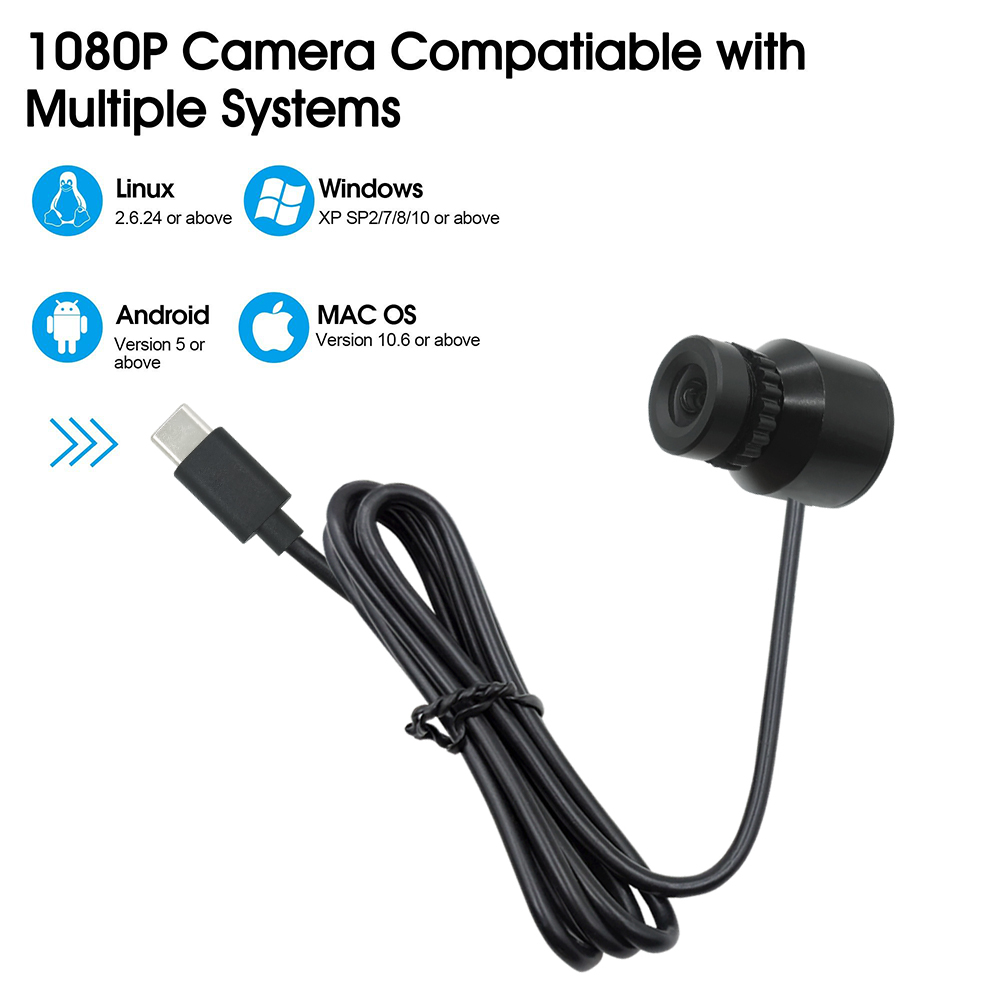

Wide compatibility: Perfectly compatible with mainstream operating systems such as Windows, Linux, Android, etc.
Ultimate miniaturization design: The product size is only 15mm x 19mm, making it a masterpiece in the industry. The ultra mini size makes it almost space saving, easy to hide and install, perfectly integrated into various application environments, balancing aesthetics and functionality.
Equipped with high-quality 3.6mm distortion free lens, providing a 90 ° viewing angle: Compared with traditional wide-angle lenses, it can effectively reduce the stretching and deformation of edge images, ensuring that the objects in the center and edges of the image remain true to their original appearance, especially suitable for application scenarios that require accurate images.
30FPS Smooth Frame Rate: In 1080P Full HD mode, it can still maintain a high frame rate recording of 30 frames per second. The screen is smooth and not stuttering, capable of capturing fast-moving objects clearly, meeting the needs of high-quality video calls and recording.
Adopting mainstream Type-C interface: forward and reverse blind insertion, convenient and fast. No additional driver required, plug and play. Easily connect to the latest laptops, tablets (such as MacBook, iPad Pro), Android phones (with OTG support), and other devices, representing the future technological standards.
Wide compatibility: Perfectly compatible with mainstream operating systems such as Windows, Linux, Android, etc.

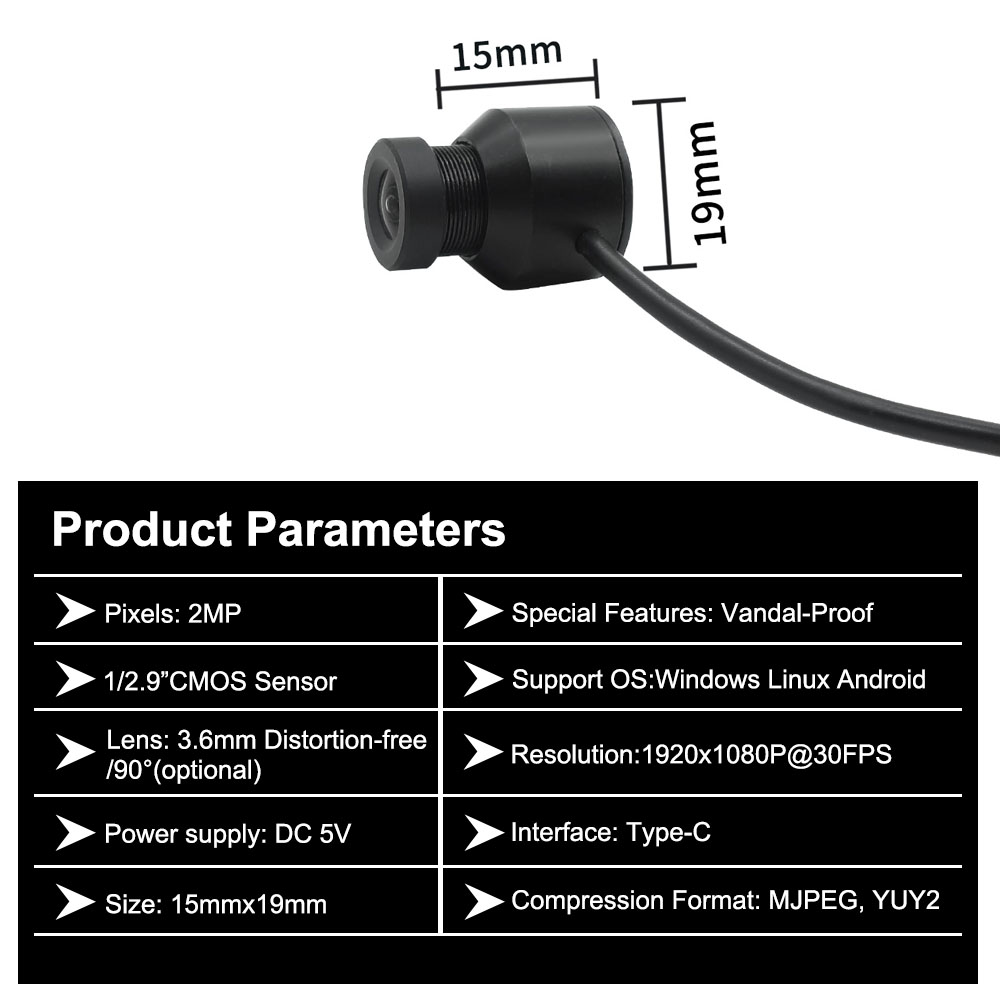

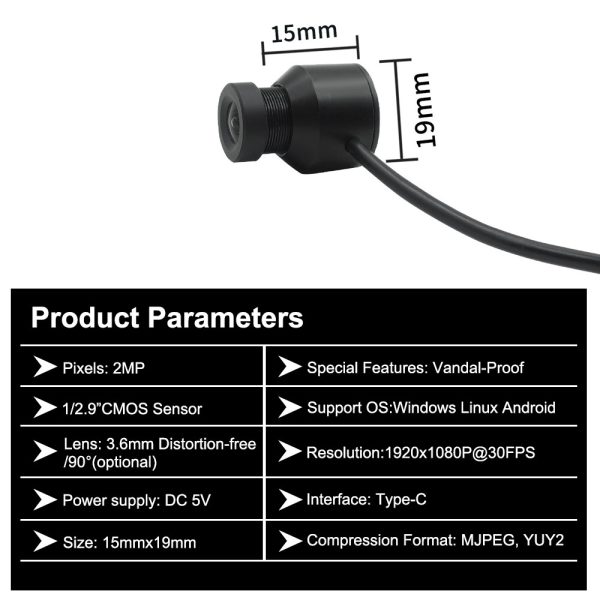

Technical Specifications
| Parameter | Specification |
|---|---|
| Sensor | 1/2.9″CMOS |
| Resolution | 2MP (1920×1080 @30fps) |
| Compression Format | MJPG/YUV2 |
| Power Supply | DC 5V |
| Lens | Distortionless 3.6mm |
| FOV | 90° |
Size | 19mm × 15mm |
| Interface | Type-c |
| Model Number | HCT-192J36W |
| Supported OS | Windows/Linux/ Android |
Customization Options
We are well aware of the unique visual requirements of different applications and provide comprehensive OEM/ODM customization services to help you create differentiated products.
1. Lens customization: specific focal length, field of view angle, distortion control.
2. Customized casing: Design a dedicated casing, bracket, or fixing method based on the structure of your device.
3. Cable and Interface: Customize cable length and interface type.
4. Pixel customization: Different resolution and frame rate models are available.
Product application areas
Machine Vision and Industrial Automation: Dimensional Measurement, Product Positioning, QR Code/Barcode Recognition, Defect Detection, Automated Production Line Quality Control.
Artificial intelligence and educational research: facial recognition, gesture recognition, object tracking, machine learning model training, robotics.
Intelligent office and security monitoring: high-definition video conferencing system, facial recognition access control/attendance machine, smart doorbell, small monitoring equipment.
Medical and biometric: portable medical device imaging, microscope assisted imaging, iris recognition.
Intelligent retail and the Internet of Things (IoT): smart vending cabinets, customer flow tracking systems, behavior analysis, and the “eyes” of IoT devices.
Embedded and consumer electronics: integrated into drones, intelligent robots, and in vehicle assistance systems as visual input unit.
Artificial intelligence and educational research: facial recognition, gesture recognition, object tracking, machine learning model training, robotics.
Intelligent office and security monitoring: high-definition video conferencing system, facial recognition access control/attendance machine, smart doorbell, small monitoring equipment.
Medical and biometric: portable medical device imaging, microscope assisted imaging, iris recognition.
Intelligent retail and the Internet of Things (IoT): smart vending cabinets, customer flow tracking systems, behavior analysis, and the “eyes” of IoT devices.
Embedded and consumer electronics: integrated into drones, intelligent robots, and in vehicle assistance systems as visual input unit.
Browse more models in our USB Camera series to meet different installation and integration requirements.
