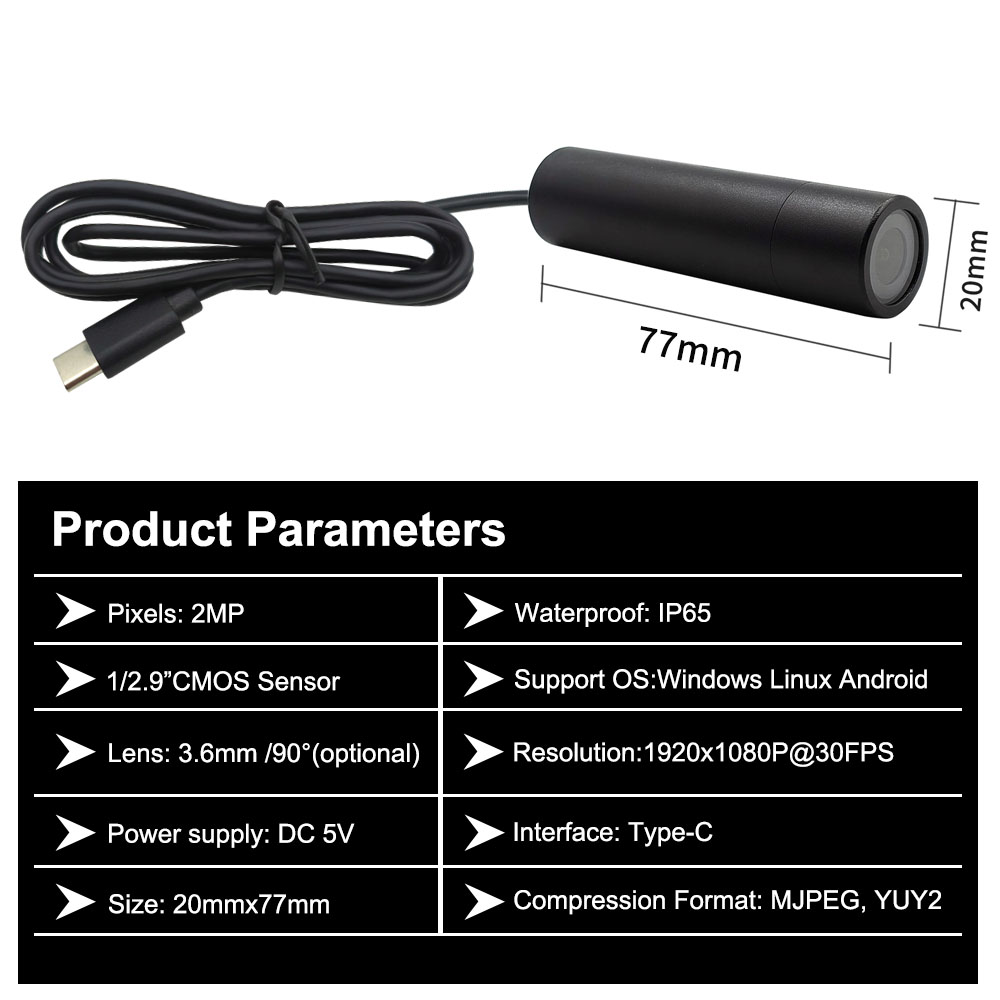

Technical Specifications
| Sensor | 1/2.9″CMOS |
| Pixel | 2MP |
| Compression format | MJPG/YUV2 |
| Frame rate | 1920x1080p@ 30fps |
| Operating voltage | DC 5v |

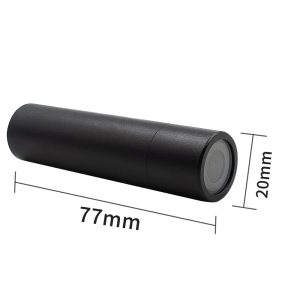

| Product dimensions | 20mmX77mm (Base size not included) |
| White balance | Automatic |
| Operating temperature | <70° |
| Power consumption | 0.25w |
| Model No | HC-T2MPDBT |
| Interface type | Type-c |
|
Waterproof
|
IP65 |
| Lens | 3.6mm |

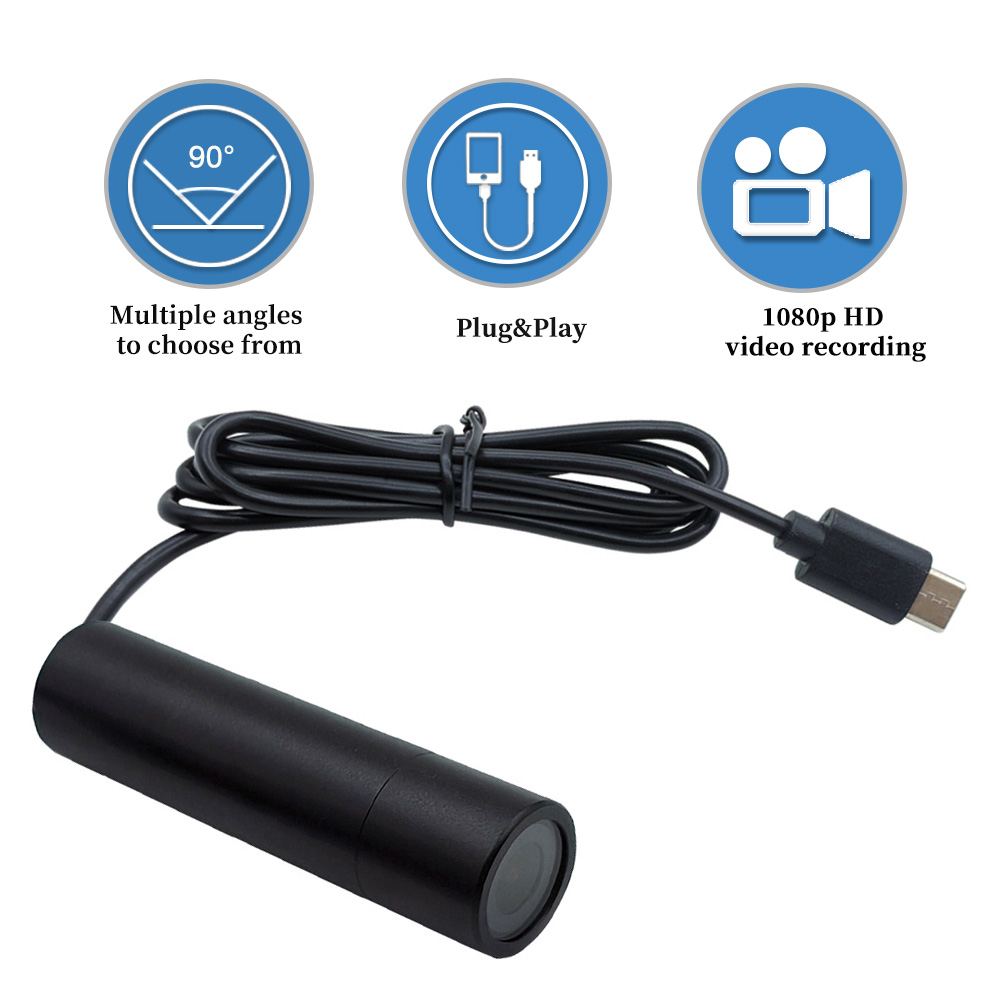

| FOV | 90° |

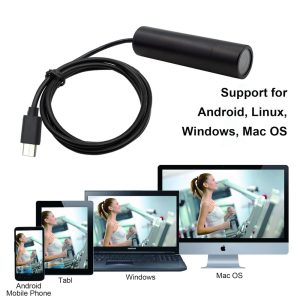

| Support OS | Windows/Mac OS/Android/Linux |
Product functions and features

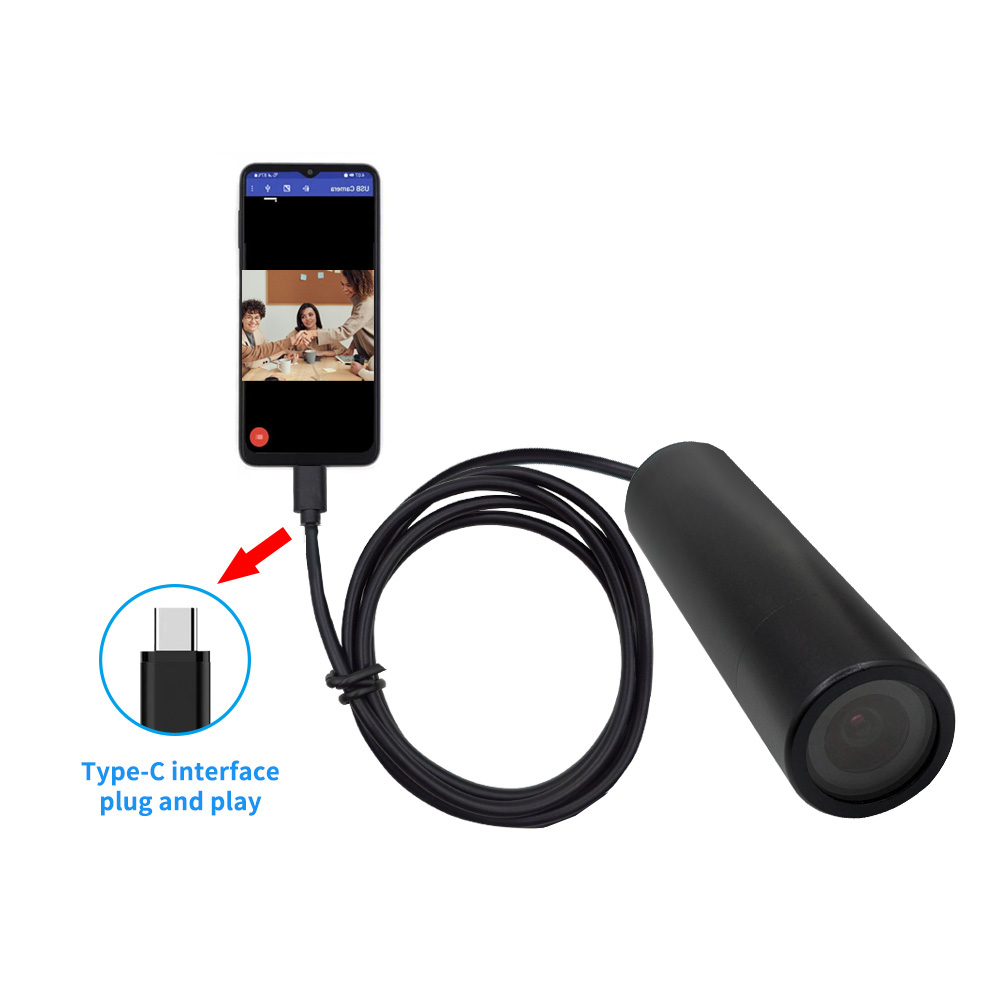

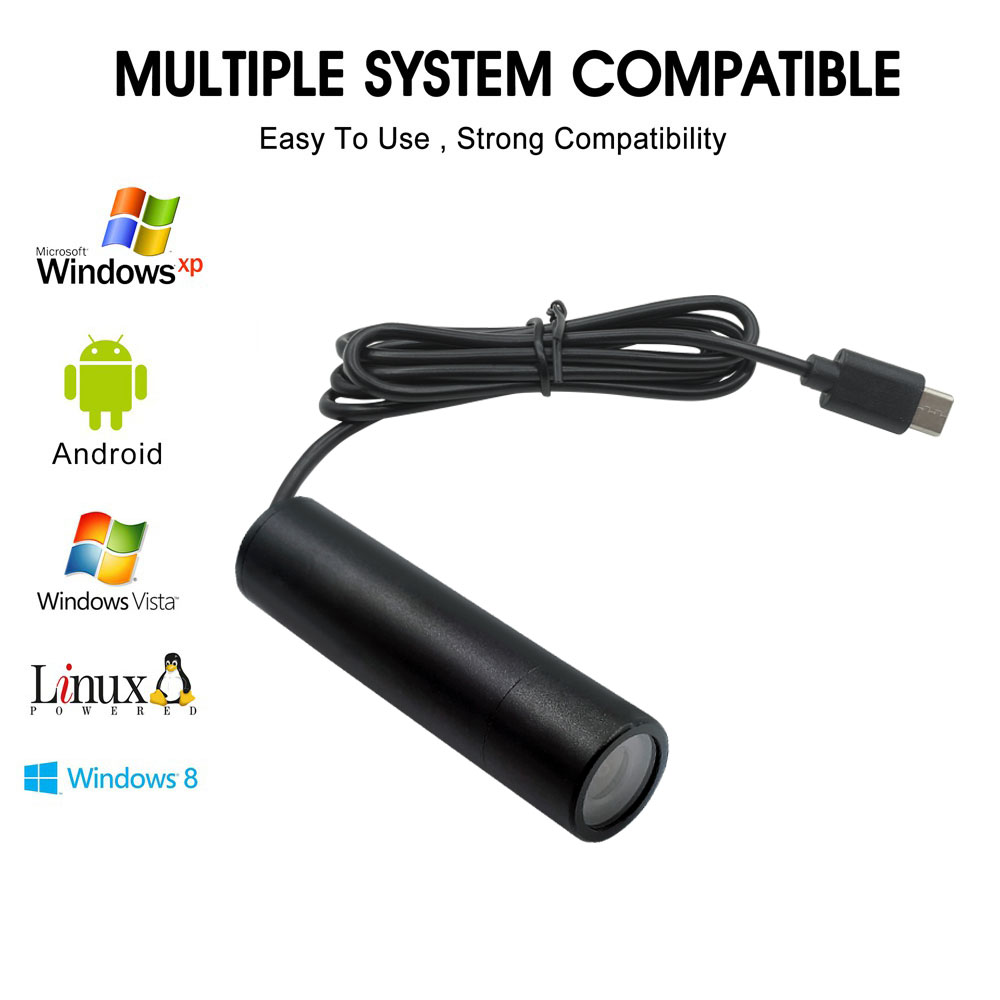

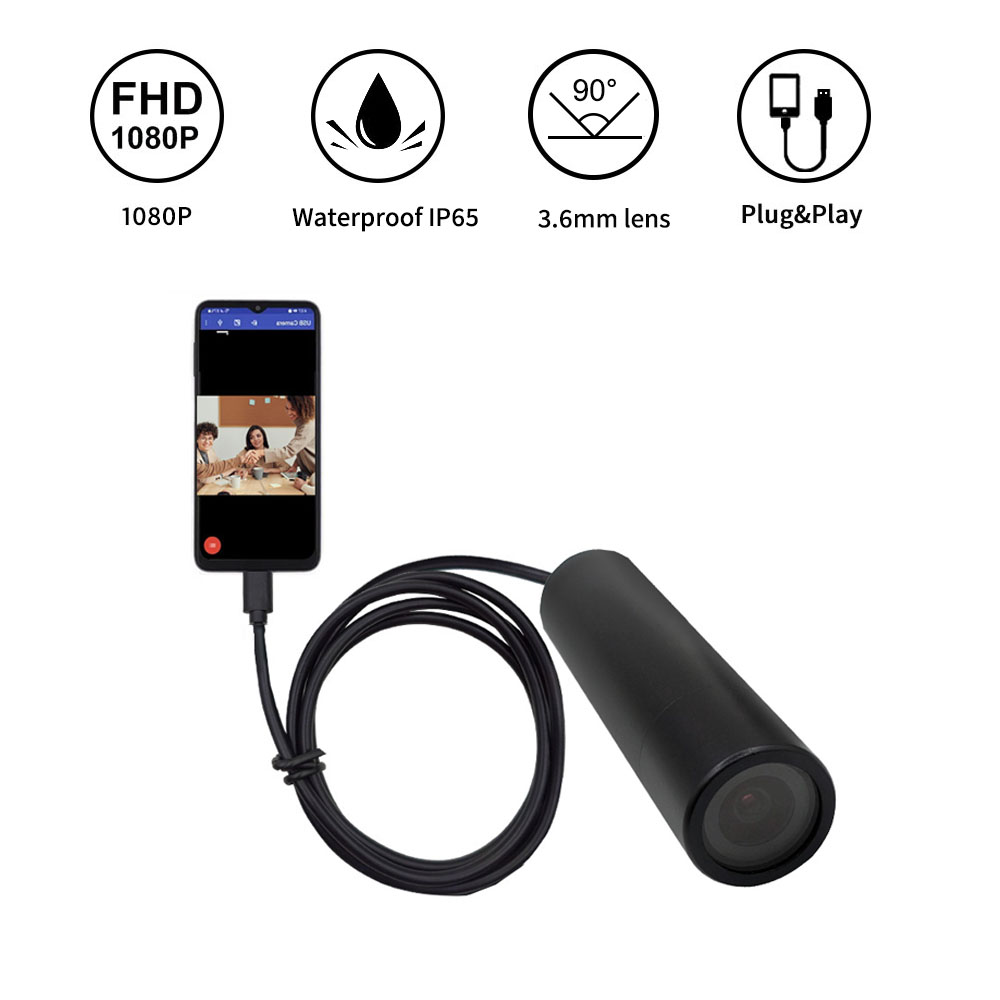

UVC Plug and Play Camera: No driver, supports Windows/Mac/Linux systems; Automatically identify compatible Android OTG devices.

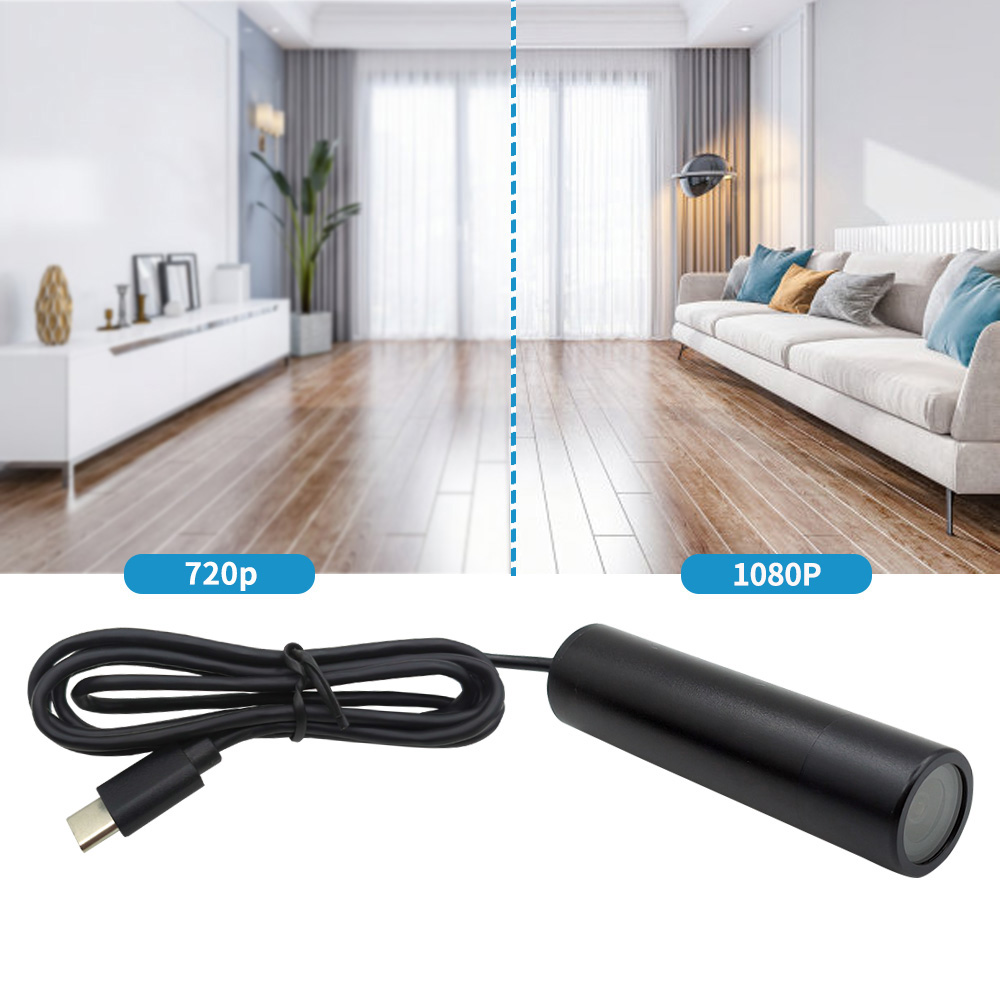

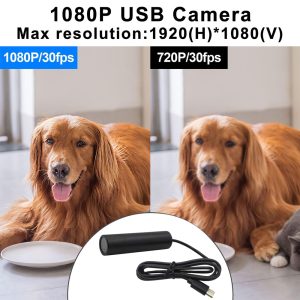

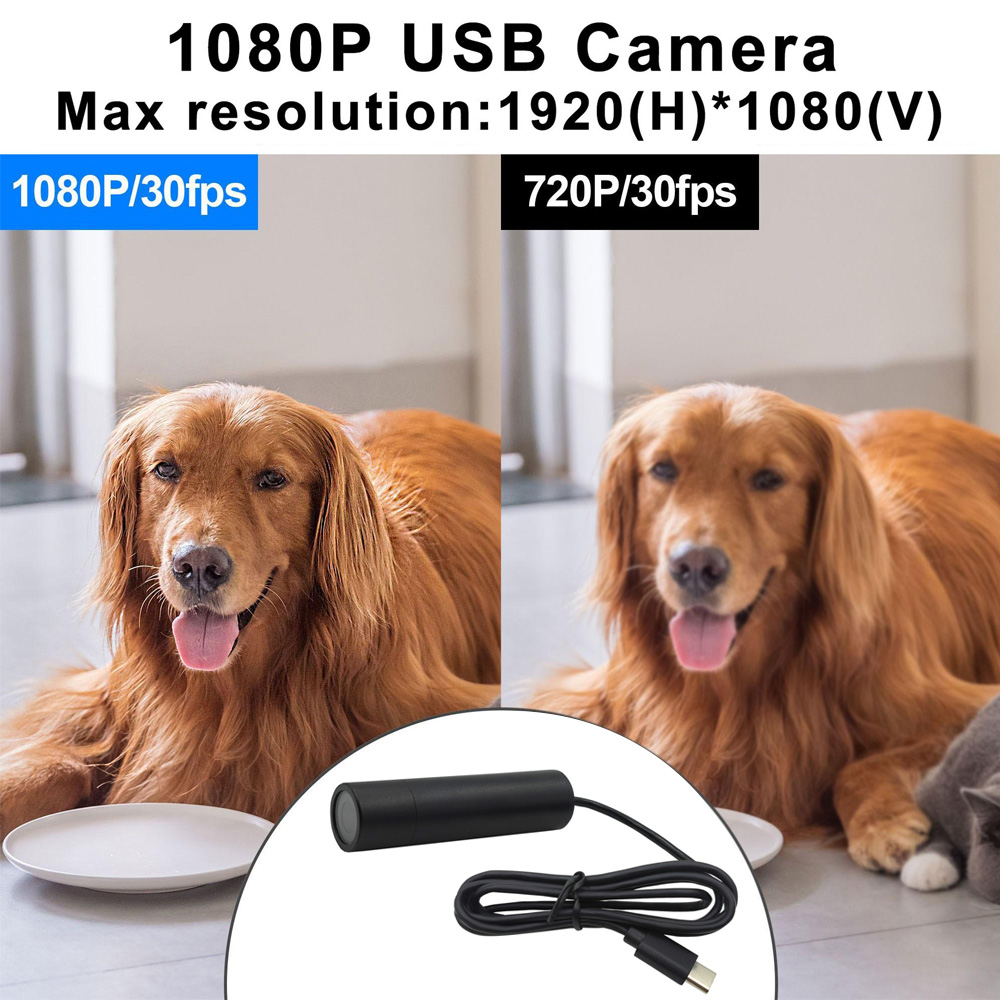

2MP 1080p HD resolution: Provides clear 1920x1080p resolution video, optimized for close range detection and real-time monitoring.

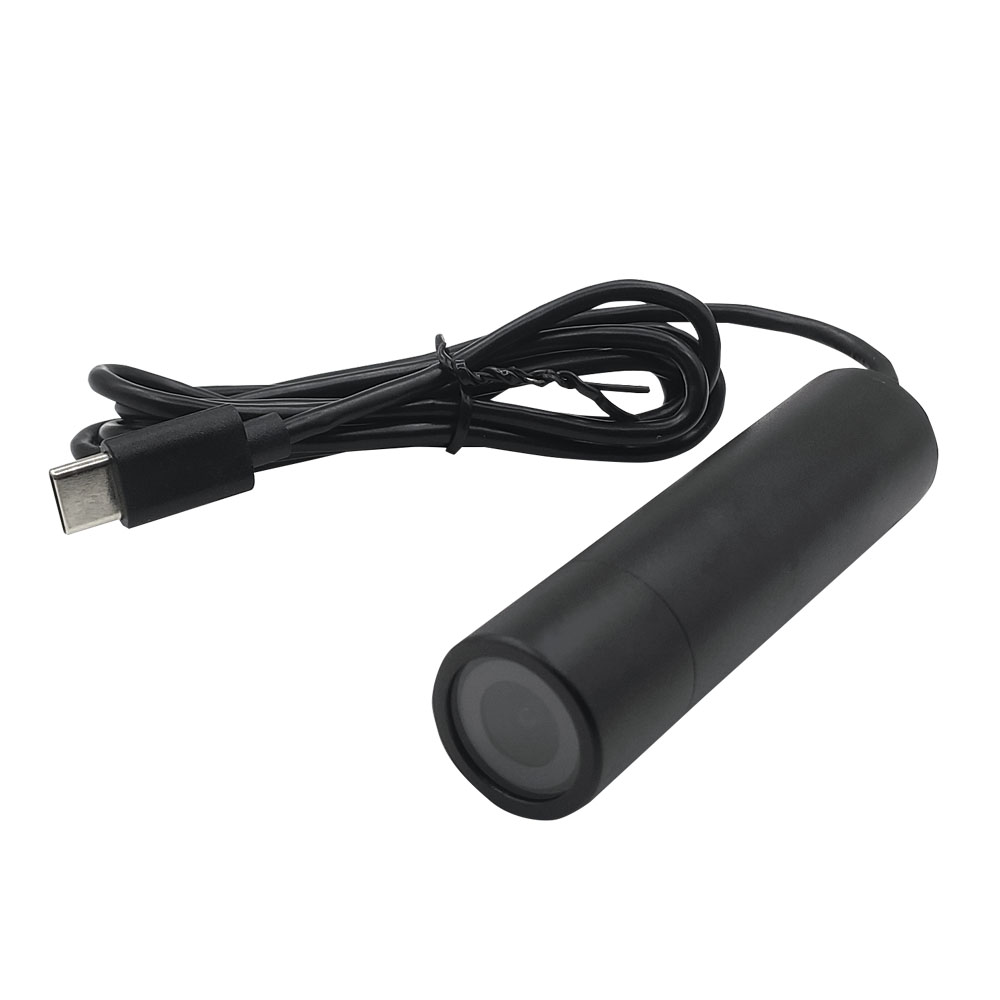

USB-C Mini Camera Design: Supports modern industrial tablets, handheld terminals, and embedded devices.

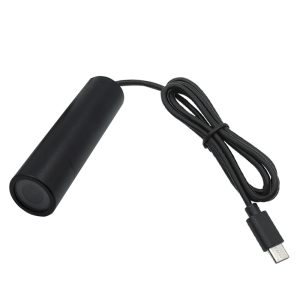

Metal bullet shaped casing: provides enhanced protection, thermal stability, and long-term durability.
OEM/ODM support: customizable cable length, field of view, lens type, housing color, and firmware.
2MP 1080p HD resolution: Provides clear 1920x1080p resolution video, optimized for close range detection and real-time monitoring.
USB-C Mini Camera Design: Supports modern industrial tablets, handheld terminals, and embedded devices.
Metal bullet shaped casing: provides enhanced protection, thermal stability, and long-term durability.
OEM/ODM support: customizable cable length, field of view, lens type, housing color, and firmware.
Application Scenarios
Ideal for machine vision and equipment monitoring applications including: ATM machines, banking systems, hospital equipment, printers, vending machines, digital signage, robots, cranes, SMT machines, welding equipment, fire water cannons, law enforcement devices, external cameras for Android phones, computer cameras, security surveillance, boiler flame monitoring, identity verification systems, and height measurement devices.
Customization Options
We are well aware of the unique visual requirements of different applications and provide comprehensive OEM/ODM customization services to help you create differentiated products.
1. Lens customization: specific focal length, field of view angle, distortion control.
2. Customized casing: Design a dedicated casing, bracket, or fixing method based on the structure of your device.
3. Cable and Interface: Customize cable length and interface type.
4. Pixel customization: Different resolution and frame rate models are available (such as higher pixel 4MP, 5MP, 8MP, 12MP,16MP).
