Key Features

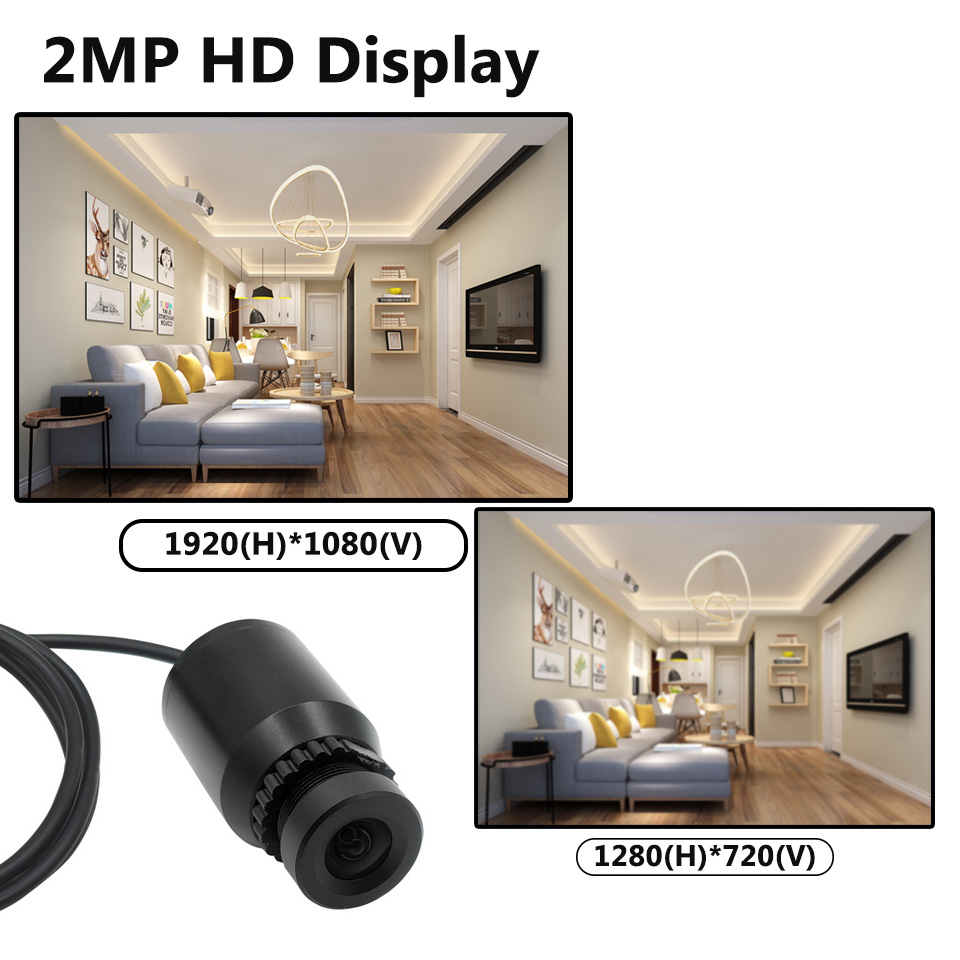

- Full HD Image Quality: Equipped with a 1920×1080 resolution sensor, it produces clear, detailed, and color-accurate images.
- Image parameters (exposure, white balance, gain, contrast, saturation) can be adjusted via an app.
- Mini Bullet-Shaped Design: Its compact body allows this mini USB camera to be easily integrated into embedded systems, small devices, self-service kiosks, POS terminals, and any system requiring a small USB camera. It can be easily installed in space-constrained industrial settings and retail equipment.

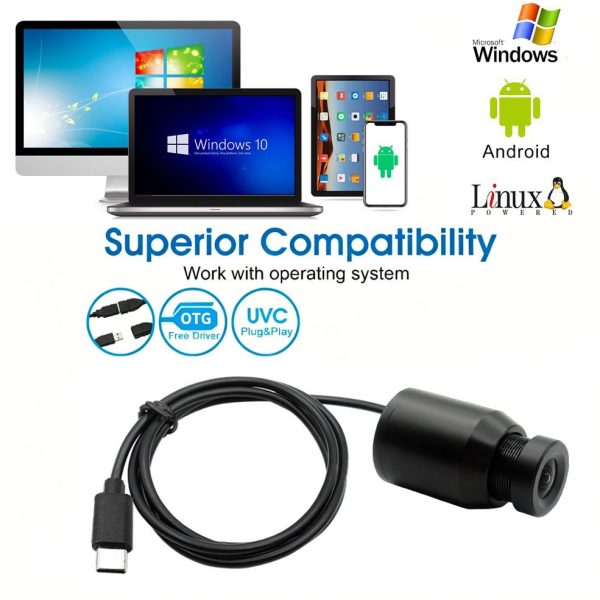

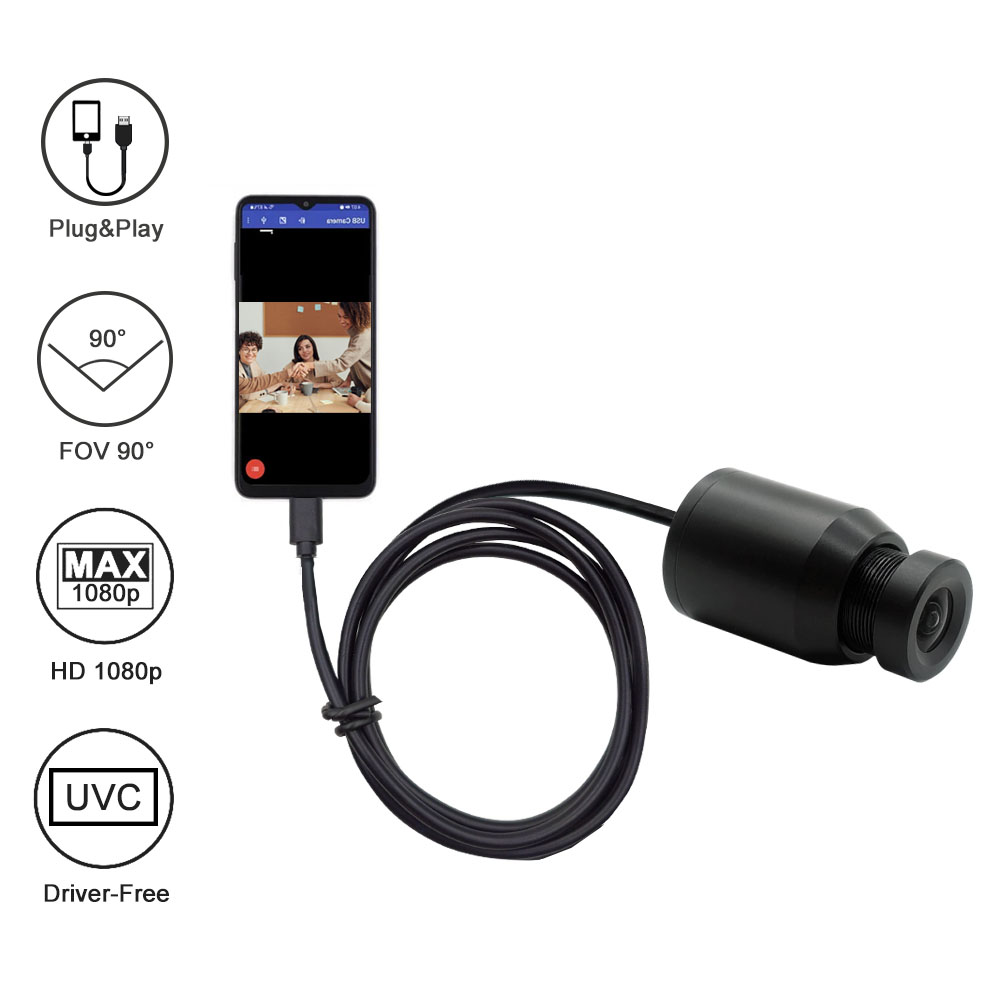

- UVC Plug and Play Compatibility: Standard video applications can be used without drivers, and it supports multiple operating systems (Windows, Linux, Android).

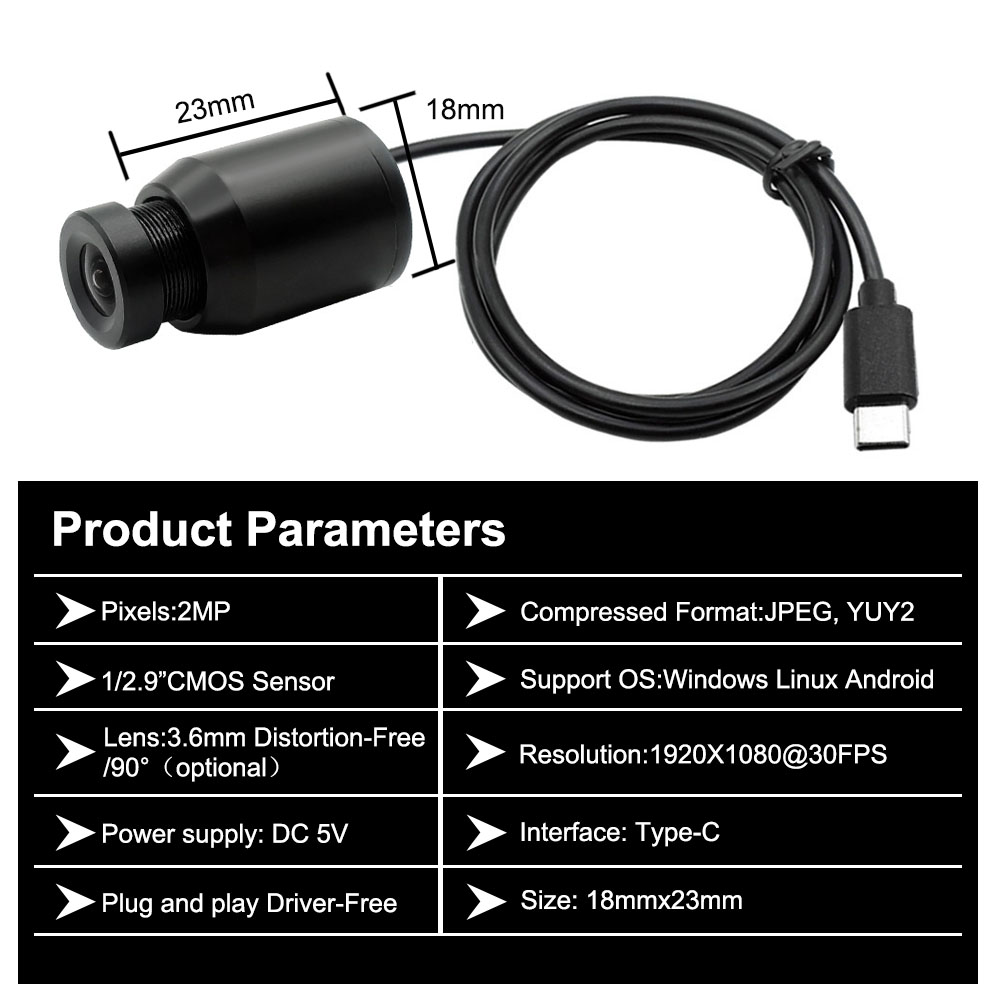

Technical Specifications
| Sensor | 1/2.9″CMOS |
|---|---|
| Resolution | 2MP |
| Frame Rate | 1920×1080 @30fps |
| Compression Format | MJPG/YUV2 |

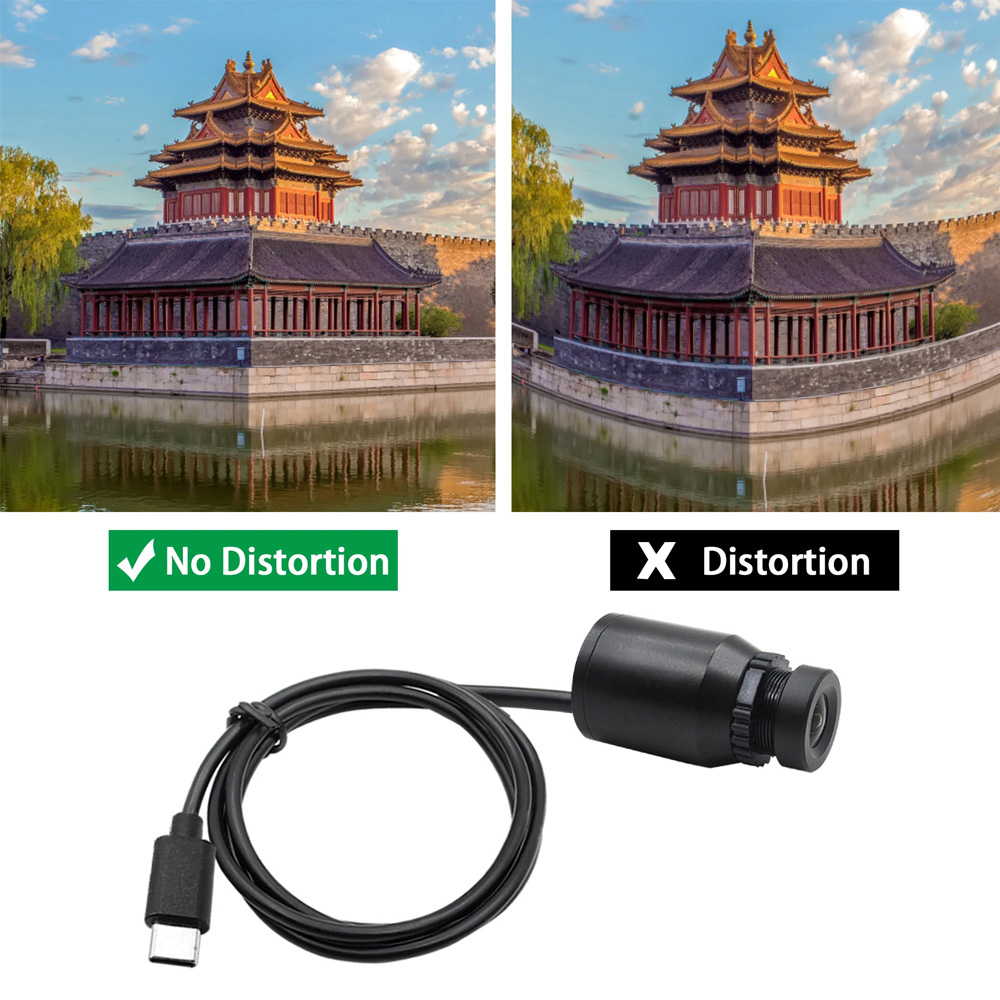

| Lens | Distortionless 3.6mm |
| FOV | 90 degrees |

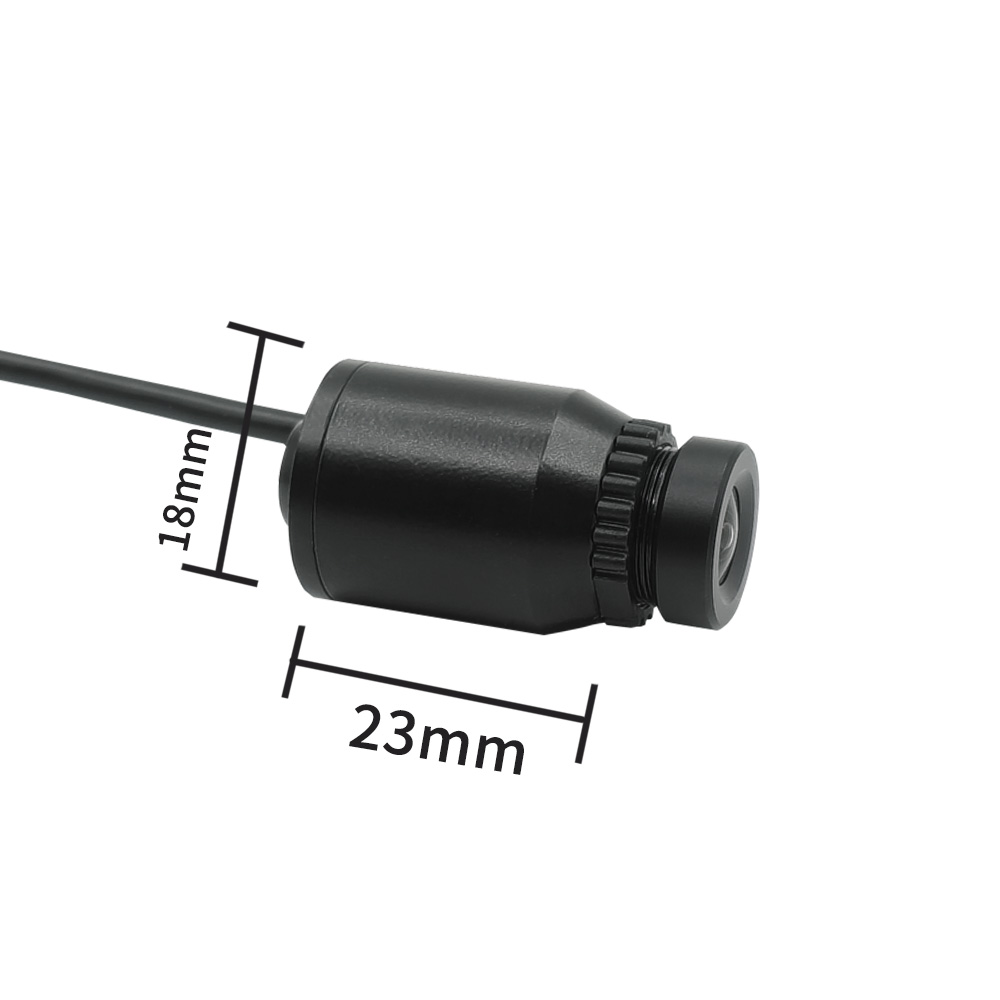

| Size | 18mmX23mm |
| Power Supply | DC 5V |
Waterproof | IP65 |
UVC compliance | Driverless |
Special Features | Vandal-Proof |

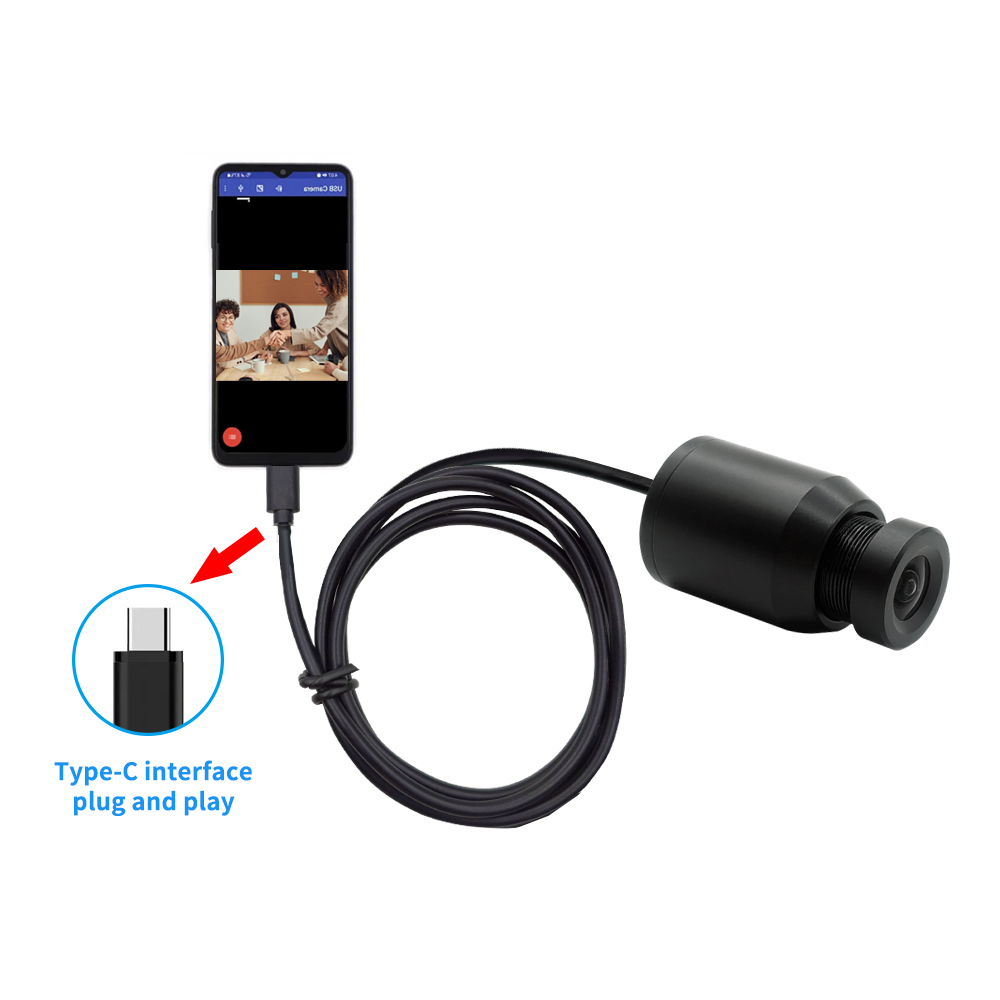

| Interface | Type-C |
| Supported OS | Windows/Linux/Android |
| Model Number | HCT-182J36W |
Customization Options
We are well aware of the unique visual requirements of different applications and provide comprehensive OEM/ODM customization services to help you create differentiated products.
1. Lens customization: specific focal length, field of view angle, distortion control.
2. Customized casing: Design a dedicated casing, bracket, or fixing method based on the structure of your device.
3. Cable and Interface: Customize cable length and interface type.
4. Pixel customization: Different resolution and frame rate models are available.

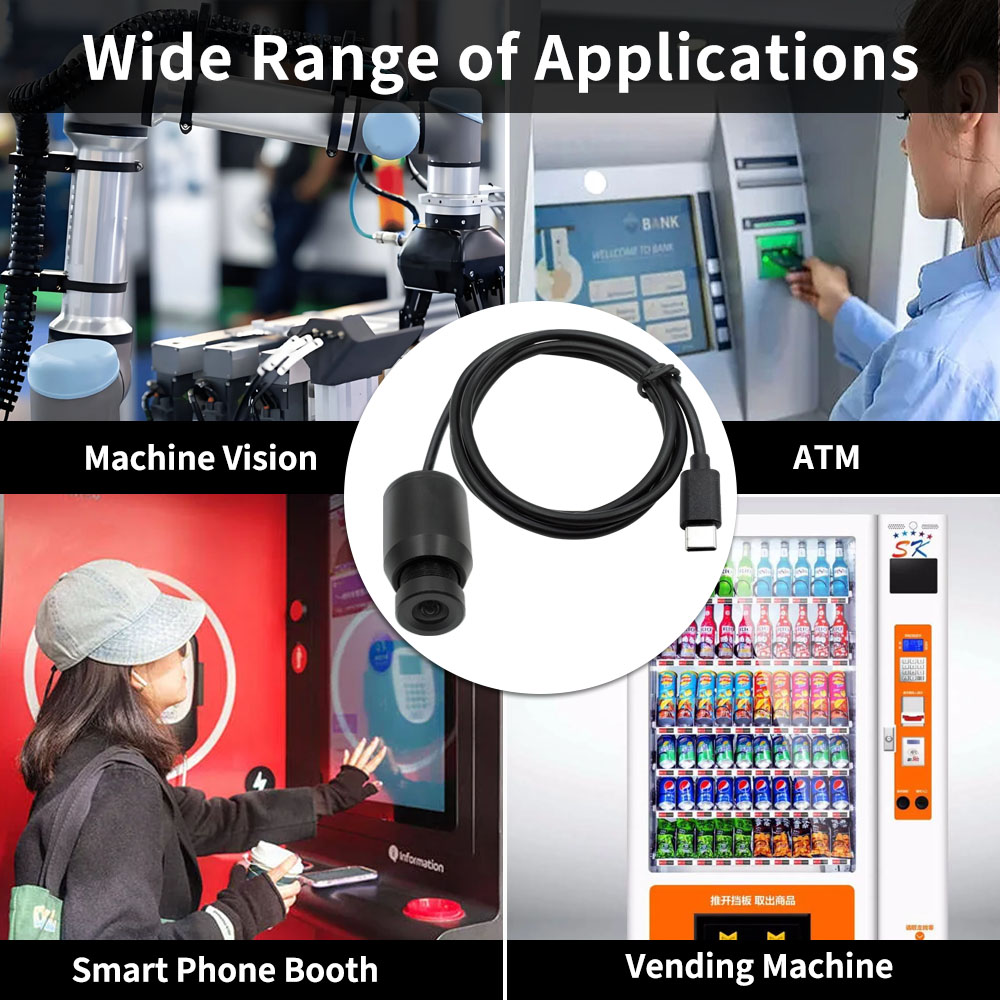

Application Areas
Widely used in self-service terminal device collection, ATM device monitoring, industrial machine vision inspection, small device built-in monitoring, robot vision, Raspberry Pi development projects, vehicle mounted auxiliary cameras, equipment box internal monitoring, small security point collection and other scenarios.
Browse more models in our USB camera series to meet different installation and integration requirements.
