Key Features
- High definition stable imaging: With a resolution of 2 million pixels and 1080P, paired with a 1/4 inch CMOS sensor, the image is clear and delicate, meeting the image quality requirements of daily security monitoring.
- High and easy to deploy: using standard AHD coaxial transmission protocol, it can directly adapt to mainstream DVR storage devices, reuse existing coaxial cables, with low transformation cost and fast implementation.
- Flexible scene adaptation: The universal body design supports both conventional point installation and can be embedded inside the device, adapting to diverse installation needs.
- Outstanding cost-effectiveness: Mature solutions have low power consumption and strong stability, suitable for batch deployment, balancing image quality performance and project cost control.
Technical Specifications
| Style | Mini Camera |
| Sensor | 1/4″ CMOS |
| Pixel | 2.0 Mega Pixels |

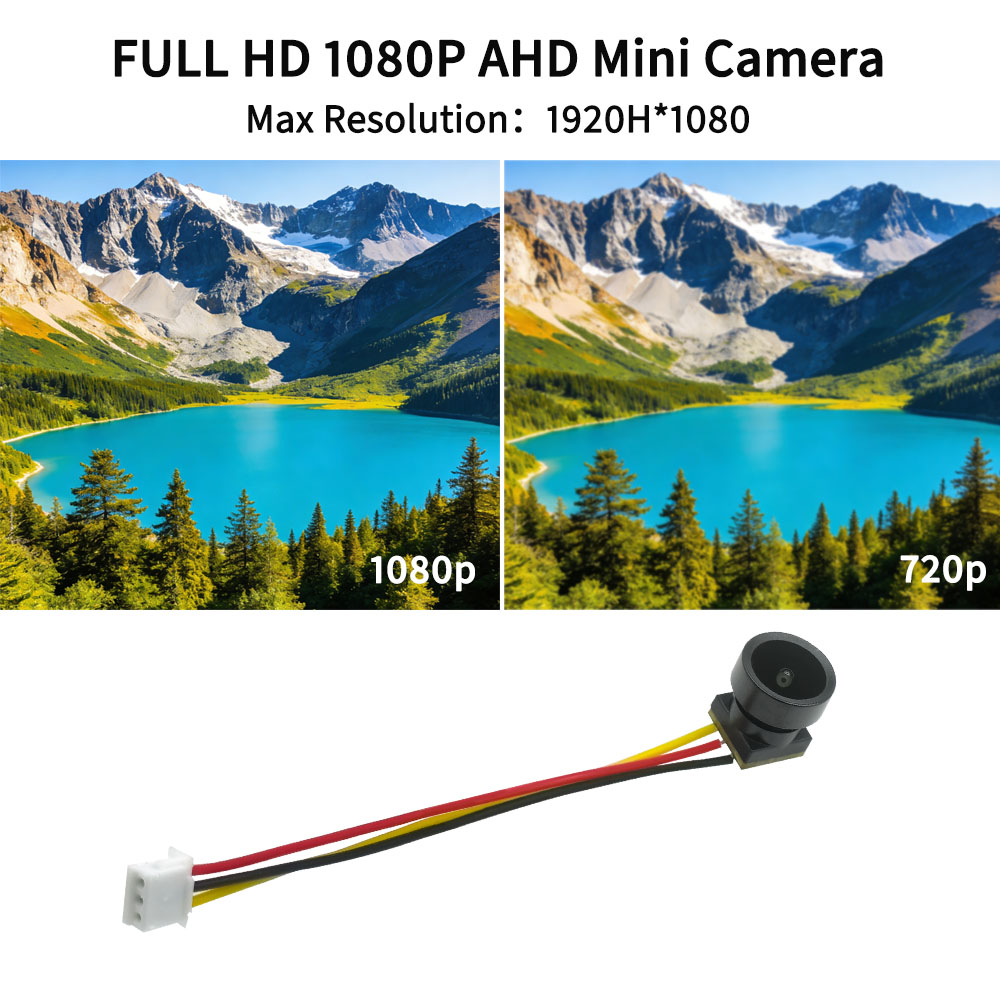

| Resolution | 1920*1080P@25fps |

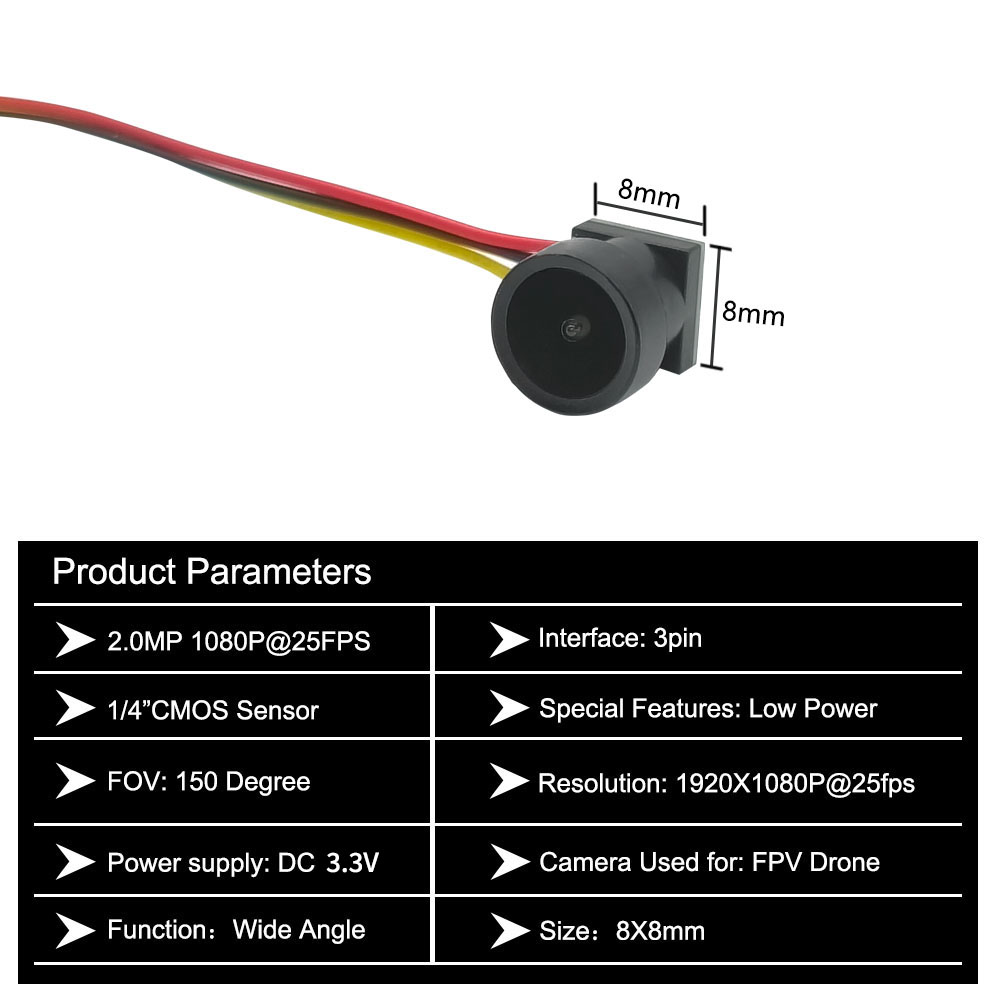

| Size | 8*8MM |
Material | Plastic |
| Signal Syste | PAL |
| Lens | 1MM(Optional) |
| View angle | 150 Degree |
| Aperture | F2.2 |
| Function | Wide Angle |
| Video Compression Format | Analog signal |
| Data Storage Options | DVR |
| Model Number | HCA-3P82 |

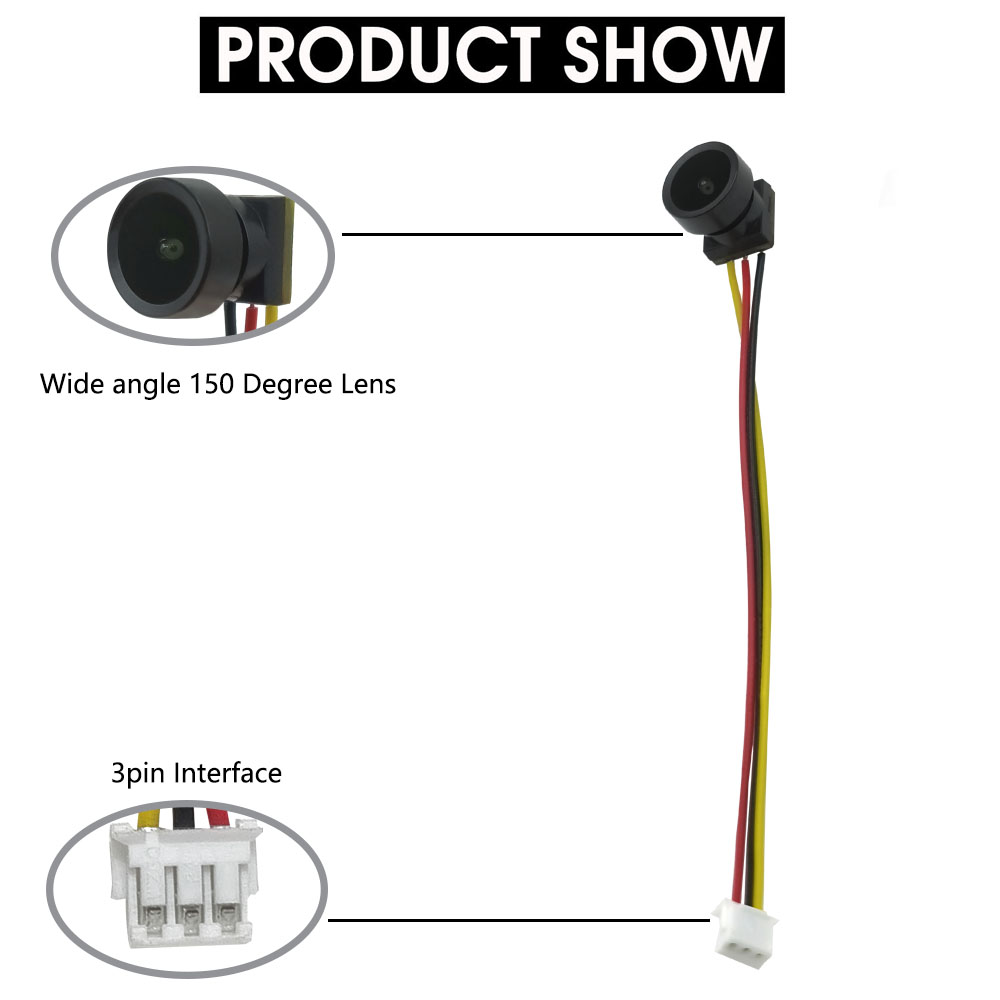

| Video Output | 3 pin |
| Operating Voltage | DC 3.3V |
Application Fields
Widely applicable to conventional indoor security monitoring scenarios such as shops, offices, residential corridors, warehouses, etc., it can also be used for lightweight embedded monitoring needs such as self-service terminals, small cabinets, and embedded industrial devices. It is suitable for security projects deployed in bulk
Customization Options
We are well aware of the unique visual requirements of different applications and provide comprehensive OEM/ODM customization services to help you create differentiated products.
- Lens customization: specific focal length, field of view angle, distortion control.
- Customized casing: Design a dedicated casing, bracket, or fixing method based on the structure of your device.
- Cable and Interface: Customize cable length and interface type.
- Pixel customization: Different resolution and frame rate models are available.
- Customized services: USB camera module, AHD camera module, CVBS camera module, Network camera module, Wifi camera module, etc.
