Key Features
- Ultra wide angle field of view coverage: The 120 ° wide-angle lens greatly expands the monitoring range, and a single device can cover a large area, effectively reducing monitoring blind spots and lowering multi-point deployment costs.
- CMOS photosensitive solution: using CMOS image sensors, low power consumption, compact size, mature and stable mass production solution, color and clarity meet the needs of conventional security monitoring.

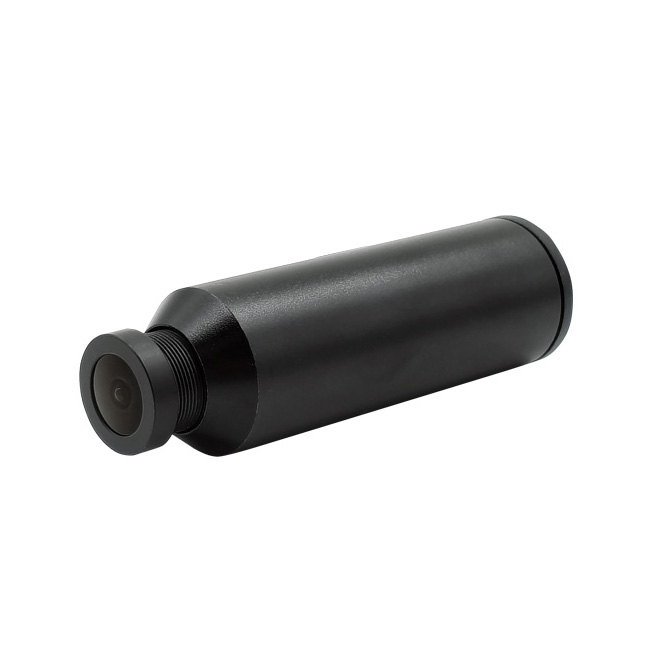

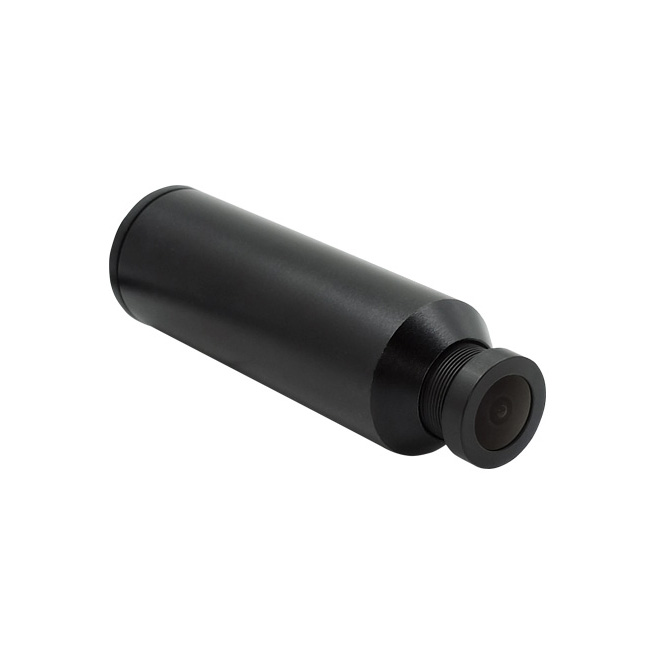

- Mini compact form: With a miniaturized body design and flexible and concealed installation, it can adapt to small spaces and also support embedding various terminal devices, making it highly adaptable.

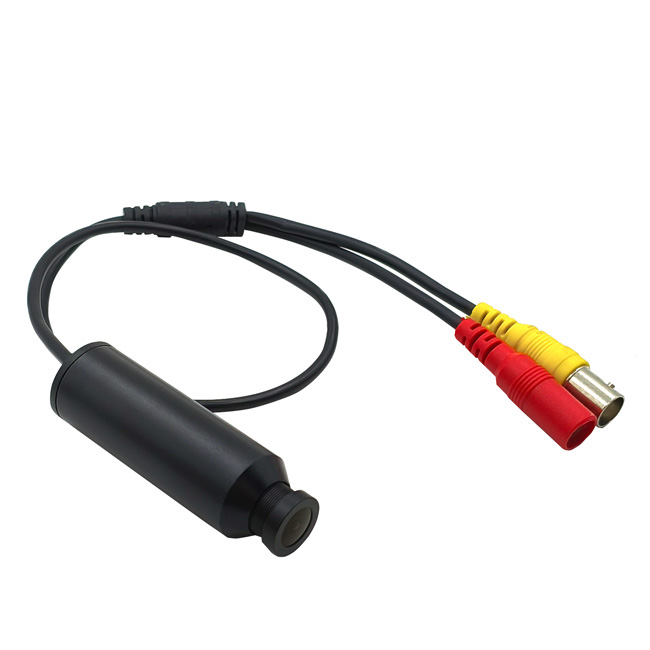

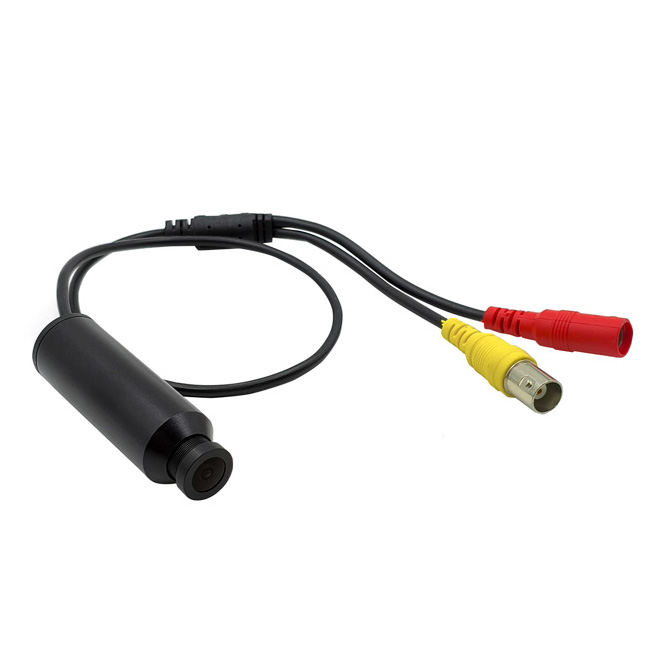

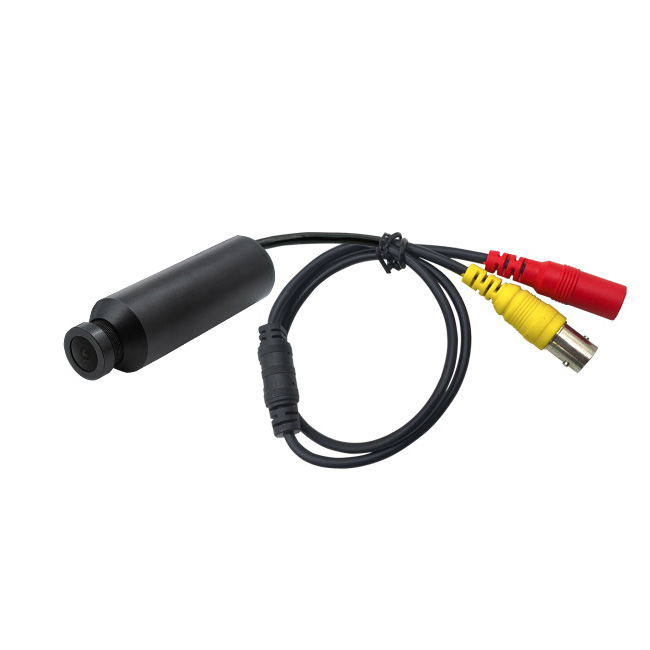

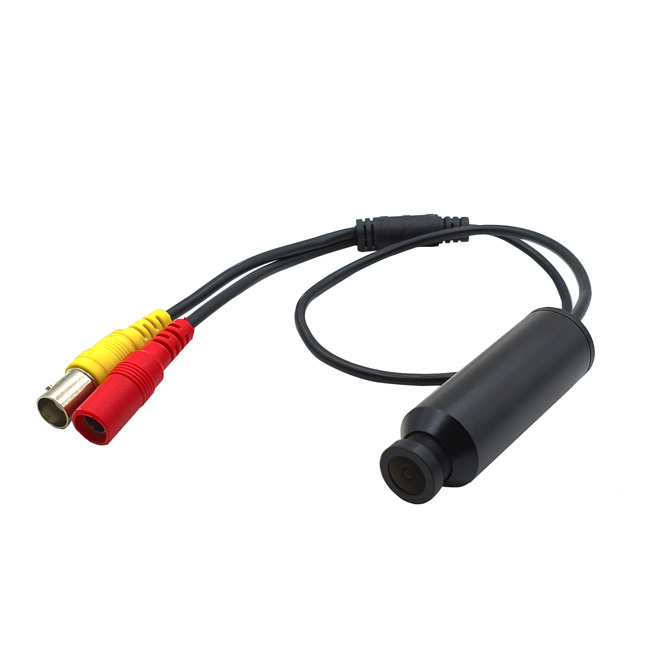

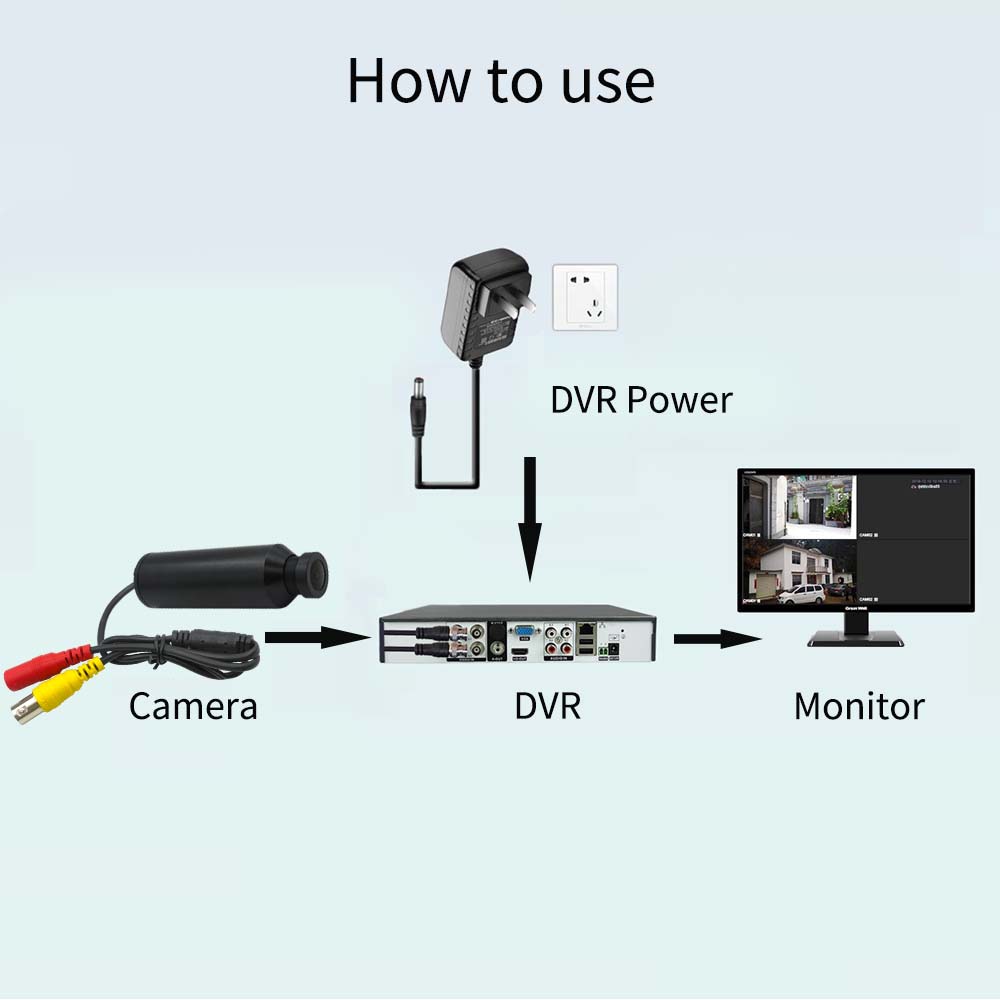

- High compatibility analog output: Standard CVBS analog signal output, can be directly connected to traditional analog DVR systems, can be replaced and upgraded without changing the original circuit and backend hardware, and has a low landing threshold.

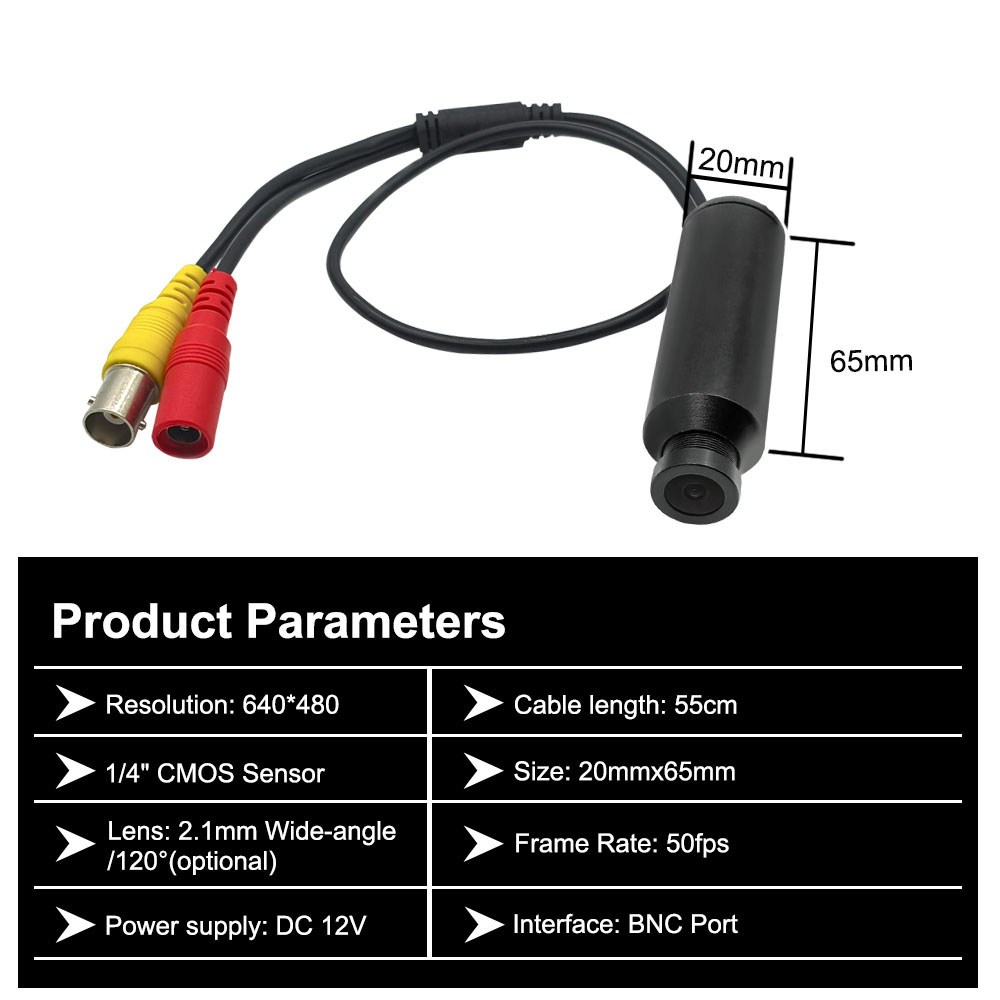

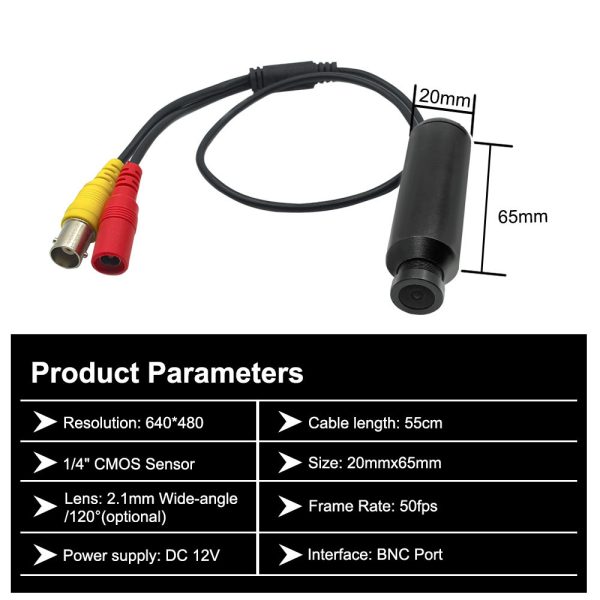

Technical Specifications
| Specification | Detail |
|---|---|
| Sensor | 1/4″CMOS |
| Resolution | 0.3MP |
| Signal Type | CVBS |
| Frame Rate | 640×480 @ 50fps |
| Power Supply | DC 12V |
| Dimensions | 20mm × 65mm |
| Aperture | F2.4 |
|
Video Compression Format
|
Analog signal |

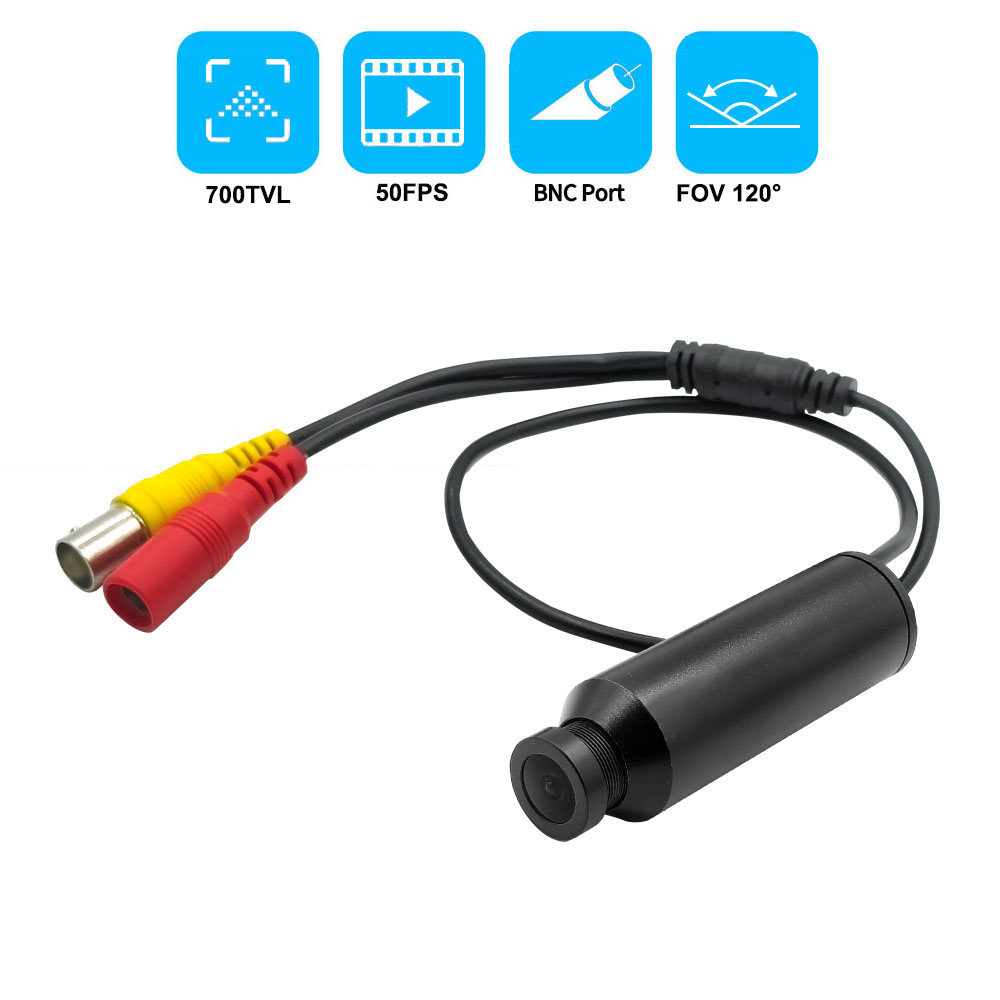

| Model Number | HCC-ZD03J21 |

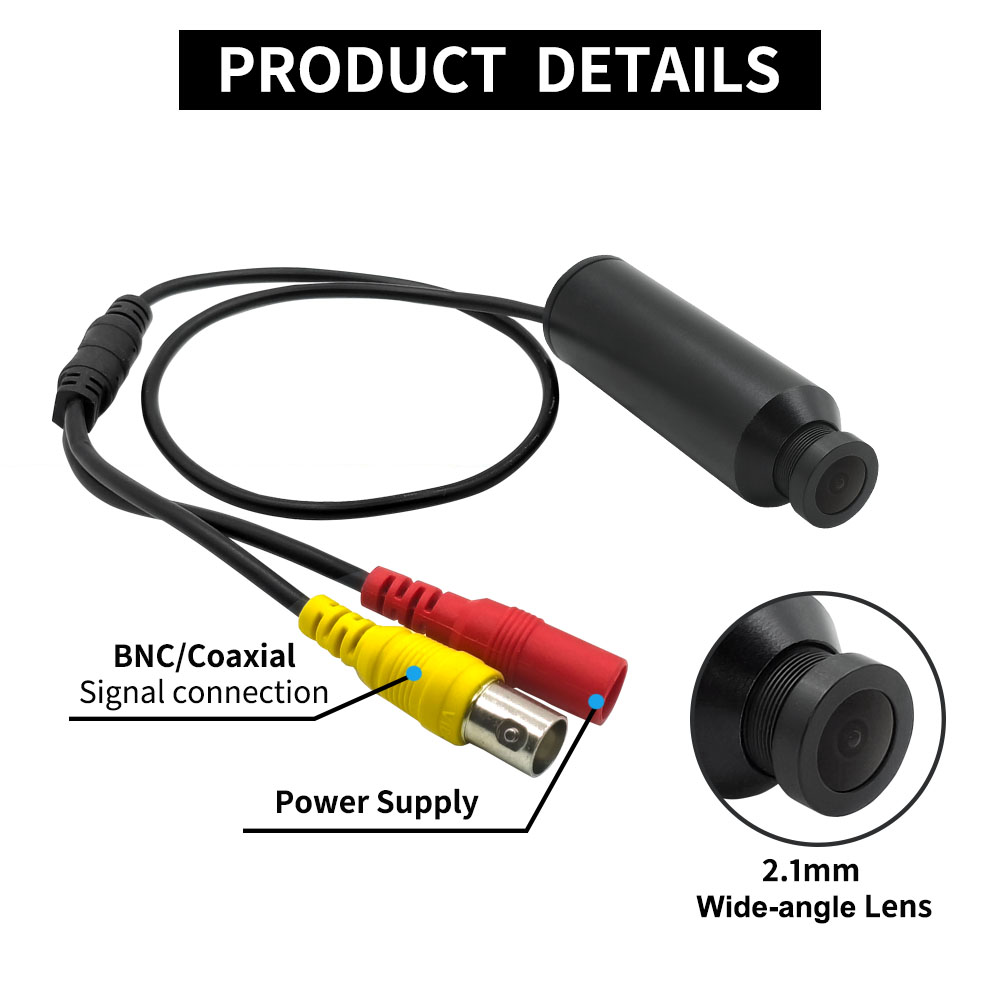

| Interface | BNC Port |
| Lens | 2.1mm |
| FOV | 120 Degree |
|
Data Storage Options
|
DVR |
Application Scenarios
Suitable for indoor scenes such as elevator cars, convenience store cash registers, small shops, and in car surveillance that require a wide field of view. It can also be used for embedded self-service terminals, built-in detection of industrial equipment, as well as panoramic point supplementation and upgrading of existing projects for traditional simulated security systems.
