Technical Specifications
| Specification | Detail |
|---|---|
| Sensor | 1/2.9″CMOS |
| Pixel | 2MP |
| Compression Format | MJPG/YUV2 |
| Frame Rate | 1920×1080 @ 30fps |
|
Smart App
|
Support |
| Working Voltage | DC 5V |
| Product Size | 36mm×36mm |
| White Balance | Automatic |
| Working Temperature | <70°C |
| Power Consumption | 0.25w |
| Product Model | HCU-FK362 |
| Interface Type | USB2.0 |
| Lens | 2.8mm |
| FOV | 100° |

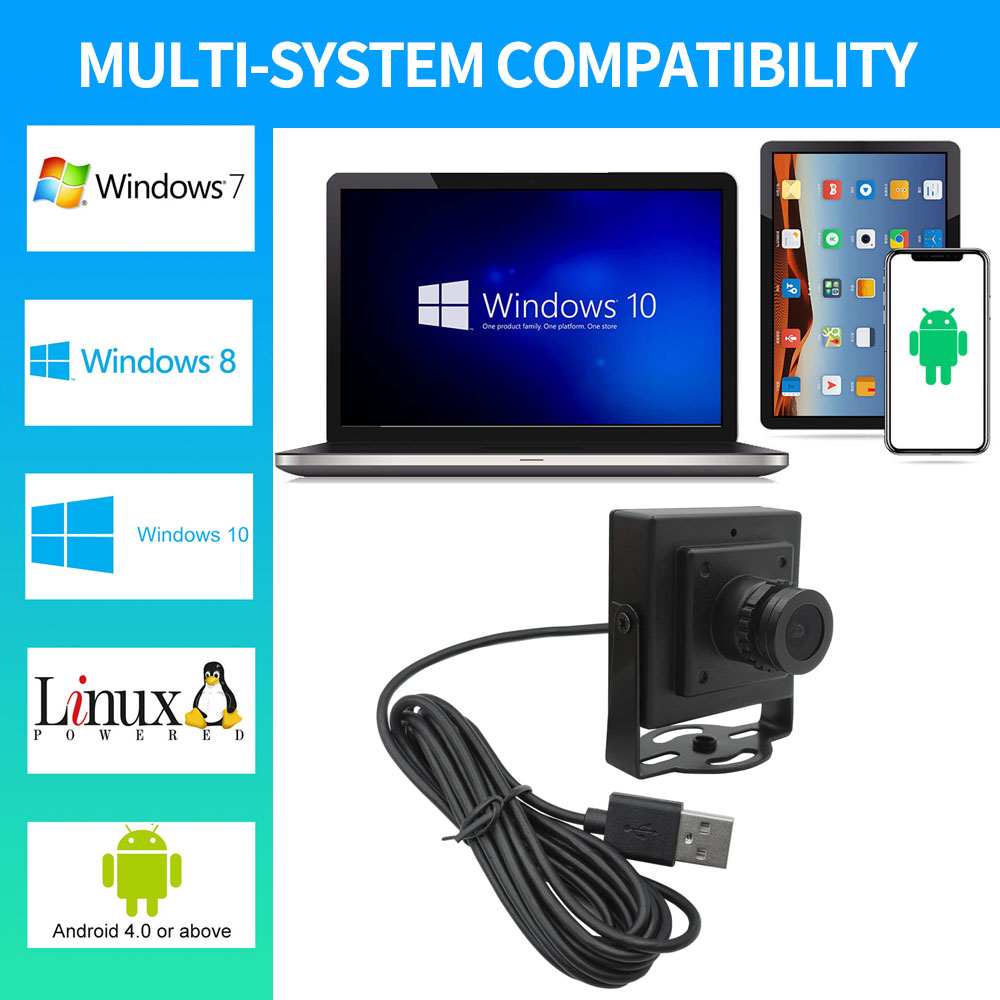

| Supported OS | Windows/Mac OS/Linux/Android |
Key Advantages
● Full HD Image Quality:Delivers sharp and accurate images at 1920×1080 resolution, supporting MJPEG and YUY2 formats.

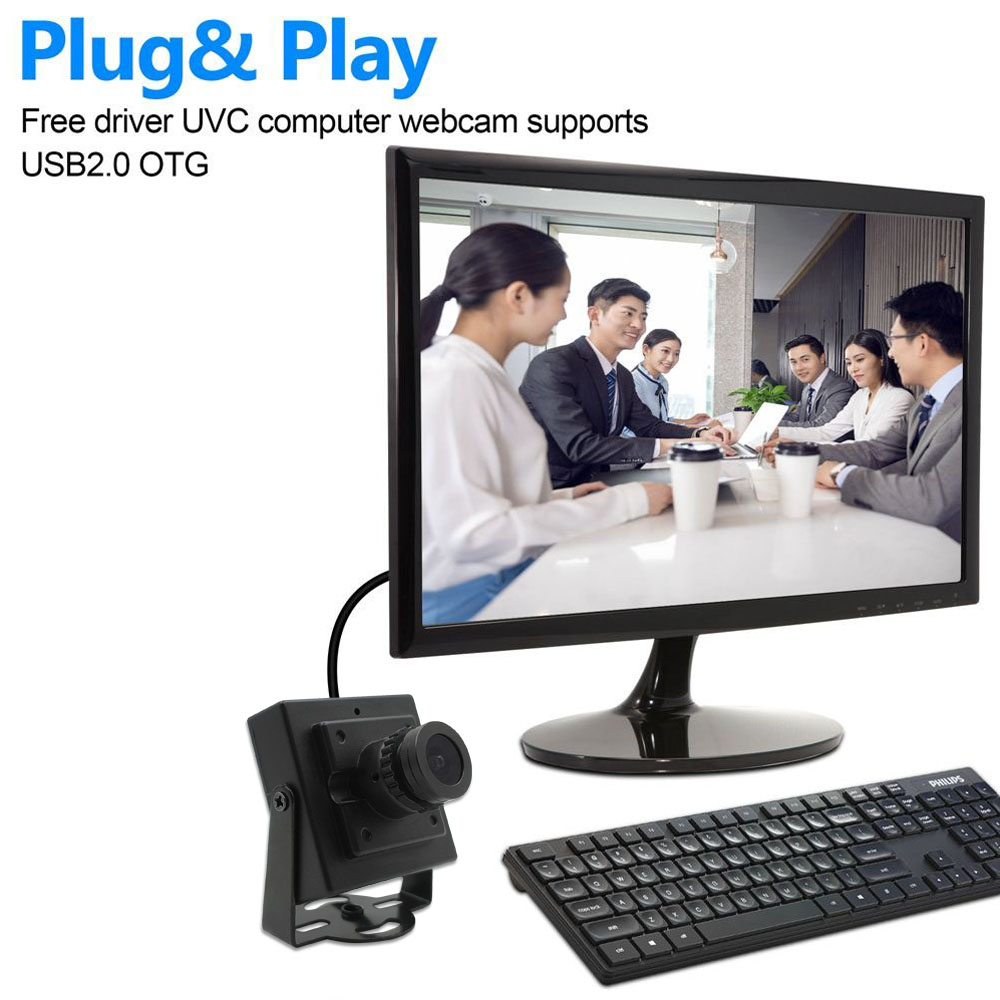

● USB UVC Standard:No driver installation required, reducing integration time and engineering cost.Compatible with Windows, Linux, MacOS, Android.
Applications
Ideal for various machine vision and monitoring applications including:
- Bank teller stations and ATM monitoring
- Retail kiosks and vending machines
- Medical equipment and hospital systems
- Industrial automation and robotics
- Security surveillance systems
- Embedded device applications
Customization Options
We are well aware of the unique visual requirements of different applications and provide comprehensive OEM/ODM customization services to help you create differentiated products.
1. Lens customization: specific focal length, field of view angle, distortion control.
2. Customized casing: Design a dedicated casing, bracket, or fixing method based on the structure of your device.
3. Cable and Interface: Customize cable length and interface type.
4. Pixel customization: Different resolution and frame rate models are available (such as higher pixel 4MP, 5MP, 8MP, 12MP，16MP).
