| Specification | Detail |
|---|---|
| Sensor | 1/2.9″CMOS |
| Pixel | 2MP |
| Compression format | MJPG/YUV2 |
| Frame rate | 1920×1080 30fps |
| Operating voltage | DC 5v |
| Dimensions | 20mmx77mm |
| White balance | Automatic |
| Operating temperature | <70°C |
| Power consumption | 0.25w |
| Model No | HCU-BT202 |
| Interface type | USB 2.0 |
| Night vision | Not supported |
| Lens specifications | EFL:3.6mm |
| FOV | 90° |
| Supported OS | Windows/Mac OS/Linux/Android |

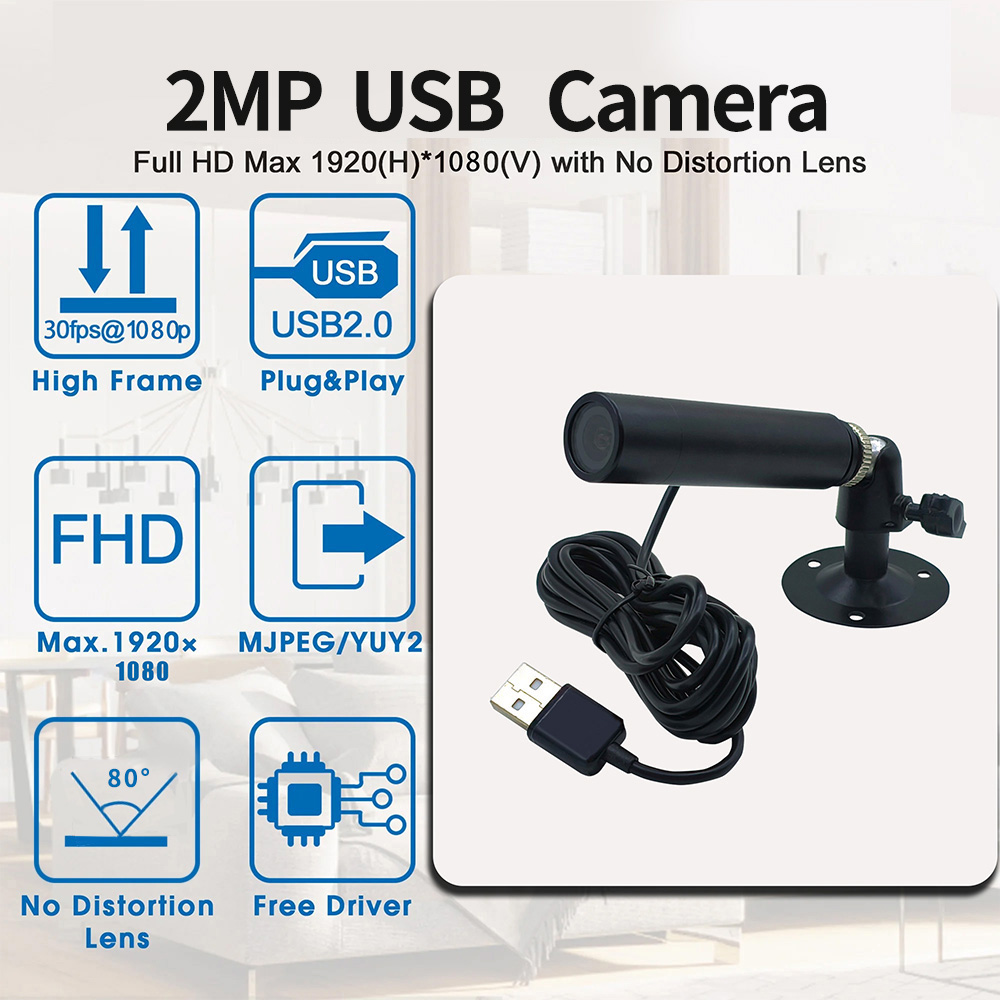

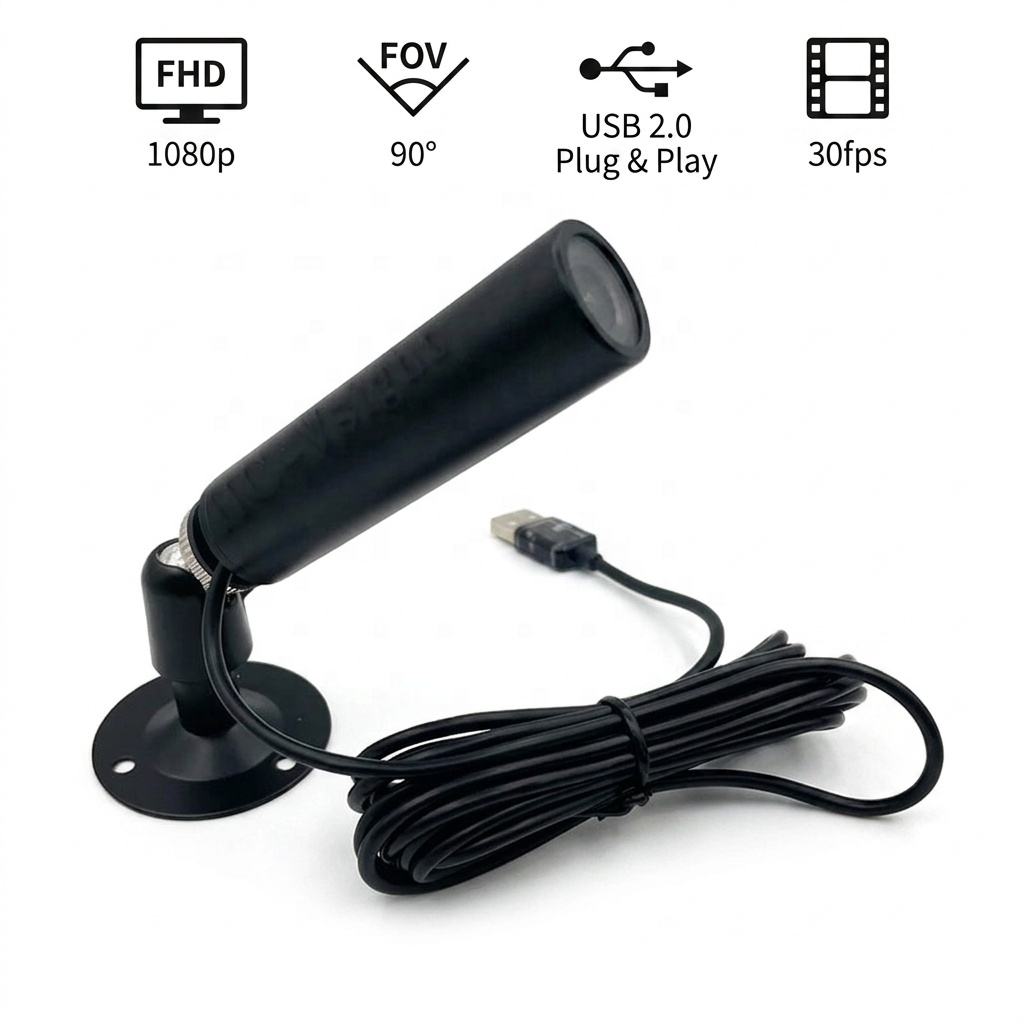

1080P Full HD Image Quality: Equipped with a 2-megapixel high-performance CMOS sensor, supporting up to 1920×1080 resolution output, the image quality has made a qualitative leap compared to 720P. The video is clear and delicate, with rich details, providing an immersive full HD visual experience.

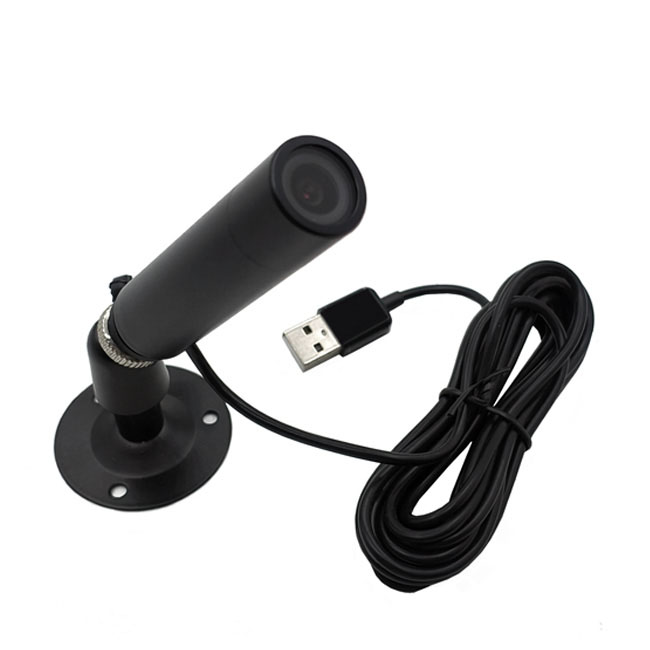

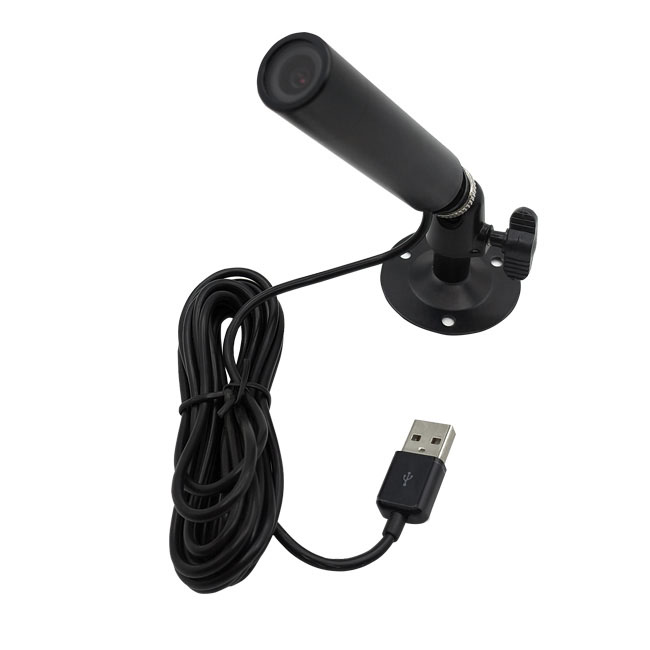

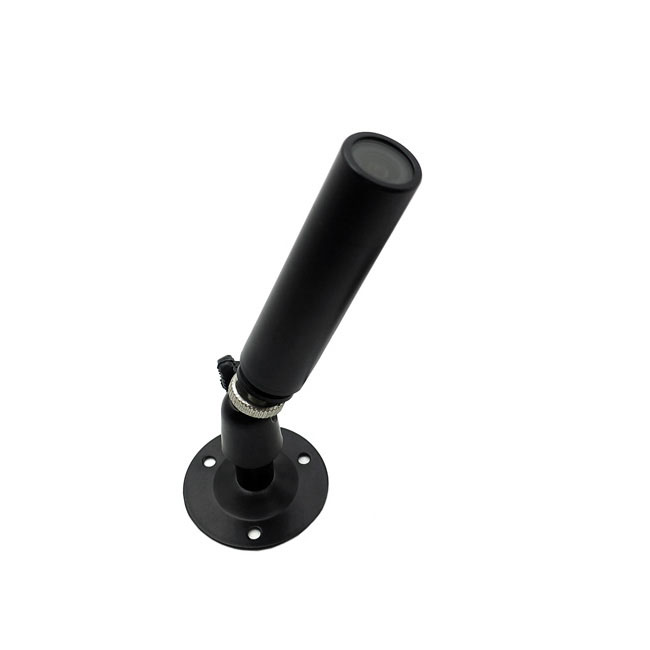

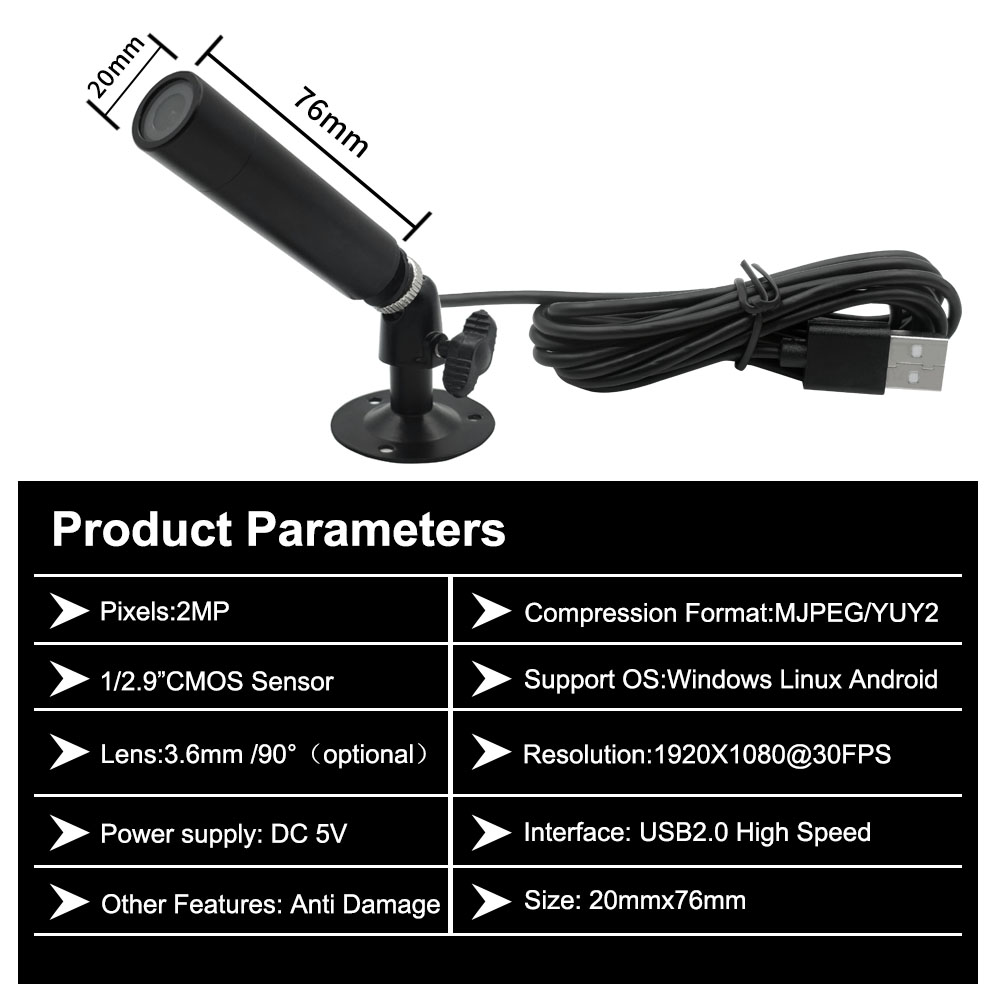

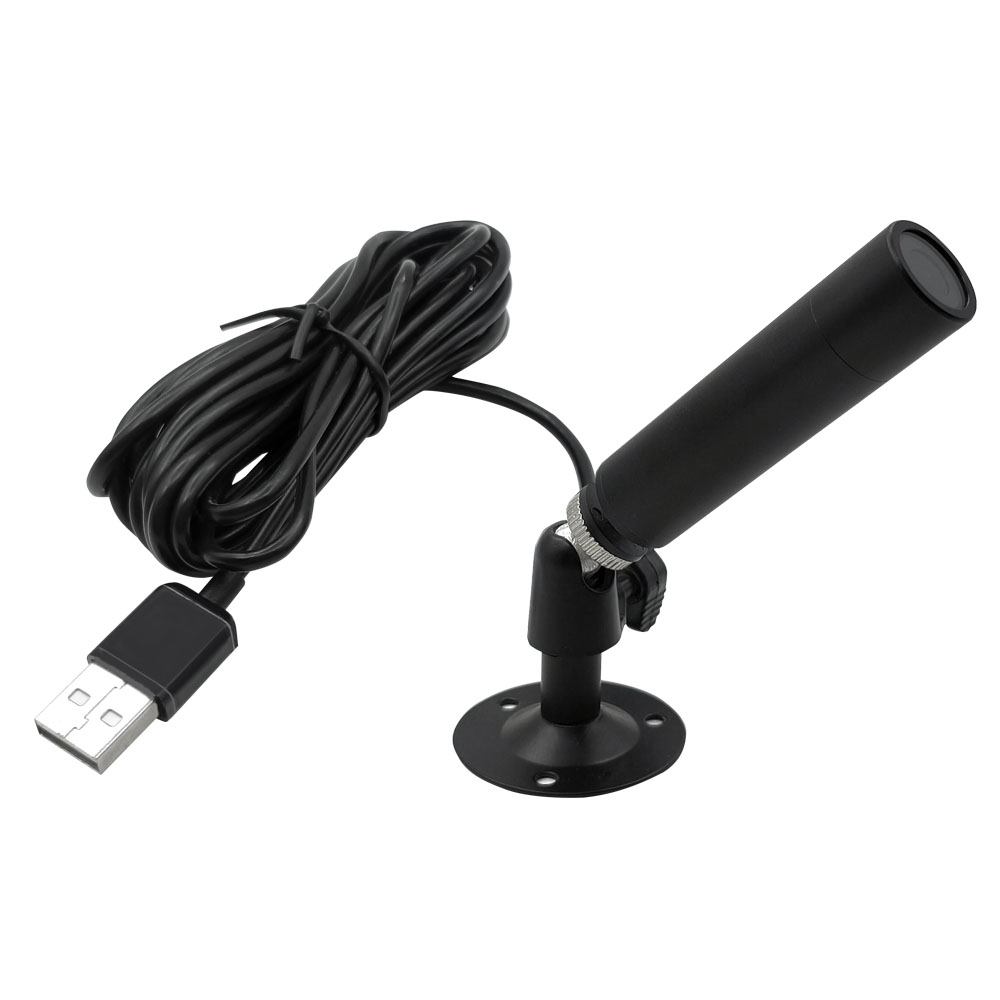

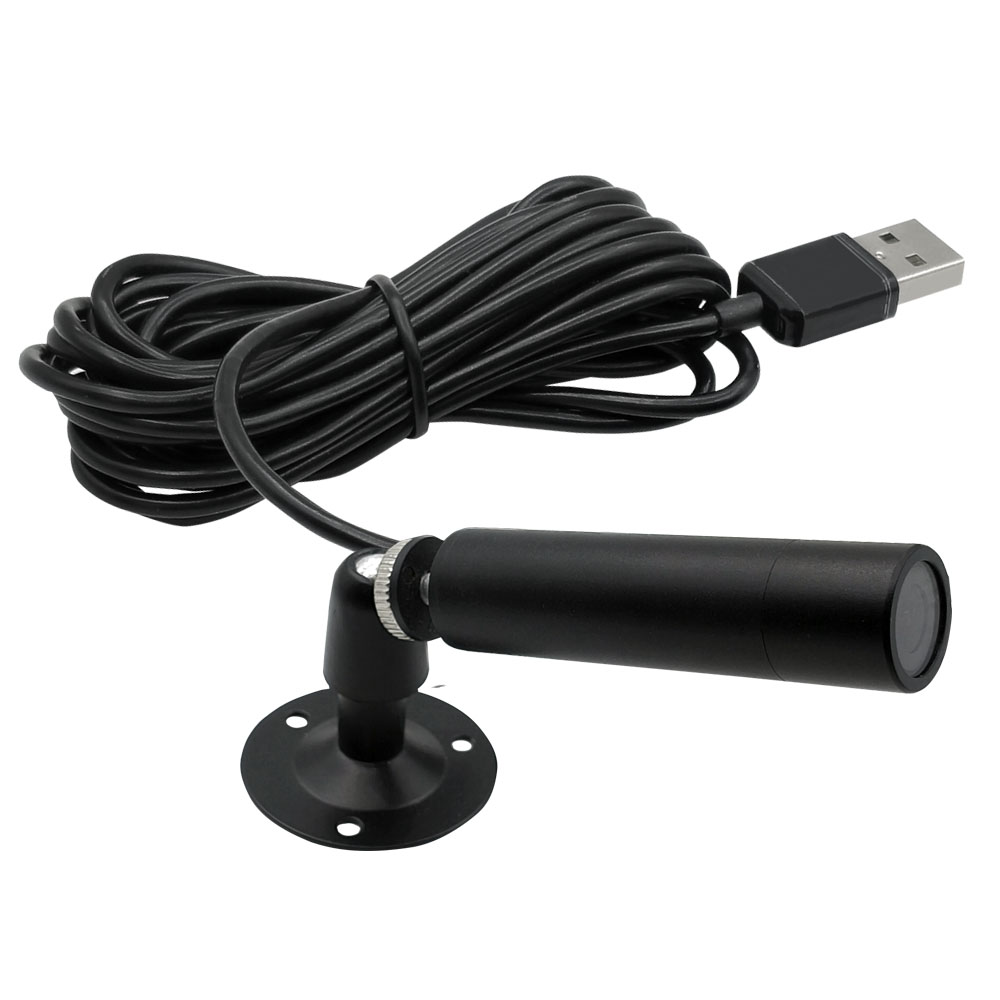

Classic mini bullet design: The product size is only 20mm x 77mm (excluding base size), small and exquisite, and does not take up space. The streamlined appearance of the bullet head is professional and low-key in style, easy to hide and install, and can perfectly blend into various environments without appearing abrupt.
High quality 3.6mm wide-angle lens: equipped with a fixed focus 3.6mm lens, providing a wide viewing angle range of approximately 90 °. This perspective can cover a wider area while ensuring that the center of the image does not deform, making it very suitable for small room monitoring, desktop meetings, or as an external camera for computers.

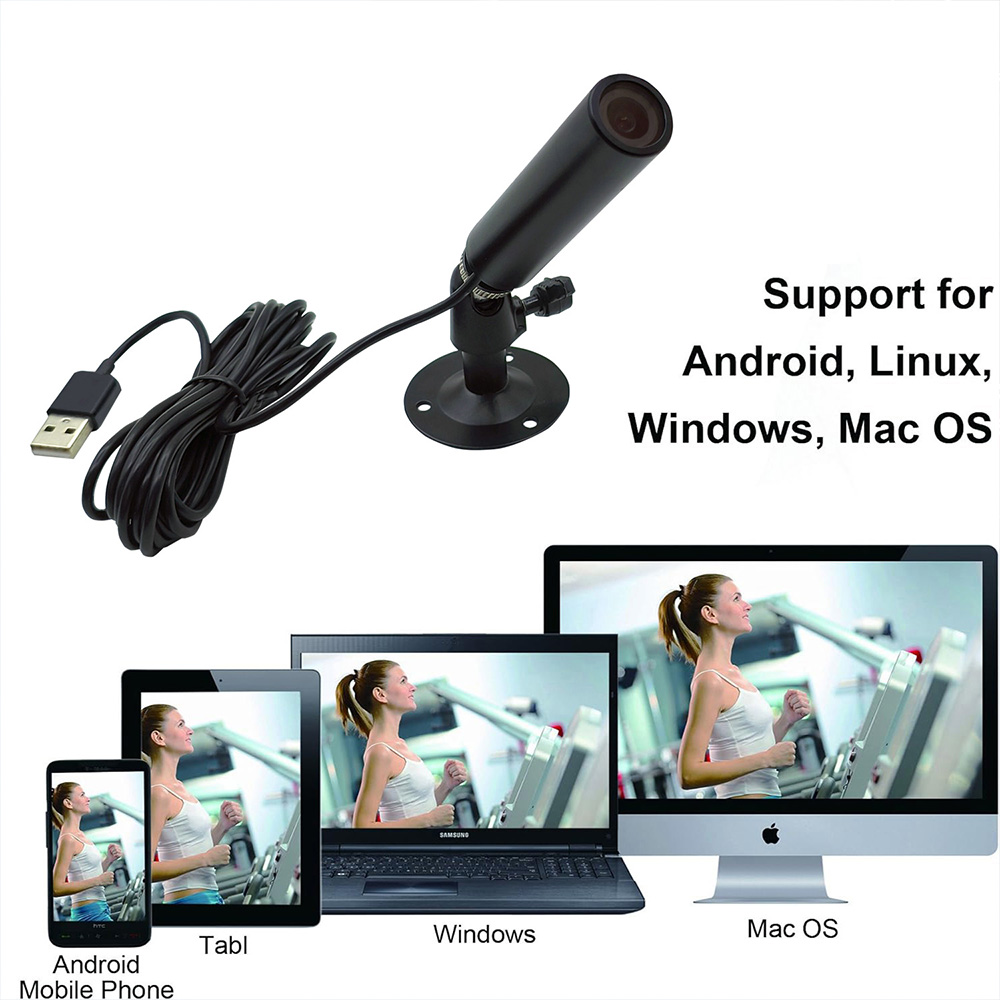

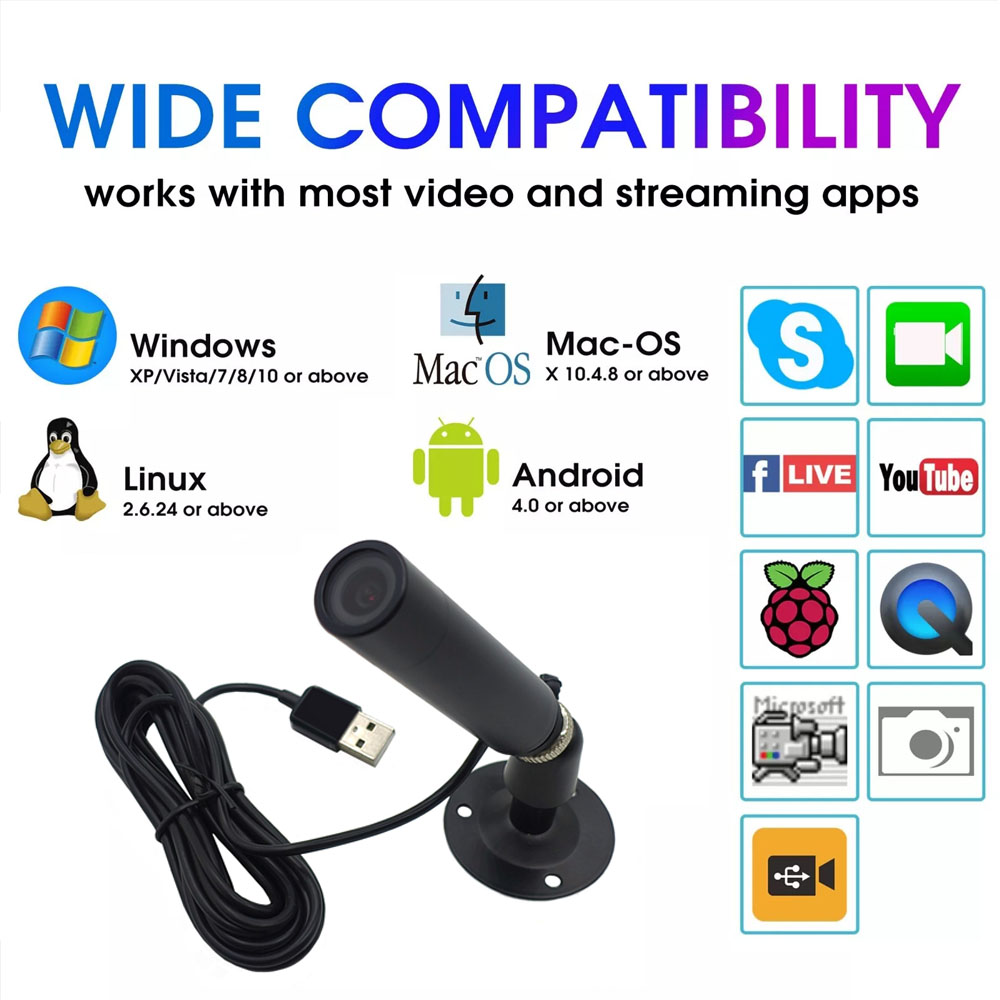

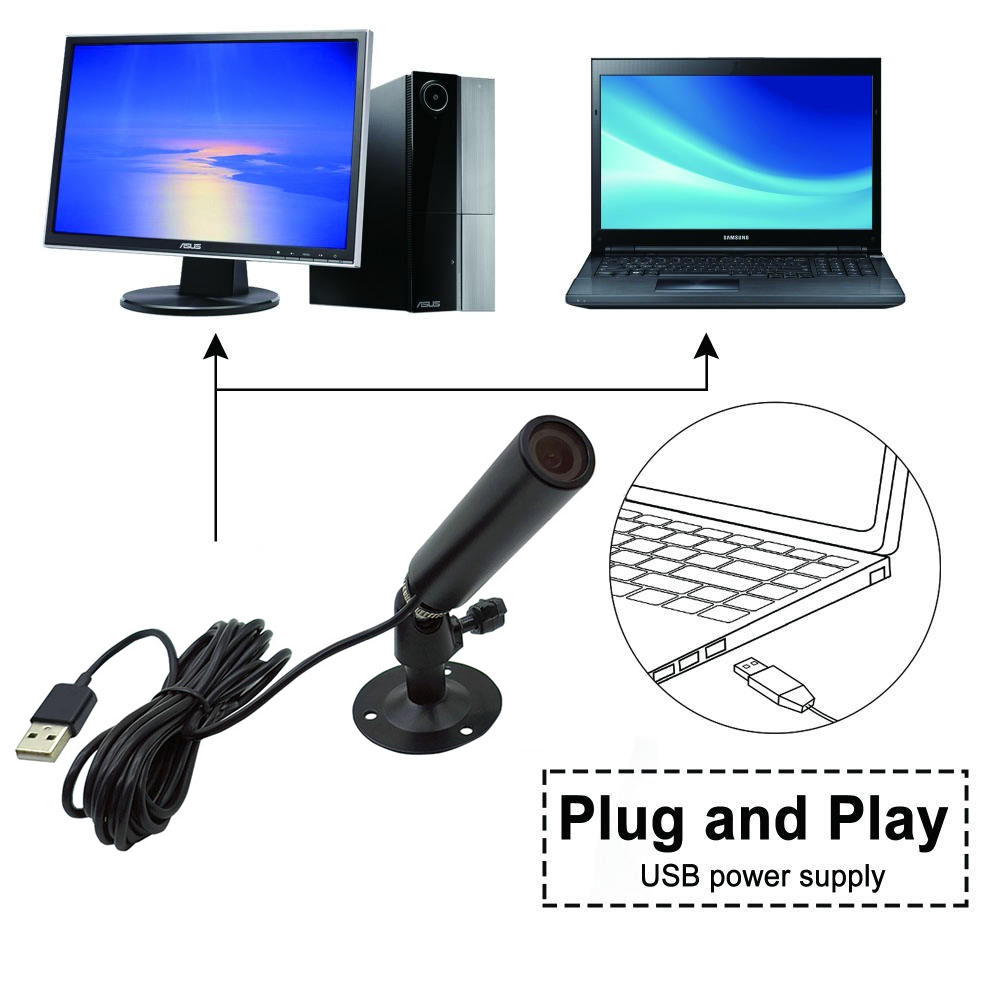

Plug and play drive free installation: using advanced UVC protocol, no drivers need to be installed on mainstream operating systems such as Windows, Linux, Android, and smart TVs. Simply insert the USB interface of the device and it will be automatically recognized by the system, which is simple and convenient.
- Fire water cannon monitoring
- ATM machines and banking systems
- Medical inspection reporting
- Vending machines and digital signage
- Industrial equipment (robots, cranes, welding machines)
- Security surveillance systems
- Flame monitoring in coal power boilers
- Biometric and identification equipment

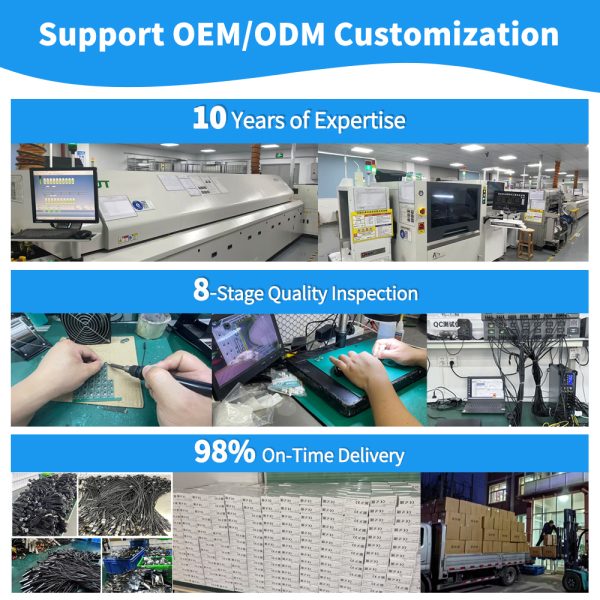

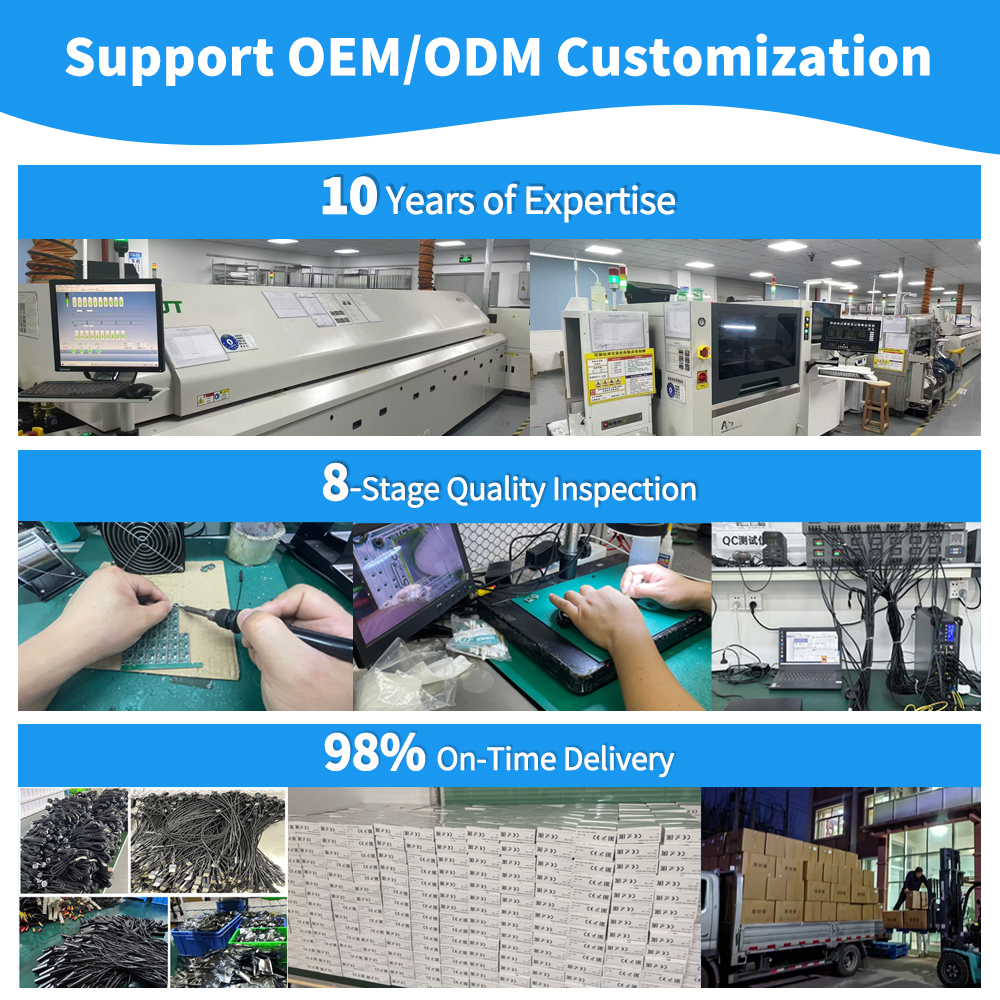

We are well aware of the unique visual requirements of different applications and provide comprehensive OEM/ODM customization services to help you create differentiated products.
1. Lens customization: specific focal length, field of view angle, distortion control.
2. Customized casing: Design a dedicated casing, bracket, or fixing method based on the structure of your device.
3. Cable and Interface: Customize cable length and interface type.
4. Pixel customization: Different resolution and frame rate models are available (such as higher pixel 4MP, 5MP, 8MP, 12MP，16MP).
