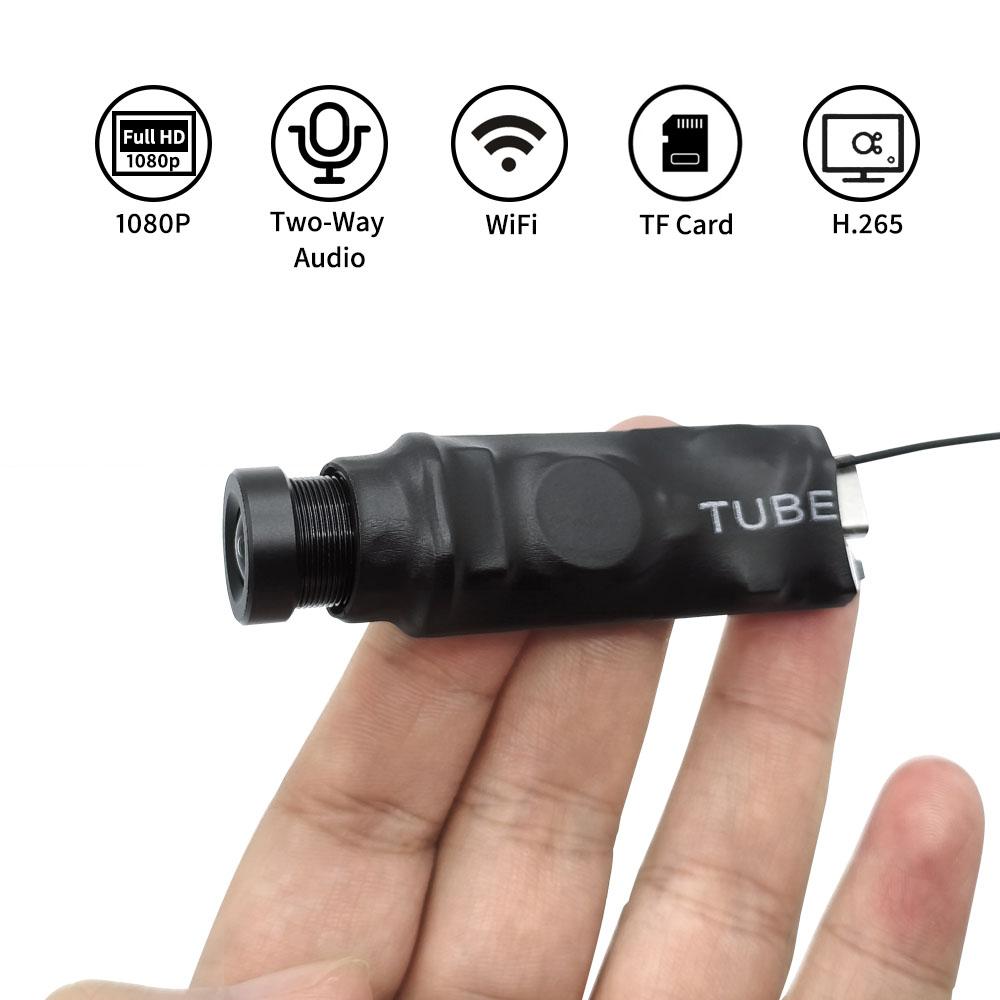

Key Features
1080P Full HD resolution: 3 megapixels deliver clear images and excellent detail.

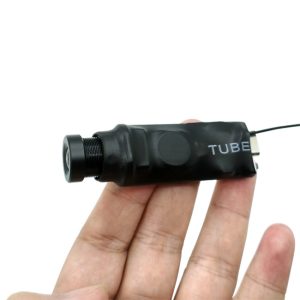

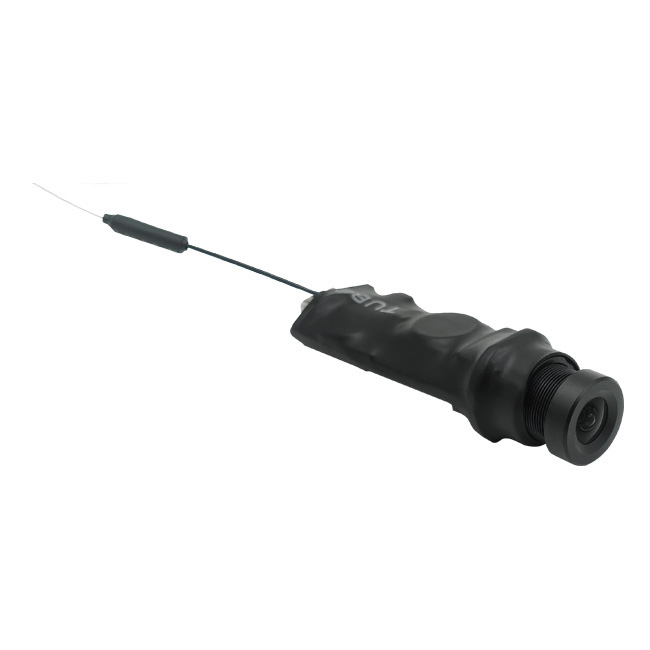

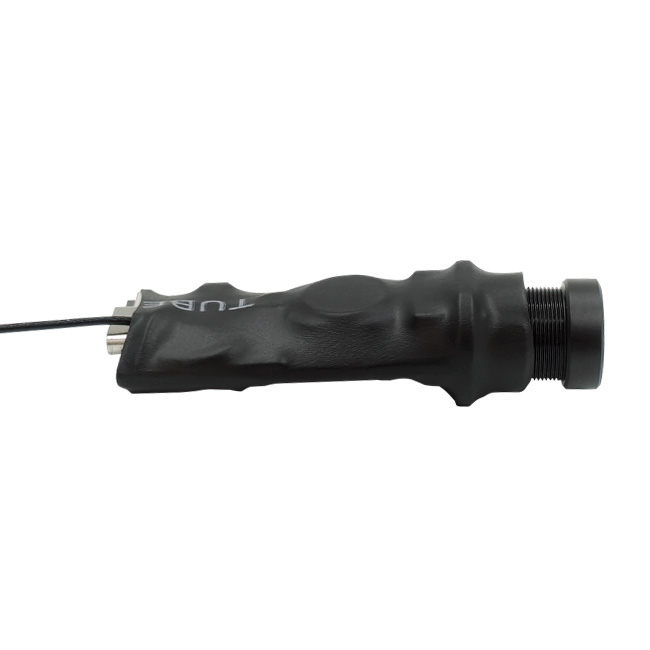

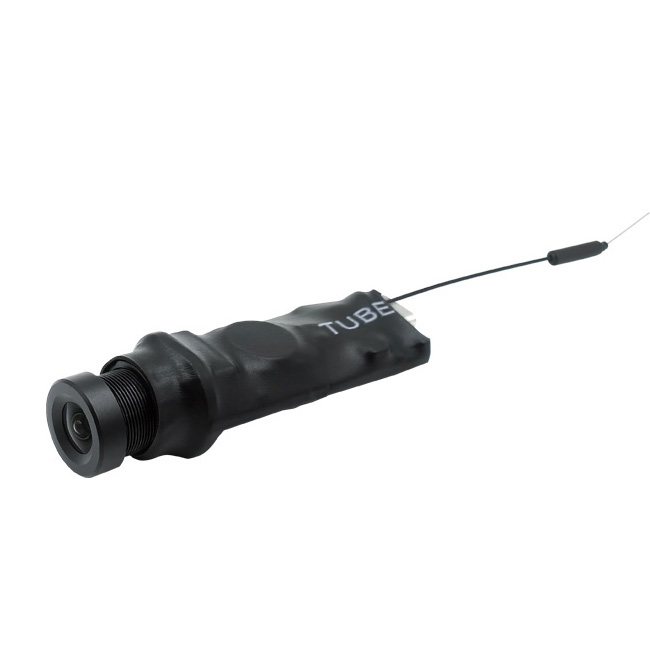

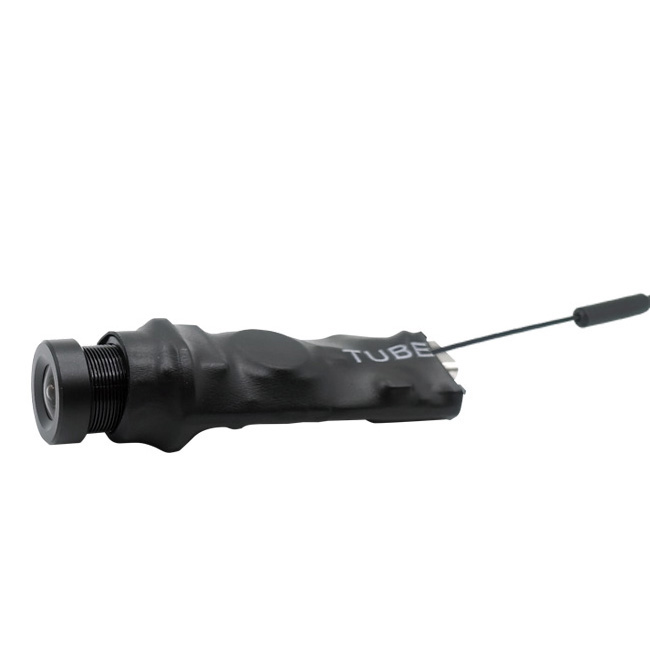

Compact T-shaped design: Mini modular structure for easy embedding and installation.

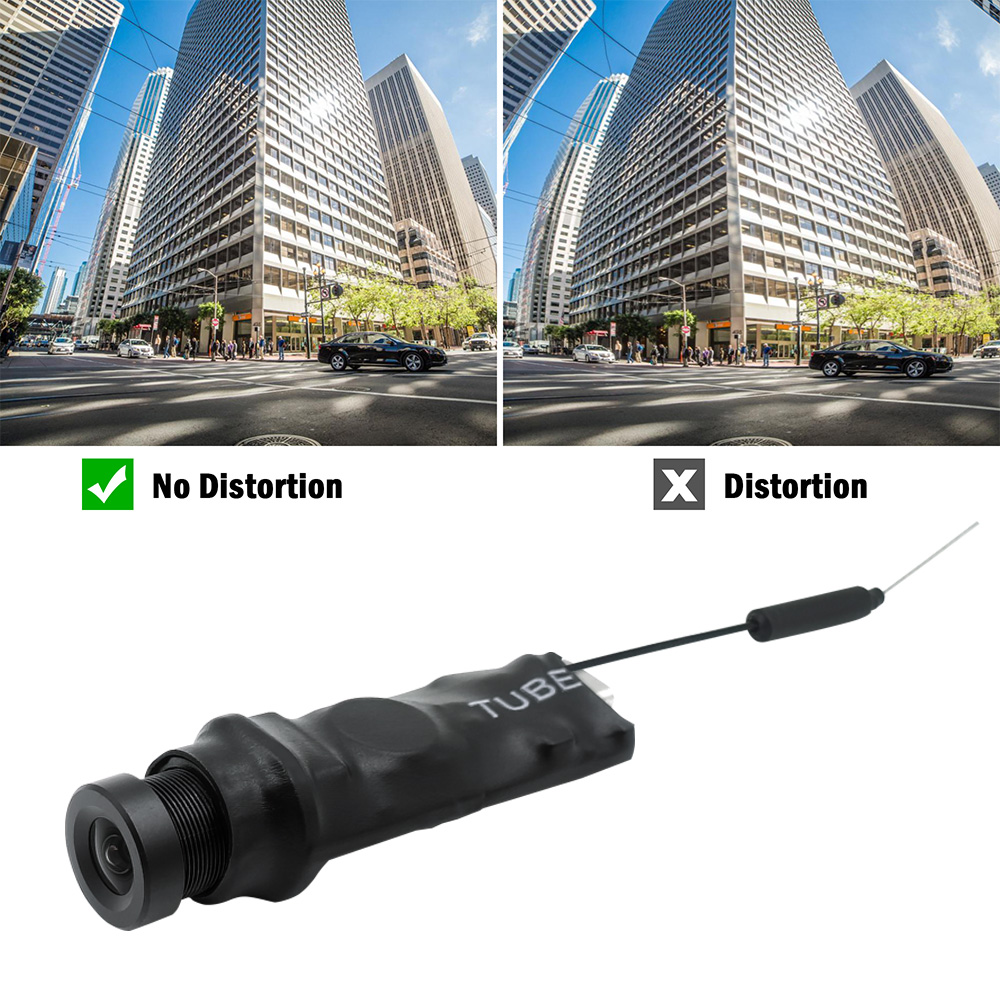

3.6mm distortion-free lens: Provides a 90° field of view, covering a wider area without image edge distortion.
WiFi wireless connectivity: Supports H.265 encoding, eliminating the hassle of wiring.
Remote real-time monitoring: View live video streams anytime, anywhere via a mobile app.
Built-in microphone: Supports ambient sound capture, enabling simultaneous audio and video recording and monitoring.
Technical Specifications
| Sensor | 1/2.8″CMOS |
|---|---|
| Pixel | 3MP |
| Compression Format | H.265 |
| Frame Rate | 1920×1080@25fps |
| Audio | Two-Way Audio |
| APP | V380 Pro App |

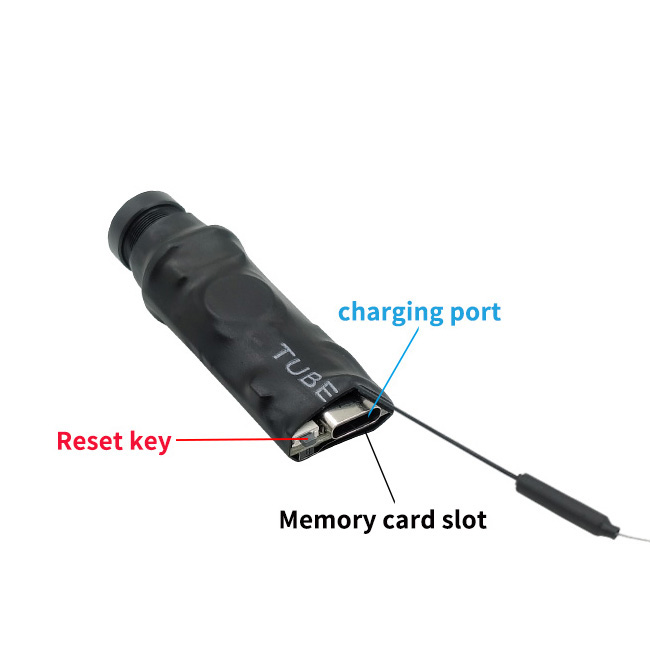

| Storage | Cloud / TF Card (Max 128GB) |
| Network | Wifi 2.4Ghz |
| Working Voltage | DC 5V |

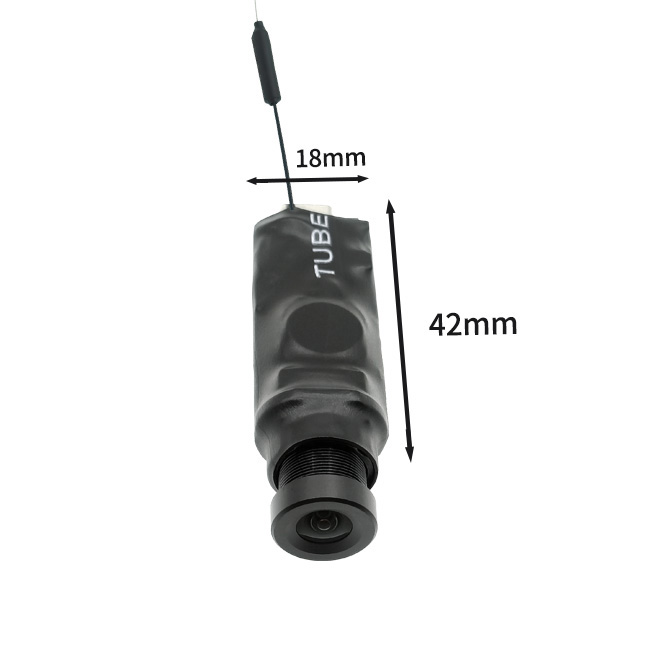

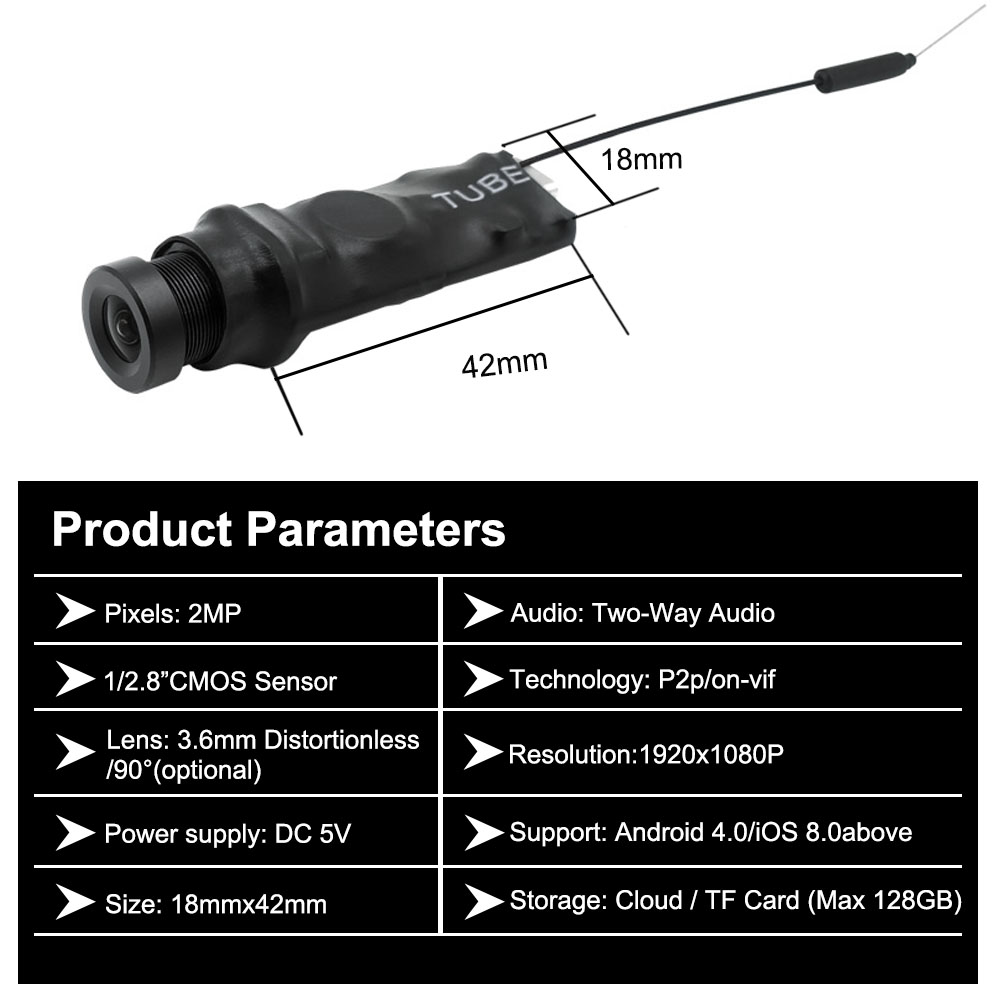

| Product Size | 18mmx42mm |
| Technology | P2p/on-vif |
|
Storage
|
Cloud / TF Card (Max 128GB) |
| Model | HCW-182J36W |

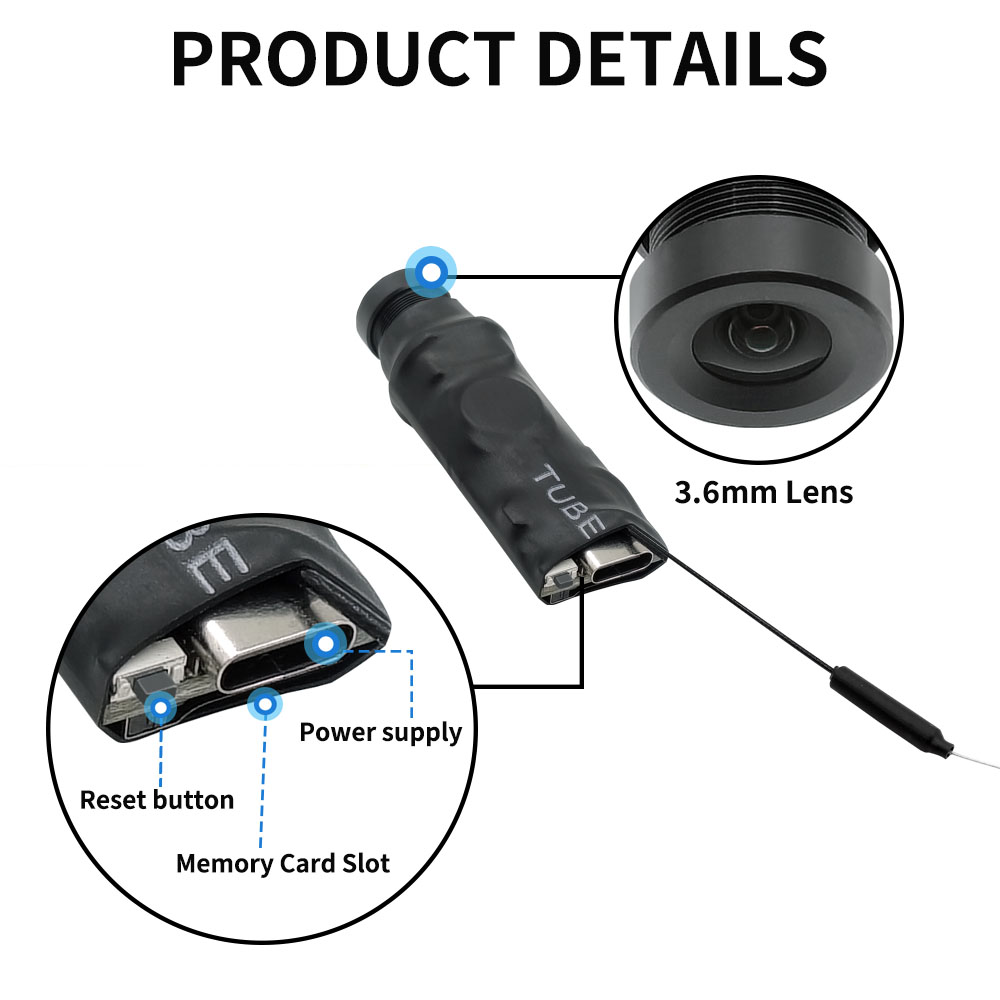

| Lens | No distortion 3.6MM(Optional) |
| FOV | 90° |
| Support | Android 4.0/iOS 8.0above |
Application Fields
Machine vision, precision equipment monitoring, security systems, embedded access control, concealed monitoring, vehicle monitoring, smart home security, endoscopic imaging, laboratory monitoring, traffic monitoring, retail terminals, drone/robot vision, education/conference systems, and various embedded devices that require compact vision solutions.
Customization Services
We offer comprehensive OEM/ODM customization services to meet unique visual requirements:
- Lens customization: Specific focal length, field of view angle, distortion control.
- Customized casing: Dedicated casing, bracket, or fixing method based on device structure.
- Cable and interface: Custom cable length and interface types.
- Camera type customization: USB, AHD, CVBS, wired network, wireless WiFi cameras.
Explore more models in our WiFi Camera series to meet different application needs.
