Key Features
- 1.66mm Wide-Angle Lens: 150-degree wide-angle fisheye lens provides wider field of view and minimizes blind spots around the door.
- 2MP HD Video with H.265 Compression: Delivers clear, detailed video while reducing bandwidth and storage consumption.
- Stable WiFi Connection and Remote Monitoring: Seamless wireless connectivity with mobile app and PC platform access.
- Two-Way Audio Communication: Enables direct conversation with visitors through mobile application or computer.
- Flexible Storage Options: Supports both cloud storage and local storage via TF card (up to 128GB).
- Low-Power Design and Easy Installation: DC 5V power supply with compact structure for simple peephole installation.

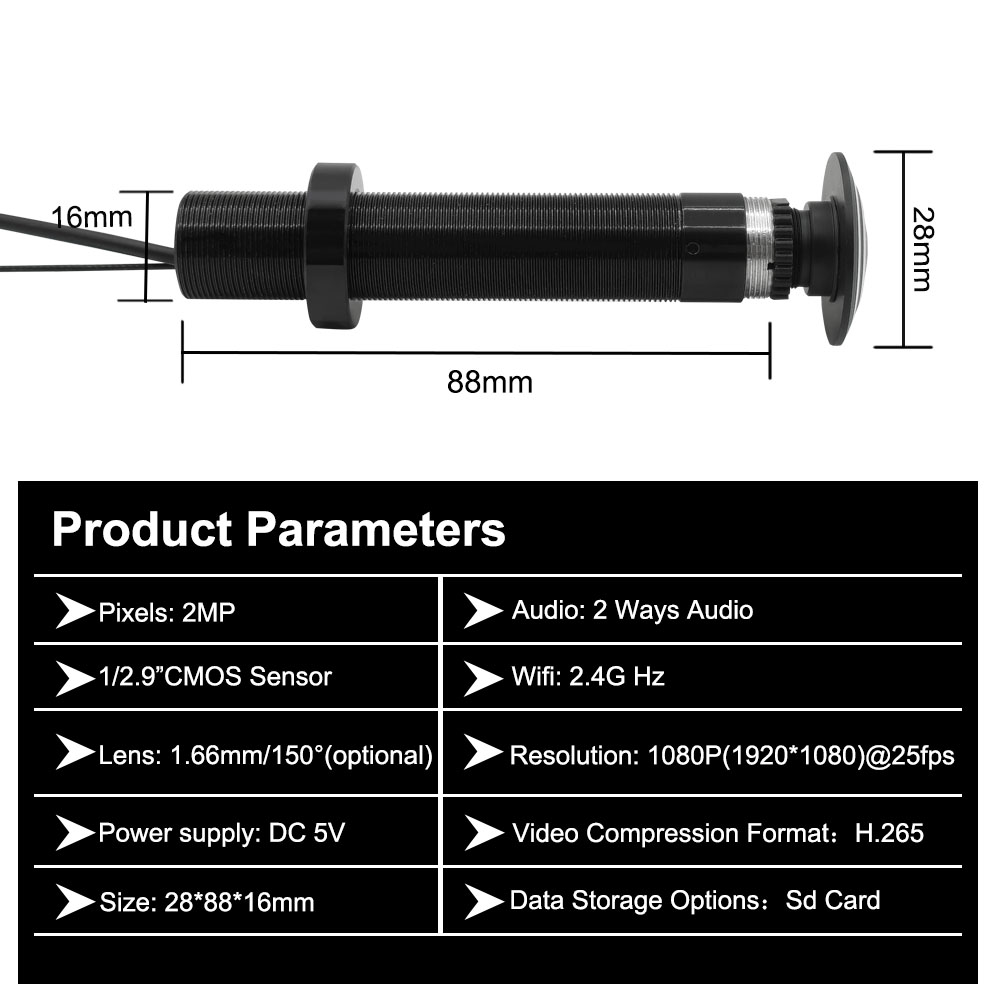

Technical Specifications
| Sensor | 1/2.9″ CMOS |
| Pixel | 2MP |
| Frame Rate | 1920×1080@25fps |
| Audio | Two-way voice intercom |
| Operating Voltage | DC 5V |
| Storage | Cloud Storage / TF Card (Max 128GB) |
| Size | 28x88x16mm |
| Lens | 1.66mm |
| FOV | 150° |
| Technology | 2.4G WiFi Wireless |
| Application | V380 Pro App |
| Model Number | HCW-XMY162-Y |
Product Applications
- Home Entrance Security: Replaces traditional peepholes as intelligent monitoring tool for real-time door surveillance
- Remote Reception: Visual conversation with visitors or couriers through mobile phone when not at home
- Safety Protection: Provides security barrier for women or elderly living alone with identity verification
- Shop Monitoring: Installed at shop entrances for welcome reminders and customer flow recording
- Rental Property Security: Simple, effective temporary security solution for rental properties
Customization Options
We are well aware of the unique visual requirements of different applications and provide comprehensive OEM/ODM customization services to help you create differentiated products.
1. Lens customization: specific focal length, field of view angle, distortion control.
2. Customized casing: Design a dedicated casing, bracket, or fixing method based on the structure of your device.
3. Cable and Interface: Customize cable length and interface type.
4. Pixel customization: Different resolution and frame rate models are available.
If you need a flexible deployment of wireless solutions, we also provide a comprehensive WiFi mini camera for scenarios where wired POE cannot be installed.
