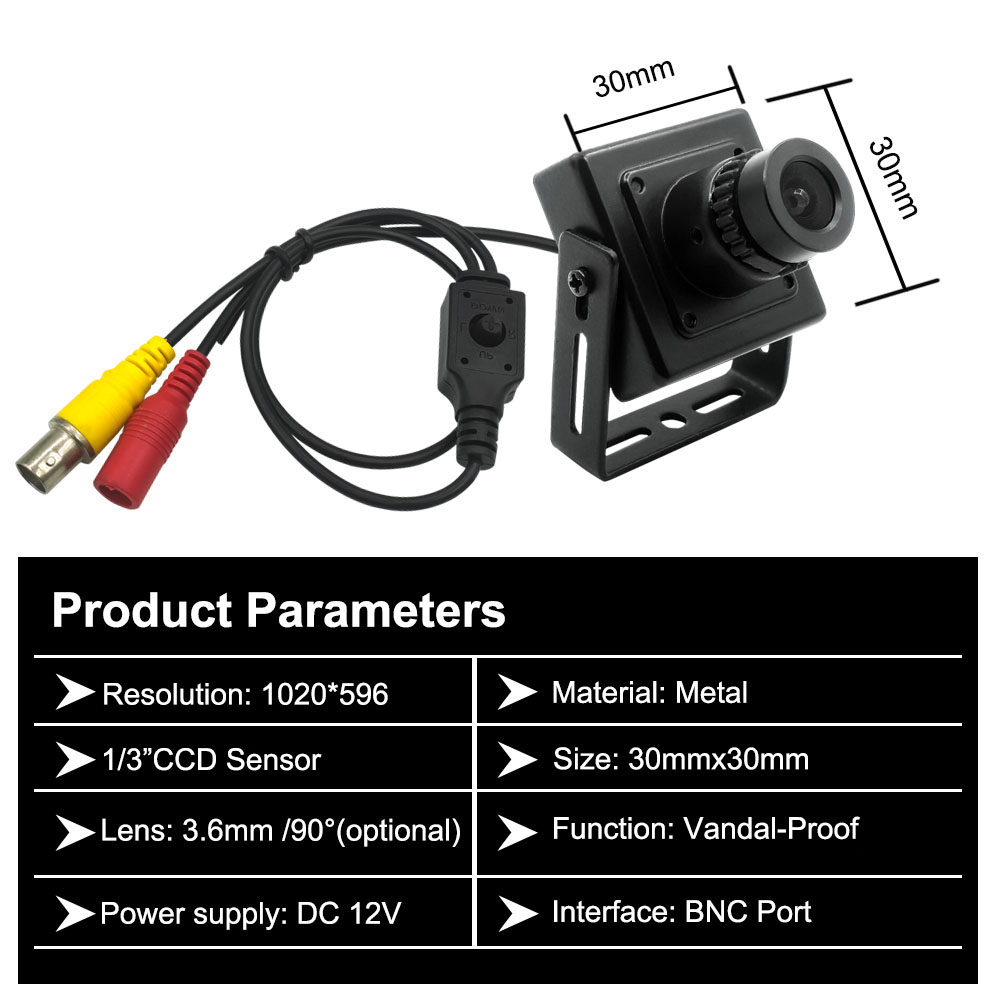

Technical Specifications
| Parameter | Value |
|---|---|
| Sensor | 1/3″ Sony CCD |
| Resolution | 0.7MP |
| Signal Type | CVBS |
| Frame Rate | 50fps at 1020×596 |
| Power | DC 12V |

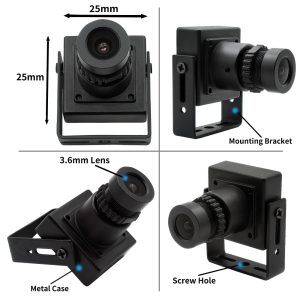

| Dimensions | 25mm × 25mm |
| Interface | BNC |
| Lens | EFL: 3.6mm F/NO: 2.2 Distortion: <1.0% Element: 4E+IR Viewing Angle:90° |

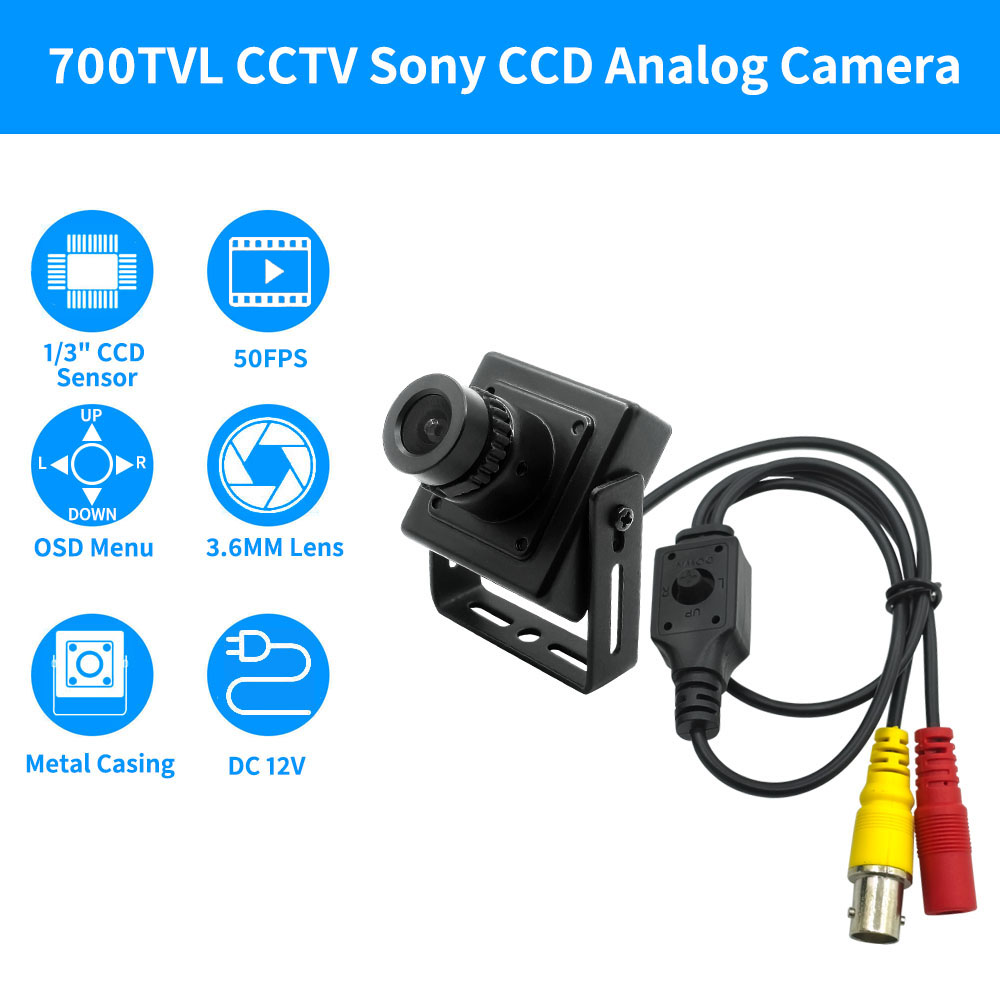

Product functions and features
- High definition imaging: Equipped with a 700TVL high-resolution CCD sensor, the output image is clear and sharp.

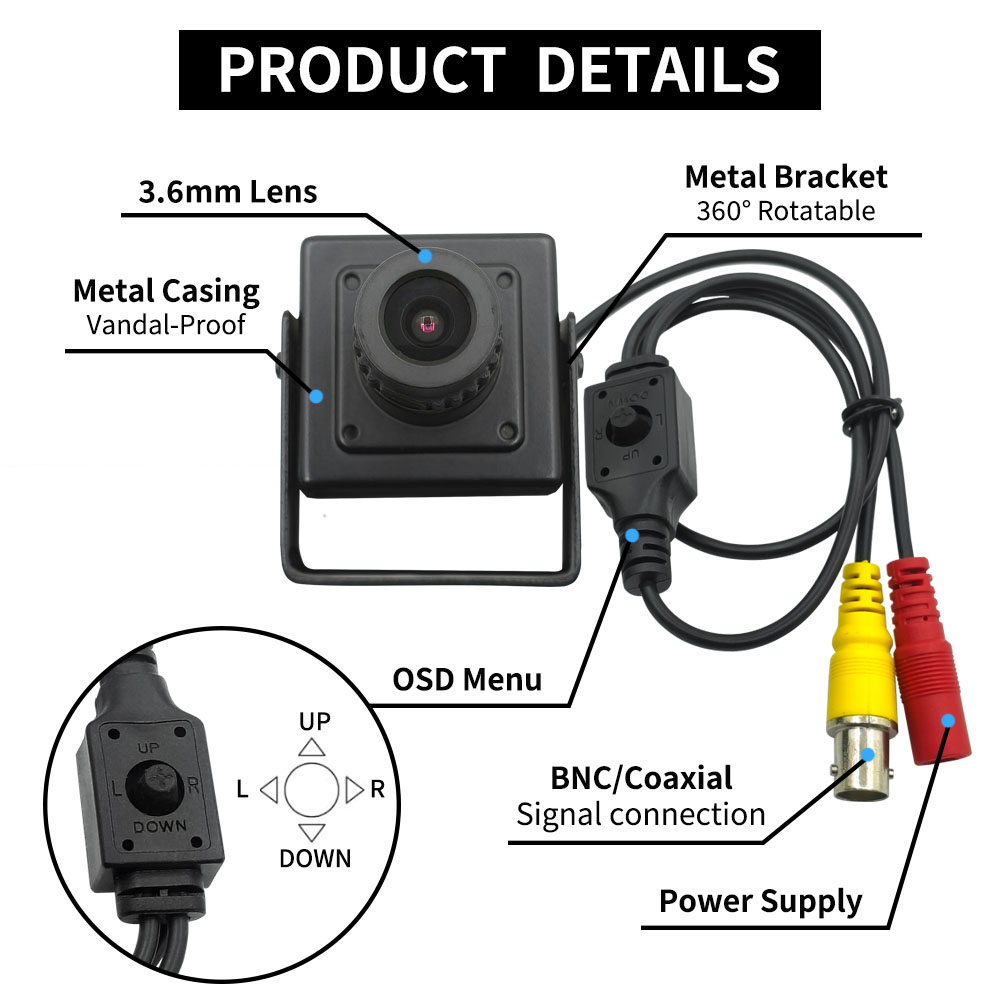

- Durable and sturdy: The 25x25mm miniature metal casing provides excellent heat dissipation and anti-interference capabilities.

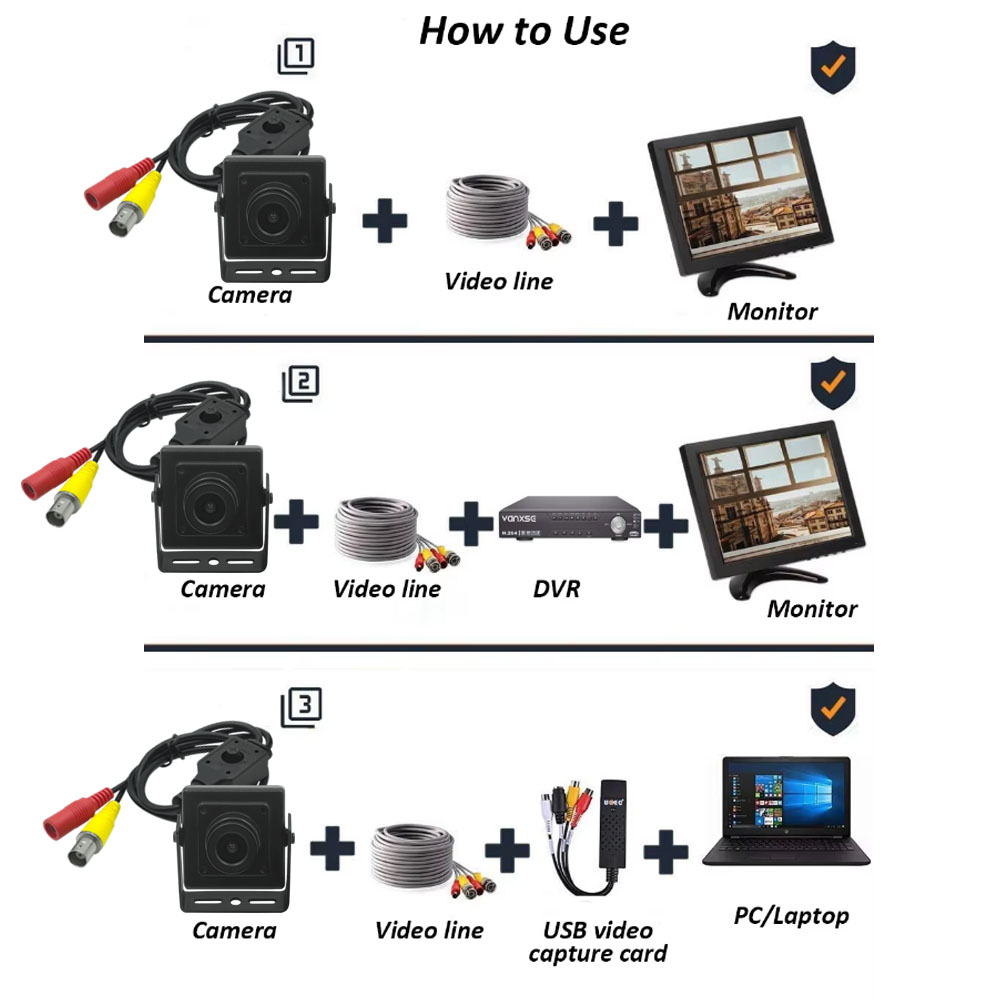

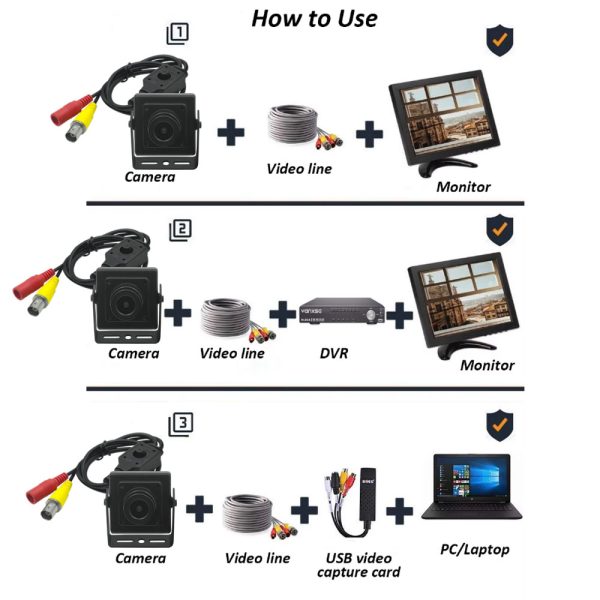

- Stable connection: Standard BNC interface ensures stable and reliable video signal transmission. Analog signal output, strong compatibility, can be viewed by connecting to a display device.

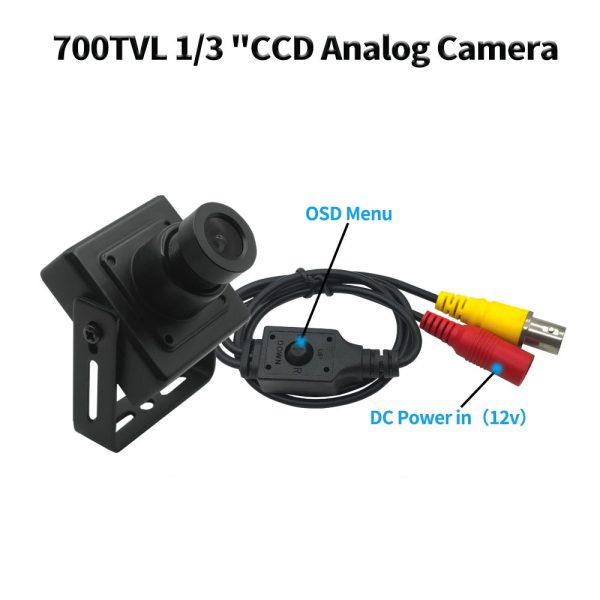

- Flexible control: Supports OSD screen menu, allowing for easy adjustment of image parameters such as brightness, contrast, etc.
Application Scenarios
Ideal for machine vision and equipment monitoring applications including:
- ATM and banking equipment
- Medical diagnostic systems
- Printers and vending machines
- Industrial automation (welding equipment, SMT machines)
- Security surveillance systems
- Flame monitoring in industrial boilers
- Robotics and automated systems
Customization Options
We offer comprehensive customization services including:
- Various interface options: USB, AHD, CVBS, wired network, wireless WiFi
- Resolution options from 1MP to 12MP
- Multiple size configurations (6×6mm to 38×38mm)
- Focus options: fixed focus or autofocus
