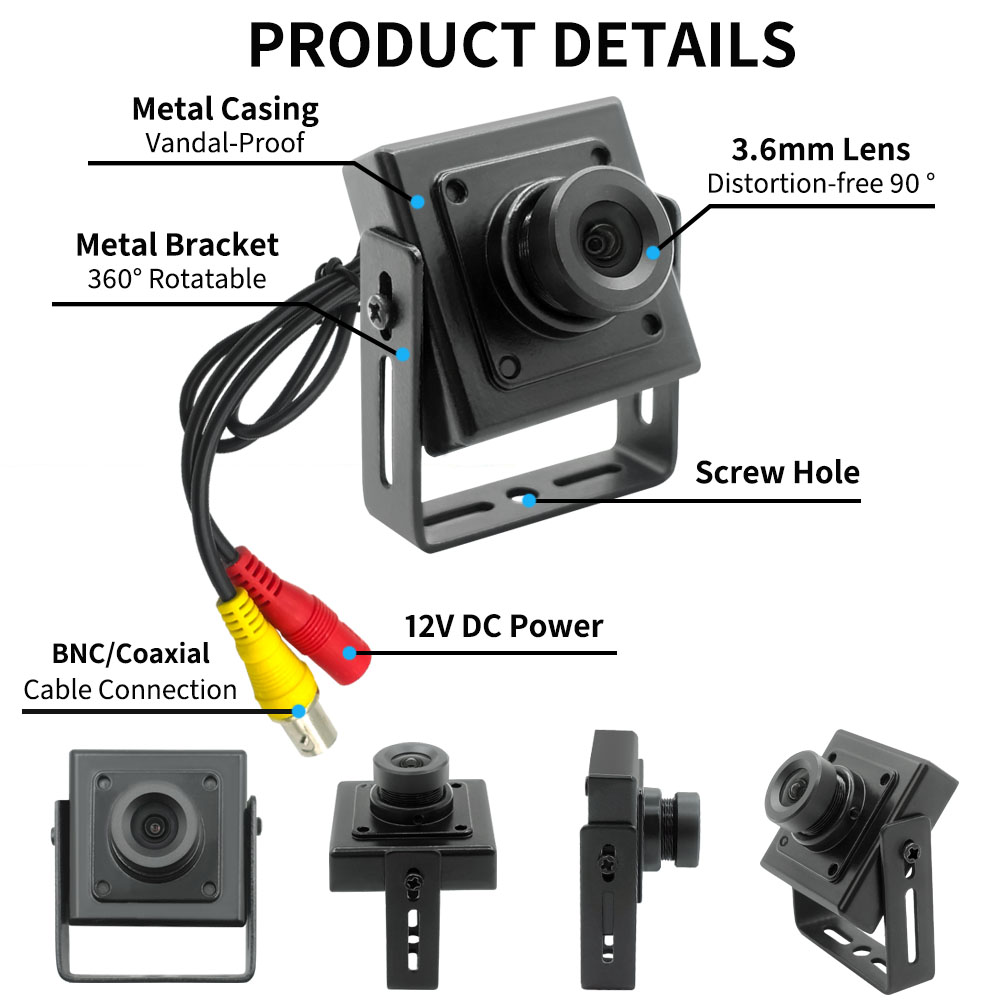

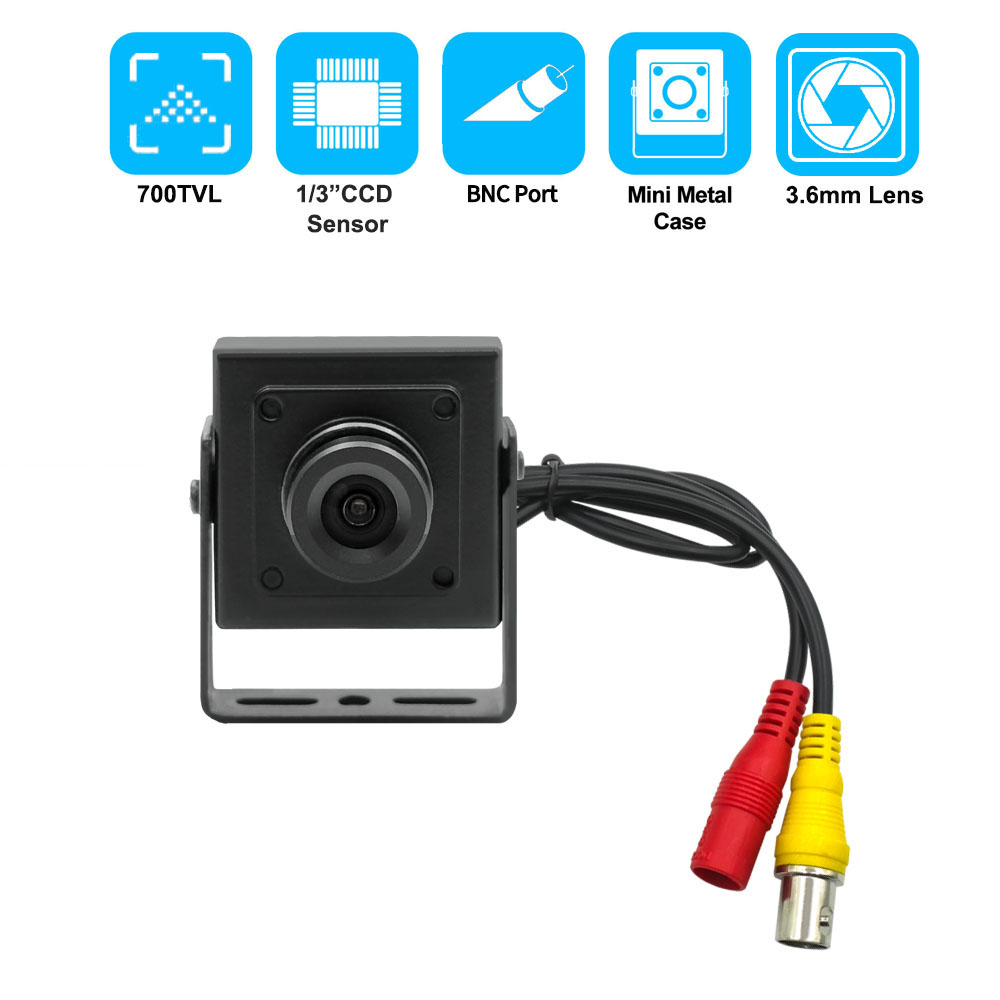

Key Features
- High performance sensor: using a 1/3-inch Sony CCD sensor, supporting PAL/NTSC dual format, with an effective pixel count of approximately 0.7MP (under PAL format). 700 line horizontal resolution, providing better detail expression than ordinary 540TVL cameras.
- Distortion free optical lens: equipped with a 3.6mm fixed focus lens, F2.0 aperture, supporting a 90 ° viewing angle without barrel distortion, ensuring the geometric structure of the image is true and accurate.

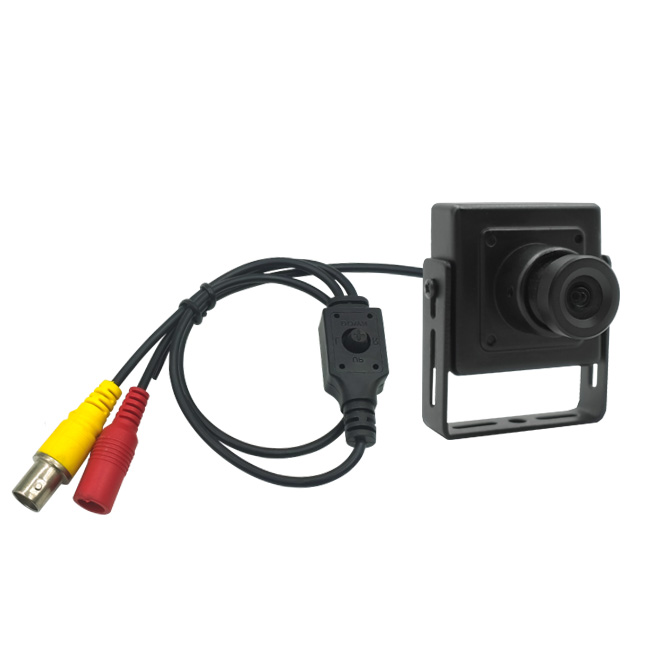

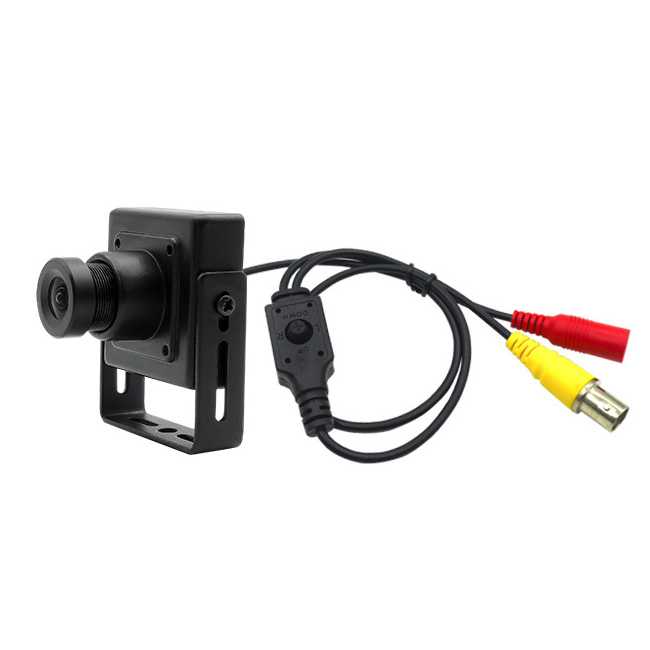

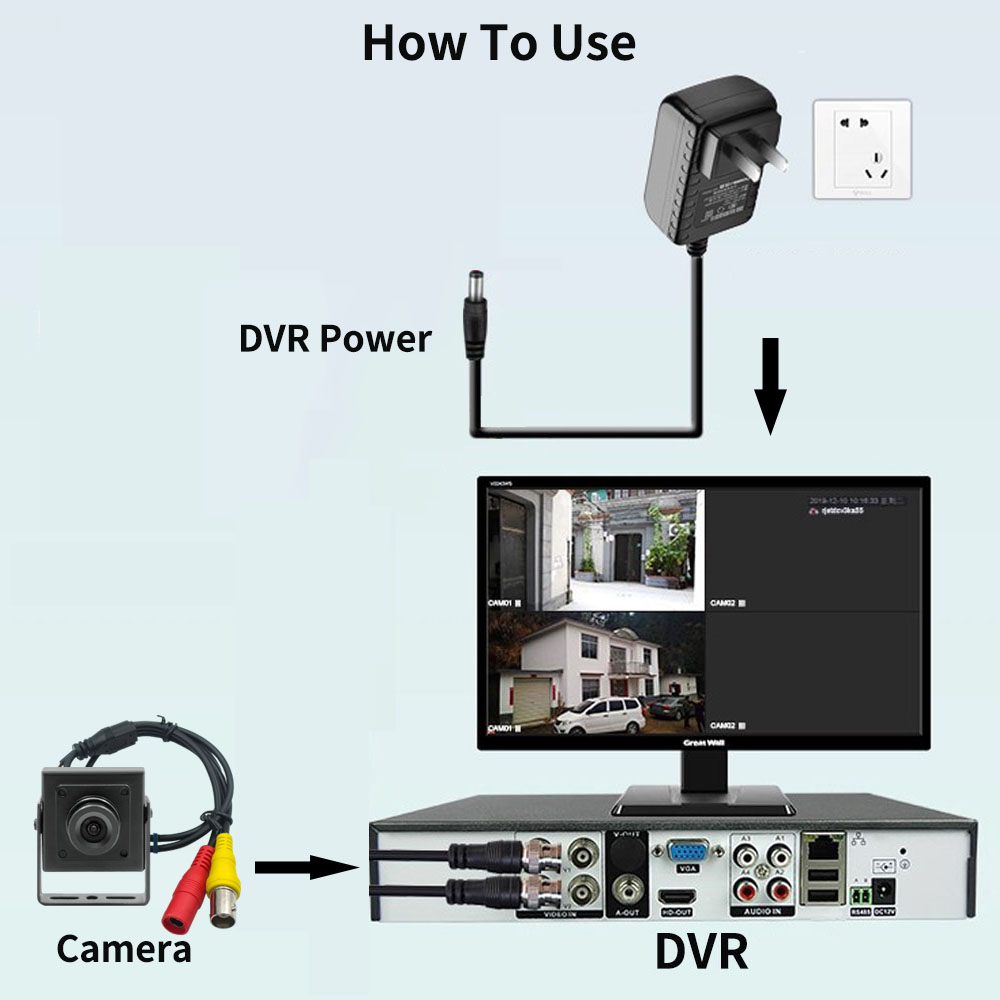

- Output interface: BNC composite video interface, compatible with traditional analog systems.
- Power supply specification: DC12V power supply, low power consumption.
- OSD menu control (customizable with OSD cable): Supports fine tuning of parameters through configuration cards or wire connections.

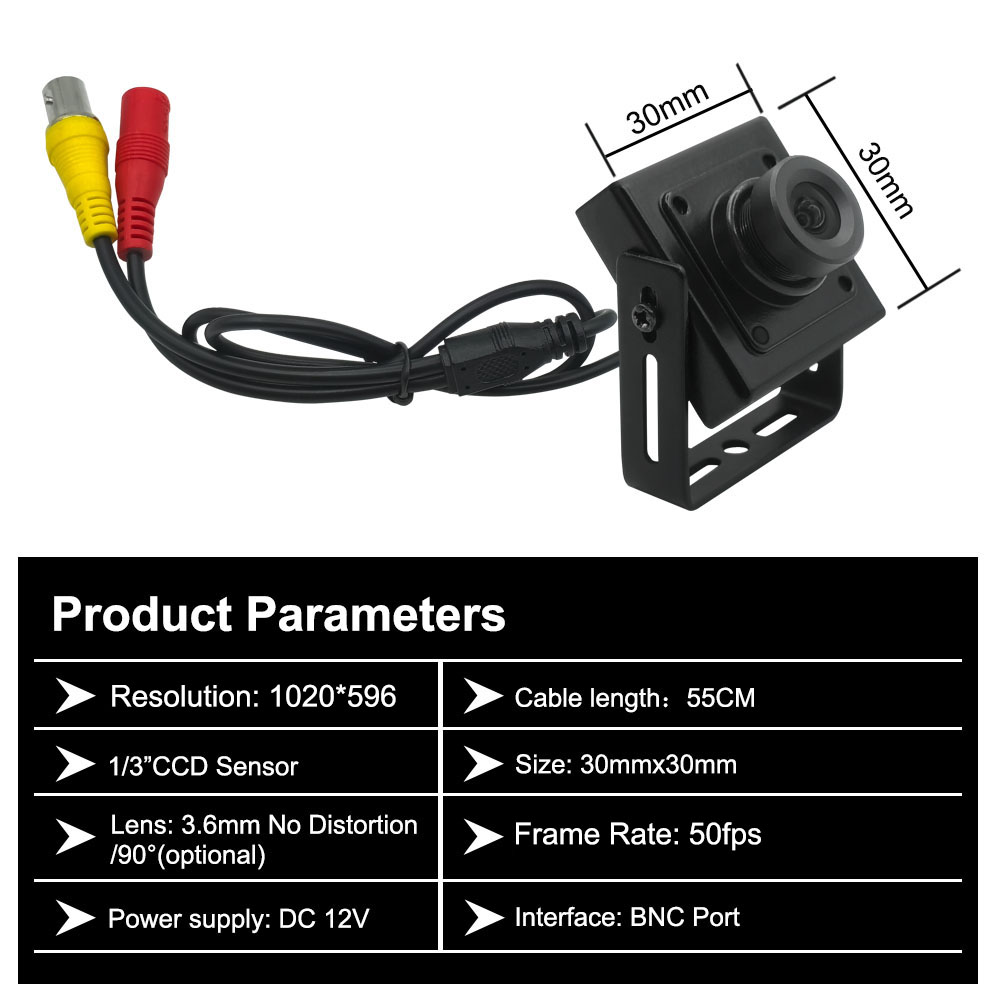

Technical Specifications
| Sensor | 1/3″CCD |
|---|---|
| Resolution | 0.7MP |
| Signal Type | CVBS |
| Frame Rate | 1020×596@50fps |
| Power | DC 12v |
| Dimensions | 30mm×30mm |
| Lens | 3.6mm |
| Model Number |
HCC-3006J36W
|
Application Scenarios
Suitable for indoor and outdoor scenes with insufficient lighting, such as underground garages, corridors, low light warehouses, backlit shops, and corners of factory areas. It is also suitable for upgrading and daily maintenance projects of simulated security systems in old residential areas and industrial factories.
Customization Options
We are well aware of the unique visual requirements of different applications and provide comprehensive OEM/ODM customization services to help you create differentiated products.
1. Lens customization: specific focal length, field of view angle, distortion control.
2. Customized casing: Design a dedicated casing, bracket, or fixing method based on the structure of your device.
3. Cable and Interface: Customize cable length and interface type.
4. Pixel customization: Different resolution and frame rate models are available.
