Product Features

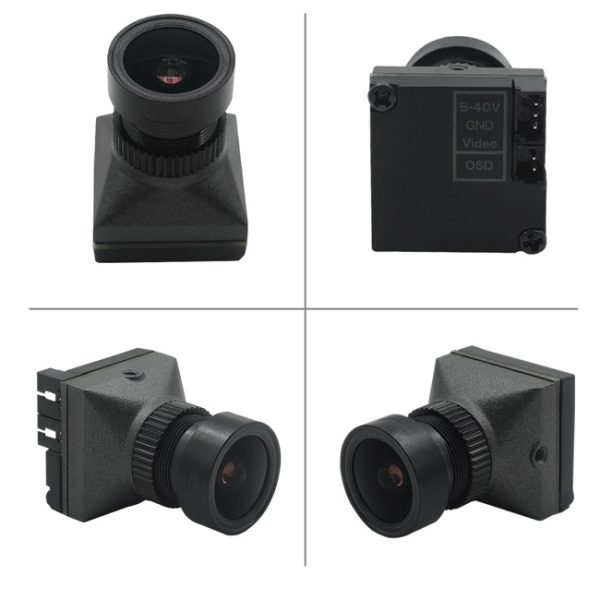

- Compact and Lightweight, Flexible InstallationIdeal for Drone and Vehicle Monitoring: The camera module measures only 19×19×29mm. Its lightweight design reduces the load on aerial drones and facilitates installation in confined spaces or on industrial equipment.

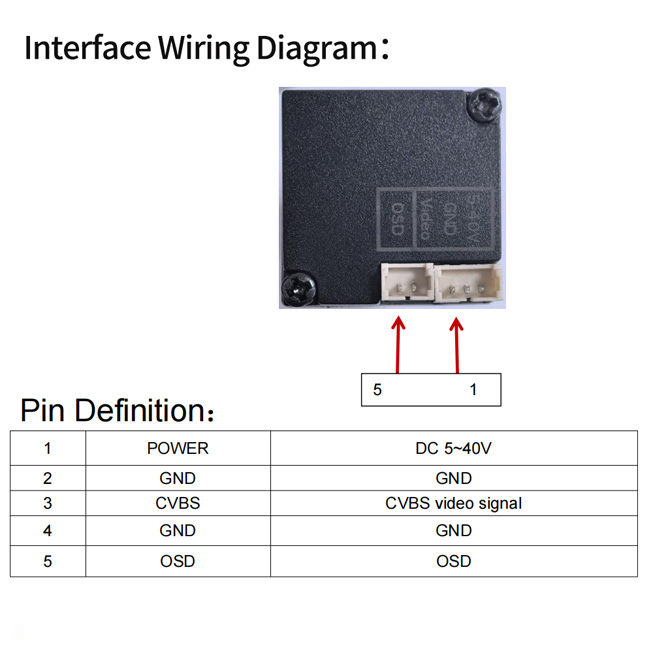

- Supports 5-40V Wide Voltage InputCompatible with most FPV drones, monitoring hosts, and industrial control systems. The 3-pin connector simplifies the installation process, allowing even first-time B2B engineers to quickly integrate it into existing systems.
- High-Definition Images and Wide-Angle Field of ViewThe 1800TVL high-resolution camera ensures high-definition image detail, while the 125° wide-angle lens provides a wide field of view. The module supports Automatic Gain Adjustment (OSD), 3D Digital Noise Reduction, and Ultra-Wide Dynamic Range (WDR), delivering stable images in both bright and low-light conditions.
- NTSC/PAL Switchable: FunctionalityEnsures video compatibility in different countries and regions. The 16:9/4:3 aspect ratio adapts to various display devices, reducing image cropping or black bars.
- OEM/ODM SupportSupports OEM/ODM Customization: including logo printing, firmware parameter adjustment, and packaging customization. Flexible sample purchasing of 1-50 pieces is available, with fast sample delivery and support for testing and functional verification. Bulk order lead time is 15-30 days, flexibly meeting the needs of different purchase sizes.
Technical Specifications
| Parameter | Value |
|---|---|
| Sensor | 1/1.8″ CMOS Sensor |
| Horizontal Resolution | 1800TVL |
| Signal | CVBS |
| Pixel Size | 4.0um |
| FOV | 125° |
| Operating Current | 60mA@12V |

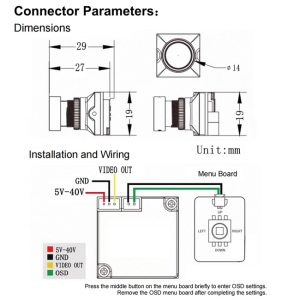

| Product Dimensions | 29mm x 19mm x 19mm |
| Video System | PAL/NTSC selectable |
| Electronic Shutter | F1.0/0.000001Lux |
| Product Model | HCC-XG184 |
| Day/Night Mode | COLOR |
| Image Aspect Ratio | 4:3/16:9 selectable |
| OSD Menu | Supported |
| Lens | 8MP |
| WDR | Super WDR(HDR) |
- Drone Aerial Photography: Suitable for racing drones, aerial photography drones, and agricultural drones; excellent performance in ultra-low light.
- CCTV/Security: Commercial surveillance, warehouse surveillance, entrance/road surveillance; all-weather high-definition video.
- Industrial and Vehicle Monitoring: Robot vision, AGVs, vehicle reversing and security monitoring.
- Smart Home/IoT: Can be integrated into smart security systems and remote monitoring solutions.
