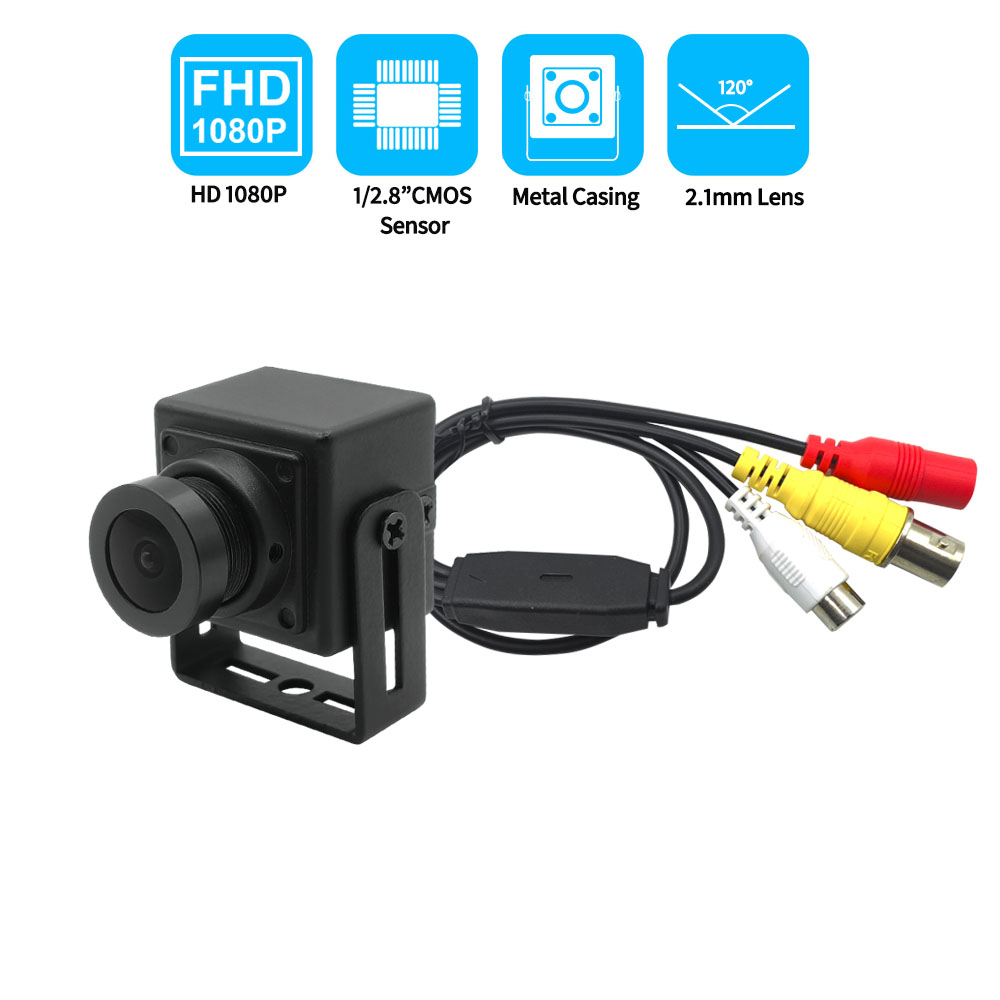

Core Advantages

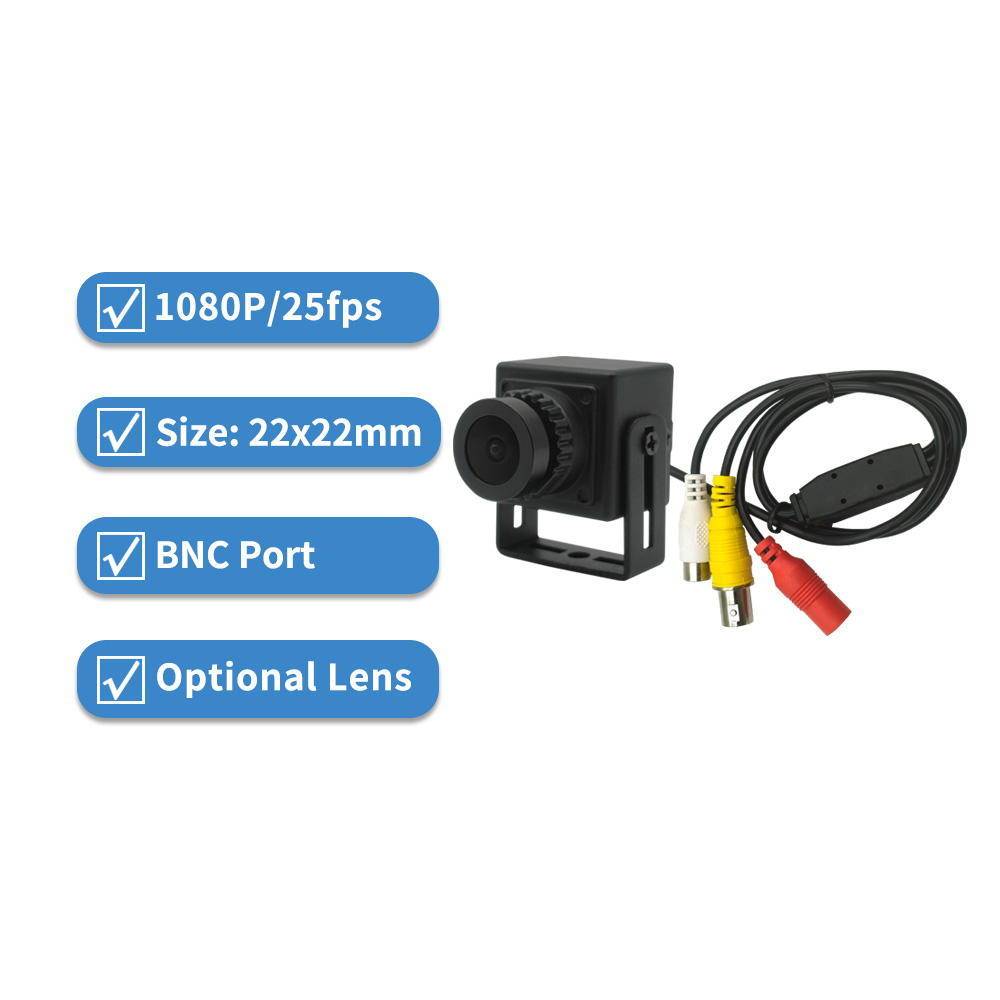

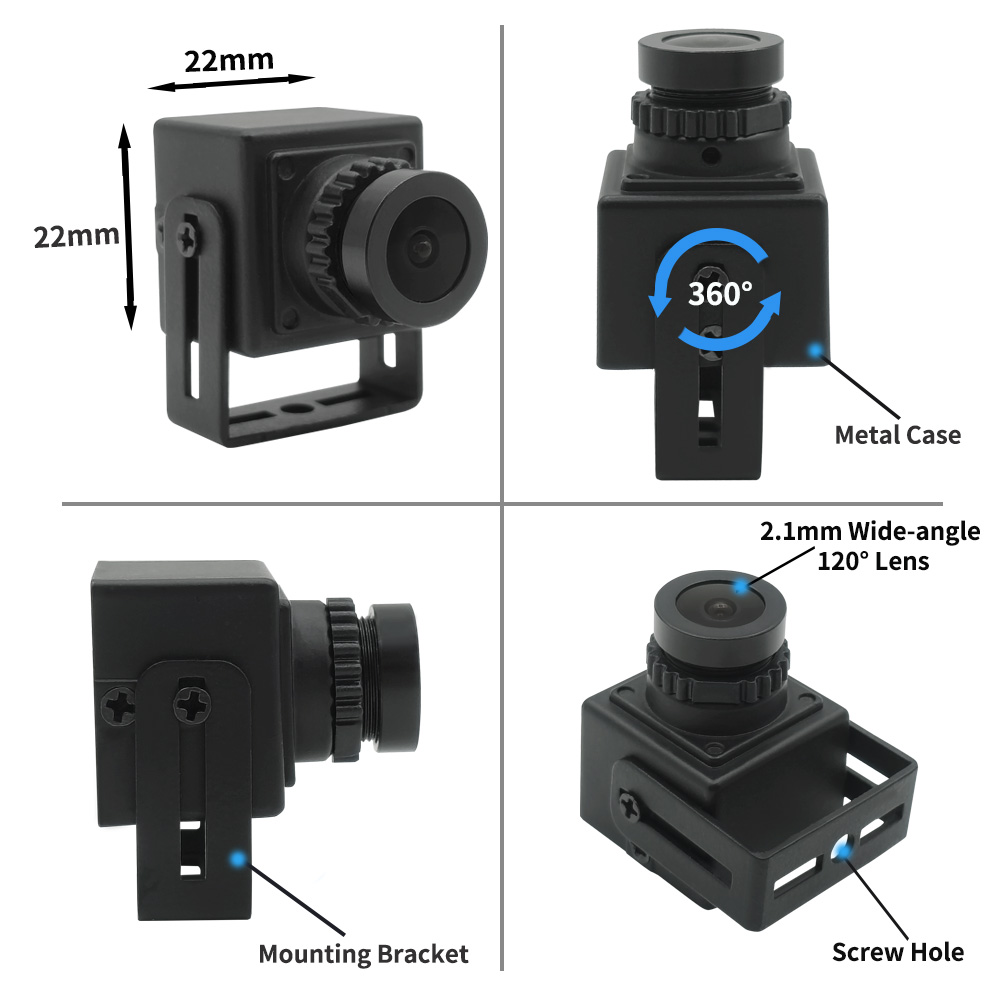

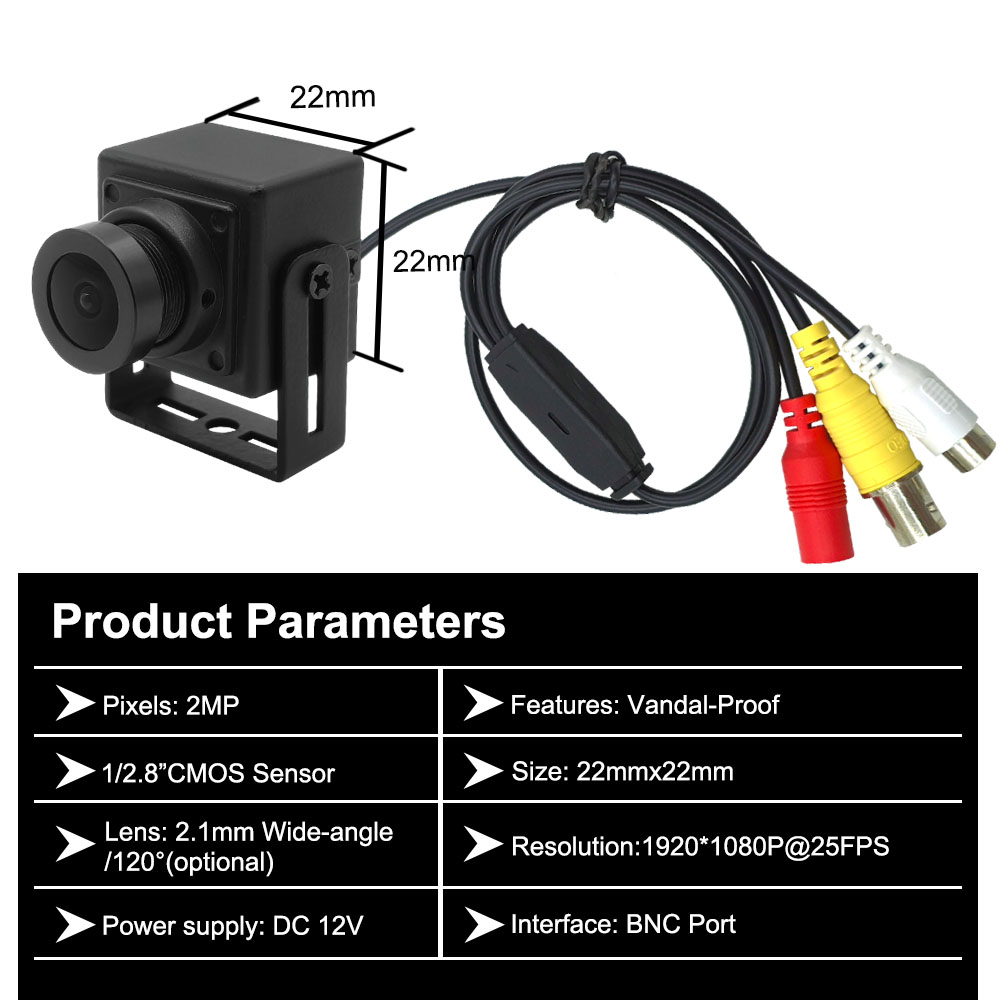

- Mini size: Only 22 × 22mm cubic size, suitable for small installation spaces, strong concealment.

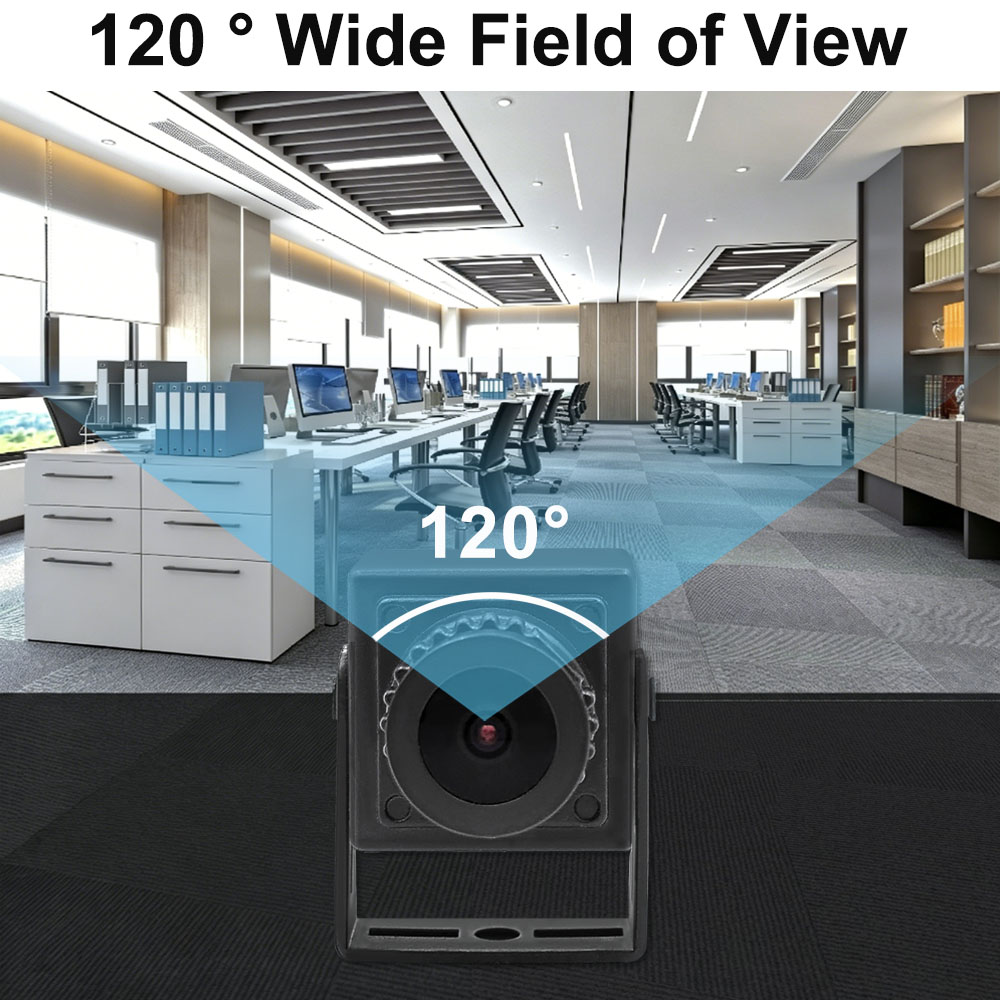

- High definition wide view: 2 million pixels 1080P resolution, 120 ° wide-angle coverage for a wider monitoring range.

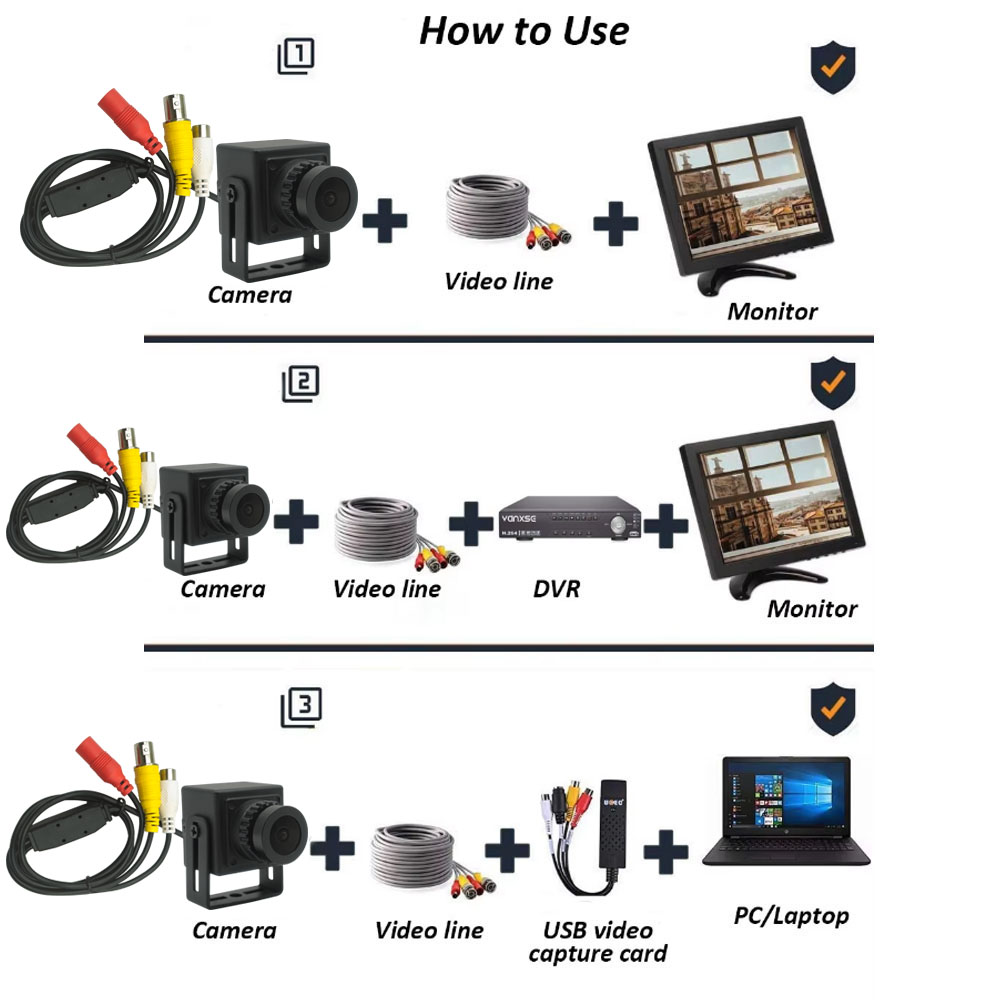

- Compatible with: AHD coaxial analog transmission, BNC standard interface, can directly adapt to traditional DVR storage systems.

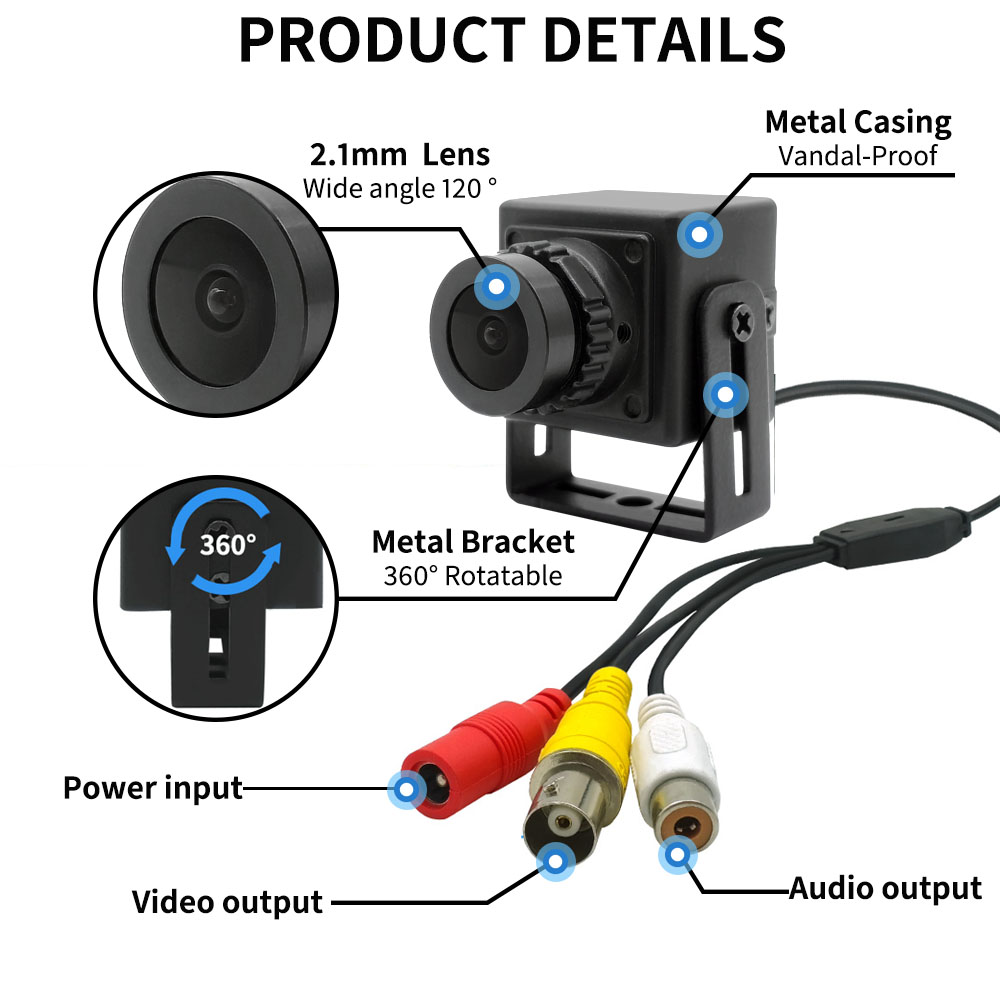

- Durable metal shell: with anti damage properties, 12V DC power supply suitable for most security scenarios
Technical Specifications

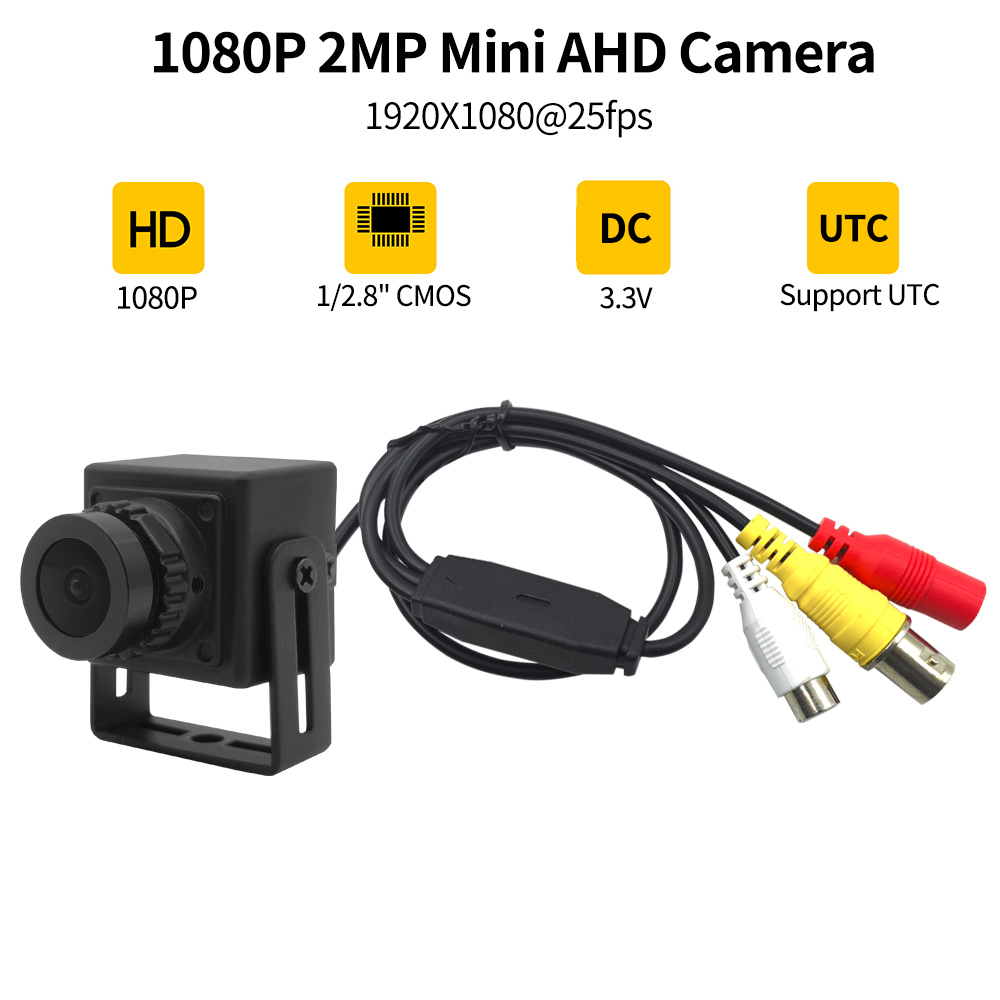

| Style | Mini Camera |
| Sensor | 1/2.8″ CMOS |
| Pixel | 2.0 Mega Pixels |
| Resolution | 1920*1080P@25fps |
| Size | 22*22MM |
| Special Features | Vandal-Proof |
| Camera Used for | Security Surveillance |
| Lens | 2.1mm |
| View angle | 120 Degree |
| Aperture | F2.4 |
| Function | Wide Angle |
| Video Compression Format | Analog signal |
| Data Storage Options | DVR |
| Model Number | HCA-202J21 |
| Video Output | BNC Port |
| Operating Voltage | 12v |
Application Scenarios
Widely used in embedded security scenarios such as car surveillance, bank ATM machines, self-service terminals, etc., it can also be used in security monitoring fields with strict installation volume requirements such as elevators, small indoor locations, and embedded commercial equipment.
Customization Options
We are well aware of the unique visual requirements of different applications and provide comprehensive OEM/ODM customization services to help you create differentiated products.
- Lens customization: specific focal length, field of view angle, distortion control.
- Customized casing: Design a dedicated casing, bracket, or fixing method based on the structure of your device.
- Cable and Interface: Customize cable length and interface type.
- Pixel customization: Different resolution and frame rate models are available.
- Customized services: USB camera module, AHD Camera module, CVBS camera module, Network camera module, Wifi camera module, etc.
