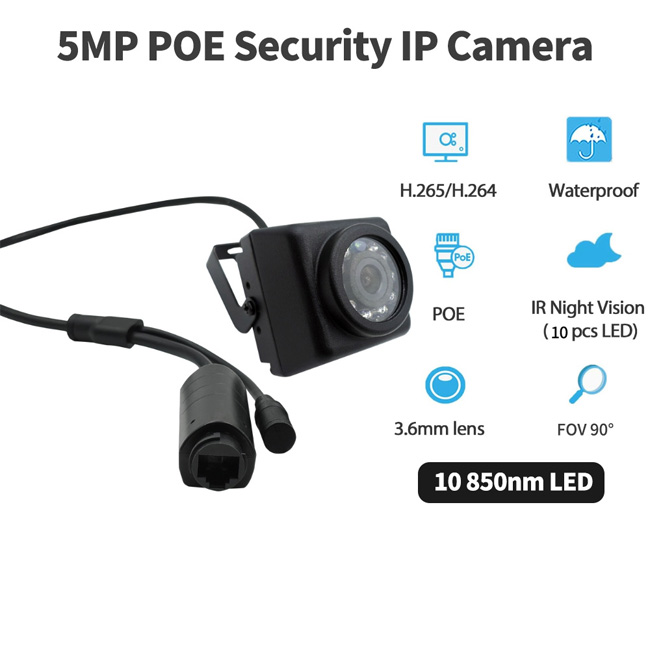

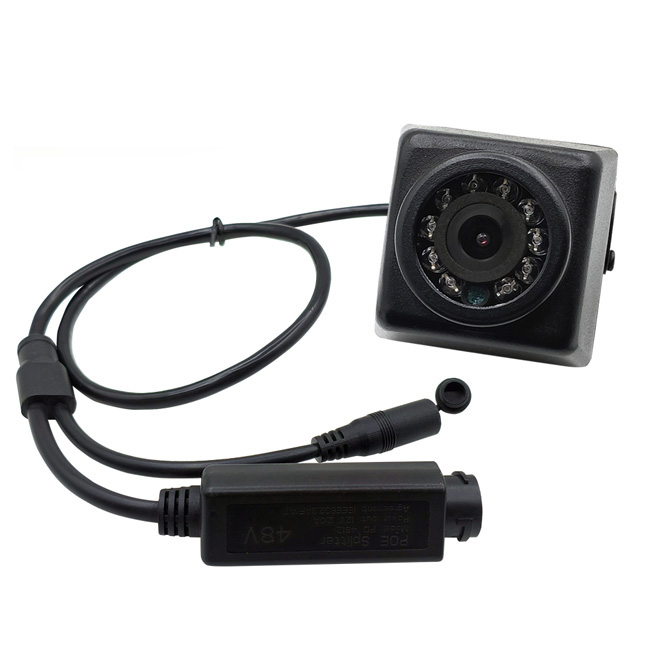

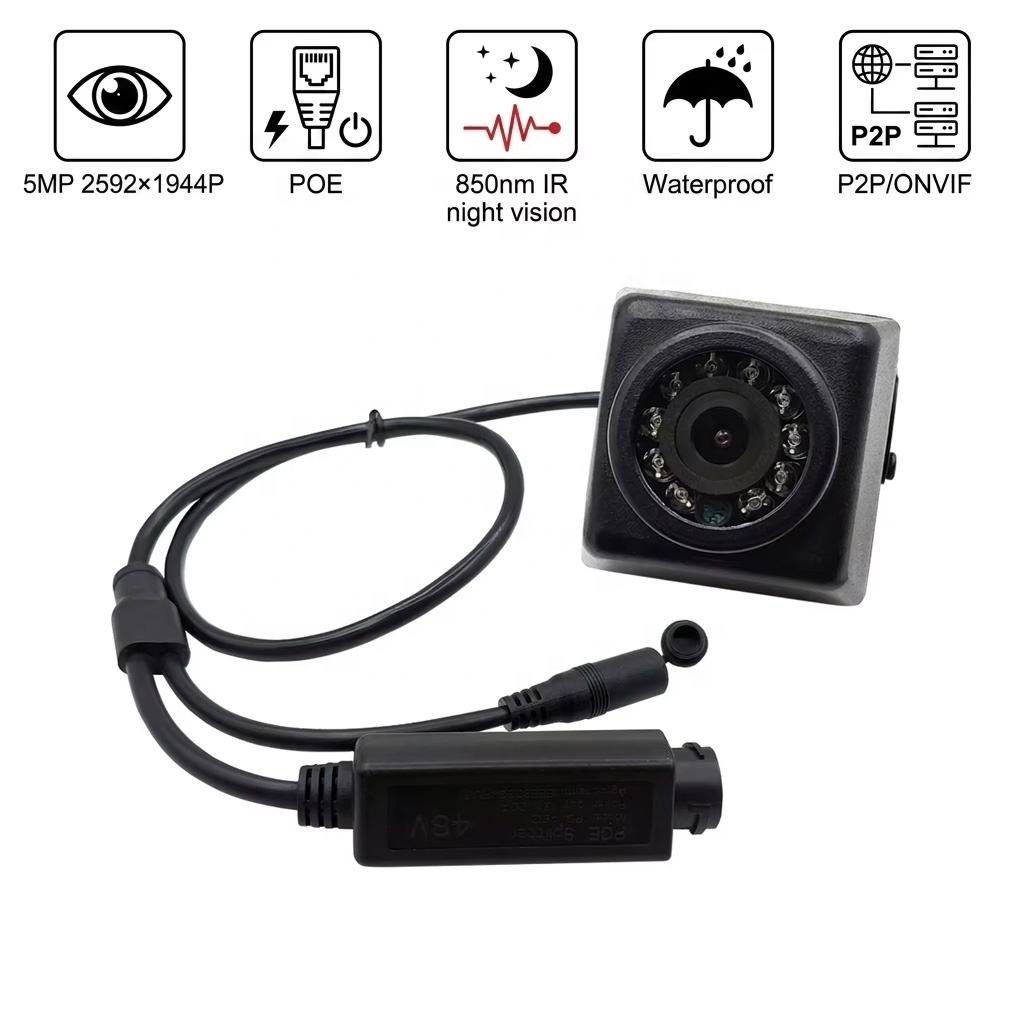

Key Features of the IR Mini POE Box Camera
- 5MP Ultra-HD Pixels: This device utilizes a high-sensitivity 1/2.8-inch 5MP CMOS image sensor, providing a resolution of 2592×1944. This ensures superior performance in license plate recognition, vehicle identification, access control, and wide-area surveillance.

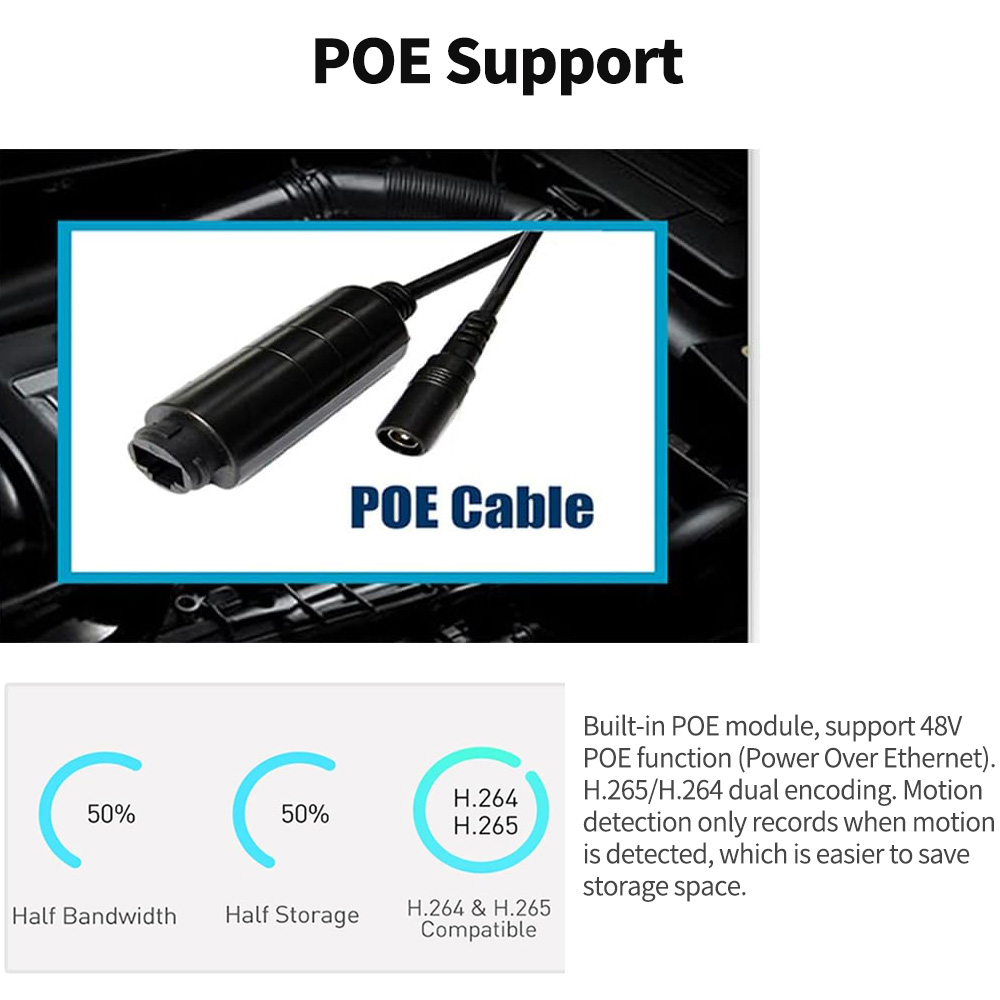

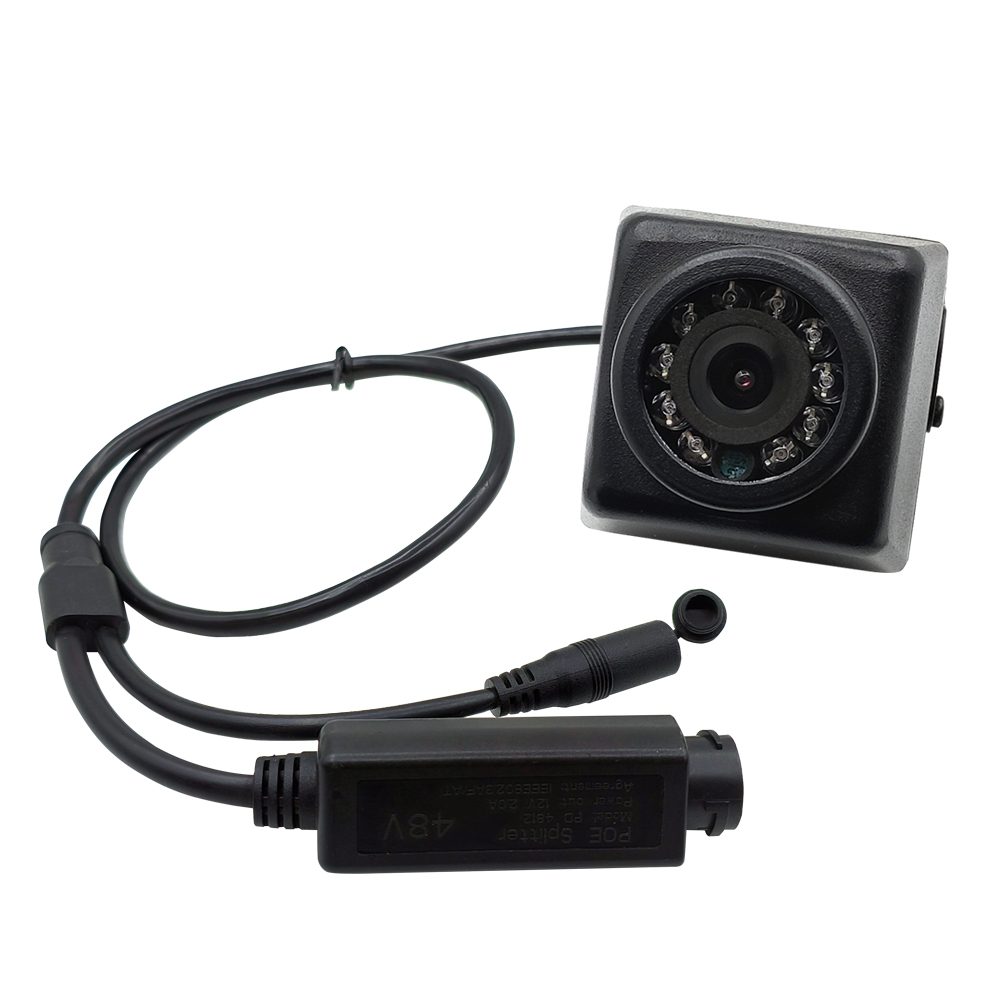

- Power over Ethernet (PoE) for Cost-Effective Installation: Employing 48V PoE technology, power and data can be transmitted via a single network cable.
- IP66 Waterproof for Harsh Outdoor Environments: This IP66 waterproof camera features an all-metal casing, capable of withstanding rain, snow, dust, high temperatures, and low temperatures.
- Infrared Night Vision: Equipped with an 850nm infrared LED, this camera delivers low-noise black-and-white images.
- H.265 Video Compression for Reduced Bandwidth and Storage: H.265 IP cameras can reduce storage footprint by up to 50% while maintaining high image quality. This makes it ideal for multi-channel NVR systems and long-term project storage needs.

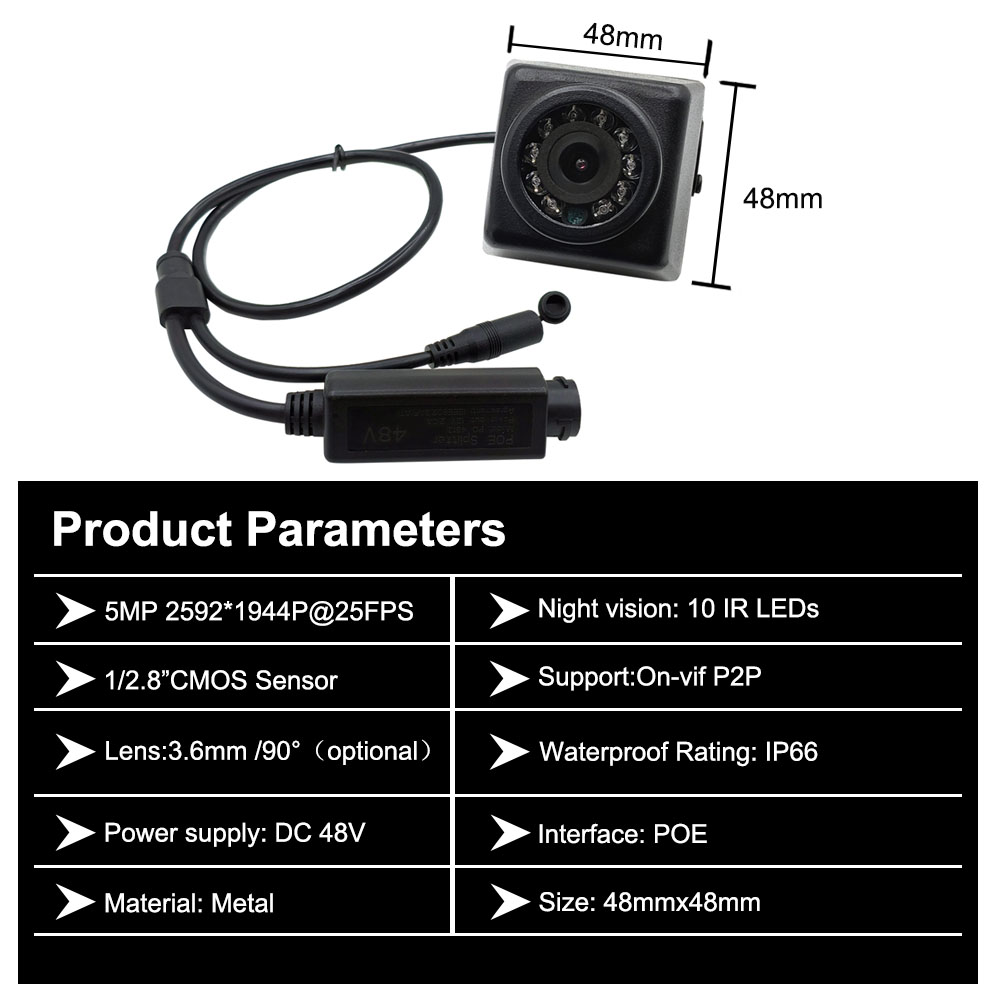

Technical Specifications
| Sensor | 1/2.8″ CMOS |
|---|---|
| Pixel | 5MP |
| Resolution | 2592×1944@25fps |
| Compressed Format | H.265 |
| Lens | 3.6mm(Optional) |
| FOV | 90° |
| Audio | None |

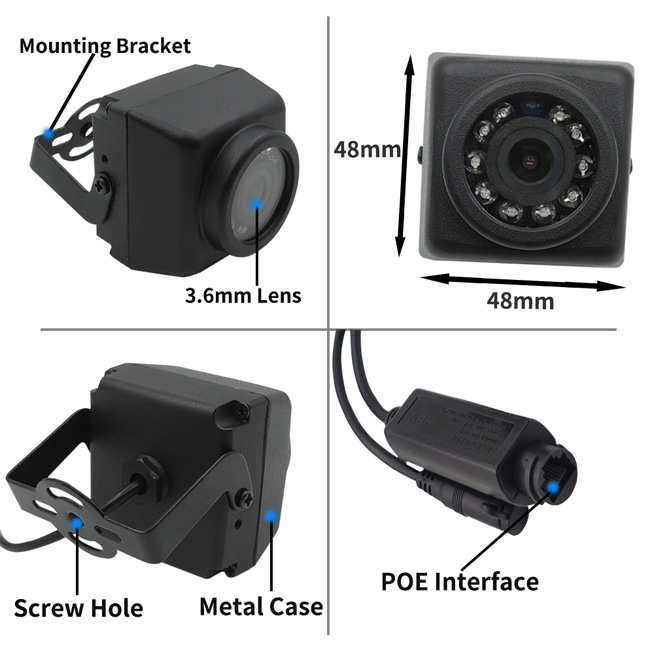

| Product Dimensions | 48x48mm |
| Shell Material | Metal |
| Interface | POE port |
| Night Vision | 10 pcs 850nm infrared leds |
| Power Supply | POE 48V |
| IP Rating | IP66 |
| Model | HCP-485YS8 |
|
Support
|
On-vif P2P |
Main Application Industries
- Warehouse monitoring systems
- Factory production monitoring
- Parking lot security
- Retail store anti-theft solutions
- Logistics center surveillance
- School and campus monitoring
- Construction site perimeter security
- Residential community surveillance
Customization Services
We are well aware of the unique visual requirements of different applications and provide comprehensive OEM/ODM customization services to help you create differentiated products.
- Lens customization: specific focal length, field of view angle, distortion control.
- Customized casing: Design a dedicated casing, bracket, or fixing method based on the structure of your device.
- Cable and Interface: Customize cable length and interface type.
- Pixel customization: Different resolution and frame rate models are available.
Explore more models in our Network Camera series to meet different application needs.
