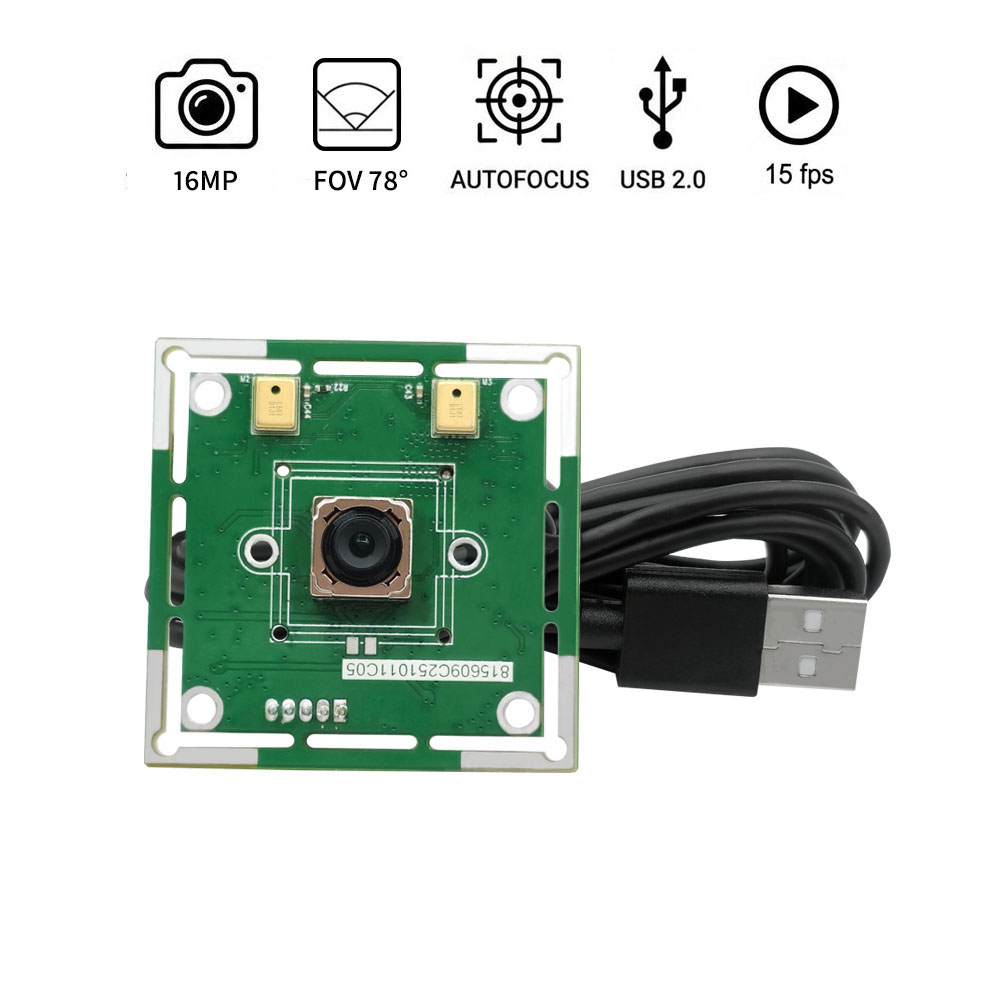

Product Features

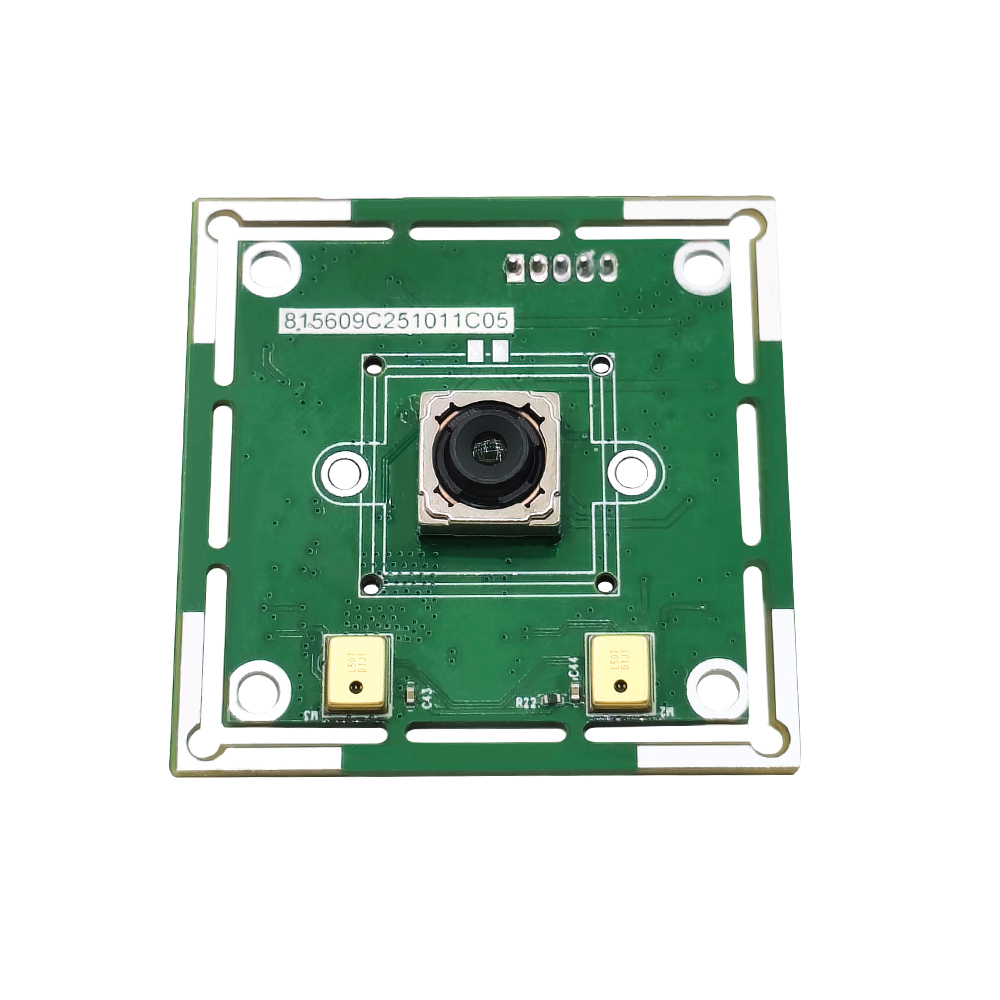

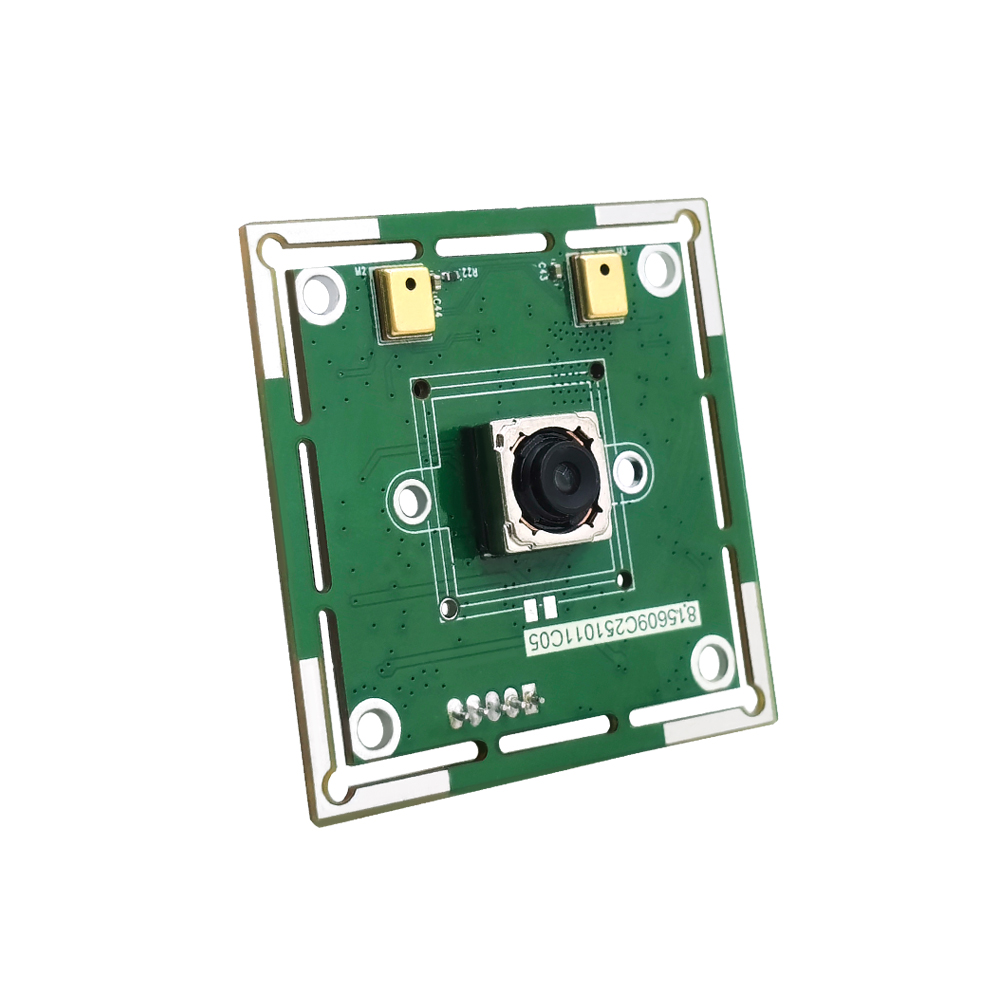

Utilizes a Sony CMOS sensor for true 4K ultra-high-definition resolution:This 4K camera module uses an original Sony CMOS image sensor, supporting 4656×3496 resolution, delivering clear details and low noise even in low-light conditions.

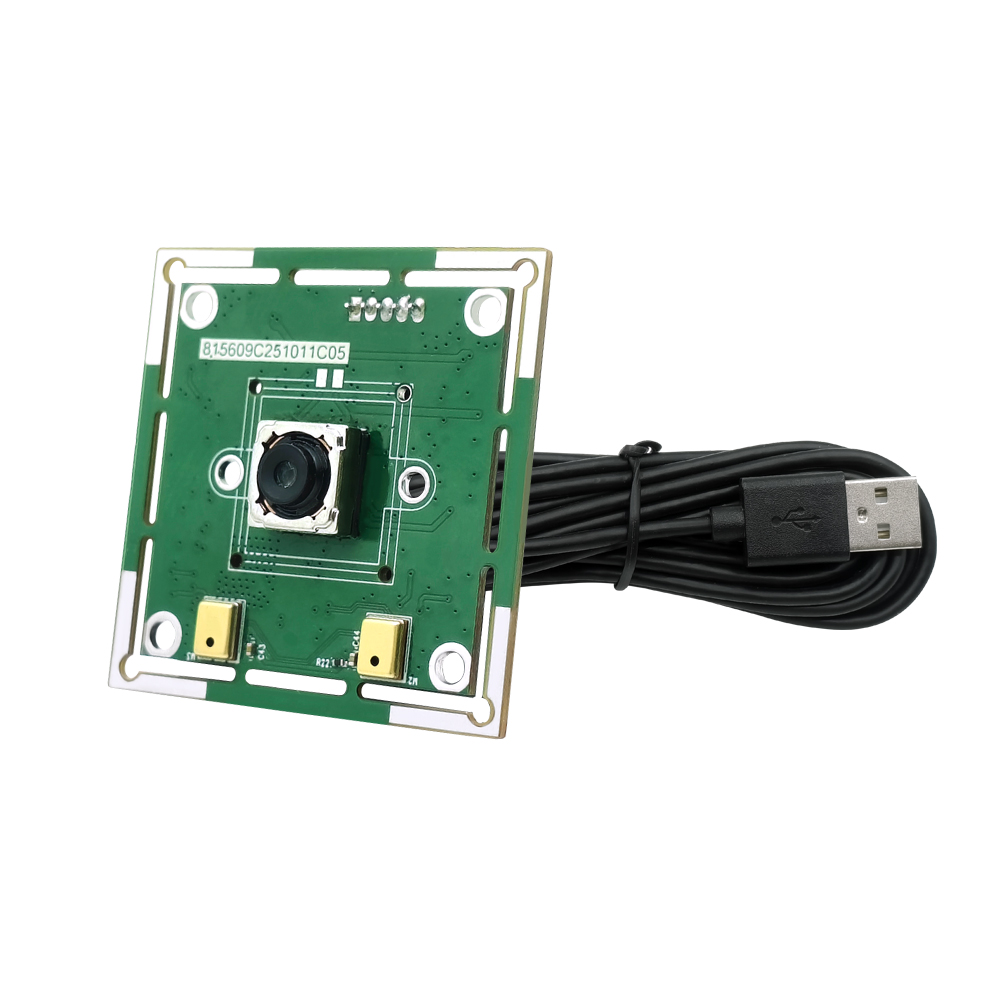

USB 2.0 interface:Provides stable and reliable data transmission with strong compatibility.

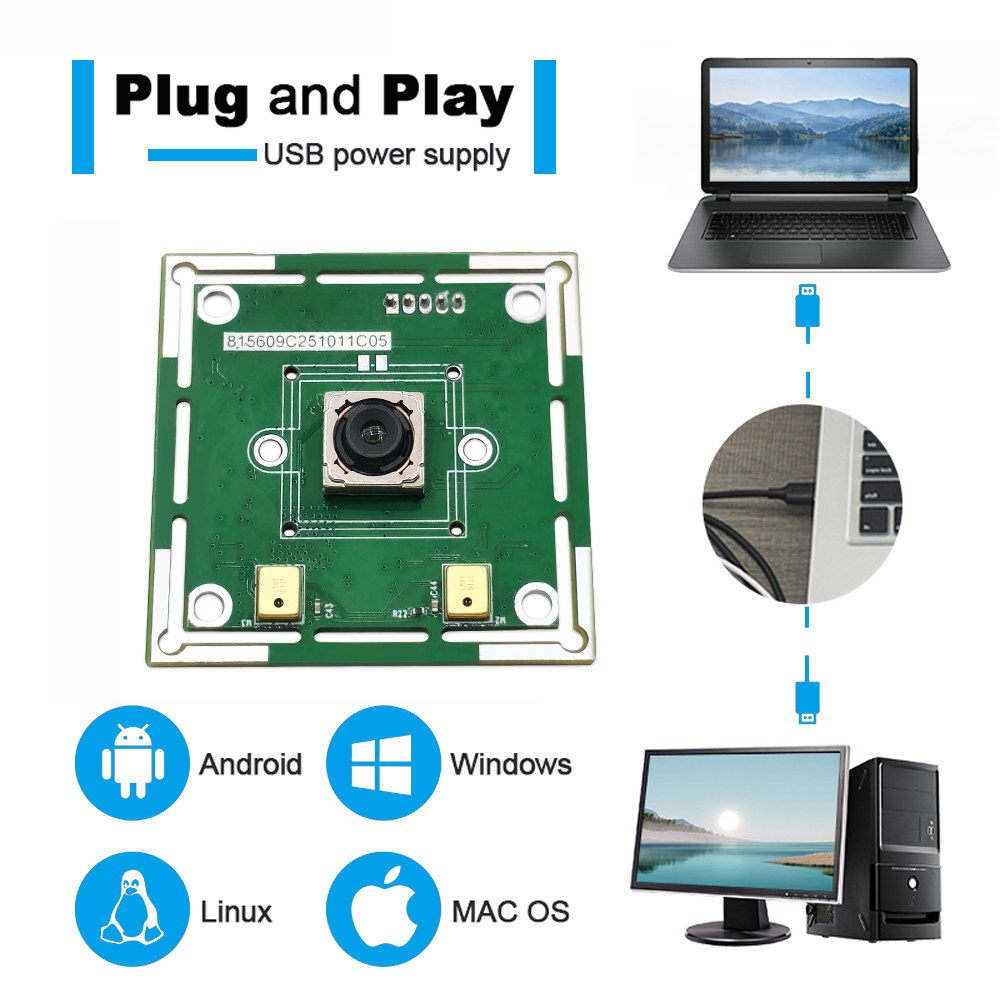

Driver-free installation:Supports the UVC protocol, automatically recognized by Windows, Linux, Android, and macOS systems.
Mini size suitable for embedded and space-constrained designs

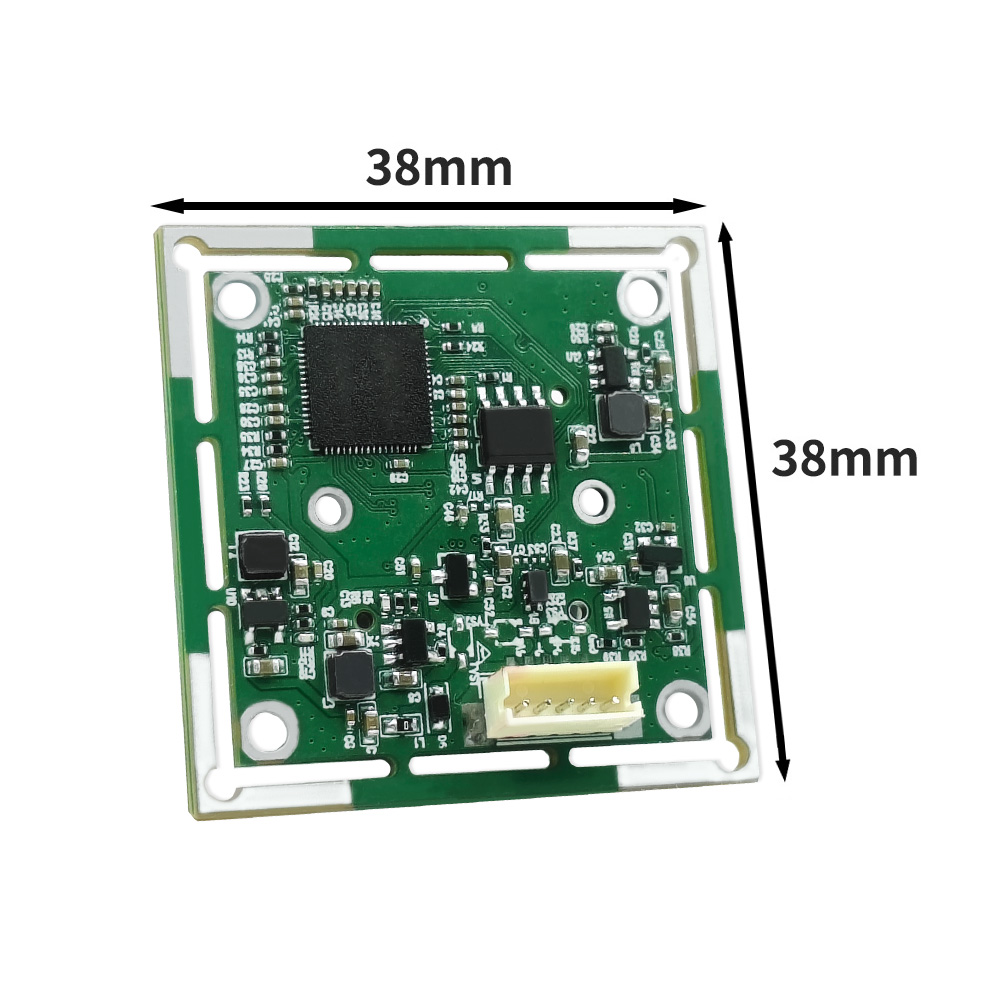

Its compact 38x38mm design is ideal for applications with limited space. As a mini 4K camera module, it helps OEM customers maintain professional-grade image quality while reducing mechanical design limitations.
Fast and Accurate Focusing:Equipped with advanced autofocus (AF) algorithms, it can quickly lock onto the subject and continuously track it, even if the person moves or the scene changes, the image remains clear and sharp, bidding farewell to the troubles of blurring and defocusing.

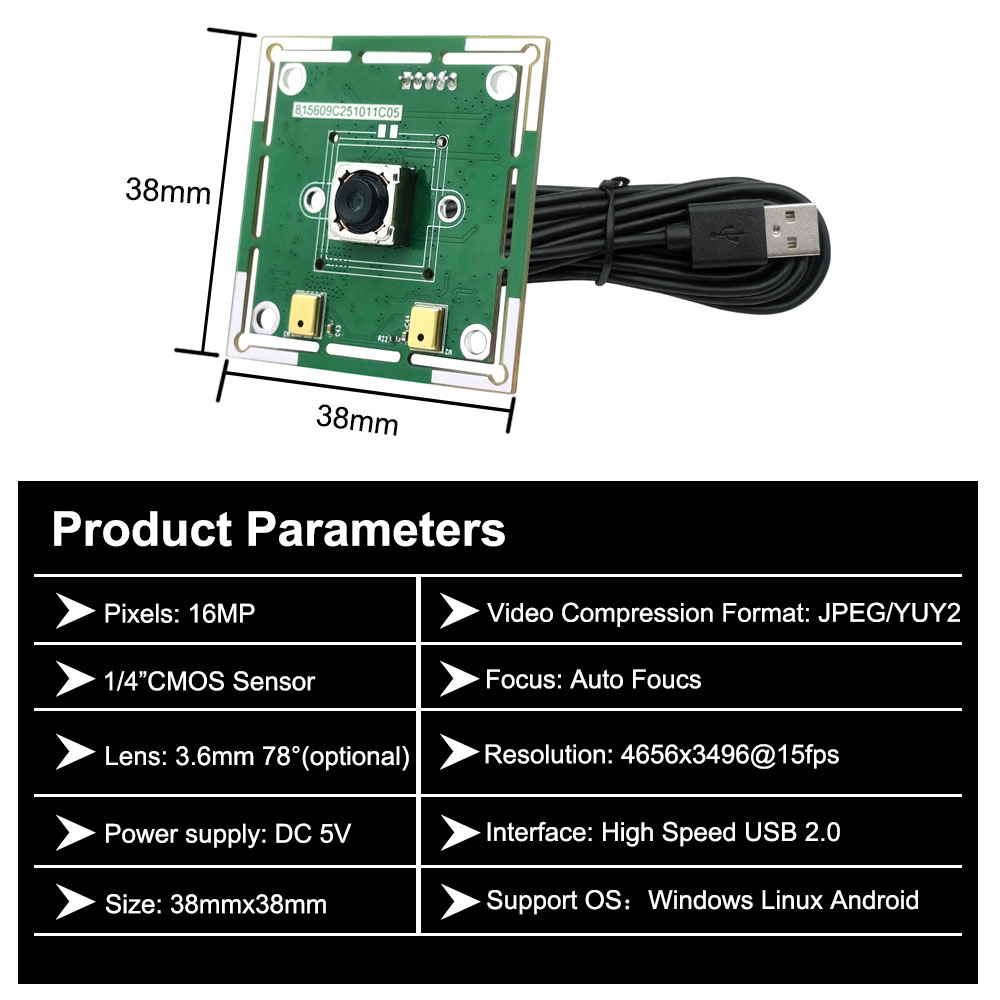

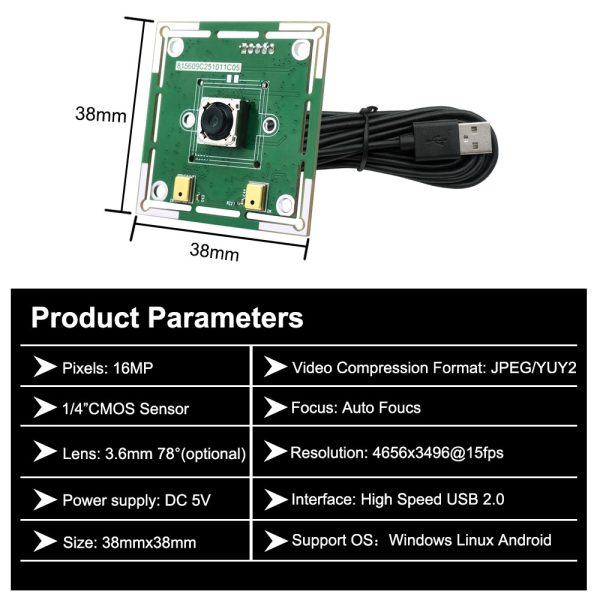

Technical Specifications
| Sensor | 1/4″ CMOS |
| Pixel | 16MP |
| Compression Format | JPEG/YUY2 |
| Frame Rate | 4656×3496@15fps |
| Working Voltage | DC 5V |
| Product Name | HCU-3816AF |
| Product Size | 38x38MM |
| Focus | Autofocus Lens |
| Interface | High Speed USB 2.0 |
| FOV | 78 Degree |
| Supported OS | Windows Linux Android |
Applications
- ATM monitoring and banking equipment
- Industrial automation (SMT machines, welding equipment)
- Medical imaging and educational hardware
- Smart retail and access control systems
- Drone vision and robotics
- Security monitoring and law enforcement equipment
Customization Options
We are well aware of the unique visual requirements of different applications and provide comprehensive OEM/ODM customization services to help you create differentiated products.
1. Lens customization: specific focal length, field of view angle, distortion control.
2. Customized casing: Design a dedicated casing, bracket, or fixing method based on the structure of your device.
3. Cable and Interface: Customize cable length and interface type.
4. Pixel customization: Different resolution and frame rate models are available.
