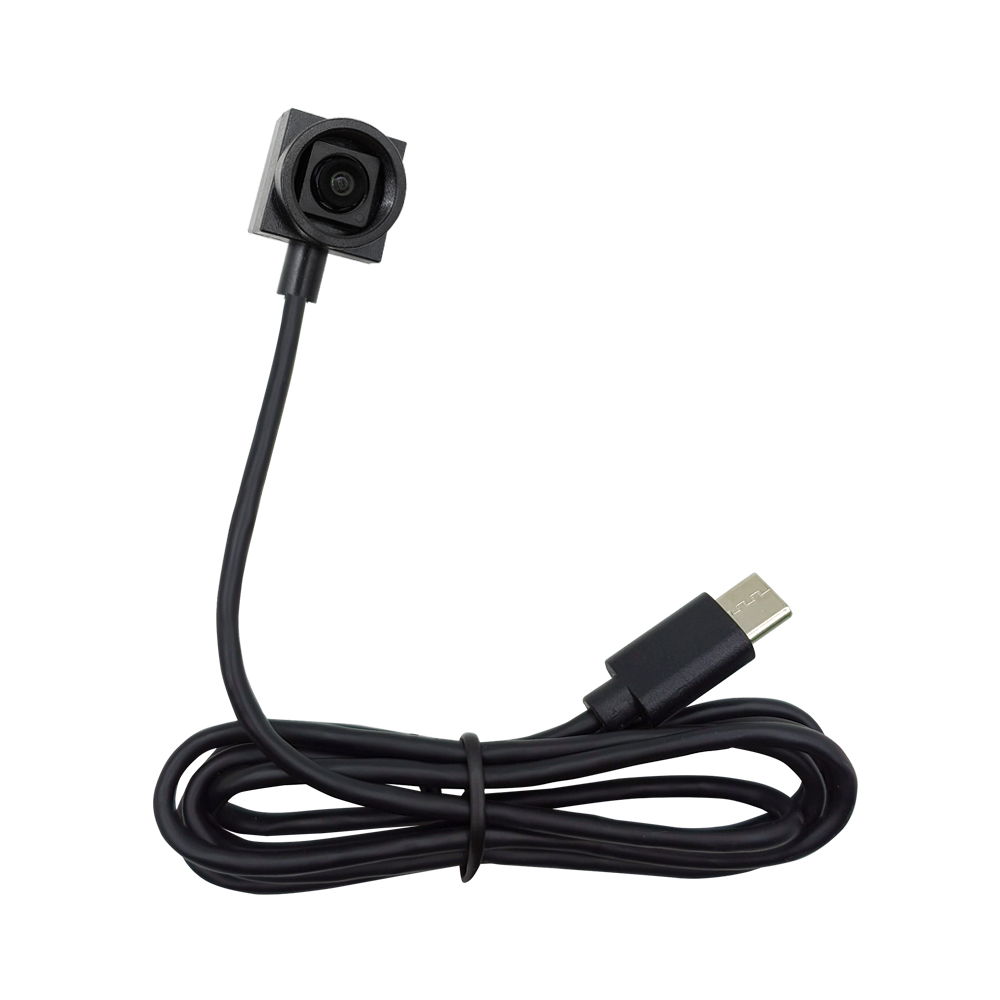

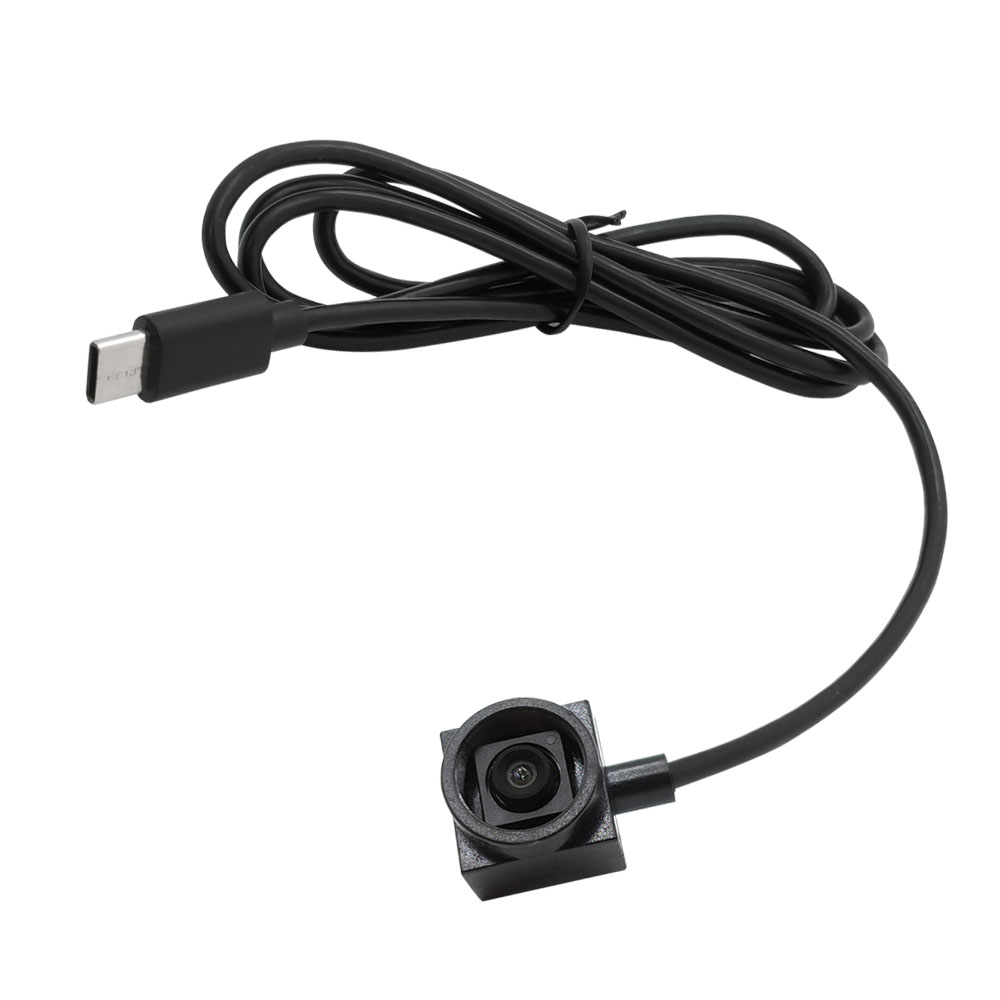

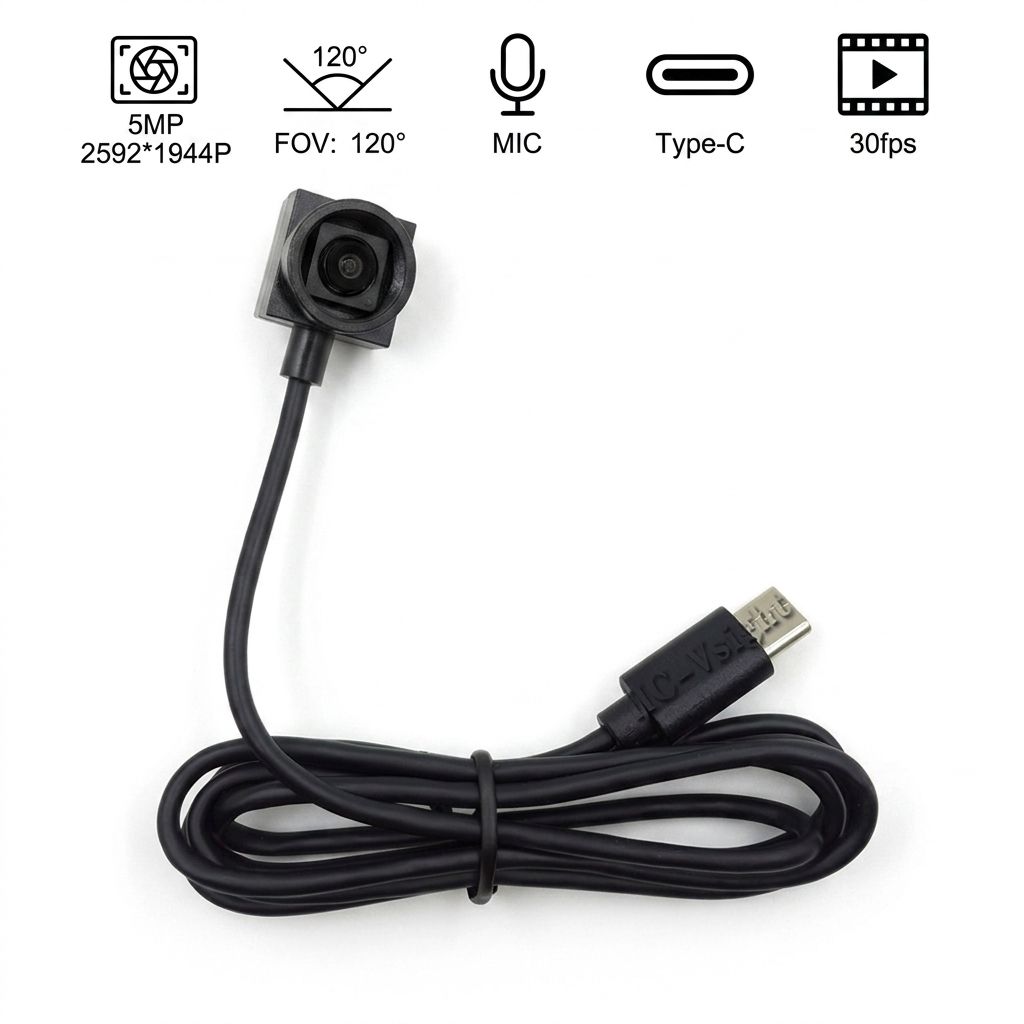

5MP HD 120 Degree Fixed Focus Type-C Camera

Core functions of the product

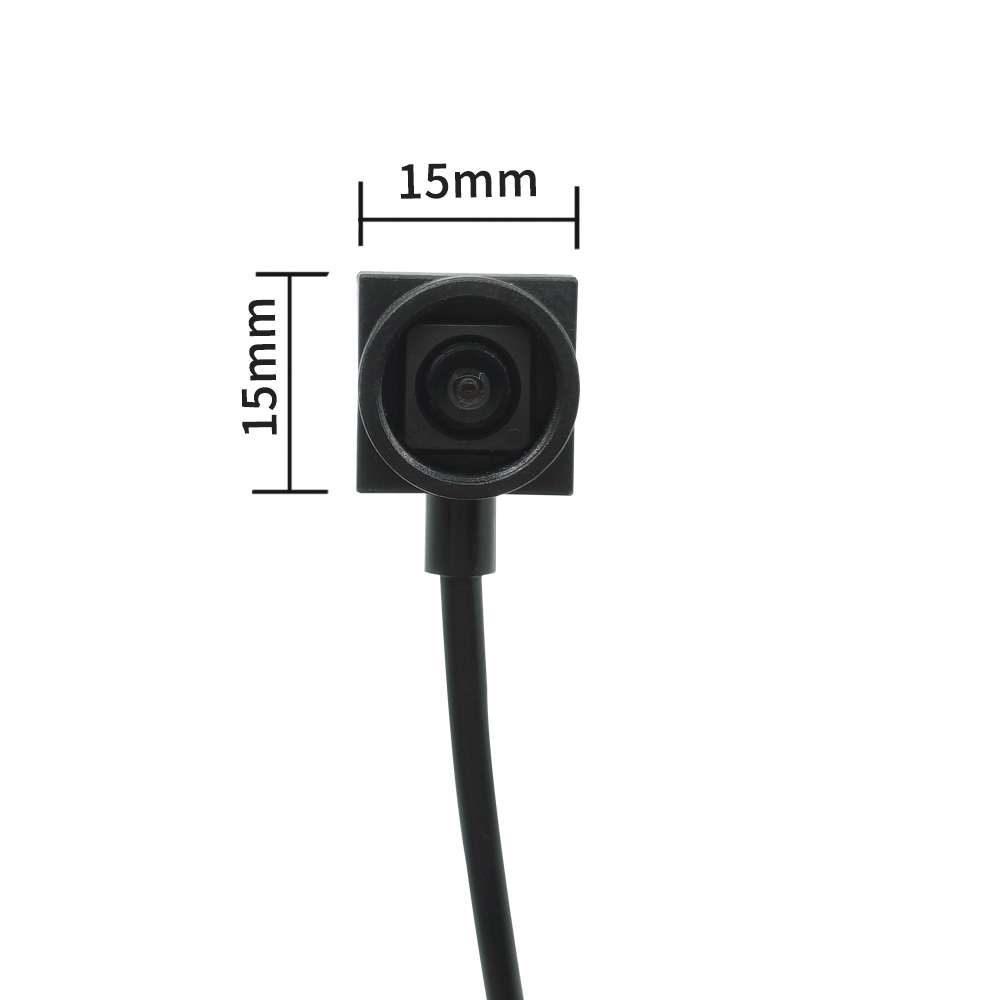

● Ultra-compact 15×15mm design:Optimized for OEM/ODM projects, embedded integration, and small-size industrial devices. Ideal for applications requiring mini camera modules such as robotics, IoT terminals, medical instruments, POS machines, and smart home devices.

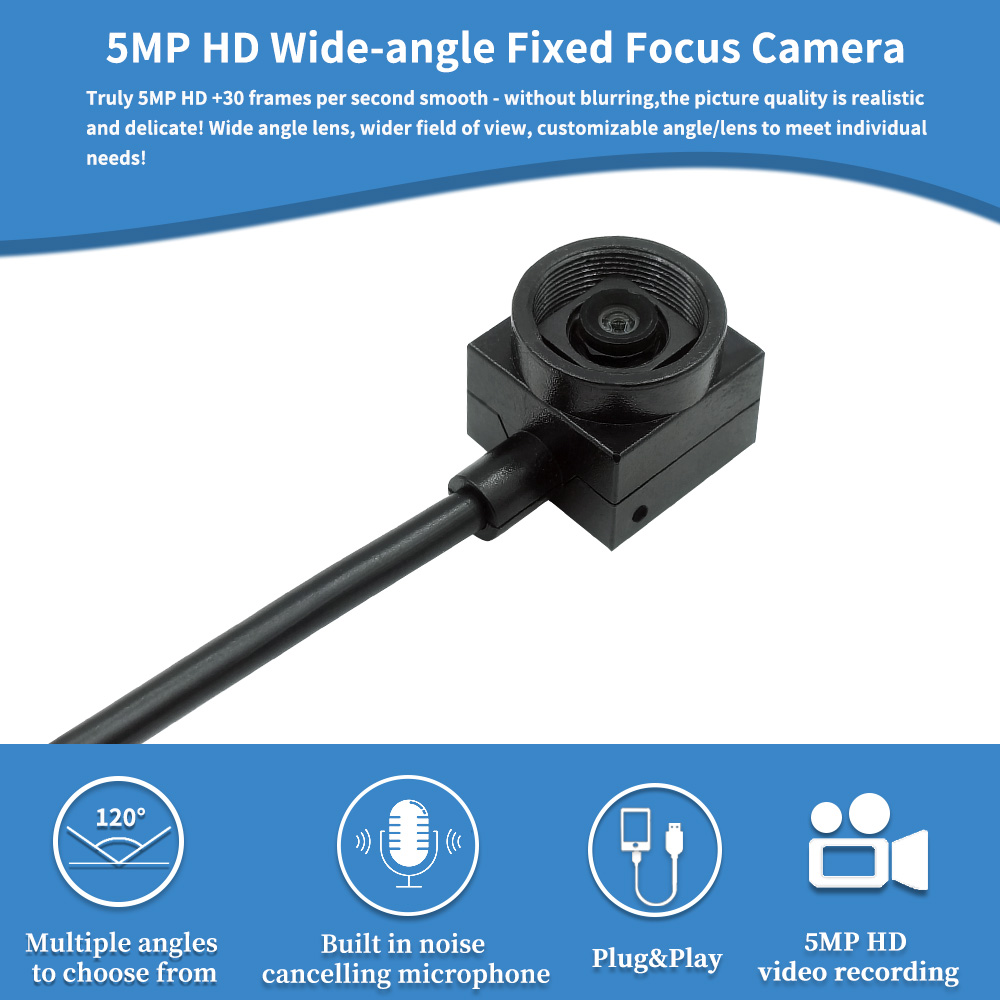

● High-resolution 5MP HD sensor:5-megapixel high-definition resolution (2560X1440@30fps) provides exquisite image quality and accurately captures details.Delivers crisp images for applications needing accuracy and detail.

● Wide-angle fixed-focus lens:The wide-angle USB camera provides a broader field of view, ideal for surveillance, industrial monitoring, conferencing, and automation systems,easy to develop and integrate.

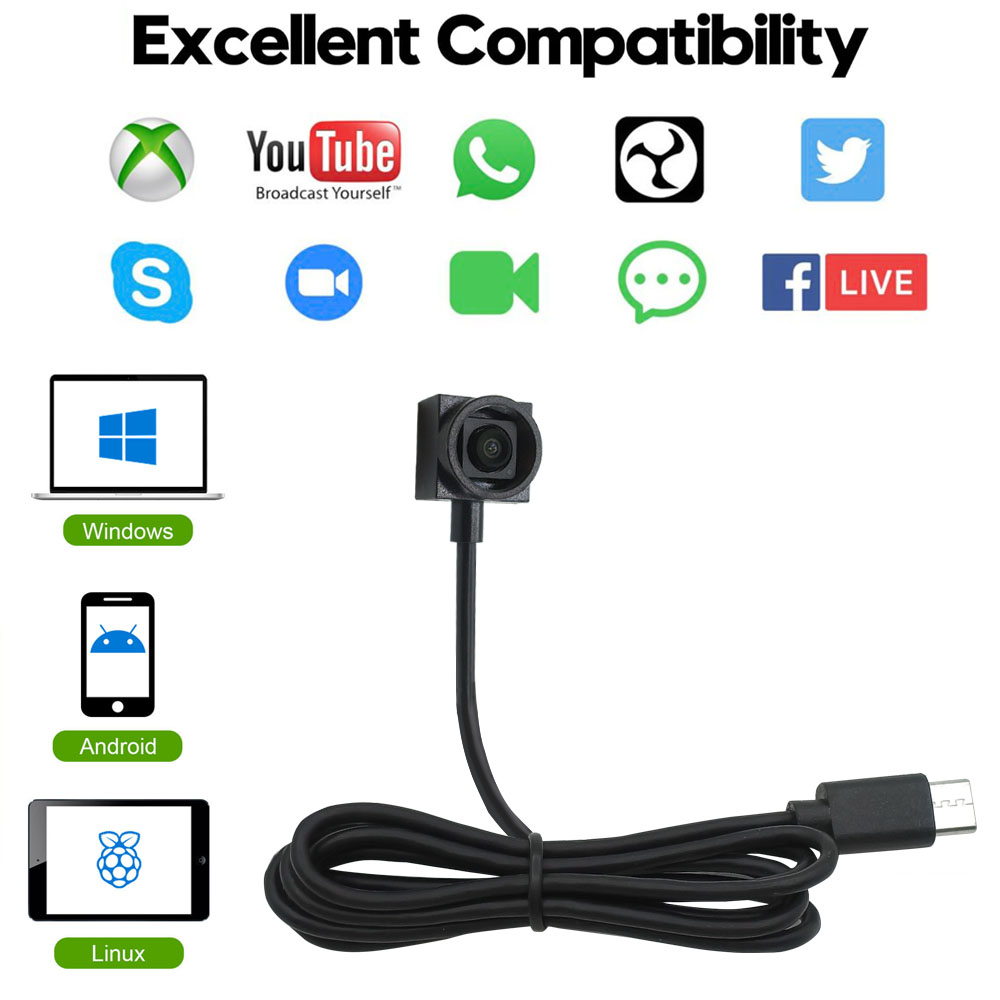

● Plug-and-play UVC driver-free:Fully compatible with Windows, Linux, macOS, Android — no additional drivers needed.

● Adjustable image parameters: Support adjusting exposure, white balance, gain, contrast, saturation and other parameters through software to adapt to complex lighting scenes.

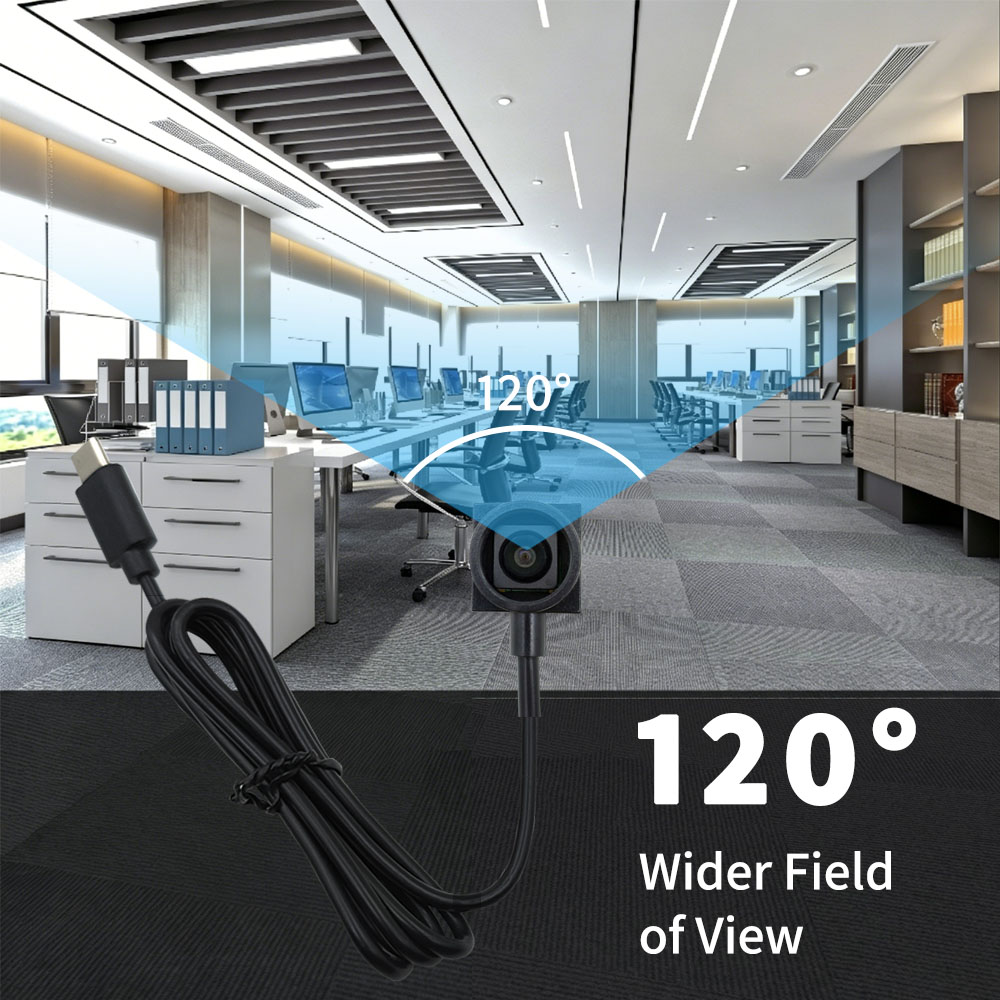

● Industrial grade wide-angle lens: focal length 1.9mm, fixed focus wide-angle 120°, wide field of view.

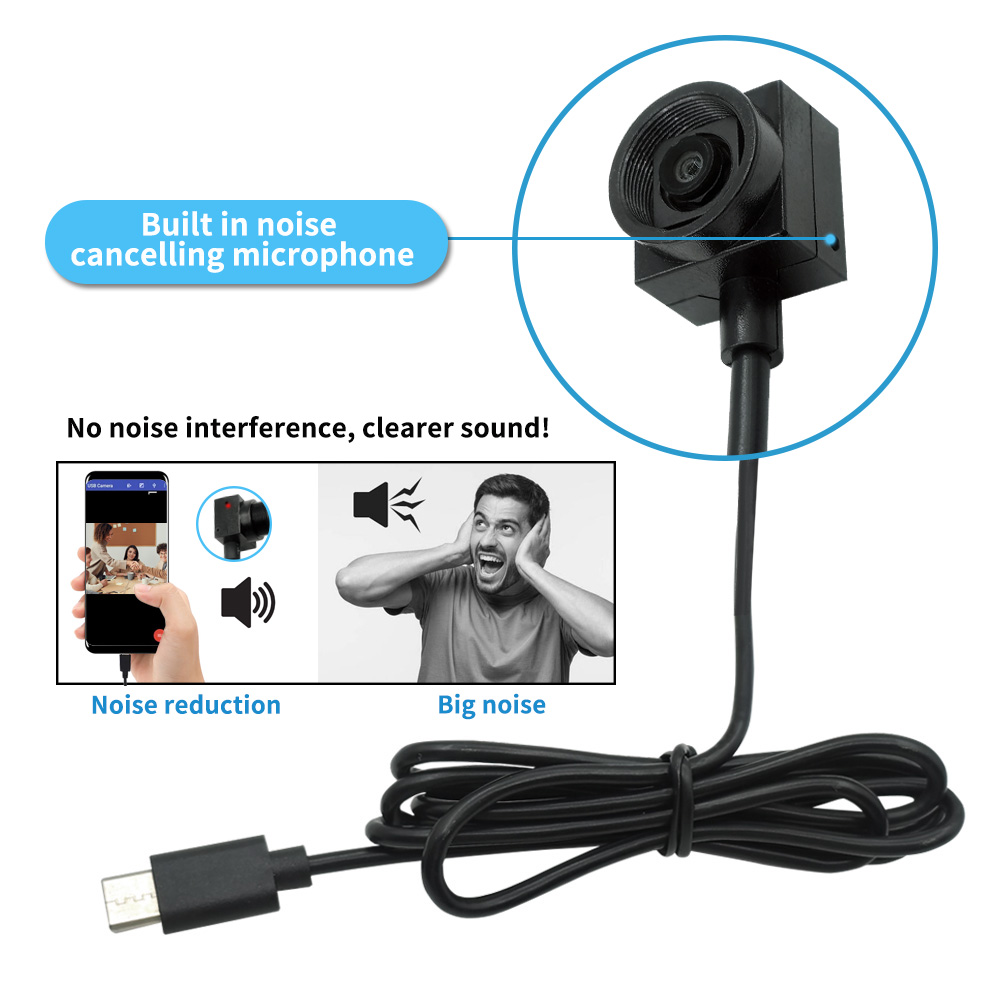

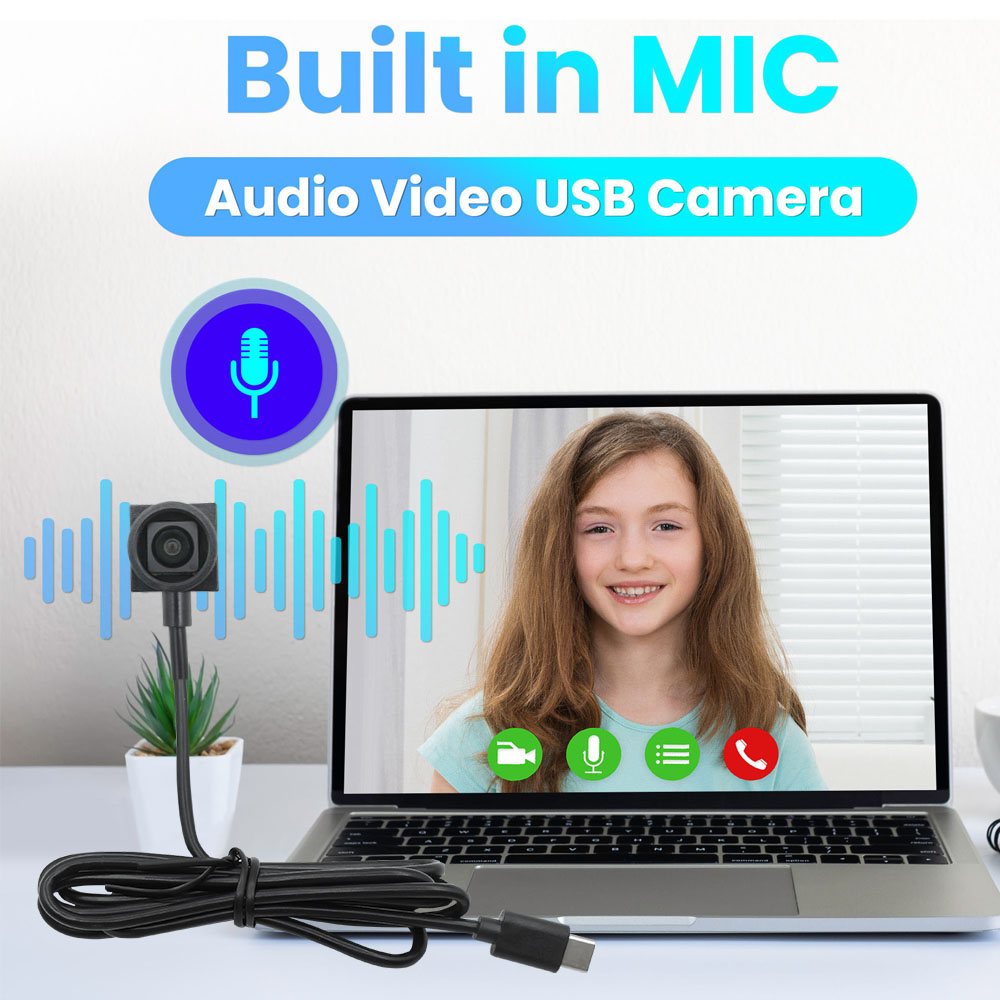

● Audio: Built-in microphone, supports synchronous compression and transmission of audio and video.

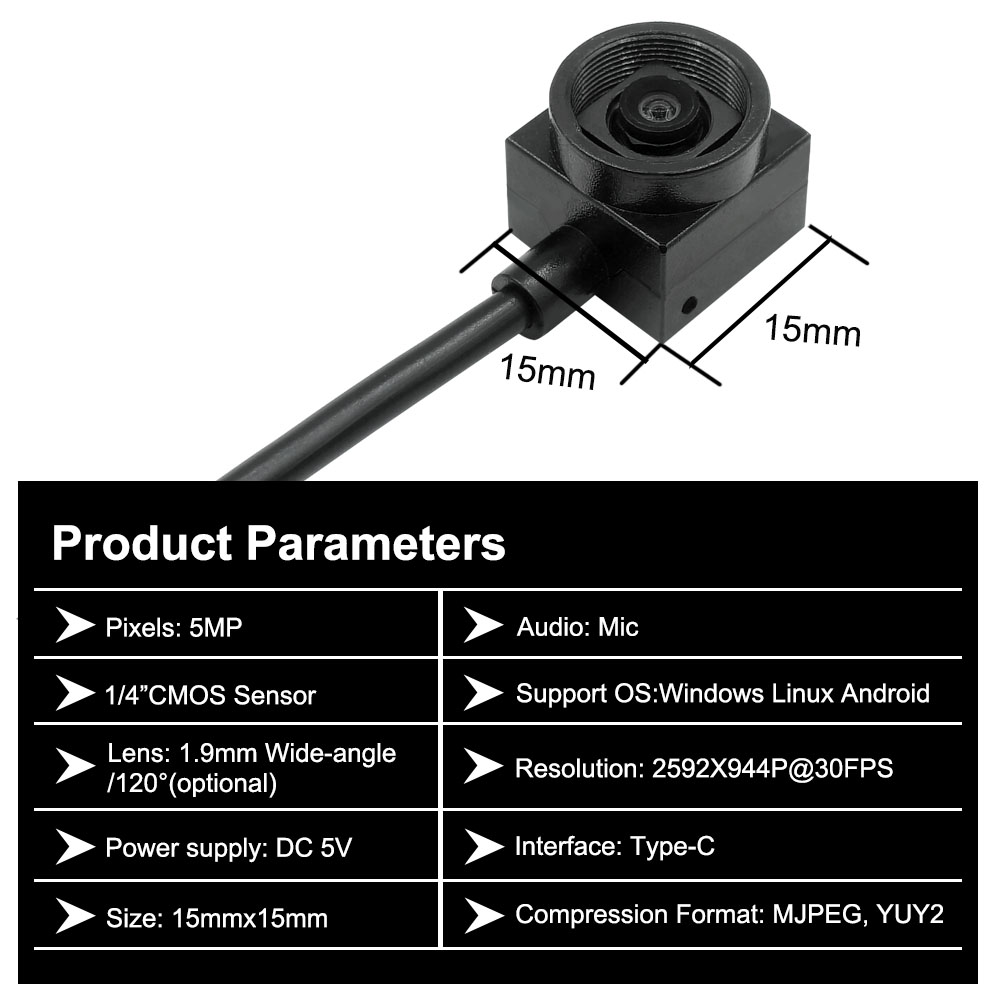

Technical Specifications

Sensor	1/4″COMS
Pixel	5MP
Compression format	MJPG/YUV2
Frame rate	2560X1440 @30fps
Audio	Built-In Mic
Power Supply	DC 5V
Size	15mmx15mm
Model Number	HCT-G155
Interface	TYPE-C
Lens	1.9mm
FOV	120 Degree
Support OS	Windows/Linux/Android

Customization Options

We are well aware of the unique visual requirements of different applications and provide comprehensive OEM/ODM customization services to help you create differentiated products.

1. Lens customization: specific focal length, field of view angle, distortion control.
2. Customized casing: Design a dedicated casing, bracket, or fixing method based on the structure of your device.
3. Cable and Interface: Customize cable length and interface type.
4. Pixel customization: Different resolution and frame rate models are available.

Applications

Widely used in industrial machine vision inspection, self-service terminal image acquisition, document copying and scanning, portable inspection equipment, Raspberry Pi secondary development, Android OTG external camera, small device built-in monitoring, laboratory image acquisition, intelligent device embedded vision matching and other scenarios.

Browse more models in our USB camera series to meet different installation and integration requirements.
