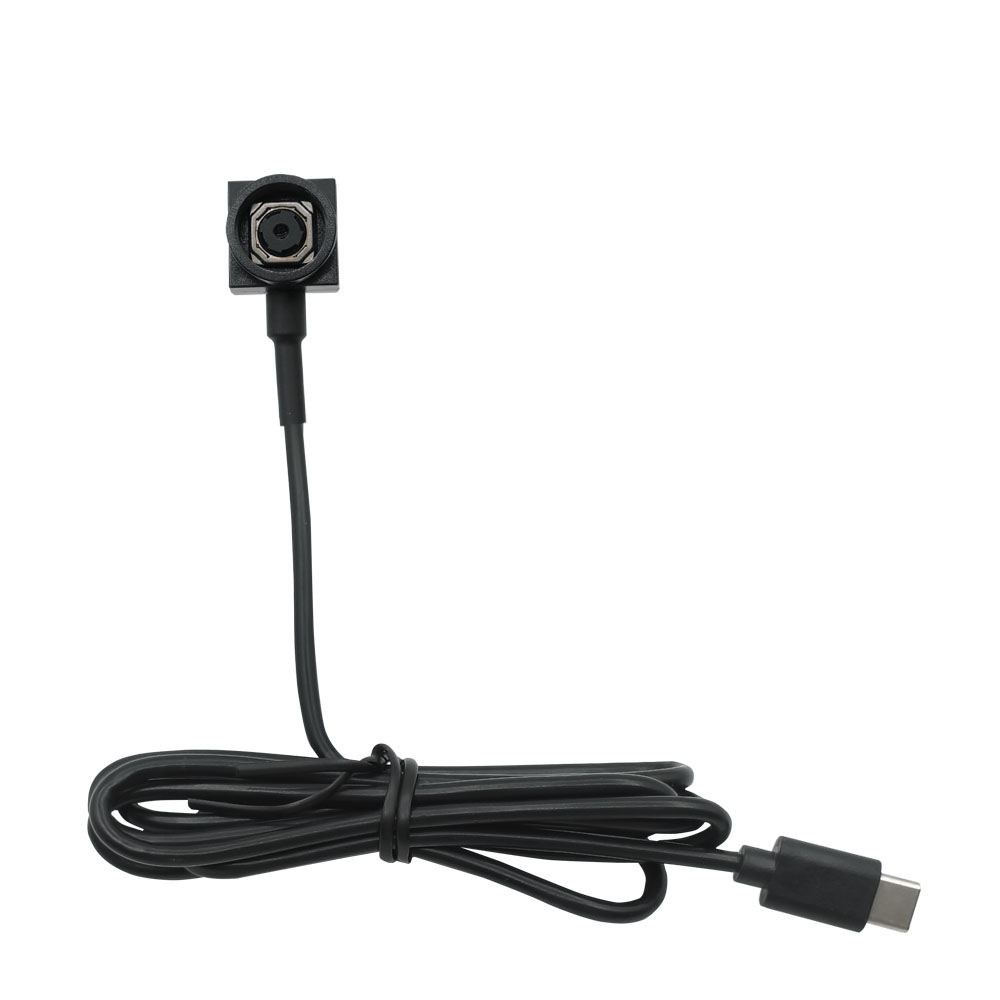

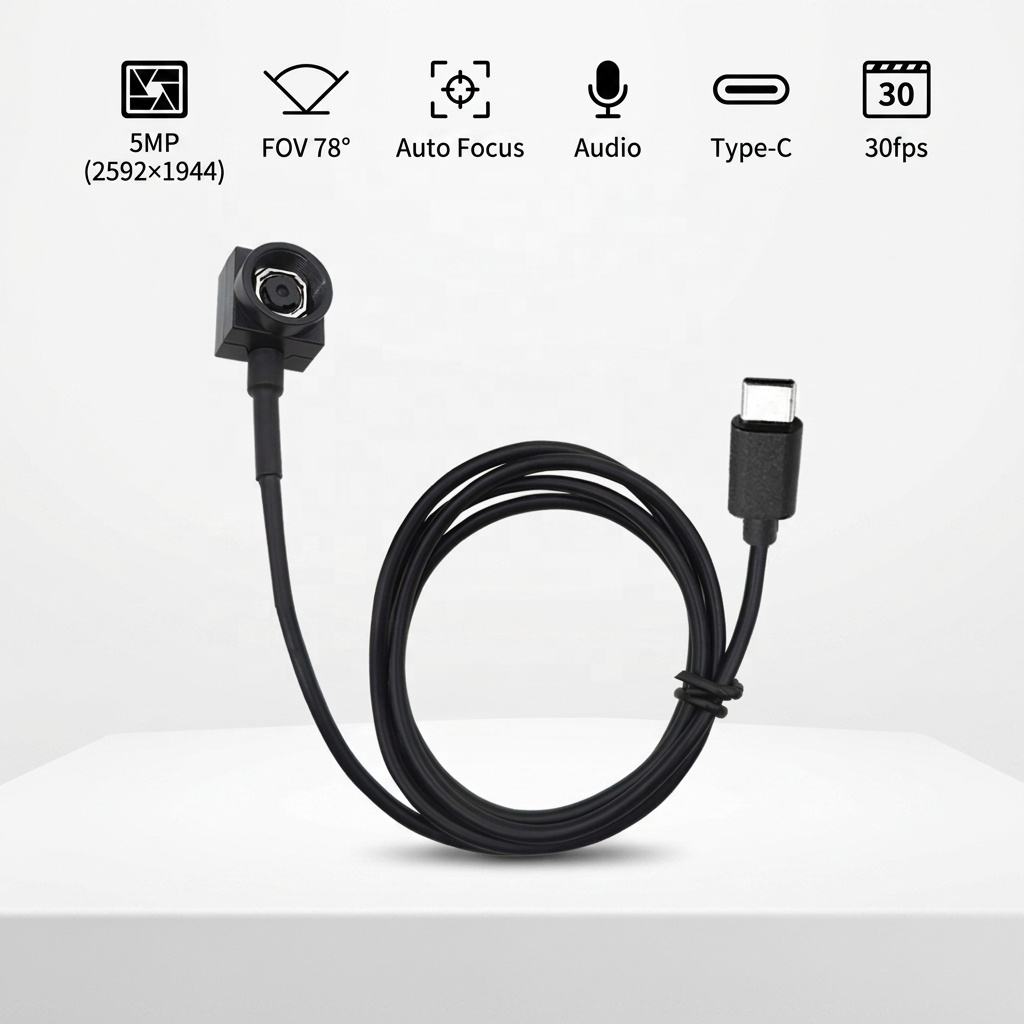

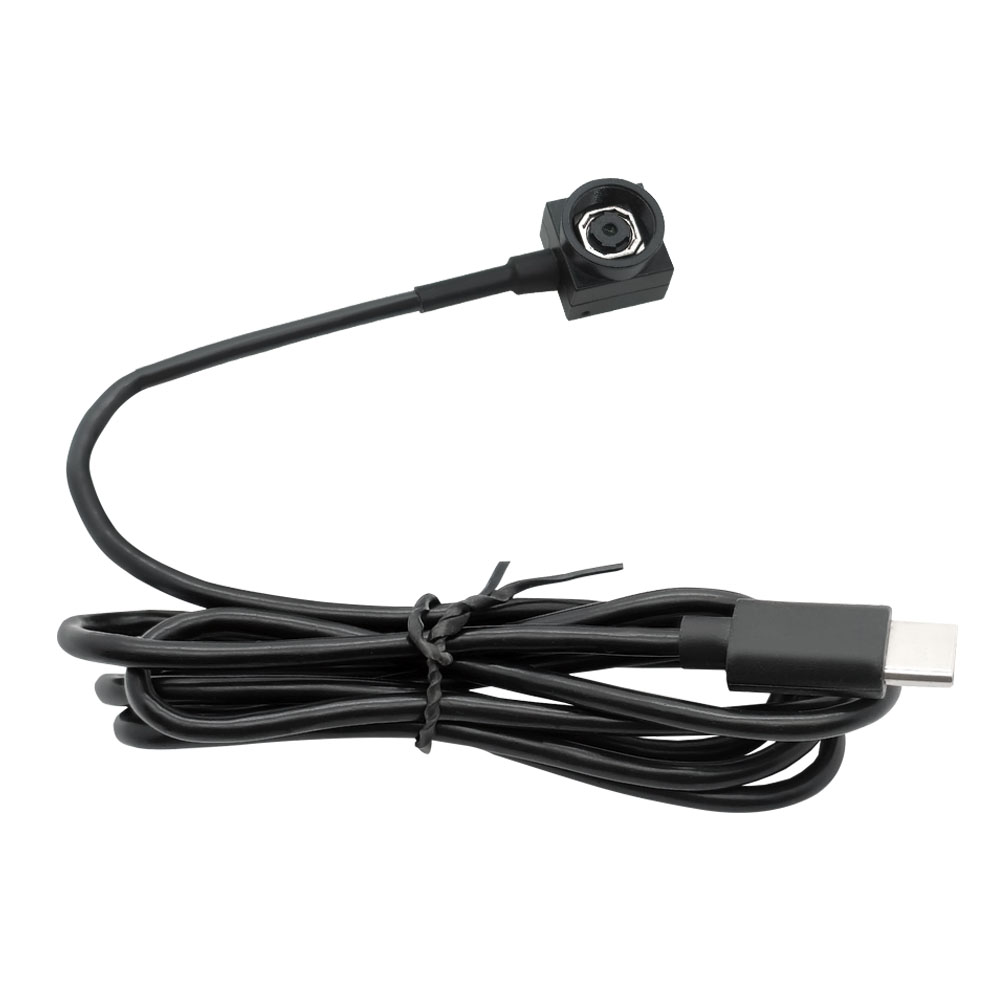

5MP Autofocus Audio TYPE-C USB Camera

Core advantages of the product

1. Ultra small size: 15 × 15mm square body, easy to embed and install in a small space, suitable for various device integration needs.

2. 5MP ultra-high resolution 2592 × 1944 output, rich image details, meeting the requirements of high-precision image acquisition.

3. Automatic autofocus (AF) function, quickly focusing on objects near and far, and outputting clear images at different object distances.

4. UVC USB2.0 driver free, supports OTG, plug and play, no need for additional drivers, easy and convenient deployment.

5. Supports synchronous audio and video capture, with multiple resolutions and frame rates to choose from, compatible with multiple operating systems.

6. The lens, cable, and interface support OEM customization and are suitable for secondary development projects of embedded devices

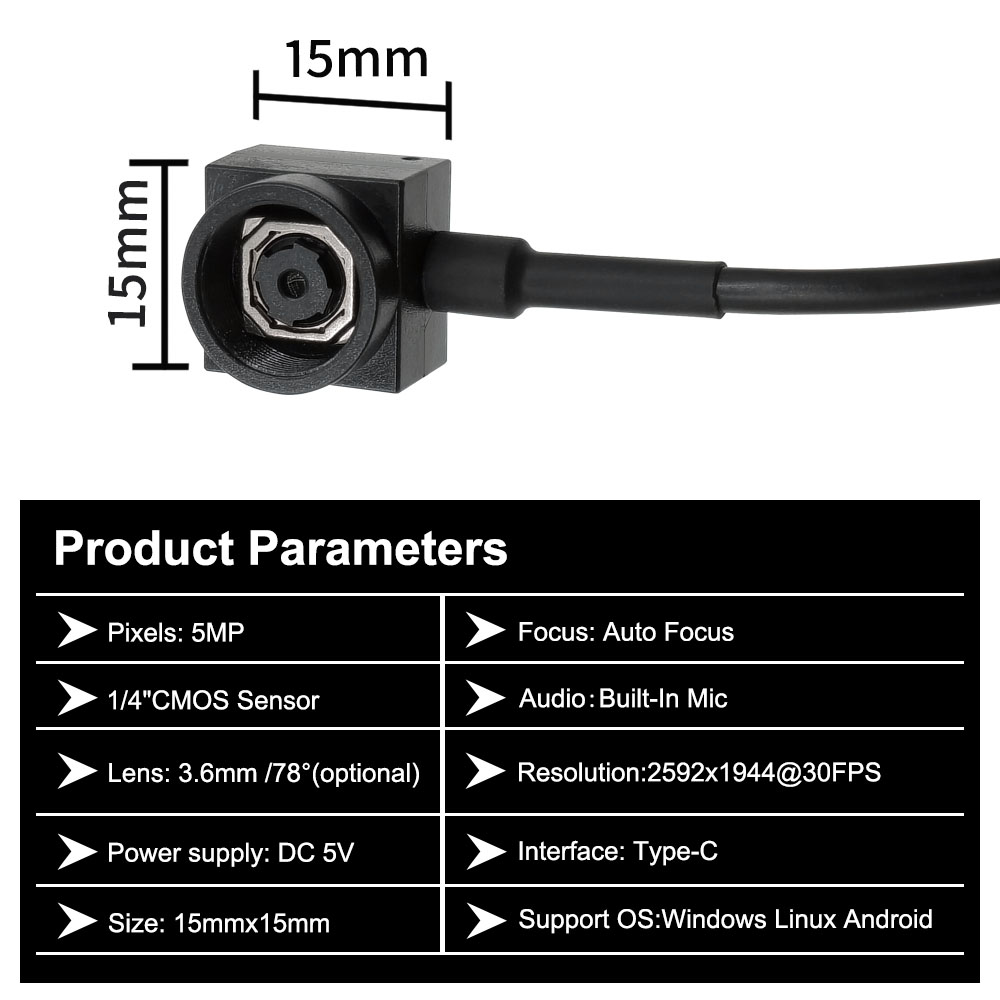

Technical Specifications

Parameter	Specification
Sensor	1/4″CMOS
Pixel	5MP
Compression Format	MJPG/YUV2
Frame Rate	2560×1944@30fps
Audio	Built-In Mic
Working Voltage	DC 5V
Product Size	15x15mm
Lens	75°
Communication protocol	UVC/OTG
Focus	Auto Focus Lens
Interface Type	Type-C
Model Number	HCT-155AF
Compatibility	Windows/Linux/Android

Customization Options

We are well aware of the unique visual requirements of different applications and provide comprehensive OEM/ODM customization services to help you create differentiated products.

1. Lens customization: specific focal length, field of view angle, distortion control.
2. Customized casing: Design a dedicated casing, bracket, or fixing method based on the structure of your device.
3. Cable and Interface: Customize cable length and interface type.
4. Pixel customization: Different resolution and frame rate models are available.

Applications

Industrial machine vision inspection, self-service terminal devices, document/QR code recognition and collection, intelligent hardware built-in cameras, small security monitoring, teaching and experimental equipment, medical auxiliary equipment, instrument and equipment built-in imaging, high-definition collection in small spaces, and other scenarios.
