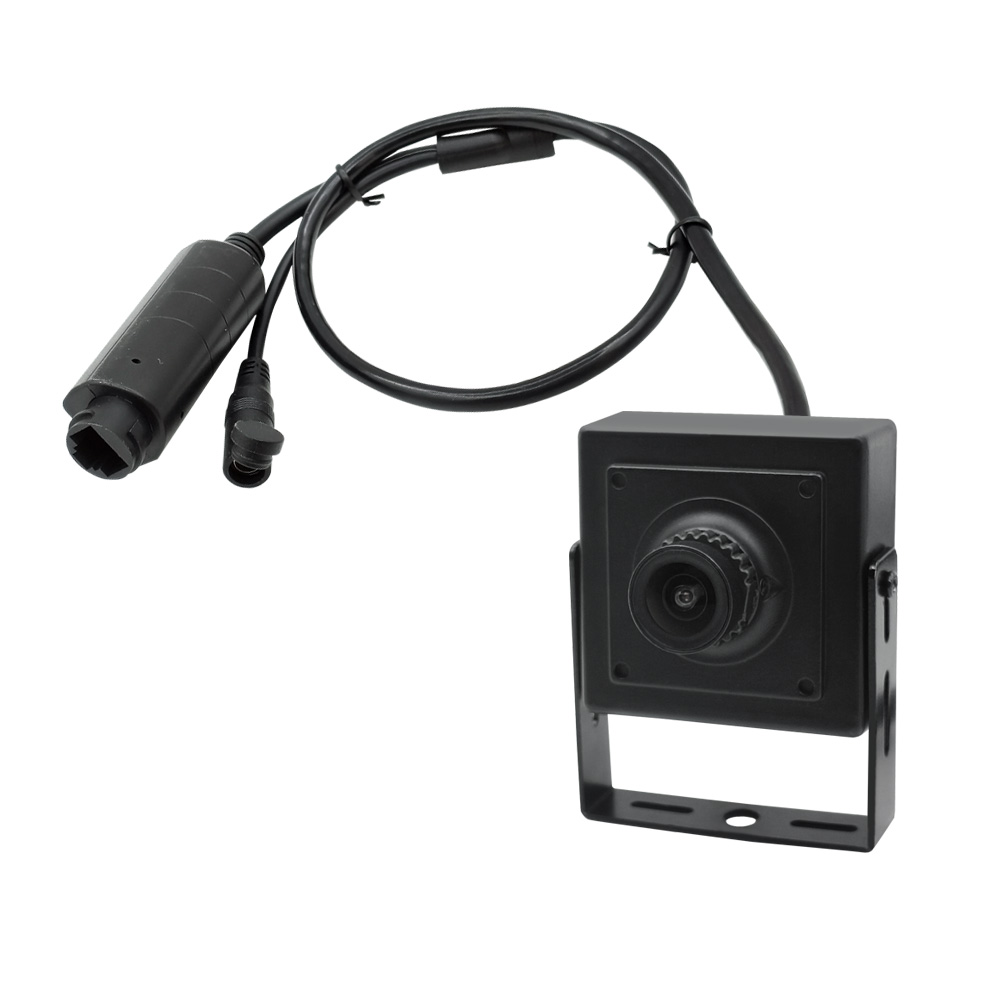

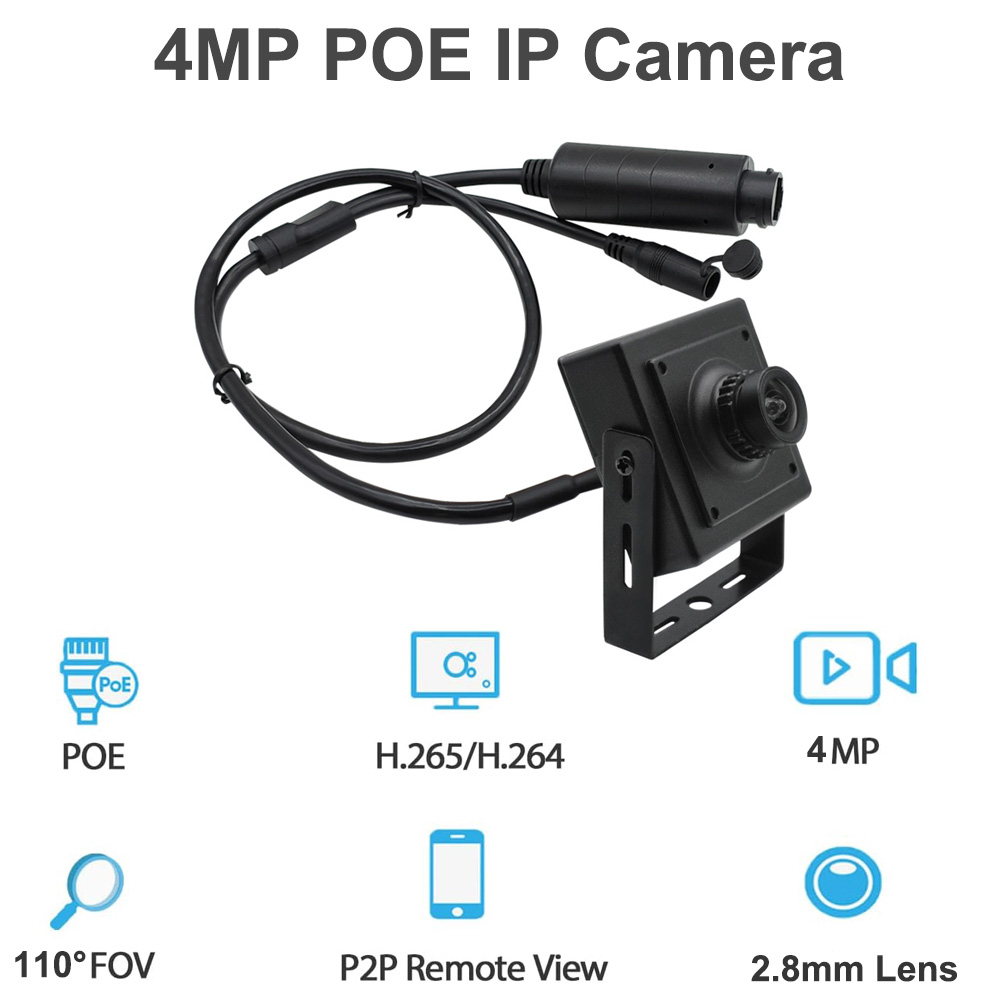

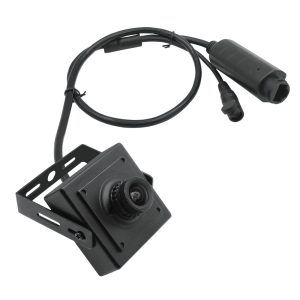

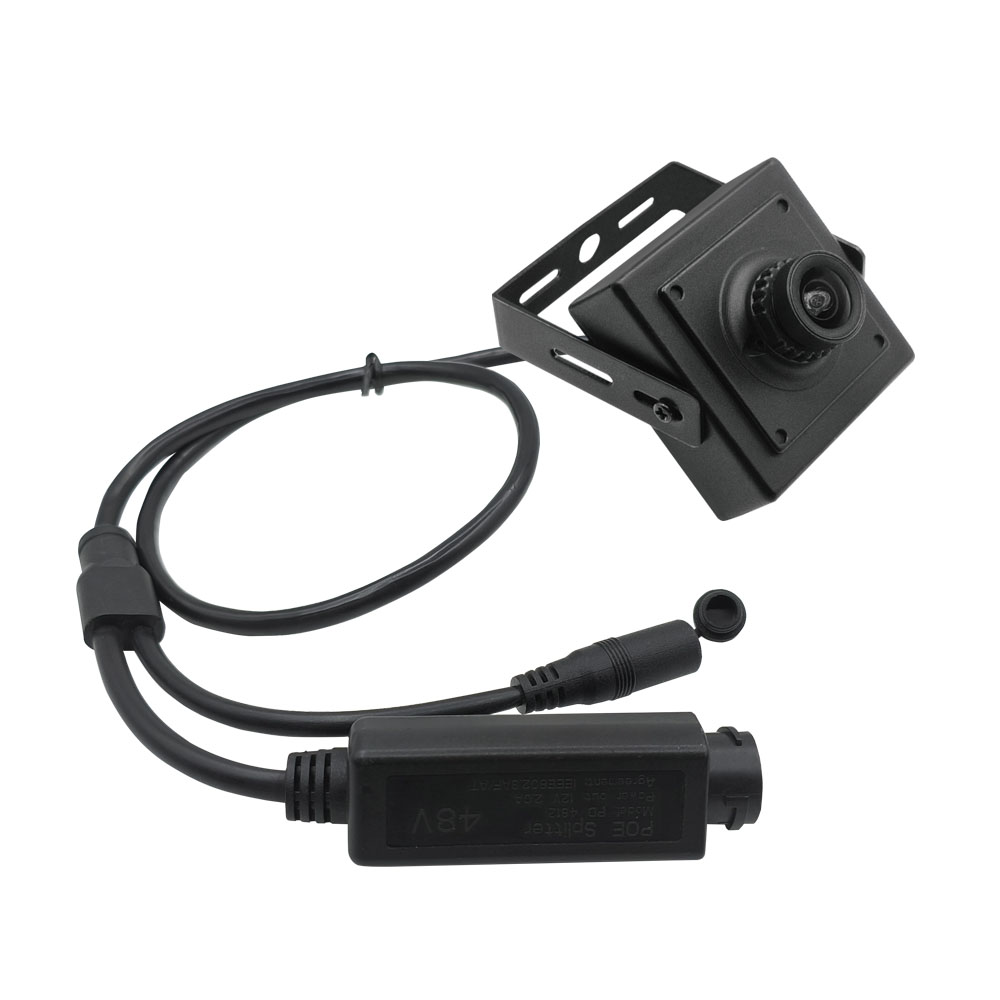

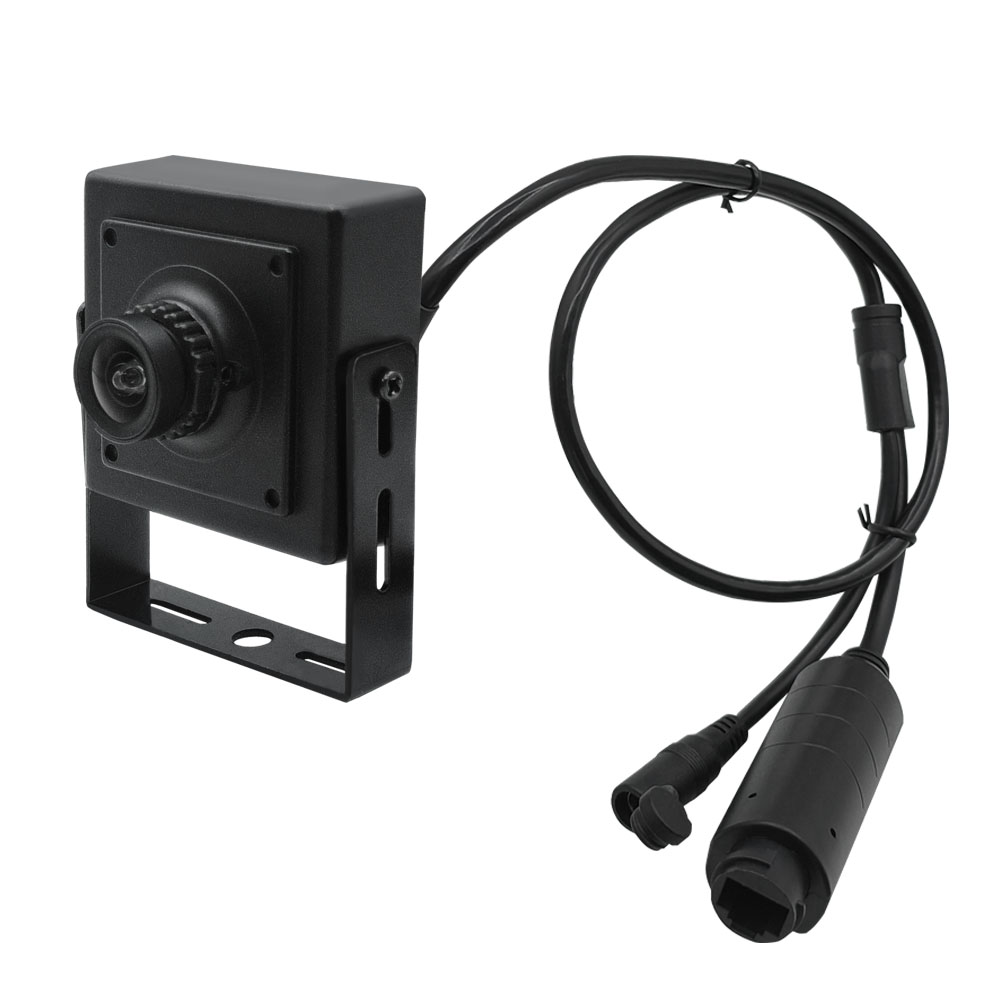

Key Features of Mini POE Industrial Box Camera

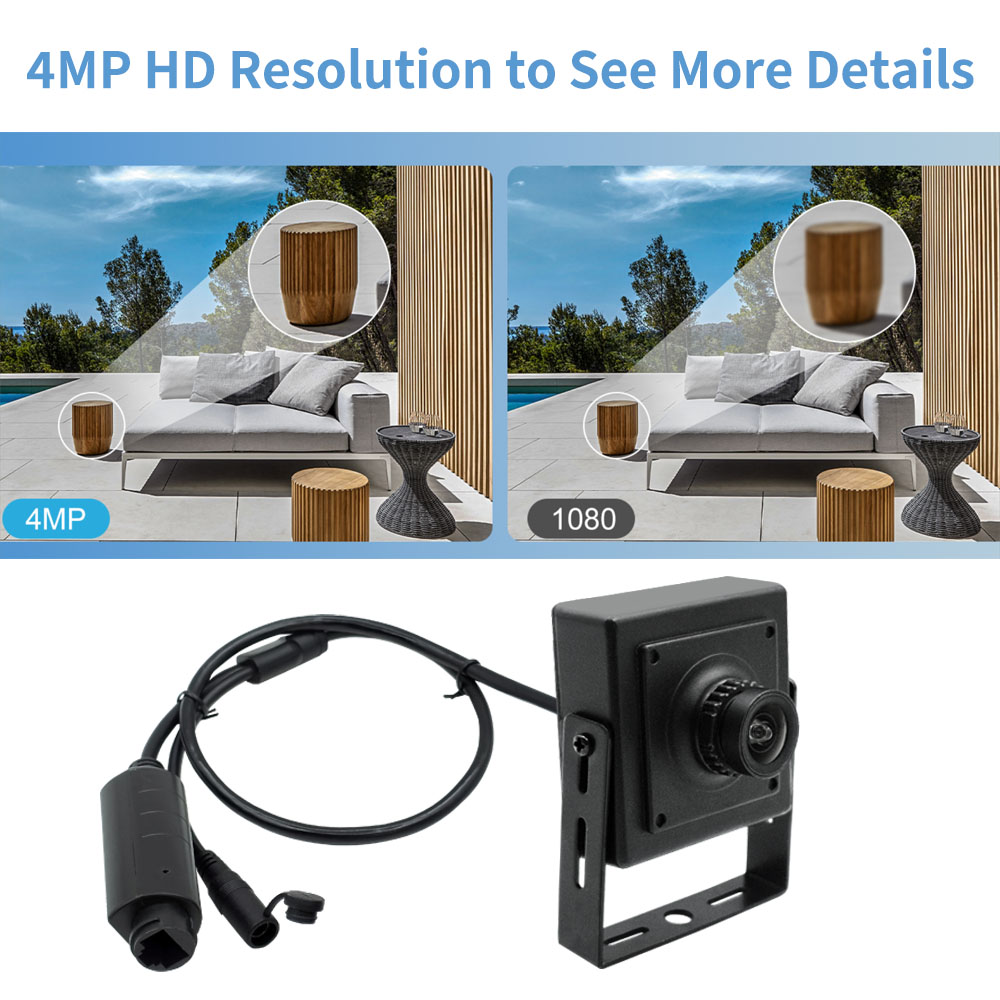

- 4MP high-definition imaging quality optimization: Native 4 million pixel high-definition resolution (conventional 2560 × 1440), which improves the details of 1080P images by about 1.8 times. It can clearly recognize facial, license plate, item features, and text identification, meeting the accuracy requirements of security evidence collection and basic recognition scenarios.
- Adopting H.265 intelligent encoding： H.265 can save about 50% bandwidth and storage space compared to traditional encoding, significantly reducing storage hardware and bandwidth costs while maintaining high-definition image quality.

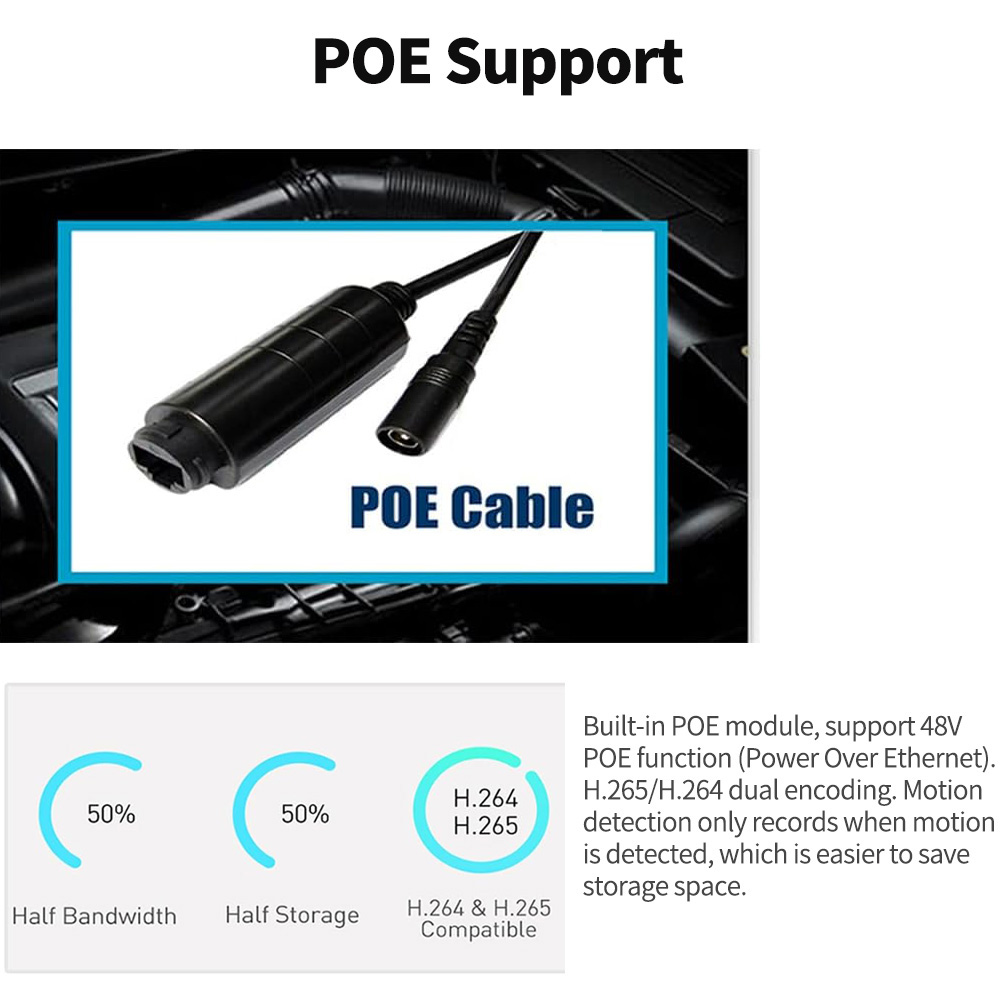

- POE integrated transmission and standardization compatibility: Supports standard POE Ethernet cable power supply, without the need for additional power lines, with simple wiring and low construction costs, suitable for large-scale point deployment.
- Industrial grade environmental reliability: The body adopts a metal shell and is equipped with IP66 waterproof and dustproof standards, which can resist rainwater and dust invasion.

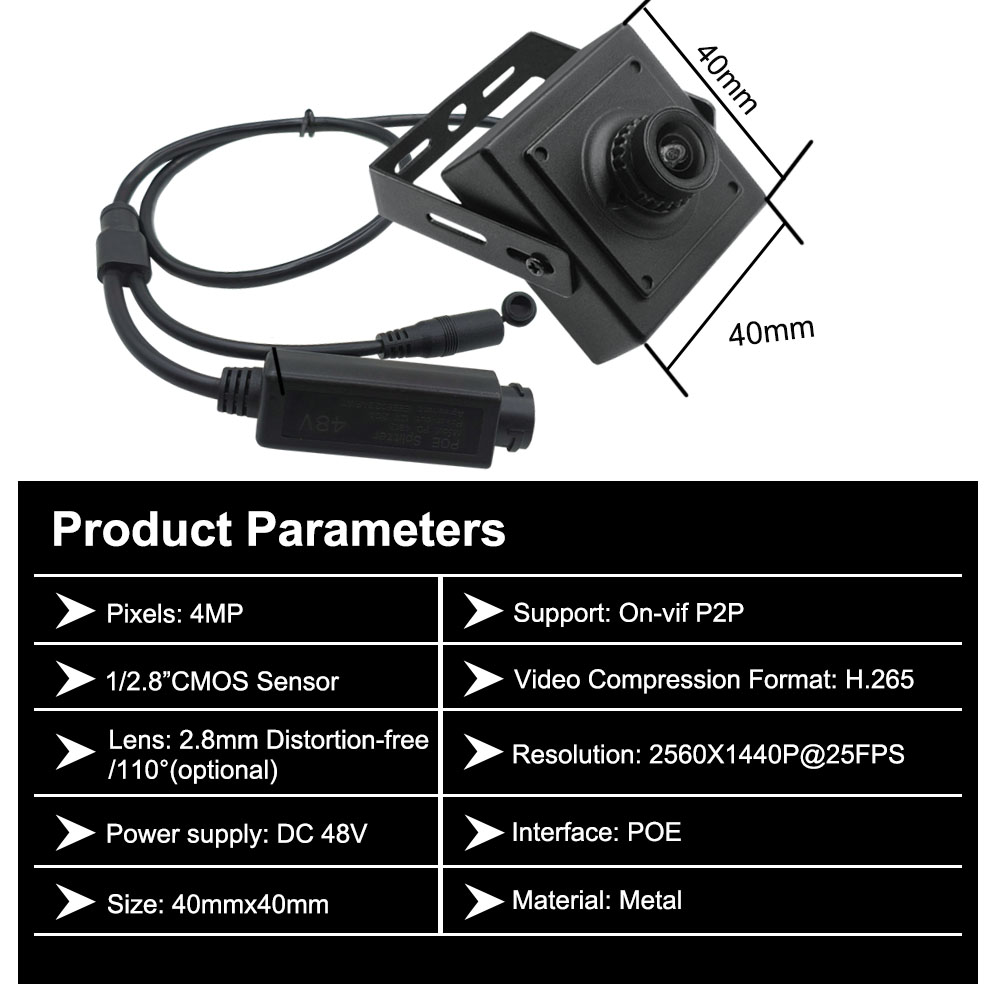

Technical Specifications
| Sensor | 1/2.8″ CMOS |
|---|---|
| Pixel | 4MP |
| Resolution | 2560×1440@25fps |
| Compressed Format | H.265 |
| Lens | 2.8mm |

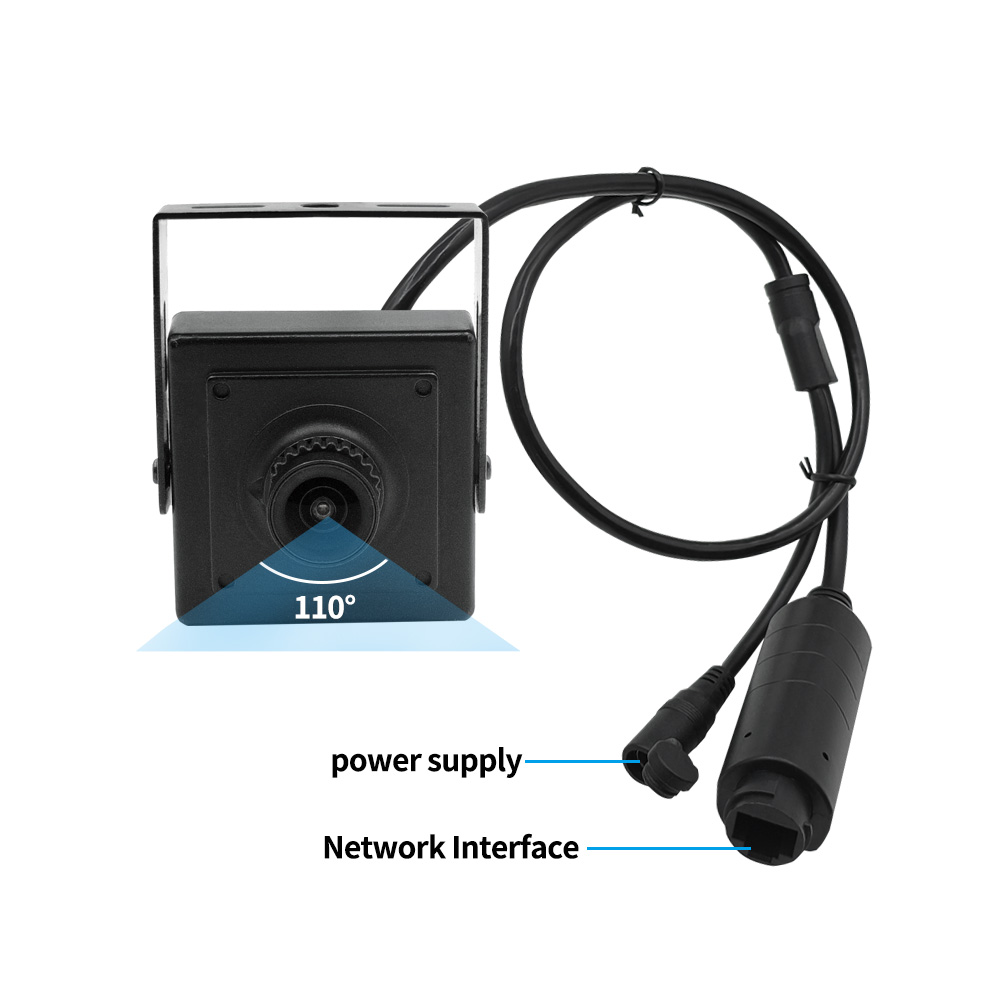

| FOV | 110° |
| Support | On-vif P2P |

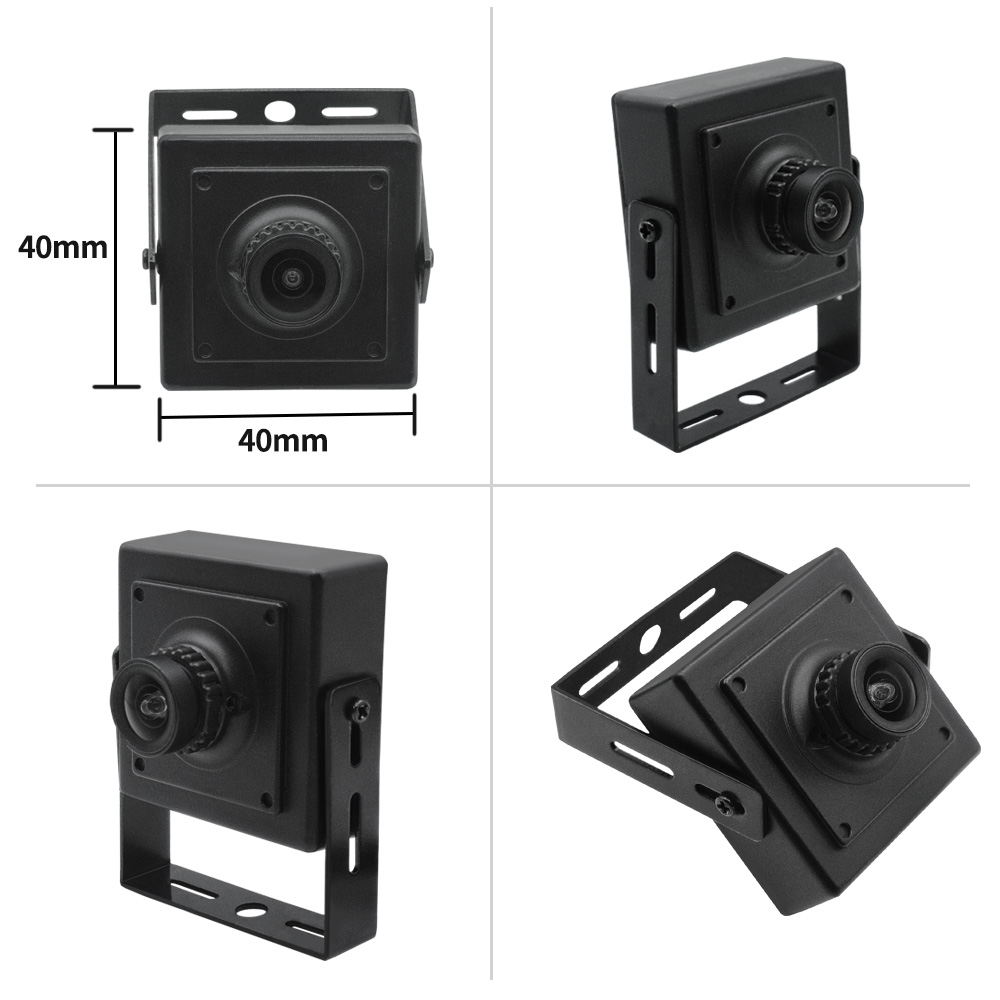

| Product Dimensions | 40×40mm |
| Material | Metal |
| Interface | POE port |
| Power Supply | POE 48V |
| Type | Box Camera |
| Model | HCP-404J28W |
Applicable scenarios across the entire industry
Commercial retail: chain store cash register loss prevention, shelf channel monitoring, warehouse anti-theft, customer complaint dispute evidence collection.
Property residential: Blind repair in the community corridor/underground garage, perimeter security in the park, villa courtyard monitoring, high-altitude throwing traceability.
Industrial plant area: standardized supervision of production workshops, management of storage areas, and duty in distribution rooms/hazardous chemical areas.
Government finance: compliance and security of bank branches, order control of government halls, and monitoring of channels in classified areas.
Education and healthcare: campus public area safety management, hospital corridor/pharmacy control, laboratory entrance and exit monitoring.
Logistics warehousing: full process visualization of sorting center, traceability of loading and unloading ports, monitoring of cold chain warehouse area, security of express delivery outlets.
Transportation stations: Bus stations, gas stations, charging stations, outdoor unmanned monitoring in high-speed service areas.
Customization Services
We understand the unique visual requirements of different applications and provide comprehensive OEM/ODM customization services to create differentiated products.
- Lens Customization: Specific focal length, field of view angle, and distortion control.
- Customized Casing: Dedicated casing, bracket, or fixing method based on your device structure.
- Cable and Interface: Custom cable length and interface type.
- Pixel Customization: Different resolution and frame rate models available.
