Key Features
- 2MP High Definition: High sensitivity 1/2.8-inch 2MP CMOS image sensor with 1920×1080 resolution for excellent performance in license plate recognition, vehicle recognition, access control, and wide area monitoring.

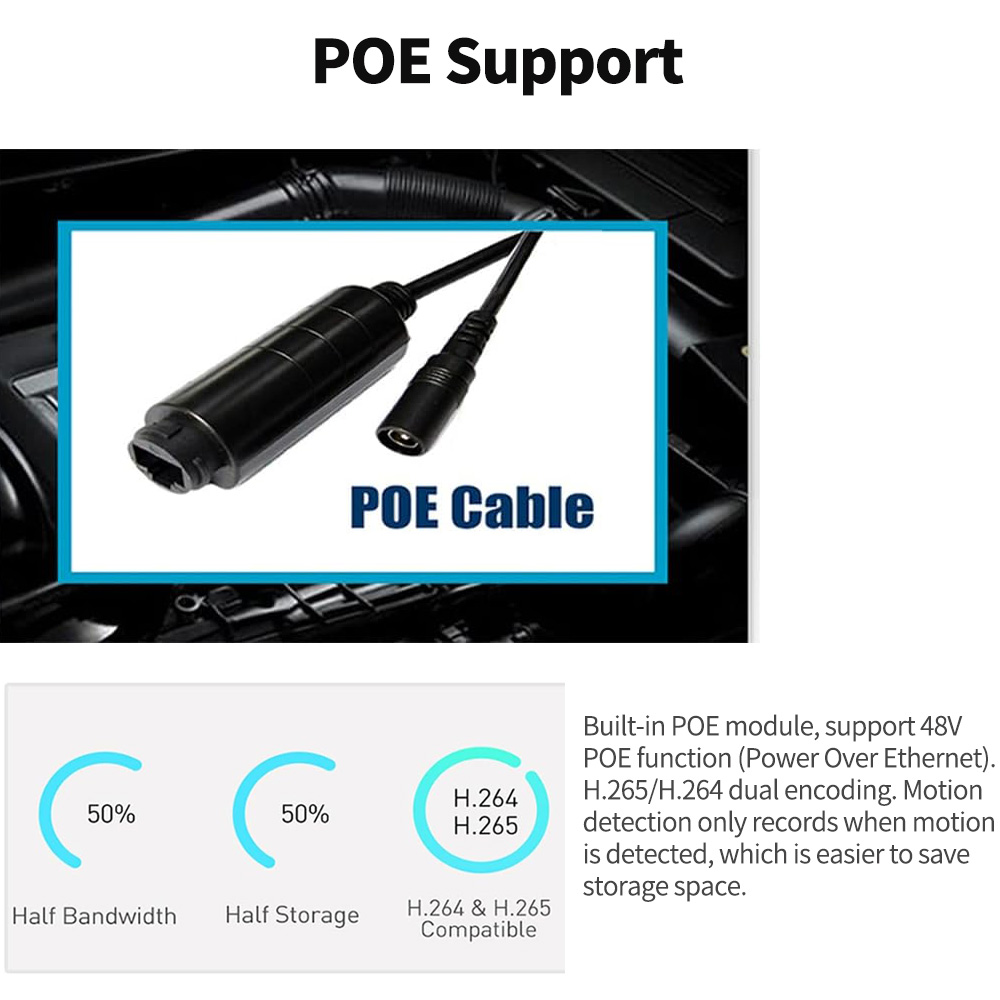

- Power over Ethernet (PoE): 48V PoE technology enables power and data transmission through a single Ethernet cable for cost-effective installation.
- Infrared Night Vision: 940nm infrared LED provides low-noise black and white images in complete darkness.
- H.265 Video Compression: Reduces storage space by 50% while maintaining high image quality, ideal for multi-channel NVR systems and long-term storage requirements.

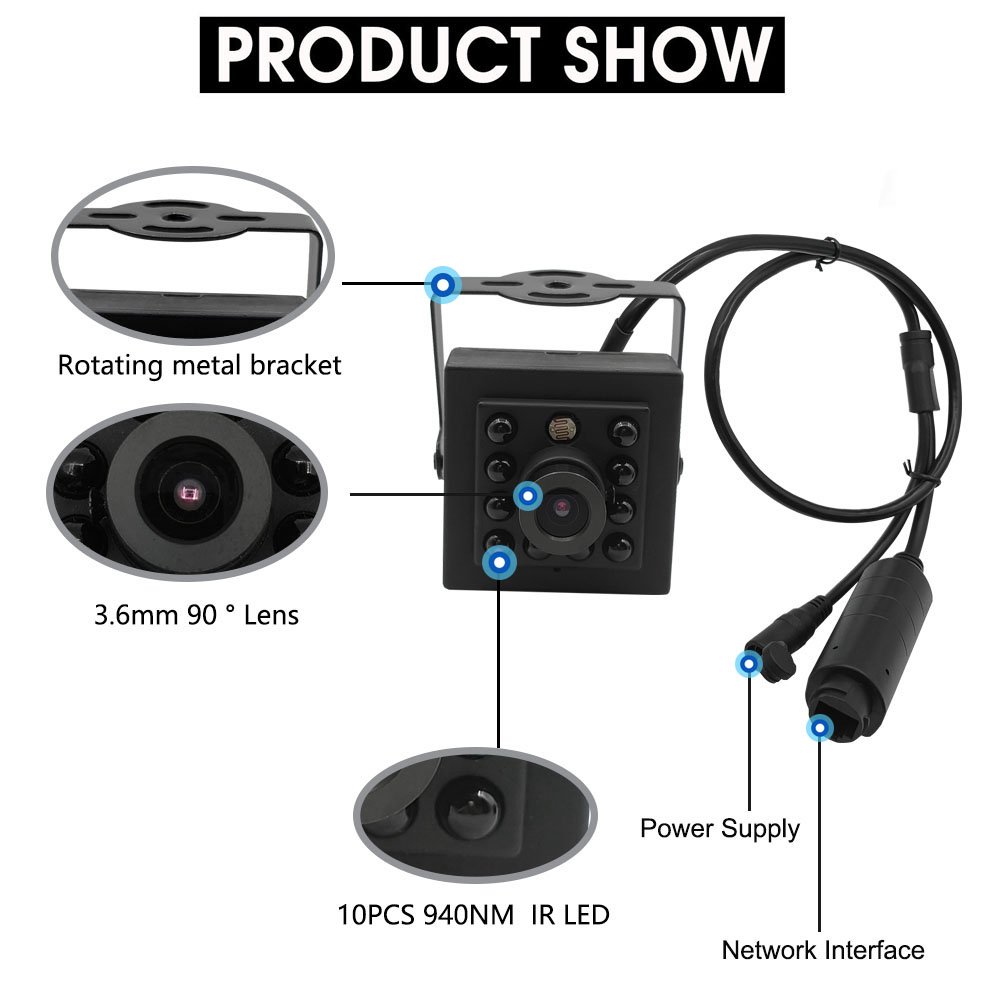

Technical Specifications
| Sensor | 1/2.8″ CMOS |
|---|---|
| Pixel | 2MP |
| Resolution | 1920×1080@25fps |
| Video Compression Format | H.265 |
| Lens | 3.6mm(Optional) |
| FOV | 90° |
Function | Wide Angle |

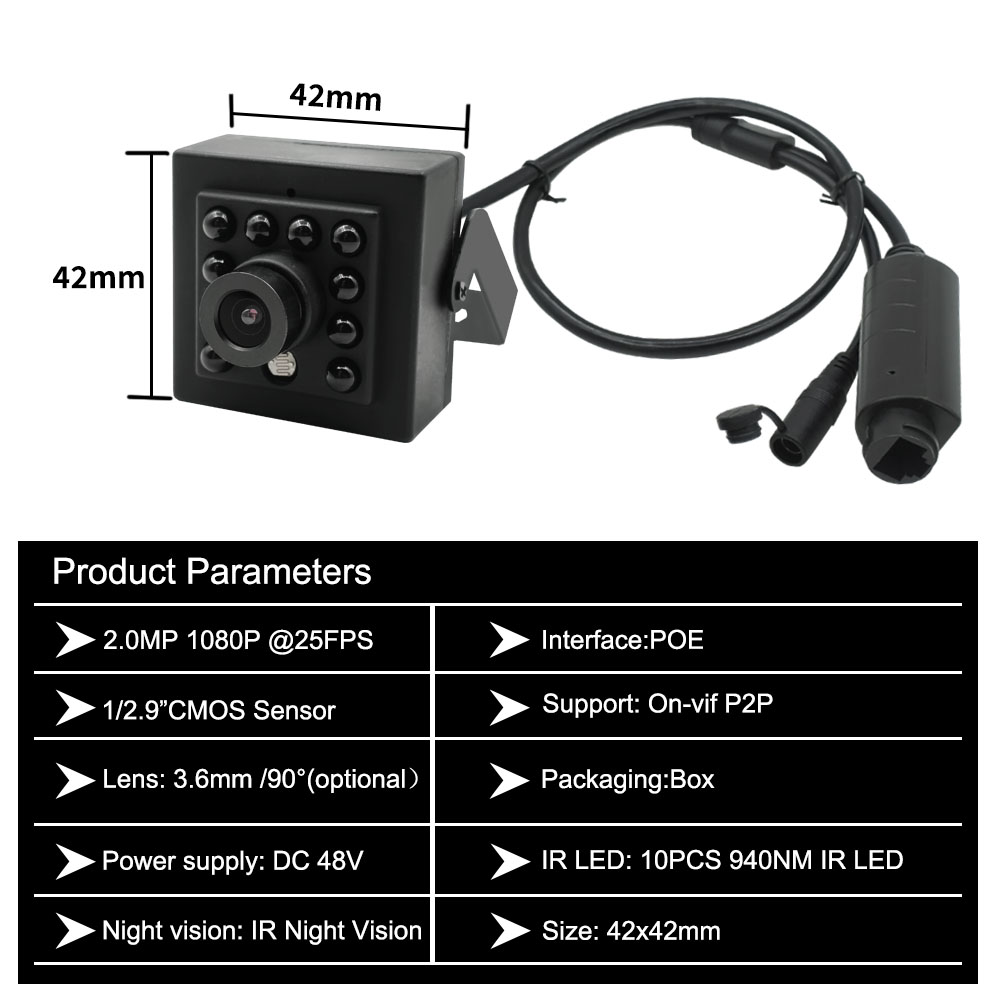

| Product Dimensions | 42×42mm |
| Product Model | HCP-422YS9 |
| Night vision | IR Night Vision |
| IR LED | 10PCS 940NM IR LED |
| Power Supply | POE 48V |
Interface | POE port |
Aperture | F1.6 |
| Customization supported | Custom Logo, OEM, ODM |
Customization Services
We understand the unique visual requirements of different applications and provide comprehensive OEM/ODM customization services to create differentiated products.
- Lens Customization: Specific focal length, field of view angle, distortion control.
- Customized Casing: Dedicated casing, bracket, or fixing method based on your device structure.
- Cable and Interface: Custom cable length and interface type.
- Pixel Customization: Different resolution and frame rate models available.
Applications
- Warehouse monitoring systems
- Factory production monitoring
- Parking lot security
- Retail store anti-theft solutions
- Logistics center surveillance
- School and campus monitoring
- Construction site perimeter security
- Residential community surveillance
Our factory offers various sizes of mini POE cameras for industrial monitoring. Explore our full range of POE network cameras to better meet your needs, or browse our USB embedded camera series to find compact devices for specialized integration projects.
