Product Introduction

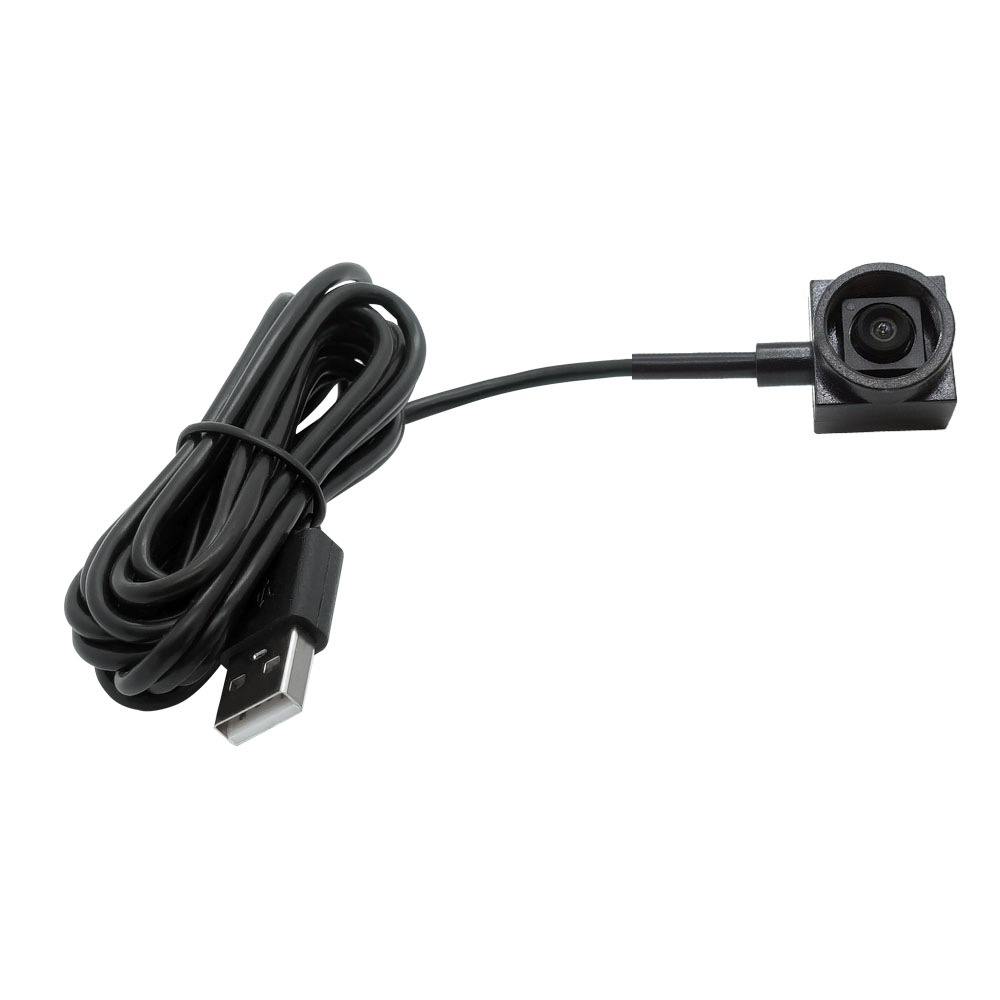

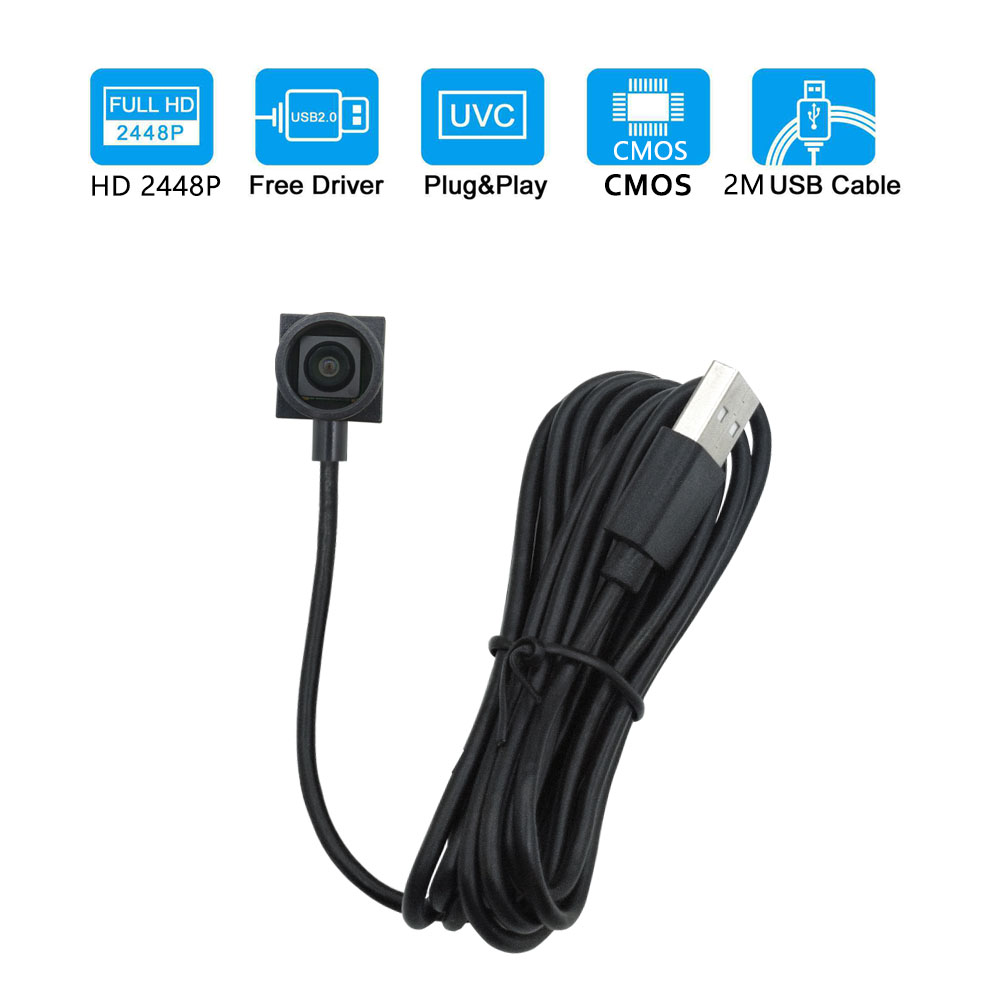

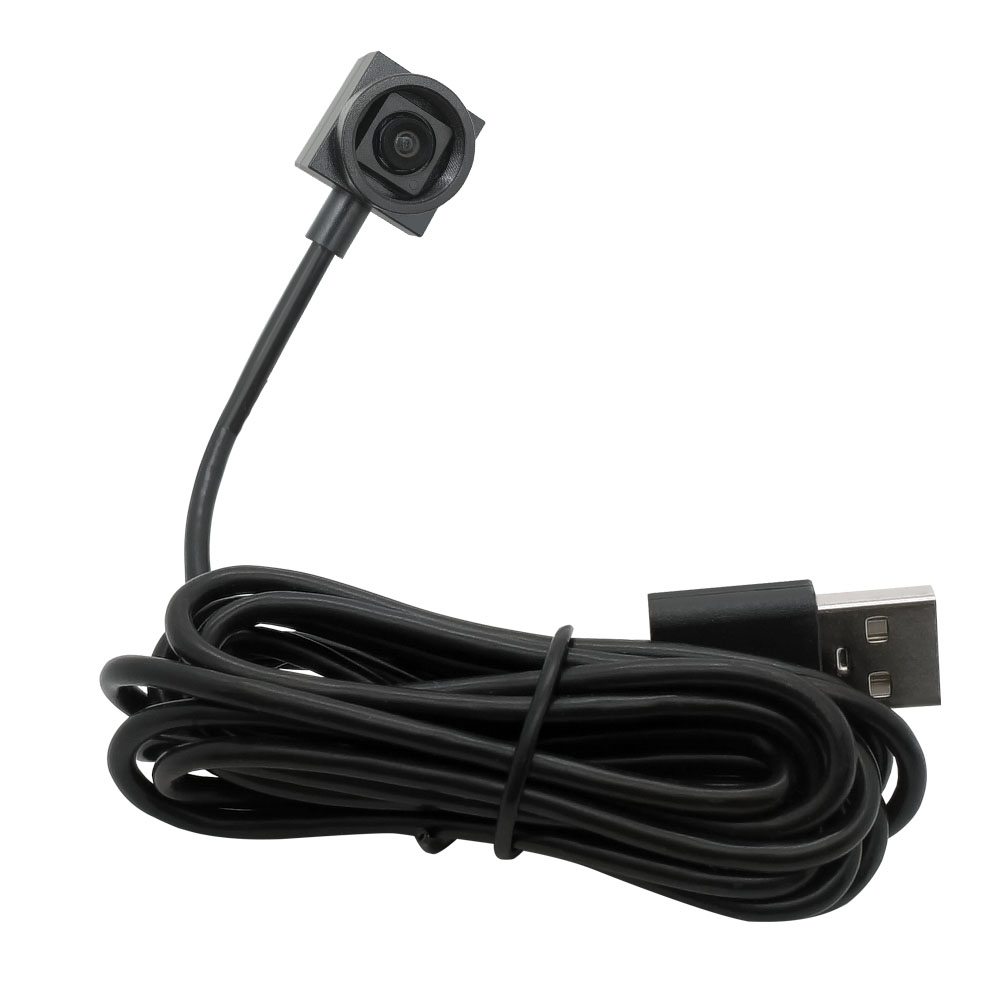

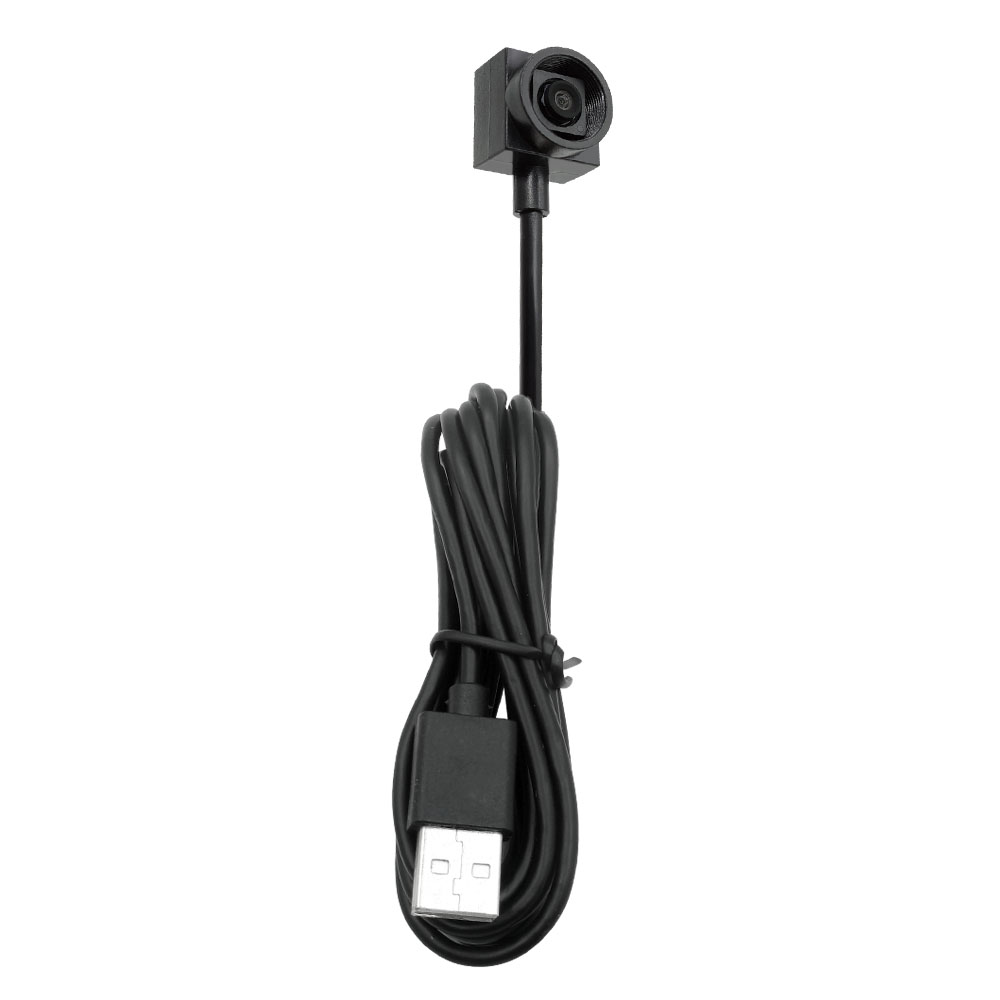

This mini 4K USB fixed focus camera is designed specifically for industry scenarios such as machine vision inspection, self-service terminal devices, robot vision, and embedded intelligent hardware. The ultra small size of 15×15mm can be easily embedded into various device cavities. The 120 ° wide-angle lens achieves a wide field of view without blind spots, and the 8MP ultra high definition output meets the requirements of high-precision image acquisition. UVC drive free plug and play, supports OTG direct connection, significantly shortens project integration cycle.
Core Advantages
4K 8MP ultra clear imaging: 1/3.2 “CMOS sensor, 3264×2448 high-resolution output, rich picture details, meeting high-precision visual detection and recognition needs.
120 ° wide-angle and wide field of view: 1.9mm fixed focus wide-angle lens with wide coverage and small monitoring blind spots, suitable for high-definition acquisition of large scenes and simultaneous imaging of multiple targets.
Micro embedded design: 15×15mm ultra small board size, USB 2.0 drive free UVC protocol, supports Windows/Mac/Linux/Android full platforms, plug and play for fast deployment.
Parameter Table:Request Datasheet

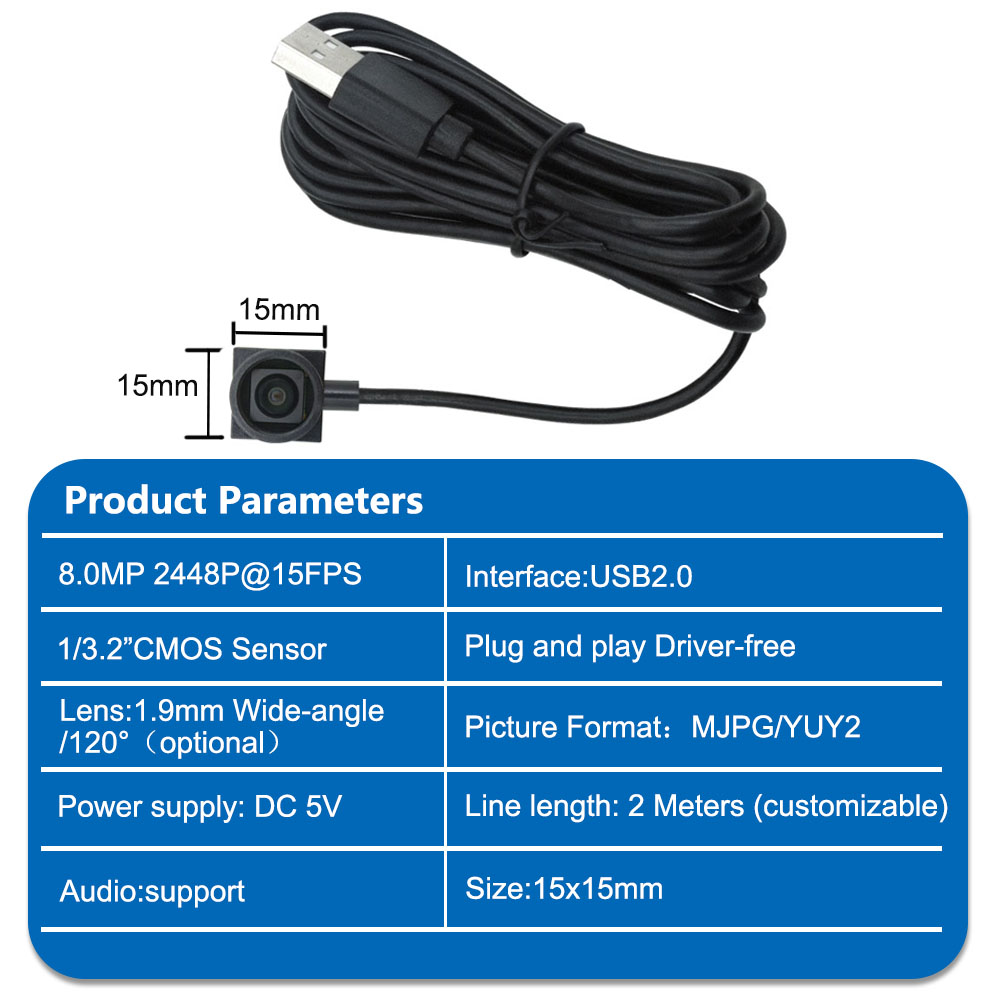

| Parameter Category | Specification Details |
| Image Sensor | 1/3.2 “CMOS |
| Pixel | 8MP |
| Resolution | 3264×2448 (4K） |
| Compression format | MJPG/YUV2 |
| Frame rate | 15FPS |
| Focusing method | Fixed Focus |
| Lens | 1.9mm Wide-angle Lens |
| FOV | 120 ° |
| Interface Type | USB 2.0 High Speed |
| Audio | Built In Mic |
| Model | HCU-G158 |
| Product size | 15mm×15mm |
| UVC protocol | Driverless |
| Power Supply | DC 5V |
| Support operating systems | Windows/Mac OS/Linux/Android |
Overview of Customized Services
We are well aware that different industries have differentiated requirements for visual capture applications. HCVSIGHT provides full chain OEM/ODM customization services from lenses, sensors, structures to packaging, helping you create differentiated visual solutions that perfectly match your end products.
Lens customization: Specialized lenses can be customized according to working distance, field of view, and distortion requirements, supporting IR-CUT dual filter switching.
Shell customization: Based on the structure of your device, design a dedicated shell, bracket or fixing method, supporting multiple materials such as metal/plastic.
Cable and interface customization: cable length and interface type (USB/Type-C/terminal) can be customized to meet the internal layout of different devices.
Pixel and Performance Customization: Provides 1MP~12MP different resolution and frame rate combinations to match different computing power and bandwidth conditions.
The customized sample price will be evaluated separately based on your specific needs (lens/interface/structure/function), and we will provide a detailed quotation and sample delivery cycle within 24 hours.
[Request Custom Sample Quote →]
Industry Application Scenarios
Industrial machine vision inspection: used for product appearance defect detection, size measurement, barcode/QR code recognition, assembly positioning, etc.
Self service terminal devices: embedded in self-service vending machines, self-service ordering machines, self-service ticket machines, intelligent teller machines, realizing facial. verification, QR code payment, and operation monitoring.
Large scene high-definition capture: used for panoramic shooting of conferences, classroom recording, large-scale environmental monitoring, and other scenes that require wide-angle high-definition capture.
Small security monitoring: used for indoor small monitoring, concealed monitoring, equipment status monitoring, etc.
Robot Vision: Used for environmental perception, obstacle avoidance, and human-computer interaction of service robots, AGV cars, and educational robots.
Teaching and experimental equipment: an image acquisition platform for university laboratories, scientific research projects, and visual algorithm development.
Instrument imaging: a built-in imaging module used in medical instruments, testing instruments, and analytical equipment.
Intelligent hardware built-in camera: used for visual function expansion of smart speakers, smart displays, smart home devices, and AIoT devices.
Embedded OEM Vision Project: Integrated as a standard vision module into various OEM products to quickly achieve visual functionality.
Customized Process
① Requirement communication → ② Scheme evaluation → ③ Sample production → ④ Sample testing confirmation → ⑤ Batch production → ⑥ Quality inspection → ⑦ Delivery and shipment.
① Requirement communication | Clarify application scenarios, technical requirements, customization dimensions, and target prices | 1-2 working days.
② Scheme evaluation | Output technical scheme, feasibility assessment, preliminary quotation | 2-3 working days.
③ Sample production | Customized sample production based on confirmed plan | 7-15 working days.
④ Sample testing | Customer testing verification, confirming parameters and effects | Depending on customer testing cycle.
⑤ Batch production | Arrange batch production after confirming samples | 15-30 working days.
⑥ Quality inspection | Full inspection/sampling inspection to ensure factory quality | included in the production cycle.
⑦ Delivery and shipment | Shipping according to the agreed logistics method | 3-7 days.
Batch Price Gradient
| Quantity | Price | Delivery cycle |
| 1-199 pieces | $36.59 | 3-7 working days (in stock). |
| 200-499 pieces | $34.79 | 7-15 working days (depending on customization complexity) |
| 500-999 pieces | $33.09 | 10-20 working days. |
| ≥1,000 pieces | $31.49 | 15-30 working days. |
Minimum order quantity: 1 piece
Urgent orders can be negotiated for expedited production. Please contact customer service for specific delivery dates.
Standard Packaging Accessories List
| Accessories | Quantity | Description |
| HCU-G158 Camera | 1 piece | Standard USB camera (including cable) |
| Product manual | 1 piece | Includes specifications, wiring instructions, and UVC usage guide |
| Anti static packaging bag | 1 piece | ESD anti-static packaging, protecting module transportation safety |
| Outer packaging box | 1 piece | Standard neutral paper box (customizable brand packaging) |
Compliance & Certifications
FCC SDOC(1) EMC CE证书
