Key Features
- 3 million high-definition picture quality: supports up to 3MP resolution, presenting clear images with rich details.
- 160 ° Ultra Wide Field of View: DFOV has a diagonal field of view of up to 160 °, allowing a single lens to cover a wide monitoring area.
- Low distortion optical design: TV distortion is less than -24%, effectively improving edge stretching and making the picture more realistic and natural.
- Strong compatibility with large target surfaces: 1/3 inch chip size, widely compatible with mainstream high-definition camera sensors.
- Standard threaded interface: M7x0.35 threaded interface, easy to install and highly versatile.
- High quality glass lenses: high transmittance, sharp imaging, accurate color reproduction.

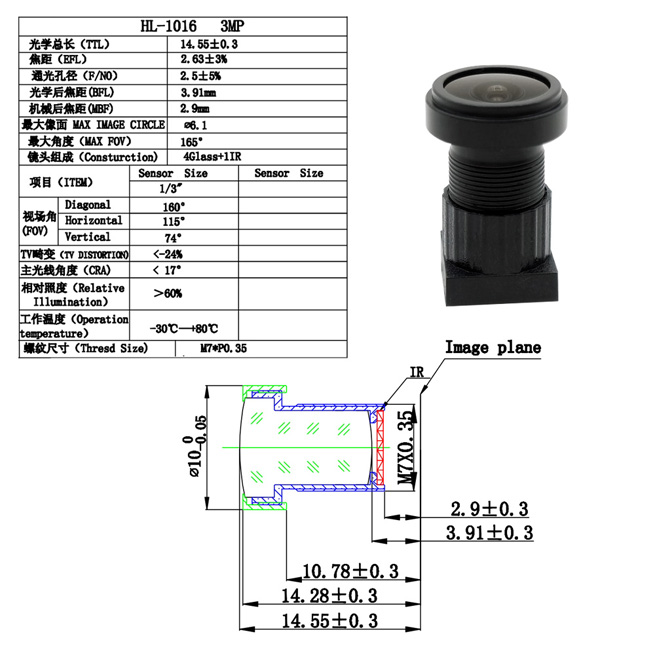

Technical Specifications
| Parameter | Value |
|---|---|
| TTL | 14.55 |
| EFL | 2.63 |
| F/NO | 2.5 |
| BFL | 3.91mm |
| MAX IMAGE CIRCLE | 6.1 |
| MAX FOV | 160° |
| Construction | 4G+1IR |
| Sensor Size | 1/3″ |
| Distortion | <-24% |
| Operation Temperature | -30℃~+80℃ |
Application Scenarios
Ideal for machine vision and equipment monitoring applications including:
- ATM machines and banking systems
- Medical equipment and hospital reporting systems
- Printers, vending machines, and digital signage
- Robotics and industrial automation equipment
- Security surveillance systems
- Flame monitoring in industrial settings
- Identification and verification systems
