Key Features
1. High-resolution 2MP imaging: Equipped with a 1/2.9-inch CMOS sensor, this camera captures crisp, sharp 1080p HD video with rich detail. A high frame rate of 30fps ensures smooth, low-latency image transmission in applications.

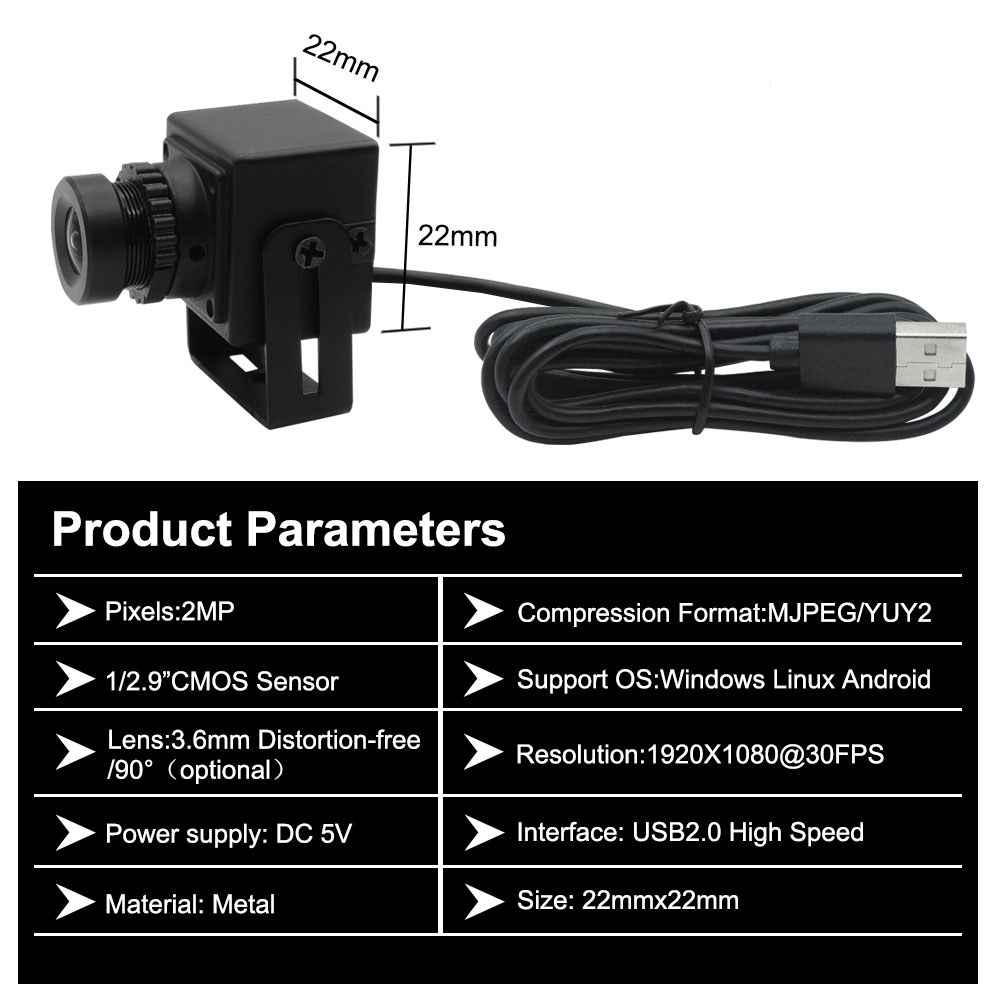

Technical Specifications
| Sensor | 1/2.9″CMOS |
|---|---|
| Resolution | 2MP |
| Frame Rate | 1920×1080@30fps |
| Compression Format | MJPG/YUV2 |
| Power Supply | DC5V |

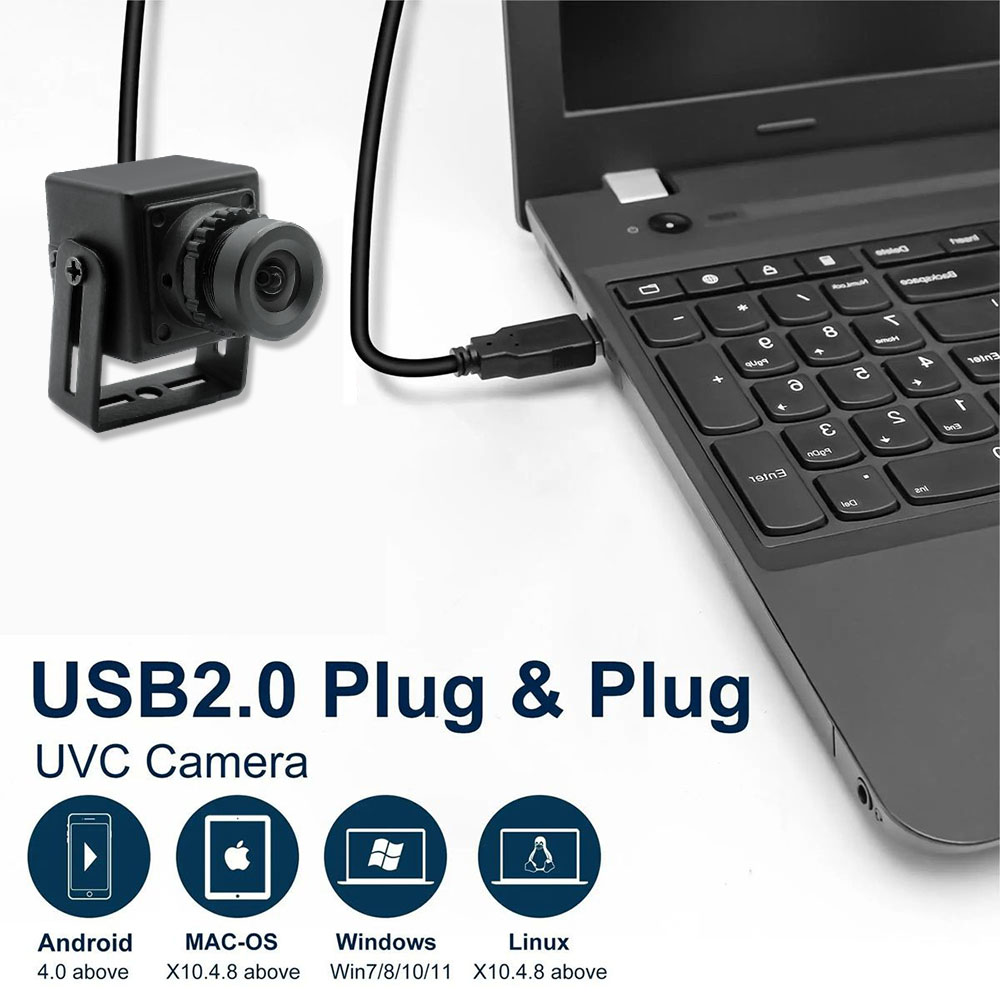

| Interface | USB 2.0 |

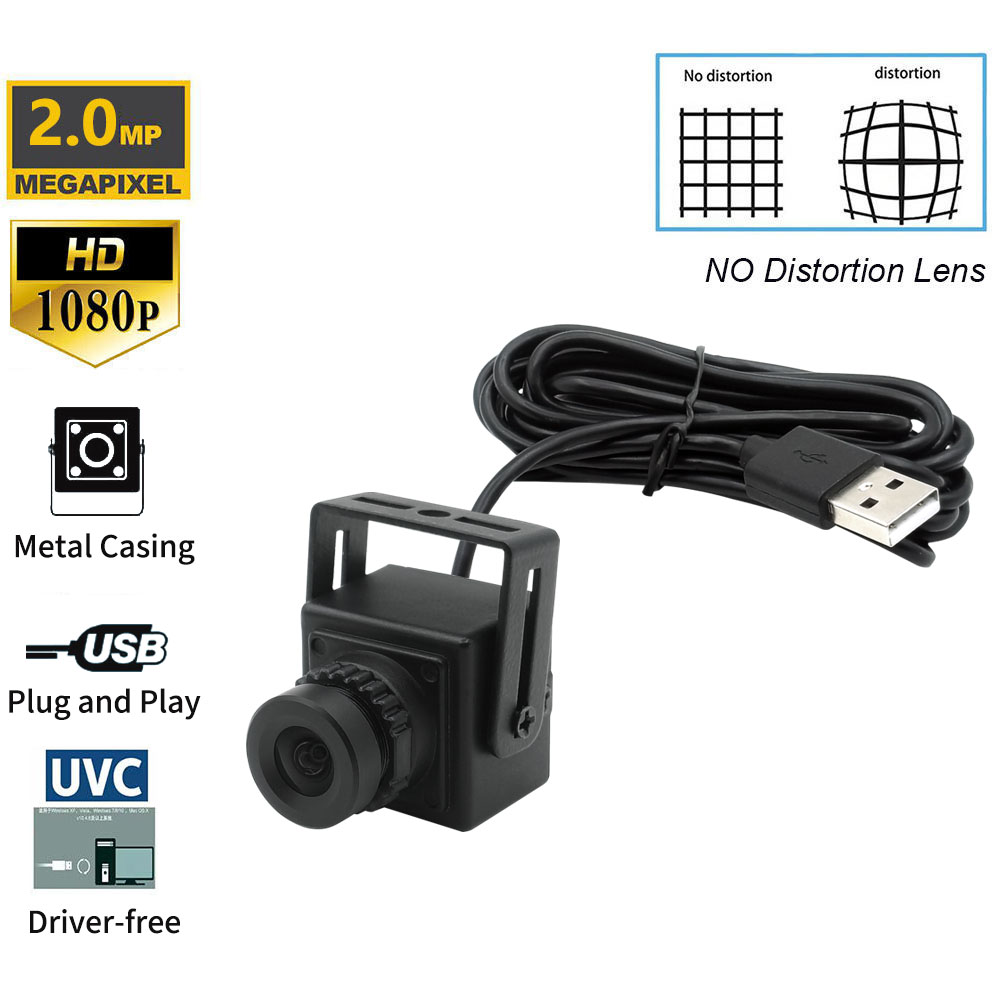

| Lens | Distortionless 3.6mm |
| FOV | 90° |

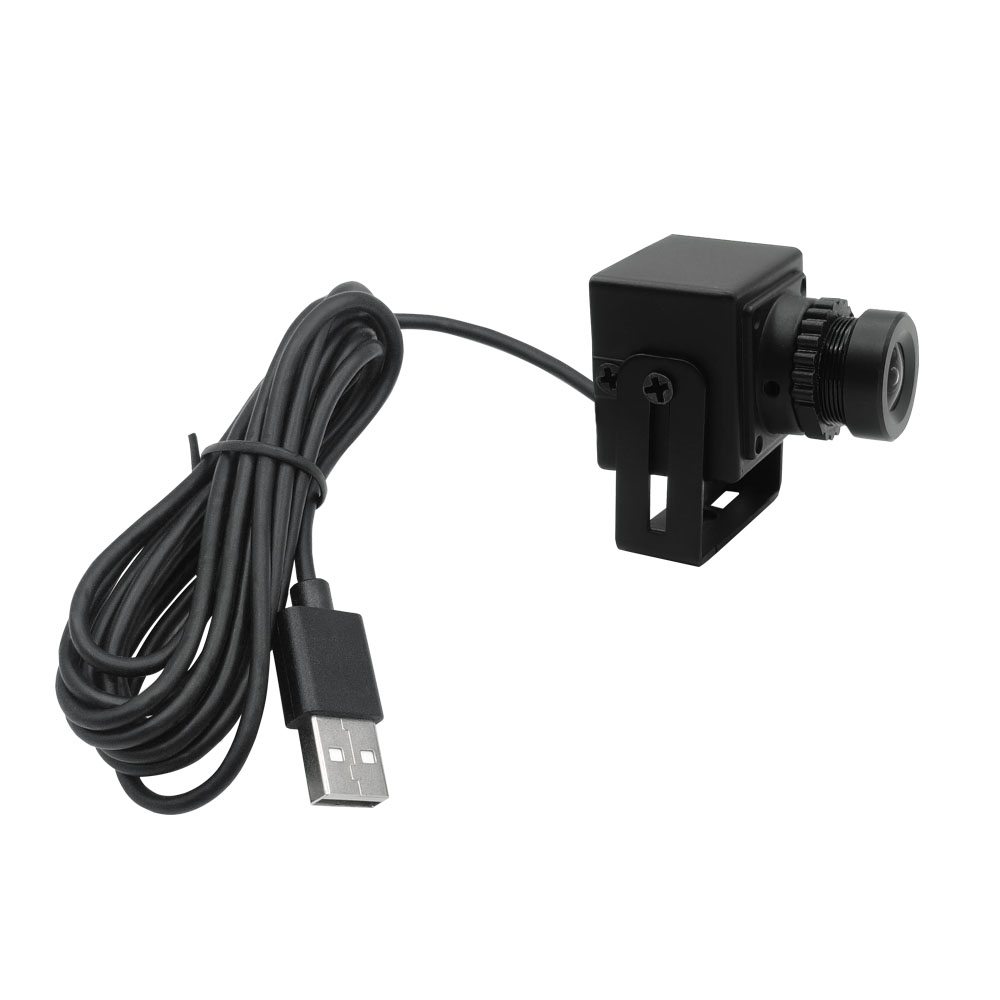

| Product Model | HCU-202J36W |

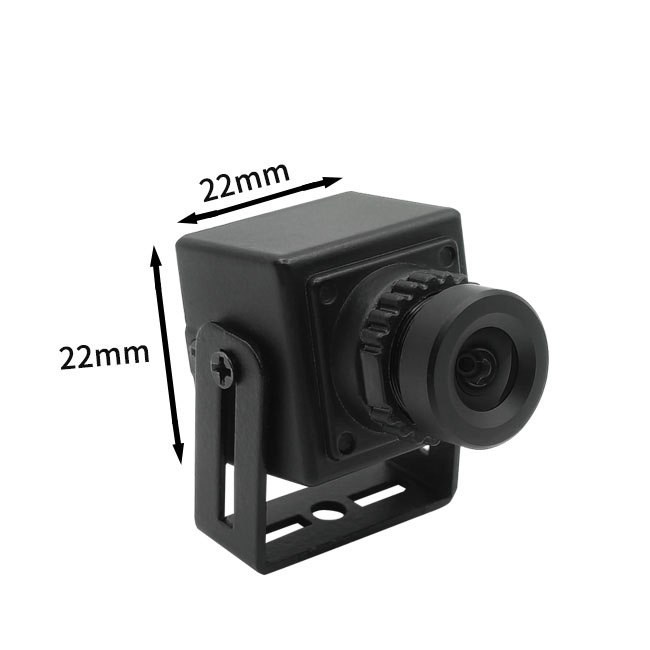

| Dimensions | 22mmx22mm |
| Operating Systems | Windows/Linux/Android/Mac OS |
Customization Options
We are well aware of the unique visual requirements of different applications and provide comprehensive OEM/ODM customization services to help you create differentiated products.
1. Lens customization: specific focal length, field of view angle, distortion control.
2. Customized casing: Design a dedicated casing, bracket, or fixing method based on the structure of your device.
3. Cable and Interface: Customize cable length and interface type.
4. Pixel customization: Different resolution and frame rate models are available.
Product application scenarios
- ATM machines and banking equipment
- Medical diagnostic equipment
- Vending machines and digital signage
- Industrial automation (SMT machines, welding equipment)
- Security surveillance systems
- Robotics and crane monitoring
- Flame detection in power plants
- Law enforcement equipment
