Product functions and features

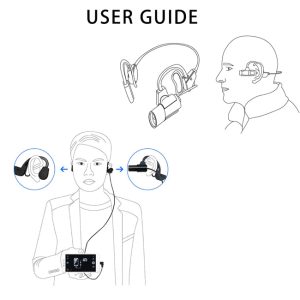

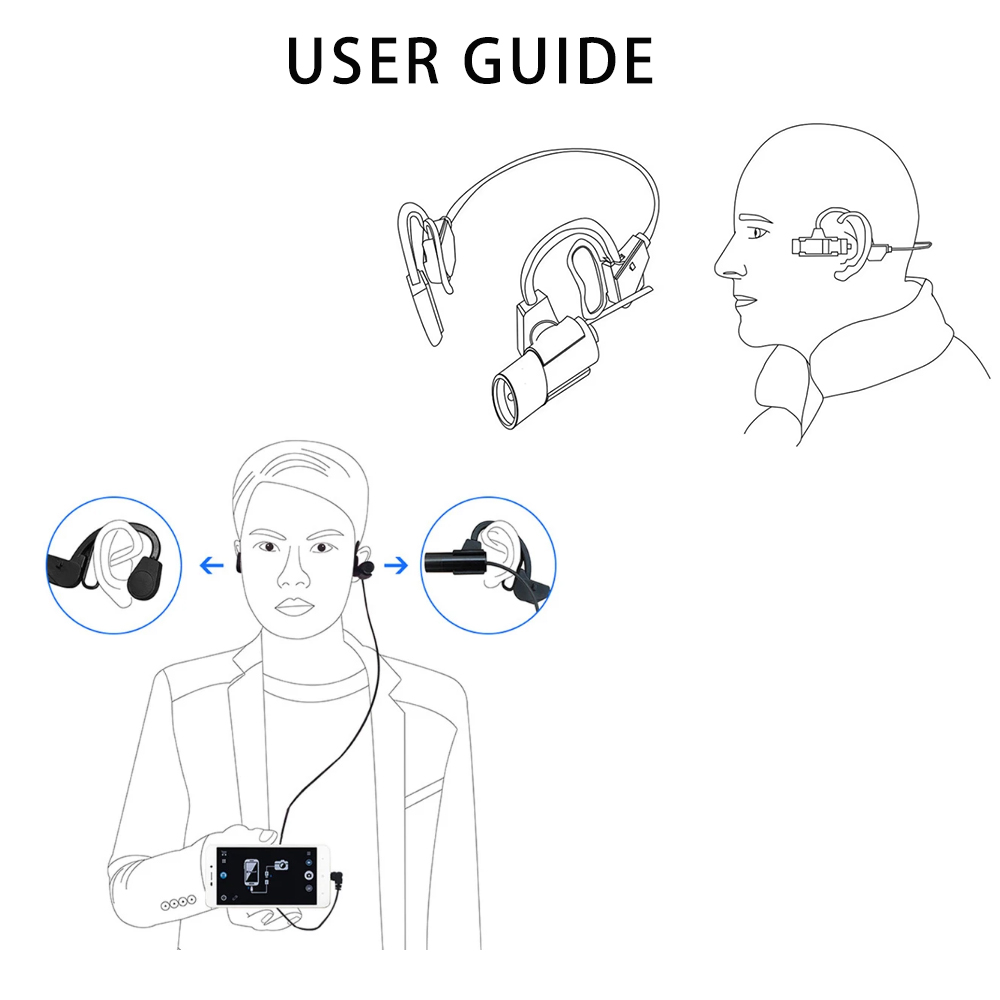

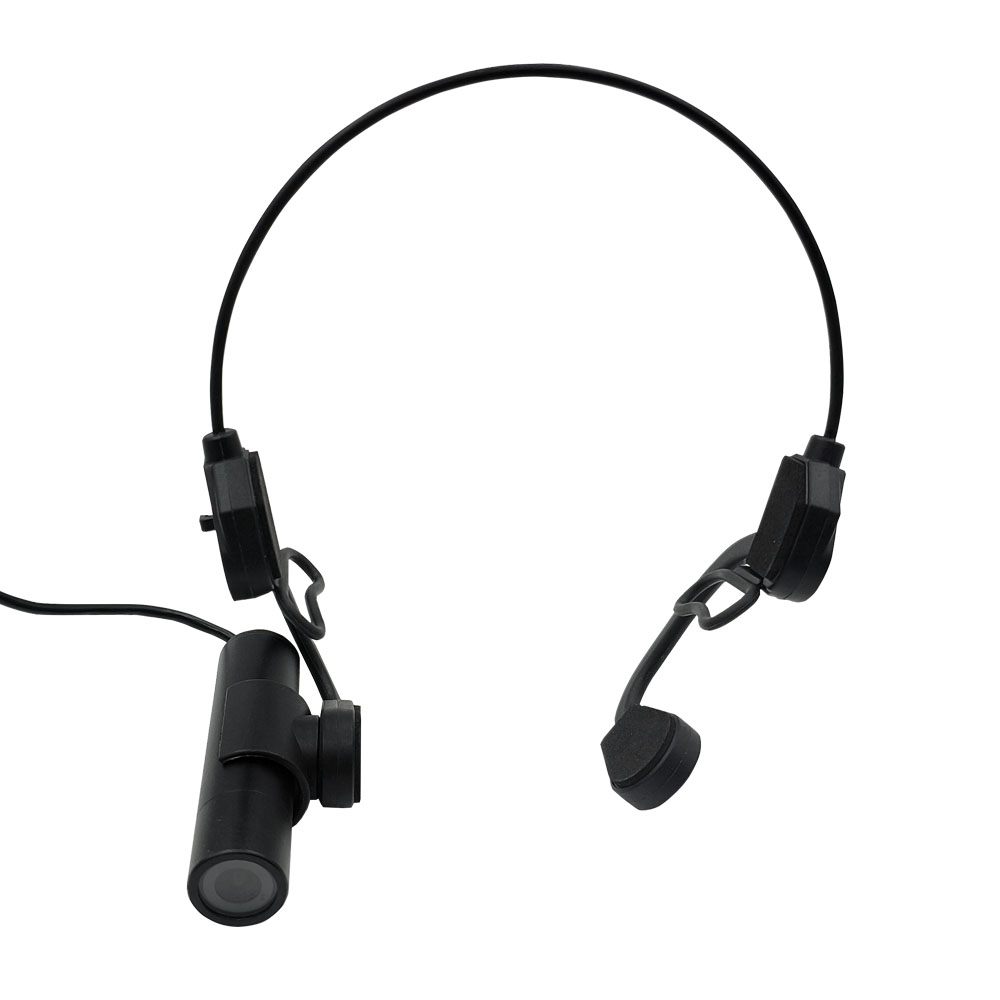

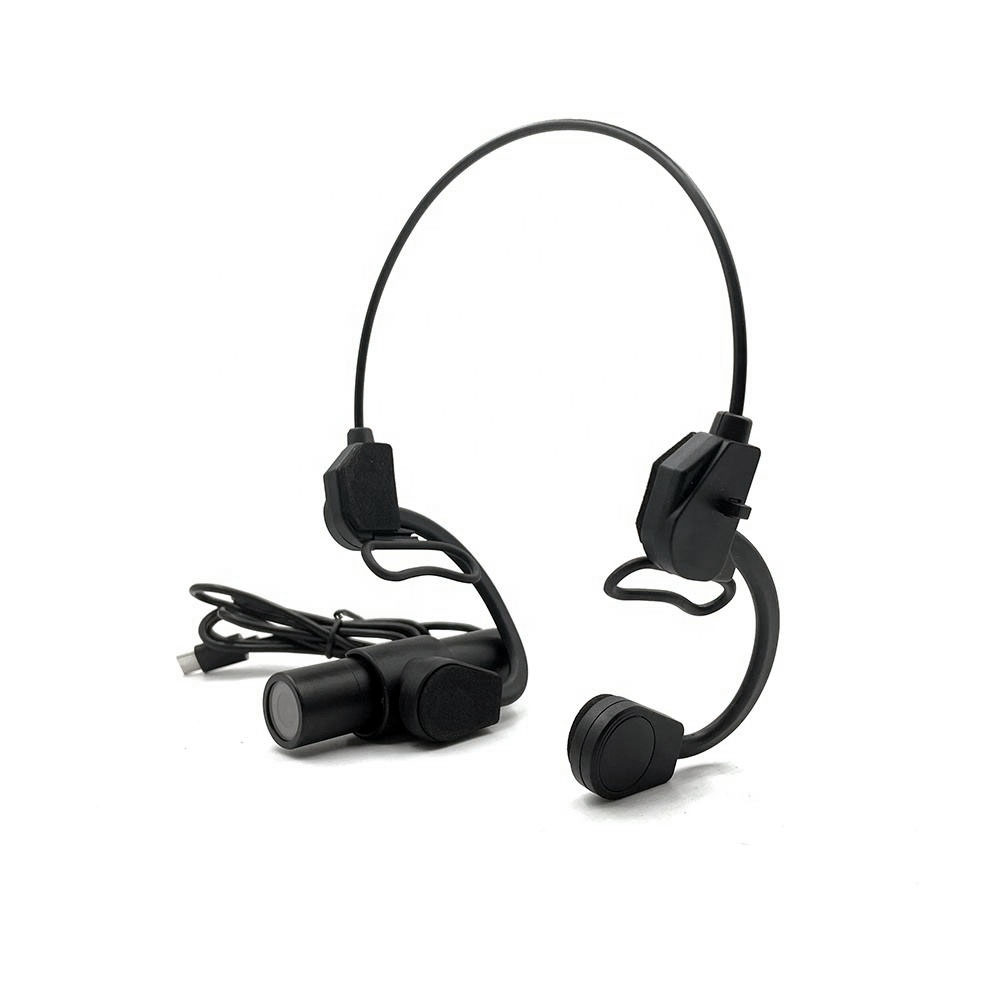

Ear hanging wearable design, freeing hands for first person shooting

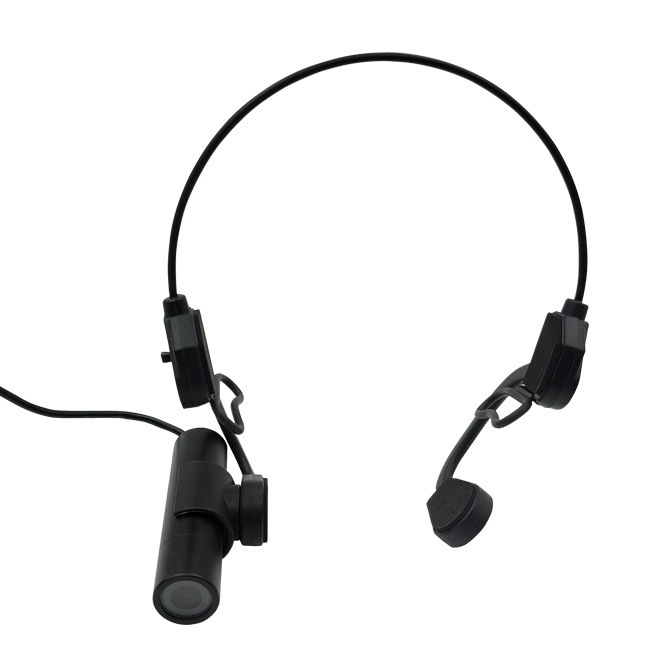

The ergonomic ear hook wearing structure is lightweight, stable, and not easy to fall off. It completely releases both hands and realistically reproduces the first perspective image of the human eye. It is suitable for on-site operations, maintenance, inspections, and other scenarios that require recording while working.
Multi resolution output, multiple video encoding formats

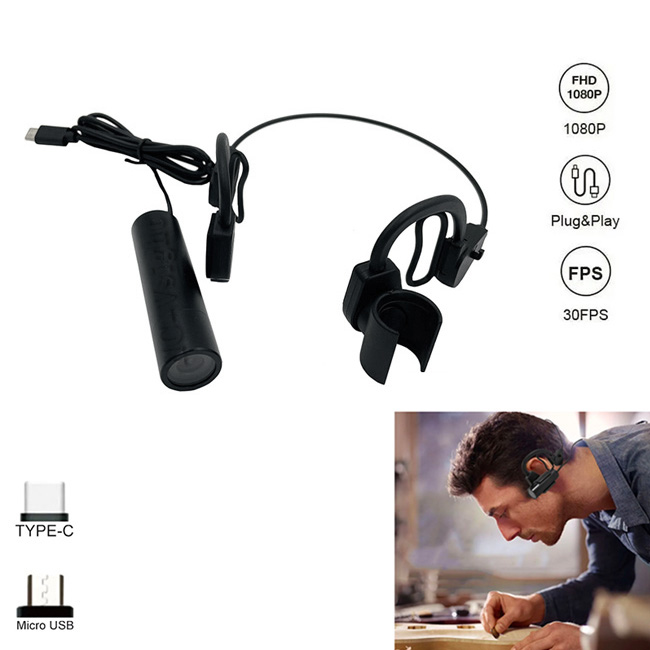

Supports multiple resolutions of 1080P/720P, compatible with MJPEG and YUY2 video output formats, with smooth images and minimal dragging during dynamic shooting. It can adapt to the stream requirements of different software and devices.
UVC driver free protocol, cross device OTG expansion

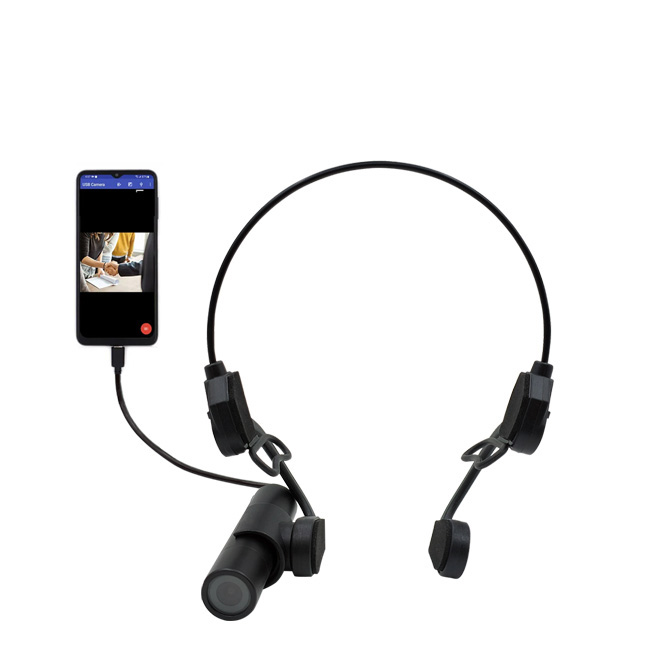

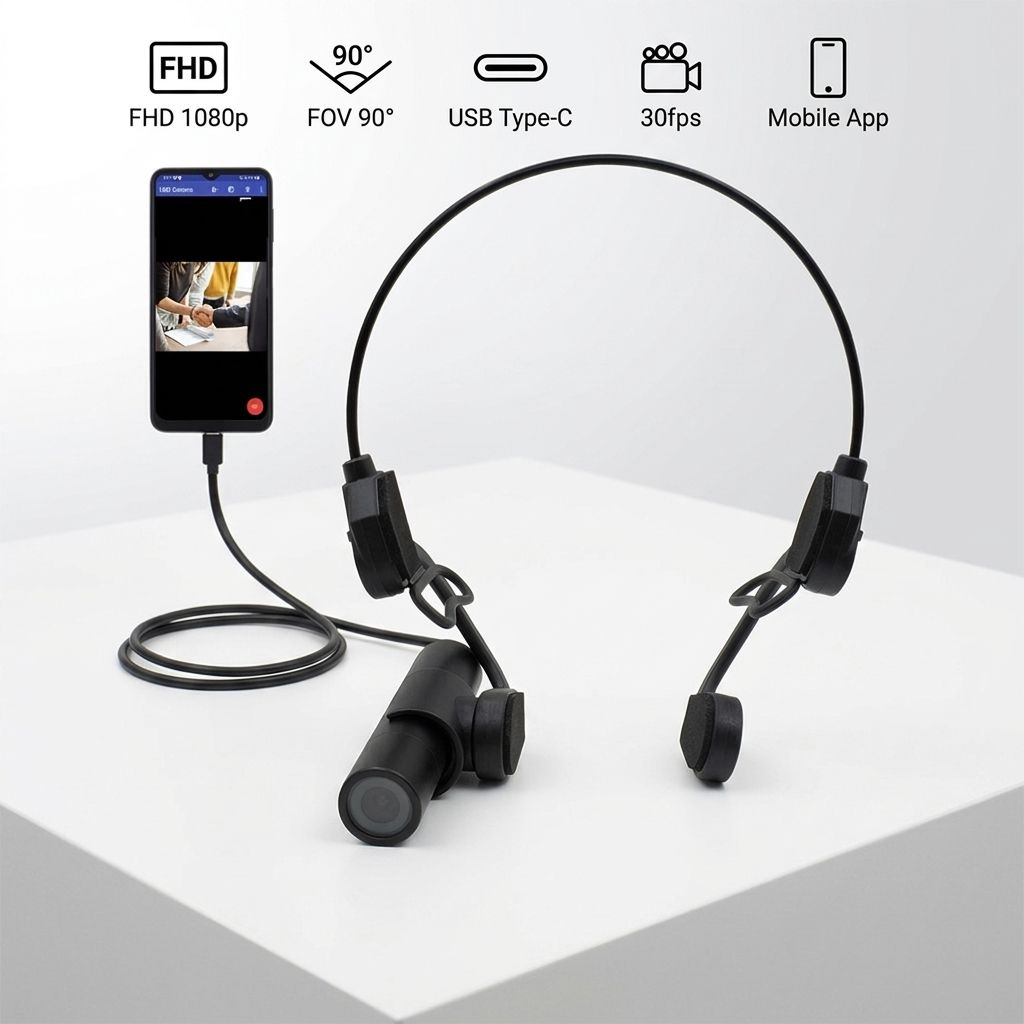

Standard UVC protocol, Windows、 Android and Linux plug and play; Supports Android phone/tablet OTG external connection, with optional Type-C and Micro USB dual interfaces, no need for complex drivers, ready to use out of the box.
Compact waterproof bullet lens with strong environmental adaptability
Mini bullet shaped lens with basic waterproof performance, compact size, adjustable lens angle, suitable for indoor workshops and outdoor scenes, supports customized logo and cable length.
The ergonomic ear hook wearing structure is lightweight, stable, and not easy to fall off. It completely releases both hands and realistically reproduces the first perspective image of the human eye. It is suitable for on-site operations, maintenance, inspections, and other scenarios that require recording while working.
Multi resolution output, multiple video encoding formats
Supports multiple resolutions of 1080P/720P, compatible with MJPEG and YUY2 video output formats, with smooth images and minimal dragging during dynamic shooting. It can adapt to the stream requirements of different software and devices.
UVC driver free protocol, cross device OTG expansion
Standard UVC protocol, Windows、 Android and Linux plug and play; Supports Android phone/tablet OTG external connection, with optional Type-C and Micro USB dual interfaces, no need for complex drivers, ready to use out of the box.
Compact waterproof bullet lens with strong environmental adaptability
Mini bullet shaped lens with basic waterproof performance, compact size, adjustable lens angle, suitable for indoor workshops and outdoor scenes, supports customized logo and cable length.

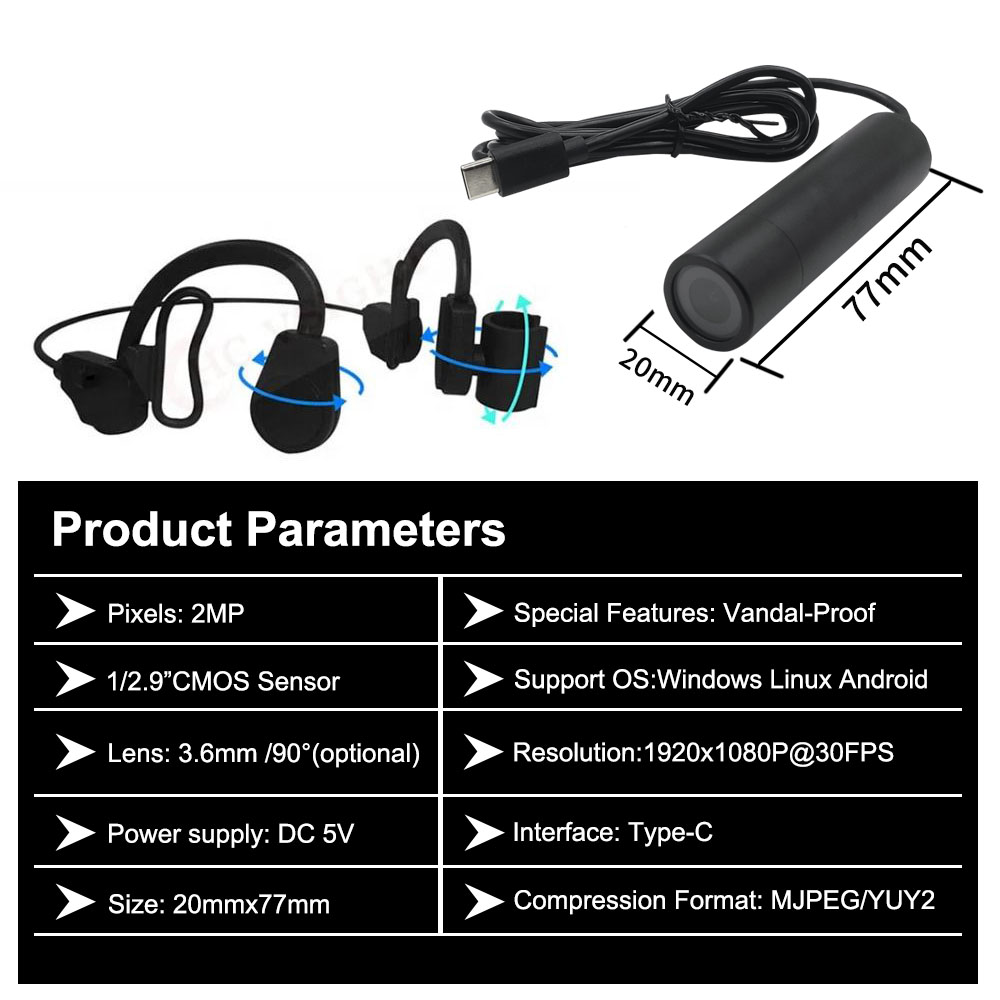

Technical Specifications
| Parameter | Specification |
| Sensor | 1/2.9″CMOS |
| Pixel | 2MP |
| Compression format | MJPG/YUV2 |
| Frame rate | 1920×1080@30fps |
| Special Features | Vandal-Proof |
| Power Supply | DC 5v |

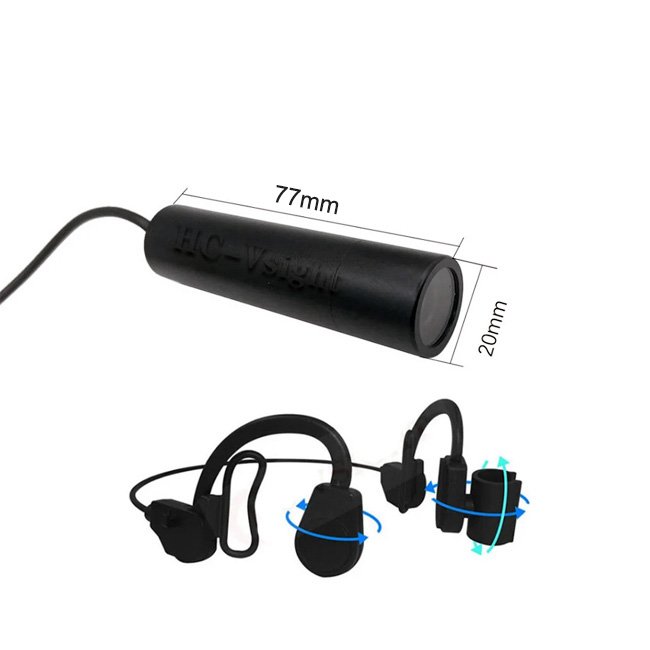

| Size | 20mmx77mm |
| Focus | Fixedfocus |
| Model Number | HCT-BT202EG |
| Interface | Type-c |
| Style | Bullet Camera |
| Lens | 3.6mm |
| FOV | 90° |

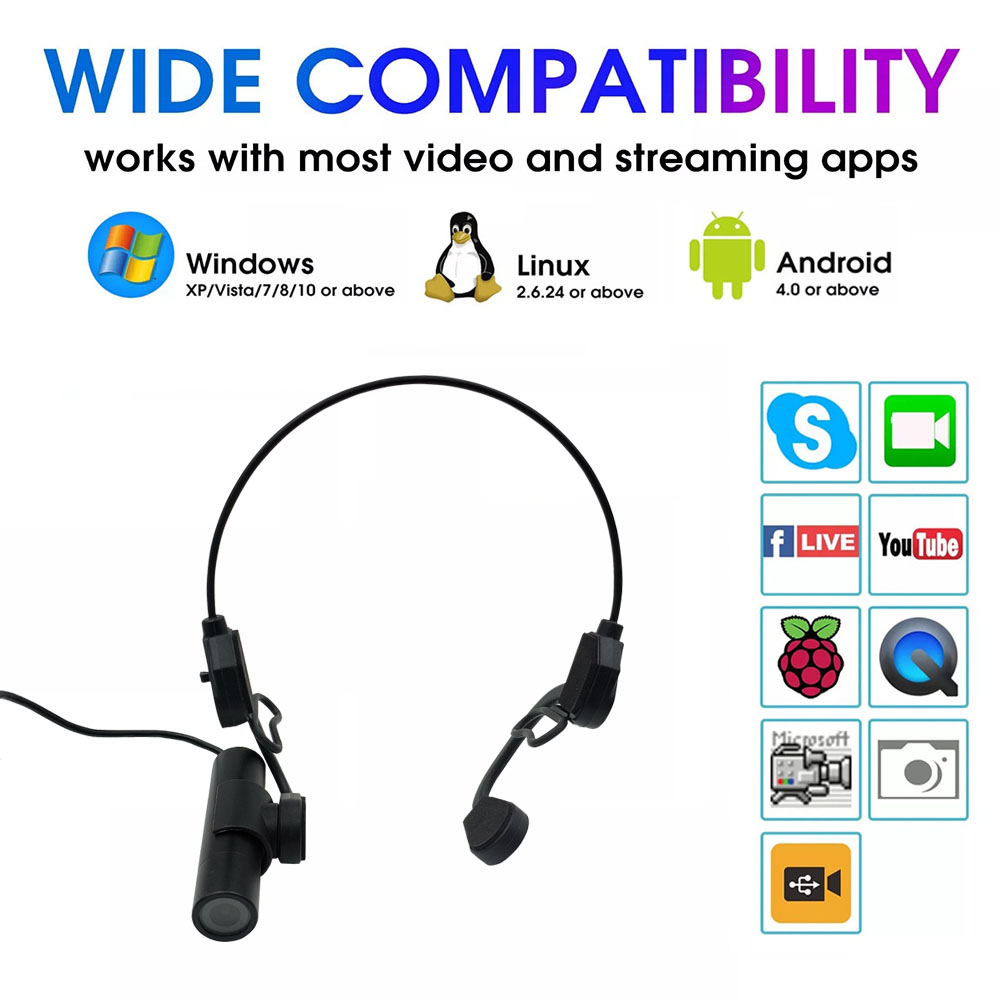

| Supported OS | Windows /Linux /Android |
Customization Options
We are well aware of the unique visual requirements of different applications and provide comprehensive OEM/ODM customization services to help you create differentiated products.
1. Lens customization: specific focal length, field of view angle, distortion control.
2. Customized casing: Design a dedicated casing, bracket, or fixing method based on the structure of your device.
3. Cable and Interface: Customize cable length and interface type.
4. Pixel customization: Different resolution and frame rate models are available.
Application Scenarios
Widely used for equipment maintenance records, on-site operation inspections, teaching practice recordings, on-site technical guidance, site survey records, factory practical training, outdoor operation shooting, helmet matching cameras, remote technical assistance, maker project secondary development and other first perspective collection scenarios.
Browse more models in our USB camera series to meet different installation and integration requirements.
