Core advantages of the product

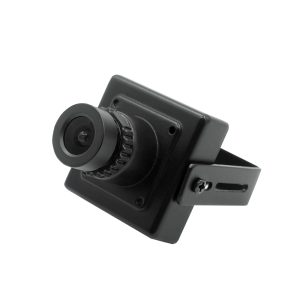

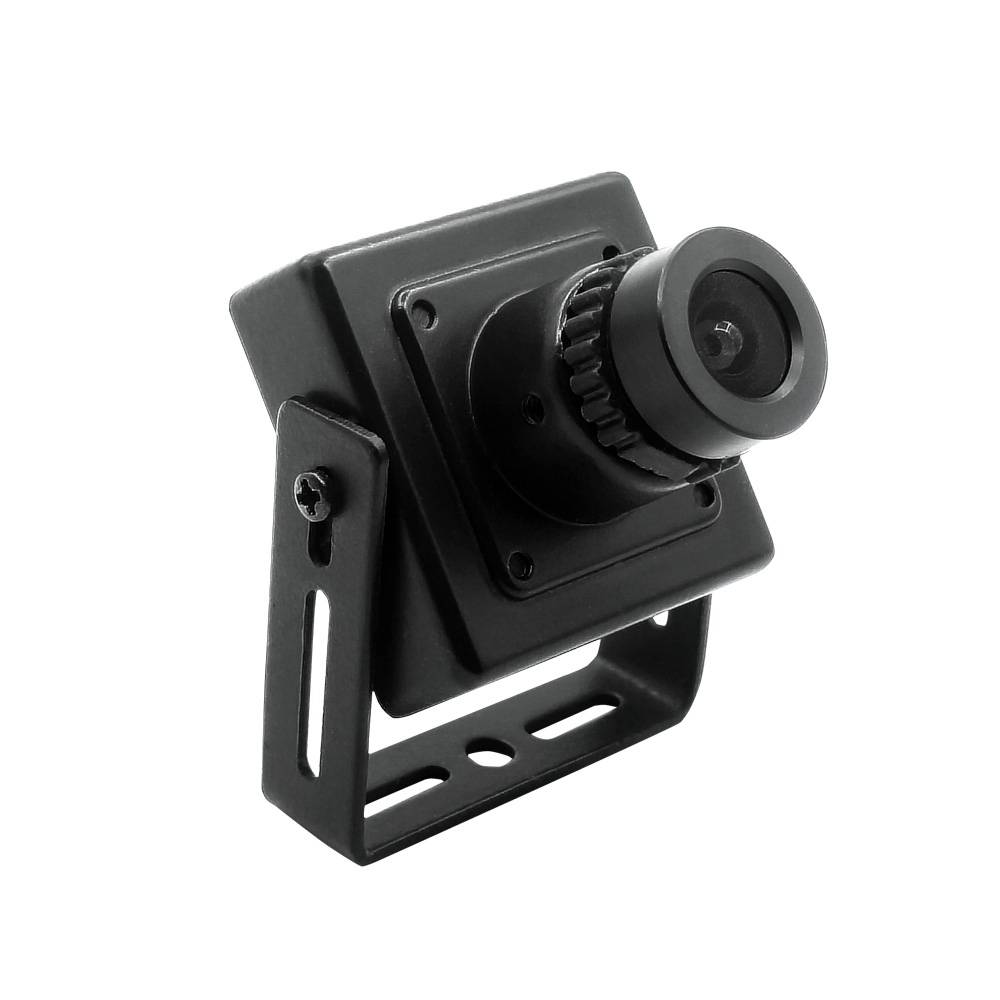

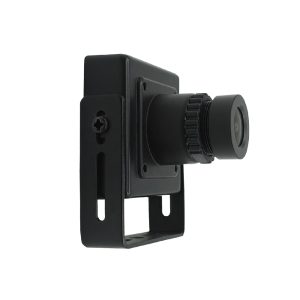

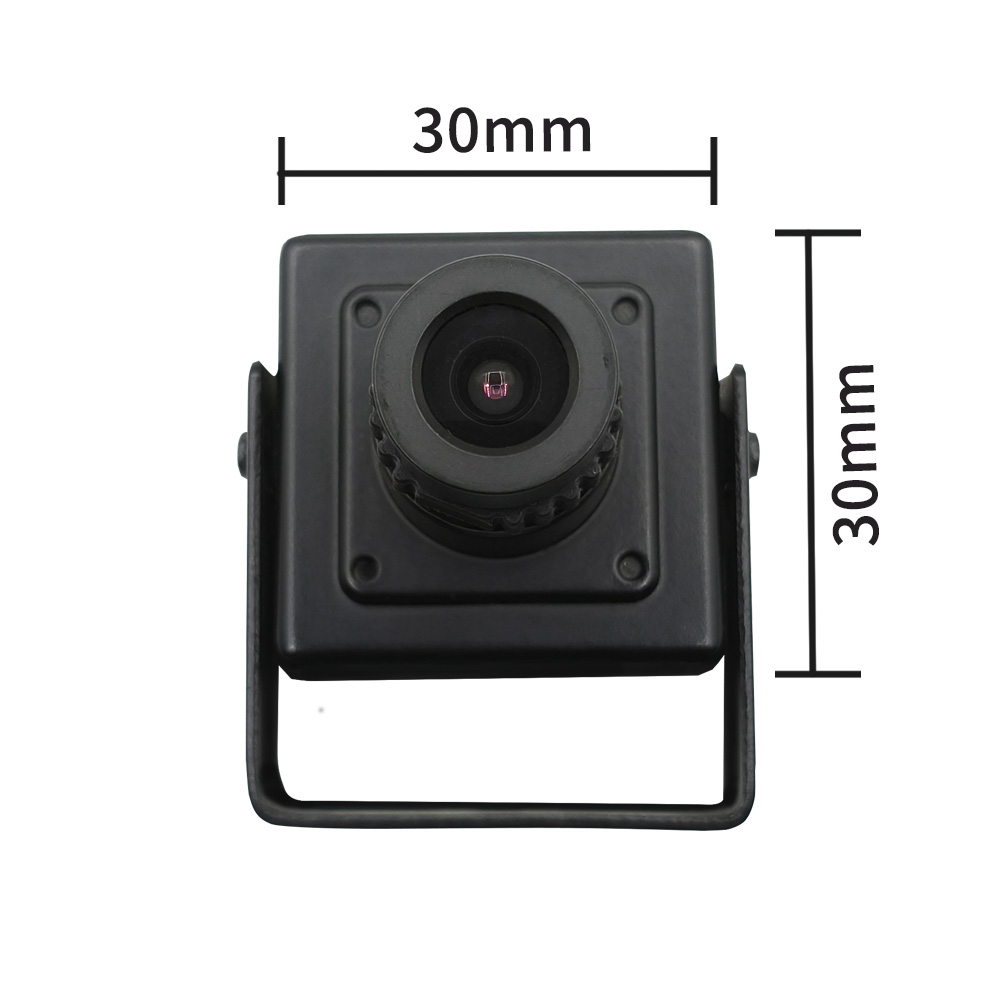

Compact and compact body: 30×30mm standard board type, small size, easy to embed into various indoor devices, suitable for secondary development and assembly.
High definition imaging output: 2MP (1920×1080) full HD image quality, clear picture details, balancing clarity and storage pressure.
Stable indoor imaging: Optimized for indoor lighting environment, stable image performance in low light conditions, suitable for embedded integration requirements.

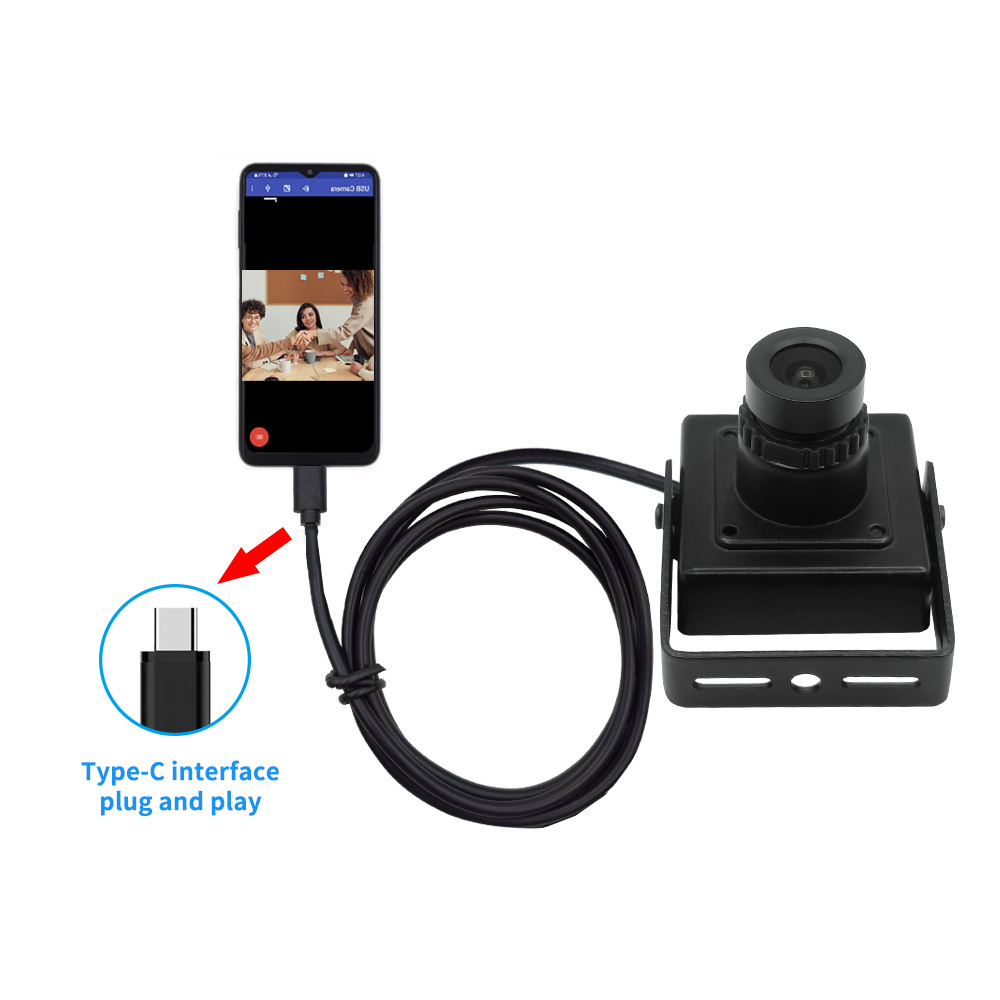

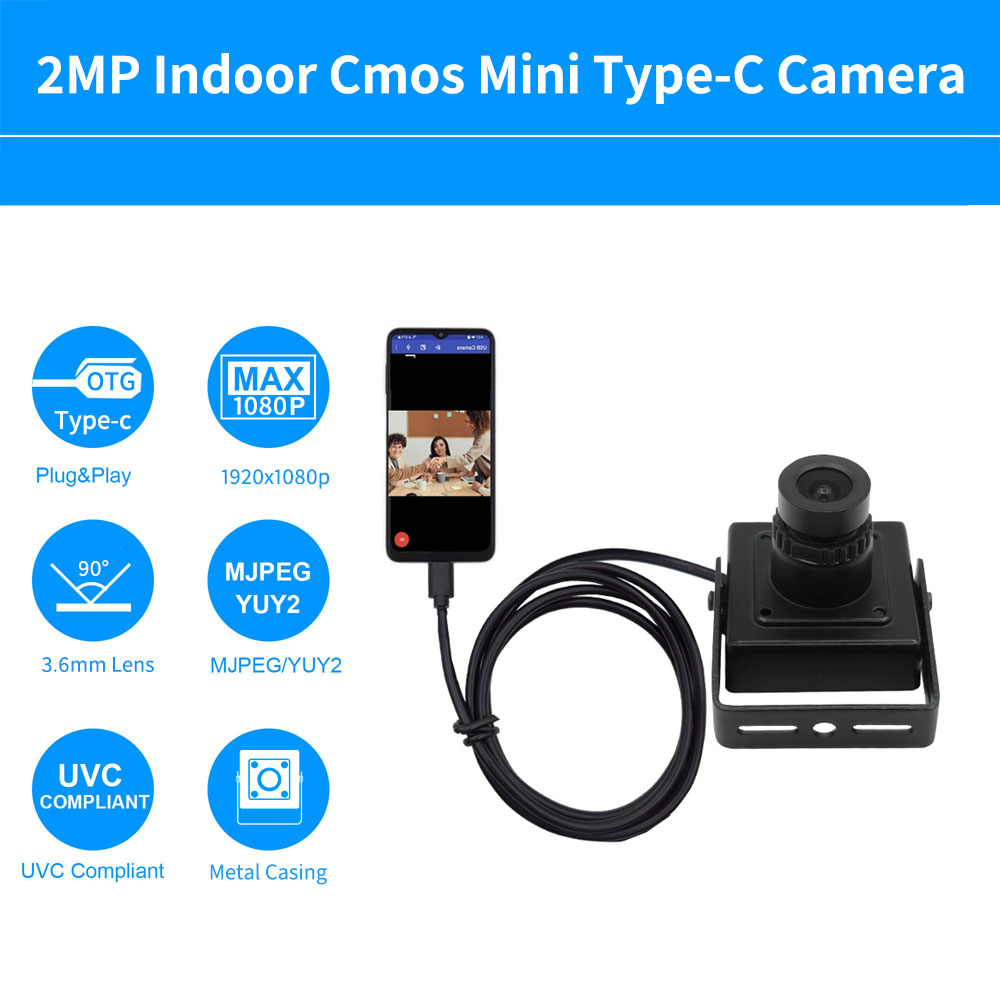

Easy integration and docking: Standard Type-C interface, supporting customized solutions, can quickly dock with terminal products, reducing development cycles

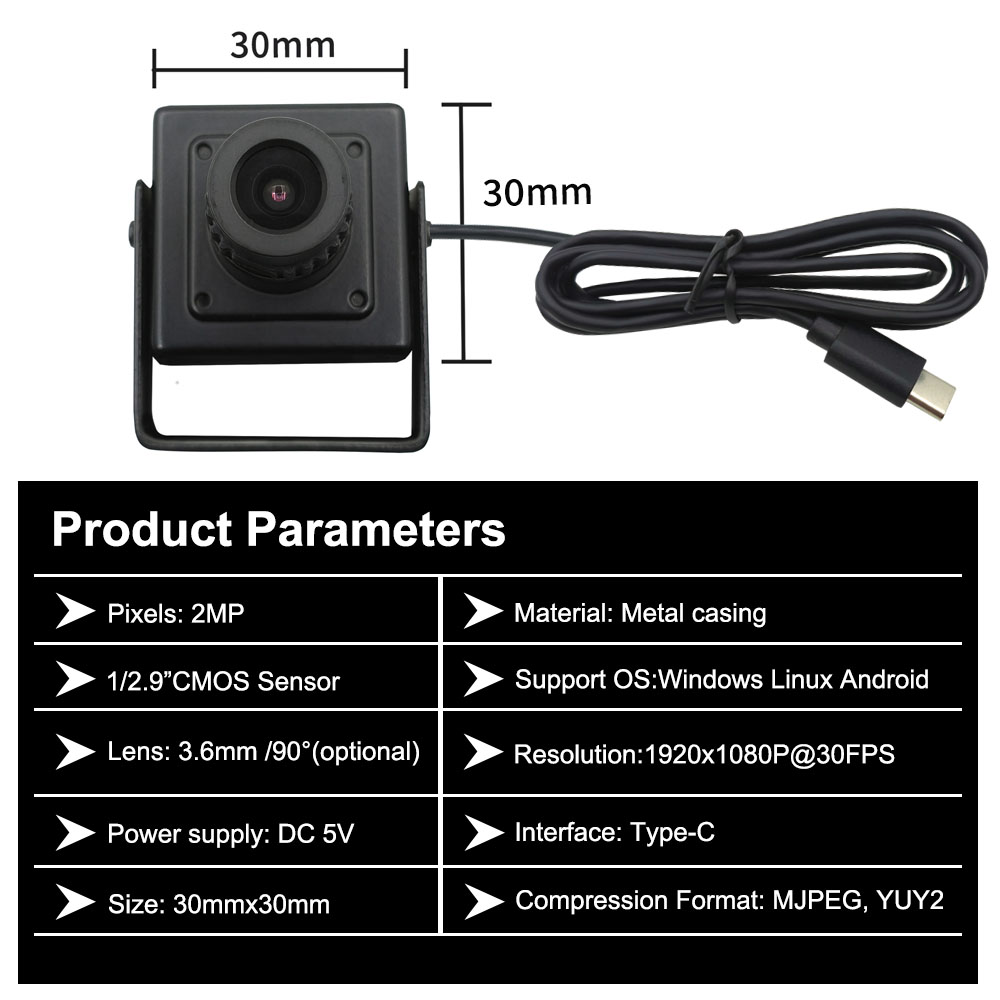

Technical Specifications
| Sensor | 1/2.9″ CMOS |
|---|---|
| Resolution | 2MP (1920×1080)@30fps |
| Compression Format | MJPG/YUV2 |
| Interface | Type-C |
| Power Supply | DC 5V |
Communication protocol | UVC/OTG |
| Model Number | HCT-302J36 |
| Lens | 3.6mm |
| FOV | 90° |
| Supported OS | Windows/Linux/Android |
Customization Options
We are well aware of the unique visual requirements of different applications and provide comprehensive OEM/ODM customization services to help you create differentiated products.
1. Lens customization: specific focal length, field of view angle, distortion control.
2. Customized casing: Design a dedicated casing, bracket, or fixing method based on the structure of your device.
3. Cable and Interface: Customize cable length and interface type.
4. Pixel customization: Different resolution and frame rate models are available.
Applications
Industrial automation and robot vision
Factory inspection systems
Access control and facial recognition terminals
Self-service terminals, vending machines, ATMs
Smart retail equipment and digital signage
Educational tablets and training equipment
Medical and laboratory instruments
Browse more models in our USB camera series to meet different installation and integration requirements.
