Product Application

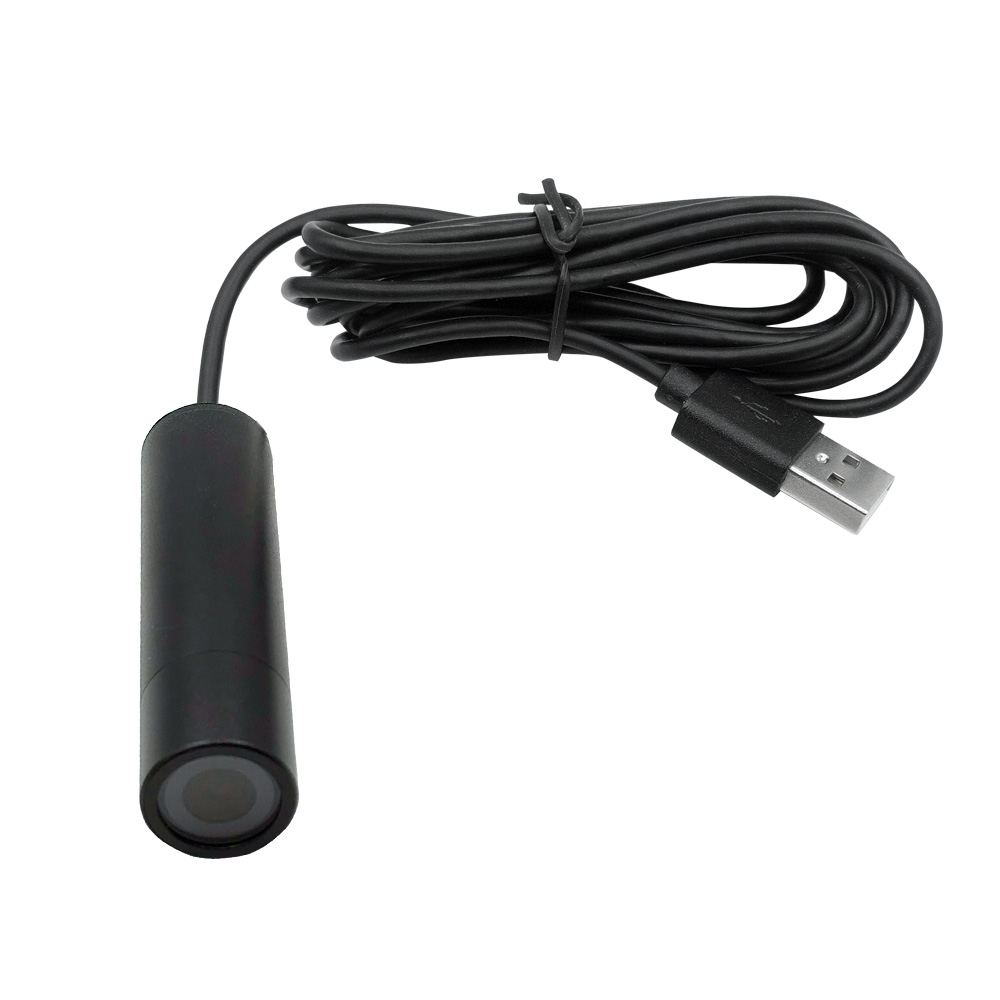

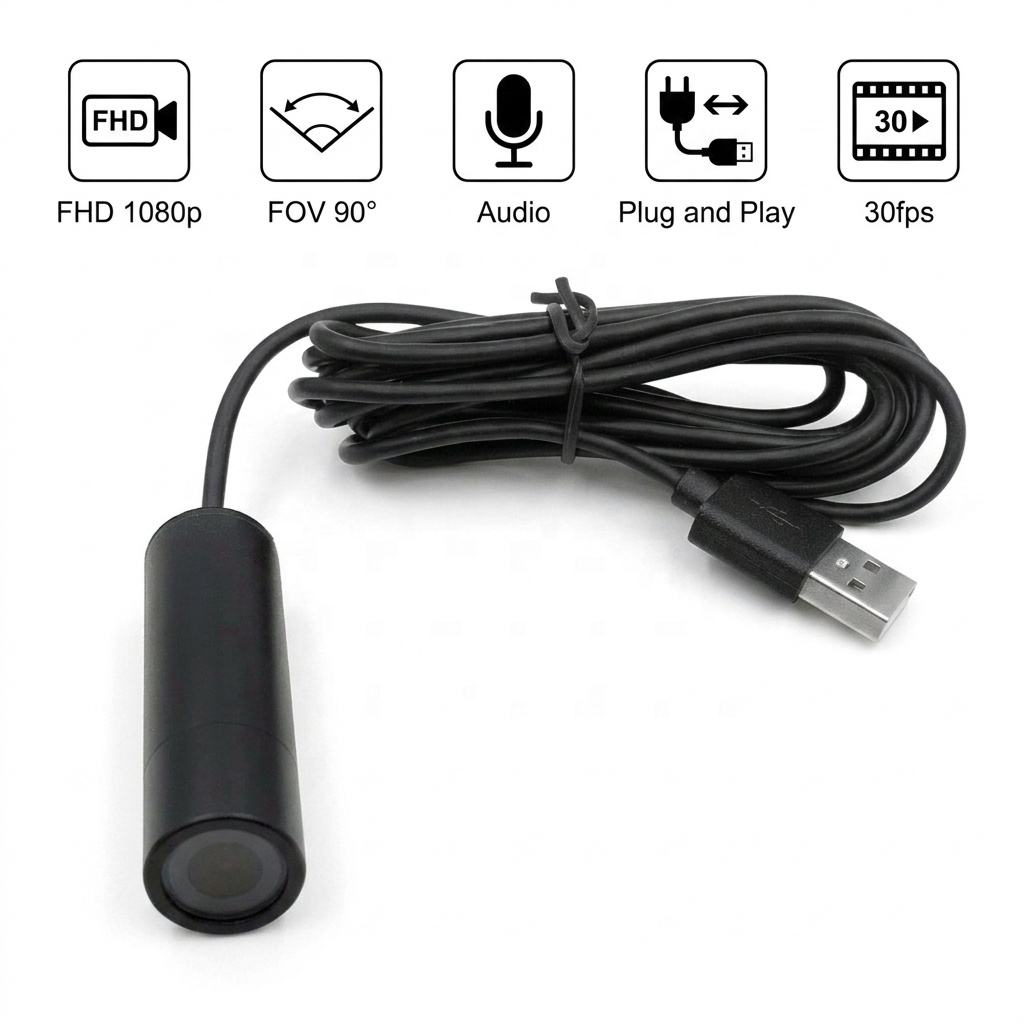

High definition 1080P USB imaging: This mini USB camera is equipped with a 1080P high-definition sensor, providing clear and detailed videos at smooth frame rates.

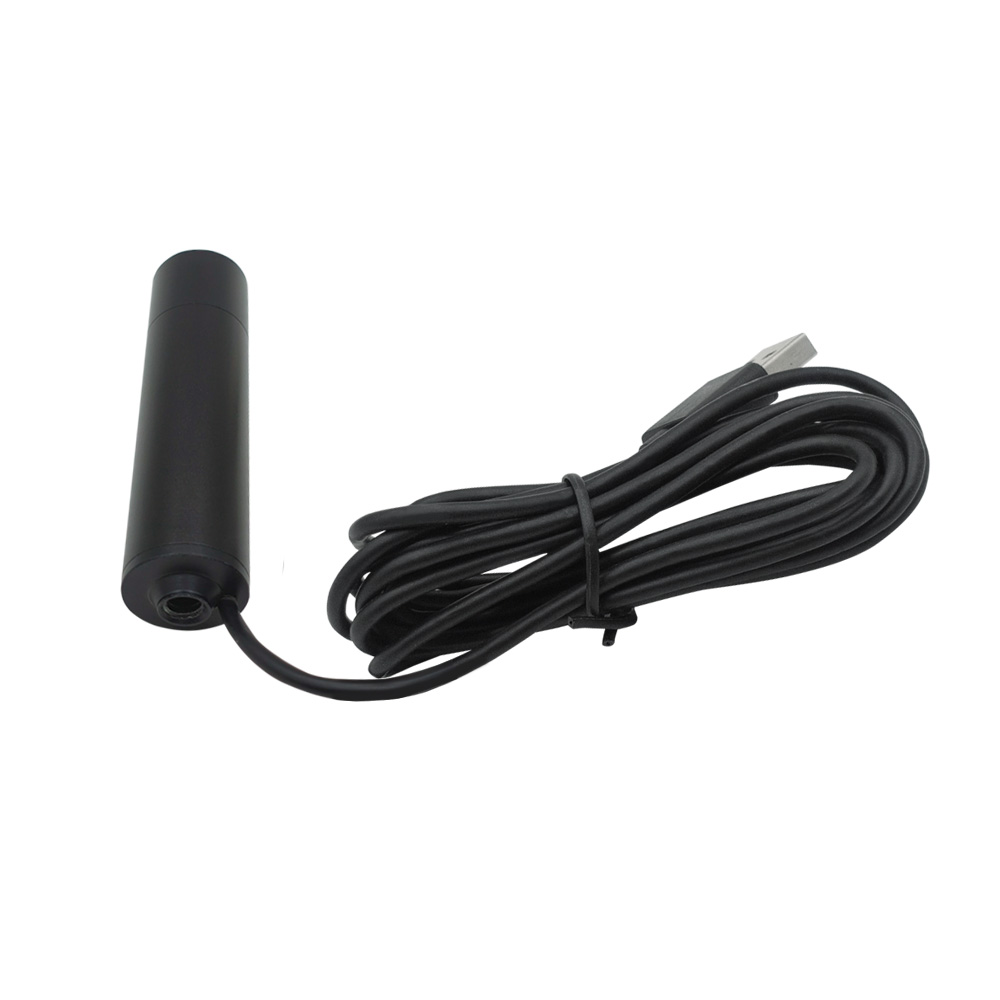

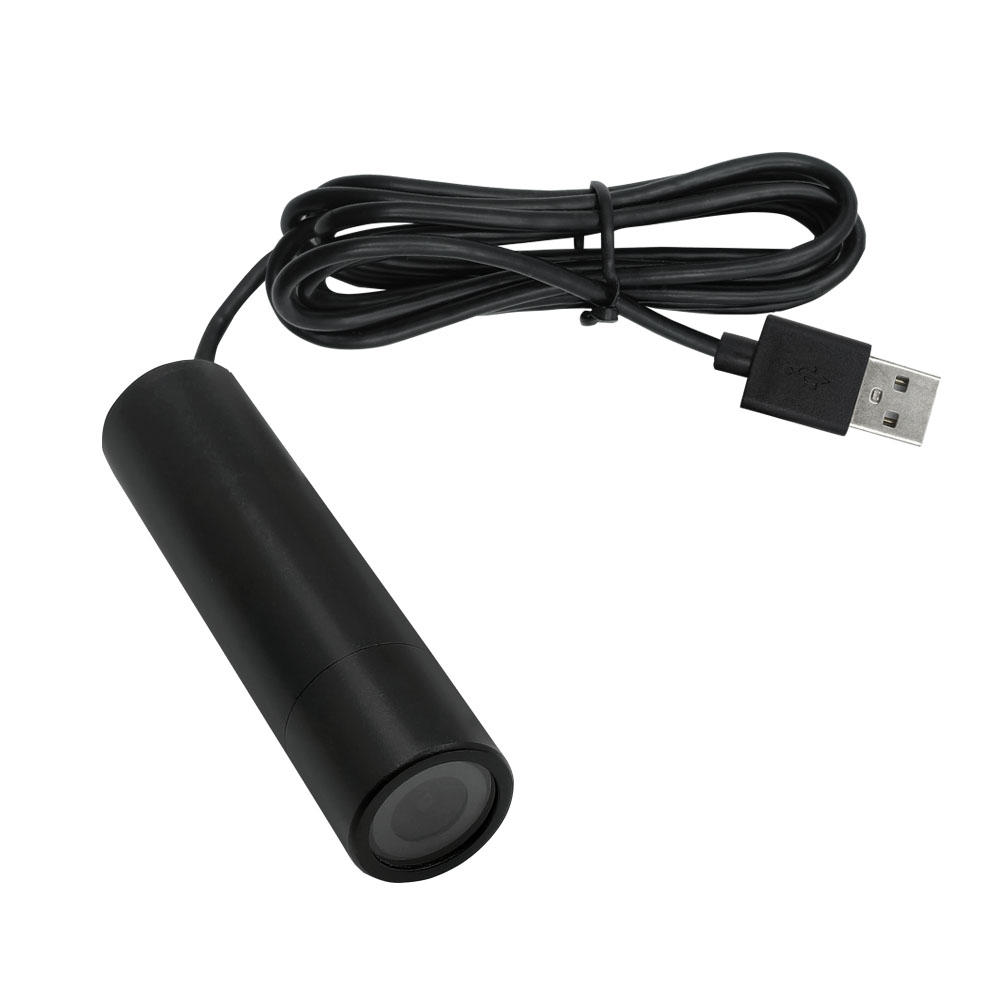

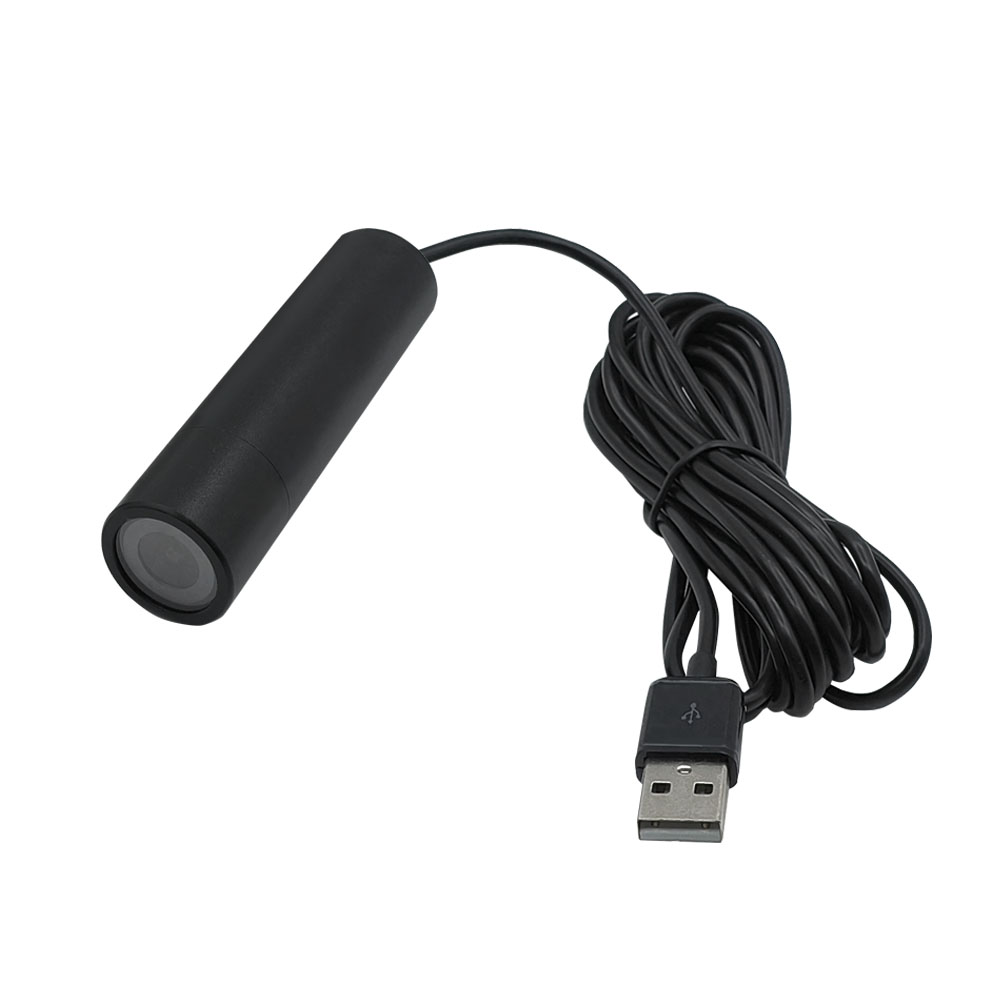

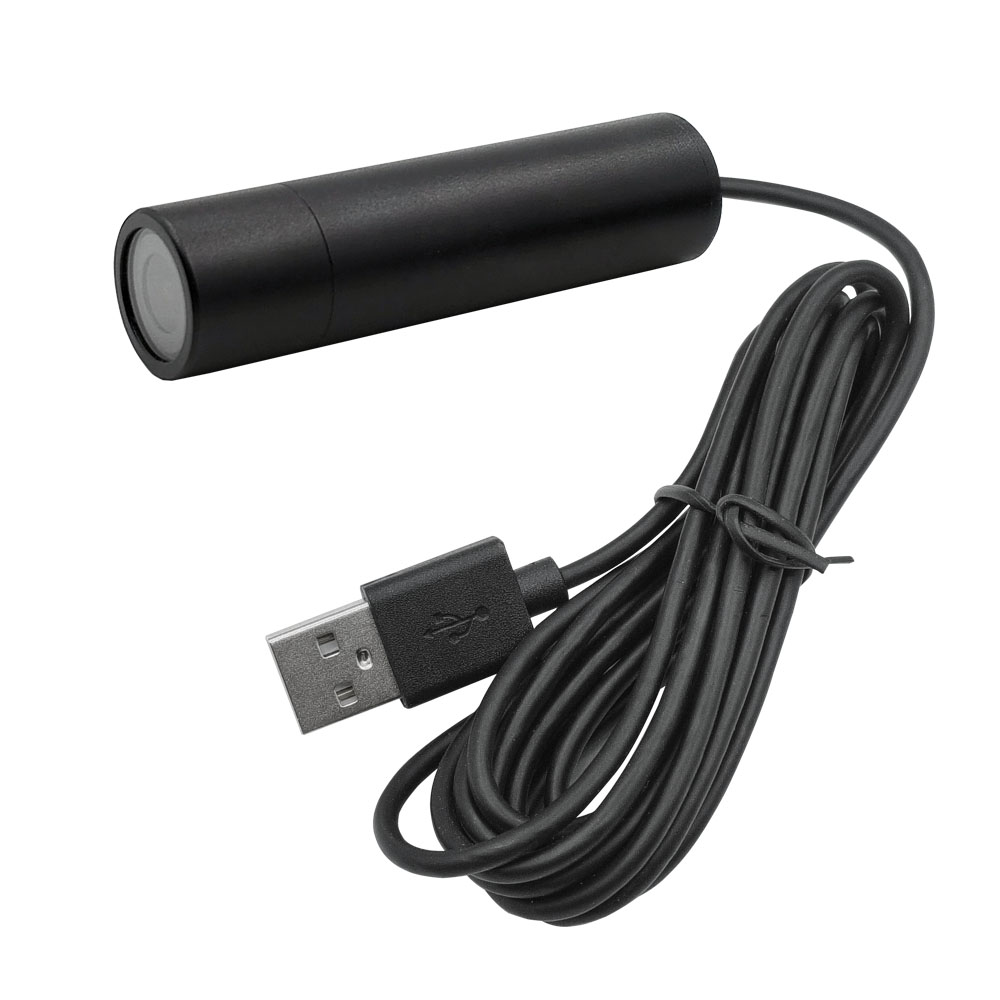

Compact mini cylindrical design: The smooth cylindrical design allows for flexible installation in embedded systems, robots, or enclosed spaces. Its mini bullet head camera design is perfect for cautious monitoring or OEM integration, where space saving and aesthetic integration are crucial.

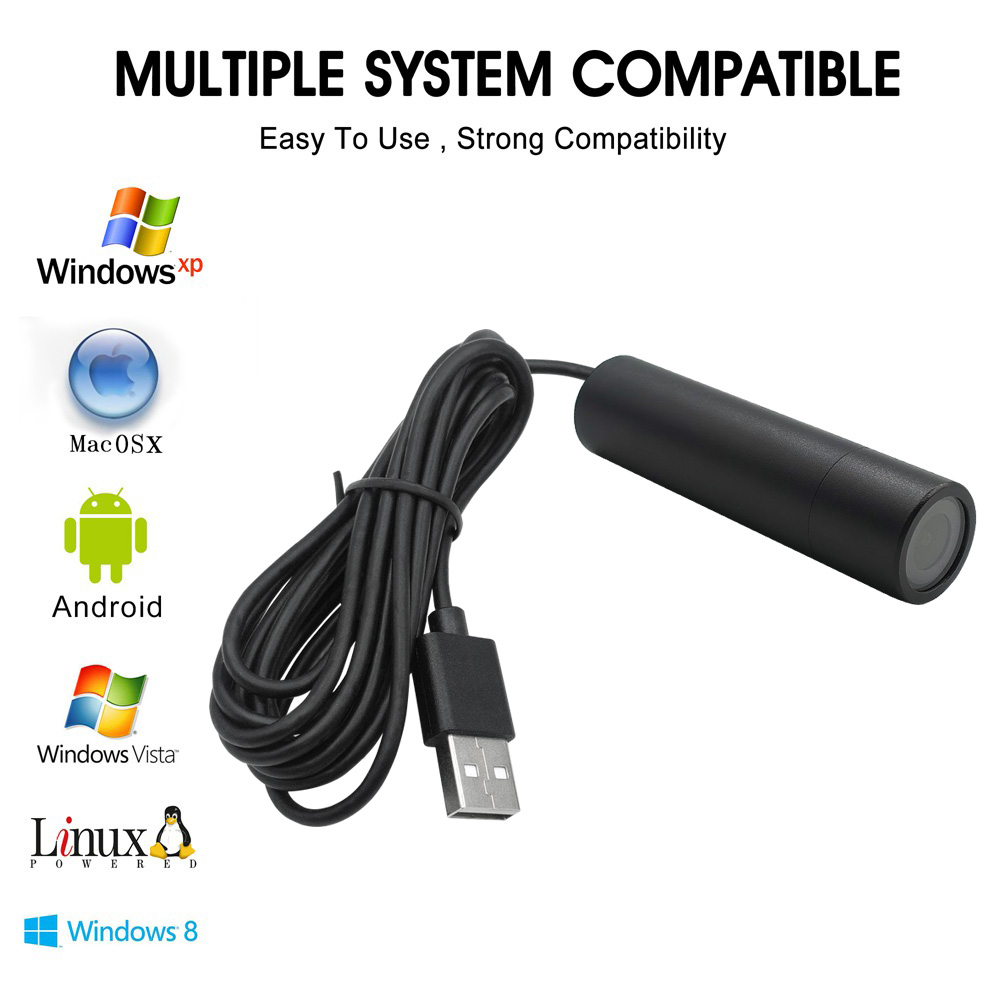

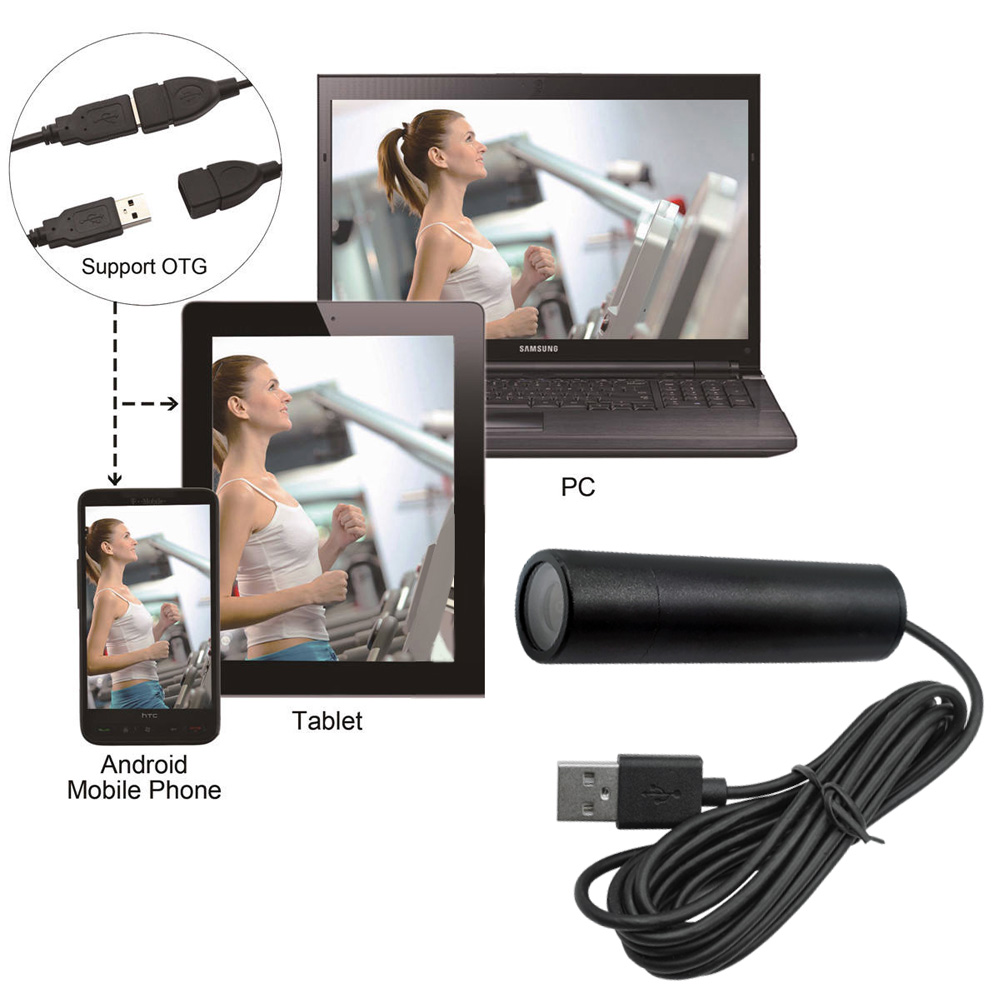

UVC Plug and Play Compatibility: This camera supports USB Video Class (UVC), making it fully plug and play with Windows, Mac, Linux, and Android systems. No additional drivers are required, reducing deployment time for industrial cameras or OEM projects.

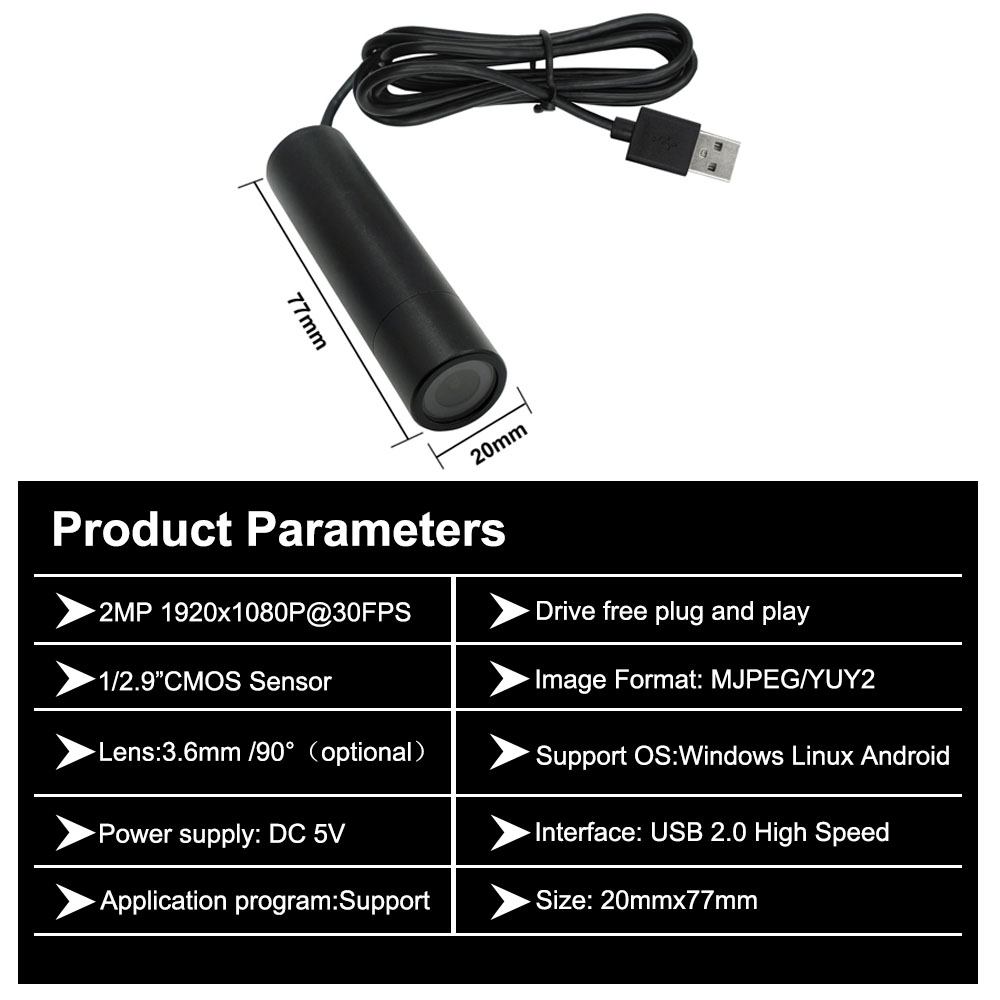

Technical Specifications
| Feature | Specification |
|---|---|
| Sensor | 1/2.9″CMOS |
| Resolution | 2MP (1920×1080@30fps) |
| Compression Format | MJPG/YUV2 |
| Audio | support |
| Power Supply | DC 5V |

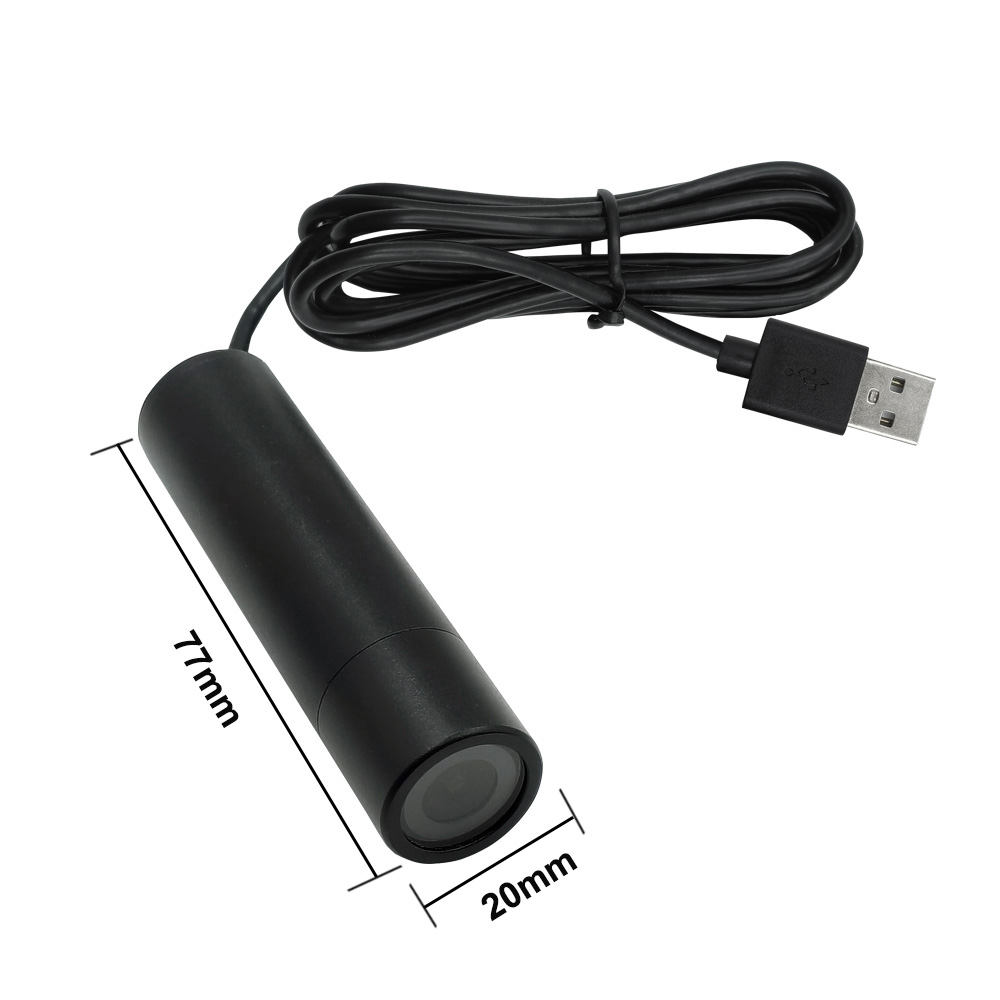

| Dimensions | 20mm x77mm |
| Model Number | HCU-BT202 |
| Lens | 3.6mm |
| FOV | 90° |
UVC compliance | Driverless |
| Interface | USB 2.0 High Speed |
| Support OS | Windows/Mac OS/Linux/Android |
Customization Options
We are well aware of the unique visual requirements of different applications and provide comprehensive OEM/ODM customization services to help you create differentiated products.
1. Lens customization: specific focal length, field of view angle, distortion control.
2. Customized casing: Design a dedicated casing, bracket, or fixing method based on the structure of your device.
3. Cable and Interface: Customize cable length and interface type.
4. Pixel customization: Different resolution and frame rate models are available.
Application Areas
Industrial equipment image acquisition, self-service terminal image recording, small embedded monitoring, equipment visual inspection, vehicle mounted auxiliary camera, teaching video recording, AI recognition development kit, internal visualization acquisition of equipment, and other scenarios.
Browse more models in our USB camera series to meet different installation and integration requirements.
