Product Specifications
| Specification | Detail |
|---|---|
| Sensor | 1/2.9″CMOS |
| Pixel | 2MP |
| Compression format | MJPG/YUV2 |
| Frame rate | 1920X1080@30fps |
| Audio | optional |
| Power frequency working voltage | DC 5V |

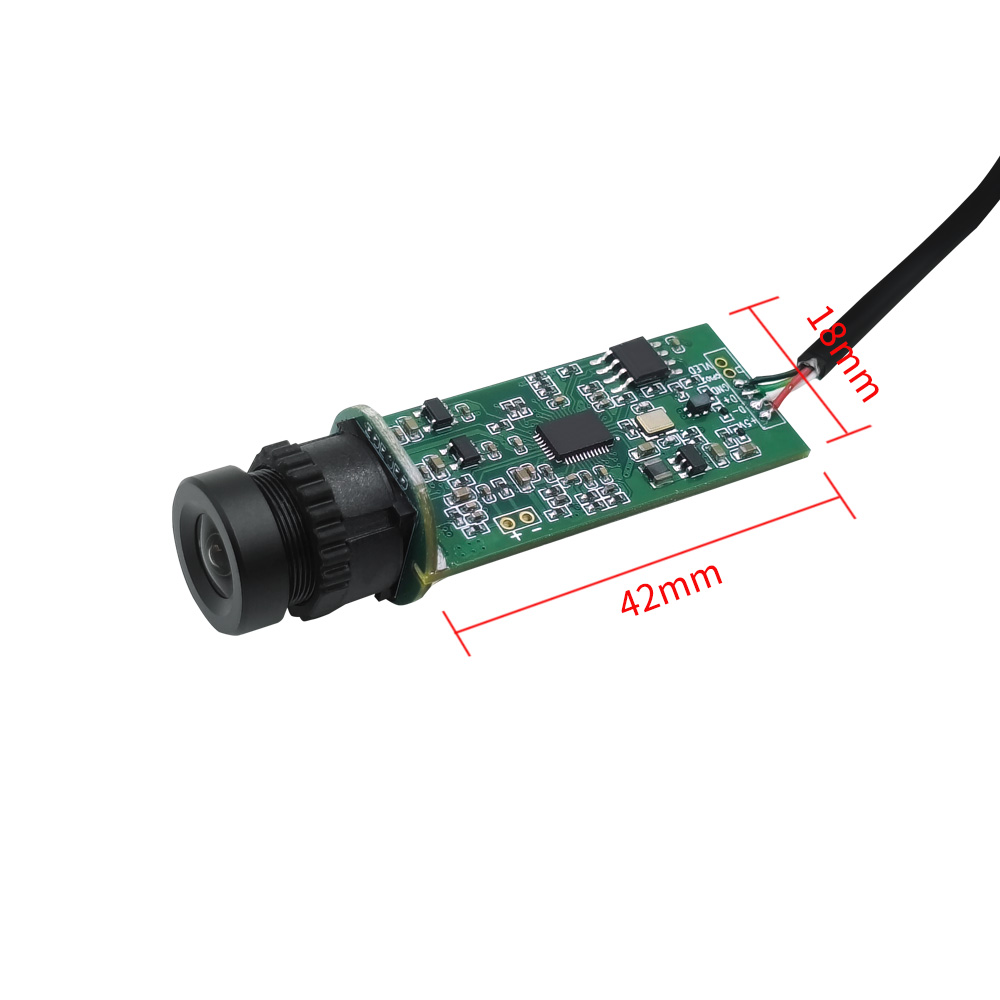

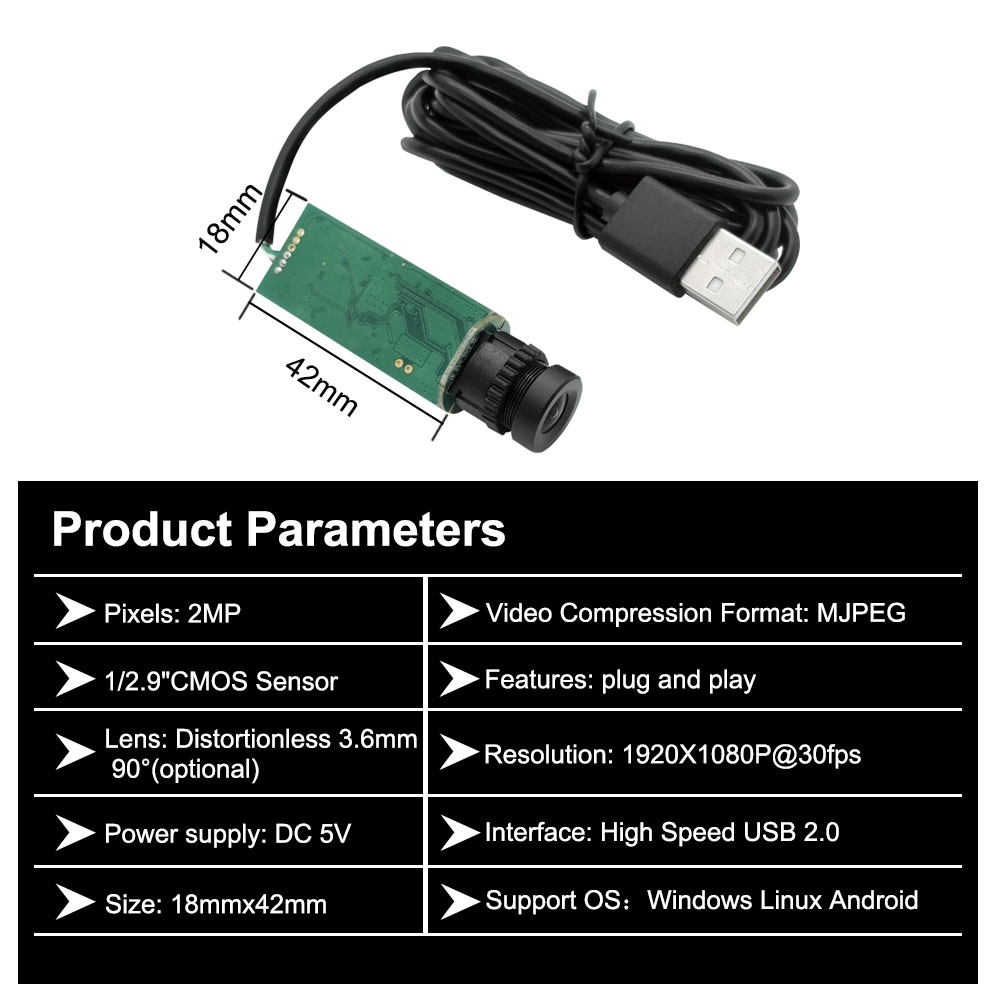

| Product size | 18mmx42mm |
| White balance | automatic |
| Working temperature | <70° |
| Power consumption | 0.25w |
| Model | HCU-C182 |

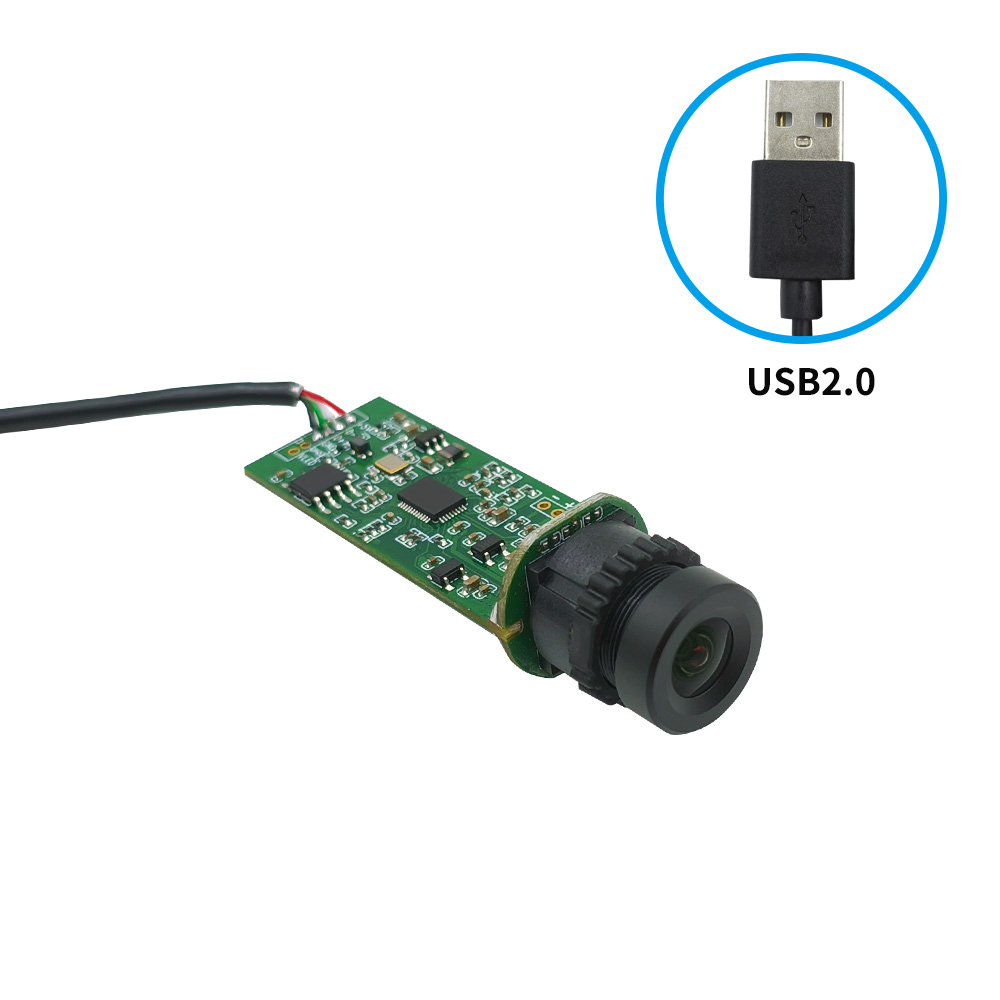

| Interface type | USB2.0 |
| Lens | E.F.L:3mm F.NO:2.2 MOD:0.2m Lens Distortion:-1.00% |
| FOV | 90° |

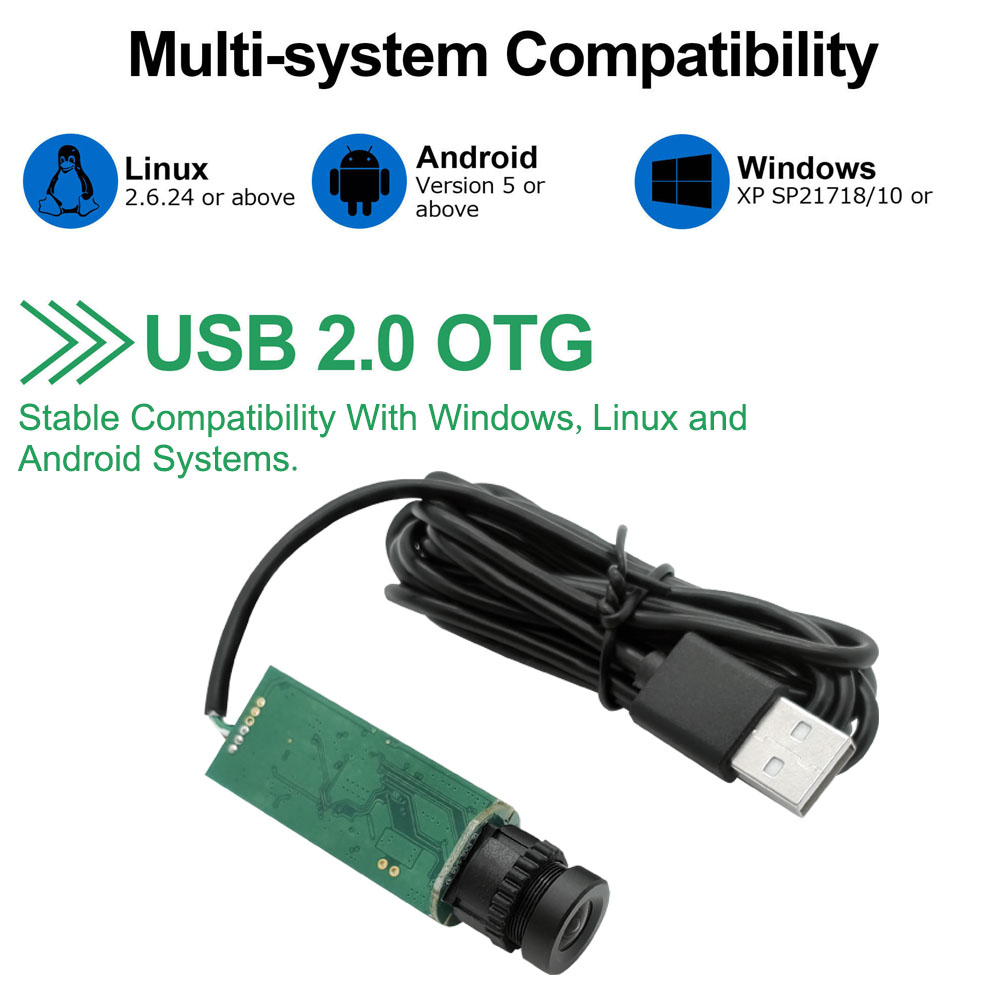

| Support OS | Windows/Mac OS/Linux/Android |
Core Functions

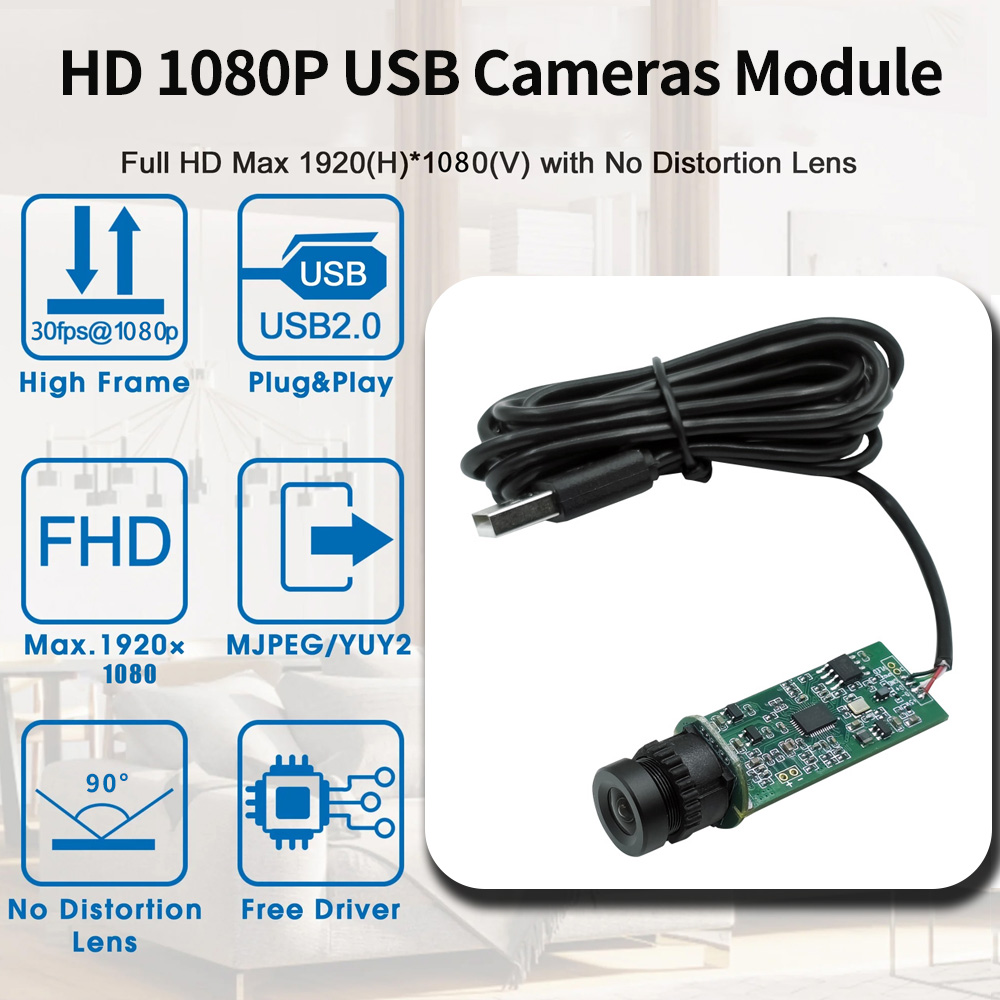

- High definition imaging: 2MP high-definition resolution 1920×1080@30fps High definition output provides exquisite image quality and accurately captures details.

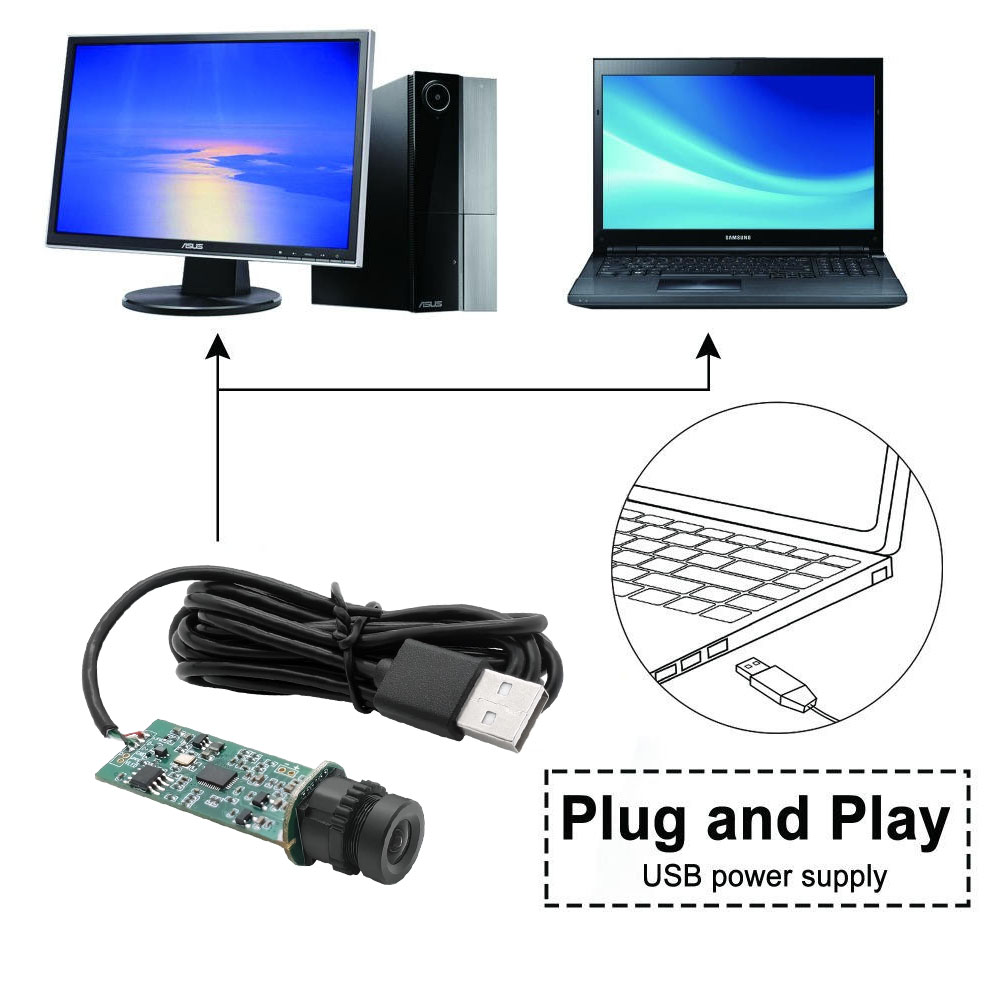

- Plug and play: USB interface plug and play (or optional Android, Type-C, OTG), compatible with operating systems (Windows, Mac, Linux, Android, etc.).
- Flexible lens options: Allow for the selection of different focal length lenses based on different working distances and field of view (FOV) requirements.
- Adjustable image parameters: Support adjusting exposure, white balance, gain, contrast, saturation and other parameters through software to adapt to complex lighting scenes.
Professional Customized Services
We are well aware of the unique visual requirements of different applications and provide comprehensive OEM/ODM customization services to help you create differentiated products.
Lens customization: specific focal length, field of view angle, distortion control.
Customized casing: Design a specialized casing, bracket, or fixing method based on the structure of the device.
Cable and Interface: Customize cable length and interface type.
Pixel customization: Provides different resolution and frame rate models (such as more sizes of 1MP, 3MP, 4MP, 5MP, 8MP, 12MP，16MP).
Camera Application Field
Industrial automation and machine vision, precision equipment status monitoring, security monitoring, embedded intelligent access control/attendance systems, miniaturized concealed monitoring equipment, vehicle mobile monitoring, smart home security, endoscope assisted imaging, laboratory equipment monitoring,small traffic monitoring equipment, intelligent retail terminals, drone/robot visual perception, education/conference system cameras, various embedded devices that require compact visual solutions, Advertising machine, all-in-one machine, intelligent electronic scale, automatic welding equipment, fire water gun, external law enforcement instrument, external camera for Android phone, computer camera, high-speed camera etc.
