Core advantages of the product
Extremely compact body, 15×15mm square shell, suitable for embedded installation in small spaces, suitable for device integration scenarios.
UVC drive free USB 2.0 interface, plug and play, compatible with multiple systems including Windows, Linux, and Android, without the need for additional drivers.
720P high-definition 30fps output, supports MJPEG/YUY2 video formats, optional lens angles, and can replace M12 lenses as needed.

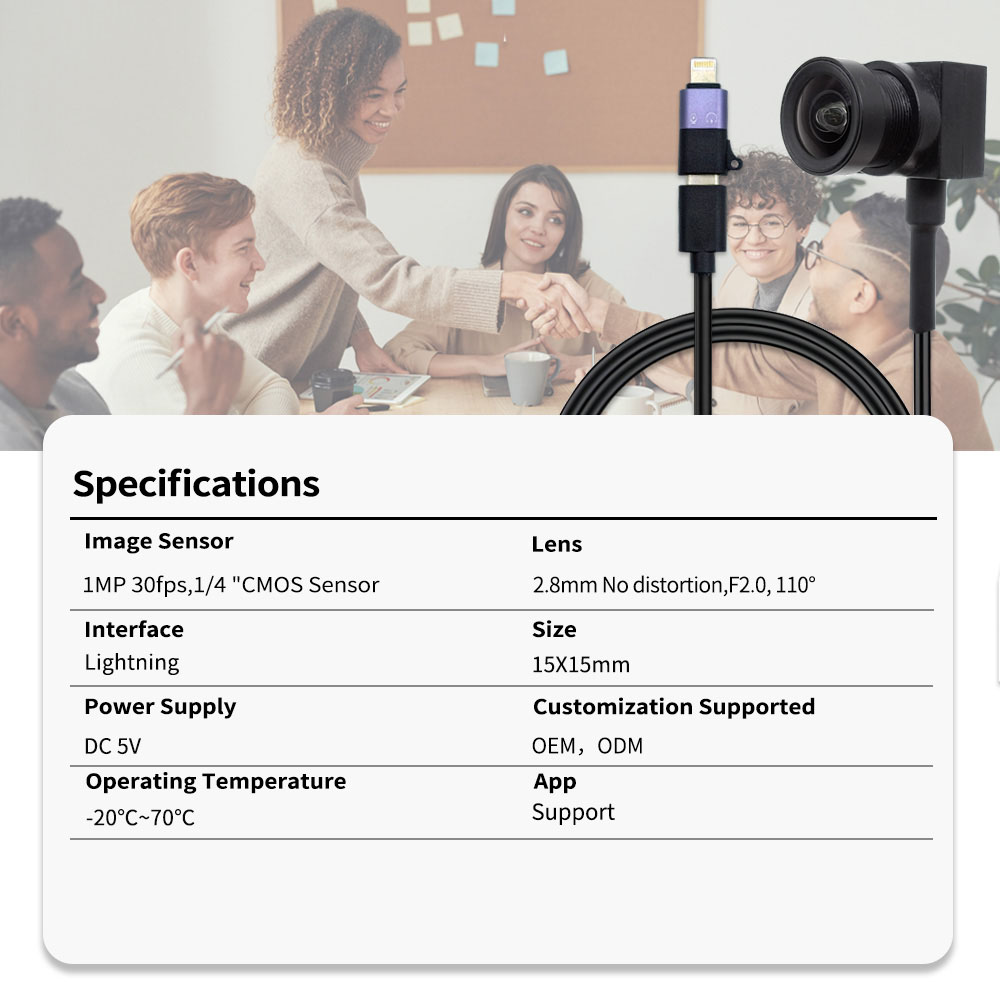

Specifications
| Sensor | 1/4″ CMOS Sensor |
|---|---|
| Pixel | 1MP |
| Compression format | MJPG/YUV2 |
| Frame rate | 1280×720@30fps |
| Power Supply | DC 5V |
| Size | 15mmx15mm |
| Model Number | HCT-151J28W-PG |
| Interface | Lightning |
| Lens | Distortionless 2.8mm |
| FOV | 110 Degree |
Special Features | Support UVC |
| Support OS | IOS/Android/Windows |
Customization Options
- Lens customization: specific focal length, field of view angle, distortion control.
- Customized casing: Design a dedicated casing, bracket, or fixing method based on the structure of your device.
- Cable and Interface: Customize cable length and interface type.
- Pixel customization: Different resolution and frame rate models are available.
Application Areas
Suitable for self-service terminal devices, smart cabinets, ATM devices, machine vision development, small security monitoring, IoT smart hardware, vending machines, access control auxiliary collection, embedded development kits, industrial equipment visual collection and other scenarios.
Browse more models in our USB camera series to meet different installation and integration requirements.
