Technical Specifications
| Sensor | 1/9″CMOS |
|---|---|
| Pixel | 0.3MP |
| Compression format | MJPG/YUV2 |
| Frame rate | 640X480@30fps |
| Audio | Not Supported |
| Power frequency working voltage | DC 5V |

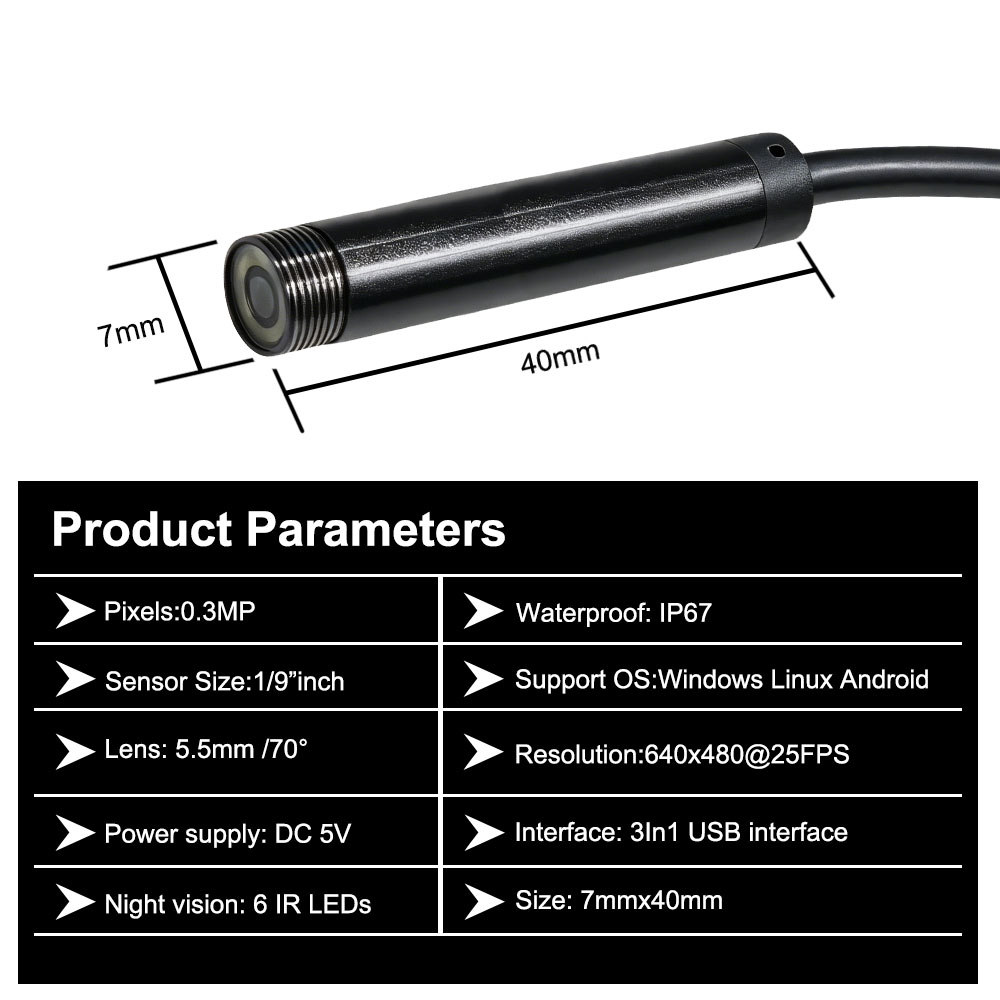

| Product size | Lens diameter 7.0mm, Length: 39.5mm |
| White balance | Automatic |
| Working temperature | <70° |
| Power consumption | 0.25w |
| Model | HCU-NKJ301 |

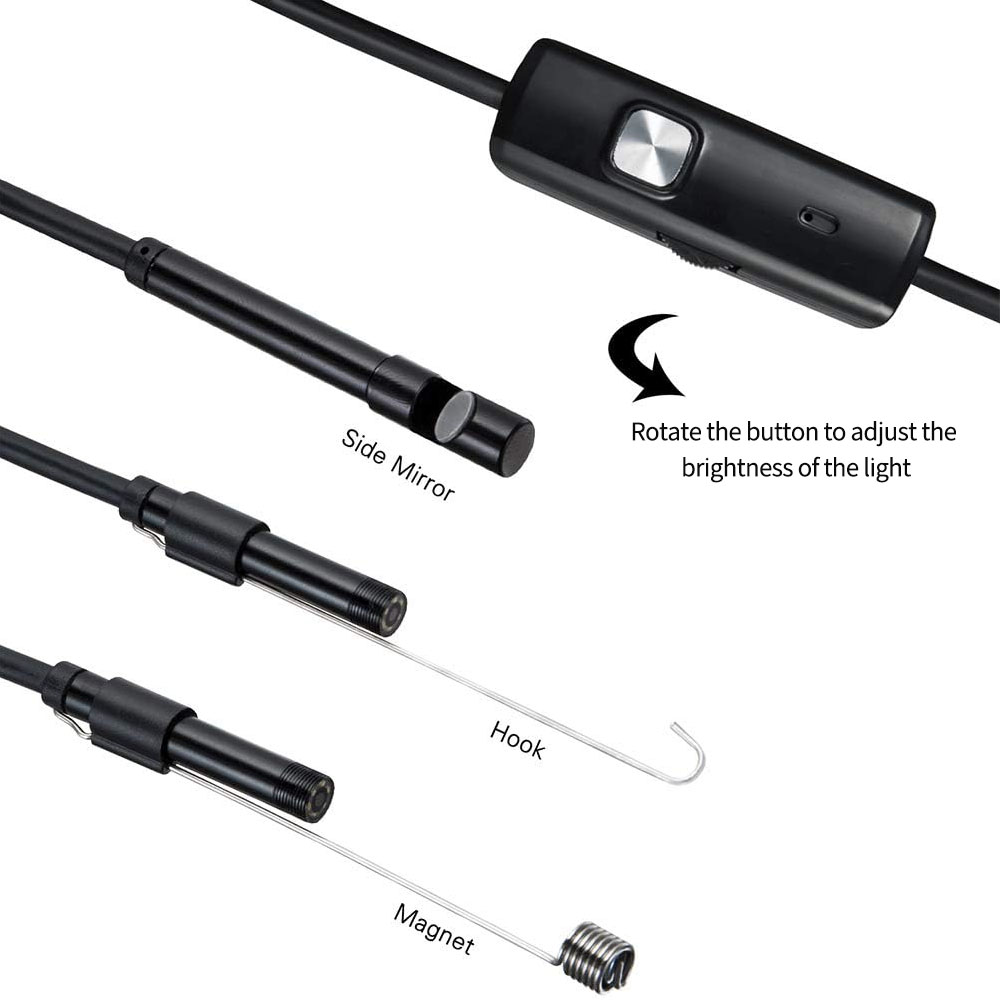

| Night Vision | Built-in 6 LED lights (with brightness adjustment) |

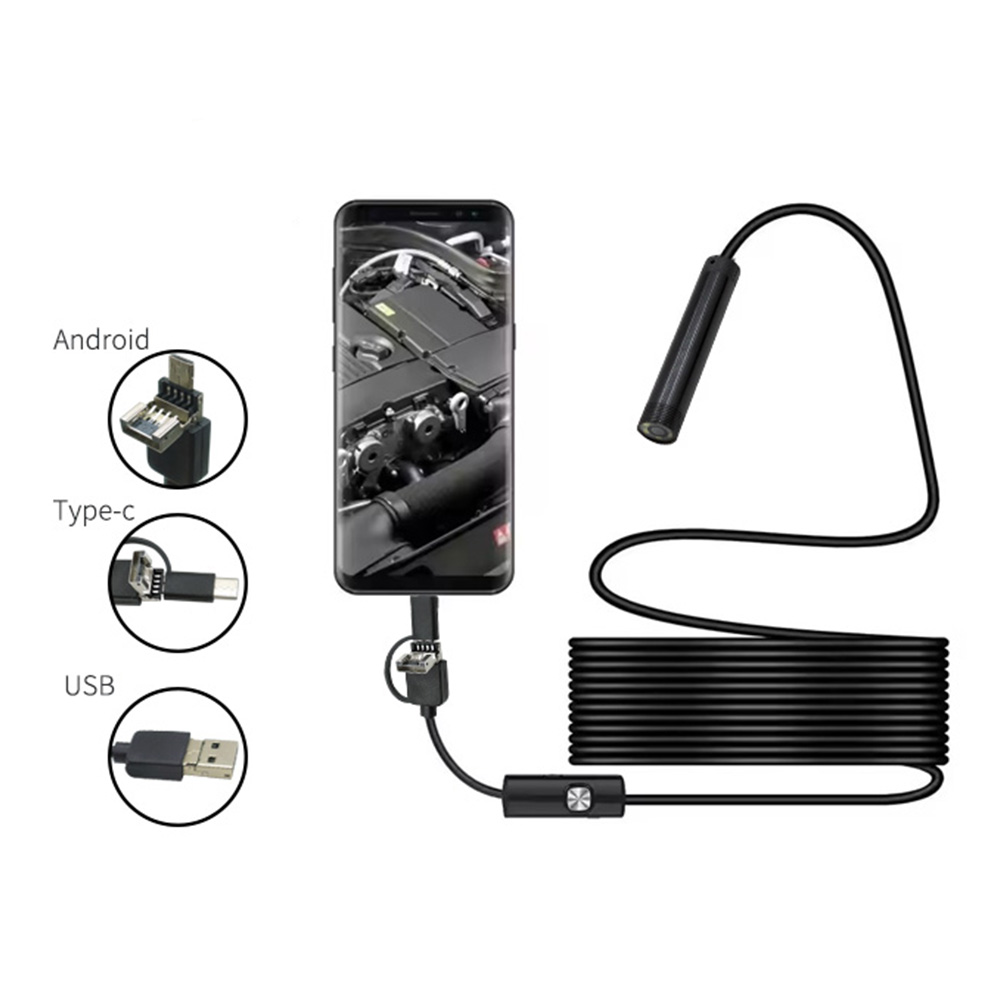

| Interface type | (Android, USB, Type-C) 3-in-1 |
| USB cable length | 1.2m (customizable) |
| Lens | F.NO: 2-10cm |
| FOV | 70° |
| Support OS | Win11 Vista/XP Win7/Win8/Win10 |
Core Features

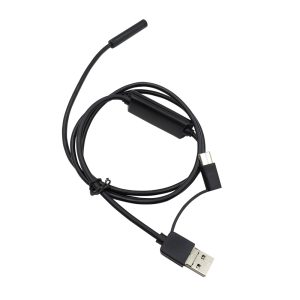

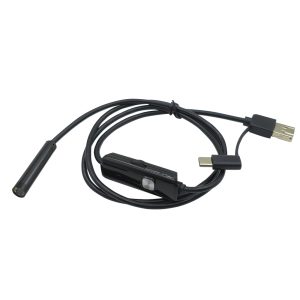

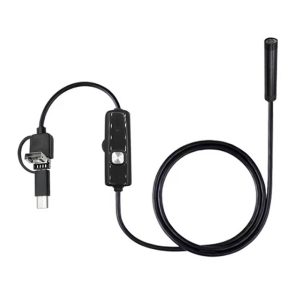

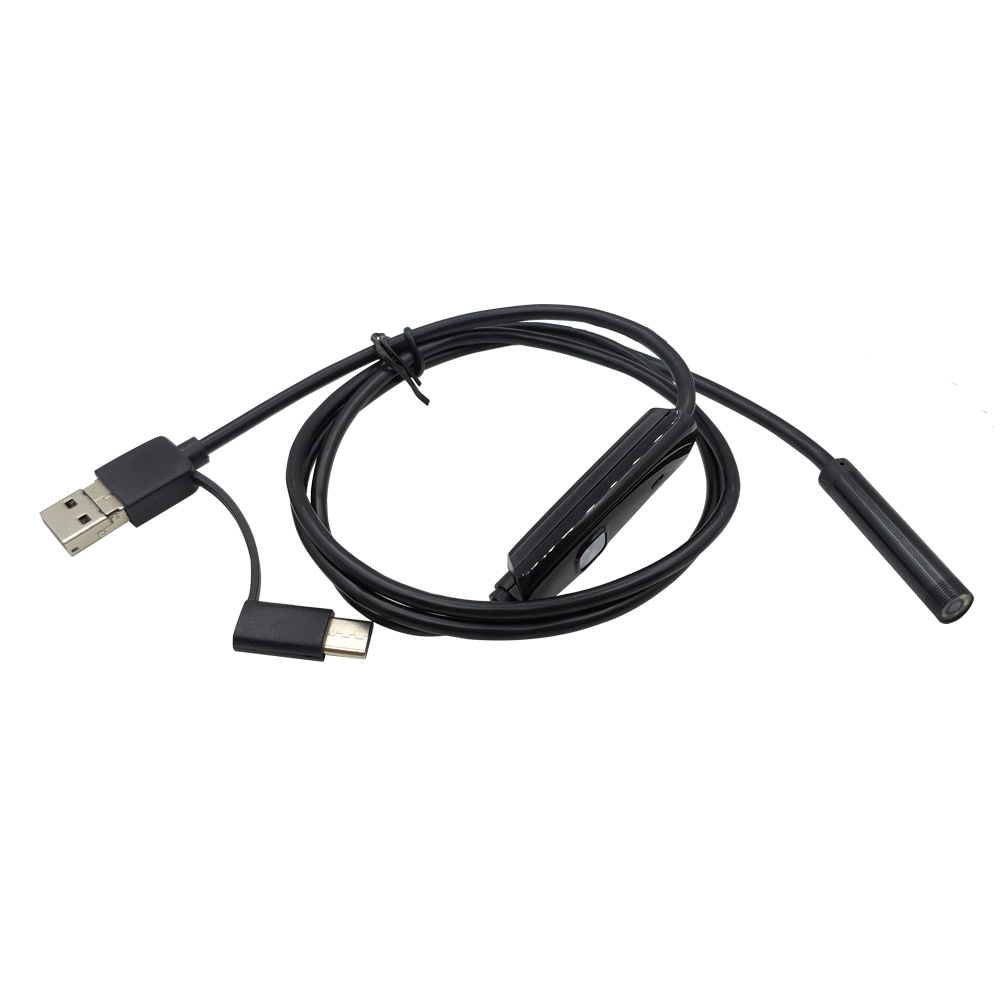

5.5mm Ultra-Thin Probe Design: The 5.5mm ultra-thin endoscope camera easily accesses narrow, winding, or deep spaces, making it ideal for pipe inspection, engine inspection, industrial machinery repair, and electrical cabinet inspection.
300,000 Pixels, Professional Diagnostic Choice: Provides clear, low-noise real-time video to meet professional-grade diagnostic needs. Engineers can quickly identify cracks, blockages, corrosion, leaks, and foreign objects.

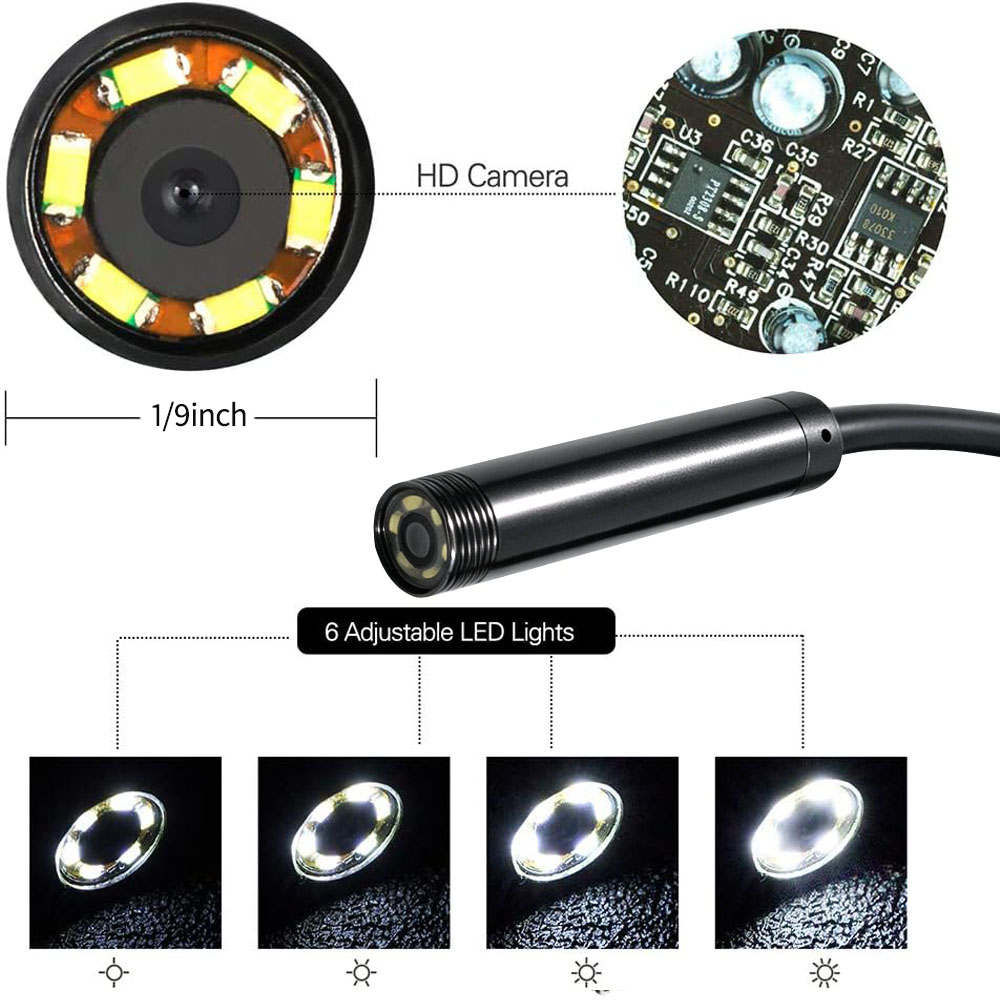

Built-in LED Illumination: Equipped with 6 adjustable LEDs, it ensures clear imaging even in dark environments such as pipes, ventilation systems, and underground maintenance points.

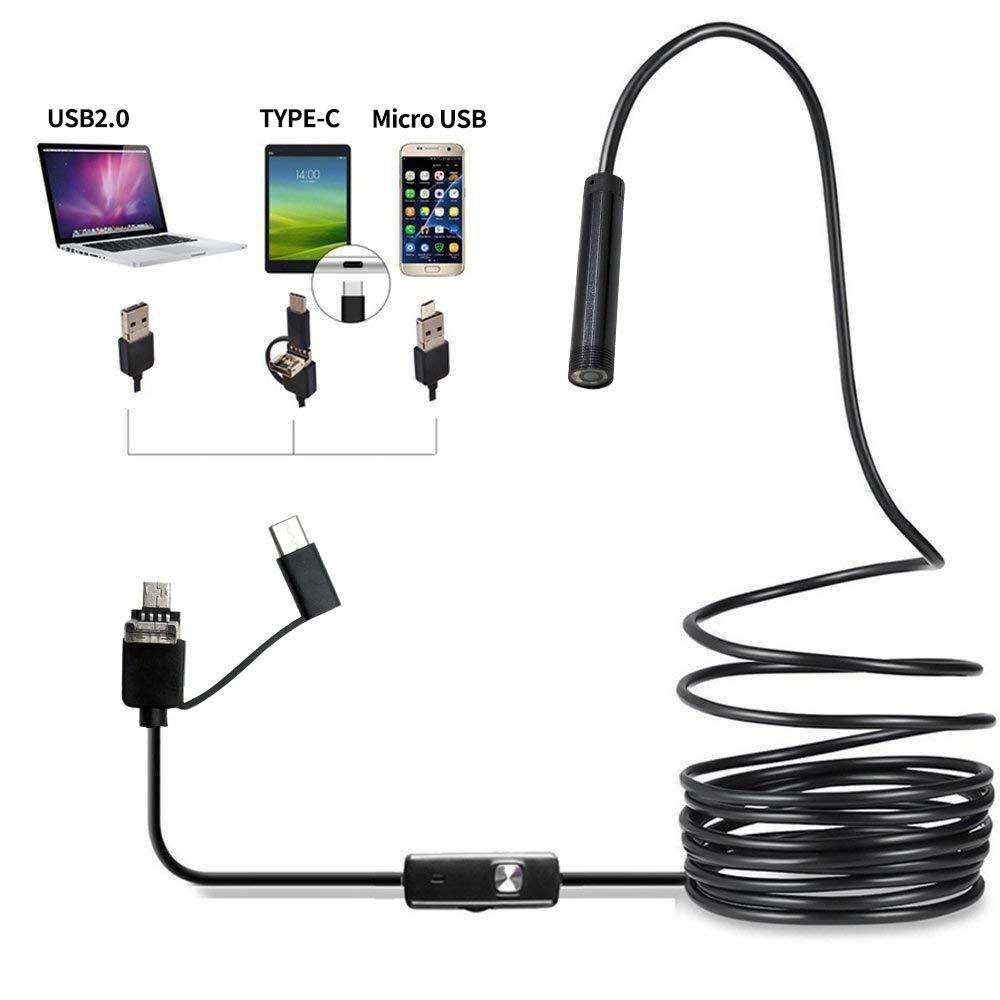

Three-in-One Universal Interface: Compatible with USB 2.0/USB-C/Micro-USB OTG
Multi-Software Compatibility: Supports mainstream inspection applications and viewing software under Windows systems, making it ideal for automotive repair shops, quality control departments, and field engineering teams.

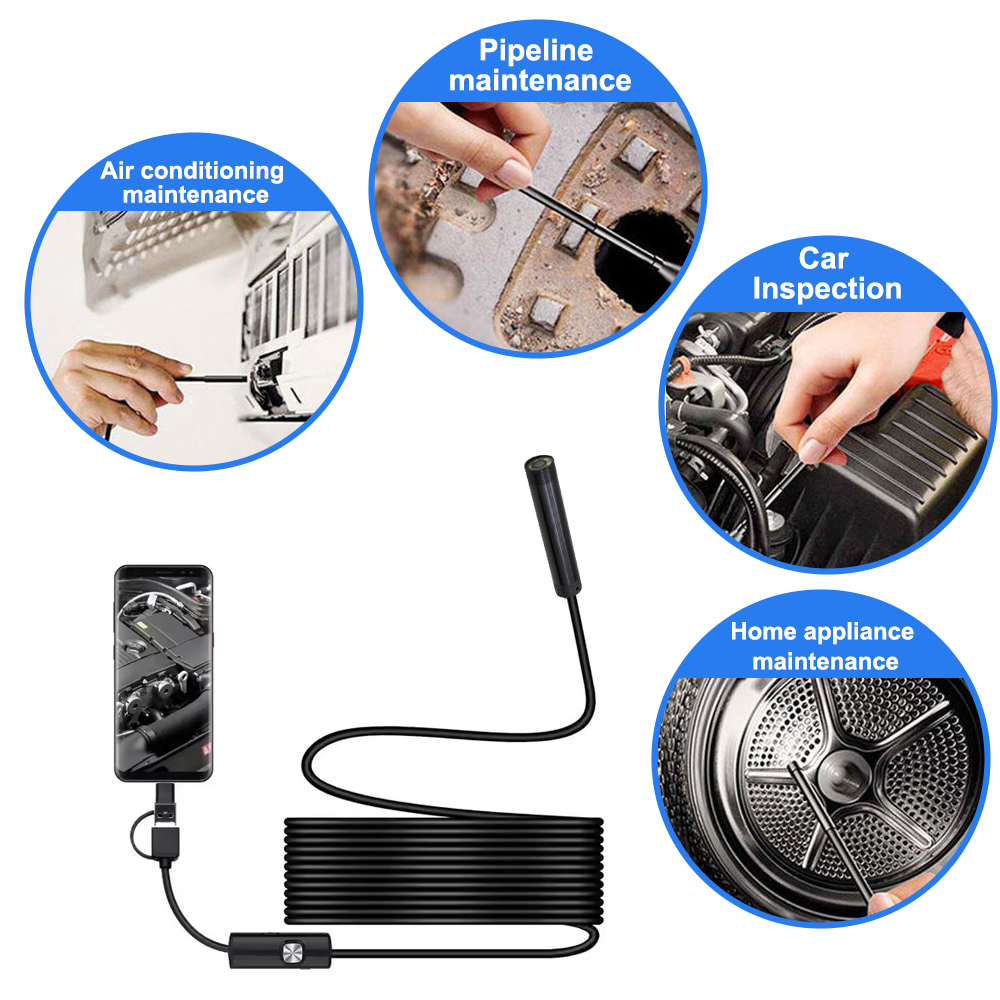

Application Fields
- Automotive/sewer inspection and search/rescue operations
- Aerospace, petroleum drilling, and wind turbine maintenance
- Engine endoscopic detection and pipeline corrosion inspection
- Gearbox wear analysis and welding seam examination
- Hydraulic valve inspection and air conditioning pipeline diagnostics
- Mold damage detection and industrial equipment maintenance
Customization Options
We are well aware of the unique visual requirements of different applications and provide comprehensive OEM/ODM customization services to help you create differentiated products.
1. Lens customization: specific focal length, field of view angle, distortion control.
2. Customized casing: Design a dedicated casing, bracket, or fixing method based on the structure of your device.
3. Cable and Interface: Customize cable length and interface type.
4. Pixel customization: Different resolution and frame rate models are available (such as higher pixel 4MP, 5MP, 8MP, 12MP，16MP).
