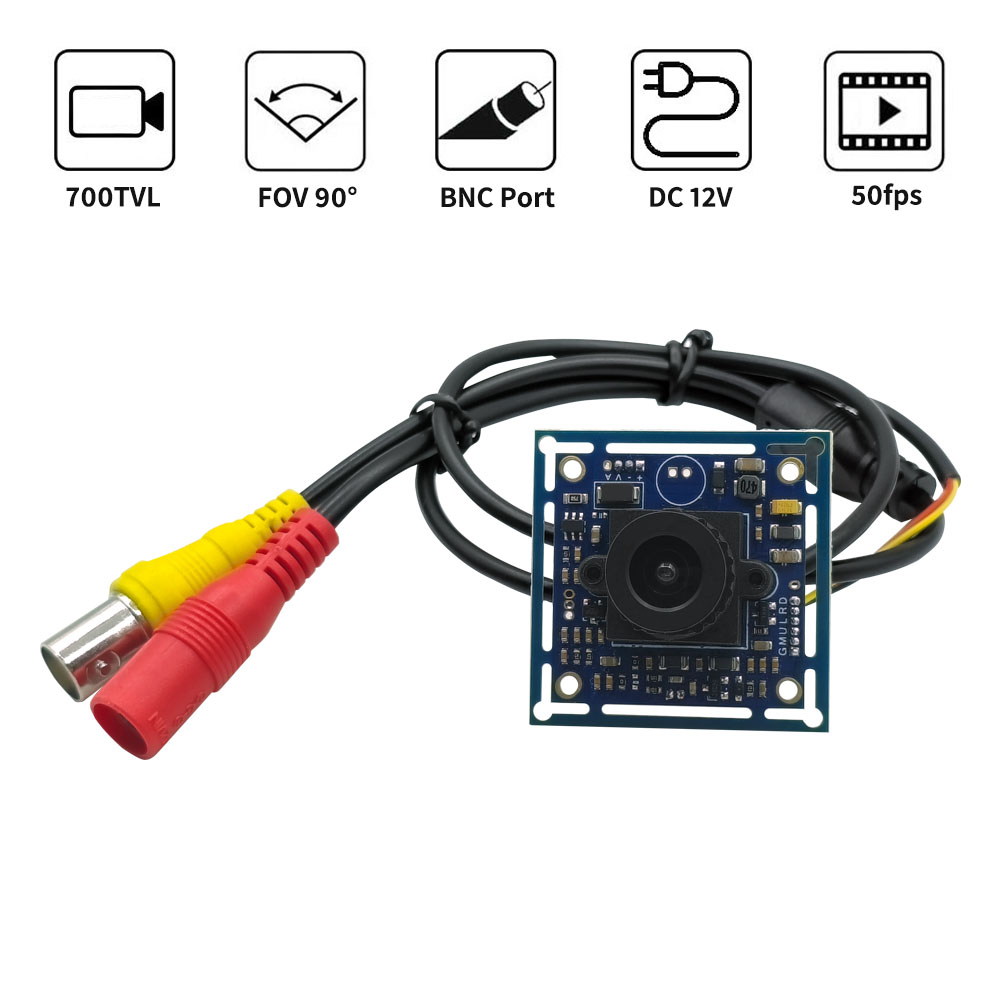

Key Features
- Compact Size – Easy Integration: 38×38mm mini-circuit board design perfectly adapts to space-constrained devices, reducing mechanical design complexity and accelerating product development.
- 700TVL High-Resolution Image Performance: Pure monochrome CCD imaging sensor generates high-contrast, high-detail images with accurate edge capture for defect detection, measurement, and optical inspection.
- Stable CCD Sensor for Industrial Vision: Superior signal-to-noise ratio, enhanced low-light performance, and better grayscale accuracy compared to common CMOS modules.

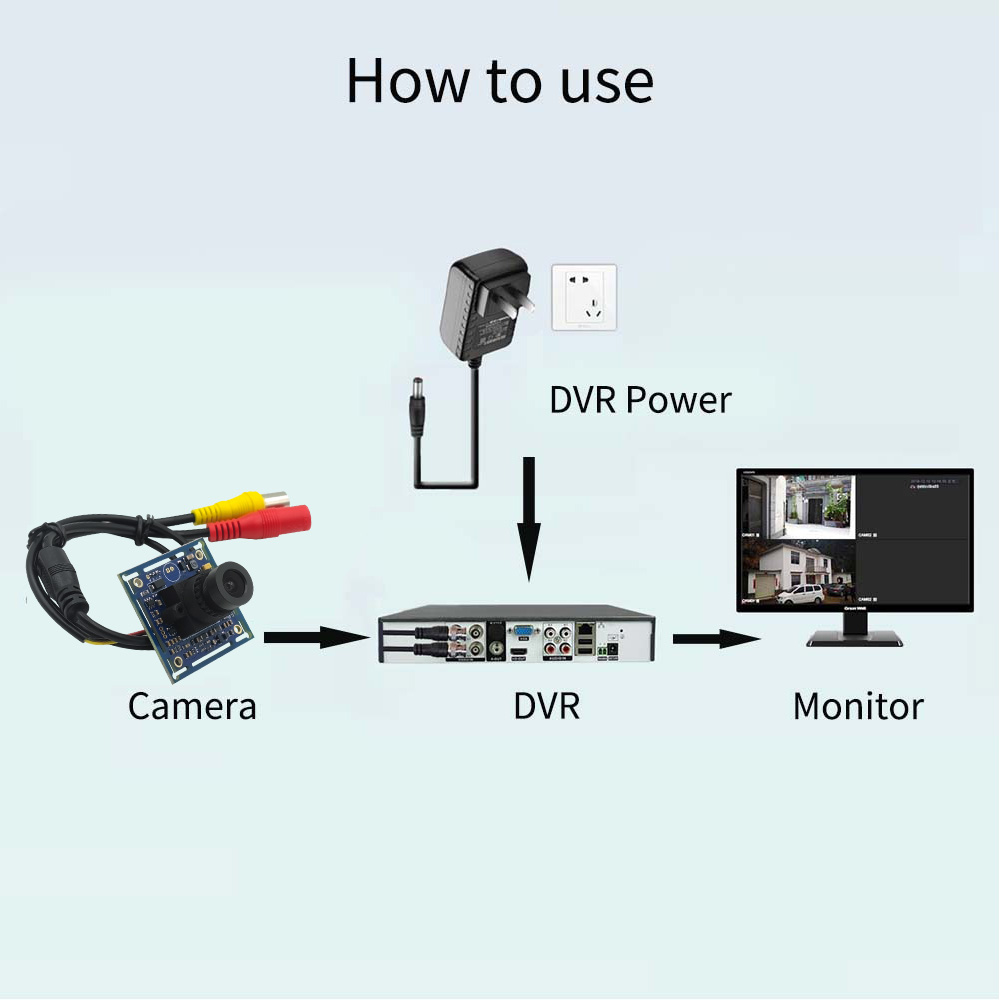

- Standard CVBS Analog Video Signal: Plug-and-play compatibility with existing industrial displays, DVR systems, and analog vision inspection equipment.
- Flexible Customization Options: Lens options, interface customization, cable and connector customization, firmware tuning, housing and stand design, logo and packaging customization, and long-term supply agreements.

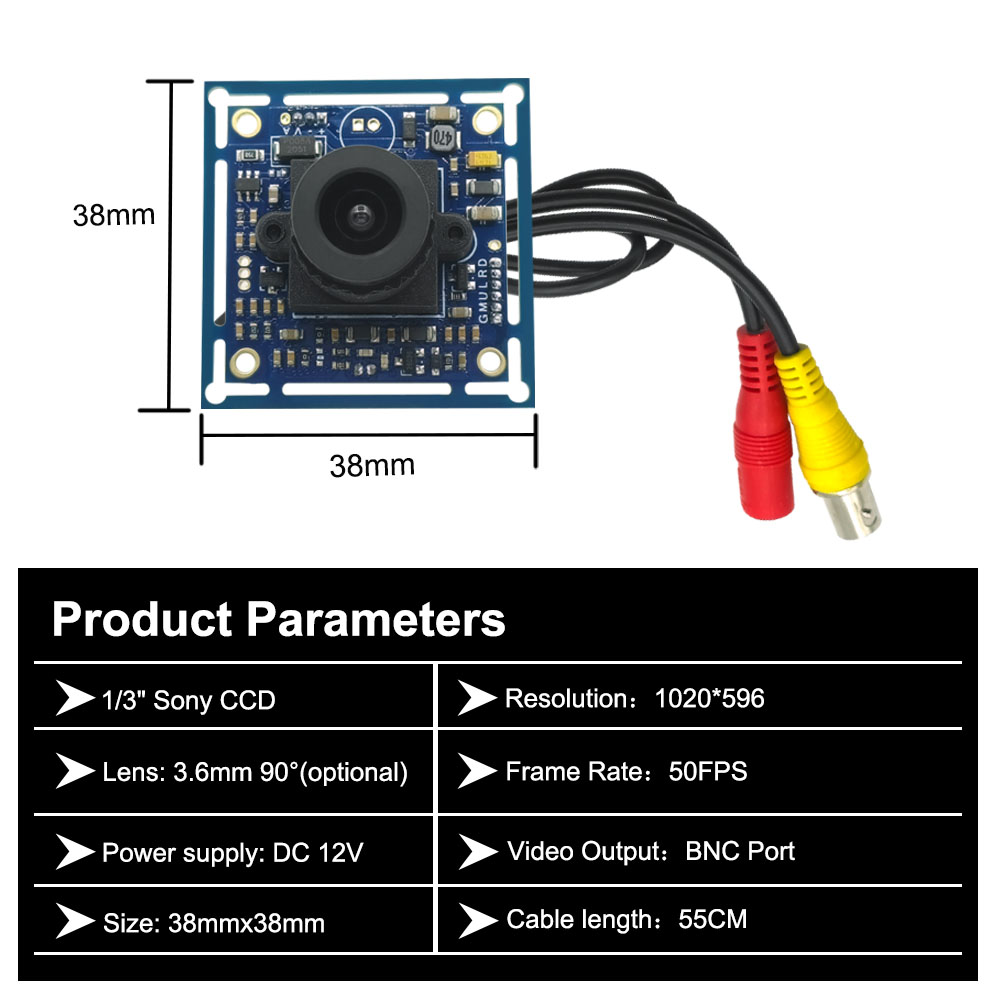

| Parameter | Value |
|---|---|
| Sensor | 1/3″ Sony CCD |
| Resolution | 0.6MP |
| Signal Type | CVBS |
| Frame Rate | 1020×596@50fps |
| Operating Voltage | DC 12v |

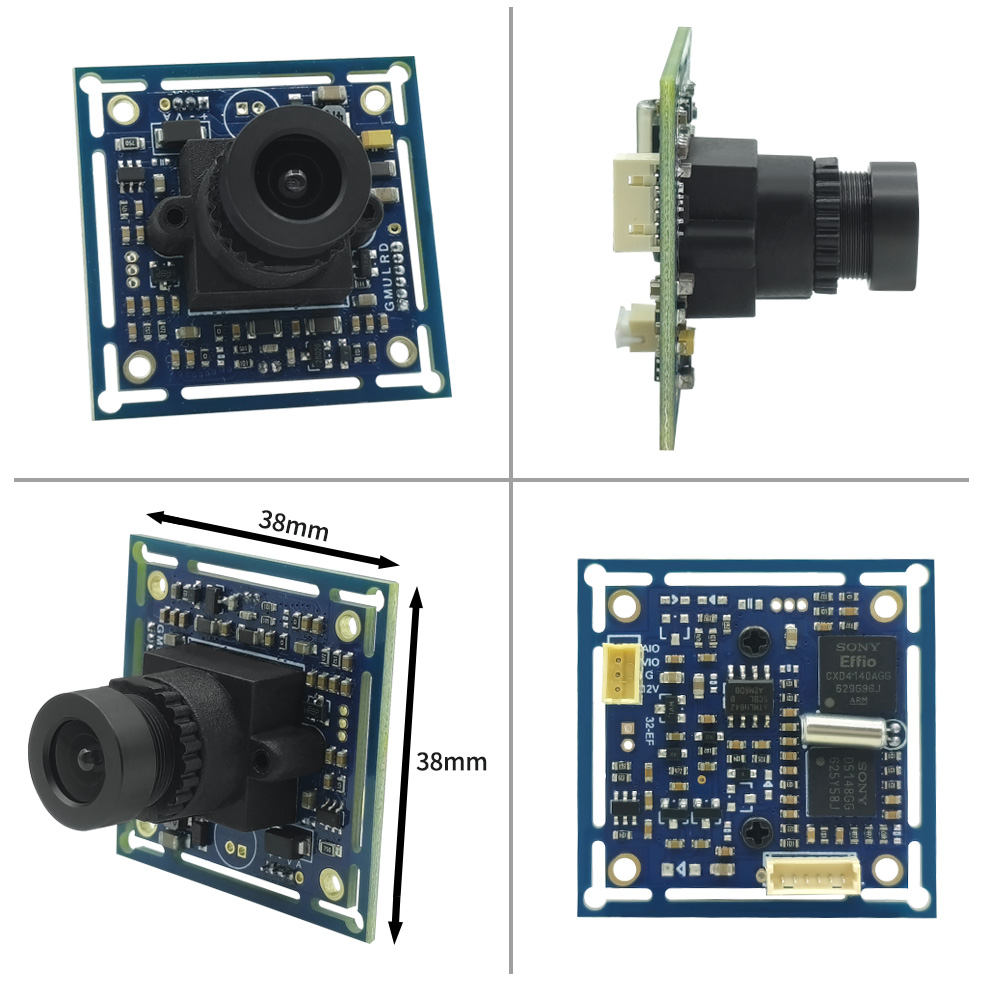

| Dimensions | 38mm×38mm |
| Operating Temperature | <70°C |

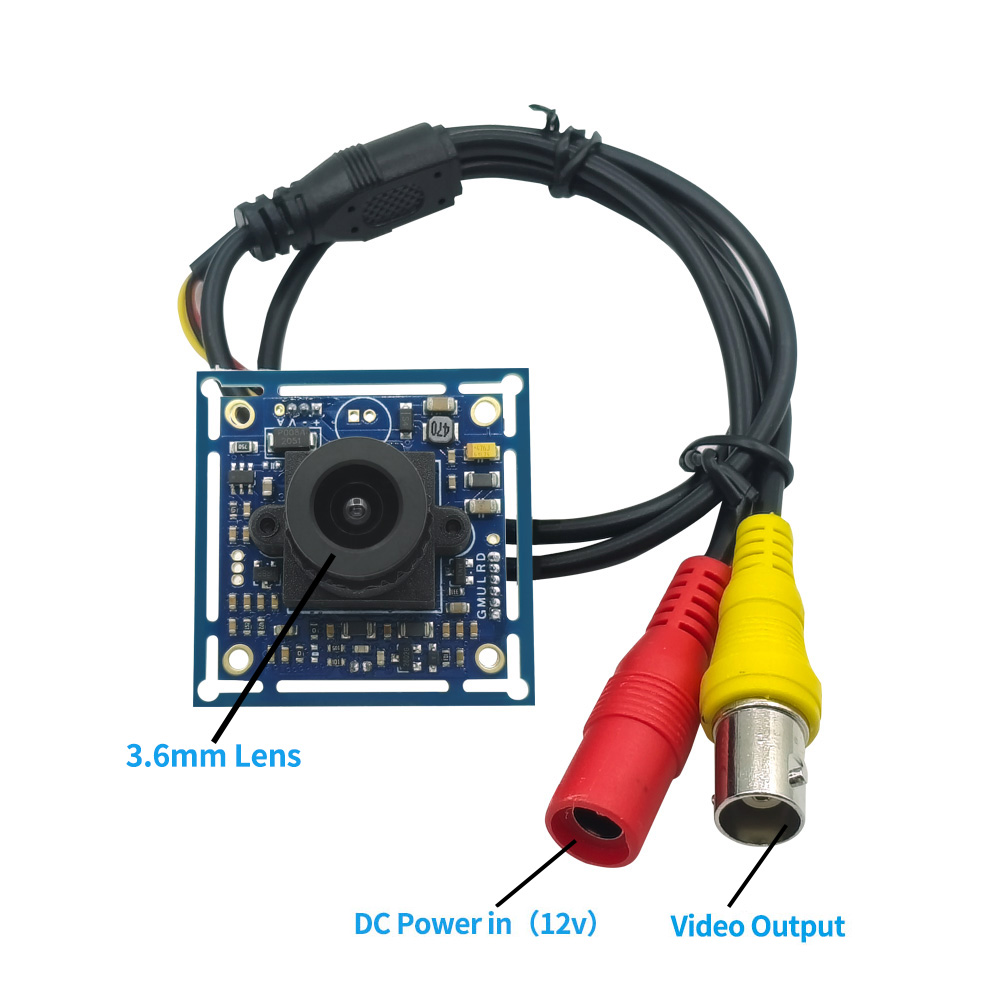

| Lens | 3.6mm |
| View Angle | 90 Degree |
| Video Output | BNC Port |
| Model Number | HCC-3806J36 |
Product Application Areas
- Security monitoring systems
- Closed-circuit television (CCTV) and DVR projects
- Access control systems and smart gates
- Smart vending machines and self-service terminals
- IoT devices and smart terminals
- Robot navigation systems
- Factory automation and inspection
Why Choose Our Camera Module?
We provide end-to-end imaging solutions for B2B clients requiring high reliability, rapid delivery, and technical support. Our optimized production lines ensure long-term stable supply, guaranteeing consistent quality for large-volume orders.
- Professional engineering team with deep expertise in machine vision
- Rapid response and efficient communication with tailored solutions
- Comprehensive customization from interface to functionality
- Large-scale production capabilities with OEM/ODM partners
- Mature supply chain and rigorous quality control
- Reliable supply chain and strong factory capabilities
- Rapid sample delivery
Explore more models in our Camera PCB Board series to meet different application needs.
