Technical Specifications
| Parameter | Specification |
|---|---|
| Sensor | 1/4″ |
| Resolution | 0.3MP(640×480) |
| Signal Type | CVBS |
| Frame Rate | 50fps |
| Power Supply | DC 3.3V |
| Power Consumption | 0.25W |
| Working Temperature | <70°C |
| Lens Specifications | 3mm effective length, F2.2, 95° diagonal angle |
| Interface | BNC |
| Standard | PAL/NTSC (Default PAL) |
Product functions and features
- High definition picture quality: 0.3MP, providing clear and sharp analog video images.

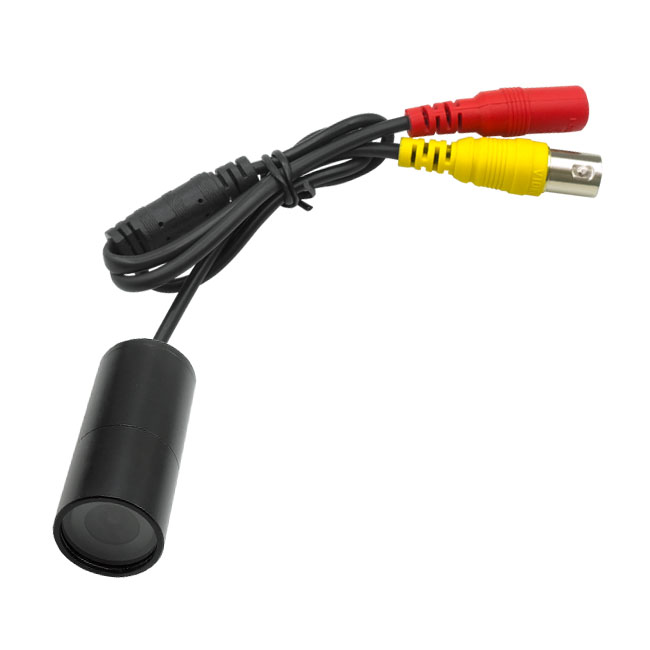

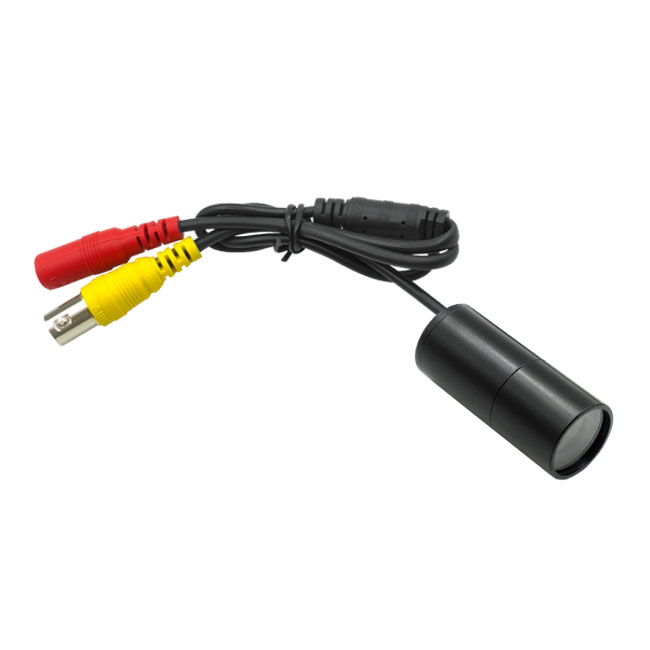

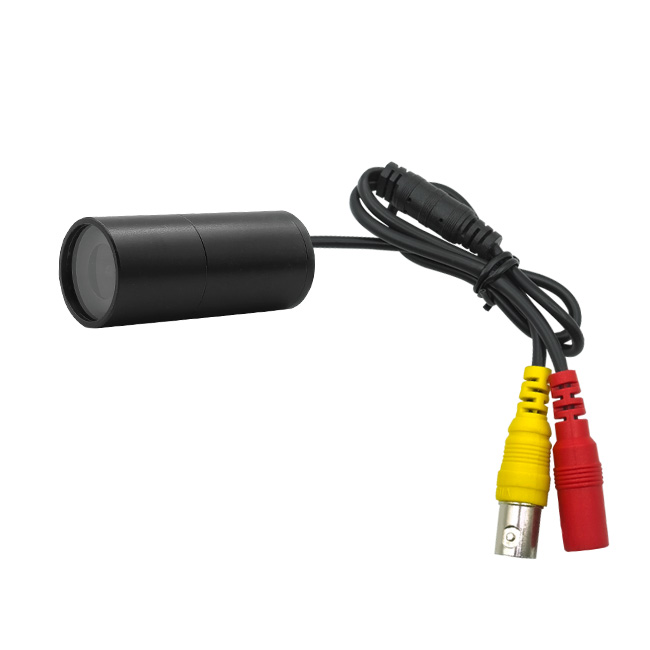

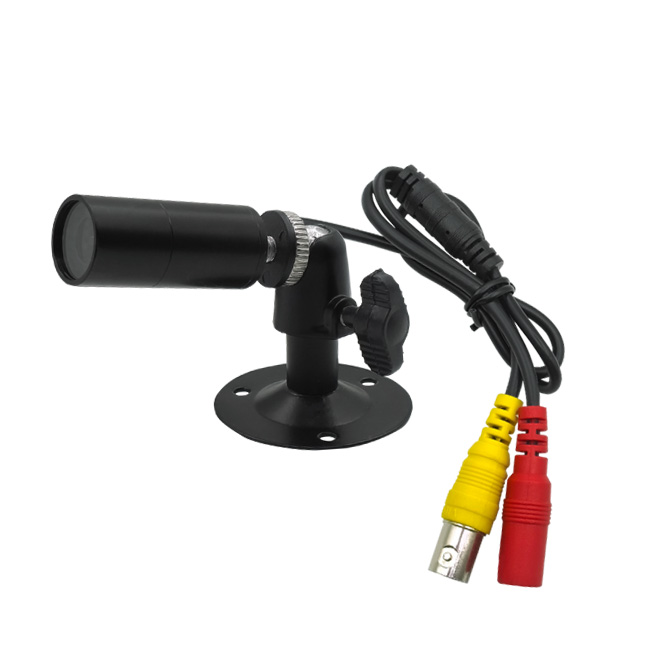

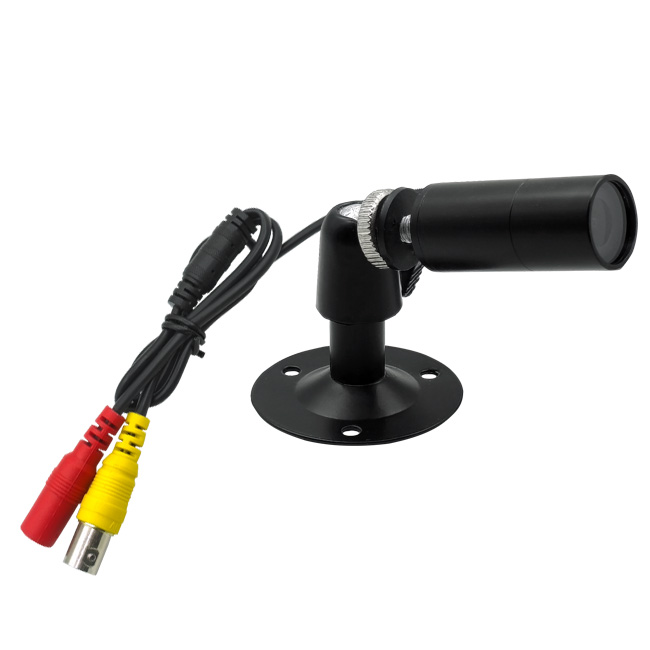

- Extremely compact body: 19mm diameter x 43mm length, concealed installation, no space occupation.
- Wide angle field of view monitoring: The 3.6mm lens provides a 95 ° field of view, with a wider coverage range.
- Standard BNC interface: compatible with traditional analog monitoring systems, stable and reliable connection.
Application Scenarios
Ideal for machine vision and equipment monitoring applications including:
- ATM and banking equipment
- Medical diagnostic systems
- Printers and vending machines
- Industrial automation (welding equipment, SMT machines)
- Security surveillance systems
- Flame monitoring in industrial boilers
- Robotics and automated systems
Customization Options
We are well aware of the unique visual requirements of different applications and provide comprehensive OEM/ODM customization services to help you create differentiated products.
- Lens customization: specific focal length, field of view angle, distortion control.
- Customized casing: Design a dedicated casing, bracket, or fixing method based on the structure of your device.
- Cable and Interface: Customize cable length and interface type.
- Pixel customization: Different resolution and frame rate models are available (such as higher pixel 4MP, 8MP, 12MP,16MP).
- Customized services: USB camera module, AHD camera module, CVBS camera module, wired network camera module, wireless wifi camera module, etc.
