Key FeaturesHigh definition imaging

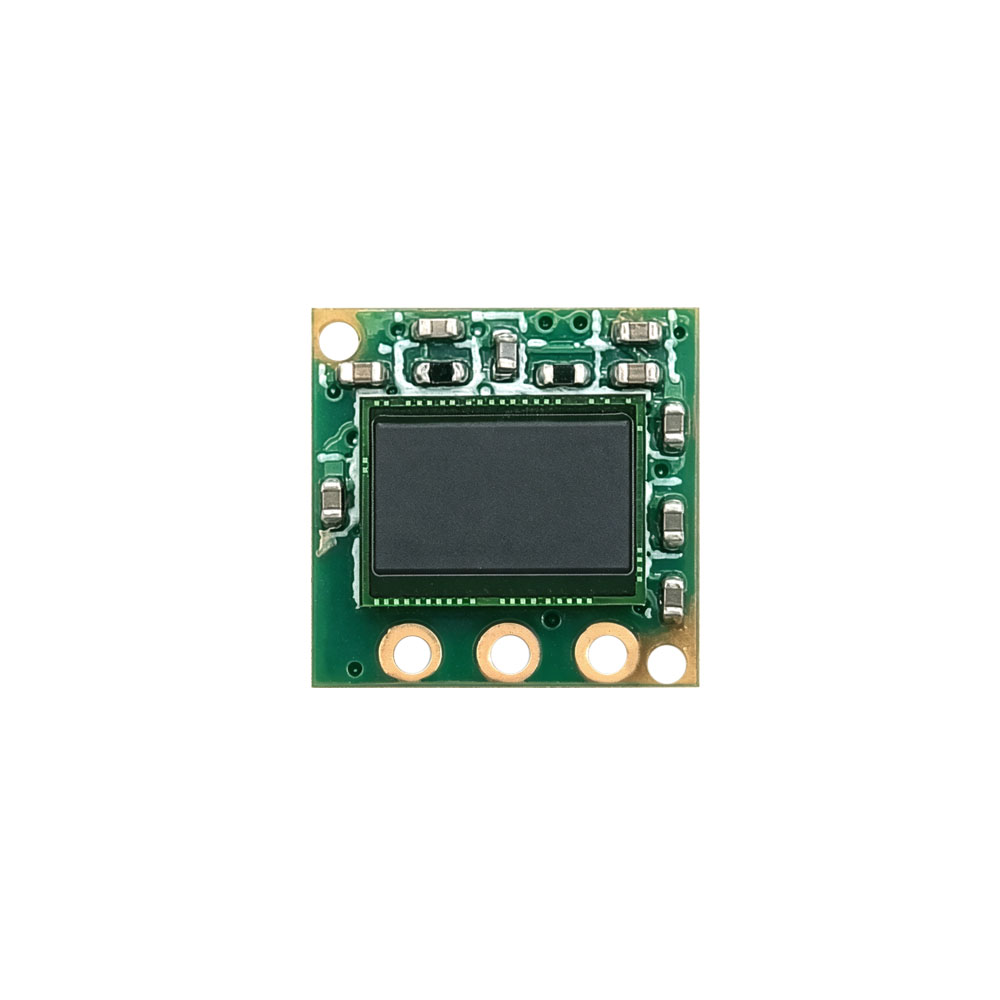

- Equipped with a 2MP CMOS sensor: supporting 1080P full HD resolution recording, providing clear and delicate image quality, ensuring rich picture details.

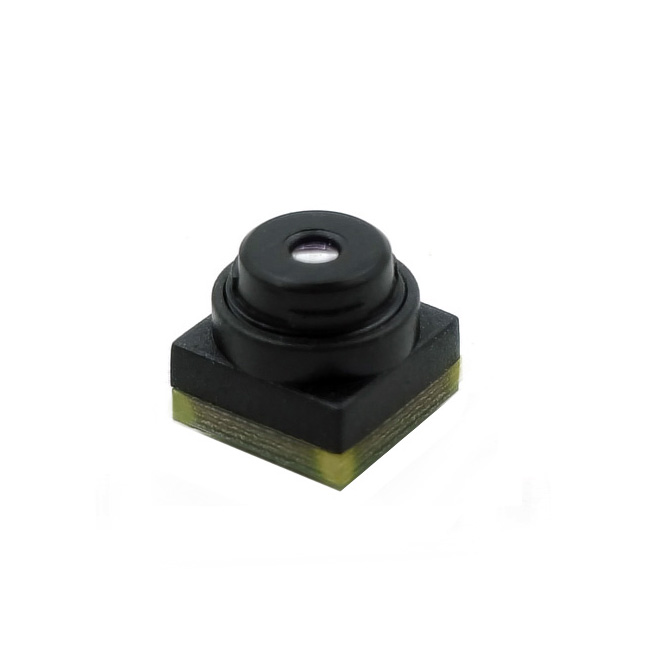

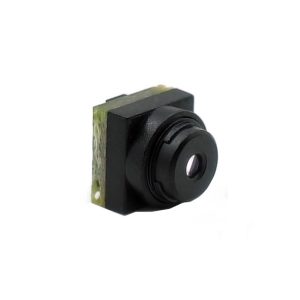

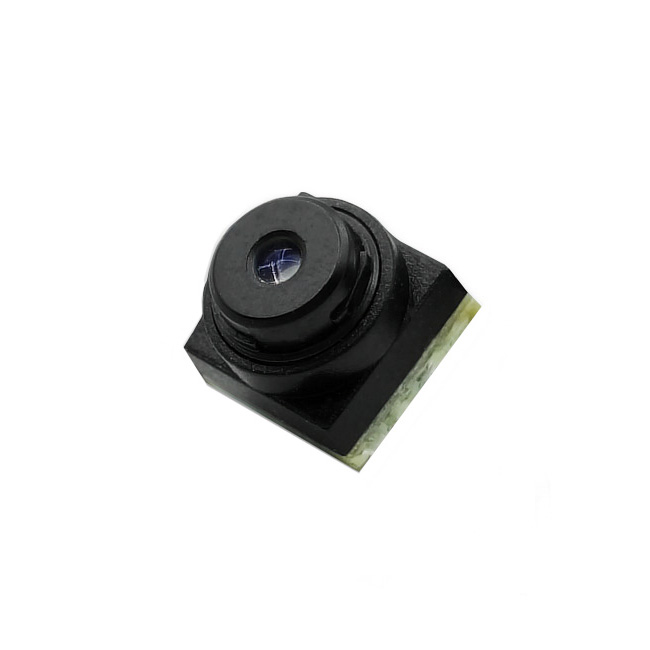

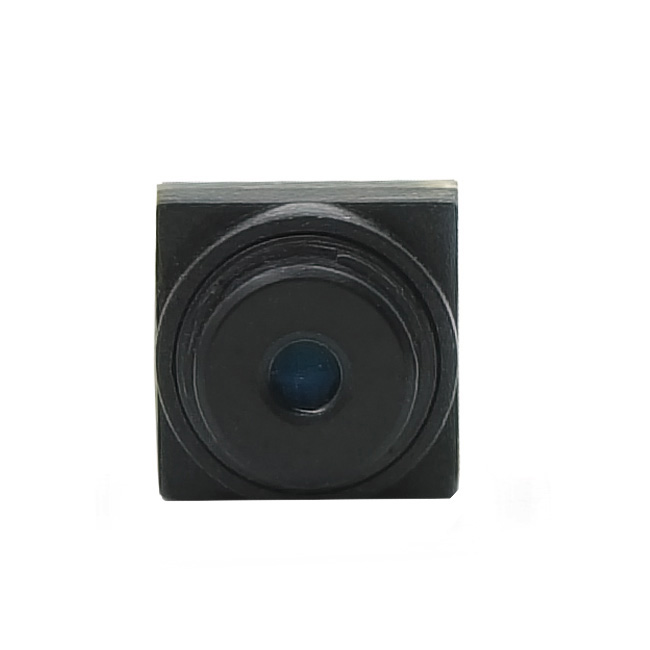

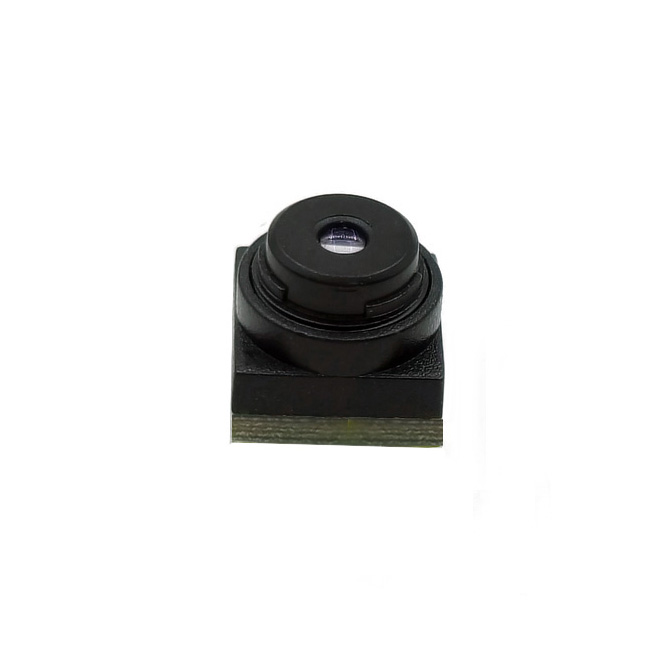

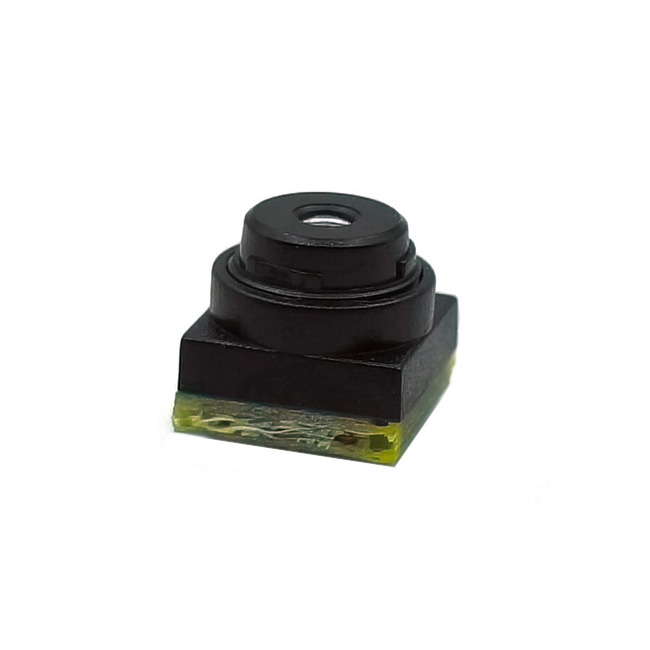

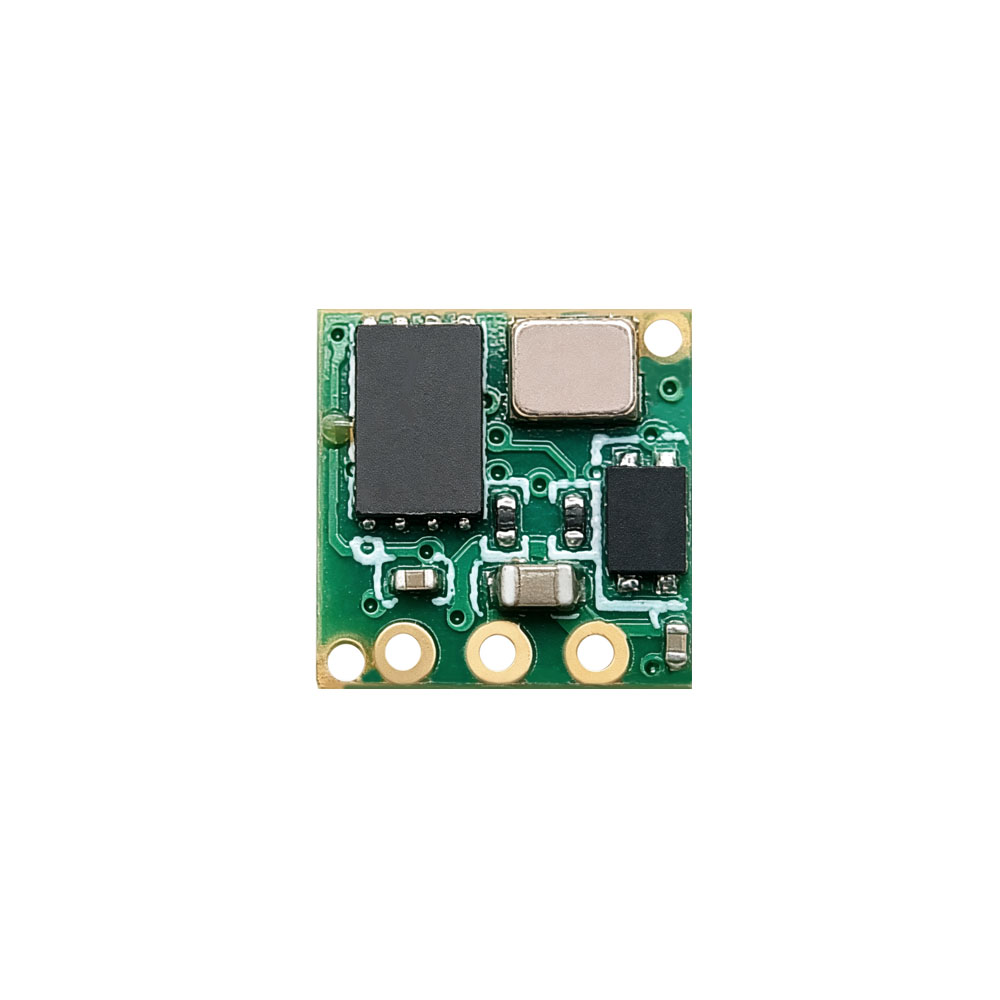

- Ultra mini volume: The ultra compact design of 6mmx6mm provides great flexibility for the internal structural design of the product, making it ideal for integration into devices with limited space.
- Low voltage power supply: using DC 3.3V power supply voltage, excellent power control, can effectively reduce the overall power consumption and heat generation of the system, extend the battery life of portable devices, and simplify power supply design.
- AHD analog high-definition output: Output AHD signals through BNC interface, supporting real-time and delay free video transmission.

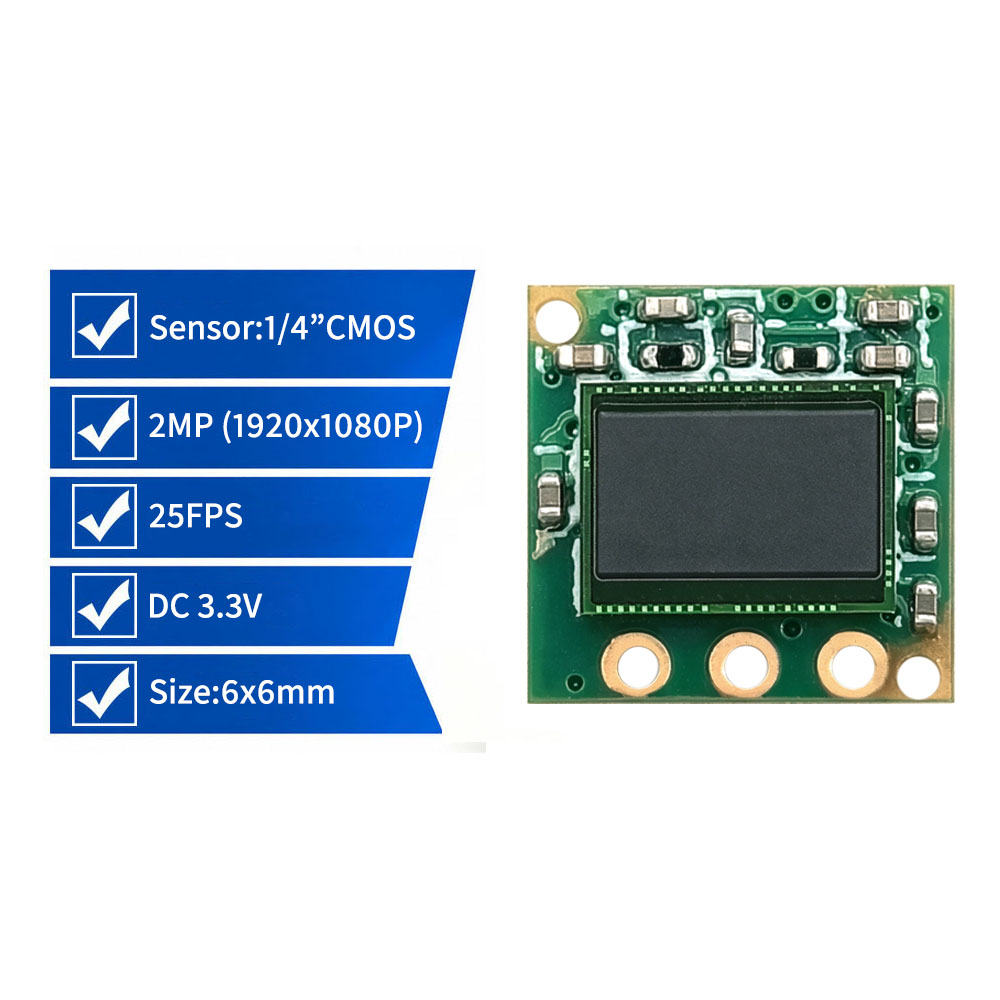

Technical Specifications
| Parameter | Value |
|---|---|
| Sensor | 1/4″CMOS |
| Pixel | 2MP |
| Signal | AHD |
| Frame rate | 1920×1080 25fps |
| Audio | Not supported |
| Operating voltage | DC 3.3v |

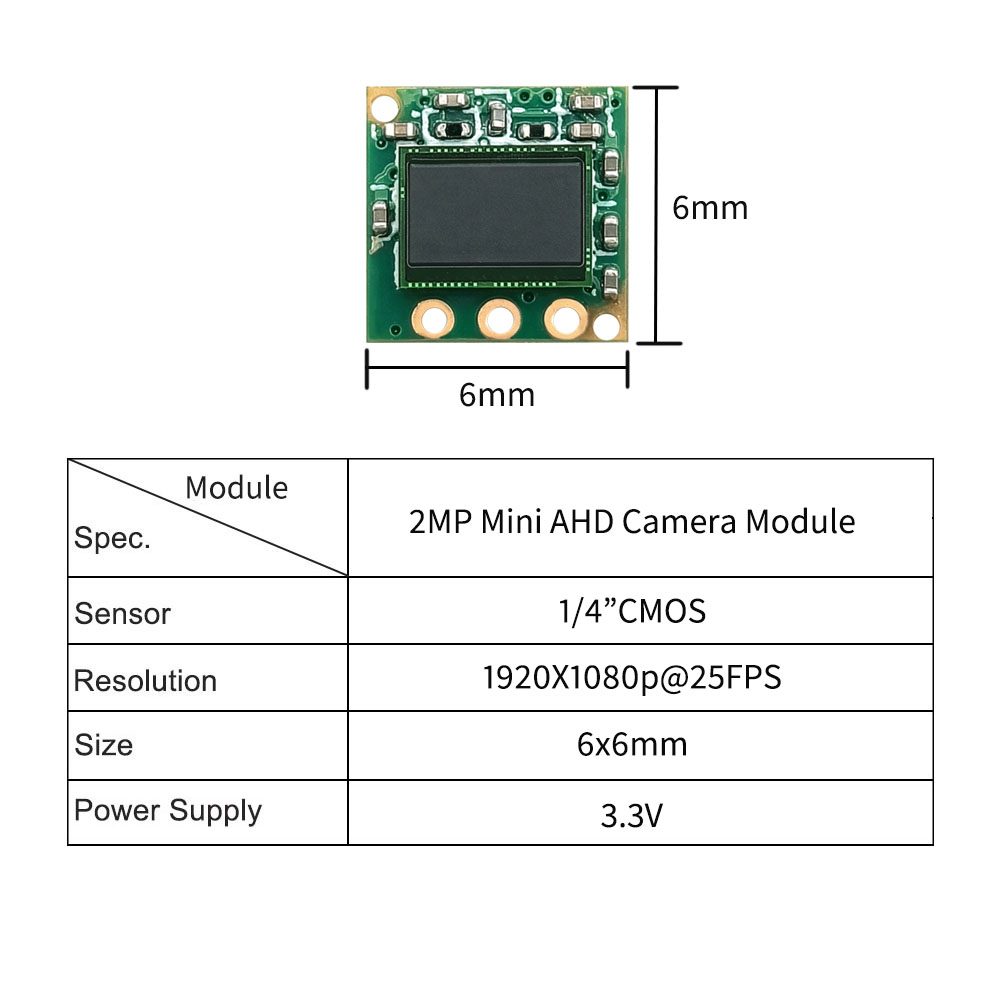

| Dimensions | 6mm×6mm |
| White balance | Automatic |
| Model No | HCA-P62 |
| Interface type | BNC |
| Lens | 3.3mm |
| FOV | 68° |
| Customization available | OEM, ODM |
| Aperture | F1.0 |
| Video Compression | MJPEG |
Applications
Ideal for various machine vision and equipment monitoring applications including: ATMs, banking systems, hospital equipment, printers, vending machines, digital signage, robotics, industrial automation, welding equipment, fire monitoring systems, law enforcement devices, external cameras for mobile devices, security surveillance, industrial flame monitoring, and biometric systems.
Customization Options
We are well aware of the unique visual requirements of different applications and provide comprehensive OEM/ODM customization services to help you create differentiated products.
1. Lens customization: specific focal length, field of view angle, distortion control.
2. Customized casing: Design a dedicated casing, bracket, or fixing method based on the structure of your device.
3. Cable and Interface: Customize cable length and interface type.
4. Pixel customization: Different resolution and frame rate models are available.
Explore more models in our Camera PCB Board series to meet different application needs.
