| Sensor | 1/2.8″CMOS |
|---|---|
| Pixel | 4MP |
| Compression format | H.264/H.265 |
| Frame rate | 2560×1440 25fps |
| Audio | Not supported |
| Dimensions | 30mmx77mm (Base not included) |
| Operating temperature | <70°C |
| Power consumption | 0.25w |
| Night vision | Infrared |
| FOV | 90° |
| Model No | HCU-BTYS304 |
| Interface type | POE |
| Night vision | 10Pcs 940nm IR Leds |
| Power Supply | POE 48V |
| Waterproof | IP65 Water-proof |
Ultra-clear 4MP image quality: Equipped with a 4MP high-definition sensor, outputting a resolution of up to 2560×1440 (2K), offering image quality far exceeding traditional 1080P cameras.
Supports PoE (Power over Ethernet) standard: Supports PoE IP Security Cameras with a single power supply, simplifying cabling and enabling simultaneous network data transmission and power supply.

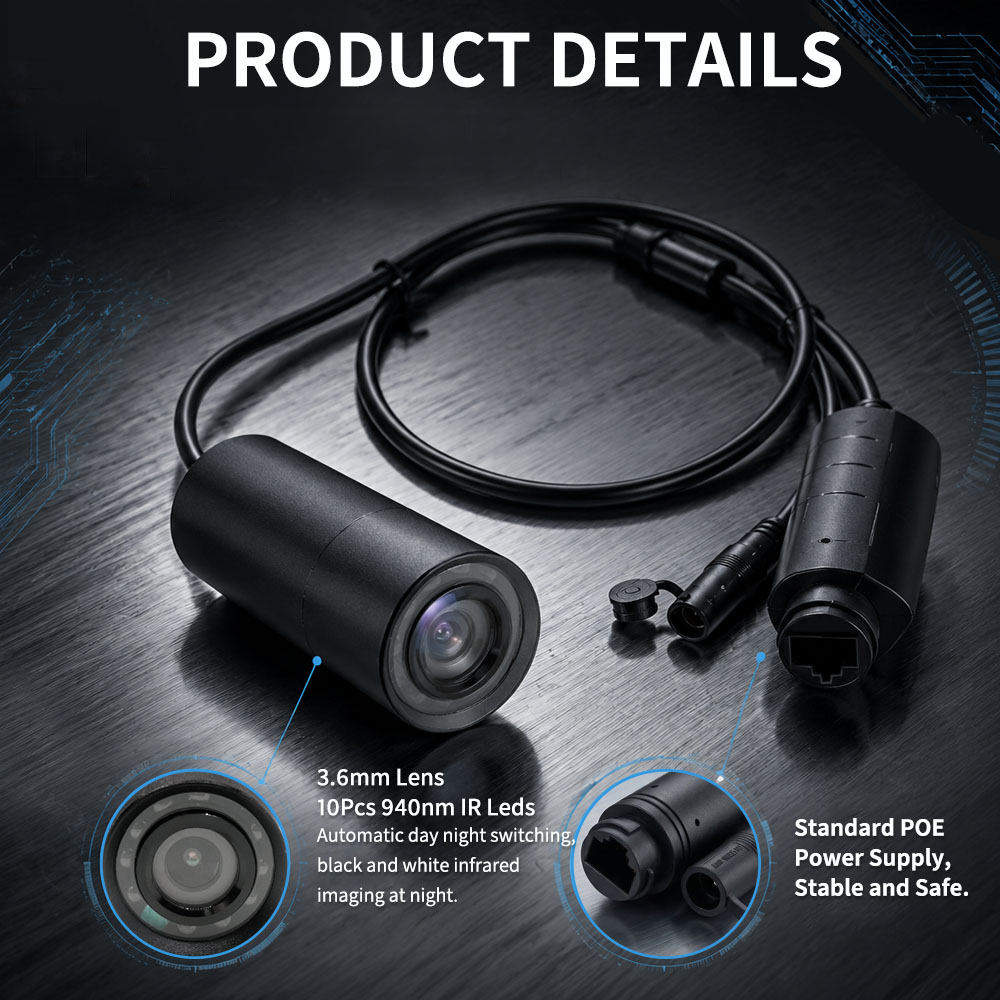

High-efficiency infrared night vision, all-weather protection: Equipped with 10 high-quality infrared LEDs and a high-sensitivity chip, it automatically switches to black-and-white night vision mode in low-light or complete darkness.

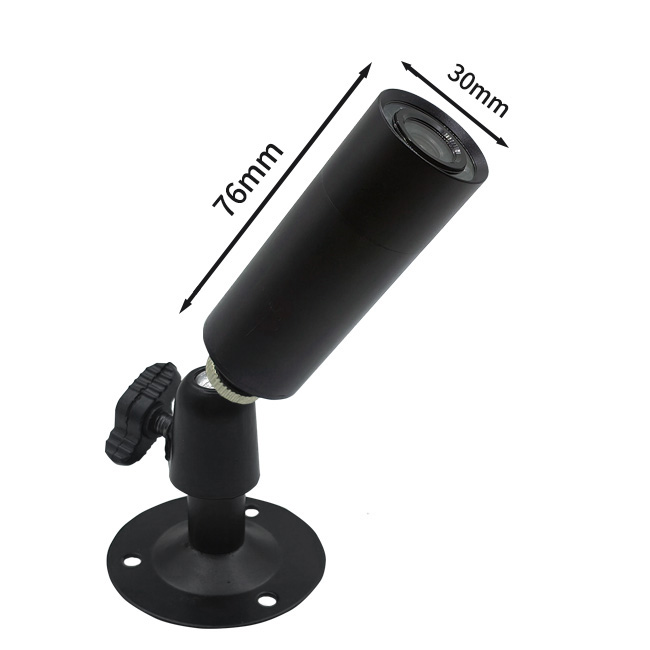

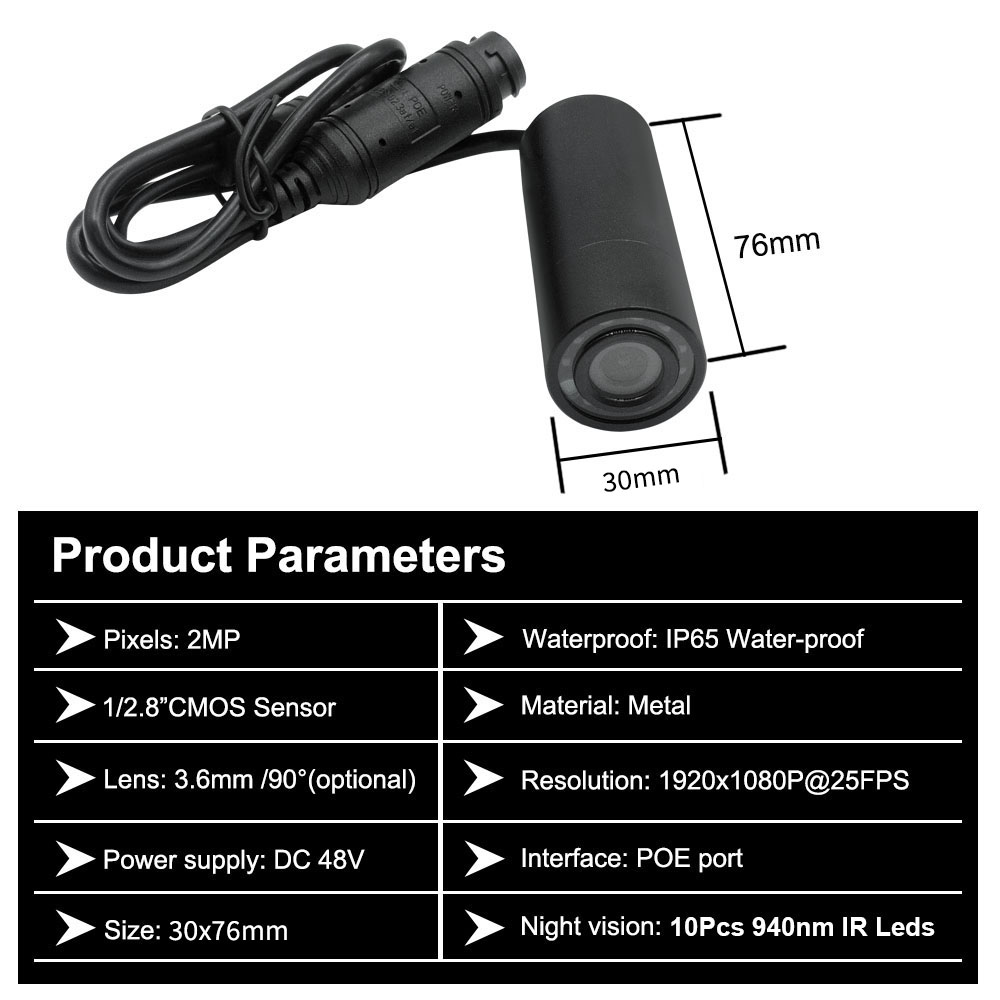

Durable, mini pen holder design: The 30mm x 76mm pen holder design is compact, understated, and professional. The metal casing not only improves heat dissipation and extends service life but also enhances impact and damage resistance, making it suitable for various harsh indoor and outdoor environments.
Supports mainstream ONVIF protocol: It is easily compatible with various NVRs (Network Video Recorders) and platform software that support the ONVIF protocol, enabling plug-and-play and rapid deployment.
Ideal for machine vision and equipment monitoring in:
- ATM machines and banking equipment
- Medical testing and reporting systems
- Vending machines and digital signage
- Industrial automation and robotics
- Security systems and law enforcement equipment
- Flame monitoring and specialized industrial applications
We are well aware of the unique visual requirements of different applications and provide comprehensive OEM/ODM customization services to help you create differentiated products.
1. Lens customization: specific focal length, field of view angle, distortion control.
2. Customized casing: Design a dedicated casing, bracket, or fixing method based on the structure of your device.
3. Cable and Interface: Customize cable length and interface type.
4. Pixel customization: Different resolution and frame rate models are available.
