Technical Specifications
| Sensor | 1/2.9″CMOS |
|---|---|
| Pixel | 3MP |
| Compression Format | H.265 |
| Frame Rate | 1920×1080@25fps |
| Audio | Support 2-way Audio |
| Working Voltage | DC 12V |

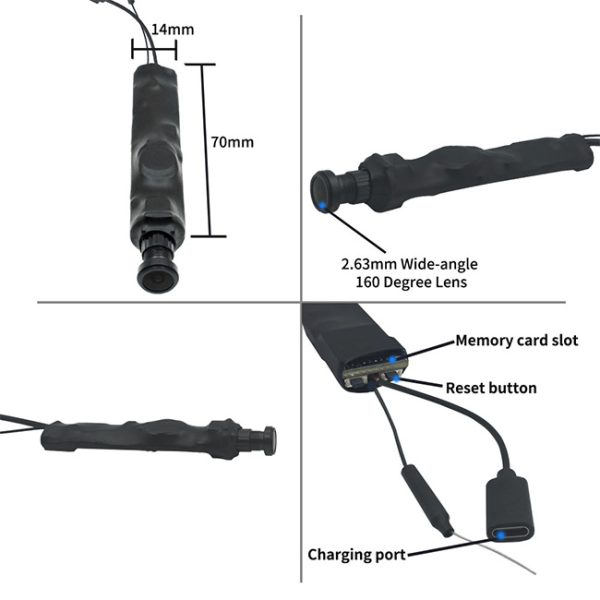

| Product Size | 14mm×70mm |
| Working Temperature | <70°C |
| Power Consumption | 0.25W |
| Model | HC-W3MPXJT |
| Storage | Support Cloud Storage/TF Card (Max 128GB) |
| Type | WIFI Camera |
| Lens | 2.36mm |
| FOV | 160° |
Product Advantages
- 3MP High-Definition Resolution for Clarity: This 3MP mini bullet-shaped WiFi camera captures crisp video for face recognition, license plate recognition, and small object monitoring.
- Advanced H.265 Video Compression: H.265 reduces bandwidth consumption and storage costs by up to 50%, making this camera ideal for large-scale deployments in multi-store retail, corporate offices, or property management projects.
- Stable 2.4GHz WiFi Connection: Built-in 2.4GHz WiFi provides stable remote monitoring without additional cabling, ideal for small business owners and installers seeking flexible deployment.
- Two-Way Voice Communication: Integrated microphone and speaker support two-way voice communication.
- TF Card and Cloud Storage Options: Supports up to 128GB TF cards and optional cloud storage.
Professional Customization Services
We offer comprehensive OEM/ODM customization services to meet unique visual requirements:
- Lens customization: Specific focal length, field of view angle, distortion control
- Customized casing: Dedicated casing, bracket, or fixing method based on device structure
- Cable and interface: Custom cable length and interface types
- Camera type customization: USB, AHD, CVBS, wired network, wireless WiFi cameras
Application Fields
- Machine Vision & AI Systems: Ideal for barcode recognition, object detection, robotics platforms, and small AI boxes
- Kiosk & Self-Service Terminals: Used in ATM machines, smart access control, vending machines, ticketing systems
- Medical equipment and hospital systems
- Industrial automation and robotics
- Security surveillance systems
- Flame monitoring in power plants
- Law enforcement equipment
