Technical Specifications
| Sensor | 1/2.8″ CMOS |
|---|---|
| Pixel | 2MP |
| Resolution | 1920×1080@25fps |
| Compressed Format | H.265 |
| Lens | F.NO: 3.6mm, Focal length: 2.0 |
| FOV | 90° |
| Consumption | 0.25W |

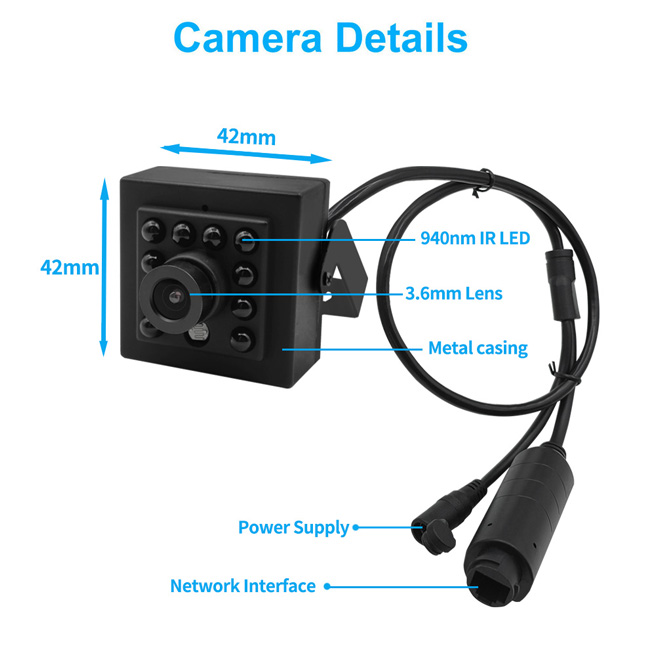

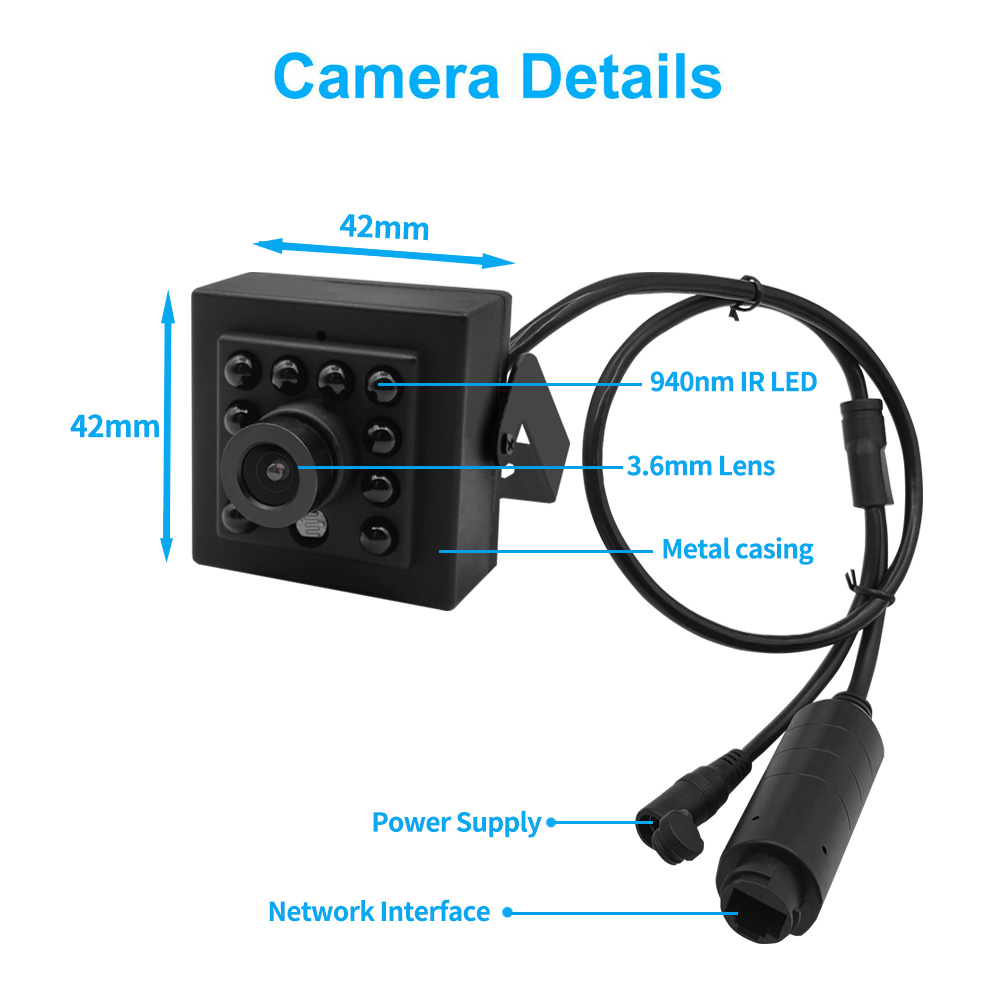

| Product Dimensions | 42×42mm |
| Operating Temp | <70°C |
| Interface | POE |
| Night Vision | 10 IR 940nm LEDs |
| Power Supply | POE 48V |
| IP Rating | IP66 |
| Model | HC-P2MPFKYS402 |
| Customization supported | Custom Logo, OEM, ODM |
Key Features
- 2MP High Definition: High sensitivity 1/2.8-inch 2MP CMOS image sensor with 1920×1080 resolution for excellent performance in license plate recognition, vehicle recognition, access control, and wide area monitoring

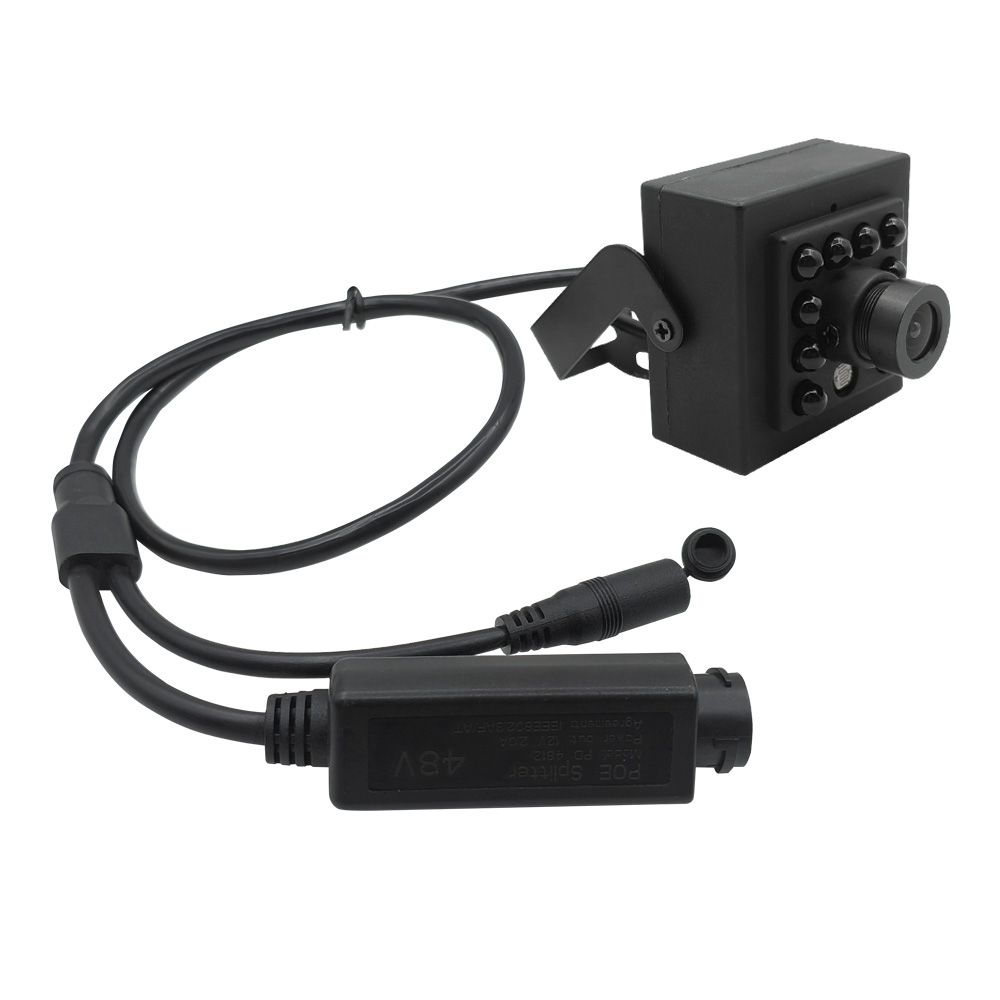

- Power over Ethernet (PoE): 48V PoE technology enables power and data transmission through a single Ethernet cable for cost-effective installation
- IP66 Waterproof Rating: All-metal casing withstands rain, snow, dust, and extreme temperatures for harsh outdoor environments

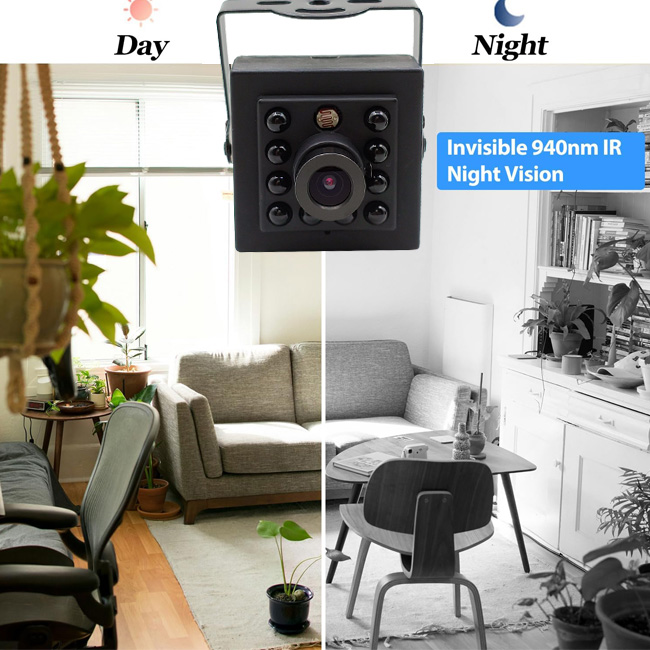

- Infrared Night Vision: 940nm infrared LED provides low-noise black and white images in complete darkness
- H.265 Video Compression: Reduces storage space by 50% while maintaining high image quality, ideal for multi-channel NVR systems and long-term storage requirements
Customization Services
We understand the unique visual requirements of different applications and provide comprehensive OEM/ODM customization services to create differentiated products.
- Lens Customization: Specific focal length, field of view angle, distortion control
- Customized Casing: Dedicated casing, bracket, or fixing method based on your device structure
- Cable and Interface: Custom cable length and interface type
- Pixel Customization: Different resolution and frame rate models available (4MP, 8MP, 12MP, 16MP)
Applications
- Warehouse monitoring systems
- Factory production monitoring
- Parking lot security
- Retail store anti-theft solutions
- Logistics center surveillance
- School and campus monitoring
- Construction site perimeter security
- Residential community surveillance
