| Parameter | Value |
|---|---|
| Sensor | 1/2.9″CMOS |
| Resolution | 2MP |
| Frame Rate | 1920×1080 @ 30fps |
| Compression Format | MJPG/YUV2 |
| Audio Support | optional |
| Power Requirement | DC 5V |
| Support OS | Windows Linux Android |
| Lens | 3.6mm |
| Interface | USB 2.0 |
| Model | HC-U2MPZZDT-18 |

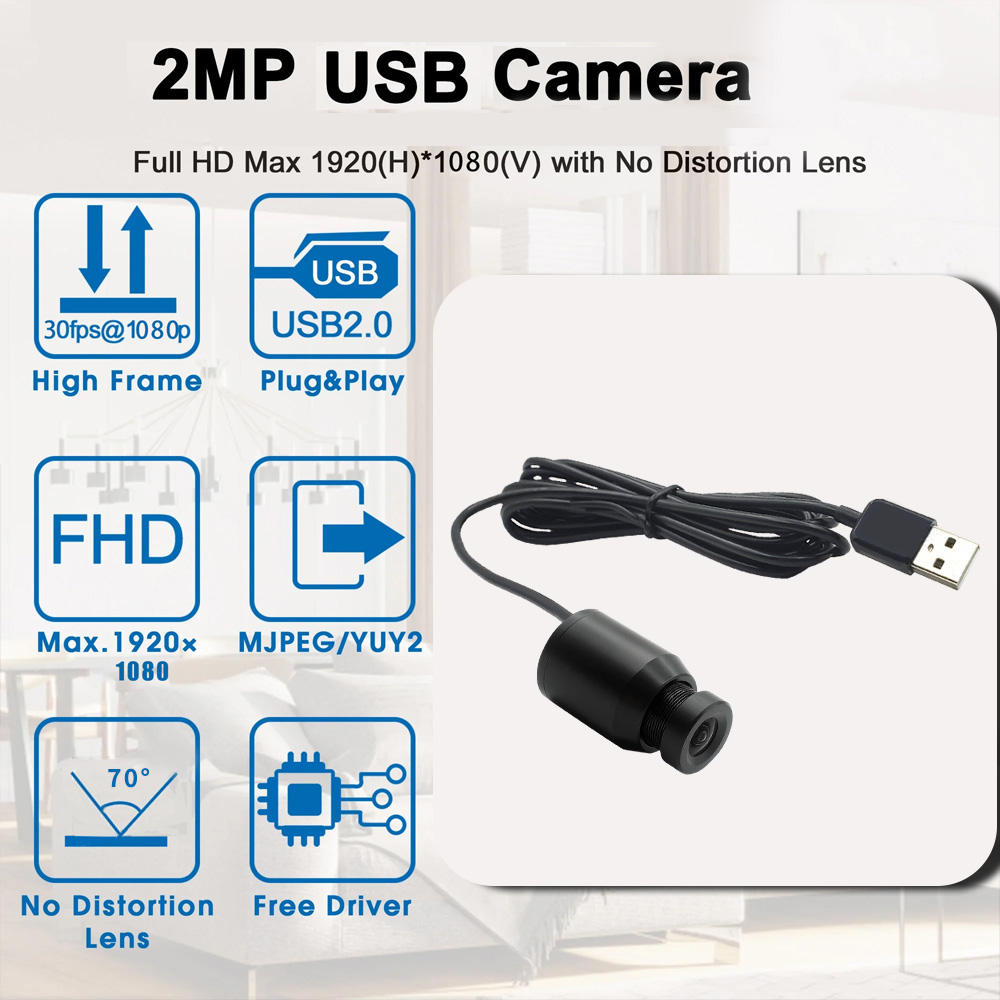

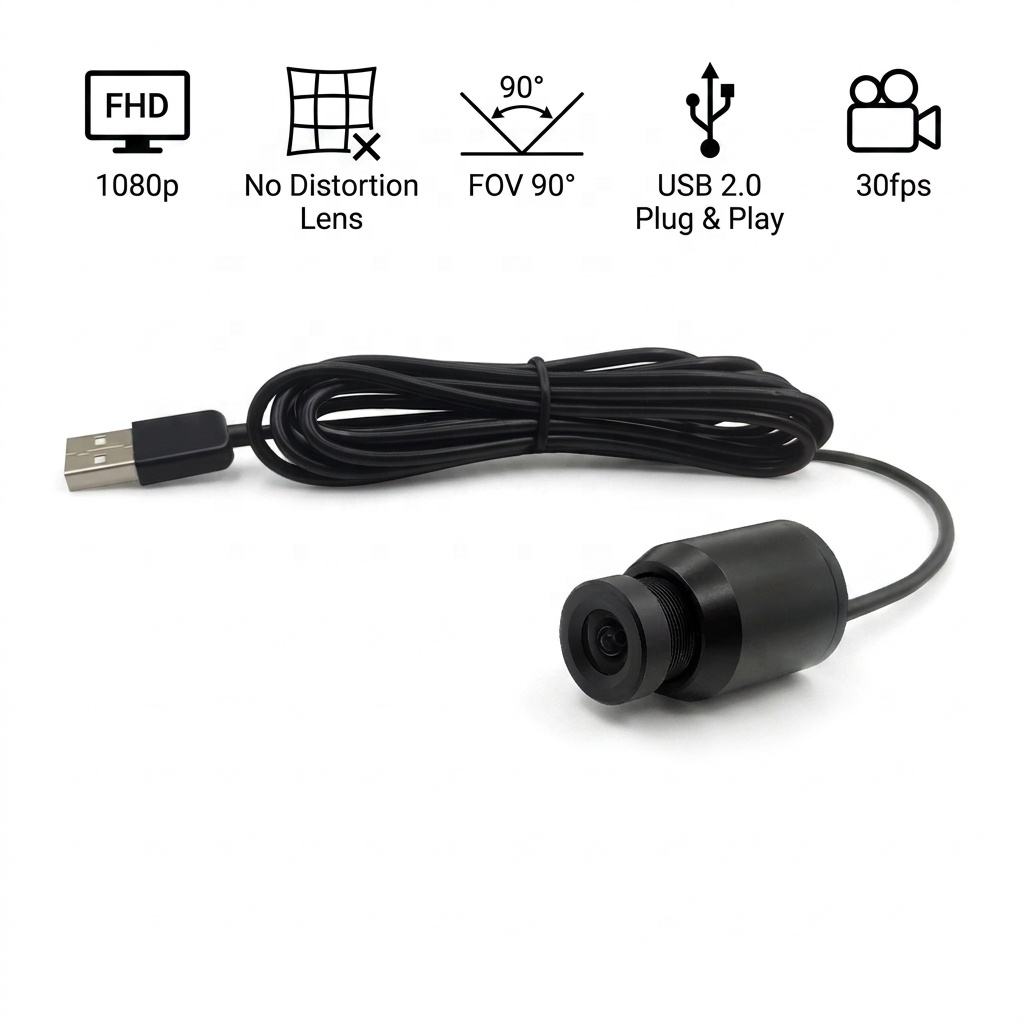

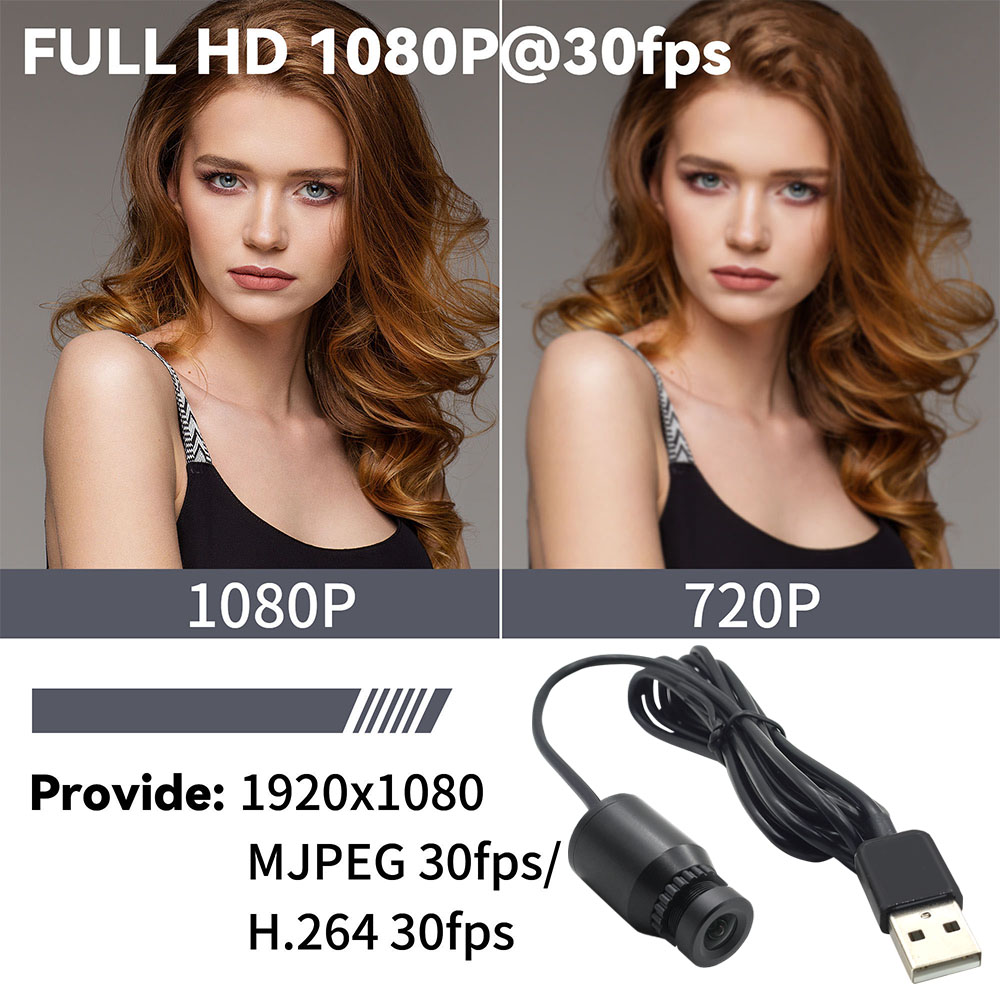

1080P High Definition Resolution: Supports 1920X1080@30fps High definition video output with clear and delicate images.
3.6mm undistorted lens: Provides a 90 ° wide field of view while maintaining geometric accuracy of the image.

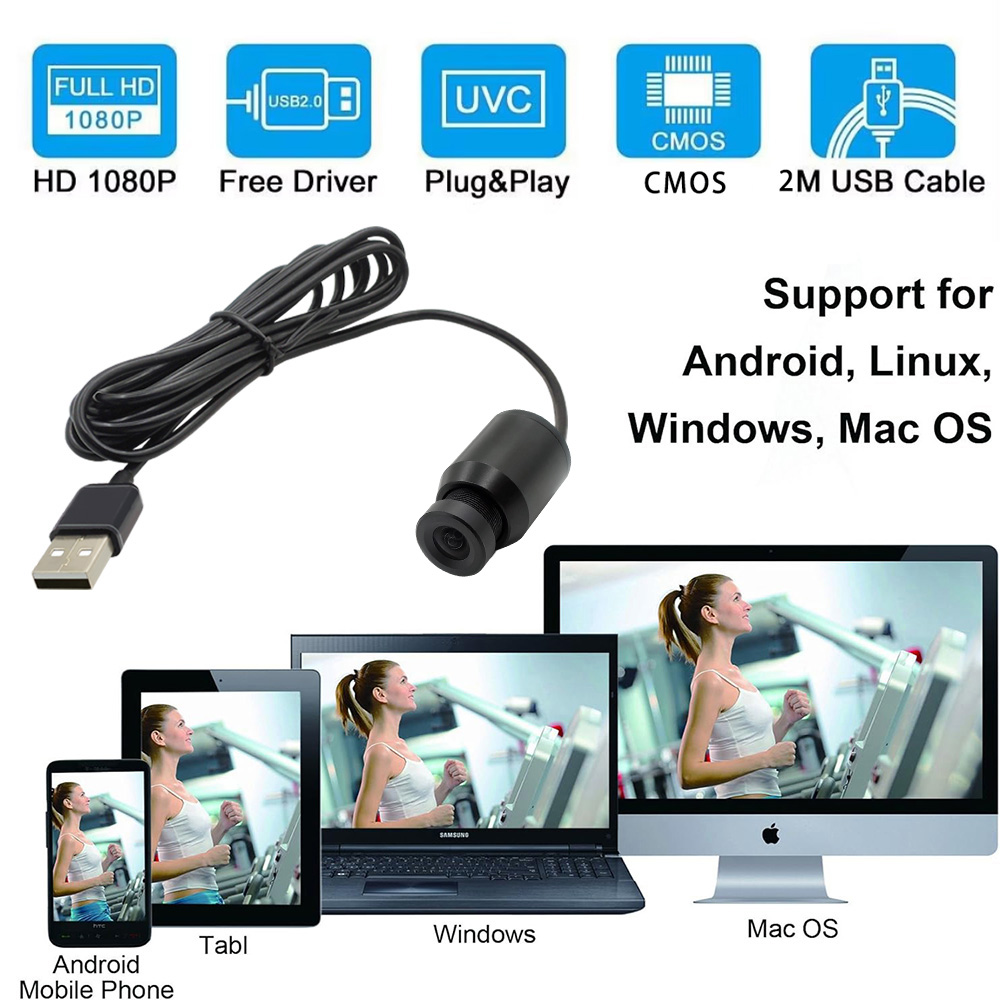

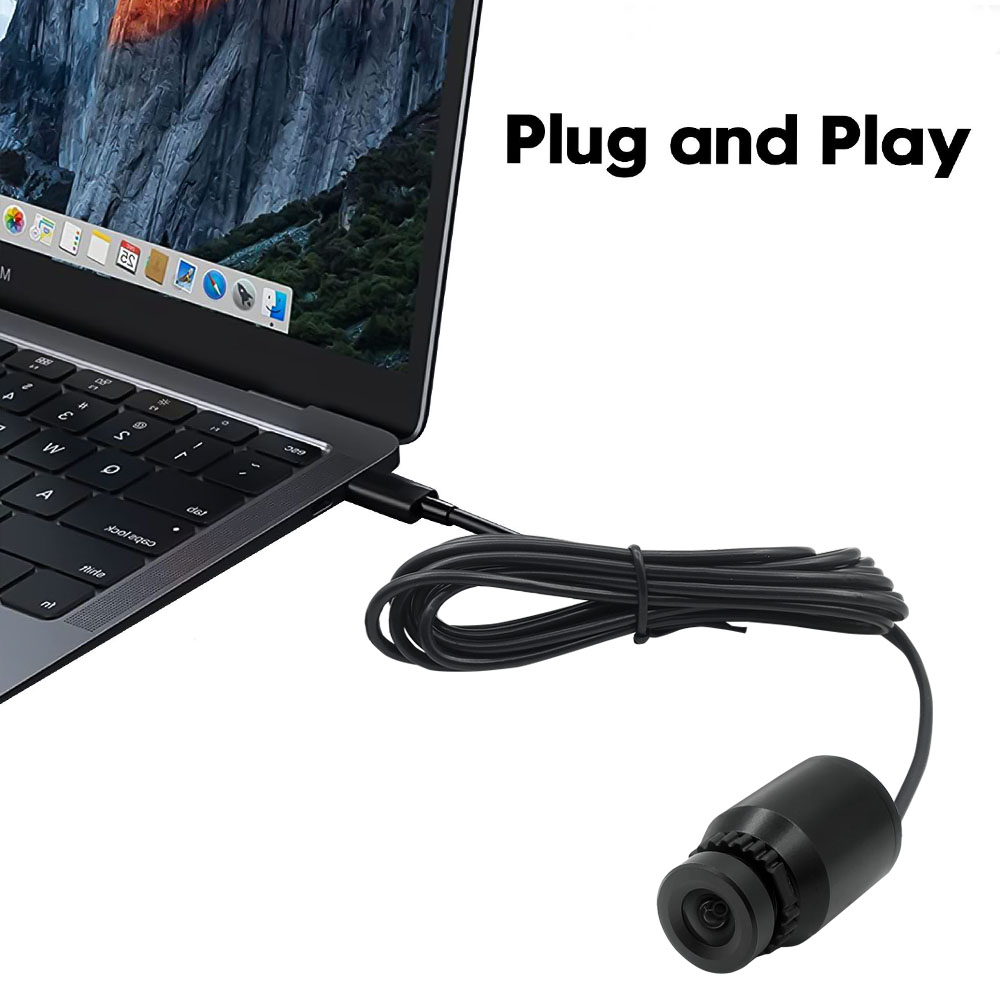

USB plug and play: fully compatible with UVC protocol, no driver required, suitable for Windows/Linux/MacOS.
Low power design: Operating current<150mA, powered directly through USB port.

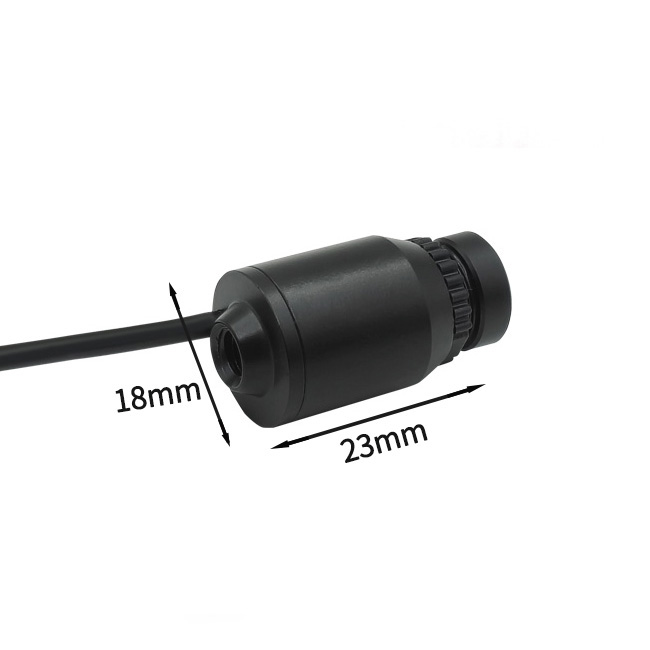

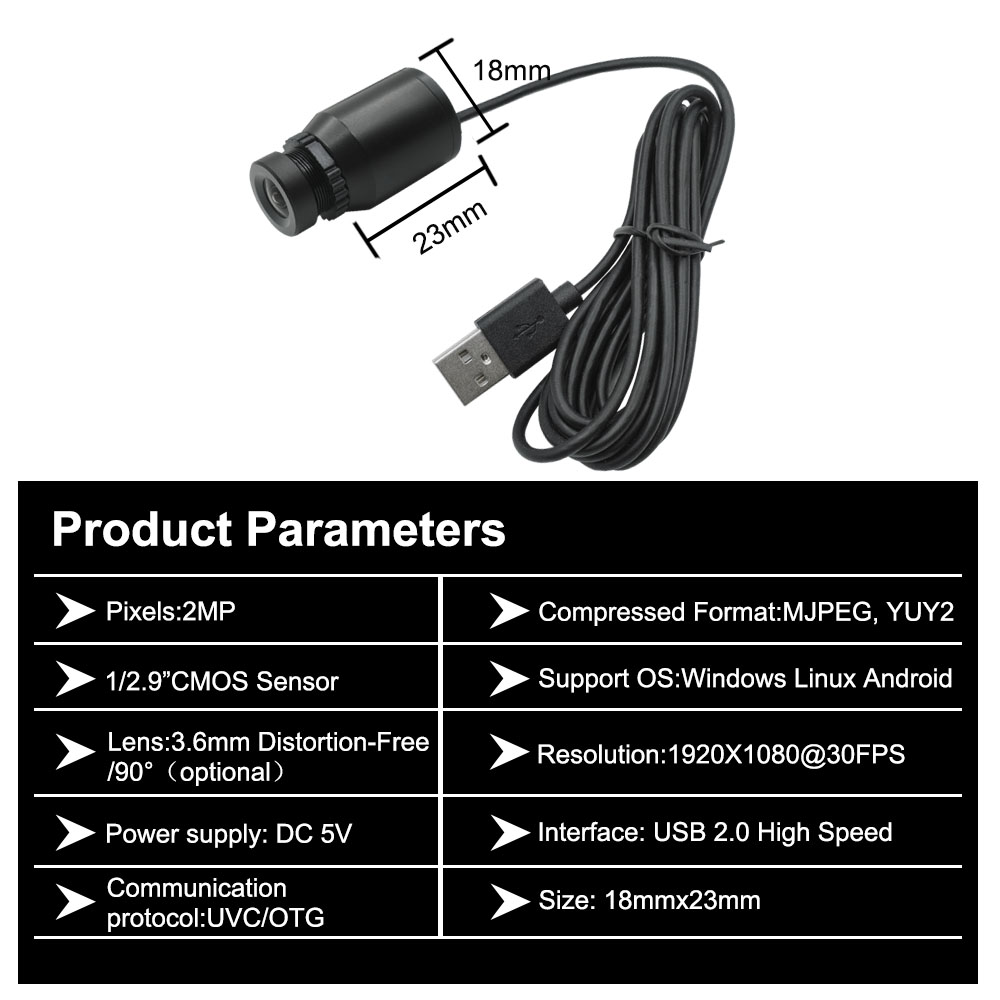

Ultra compact size: 18 × 23mm mini body, suitable for applications with limited space.
Industrial automation and machine vision, precision equipment status monitoring, security monitoring, embedded intelligent access control/attendance systems, miniaturized concealed monitoring equipment, vehicle mobile monitoring, smart home security, endoscope assisted imaging, laboratory equipment monitoring, small traffic monitoring equipment, intelligent retail terminals, drone/robot visual perception, education/conference system cameras, various embedded devices that require compact visual solutions, advertising machines, all-in-one machines, intelligent electronic scales, automatic welding equipment, fire water guns, external law enforcement instruments, external cameras for Android phones, computer cameras, high-speed cameras, etc.
We are well aware of the unique visual requirements of different applications and provide comprehensive OEM/ODM customization services to help you create differentiated products.
1. Lens customization: specific focal length, field of view angle, distortion control.
2. Customized casing: Design a dedicated casing, bracket, or fixing method based on the structure of your device.
3. Cable and Interface: Customize cable length and interface type.
4. Pixel customization: Different resolution and frame rate models are available (such as higher pixel 4MP, 5MP, 8MP, 12MP，16MP).
