Technical Specifications
| Sensor | 1/2.9″ CMOS |
| Pixel | 2MP |
| Frame Rate | 1920×1080 25fps |
| Audio | Two-way voice intercom |
| Operating Voltage | DC 5V |
| Storage | Cloud Storage / TF Card (Max 128GB) |

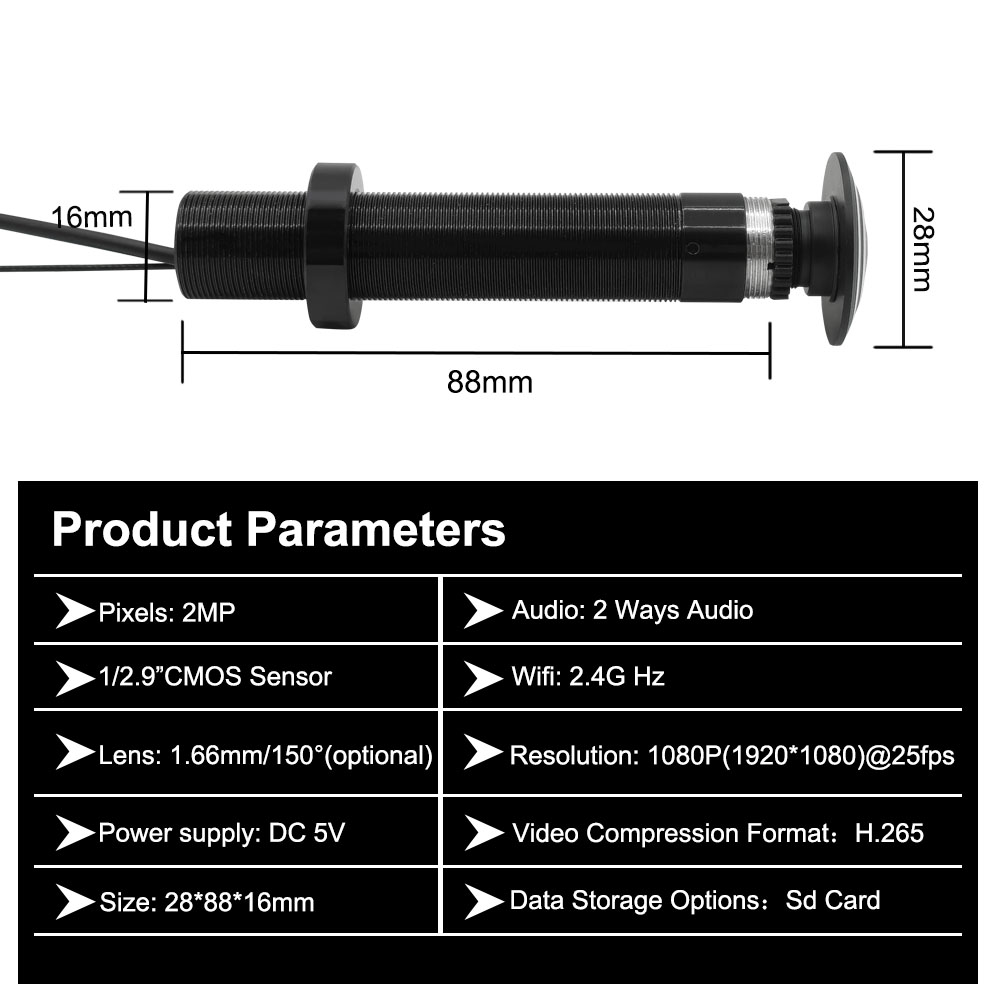

| Dimensions | Lens diameter 33.5mm, body diameter 16mm, total length 89mm |
| Lens | 1.66mm |
| FOV | 150° |
| Technology | 2.4G WiFi Wireless |
| Application | V380 Pro App |
| Model No | HC-WHSXMY1.66 |

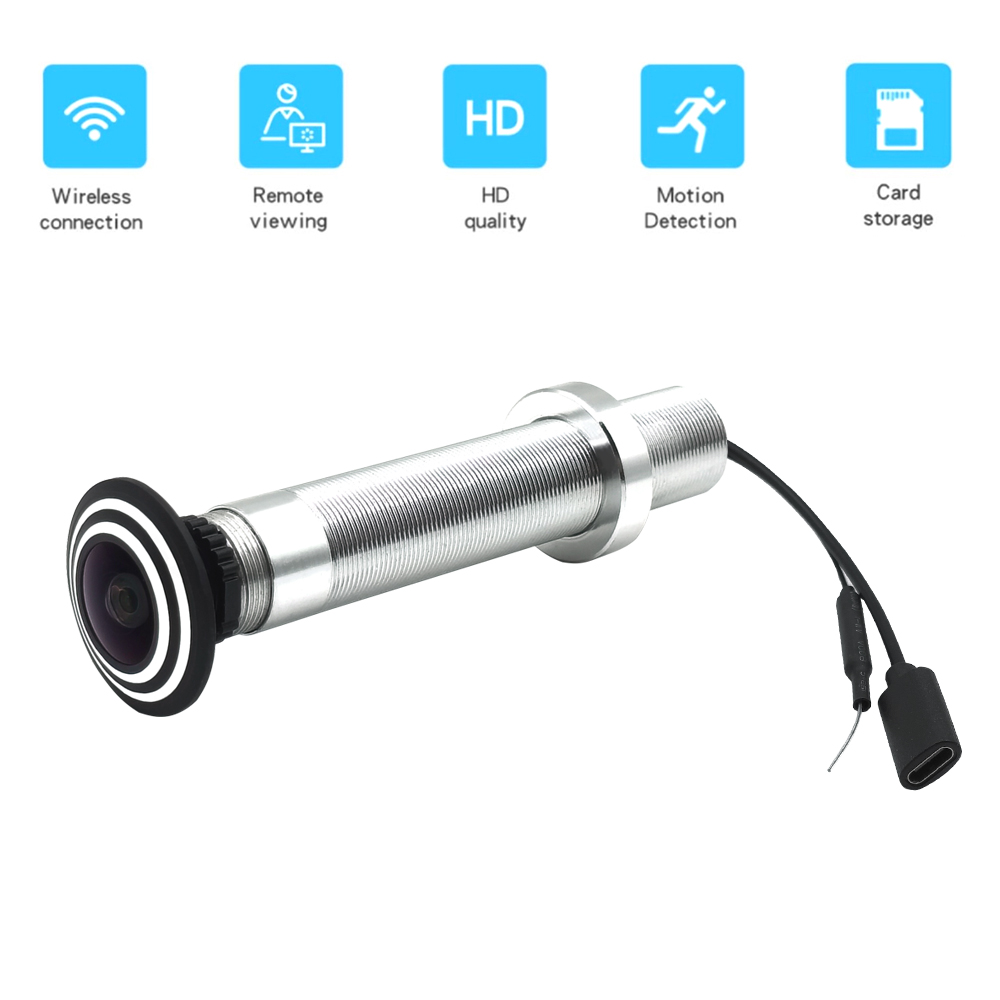

Key Features
- 1.66mm Wide-Angle Lens: 150-degree wide-angle fisheye lens provides wider field of view and minimizes blind spots around the door.
- 2MP HD Video with H.265 Compression: Delivers clear, detailed video while reducing bandwidth and storage consumption.
- Stable WiFi Connection and Remote Monitoring: Seamless wireless connectivity with mobile app and PC platform access.
- Two-Way Audio Communication: Enables direct conversation with visitors through mobile application or computer.
- Flexible Storage Options: Supports both cloud storage and local storage via TF card (up to 128GB).
- Low-Power Design and Easy Installation: DC 5V power supply with compact structure for simple peephole installation.
Product Applications
- Home Entrance Security: Replaces traditional peepholes as intelligent monitoring tool for real-time door surveillance
- Remote Reception: Visual conversation with visitors or couriers through mobile phone when not at home
- Safety Protection: Provides security barrier for women or elderly living alone with identity verification
- Shop Monitoring: Installed at shop entrances for welcome reminders and customer flow recording
- Rental Property Security: Simple, effective temporary security solution for rental properties
FQA
Q: Can I purchase samples?
A: Small batch samples of 1-50pcs are supported.
Q: What types of cameras do you manufacture?
A: We specialize in manufacturing high-performance USB/IP/analog cameras and camera modules for machine vision, including:
– Embedded cameras for face/object/barcode recognition
– Industrial cameras for automated inspection and measurement
– Security vision cameras for surveillance and monitoring
– Embedded cameras for face/object/barcode recognition
– Industrial cameras for automated inspection and measurement
– Security vision cameras for surveillance and monitoring
Q: How is the quality control?
A: All cameras undergo rigorous testing (EIS, low-light performance, durability) and comply with CE/FCC/RoHS.
Q: What is the lead time?
A: In-stock items: 3-7 days. Custom orders: 2-4 weeks (depending on specifications).
