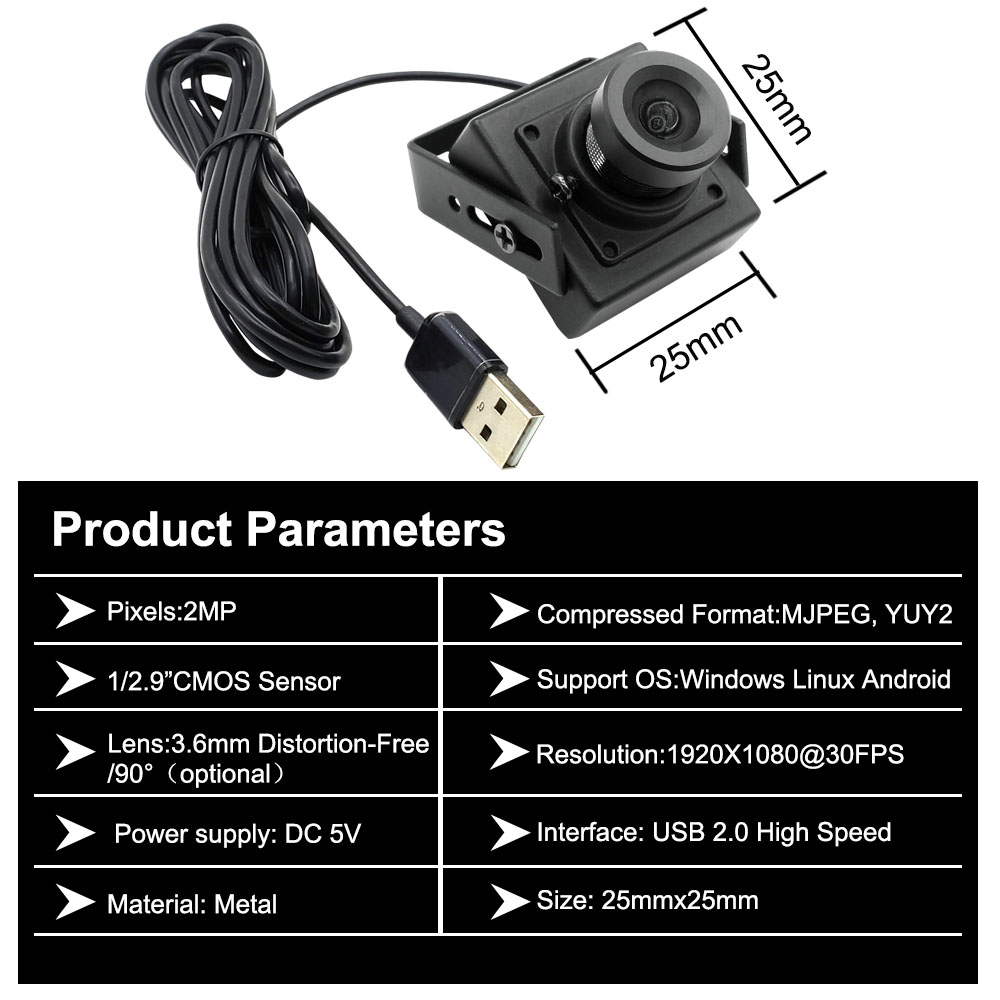

Technical Specifications
| Specification | Detail |
|---|---|
| Sensor | 1/2.9″CMOS |
| Pixel | 2MP |
| Compression Format | MJPG/YUV2 |
| Frame Rate | 1920×1080 @ 30fps |
| Audio | Support |
| Working Voltage | DC 5V |

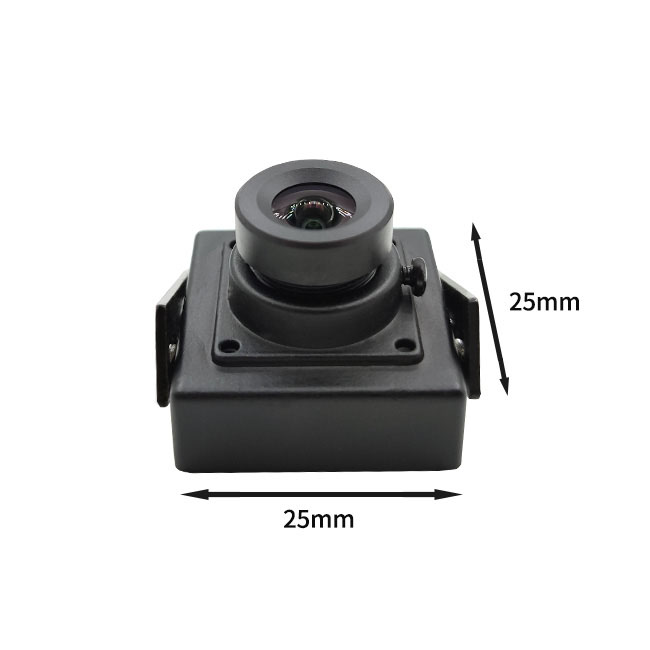

| Product Size | 25mm×25mm |
| White Balance | Automatic |
| Working Temperature | <70°C |
| Power Consumption | 0.25w |
| Product Model | HCU-FK252WJB |
| Interface Type | USB2.0 |
| Lens | Distortionless 3.6mm |
| FOV | 90° |
| Supported OS | Windows/Mac OS/Linux/Android |

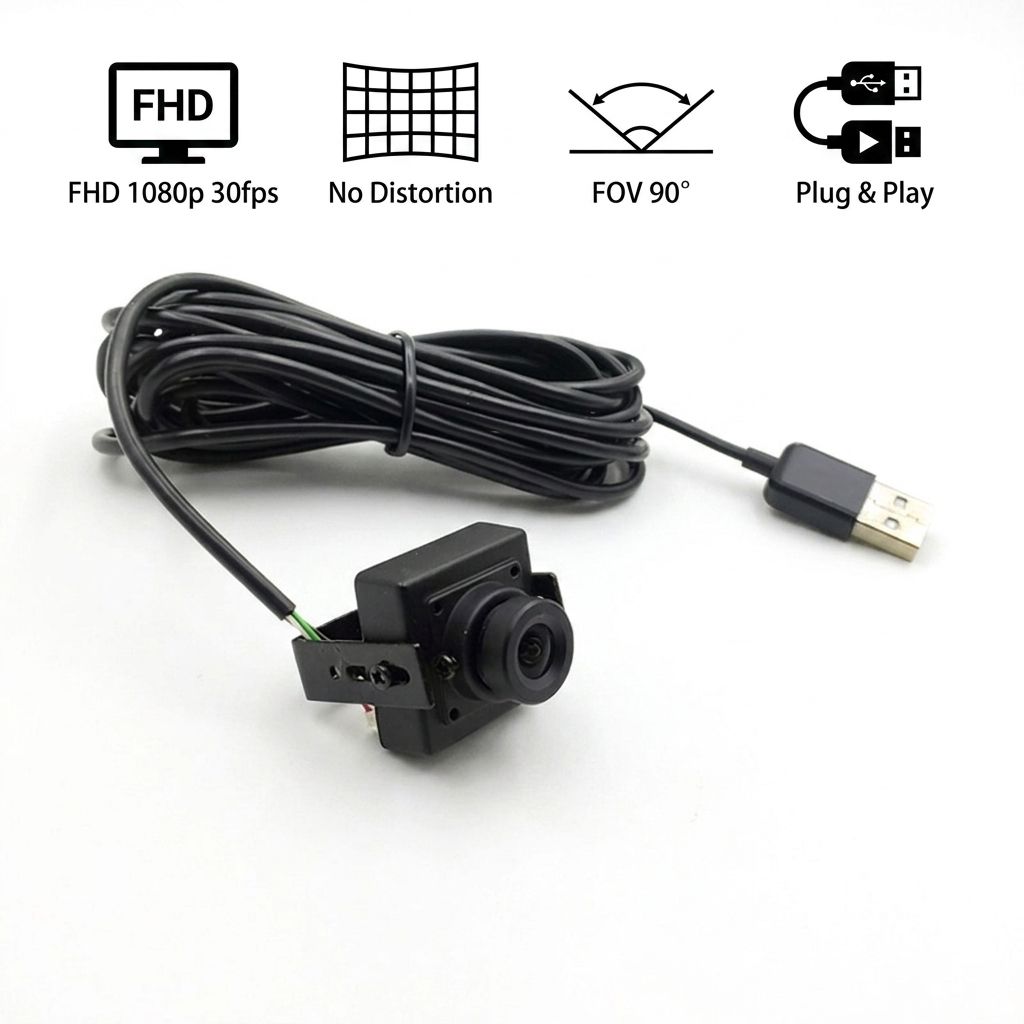

Key Advantages
2 Megapixel Resolution: Supports 1920×1080@30fps Full HD resolution output, delivering rich image details and lifelike color reproduction.
3.6mm Distortion-Free Lens: Employs a professional-grade optical lens to effectively suppress edge distortion, maintaining horizontal and vertical consistency between the image center and edges for the most realistic visual effects, with no distortion in subjects.

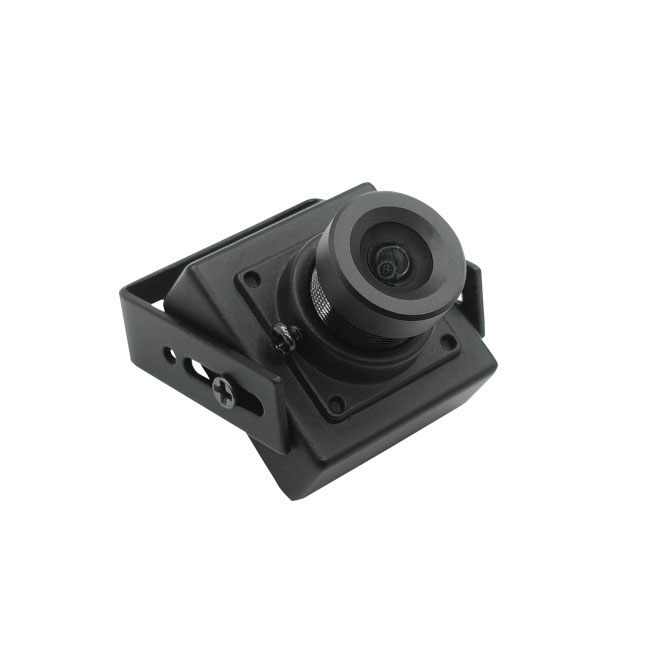

All-Metal Casing: Made of high-quality metal, providing excellent heat dissipation and effectively protecting internal precision components, ensuring durability and a premium feel.

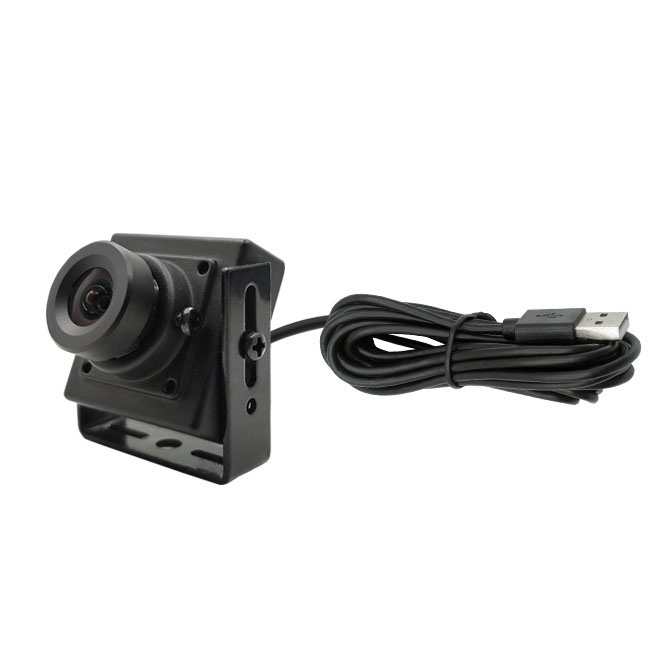

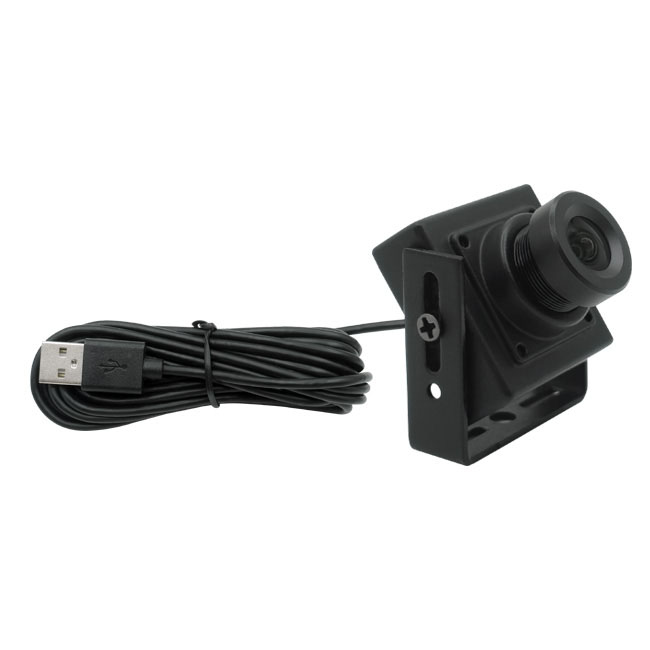

USB 2.0 Plug and Play: Supports the standard UVC protocol, allowing plug-and-play functionality on mainstream operating systems such as Windows, Linux, and Mac OS. No driver installation is required; simply connect and use.
Product application scenarios
Industrial & Automation
Machine vision camera systems
Automated inspection
Barcode and QR code scanning
Surface defect detection
Smart manufacturing and robotics
Commercial & Embedded Devices
Android POS terminals
Vending equipment
Access control devices
Smart kiosks
Embedded computing systems
Medical & Educational
Telemedicine equipment
Dental imaging
Digital microscopes
Online education and conferencing
We are well aware of the unique visual requirements of different applications and provide comprehensive OEM/ODM customization services to help you create differentiated products.
1. Lens customization: specific focal length, field of view angle, distortion control.
2. Customized casing: Design a dedicated casing, bracket, or fixing method based on the structure of your device.
3. Cable and Interface: Customize cable length and interface type.
4. Pixel customization: Different resolution and frame rate models are available (such as higher pixel 4MP, 5MP, 8MP, 12MP，16MP).
