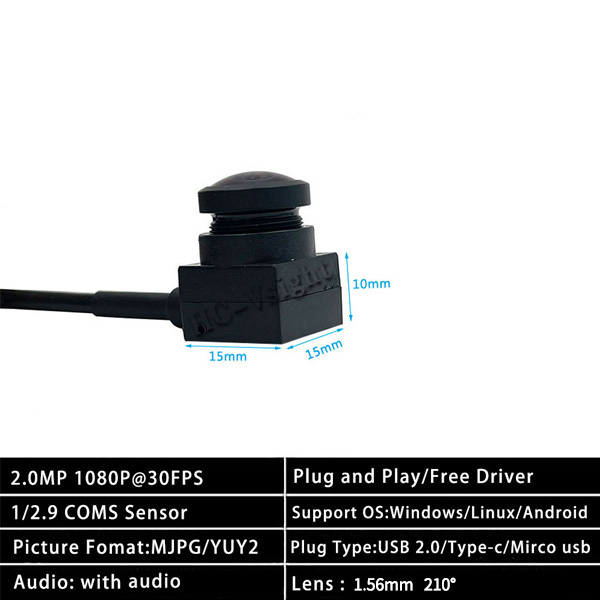

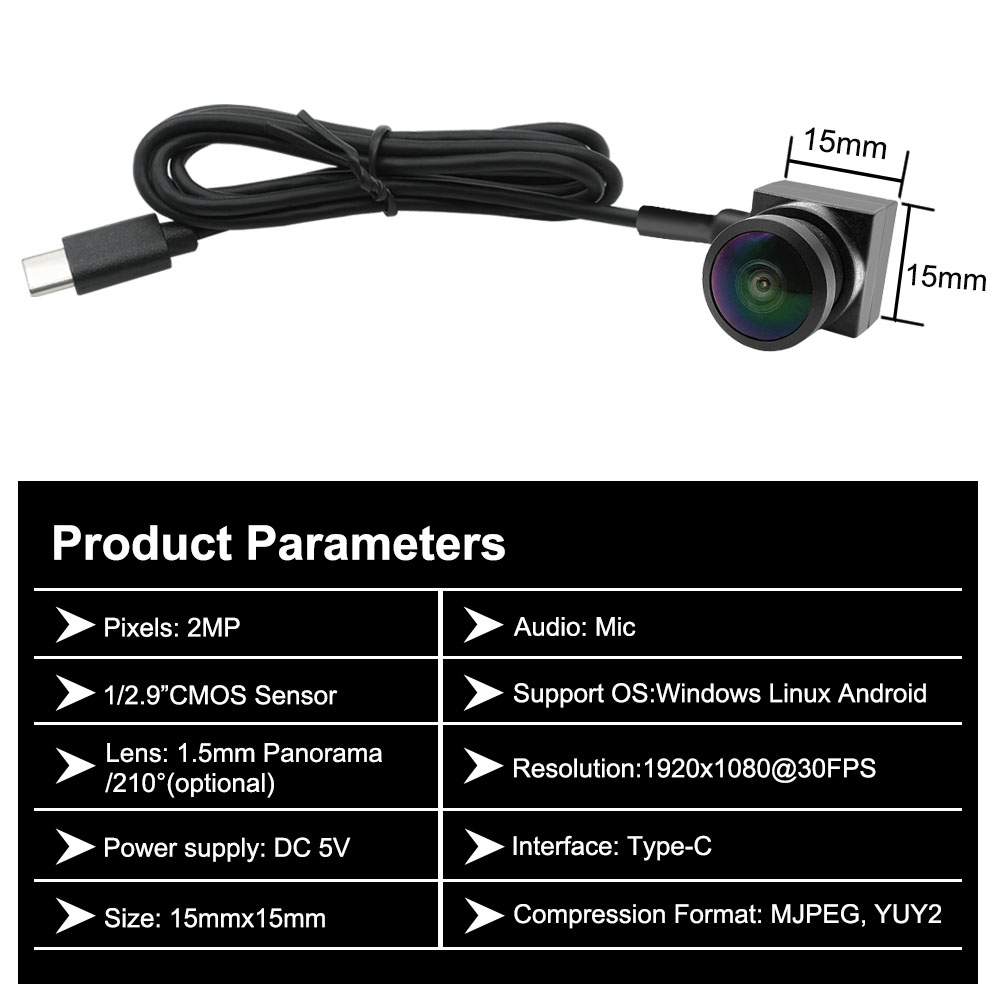

Technical Specifications
| Parameter | Value |
|---|---|
| Sensor | 1/2.9″CMOS |
| Resolution | 2MP |
| Compression Format | MJPG/YUV2 |

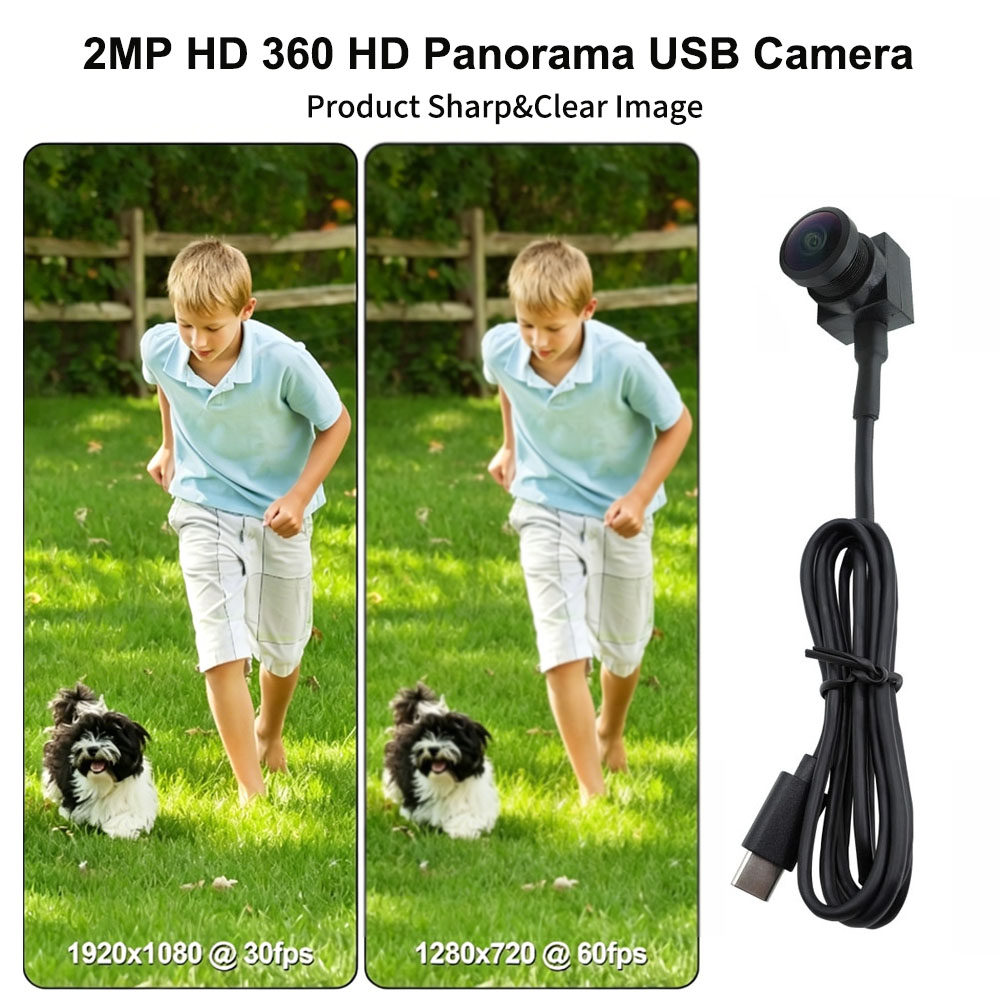

| Frame Rate | 1920*1080 @30fps |
| Audio | Built-In Mic |
| Power Requirements | DC 5V |
| Dimensions | 15mm×15mm |
| Operating Temperature | <70°C |
| Power Consumption | 0.25W |
| Model Number | HCU-QJ152(TPC) |
| Interface | Type-c/USB2.0/OTG Micro usb/Lightning |
| Warranty | 1 Year |
| UVC compliance | Driverless |
| Lens | 1.56mm |
| FOV | 210° |
| Supported OS | WinXP/Mac OS/Linux/Android |

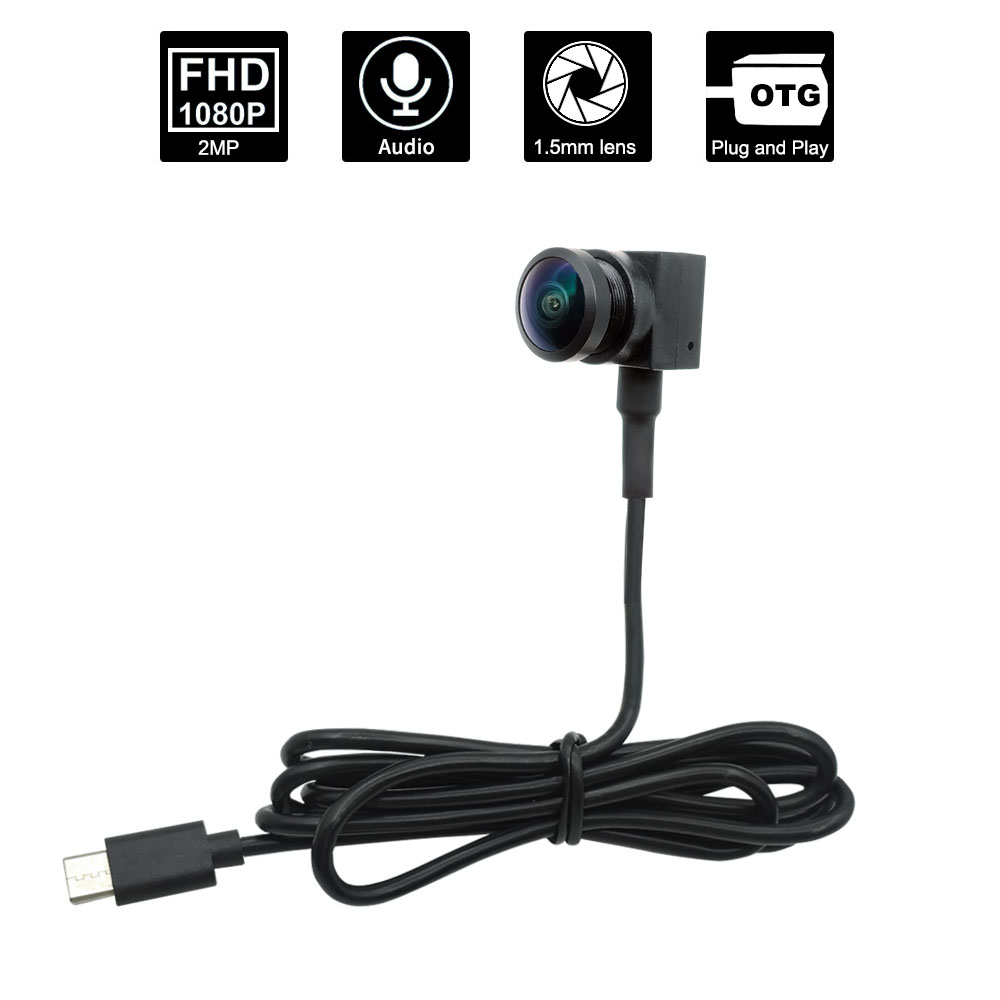

Key Features

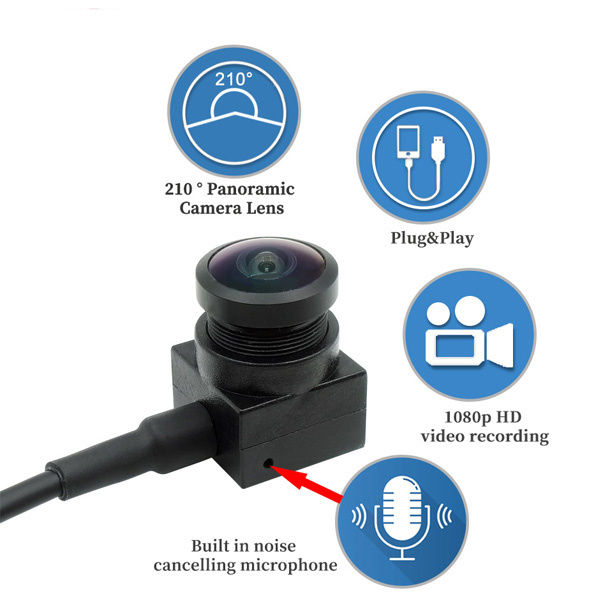

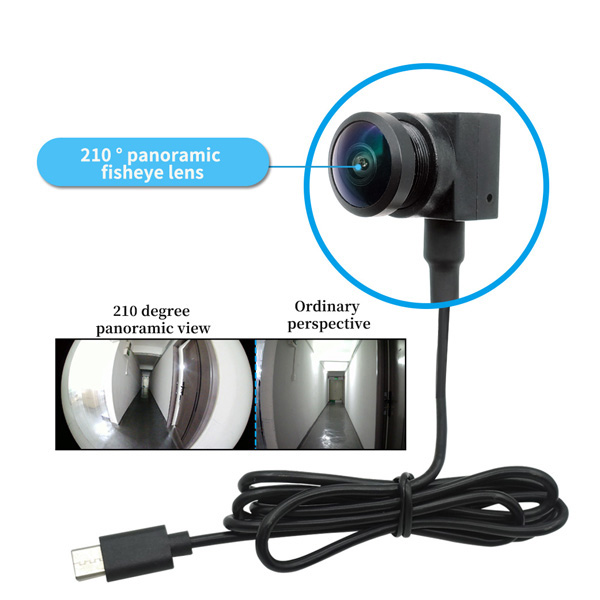

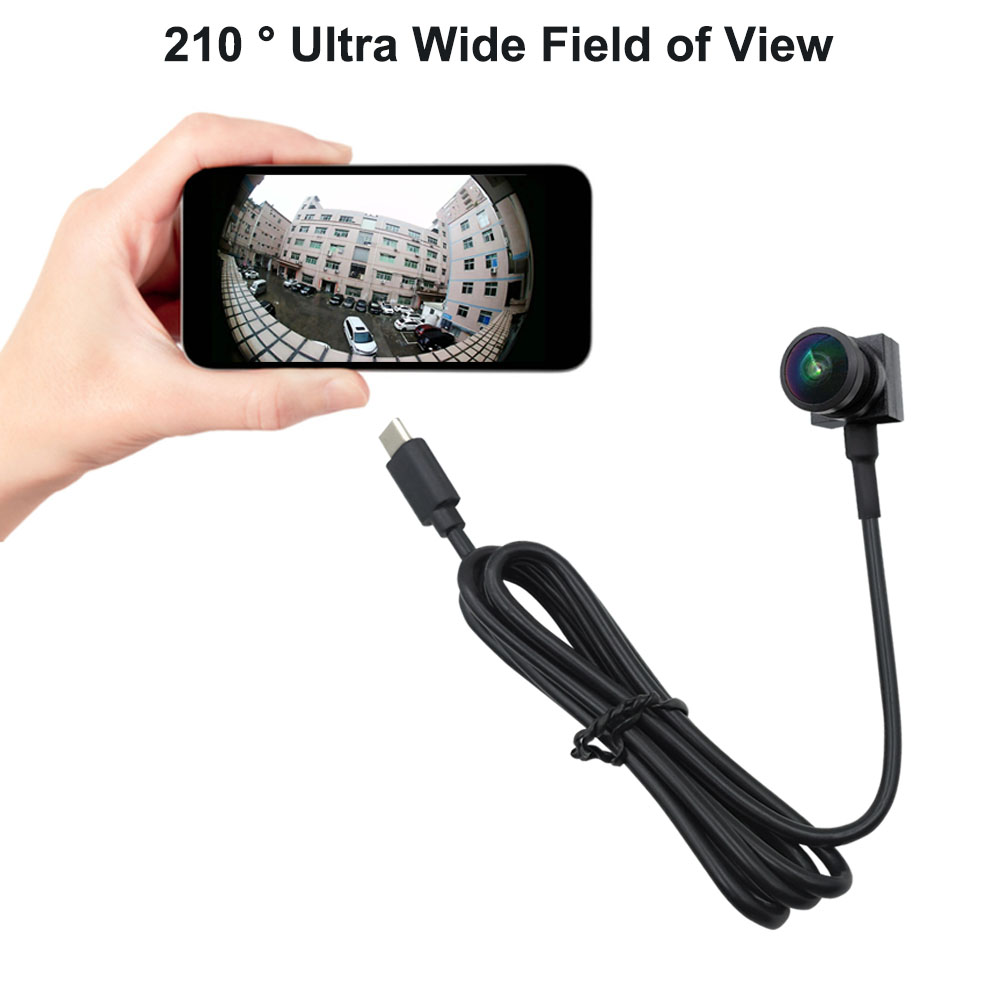

- 210° panoramic ultra wide angle lens: equipped with a 1.56mm extreme wide angle lens, providing up to 210° fisheye panoramic images, a single lens can cover a wide area with almost no dead corners.
- Built in high-sensitivity microphone: Integrated with a high-sensitivity microphone, it can simultaneously capture environmental sound while shooting high-definition videos, achieving synchronous recording of audio and video.

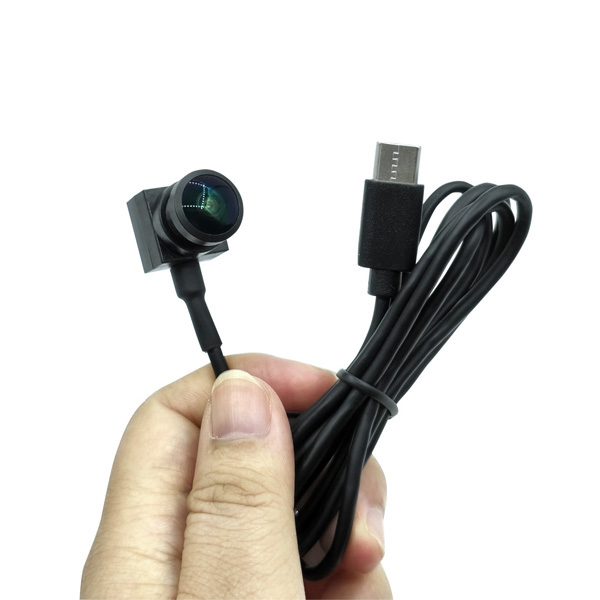

- Ultimate mini invisible design: With a micro size of only 15x15mm, it can be considered one of the smallest cameras in the world, with strong concealment, no space occupation, and flexible installation.

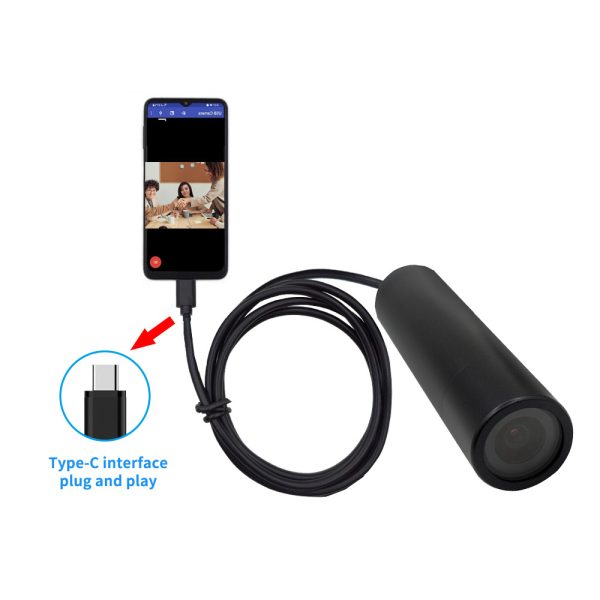

- Type-C plug and play: using mainstream Type-C interface, compatible with Android devices that support OTG, no driver required, can be used simply by connecting, convenient and efficient.
- Panoramic waterproof lens: The lens module has waterproof characteristics and can adapt to more complex environments.
- Wide device compatibility: Perfectly compatible with Android smartphones, tablets, smart TVs, and other devices, and can also be used for Linux system hosts.
Customization Options
We have a deep understanding of the unique visual requirements of different applications and provide comprehensive OEM/ODM customization services to help you create differentiated products.
- Lens customization: specific focal length, field of view angle, distortion control.
- Customized casing: Design a specialized casing, bracket, or fixing method based on the structure of the device.
- Cables and interfaces: Customize cable length and interface types.
- Pixel customization: Provide different resolution and frame rate models (such as higher pixel 4MP, 5MP, 8MP, 12MP).
- Customized services: USB camera module, AHD camera module, CVBS camera module, wired network camera module, wireless wifi camera module, etc.
Why Choose our USB Camera?
- OEM/ODM customization capability: meets the customization needs of different industries, supports large-scale procurement and brand branding.
- Industrial grade reliability: ensuring stability during long-term operation.
- Global certification and customer case studies: enhancing customer trust and improving procurement decision-making efficiency.
- Flexible procurement and samples: Sample procurement (1-50 pcs) supports rapid testing and reduces development risks.Bulk purchases can enjoy price tiered discounts and support long-term cooperation.
- Fast delivery and global logistics: supporting fast shipping and global logistics distribution, helping enterprises shorten product development cycles.
