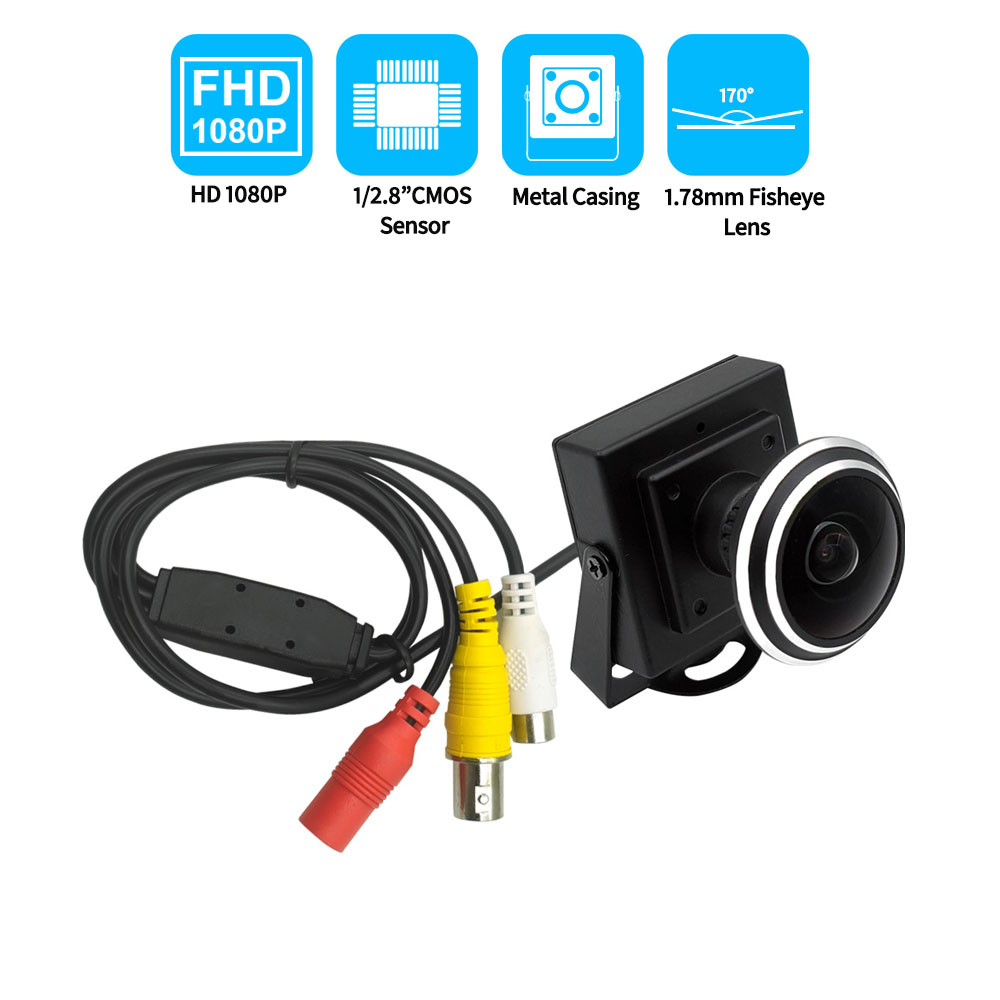

Technical Specifications
| Parameter | Value |
|---|---|
| Sensor | 1/2.8″ CMOS |
| Pixel | 2MP |
| Signal | AHD |
| Frame rate | 1920×1080@25fps |
| Operating voltage | DC 12v |

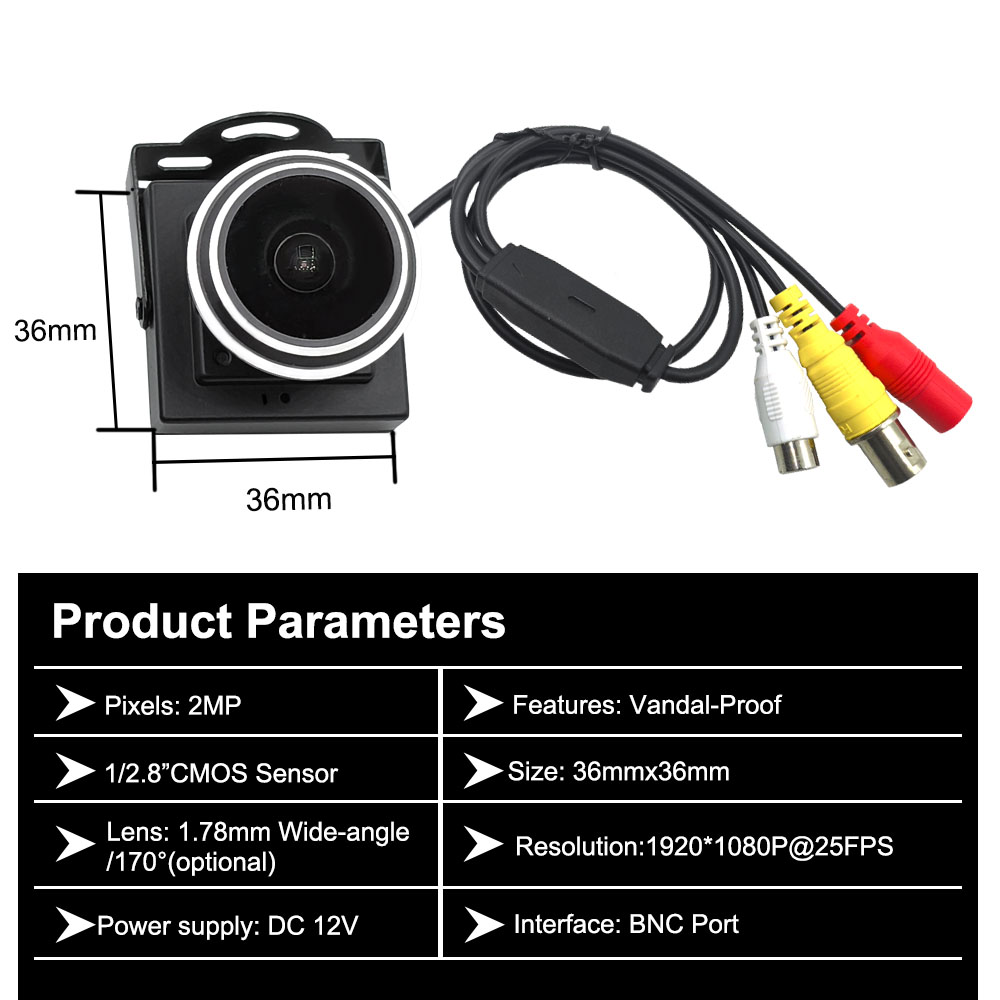

| Product dimensions | 36mm×36mm |
| Model No | HC-A2MPDMY-36 |
| Interface type | BNC |
| Material | Metal |

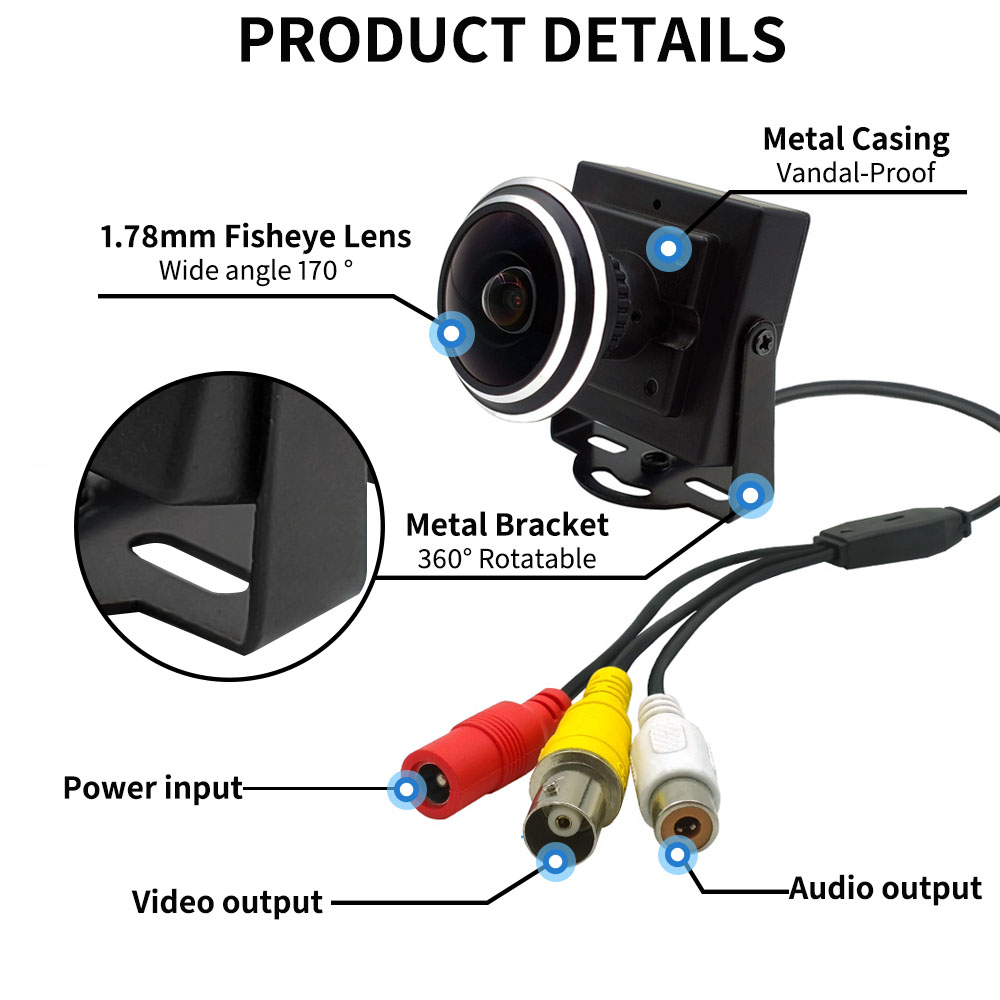

| Lens | 1.78mm |
| View angle | 170 Degree |
Product Features

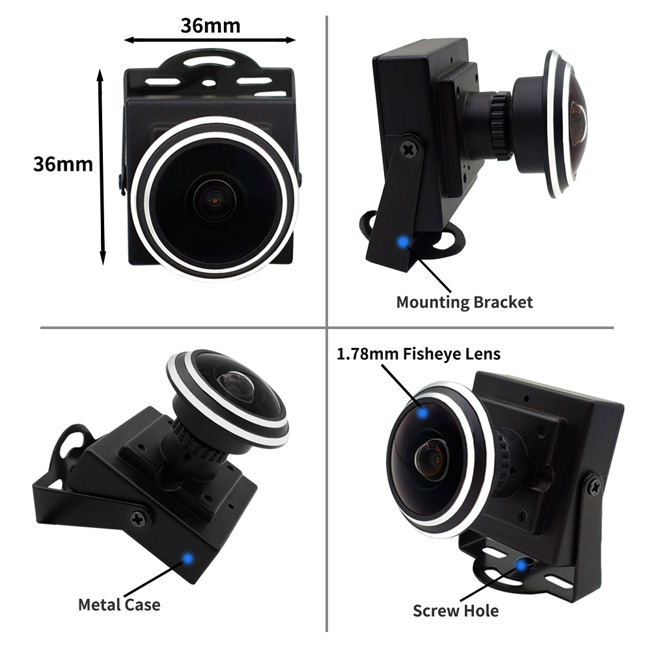

Compact Design：Measuring only 36x36mm, this mini AHD camera can be easily embedded or concealed in any confined space, such as within equipment panels, precision instruments, and decorative crevices, achieving true “invisible” surveillance.
High Resolution Imaging：Equipped with a 2-megapixel high-performance sensor, it supports 1920×1080 Full HD resolution output. Images are clear and detailed, accurately capturing key details and providing a visual experience far exceeding traditional analog cameras, significantly improving the performance of your CCTV system.
Wide-Angle Coverage：A 170-degree wide-angle field of view captures a wider area, ensuring comprehensive coverage with minimal blind spots.

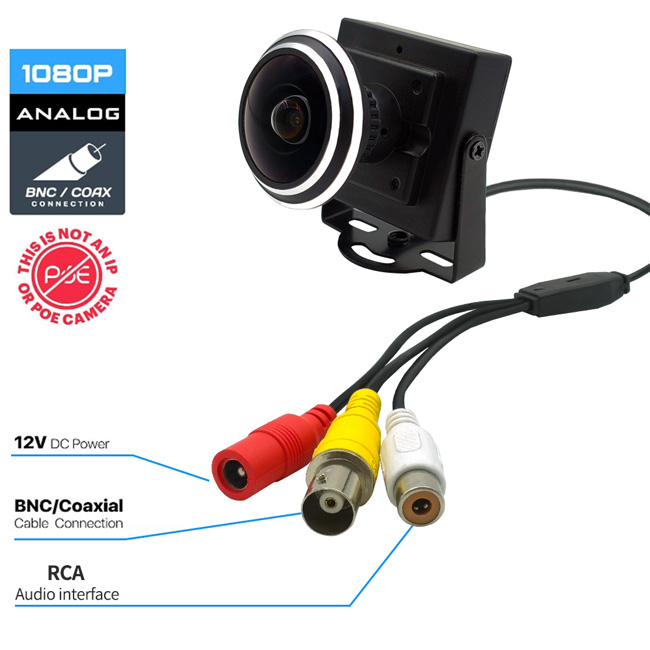

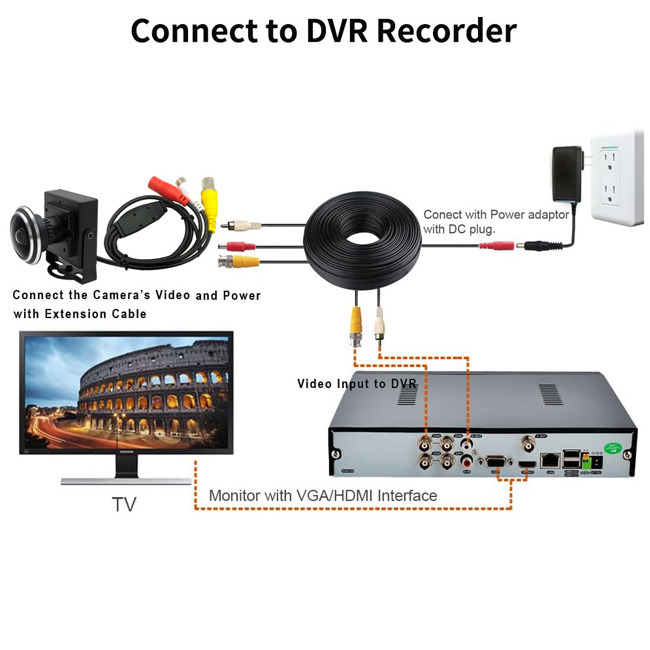

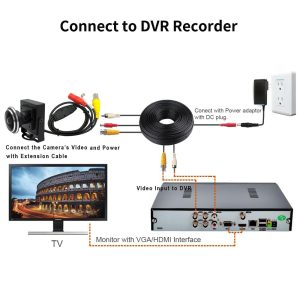

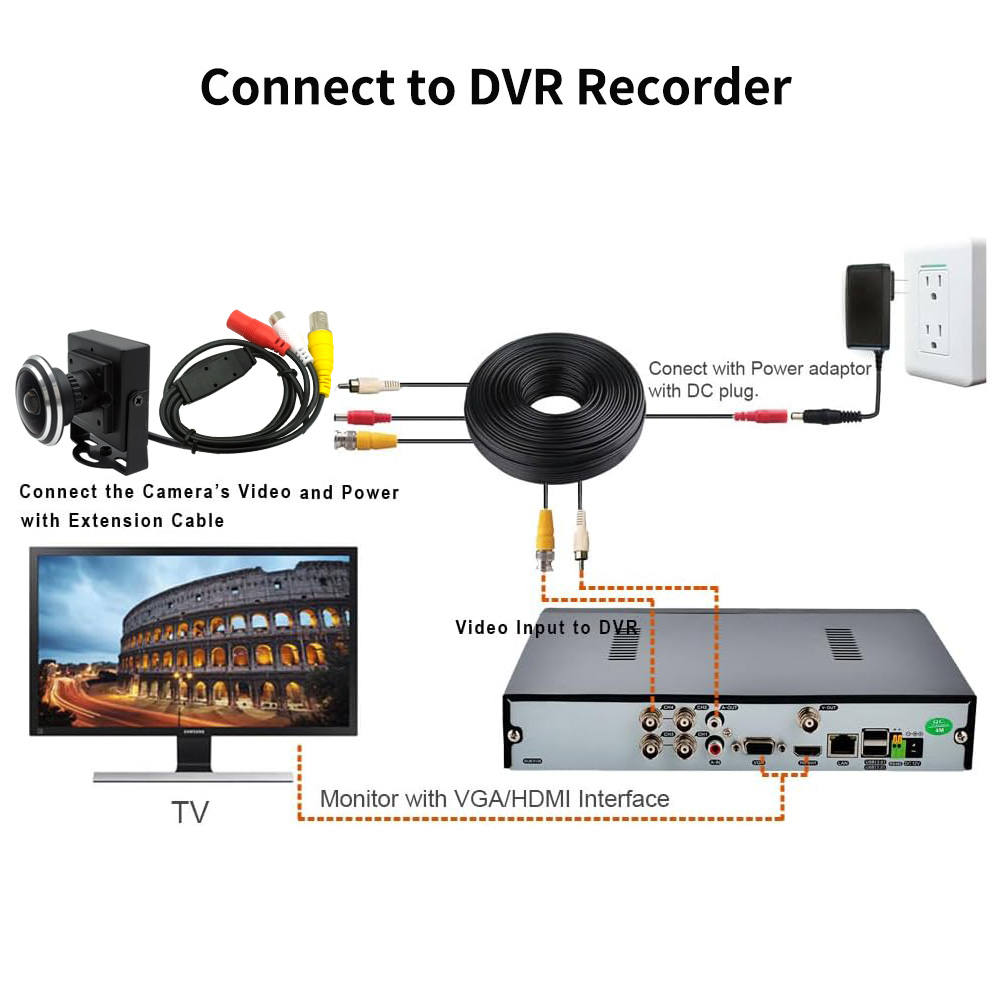

Advanced AHD Technology：Utilizing Analog High Definition transmission protocol for lossless image quality, long transmission distance, and strong anti-interference capabilities. Features the universal BNC interface, directly compatible with mainstream AHD DVRs on the market, requiring no drivers for plug-and-play operation that simplifies installation and reduces system integration complexity.
Application Scenarios
This wide angle CCTV camera is ideal for:
ATM security monitoring
Kiosk camera systems
Vending machine surveillance
Access control camera
Smart city terminals
Industrial security monitoring
Retail theft prevention systems
Customization Options
We understand the unique visual requirements of different applications and provide comprehensive OEM/ODM customization services to help you create differentiated products.
- Lens customization: specific focal length, field of view angle, distortion control
- Customized casing: Design dedicated casing, bracket, or fixing method based on your device structure
- Cable and Interface: Customize cable length and interface type
- Pixel customization: Different resolution and frame rate models available (including higher pixel 4MP, 5MP, 8MP, 12MP, 16MP)
