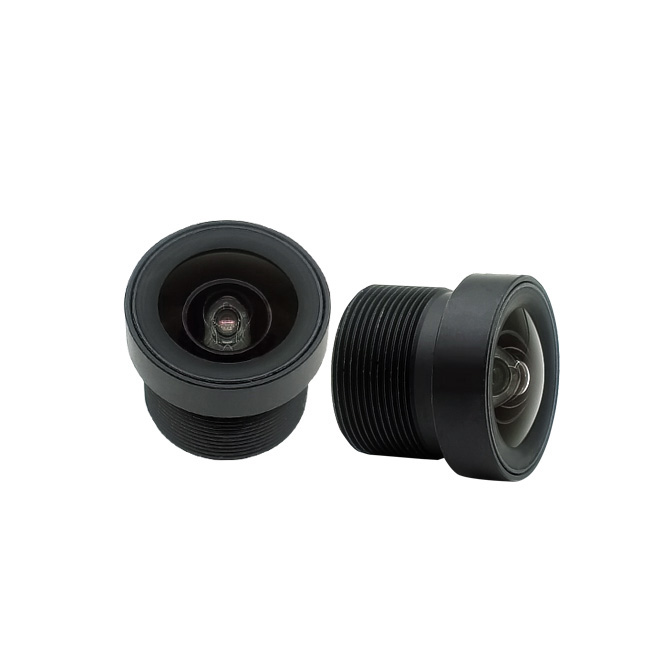

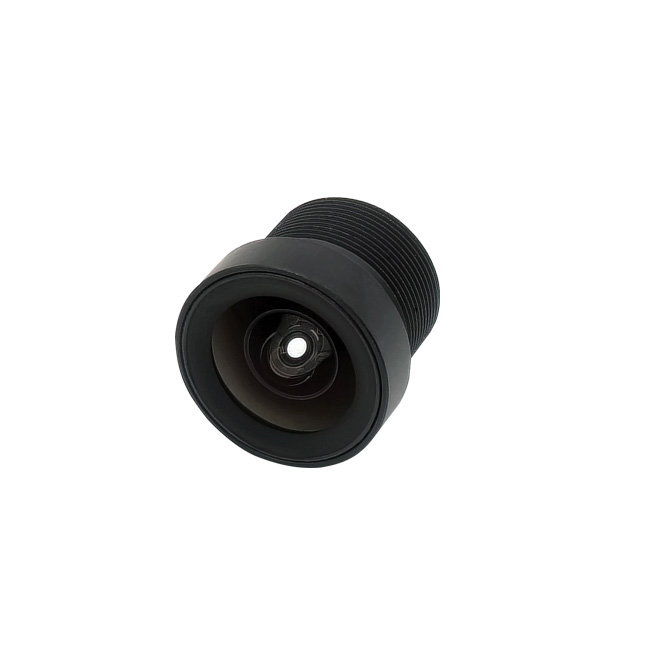

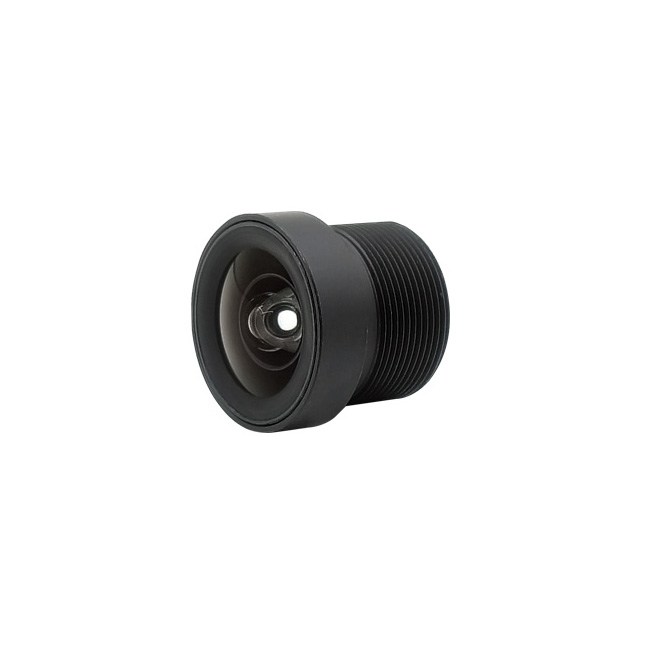

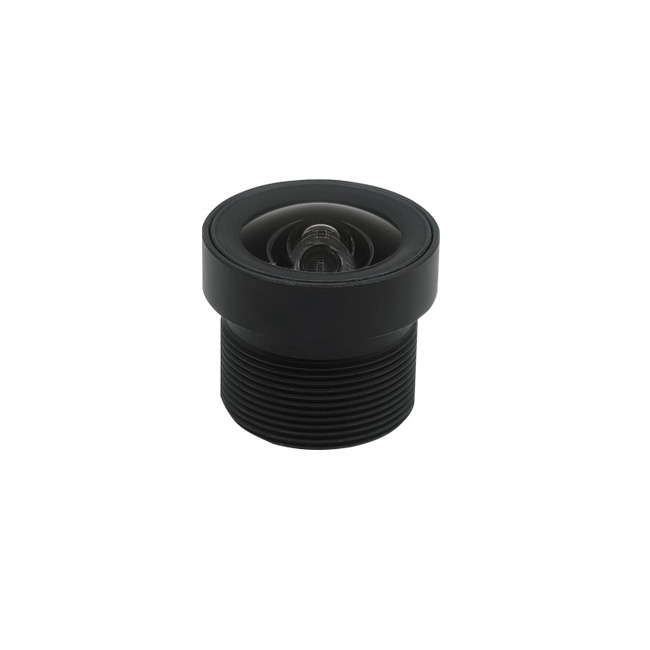

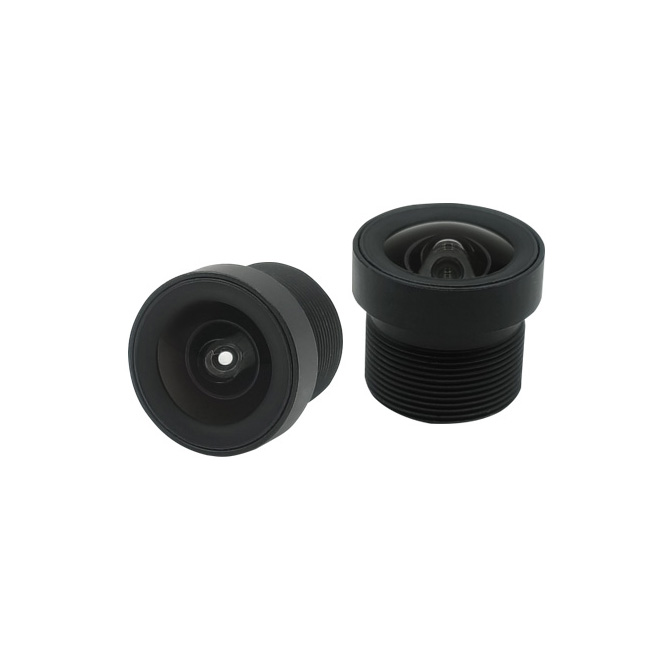

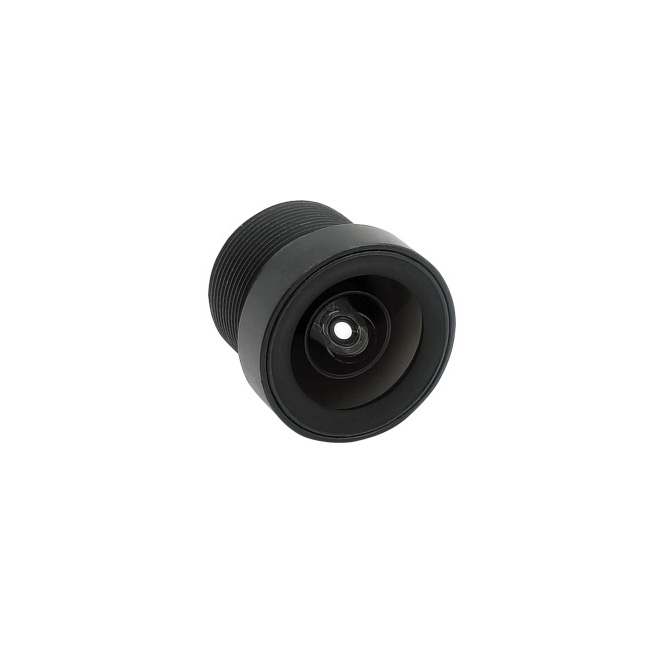

Name: 1/2.8" Wide Angle 110 Degree Distortion Free Lens
Brand: HCVSIGHT
SKU: 3948
Availability: InStock

1/2.8″ Wide Angle 110 Degree Distortion Free Lens

$6.39

2mm focal length distortion free high-definition lens, redefining the limits of wide-angle imaging! A wide-angle optical system designed specifically for industrial precision inspection, using a combination of 6 high transmittance glass lenses (6E) and a 1/2.8″ CMOS sensor, achieving a horizontal field of view angle of 110° (120° diagonally) and an edge distortion rate of 2.6%, completely solving the pain point of fish eye deformation. Standard M12×0.5 interface, compatible with mainstream industrial camera modules.

Availability: 1000 in stock

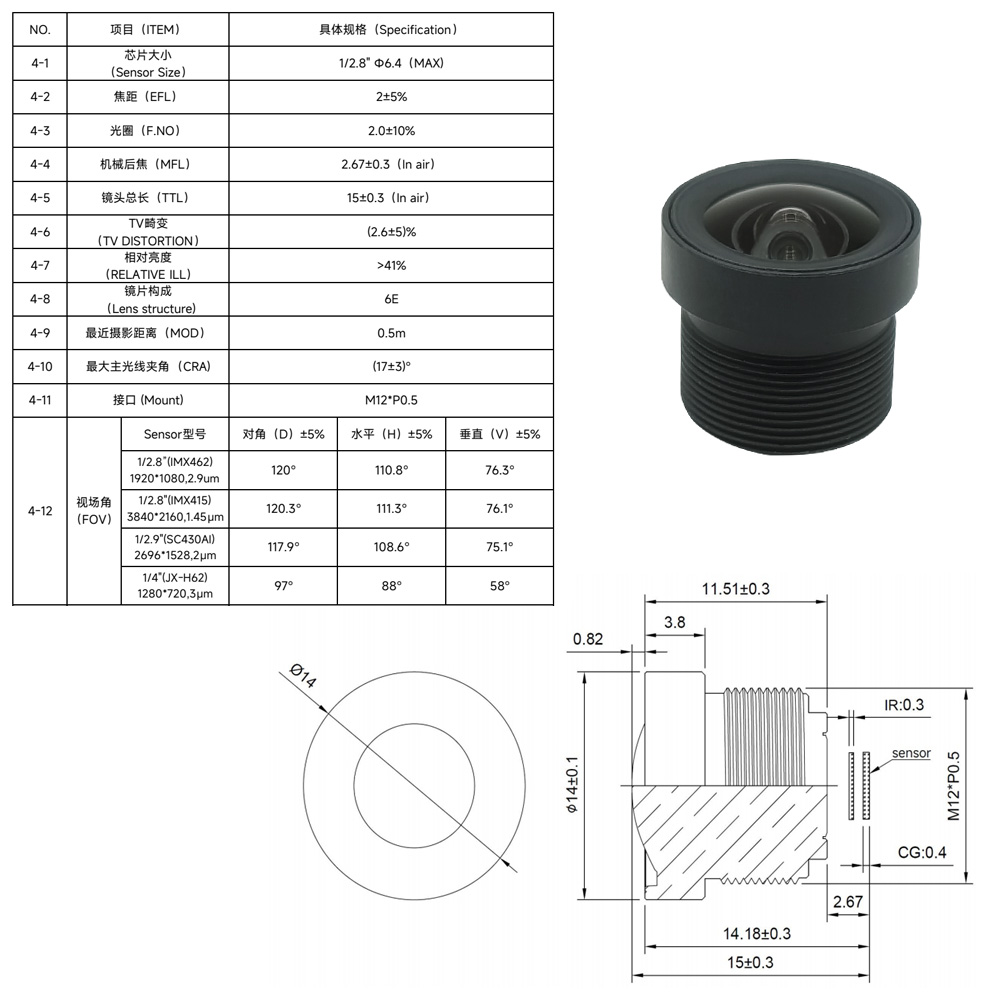

Specifications

Specification	Value
Sensor	1/2.8″
Pixel	2MP
Frame rate	1920X1080P
Model	HCU-WJBJT
Lens	E.F.L:2mm F.NO:2.0 TTL:15 Lens structure:6E Angle: D=120° H=110.8° V=76.3°
Thread Size	M12*P0.5

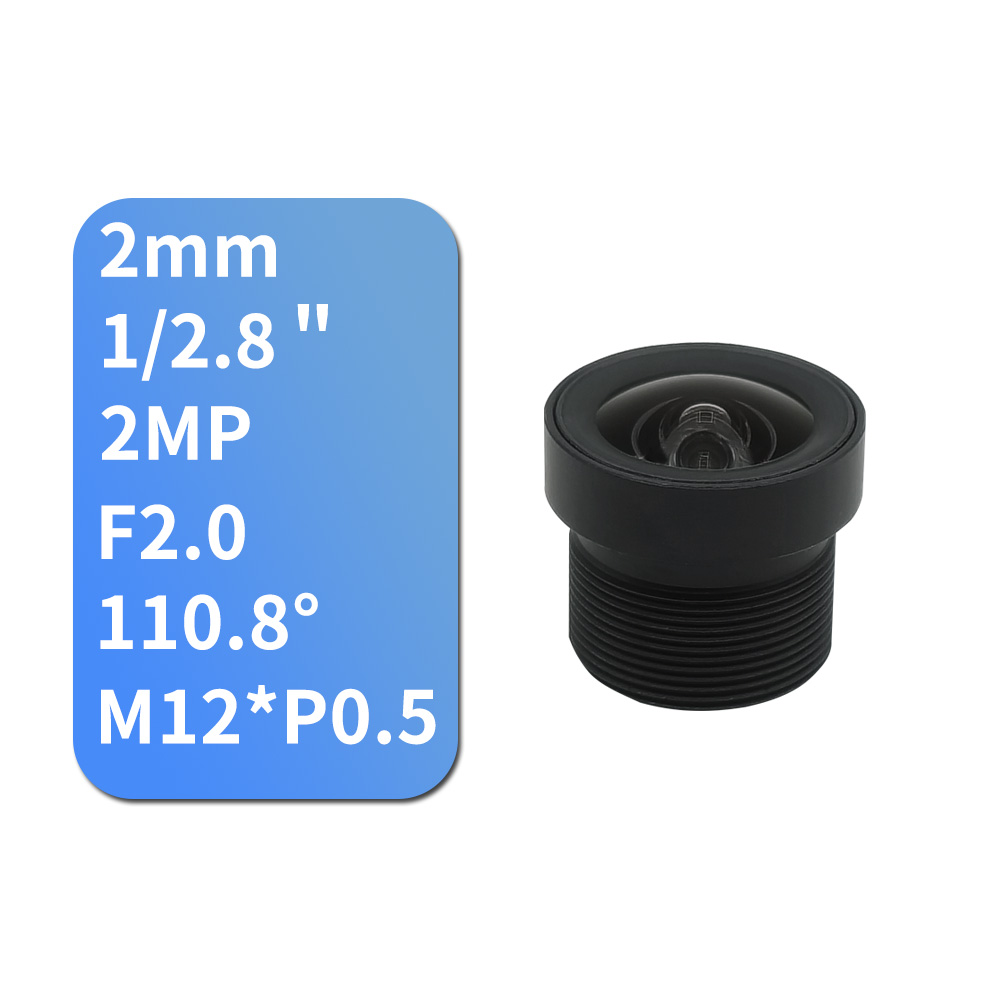

Core Features

Focal length: 2.0mm
Chip compatibility: 1/2.8″ sensor
Optical structure: 6 all glass lenses, multi-layer nano coating
Distortion control: Distortion 2.6%, relative brightness >41%
Interface standard: M12 × 0.5 thread
Ultra wide angle performance: 110° horizontal field of view coverage
Nearest photography distance: 0.5m

Application Fields

Precision industrial testing: full range scanning of PCB boards, SMT placement machine component positioning, LCD screen defect detection
Machine vision: AGV navigation wide-angle lens, robot obstacle avoidance system, stereo vision depth reconstruction
Intelligent security: Indoor and outdoor security monitoring, no blind spots in elevator car coverage
Intelligent access control: facial recognition, vehicle surround view system
