Technical Specifications
| Parameter | Value |
|---|---|
| Sensor | 1/2.9″CMOS |
| Pixel | 3MP |
| Compression format | H.264/H.265 |
| Frame rate | 1920X1080 25fps |
| Audio | Supports dual voice |
| Operating voltage | DC 12v |

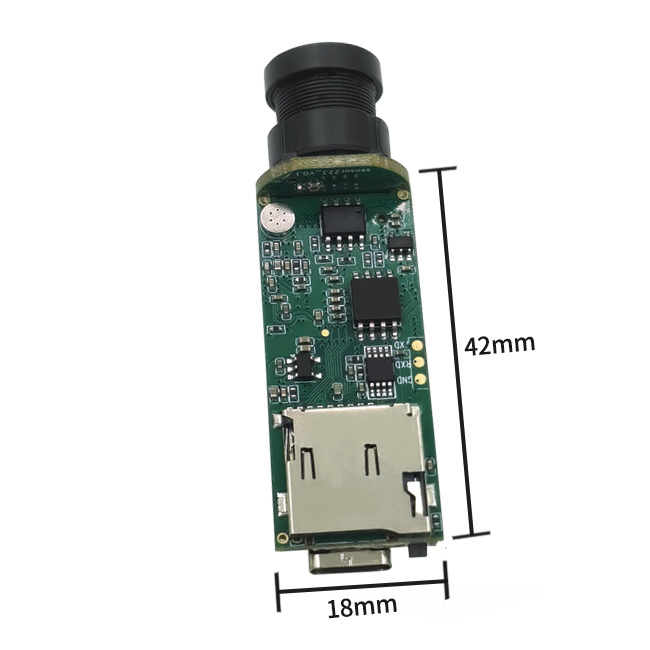

| Dimensions | 18mm x 42mm |
| Operating temperature | <70°C |
| Power consumption | 0.25w |
| Model No | HCW-M183 |
| Lens Specifications | EFL:2.8mm, F.ON:2.1, Distortion: <-89%, Element:4G+IR |
| FOV | 120° |
Product functions and features
- 3MP ultra clear image quality: using a high-sensitivity image sensor, with an effective pixel count of 3 million, it can output clear 1080P full HD images. The image quality is delicate and sharp, with details far exceeding those of ordinary million pixel cameras, and the night monitoring effect is also better.

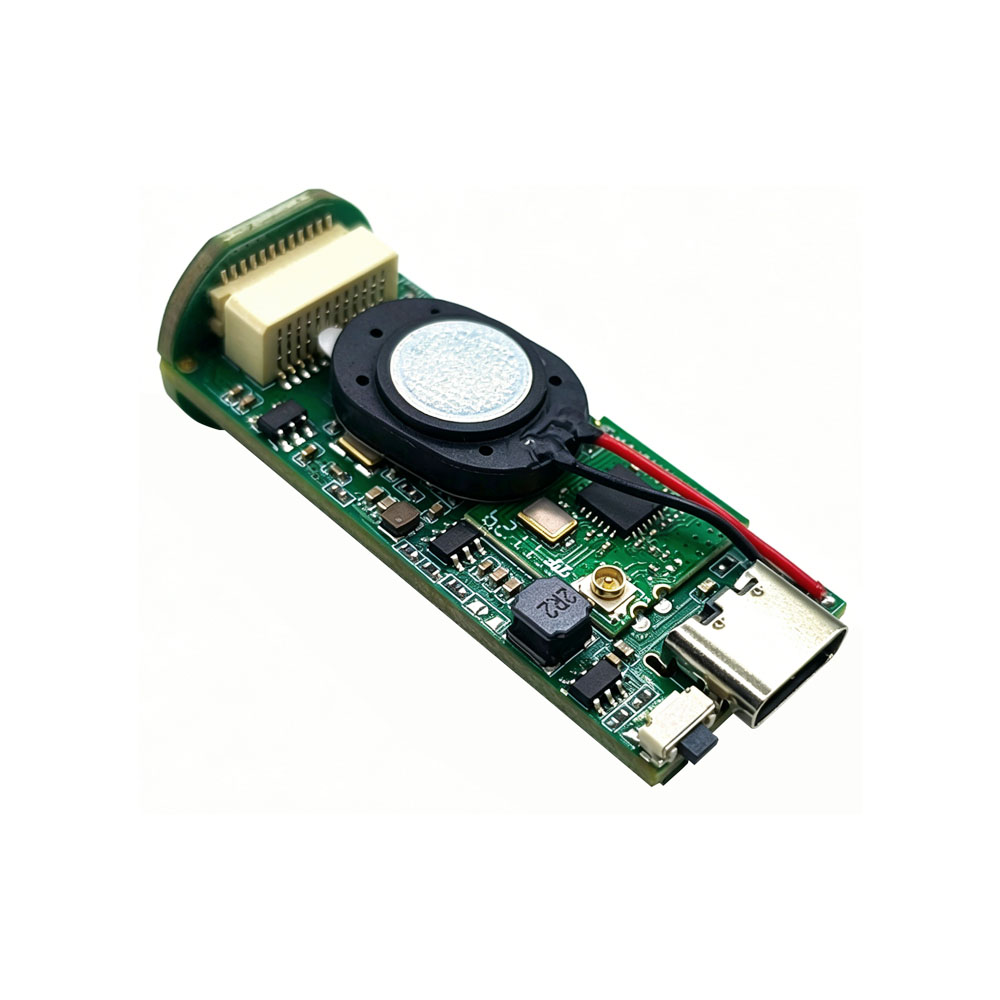

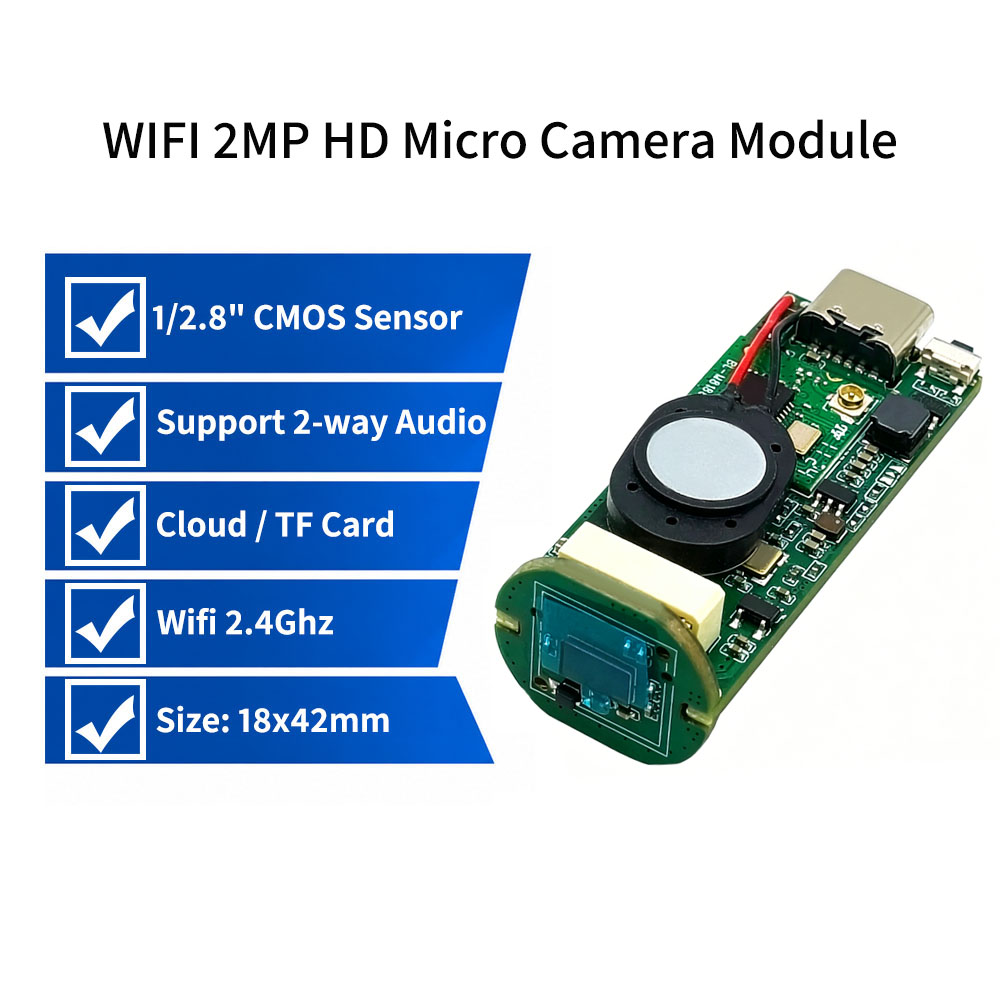

- Extremely mini and highly concealed: The T-shaped mini size of 18mmx42mm allows it to easily blend into various environments, whether installed inside smart devices, in corners of homes, or used as a portable device, it is highly concealed and not eye-catching.
- Full wireless WiFi connection: Supports H.264 WiFi wireless network, eliminating the hassle of traditional wiring. Only one distribution network is needed to achieve wireless connection of devices, with flexible and flexible installation locations, truly achieving “zero wiring” installation.

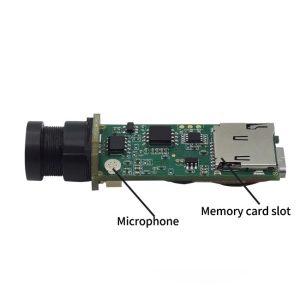

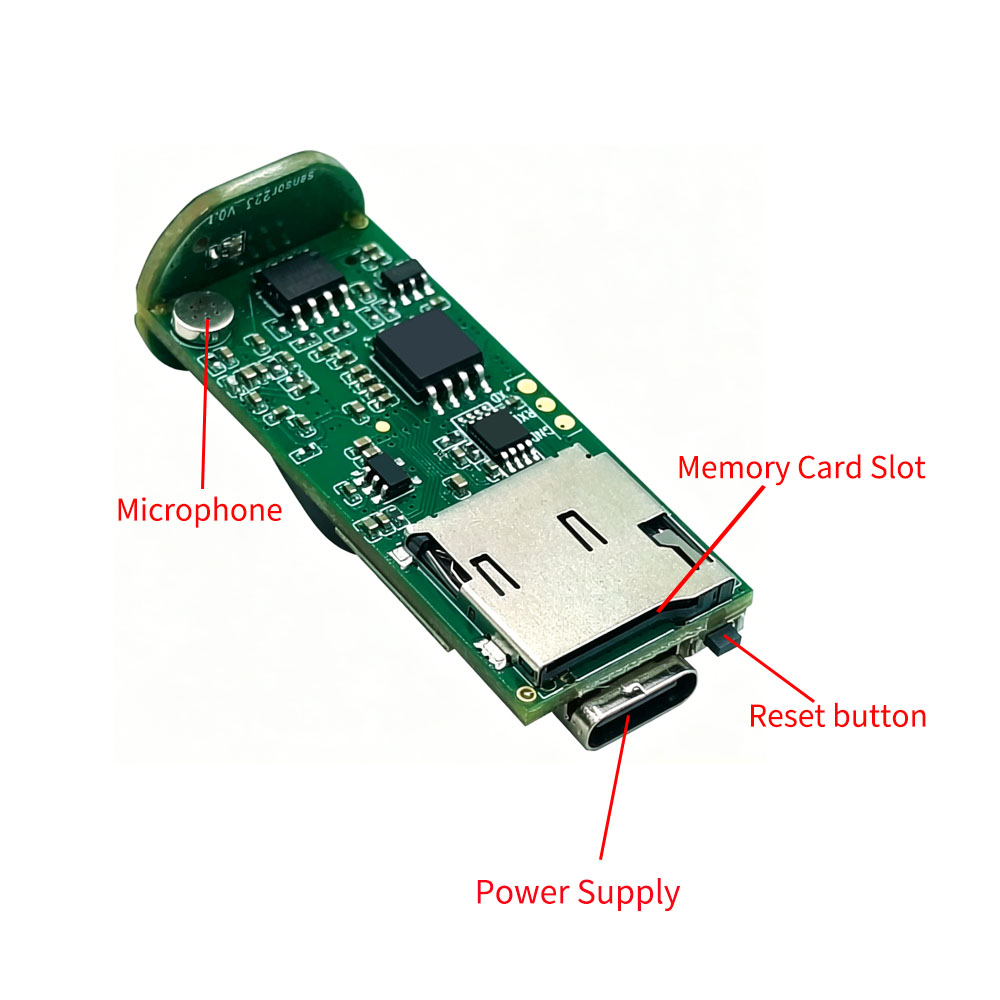

- Support SD card storage: Built in Micro SD card slot, supports up to 128GB (or 256GB, optional) storage, local recording, data security and privacy.
- Support cloud storage services: Provide optional cloud storage solutions, automatically upload video data to encrypted cloud drives, even if the device is damaged, important videos will not be lost, and dual insurance provides peace of mind.Local and cloud dual storage.
- Bidirectional real-time voice intercom: Equipped with a built-in microphone and speaker, it supports clear two-way voice calls with the other end of the camera through a mobile app. It can be used to greet family members, comfort pets, and even warn suspicious individuals, with strong interactivity.
- 120 ° Ultra Wide Angle Lens: Equipped with a 2.1mm focal length professional lens, it provides an ultra wide viewing angle of 120 ° diagonally, which can effectively cover a wider area and greatly reduce monitoring blind spots.
- Mobile APP remote intelligent control: Simply download a dedicated APP on your smartphone to remotely view real-time images, replay historical videos, receive motion detection alarm information, and perform settings anytime, anywhere. The management method is simple and intuitive.
Application Scenarios
Ideal for various machine vision and equipment monitoring applications including:
- ATM and banking equipment
- Medical reporting systems
- Vending machines and digital signage
- Industrial automation (robots, cranes, welding equipment)
- Fire water cannons and security surveillance
- Flame monitoring in power plants
- Mobile device external cameras
Customization Options
We are well aware of the unique visual requirements of different applications and provide comprehensive OEM/ODM customization services to help you create differentiated products.
1. Lens customization: specific focal length, field of view angle, distortion control.
2. Customized casing: Design a dedicated casing, bracket, or fixing method based on the structure of your device.
3. Pixel customization: Different resolution and frame rate models are available.
