Technical Specifications
| Parameter | Specification |
|---|---|
| Sensor | 1/2.9″CMOS |
| Pixel | 2MP |
| Compression format | MJPG/YUV2 |
| Frame rate | 1920X1080 30fps |
| Audio | Support |
| Operating voltage | DC 5v |

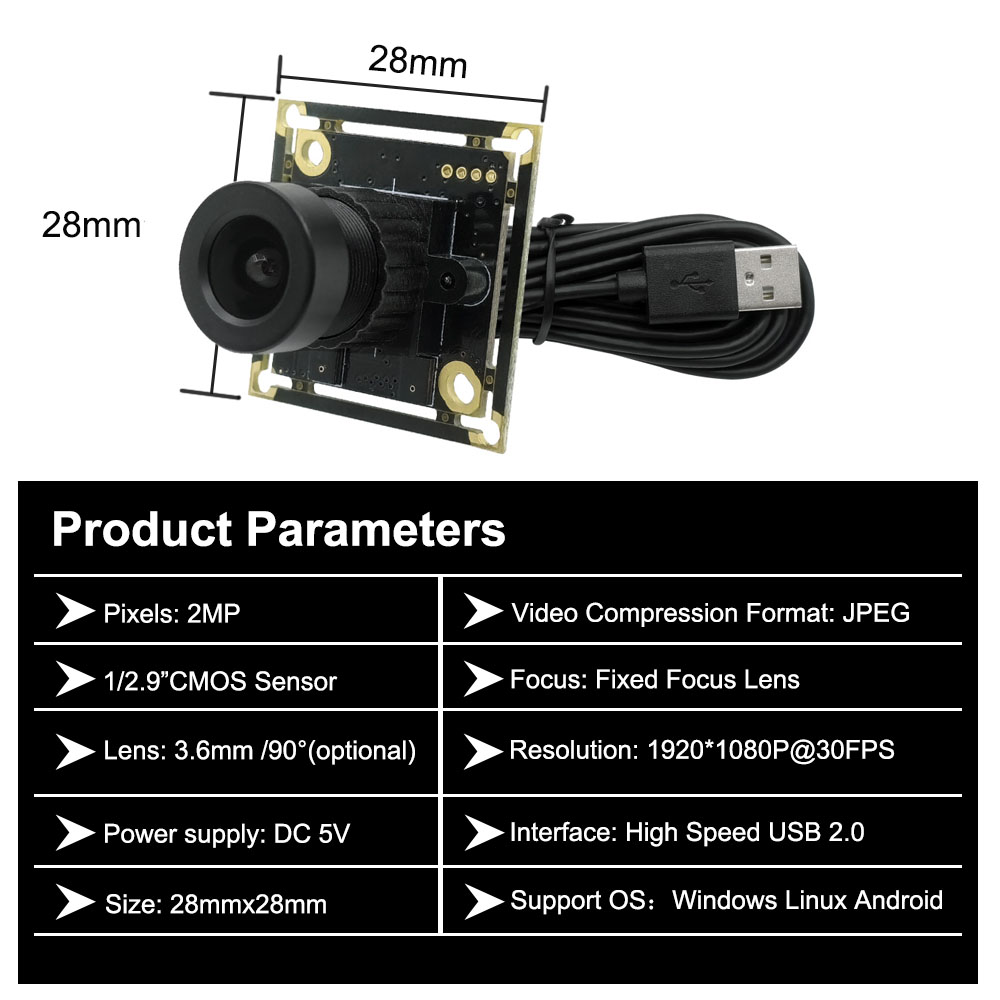

| Product dimensions | 28mm x 28mm |
| White balance | Automatic |
| Operating temperature | <70° |
| Power consumption | 0.25w |
| Model No | HC-MU2MP3.6-28 |
| Interface type | USB2.0 |

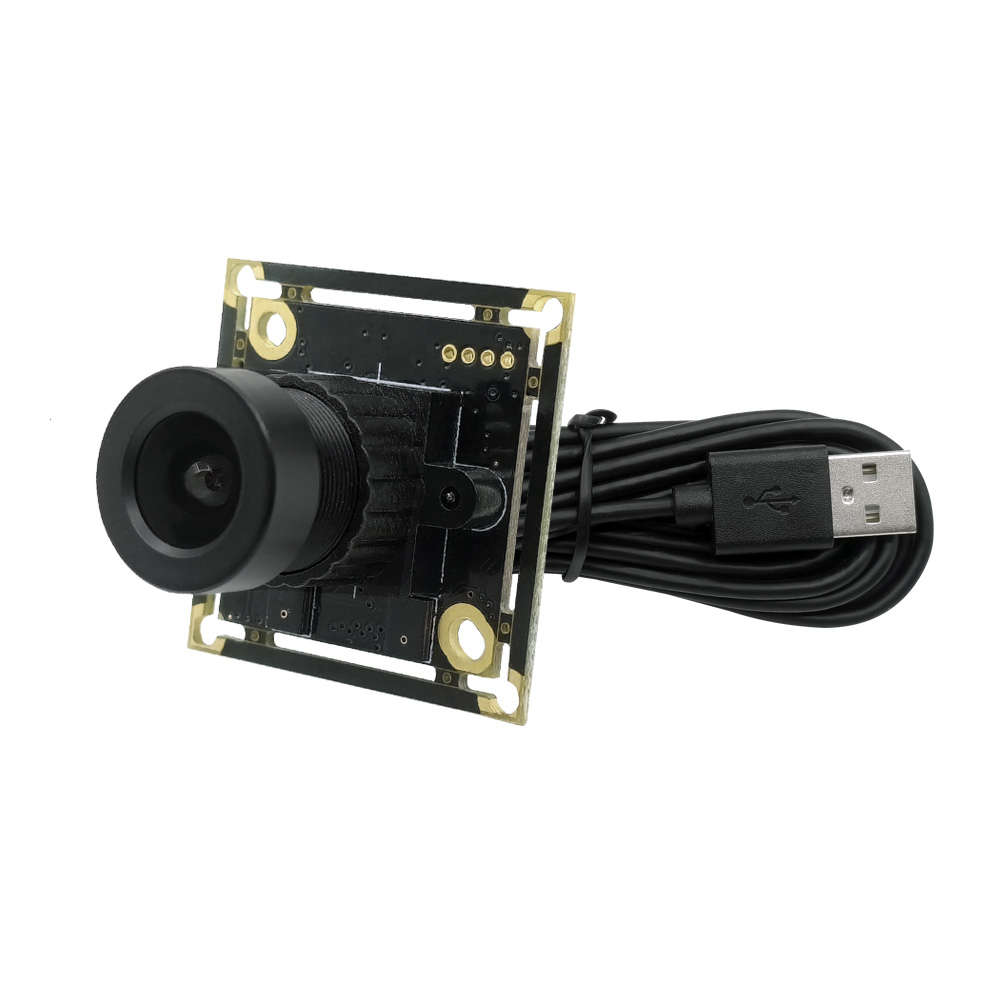

| USB cable length | 2m(customizable) |

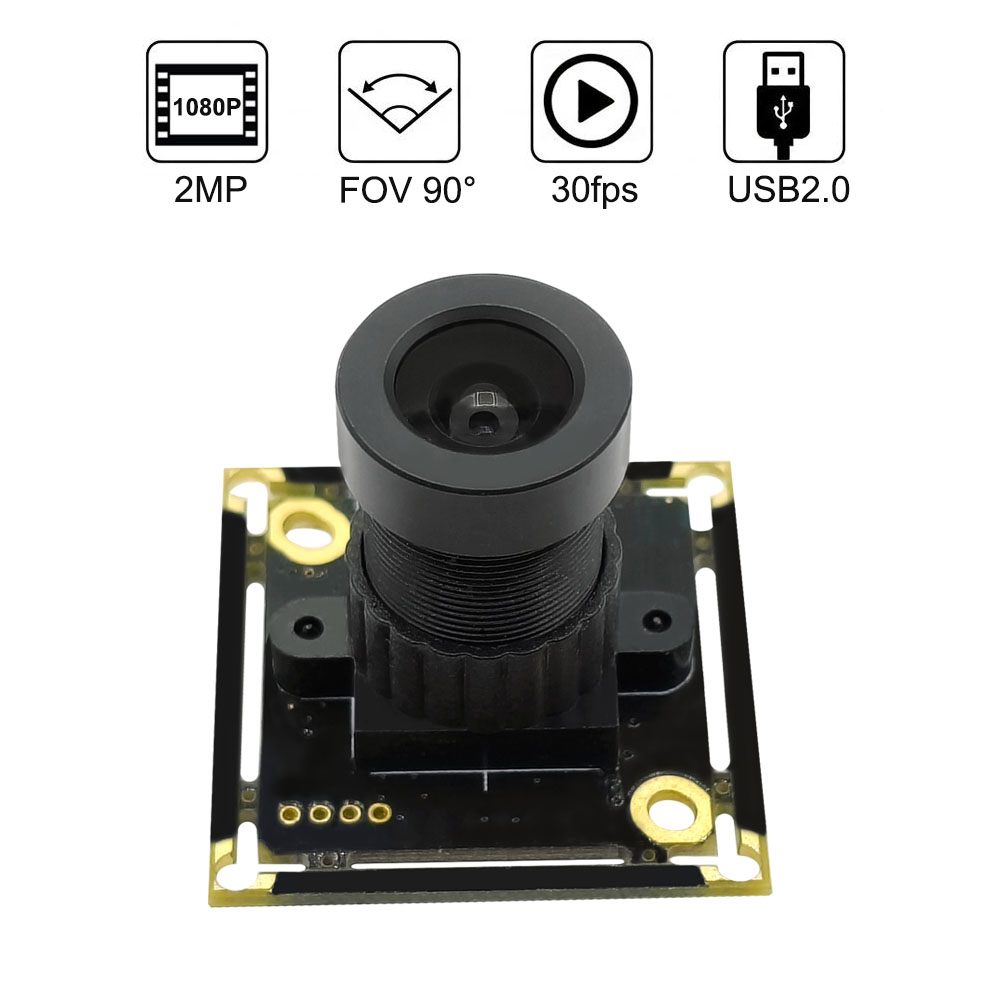

| FOV | 90 Degree |
| Operating Systems | Windows / Linux / Android / macOS |
Product functions and features

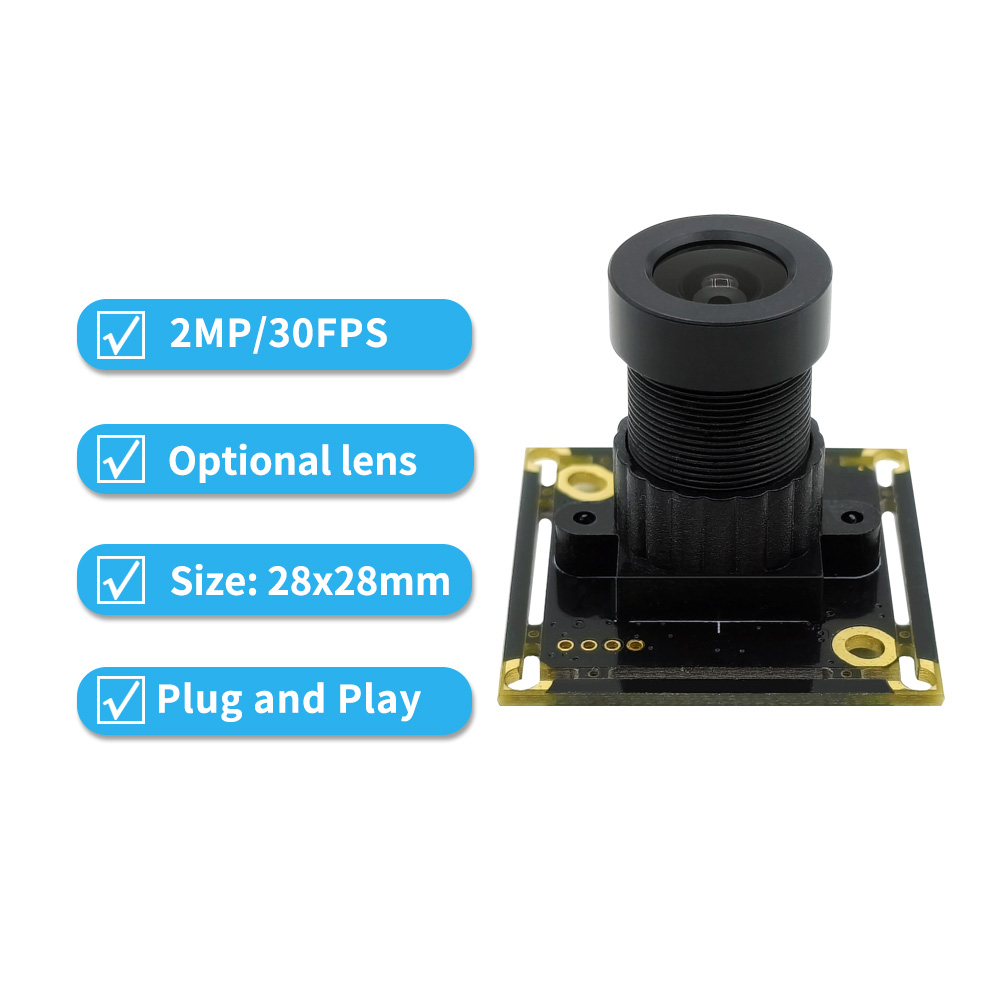

2MP HD Pixels: using advanced CMOS sensors, supporting up to 1920×1080@30fps Resolution, providing detailed and sharp high-definition images to meet the needs of precise recognition and detection.

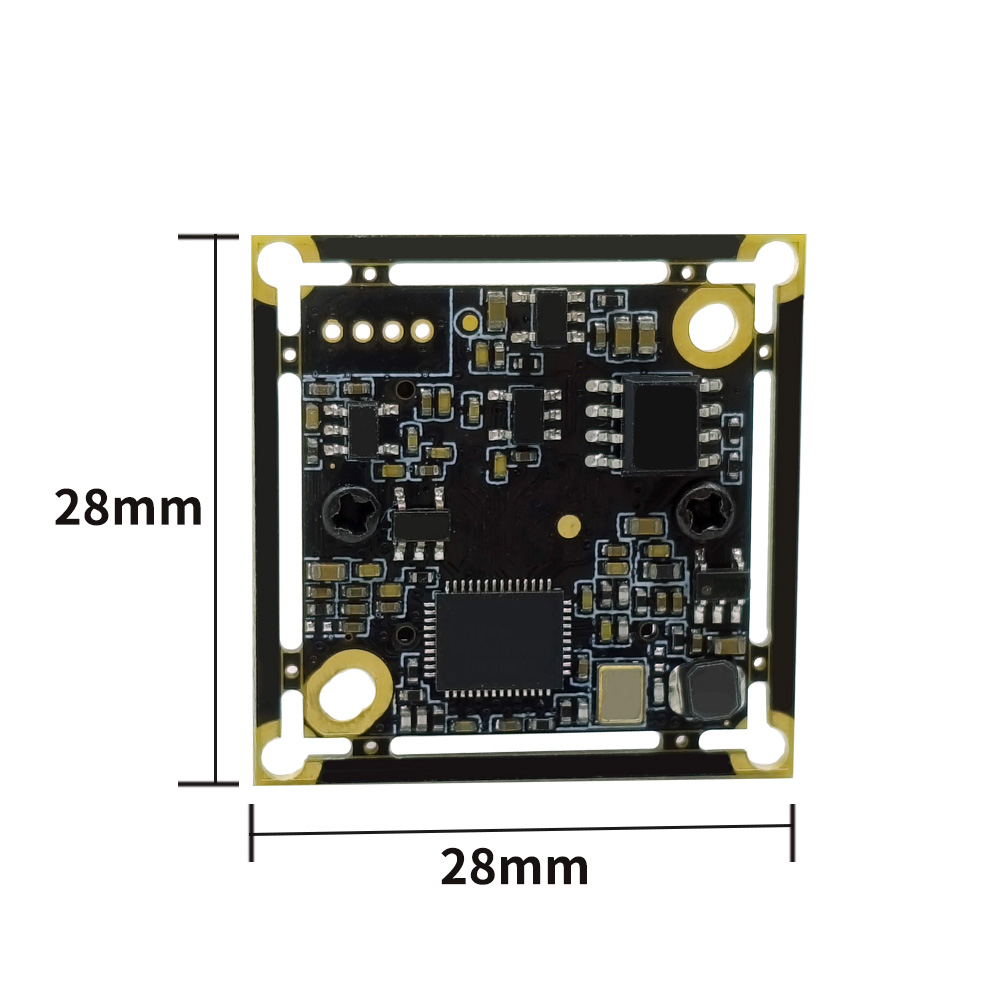

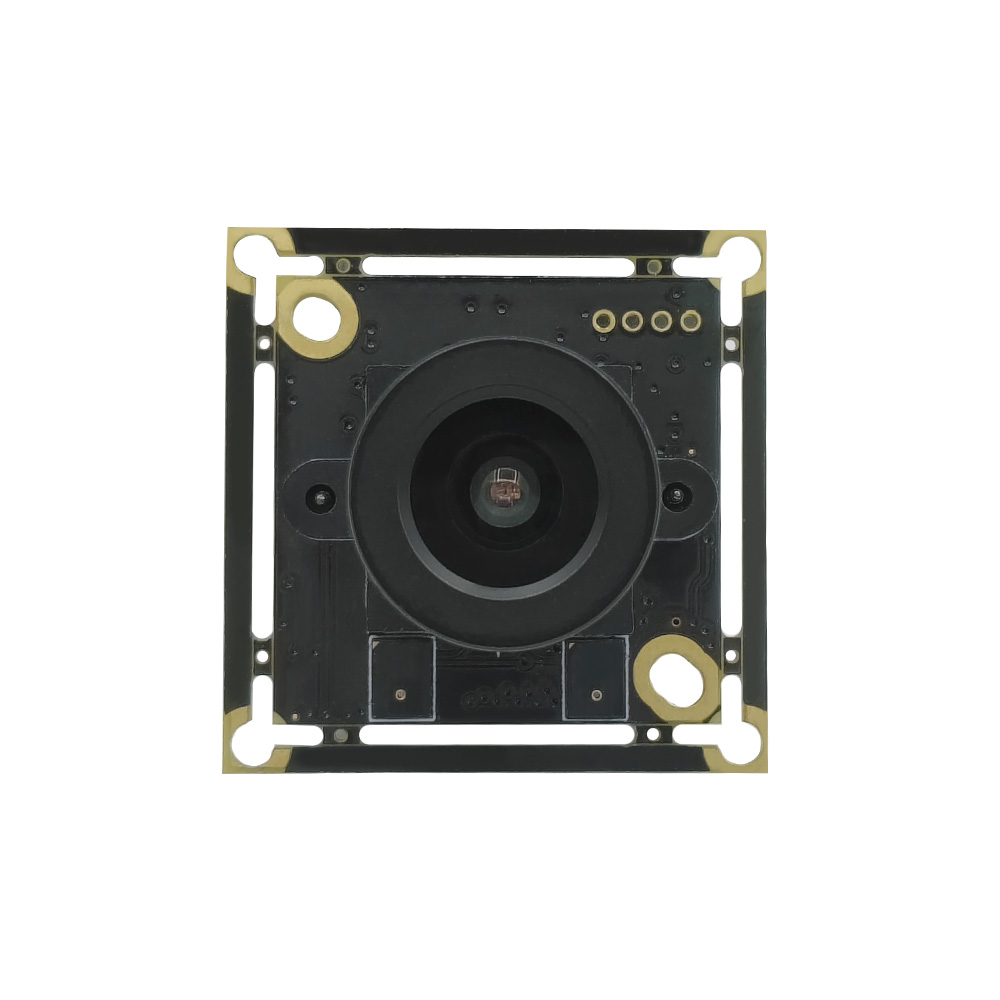

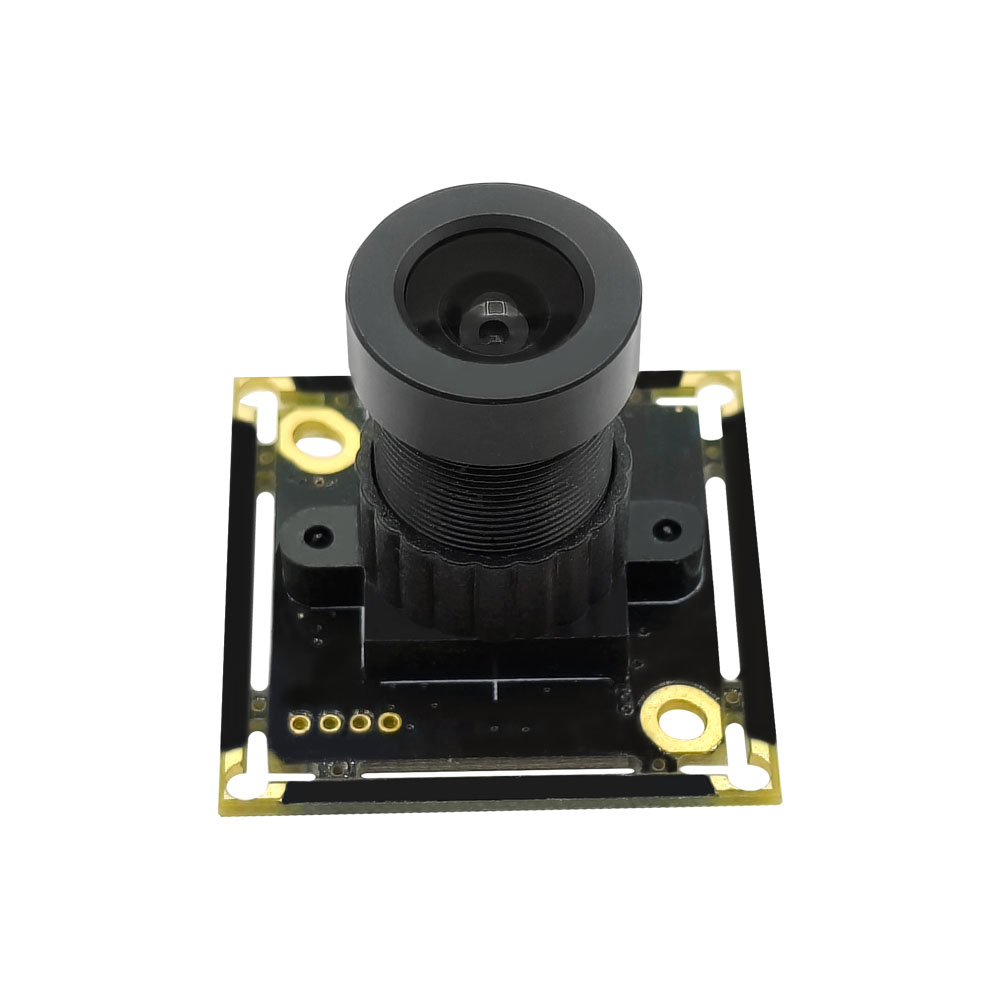

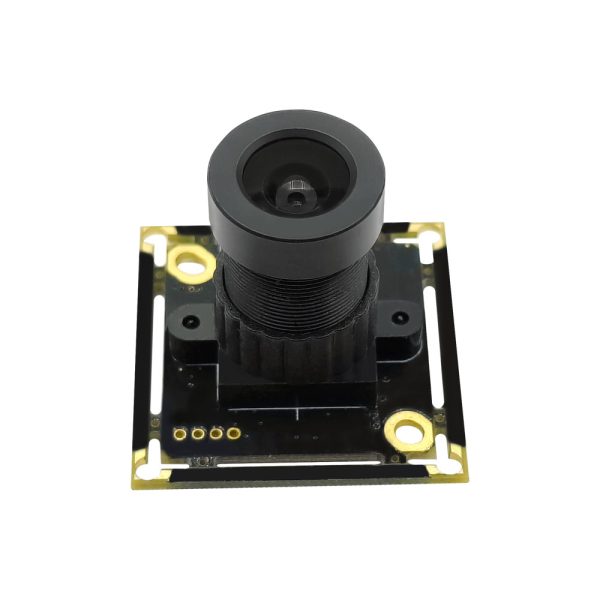

Ultra small size (28x28mm): The extremely exquisite PCB board design saves space and provides great flexibility for the internal structure design of the product, making it perfect for embedded devices with strict size requirements.
Smooth frame rate: Supports smooth output at 30fps in 1080P full HD mode, ensuring no ghosting or delay in dynamic images, suitable for tracking and analyzing moving objects.

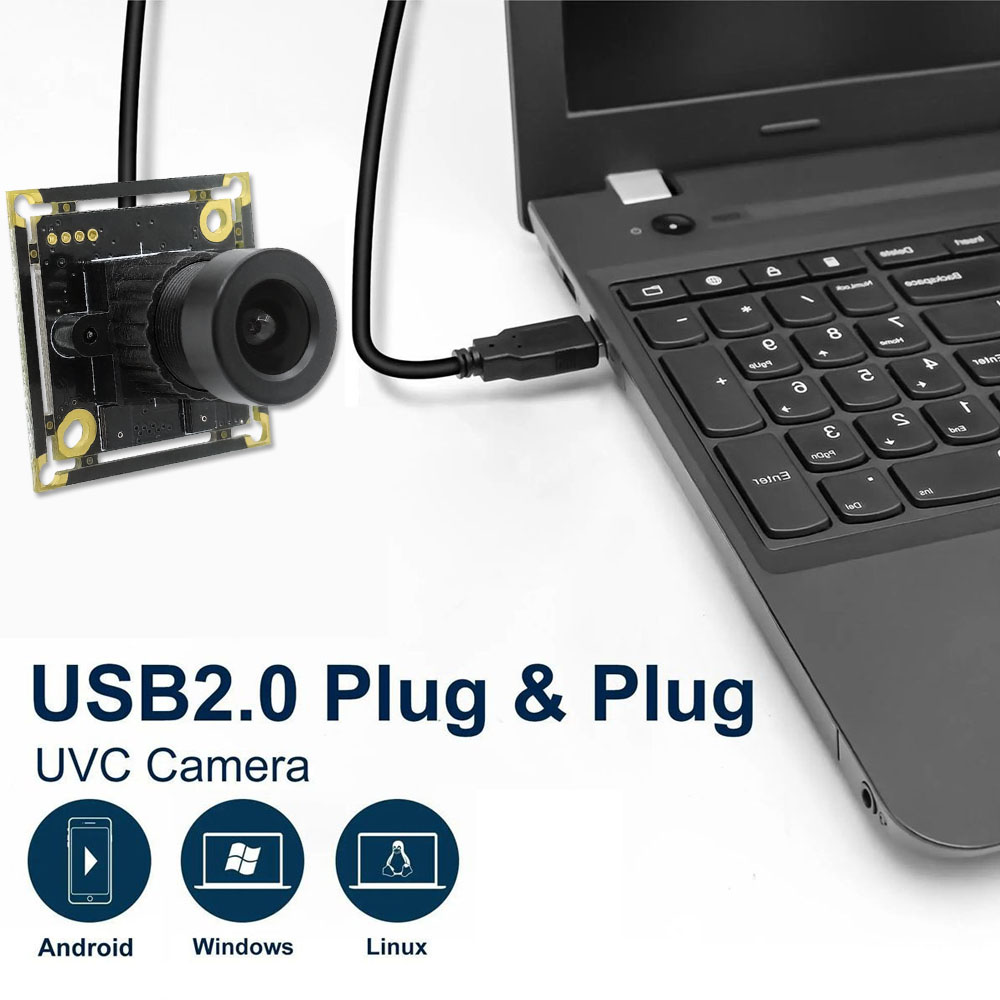

USB 2.0 high-speed interface: Standard USB interface, plug and play, strong compatibility, can easily connect various development boards and smart terminals such as PCs and laptops.
High compatibility driver: Supports UVC protocol and can run without installing additional drivers on various operating systems such as Windows, Linux, Android, Mac OS, etc.
Ultra small size (28x28mm): The extremely exquisite PCB board design saves space and provides great flexibility for the internal structure design of the product, making it perfect for embedded devices with strict size requirements.
Smooth frame rate: Supports smooth output at 30fps in 1080P full HD mode, ensuring no ghosting or delay in dynamic images, suitable for tracking and analyzing moving objects.
USB 2.0 high-speed interface: Standard USB interface, plug and play, strong compatibility, can easily connect various development boards and smart terminals such as PCs and laptops.
High compatibility driver: Supports UVC protocol and can run without installing additional drivers on various operating systems such as Windows, Linux, Android, Mac OS, etc.
Customization Options
We are well aware of the unique visual requirements of different applications and provide comprehensive OEM/ODM customization services to help you create differentiated products.
1. Lens customization: specific focal length, field of view angle, distortion control.
2. Customized casing: Design a dedicated casing, bracket, or fixing method based on the structure of your device.
3. Cable and Interface: Customize cable length and interface type.
4. Pixel customization: Different resolution and frame rate models are available.
Product application areas
Machine Vision and Industrial Automation: Dimensional Measurement, Product Positioning, QR Code/Barcode Recognition, Defect Detection, Automated Production Line Quality Control.
Artificial intelligence and educational research: facial recognition, gesture recognition, object tracking, machine learning model training, robotics.
Intelligent office and security monitoring: high-definition video conferencing system, facial recognition access control/attendance machine, smart doorbell, small monitoring equipment.
Intelligent retail and the Internet of Things (IoT): smart vending cabinets, customer flow tracking systems, behavior analysis, and the “eyes” of IoT devices.
Embedded and consumer electronics: integrated into drones, intelligent robots, AR/VR devices, and in vehicle assistance systems as visual input unit.
Artificial intelligence and educational research: facial recognition, gesture recognition, object tracking, machine learning model training, robotics.
Intelligent office and security monitoring: high-definition video conferencing system, facial recognition access control/attendance machine, smart doorbell, small monitoring equipment.
Intelligent retail and the Internet of Things (IoT): smart vending cabinets, customer flow tracking systems, behavior analysis, and the “eyes” of IoT devices.
Embedded and consumer electronics: integrated into drones, intelligent robots, AR/VR devices, and in vehicle assistance systems as visual input unit.
